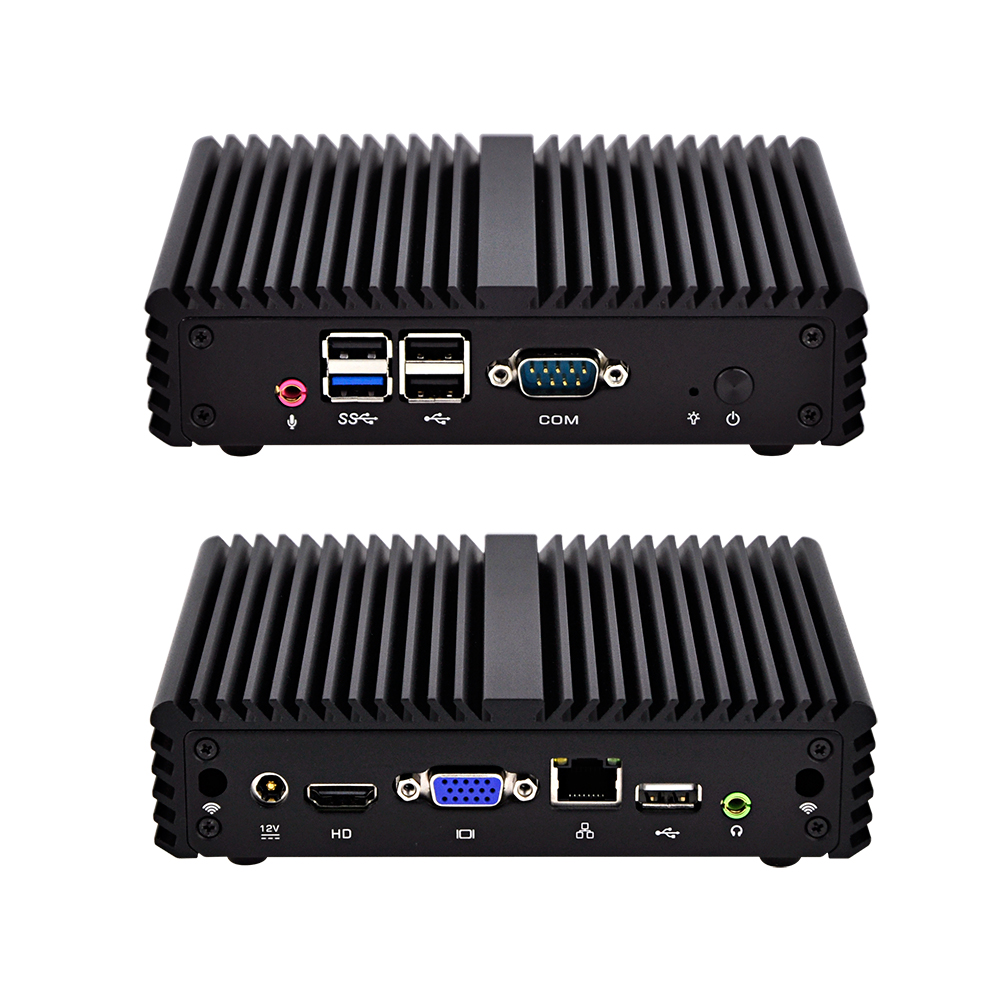

Mini PC Q10100N S07 Series
Q10100N features Bay Trail CPU, VGA+HDMI, 1× RS-232, 5× USB, Mini PCIe, mSATA, and 1× Gigabit LAN. A cost-effective solution for industrial automation and terminals.
Main Features
Intel Bay Trail Processor
1 × VGA, 1 × HDMI, 1 × RS-232
1 × USB 3.0, 4 × USB 2.0
1 × Mini PCIe, 1 × mSATA
1 × Realtek Gigabit LAN
| Processor System | |
| CPU | Intel Bay Trail Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 1 × Realtek Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | No |

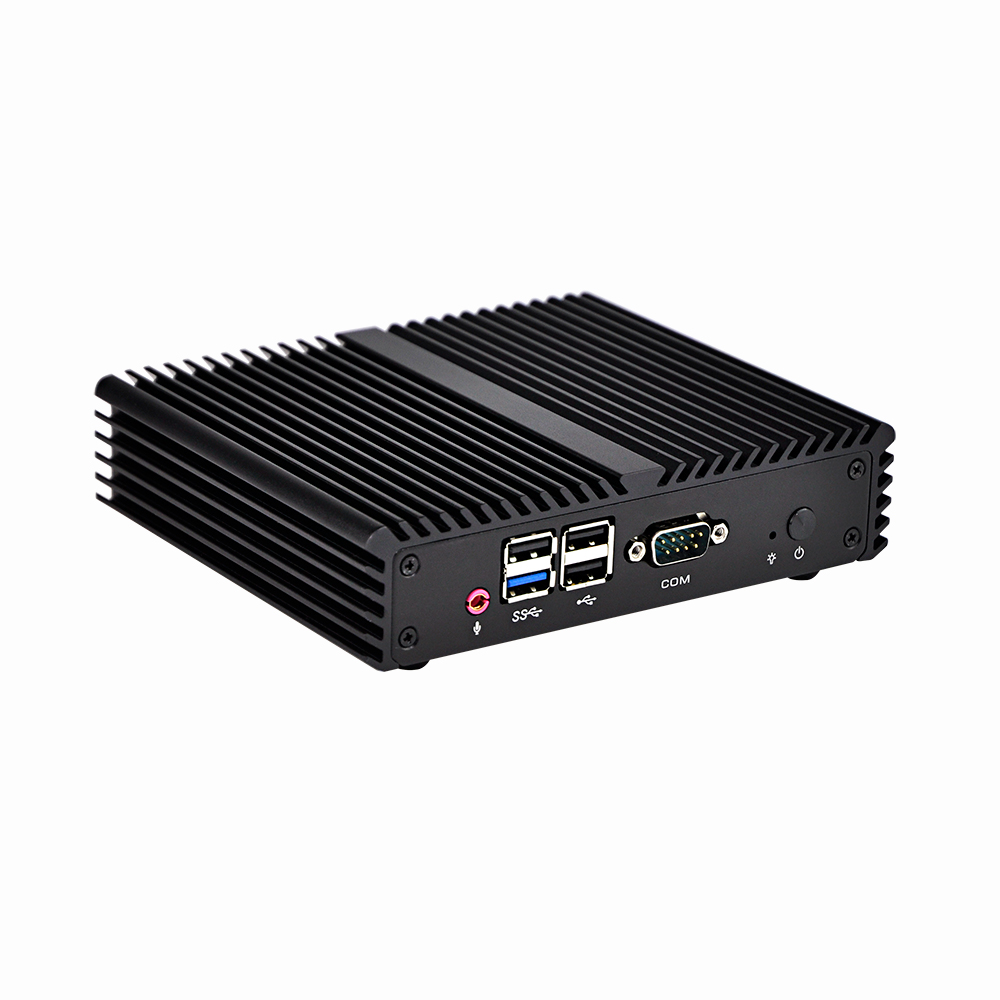

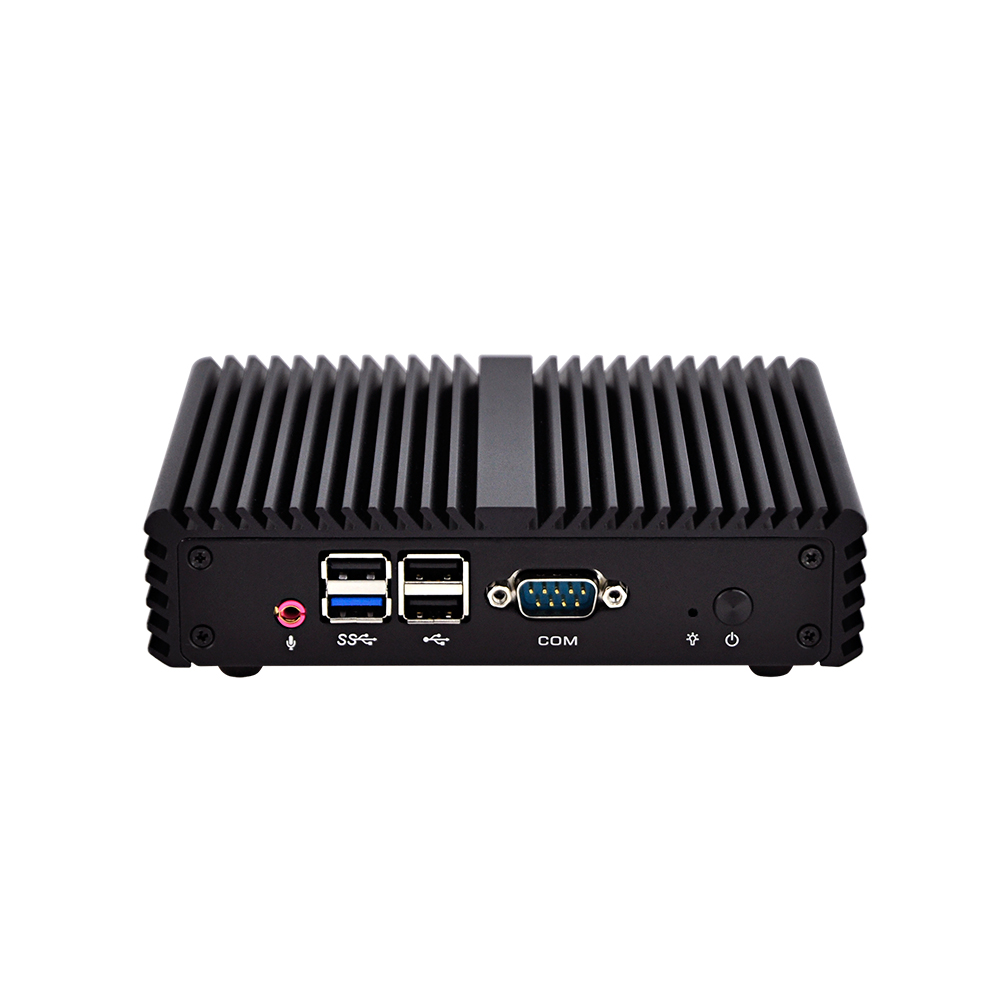

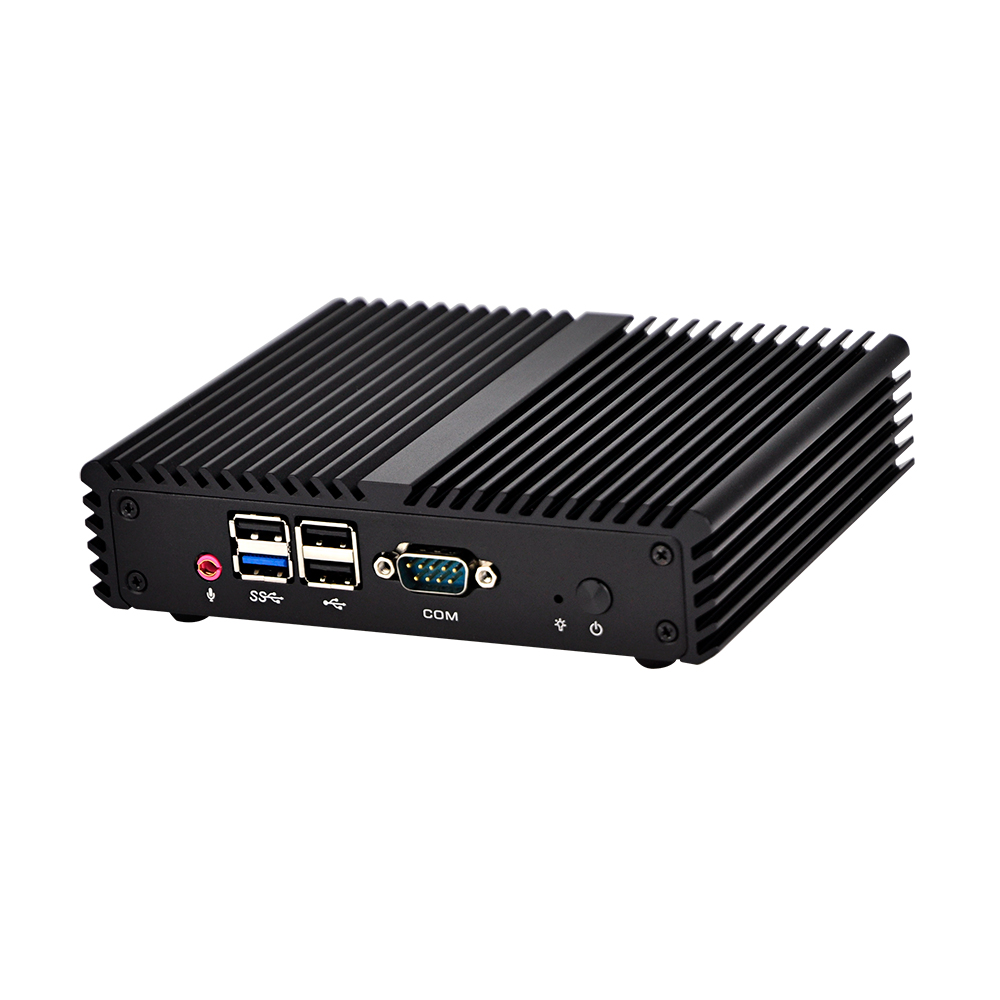

| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED |
| Serial Port | 1 × RS-232 (COM1) |
| USB | 1 × USB 3.0, 3 × USB 2.0 |
| Audio | 1 (Mic-in) |

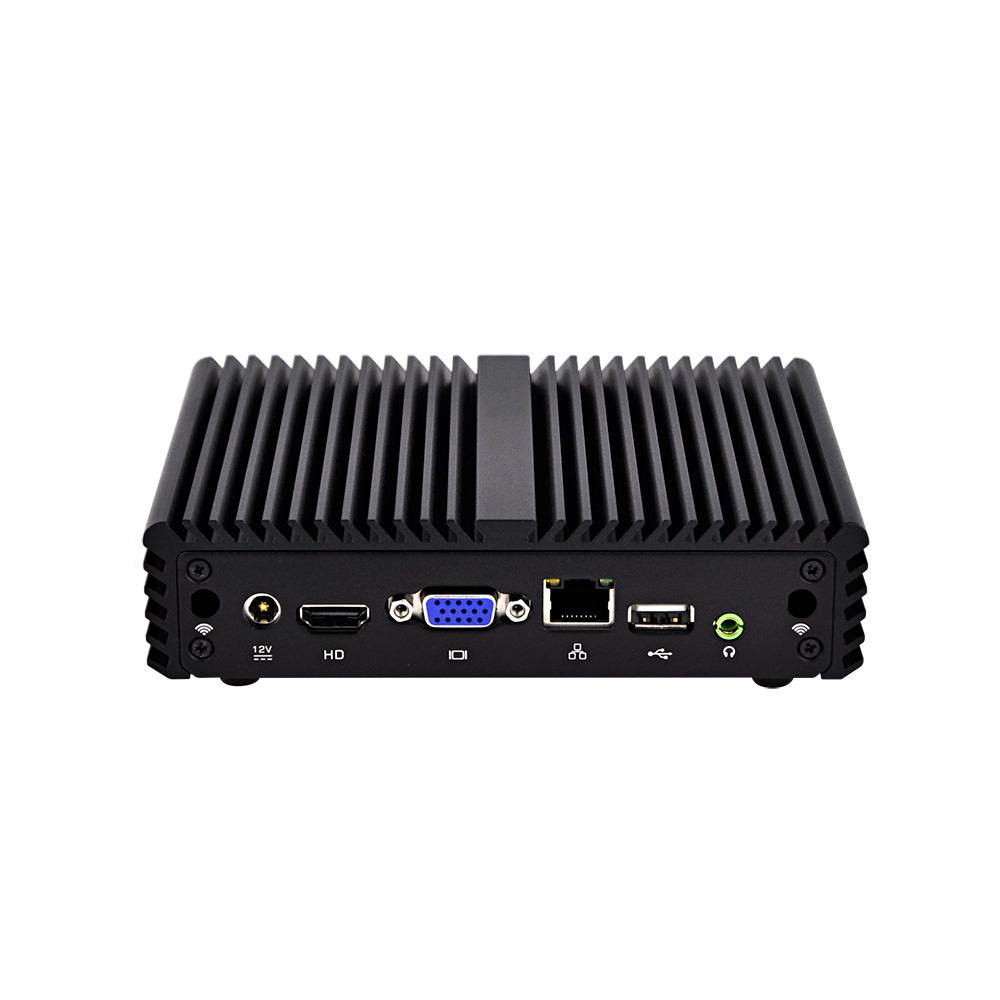

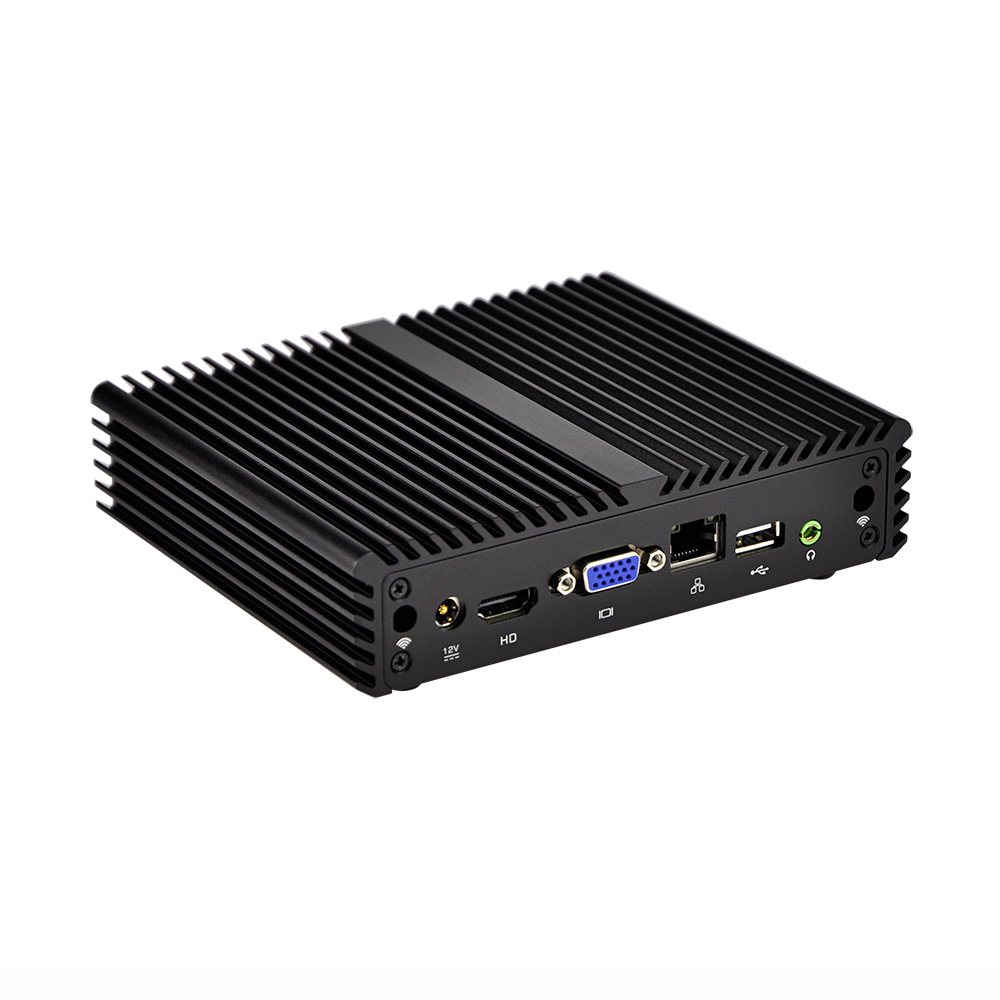

| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 1 × HDMI, 1 × VGA |
| LAN | 1 × Realtek Gigabit LAN |
| USB | 1 × USB 2.0 |
| Audio | 1 (Line-out) |
| Serial Port | 0 |
| Storage | |
| Type | 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| Mini PCIe | 1 × Half-length Mini PCIe for Wi-Fi |
| SIM Card Slot | 0 |
| AutoStart Jumper | No |
| CMOS Clear Jumper | No |
| GPIO | No |
| VGA | 0 |
| DC-in | No |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 155 × 127 × 36mm |
| Weight | 0.82kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | Windows 7, Windows 8, Windows 10, Linux |
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
Ordering and Specifications Information
Quick Order Model: Q190N-S07
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
Q180N (Q10111N) | S07 | Bay trail | Celeron | J1800 | 2 | 2 | 2.41Ghz | 2.58Ghz | 1M | Intel HD Graphics | 10W |
Q190N (Q10121N) | S07 | Bay trail | Celeron | J1900 | 4 | 4 | 2.00Ghz | 2.42Ghz | 2M | Intel HD Graphics | 10W |
Q192N (Q10122N) | S07 | Bay trail | Celeron | N2920 | 4 | 4 | 1.86Ghz | 2.0Ghz | 2M | Intel HD Graphics | 7.5W |
PC Case Options
| Category | SATA Support |
| S01 | - |
| S02 | Yes |
| S07 | - |
| S08 | Yes |
Custom Options
| Category | Description |
| USB 2.0 | 1 |
| LAN | 1 |
| Serial Port | 3 × RS-232 |
