Mini PC Q10500N S11 Series
Q10500N fanless mini PC with Intel Gemini Lake/Gemini Lake-R CPU, HDMI, USB 3.0, mSATA, M.2, and 1× Realtek Gigabit LAN, ideal for compact embedded applications.
Main Features
Intel Gemini Lake Processor
Intel Gemini Lake-R Processor
1 × HDMI
2 × USB 3.0, 2 × USB 2.0
1 × M.2, 1 × mSATA
1 × Realtek Gigabit LAN
| Processor System | |
| CPU | Intel Gemini Lake Processor Intel Gemini Lake-R Processor |
| CPU TDP | By CPU |
| Memory | 4GB, Integrated (Up to 8G) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 1 × Realtek Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |

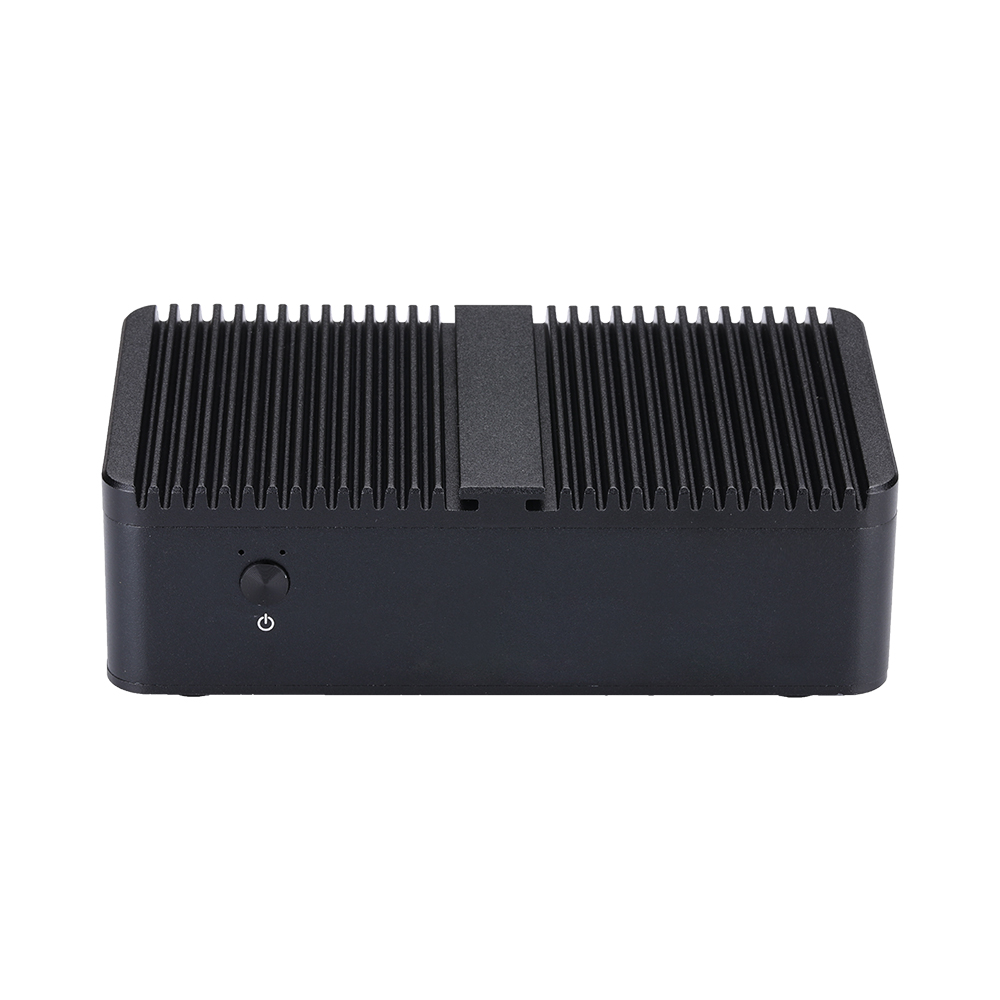

| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| Serial Port | 0 |

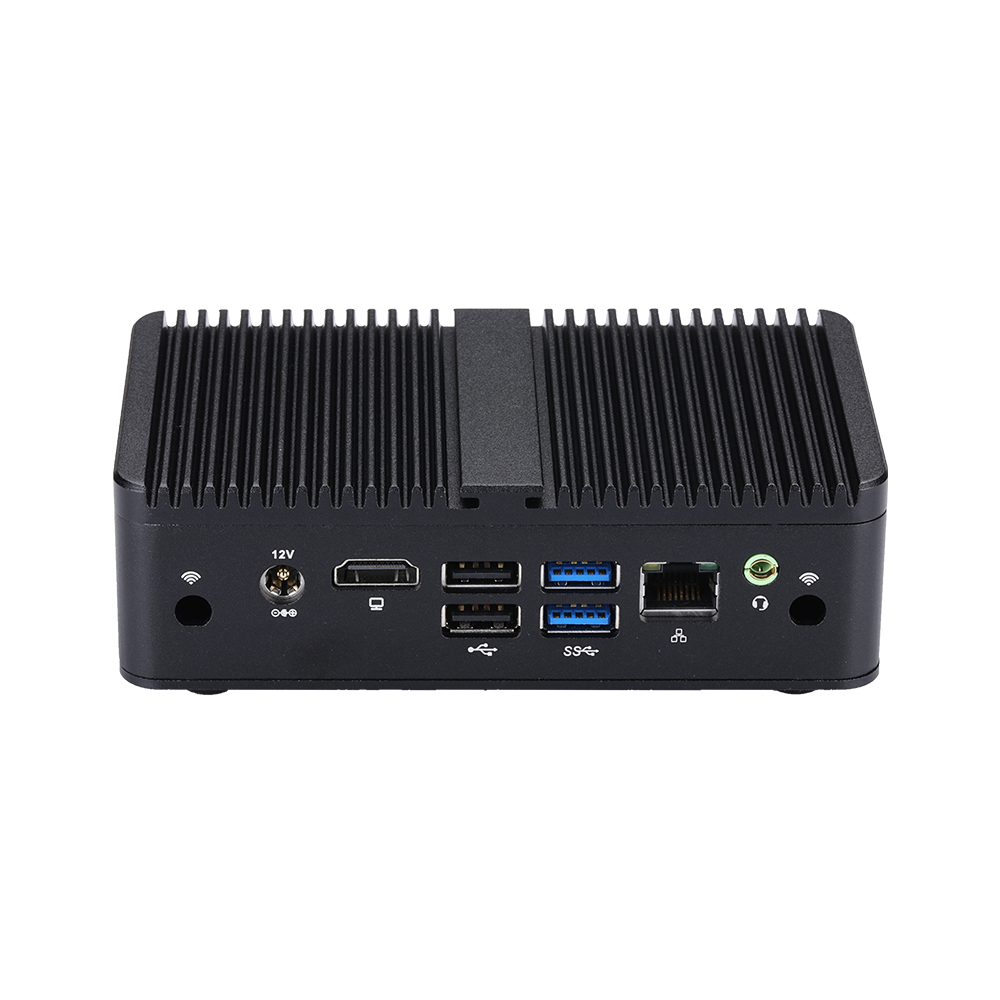

| Rear I/O | |
| Power | 1 × DC Jack |
| USB | 2 × USB 2.0, 2 × USB 3.0 |
| LAN | 1 × Realtek Gigabit LAN |
| Video Output | 1 × HDMI |
| Audio | 1 (Mic-in, Line-out) |
| Storage | |
| Type | 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| EDP | 1 |
| Front Audio | 1, 2 × 5Pin, Pitch 2.0mm |
| Front Panel header | 1, 2 × 5Pin, Pitch 2.0mm |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 136 × 77 × 40mm |
| Weight | 0.41kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |

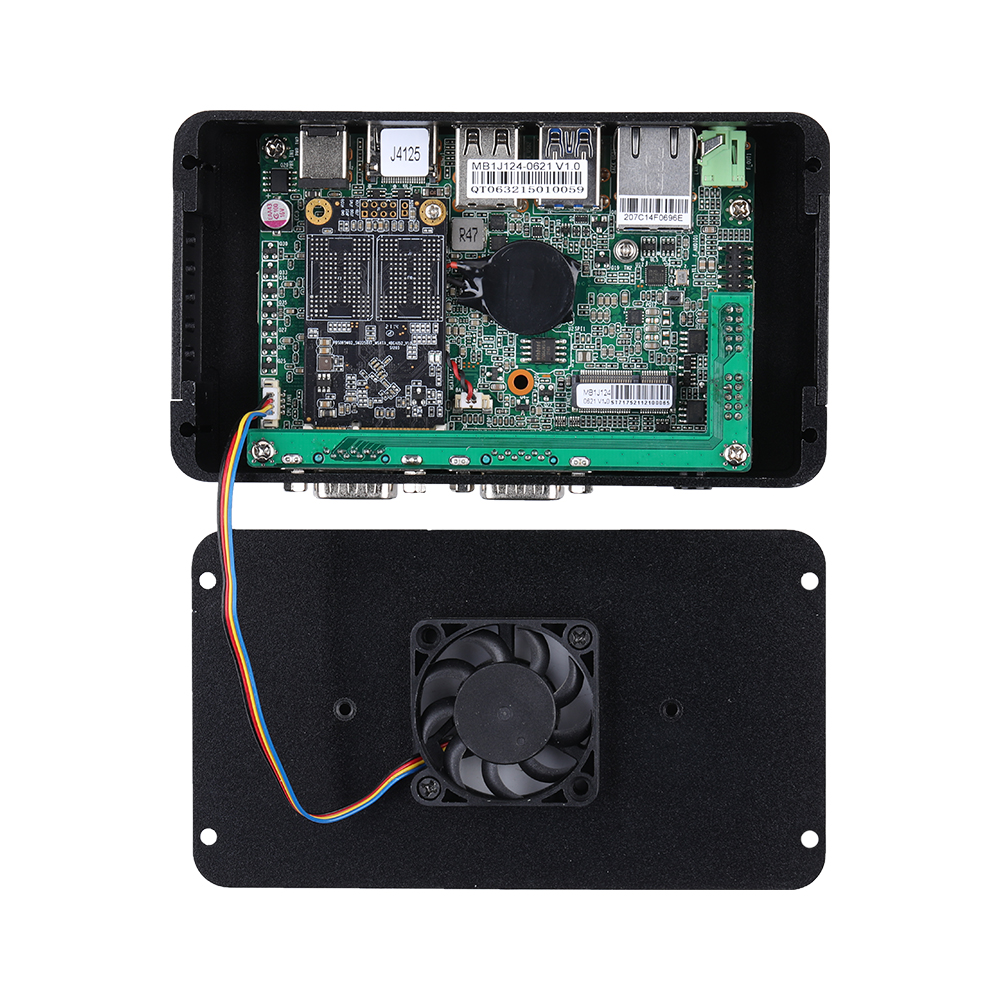

| Cooling Mode | Fanless Design by Default, Fan-assisted Cooling |
| OS Support | |
| OS | Windows 10, Linux |
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
Custom Options
| Category | Description |
| EDP | 1 |
| GPIO | 1 |
| Serial Port | 1 × RS-232 (COM1/COM2 Support 5V/12V) |
| RS-485 | 2, COM1/2 can be set up as RS-485 |
