Q10500P embedded mini PC with Gemini Lake CPU, 4× COM, dual LAN, DisplayPort, and versatile I/O—ideal for industrial control, data acquisition, and embedded system integration.
Intel Gemini Lake Processor
Intel Gemini Lake-R Processor
1 × HDMI, 1 × Display Port
4 × RS-232
4 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
1 × M.2, 1 × mSATA, 1 × Mini PCIe
2 × Realtek Gigabit LAN
Q10500P Series Product Expansion and Product Image Differences
Base Model: Q10500P
Extended Models:

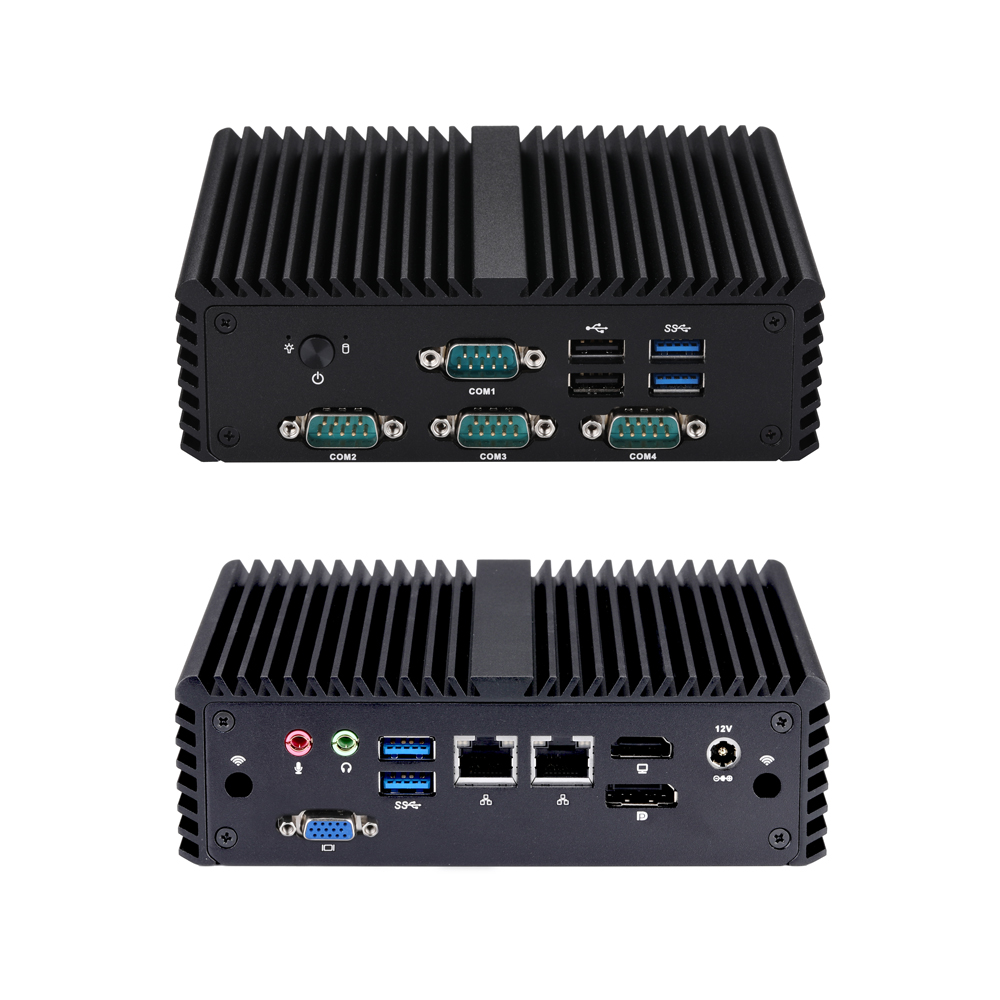

Q10500PV: +1 × VGA

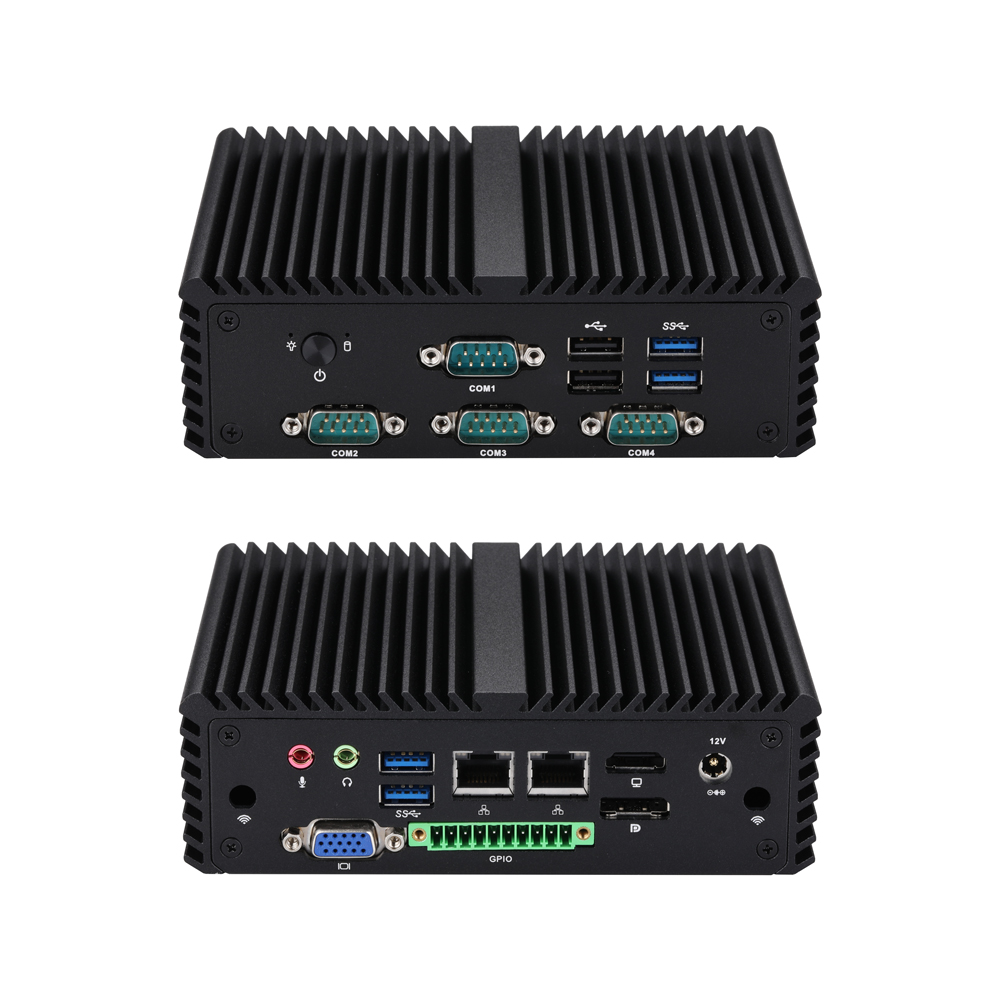

Q10500PVG: +1 × VGA, +1 × GPIO (4 DIs / 4 DOs)
| Processor System | |
| CPU | Intel Gemini Lake Processor Intel Gemini Lake-R Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR4 SO-DIMM Socket (Up to 16G) Only Supports a Single 1G Memory Chip |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Realtek Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |

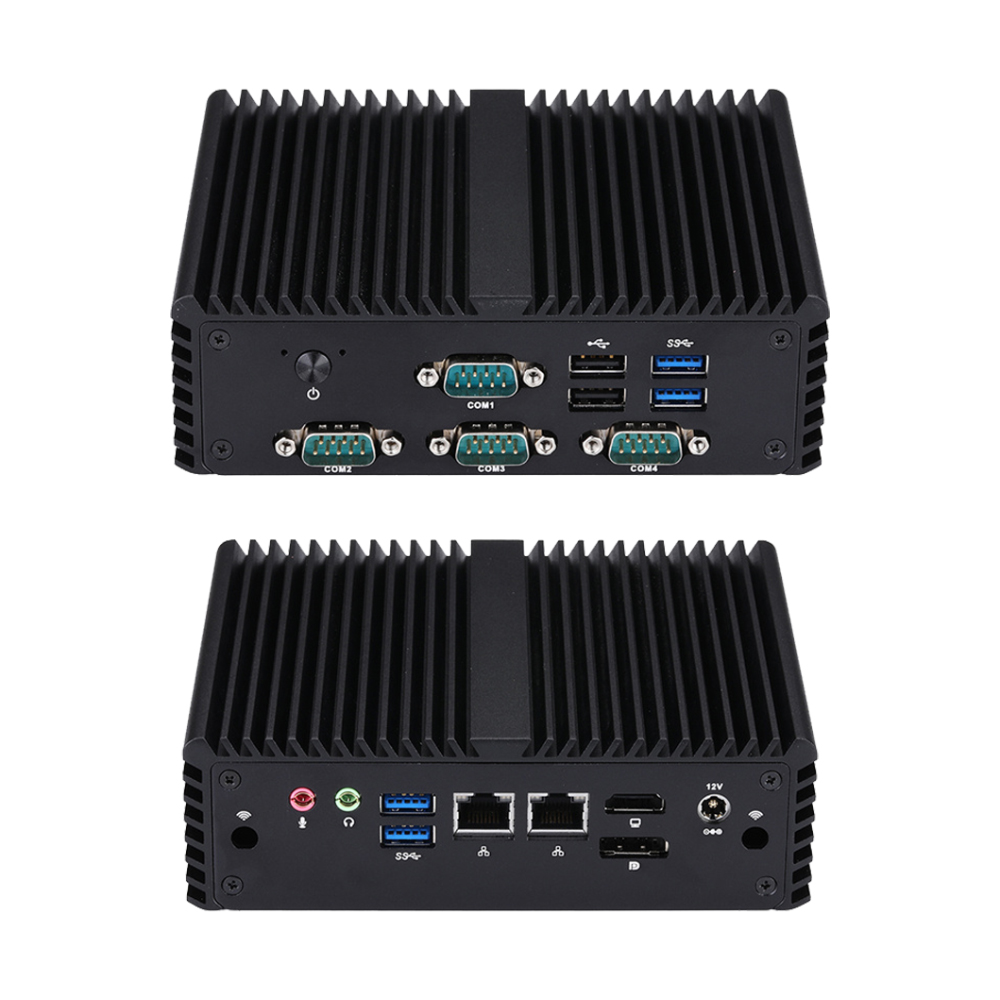

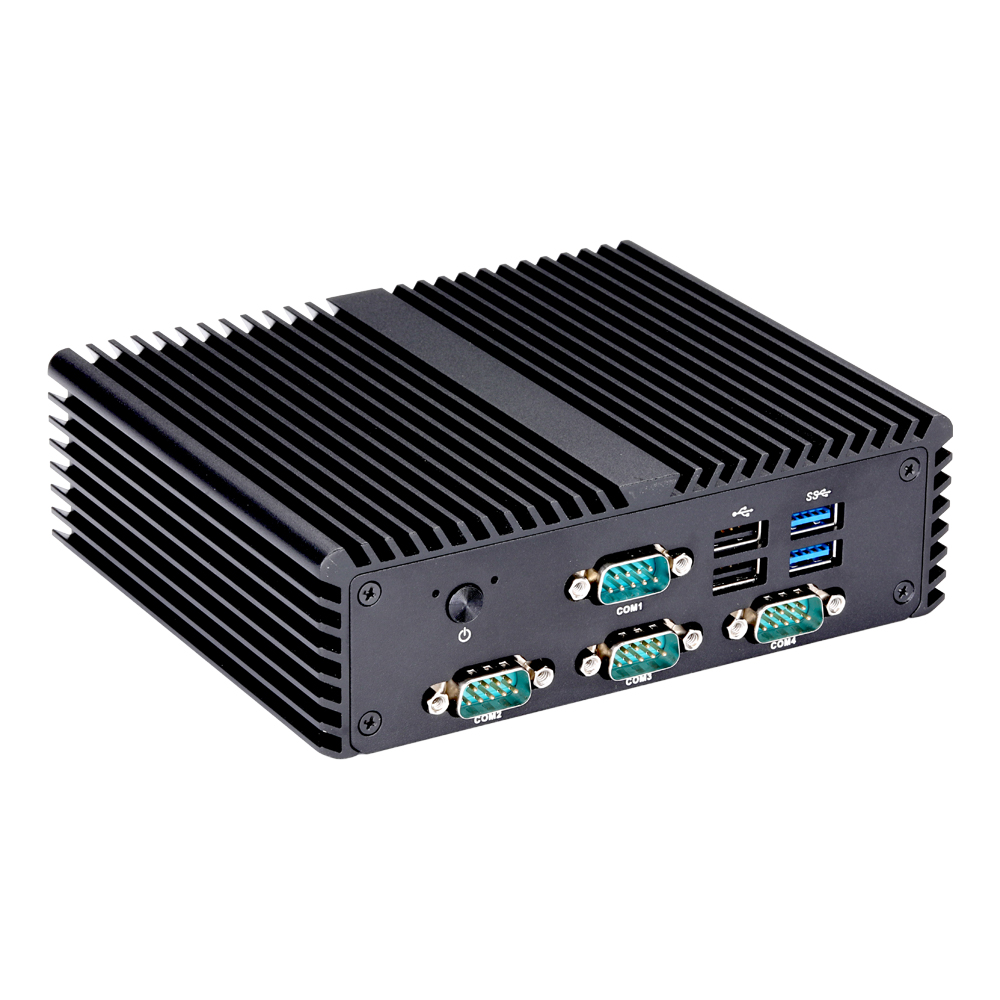

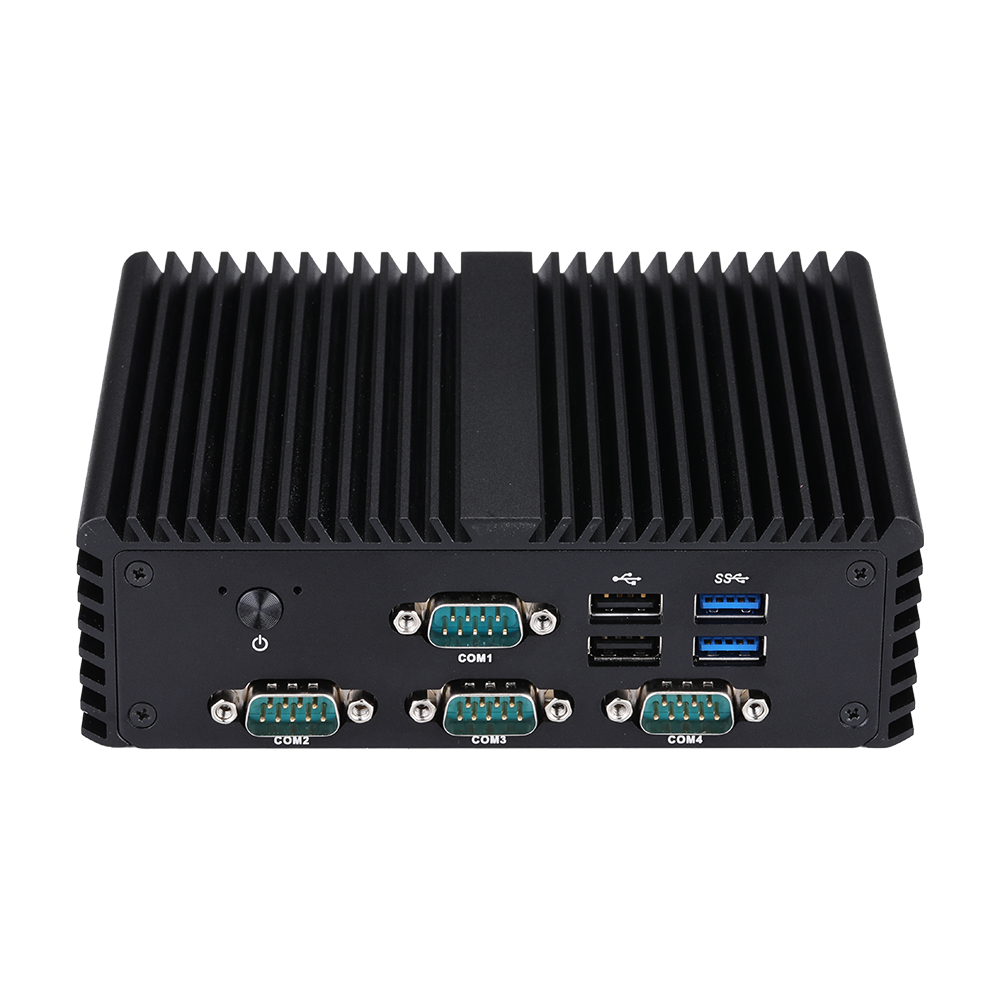

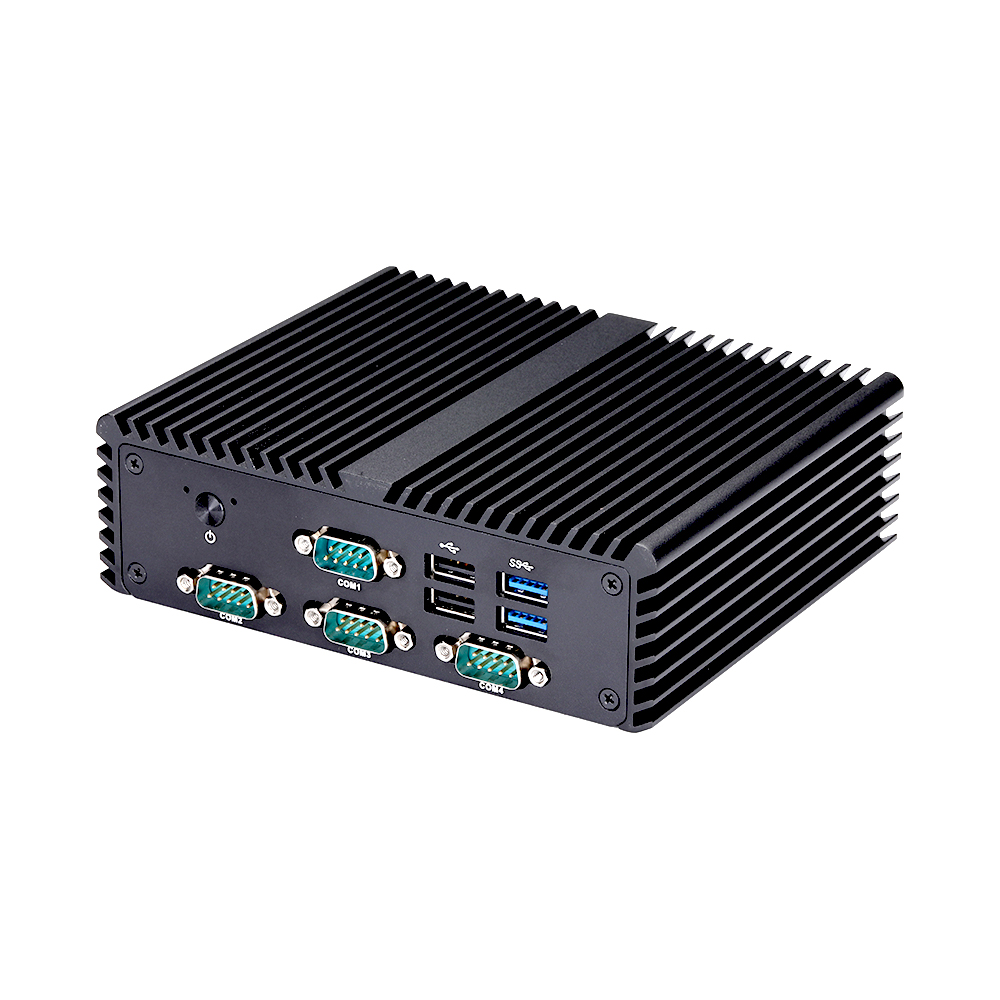

| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| Serial Port | 4 × RS-232 -COM3/4 can be set up as RS-485 -Pin 9 Factory Setting Supports 5V/12V) |
| USB | 2 × USB2.0, 2 × USB3.0 |

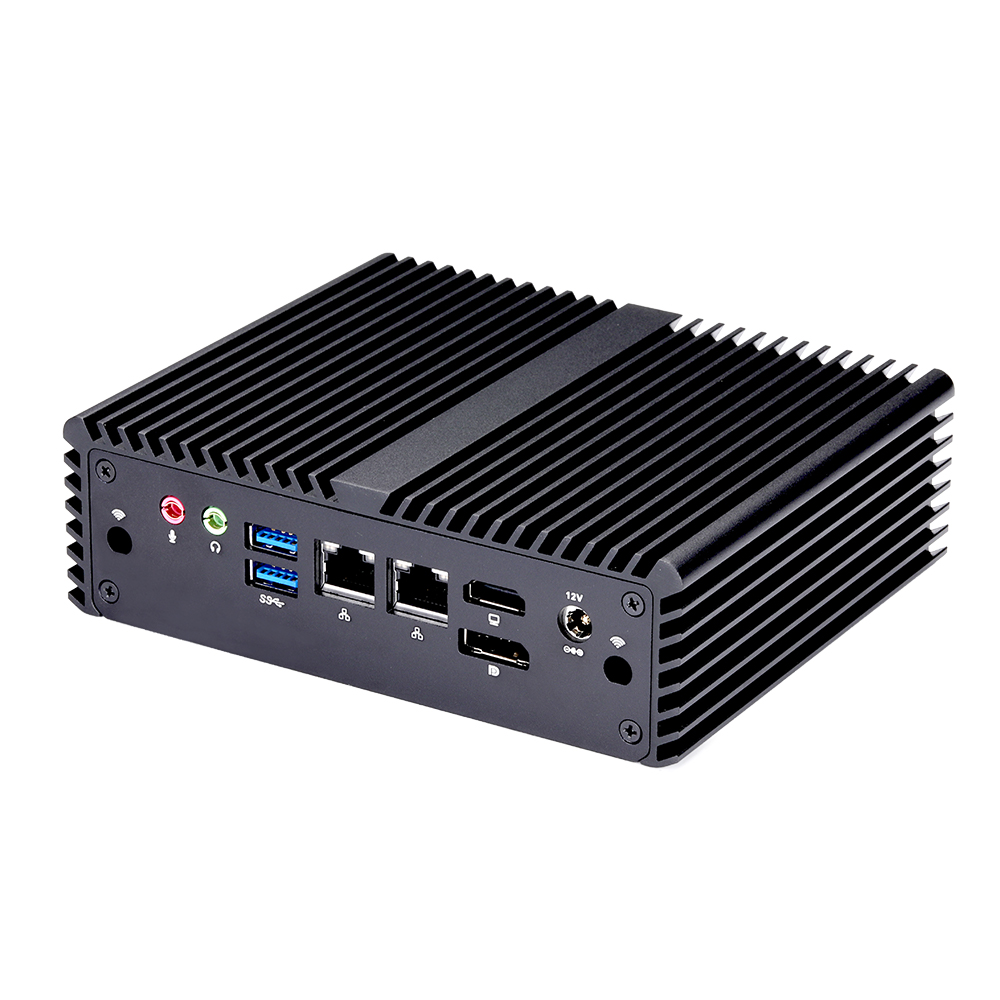

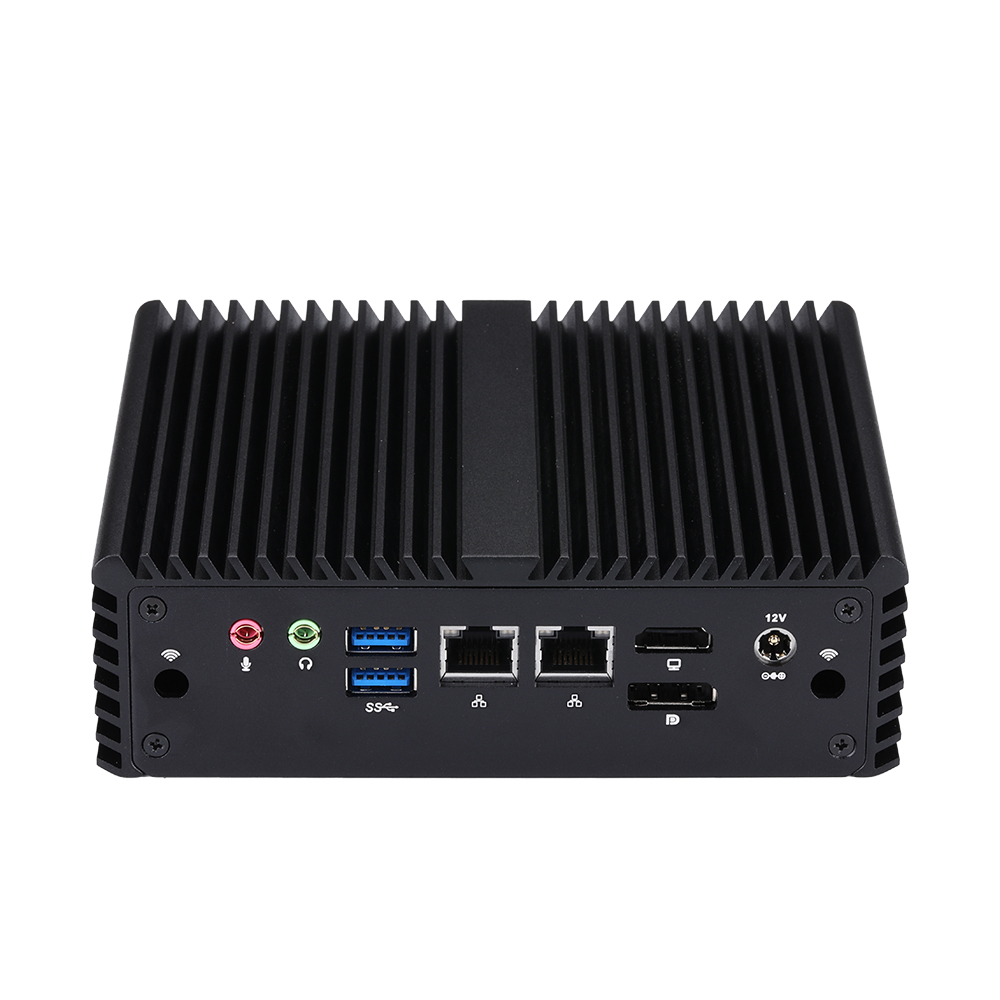

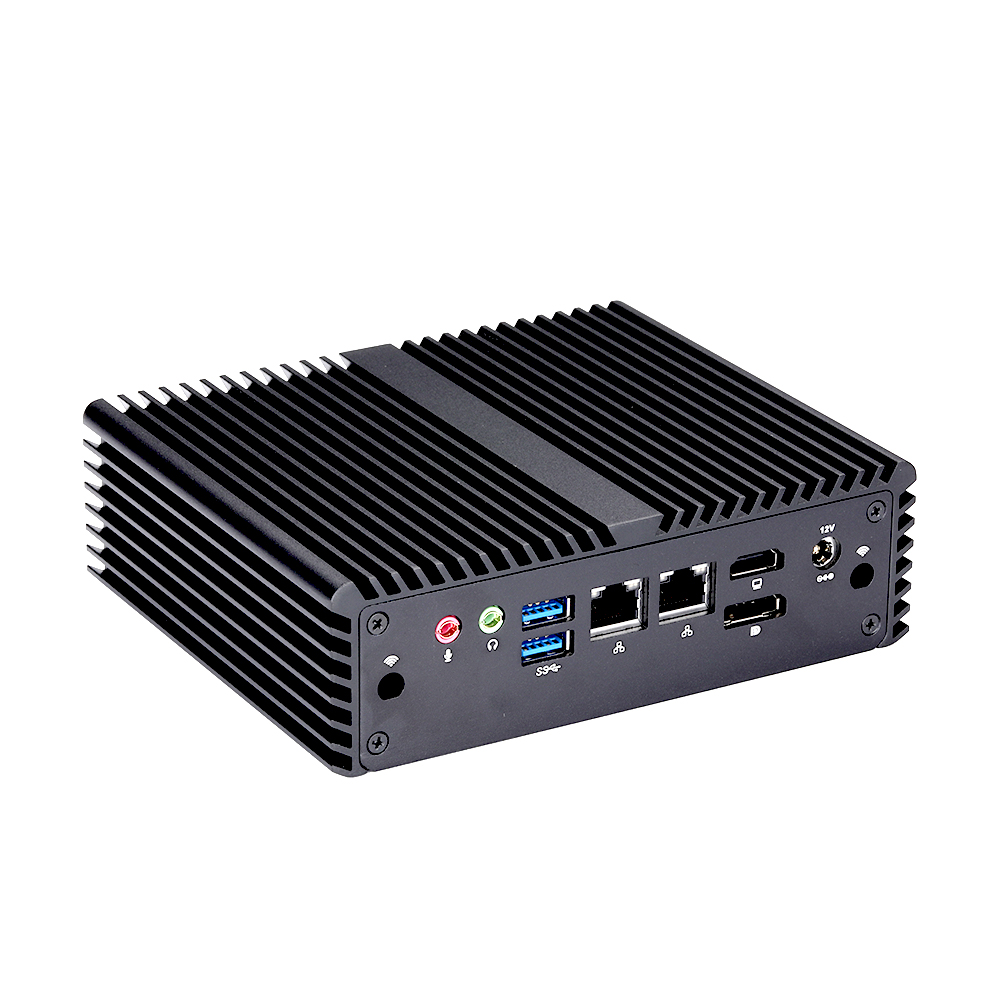

| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 1 × HDMI, 1 × Display Port |
| USB | 2 × USB 3.0 |
| LAN | 2 × Realtek Gigabit LAN |
| Audio | 1 × Mic-in, 1 × Line-out |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| Mini PCIe | 1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| VGA | 0 |
| SIM Card Slot | 1 |
| Clear CMOS Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 155 × 127 × 48mm |
| Weight | 0.85kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | Windows 10, Linux |
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
Quick Order Model: Q730P-S08
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
| Q10511P | S08 | Gemini Lake | Celeron | J4005 | 2 | 2 | 2.0GHz | 2.7GHz | 4M | Intel UHD Graphics 600 | 10W |
Q720P (Q10512P) | S08 | Gemini Lake | Celeron | N4000 | 2 | 2 | 1.1GHz | 2.6GHz | 4M | Intel UHD Graphics 600 | 6W |
Q730P (Q10521P) | S08 | Gemini Lake | Celeron | J4105 | 4 | 4 | 1.5GHz | 2.5GHz | 4M | Intel UHD Graphics 600 | 10W |
Q740P (Q10612P) | S08 | Gemini Lake Refresh | Celeron | N4020 | 2 | 2 | 1.1GHz | 2.8GHz | 4M | Intel UHD Graphics 600 | 6W |
Q750P (Q10621P) | S08 | Gemini Lake Refresh | Celeron | J4125 | 4 | 4 | 2.0GHz | 2.7GHz | 4M | Intel UHD Graphics 600 | 10W |
| Category | Description |
| GPIO | 1 |
| USB 2.0 | 3 |
| VGA | 1 |
| RS-485 | 2 |
