Mini PC Q10500S S07 Series
Q10500S fanless mini PC with Intel Gemini Lake/R CPU, HDMI & DP display, 4×USB 3.0, 1×RS-232, M.2/mSATA/Mini PCIe, dual Gigabit LAN; ideal for embedded and industrial control use.
Integrated low-power Celeron processor J4125, dual Gigabit network cards, HDM+DP Dual displays, 8 USB
QOTOM Mini Desktop PC
With low power consumption Intel Celeron J4125 processor , Qotom Mini PC Q750S can be configured as a common used desktop PC. With VESA bracket, it can be hung at the back of monitor to save space. Small, quiet, compact and cheap, running 24/7, Qotom Mini PC is a good solution for home, office, factory and so on.
| Description | |
| CPU | Intel Celeron Gemini Lake Refresh SOC Processor, J4125 Quad core 4M Cache, 2.0 GHz Up to 2.7GHz, 10W |
| Memory | Single Channel DDR4 SO-DIMM (Up to 16G) |
| Chipset | By CPU |
Graphics Display | Intel UHD Graphics 600 |
| 1 x HDMI, 1 x VGA (option), 1 x DP | |
Ethernet Mini PCIe | 2 x Realtek Gigabit LAN |
| 1 x Mini PCIE, Half-length for WiFi, or Full-length for 4G | |
| Audio | Realtek HD Audio |
| Storage | 1 x mSATA，1 x SATA 3.0 |
| USB | 6 |
| Serial | 1 |
| WatchDog | Yes |
| GPIO | 1 x 2.0 Pitch Header (Option) |
| RS-485 | 0 |
| Power On | Yes |

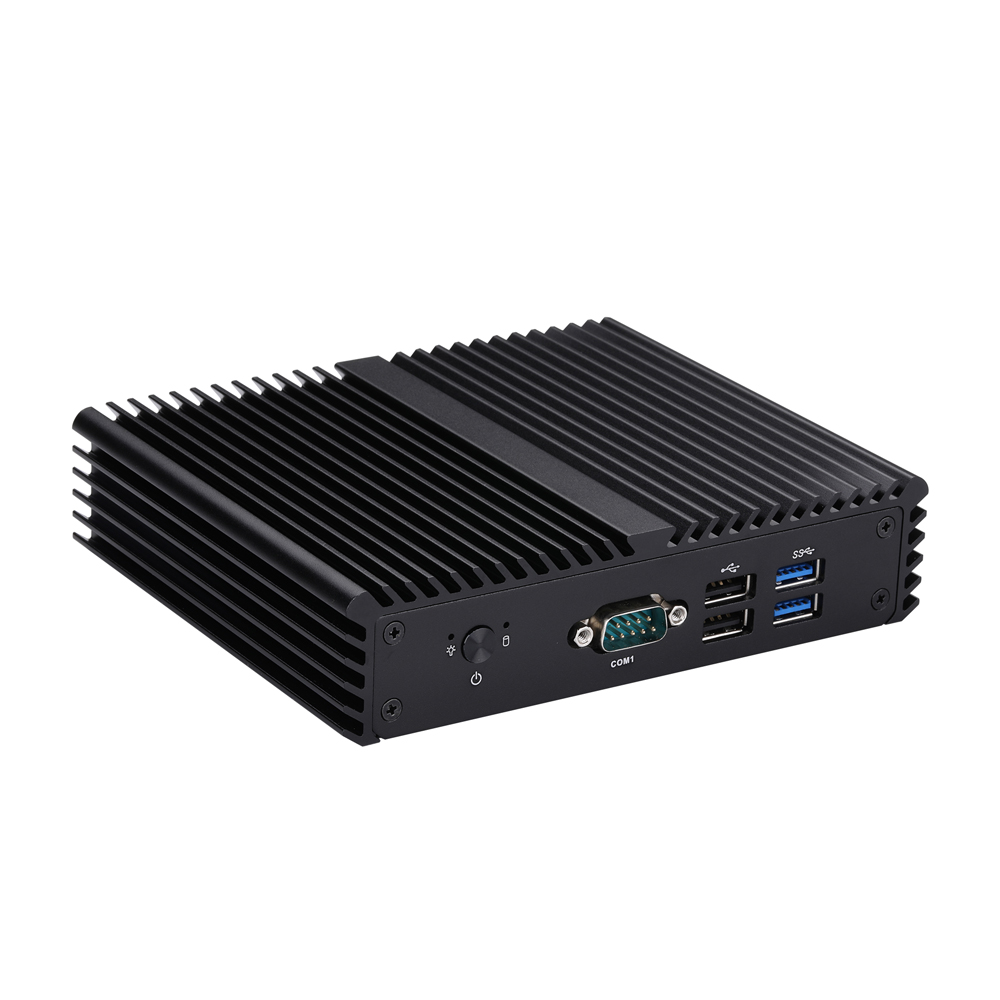

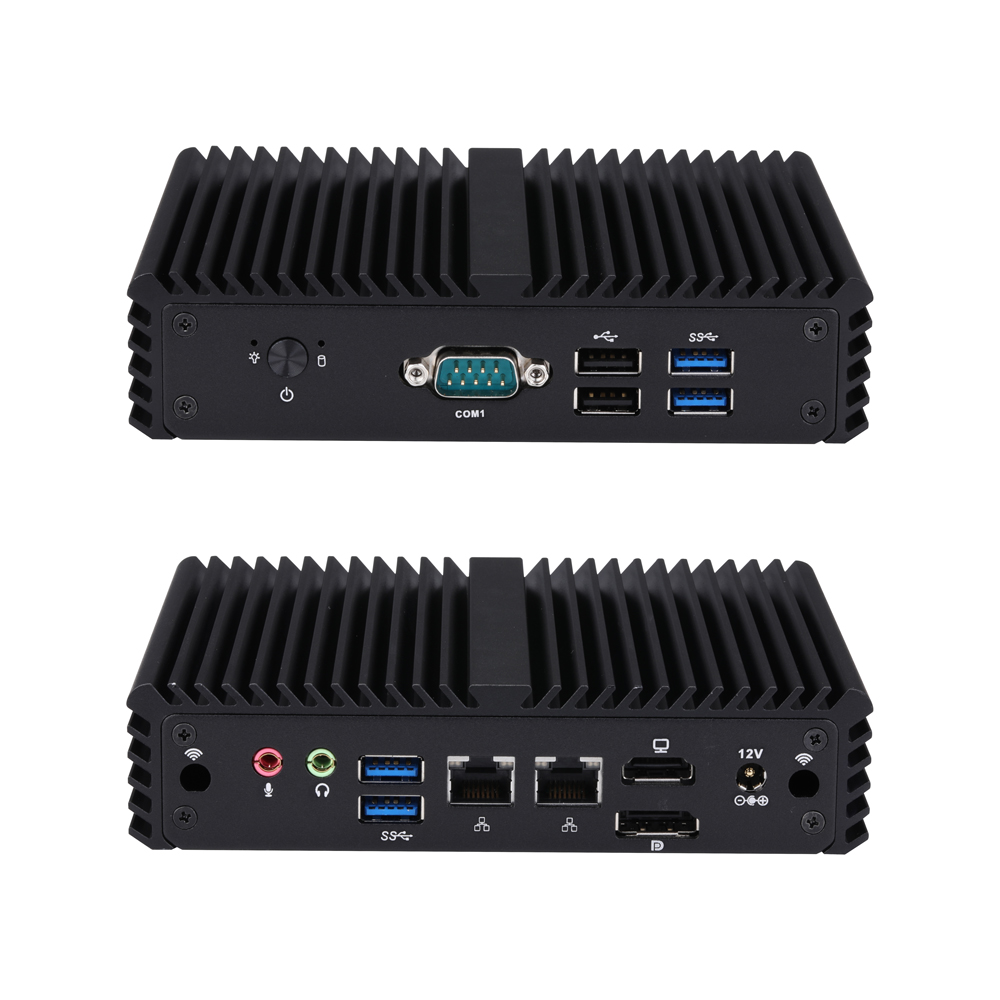

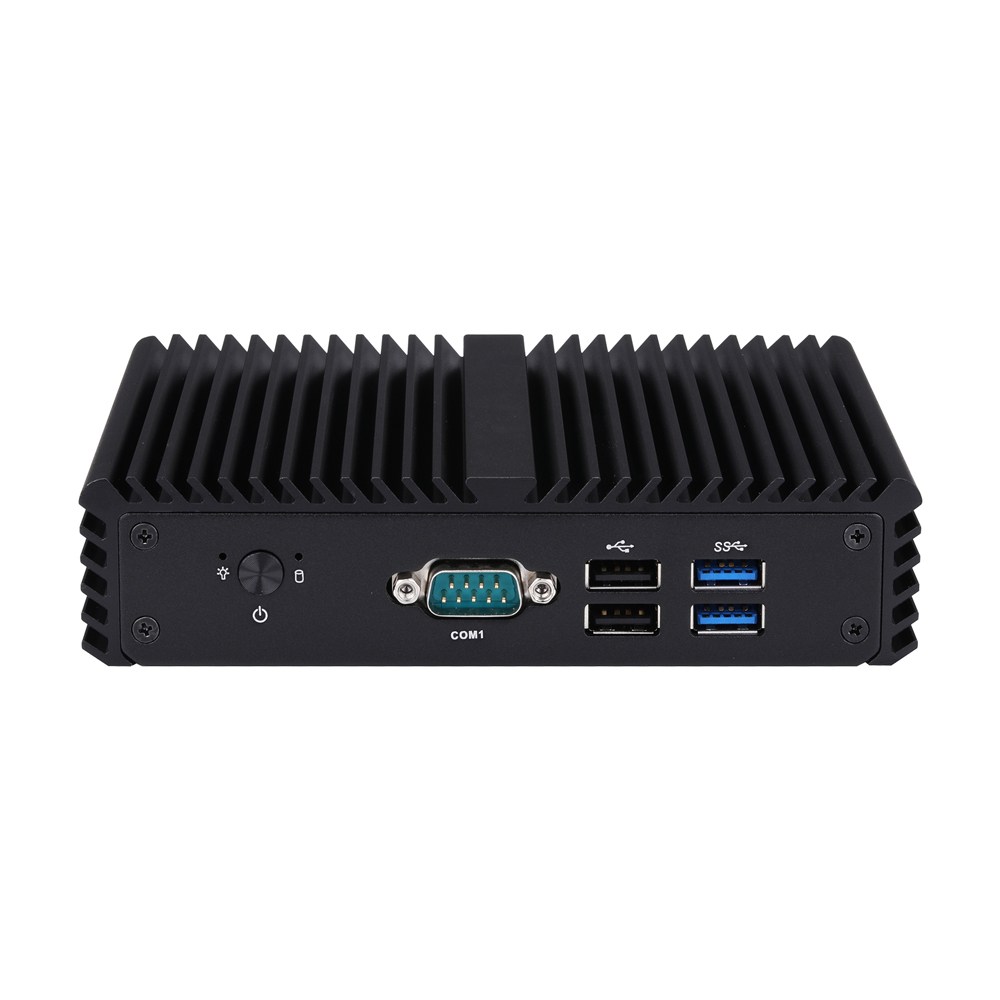

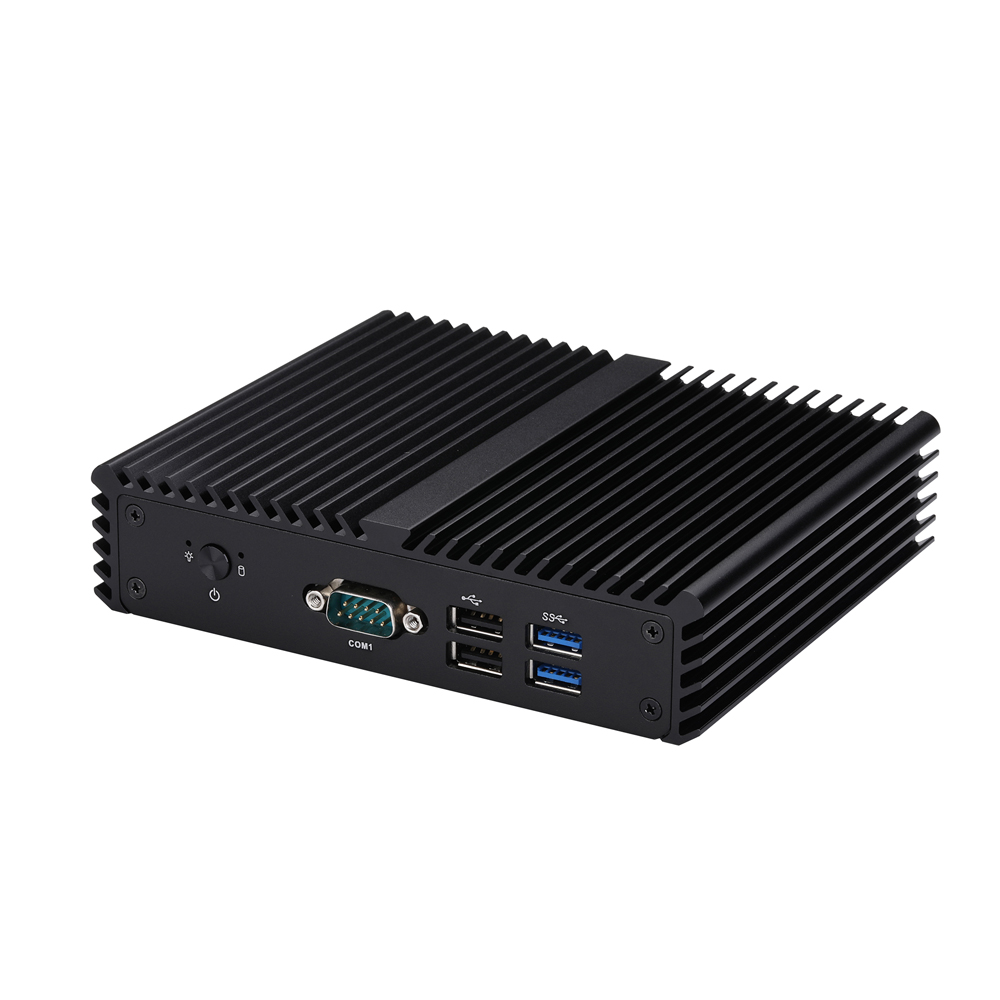

| Front I/O | |
| Power Button | 1 |
| LED | 1 x Power LED, 1 x HDD LED |
| Serial Port | 1 x RS-232 |
| USB | 2 x USB 2.0, 2 x USB 3.0 |

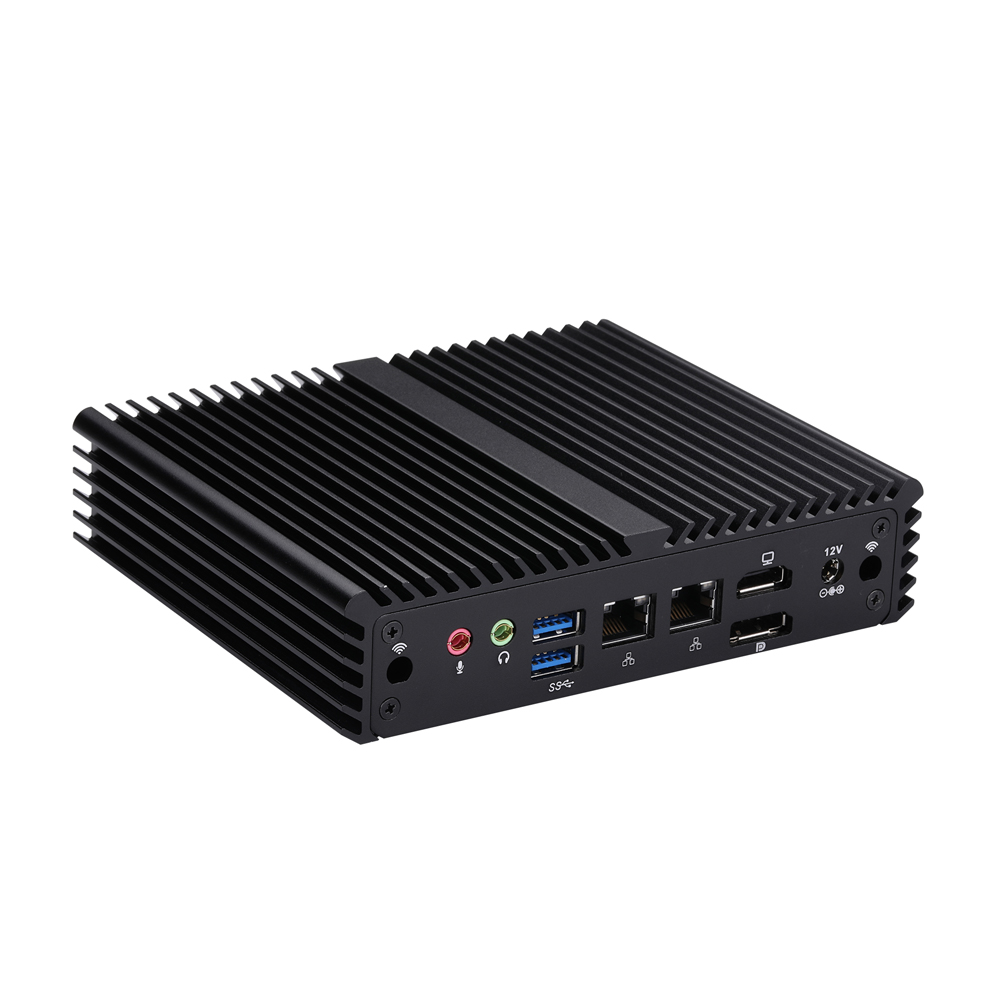

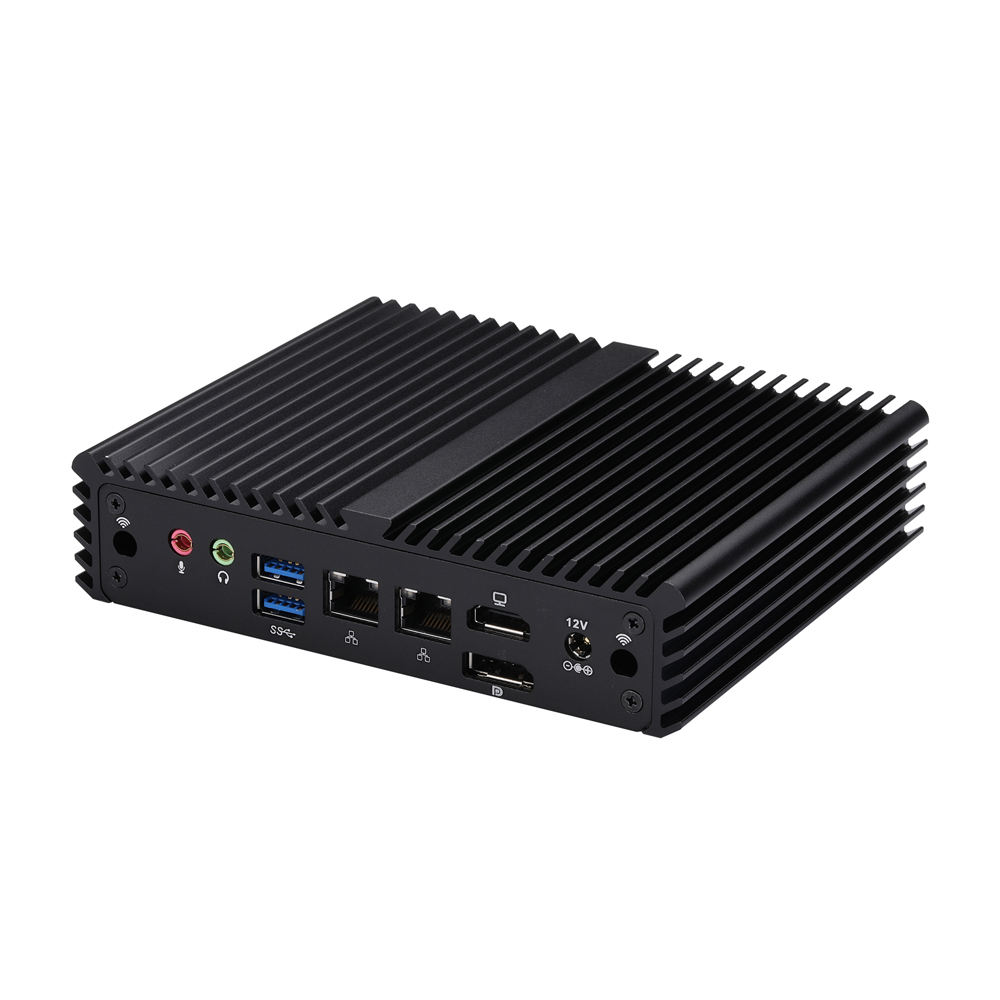

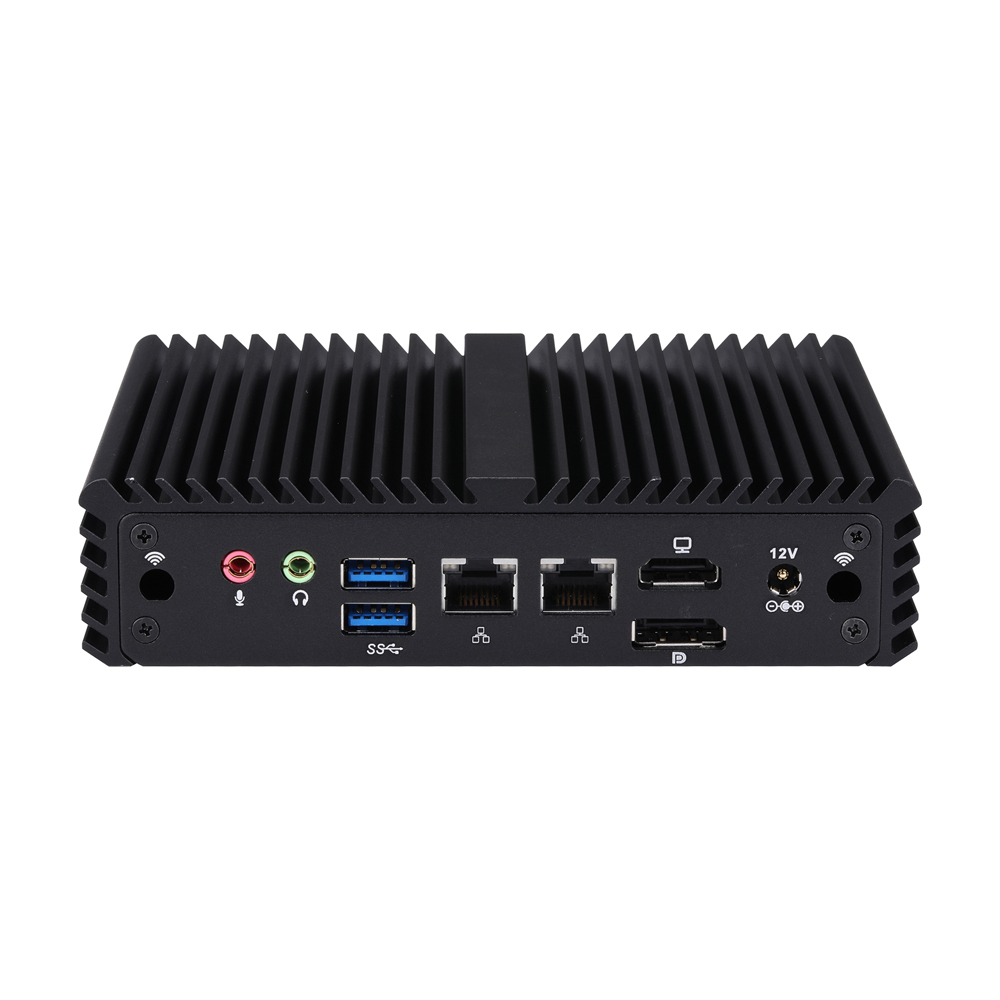

| Rear I/O | |
| DC-IN | 12V3A，5.5mm，2.5mm |
| Display | 1 x HDMI, 1 x DP |
| Ethernet | 2 x RJ45 Port for Realtek Gigabit LAN |
| USB | 2 x USB 3.0 |
| Audio | 1 (Mic-in, Line-out) |
| Other | |
| Material | Aluminum |
| Dimension | 155 x 127 x 36mm |
| Weight | 0.72kg |
| Packaging Dimension | 261 x 218 x 75mm |
| Kensington Lock | N/A |
| Cooling Mode | Fanless, passtive cooling |
| Mounting | VESA Mounting Bracket |
| OS Support | |
| OS | Windows10，Linux |
| Environmental | |
| Operting Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Packlist | |
| PackList | 1 x MiniPc，1 x Power supply，1 x Power cable，1 x VESA |
Packing list:
1 x Mini PC Q750S
1 x Power supply (12V 3A adapter and plug)
1 x VESA bracket
Quick order code：order code + Case，such as Q750S-S08
| Ordering Code | Case | Processor Type | Processor Number | #of Cores | #of Threads | Base Frequency | Max Frequency | Cache | Processor Graphics | SATA Support |
| Q730S | S08 | Celeron | J4105 | 4 | 4 | 1.5GHz | 2.5GHz | 4M | Intel UHD Graphics 600 | Yes |
| Q750S | S08 | Celeron | J4125 | 4 | 4 | 2.0GHz | 2.7GHz | 4M | Intel UHD Graphics 600 | Yes |
