Mini PC Q30900S S08 Series
Q30900S mini PC features Intel 8th/10th Gen U-series processors, dual 2.5G Intel LAN, DP+HDMI dual display, 4 USB 3.0, and triple M.2 slots—ideal for high-speed industrial and edge computing tasks.
Main Features
Intel 8th Whiskey Lake-U Processor
Intel 8th Coffee Lake-U Processor
Intel 10th Comet lake-U Processor
1 × Display Port, 1 × HDMI
4 × USB 3.0, 2 × USB 2.0
3 × M.2, 1 × SATA 3.0
1 × RS-232
2 × Intel I225-V/I226-V 2.5 Gigabit LAN
| Processor System | |
| CPU | Intel 8thWhiskey Lake-U Processor Intel 8th Coffee Lake-U Processor Intel 10th Comet lake-U Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| Audio | Realtek ALC897 HD Audio |
| Watch Dog | Yes |

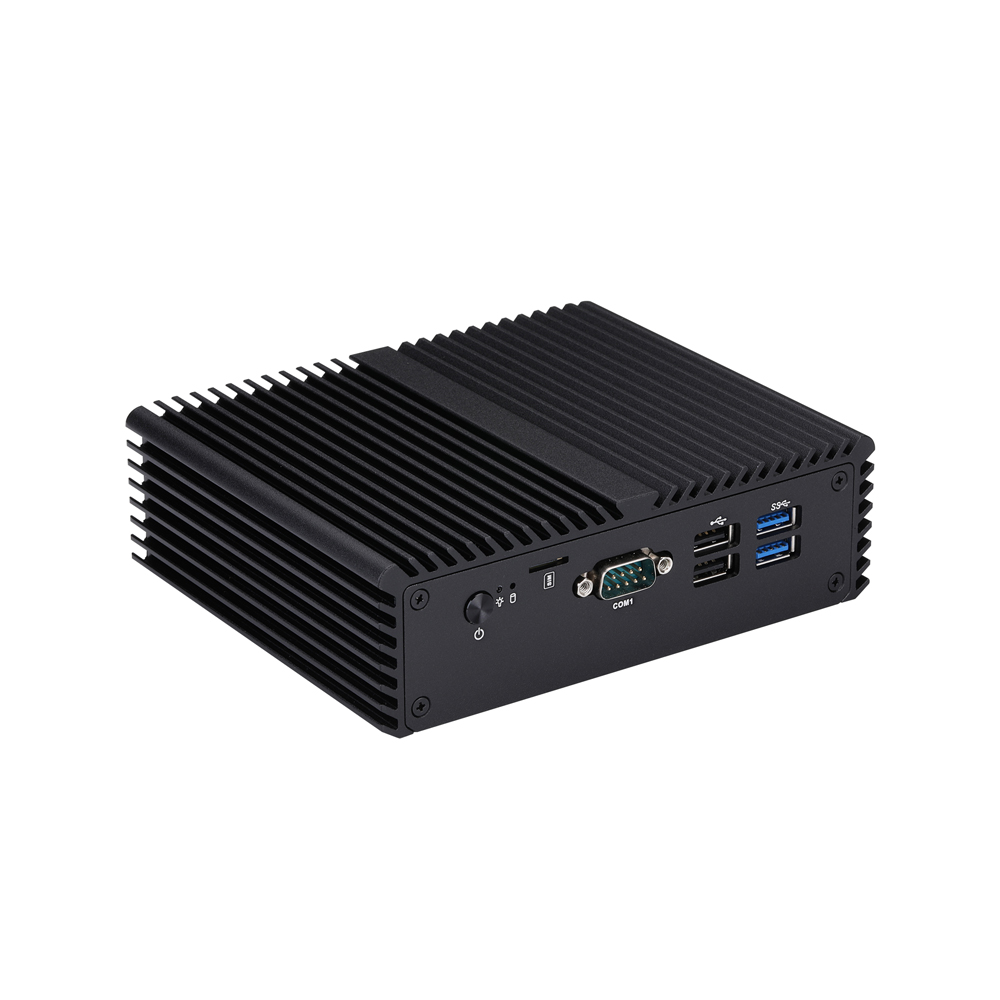

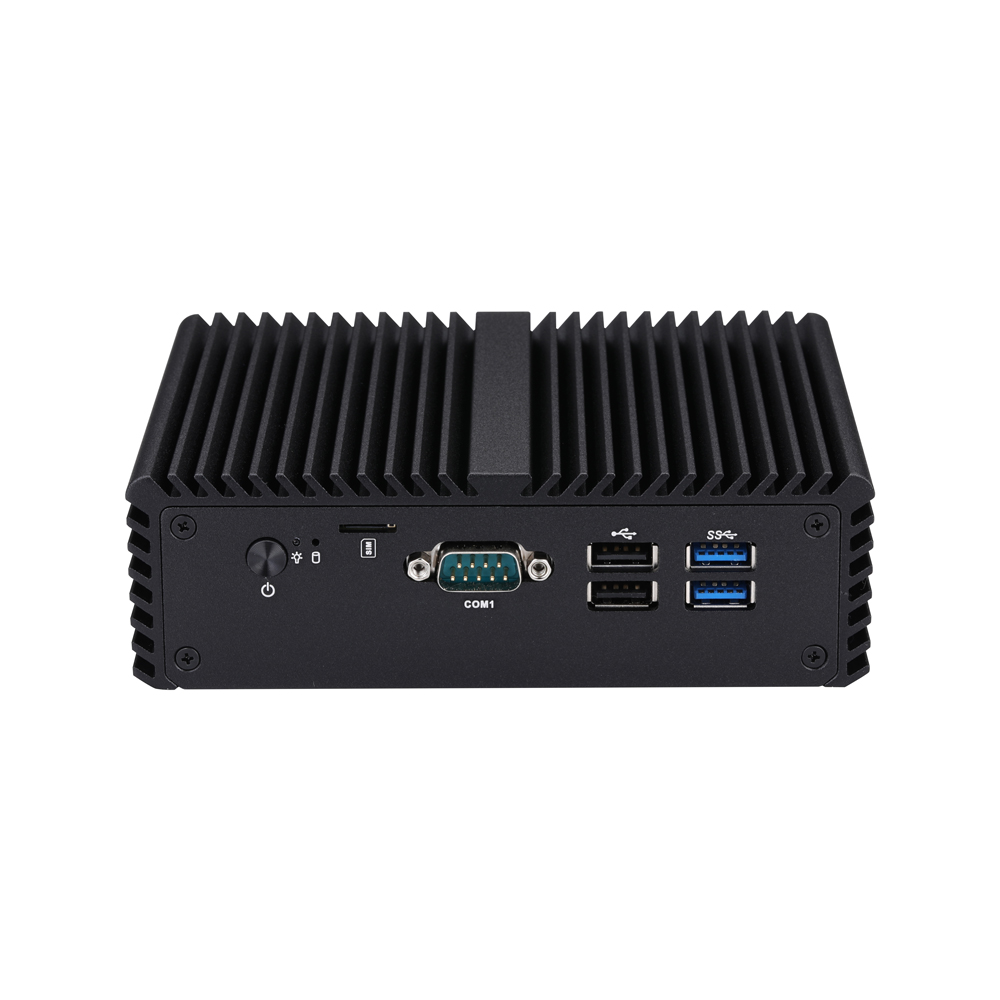

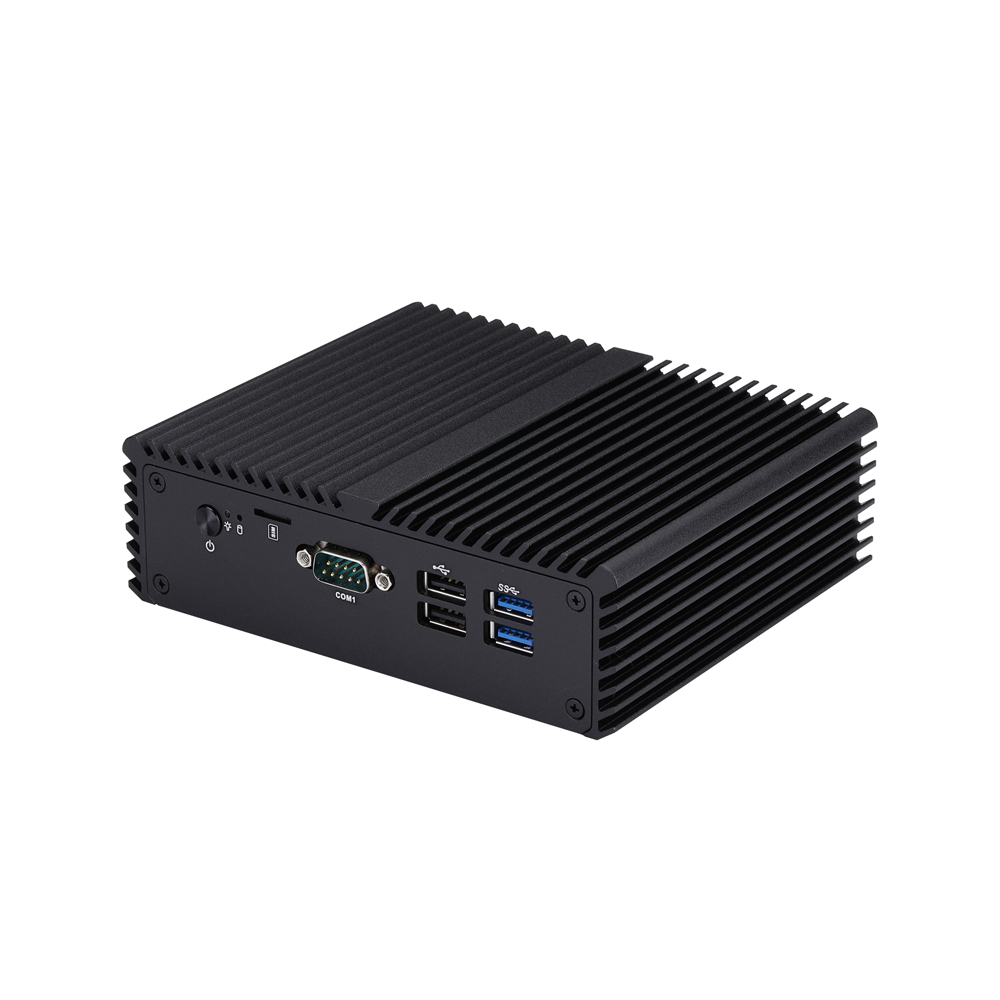

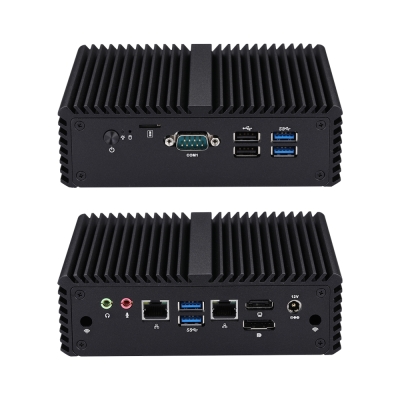

| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 2 × USB 3.0, 2 × USB 2.0 |
| Serial Port | 1 × RS-232 |
| SIM Card Slot | 1 |

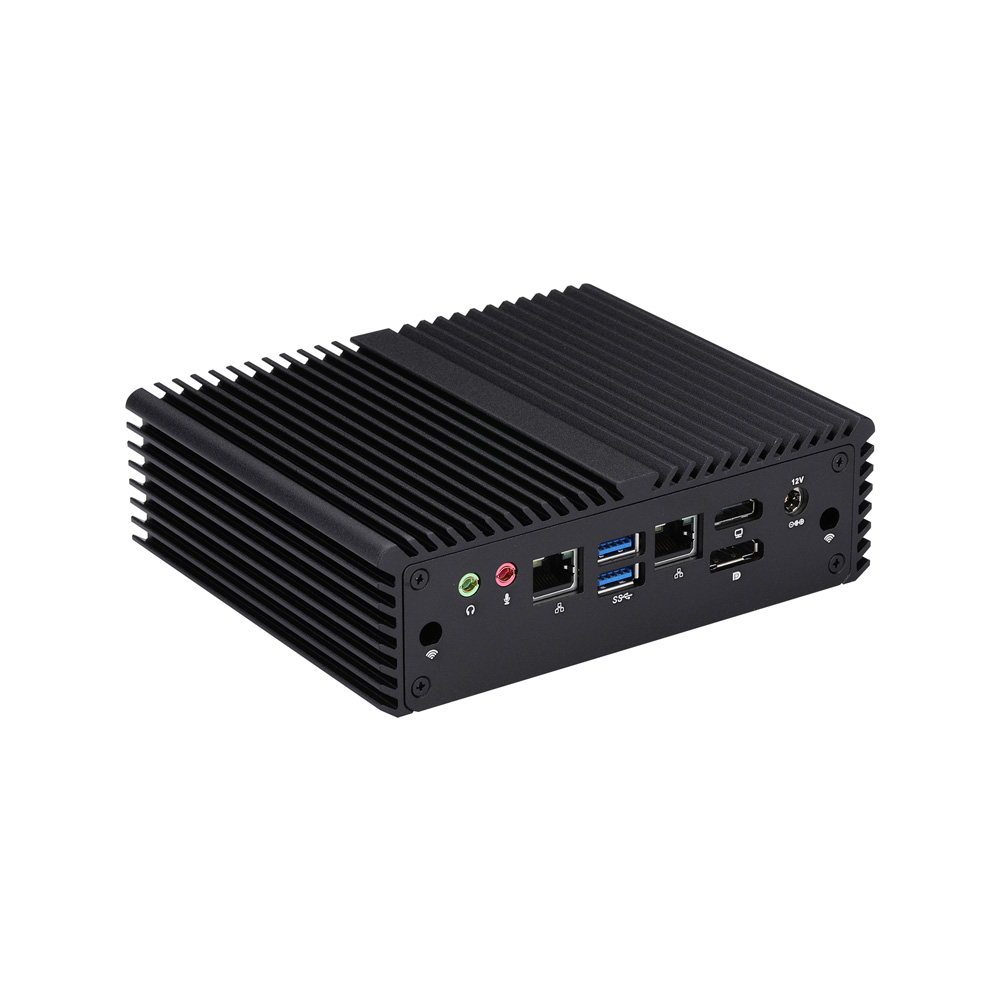

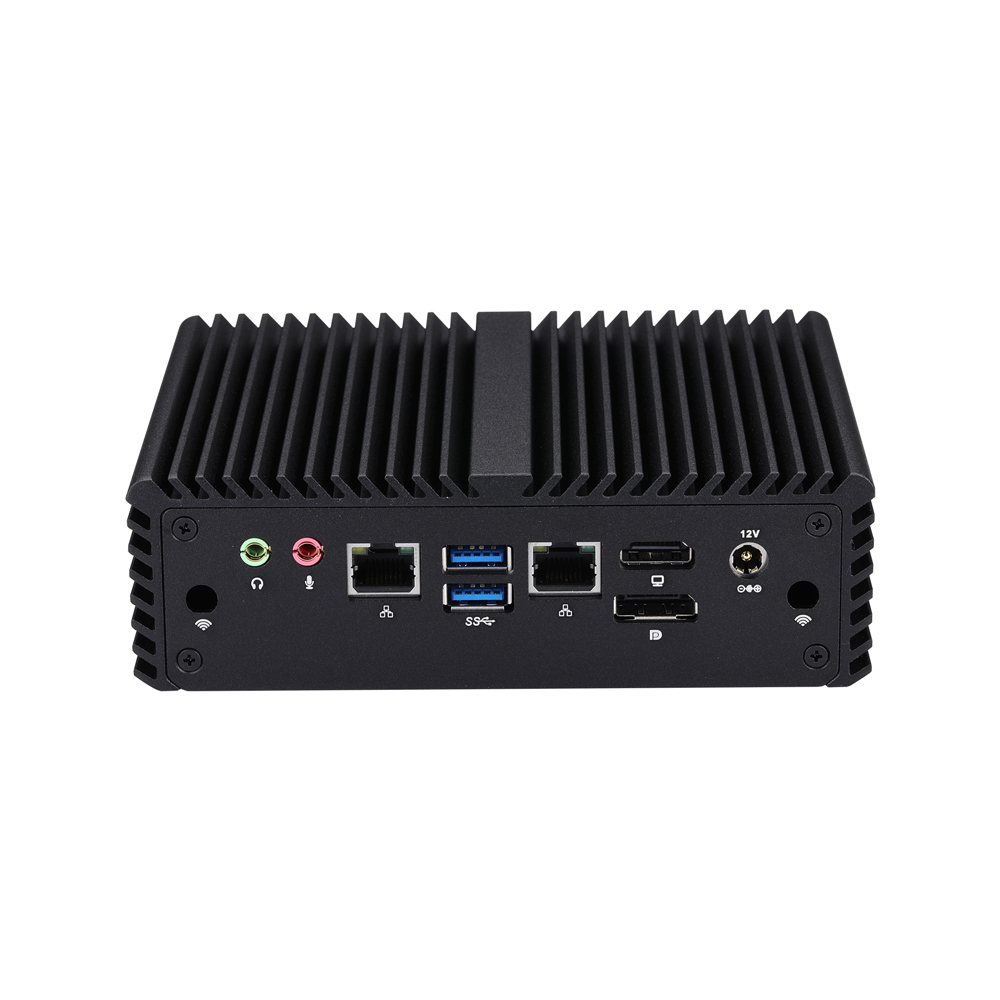

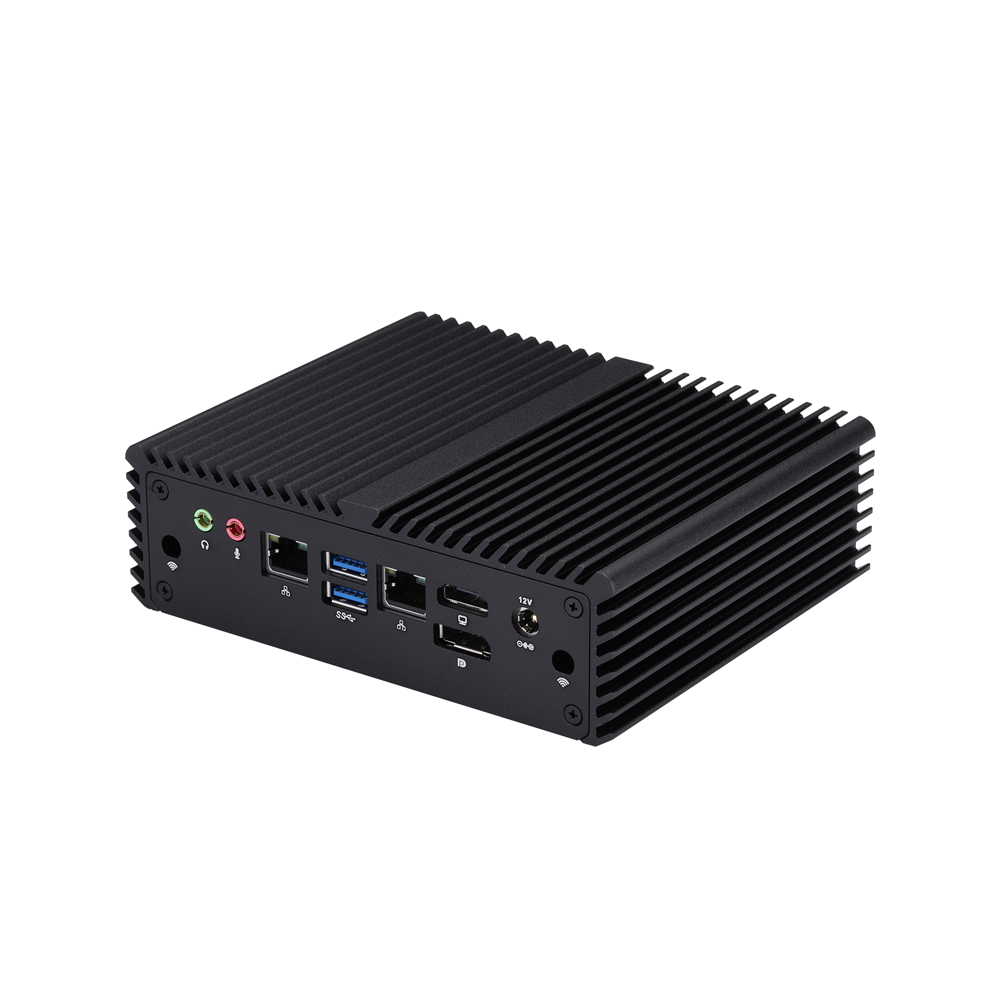

| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 1 × Display Port, 1 × HDMI |
| LAN | 2 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| USB | 2 × USB 3.0 |
| Audio | 1 × Mic-in, 1 × Line-out |
| Video Output | 0 |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280) |
| Expansion | |
| M.2 | 1 × M.2 for 4G/5G (B key, Type: 3042/3052) 4205U, 5405U, 5205U, 5305U don't support 5G function 1 × M.2 for SSD (M key, Type: 2280) 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| SIM Card Slot | 0 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| CMOS Clear Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 0 |
| DC-in | 0 |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 155 × 127 × 48mm |
| Weight | 0.84kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | Windows 10, Linux |
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
Ordering and Specifications Information
Quick Order Model: Q30912S-S08
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
| Q30912S | S08 | Whiskey Lake | Celeron | 4305U | 2 | 2 | 2.2GHz | / | 2M | Intel UHD Graphics | 15W |
| Q30921S | S08 | Whiskey Lake | Pentium | 5405U | 2 | 4 | 2.3GHz | / | 2M | Intel UHD Graphics | 15W |
| Q30931S | S08 | Whiskey Lake | Core i3 | 8145U | 2 | 4 | 2.1GHz | 3.9GHz | 4M | Intel UHD Graphics | 15W |
| Q30951S | S08 | Whiskey Lake | Core i5 | 8265U | 4 | 8 | 1.6GHz | 3.9GHz | 6M | Intel UHD Graphics | 15W |
| Q30971S | S08 | Whiskey Lake | Core i7 | 8565U | 4 | 8 | 1.8GHz | 4.6GHz | 8M | Intel UHD Graphics | 15W |
| Q30952S | S08 | Coffee Lake | Core i5 | 8260U | 4 | 8 | 1.6GHz | 3.9GHz | 6M | Intel UHD Graphics 620 | 15W |
| Q31011S | S08 | Comet Lake | Celeron | 5205U | 2 | 2 | 1.9GHz | / | 2M | Intel UHD Graphics | 15W |
| Q31012S | S08 | Comet Lake | Celeron | 5305U | 2 | 2 | 2.3GHz | / | 2M | Intel UHD Graphics | 15W |
| Q31021S | S08 | Comet Lake | Pentium | 6405U | 2 | 4 | 2.4GHz | / | 2M | Intel UHD Graphics | 15W |
| Q31031S | S08 | Comet Lake | Core i3 | 10110U | 2 | 4 | 2.1GHz | 4.1GHz | 4M | Intel UHD Graphics | 15W |
| Q31051S | S08 | Comet Lake | Core i5 | 10210U | 4 | 8 | 1.6GHz | 4.2GHz | 6M | Intel UHD Graphics | 15W |
| Q31071S | S08 | Comet Lake | Core i7 | 10610U | 4 | 8 | 1.8GHz | 4.9GHz | 8M | Intel UHD Graphics | 15W |
| Q31072S | S08 | Comet Lake | Core i7 | 10810U | 6 | 12 | 1.1GHz | 4.9GHz | 12M | Intel UHD Graphics | 15W |
| Q31073S | S08 | Comet Lake | Core i7 | 10710U | 6 | 12 | 1.1GHz | 4.7GHz | 12M | Intel UHD Graphics | 15W |
Custom Options
| Category | Description |
| VGA | 1 |
| USB 2.0 | 1 |
| GPIO | 1 |
| TPM 2.0 | 1 (SLB9665) |
