Mini PC Q10300SN S08 Series
Qotom Q10300SN fanless mini PC with Braswell CPU, dual HDMI, DP, RS-232, dual LAN, M.2, and mSATA, ideal for digital signage, industrial control, and embedded edge computing.
Main Features
Intel Braswell Processor
1 × Display Port, 2 × HDMI, 1 × RS-232
4 × USB 3.0, 2 × USB 2.0
1 × Mini PCIe, 1 × mSATA, 1 × M.2
2 × Realtek Gigabit LAN
| Processor System | |
| CPU | Intel Braswell Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Realtek Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |

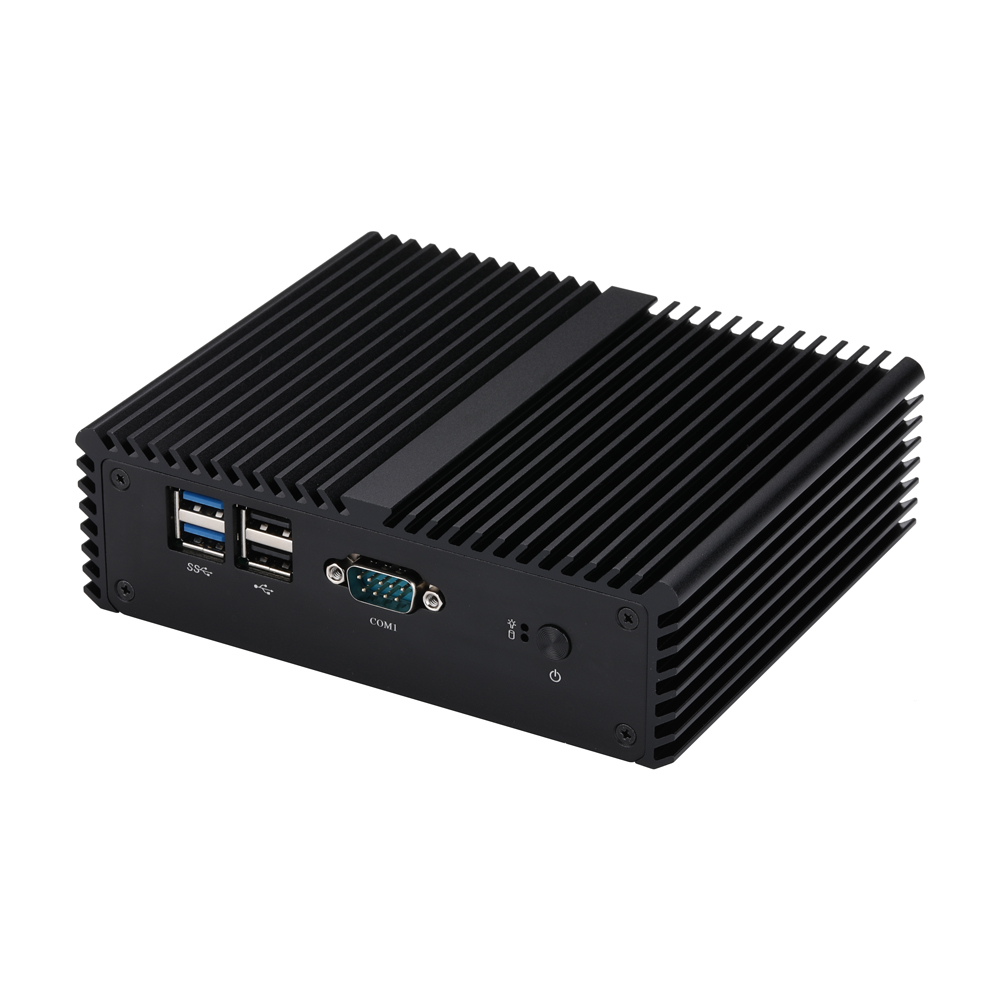

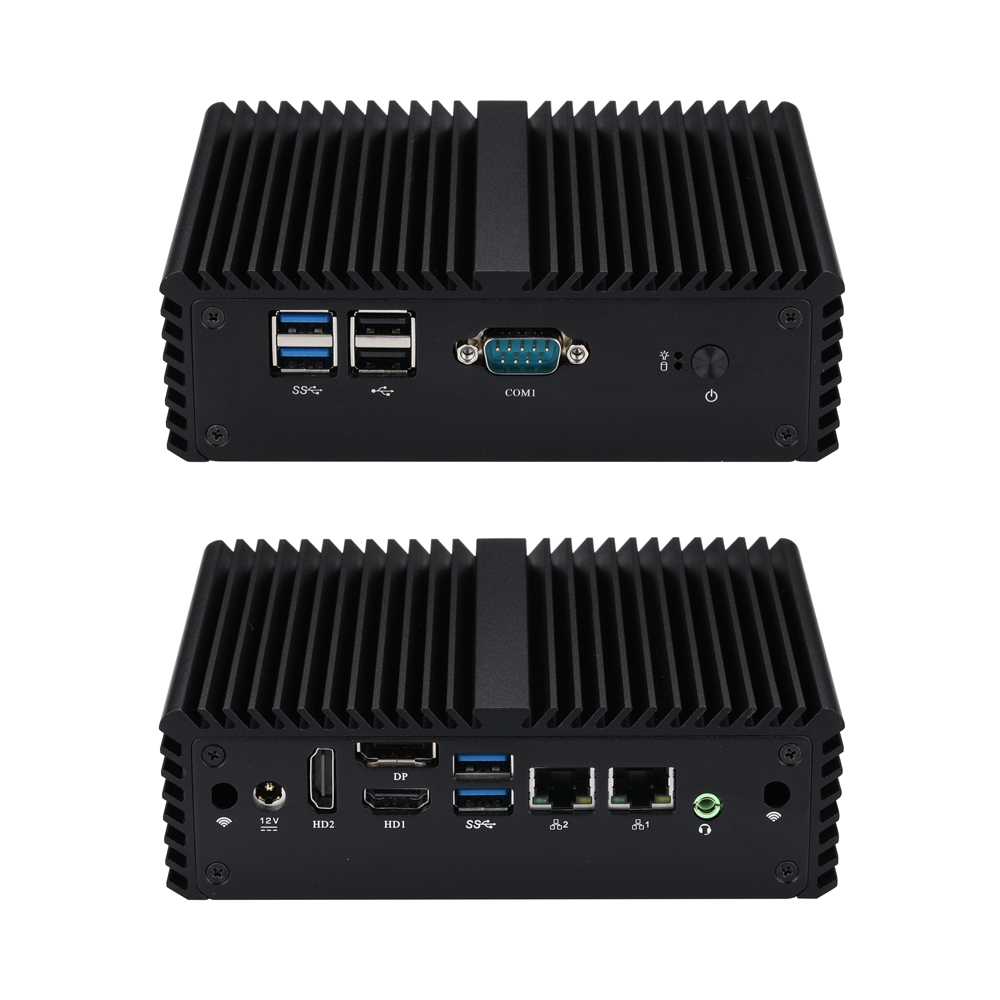

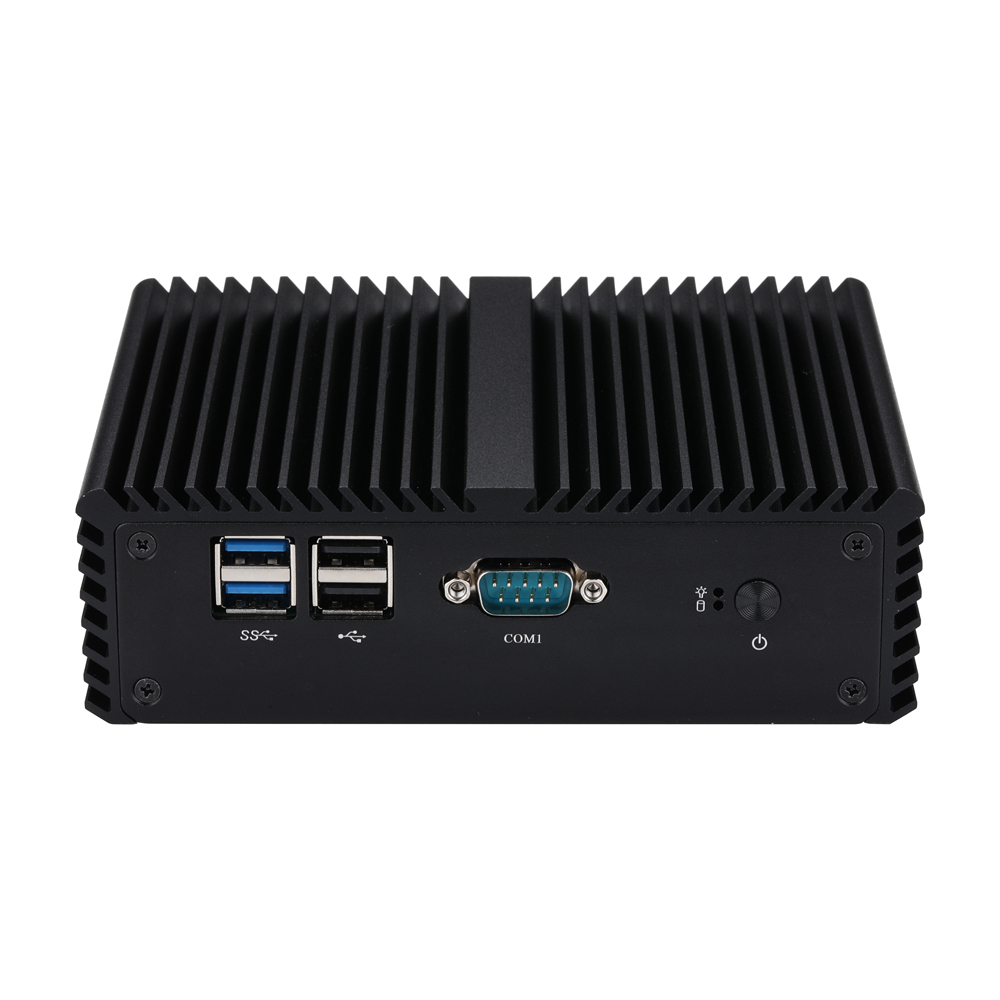

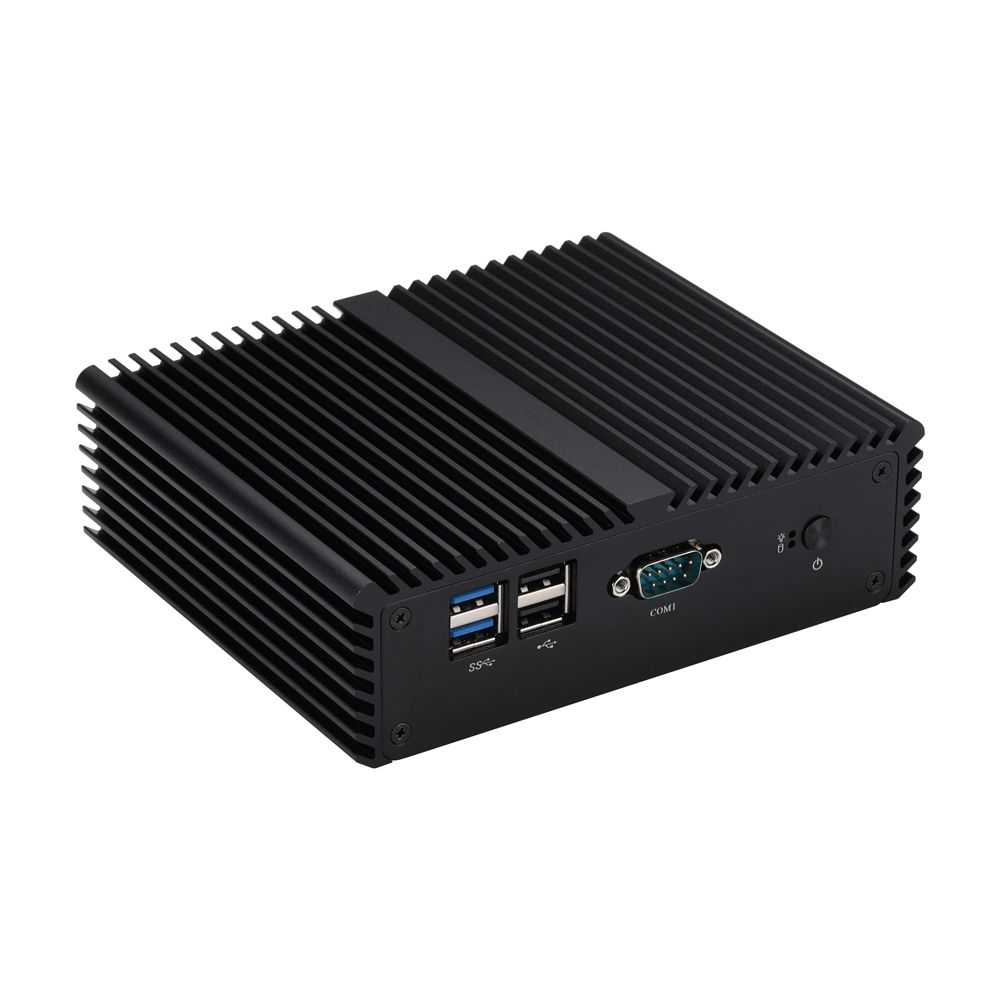

| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| Serial Port | 1 × RS-232 (COM1) |
| USB | 2 × USB 3.0, 2 × USB 2.0 |

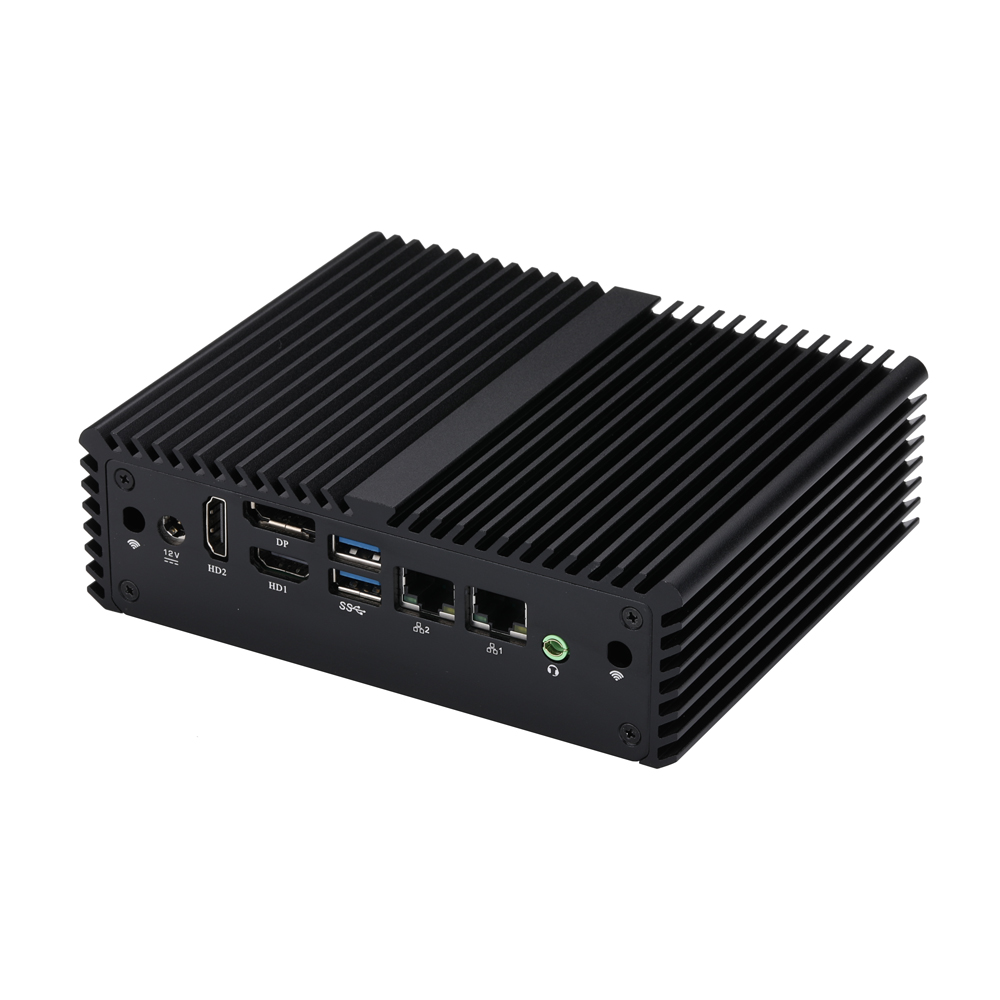

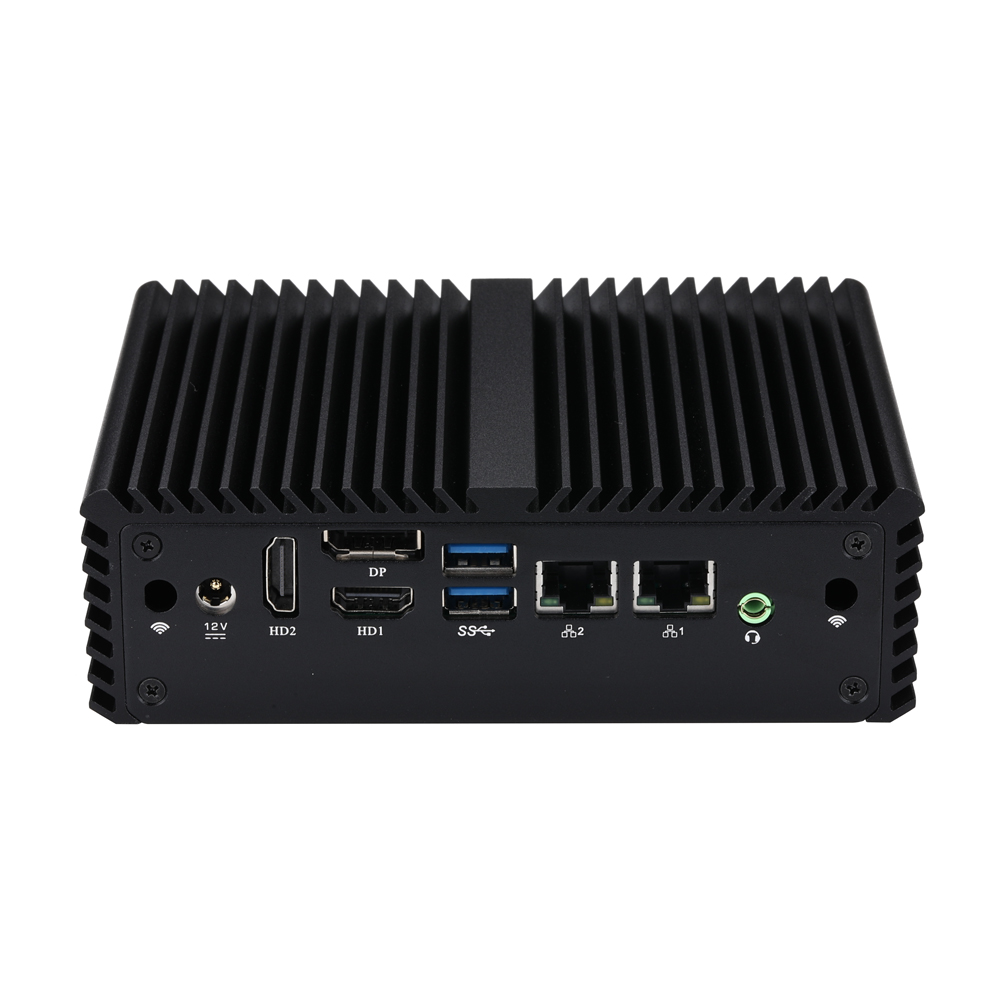

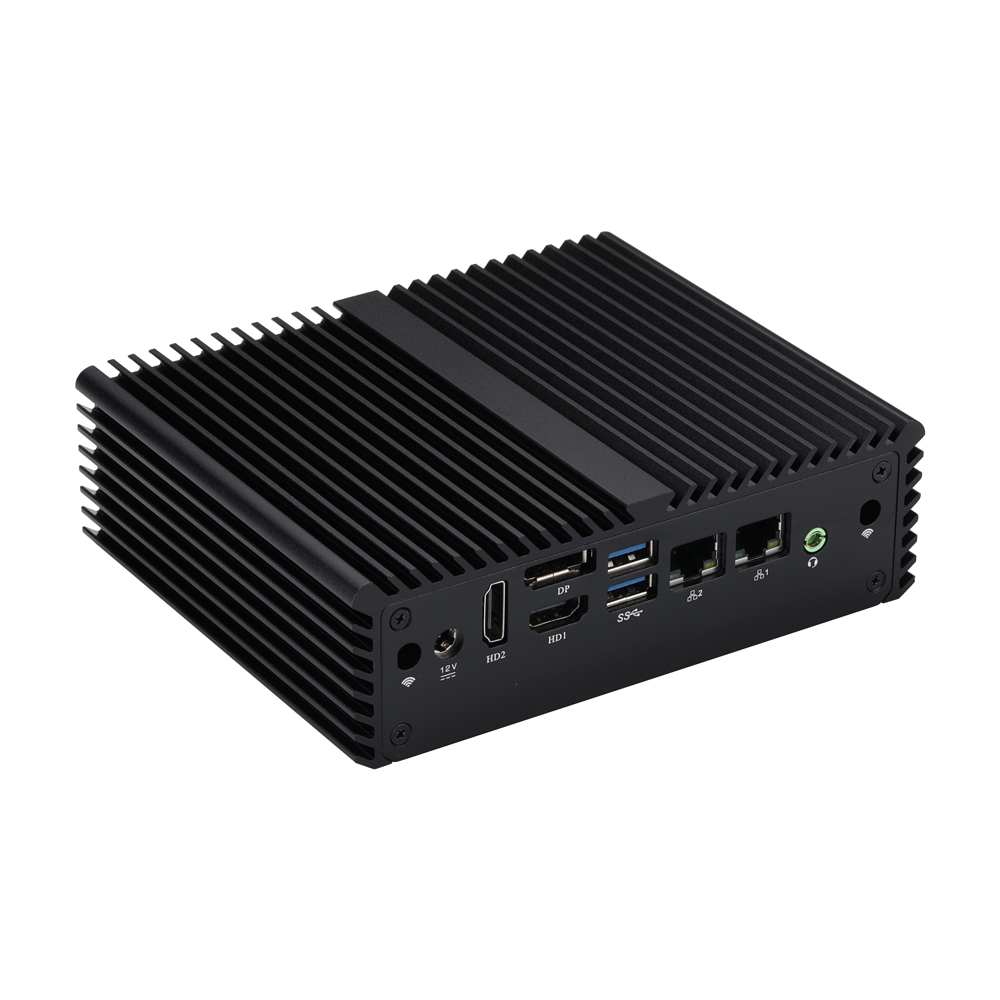

| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 2 × HDMI |
| Video Output | 1 × Display Port |
| USB | 2 × USB 3.0 |
| LAN | 2 × Realtek Gigabit LAN |
| Audio | 1 (Mic-in, Line-out) |
| Serial Port | 0 |

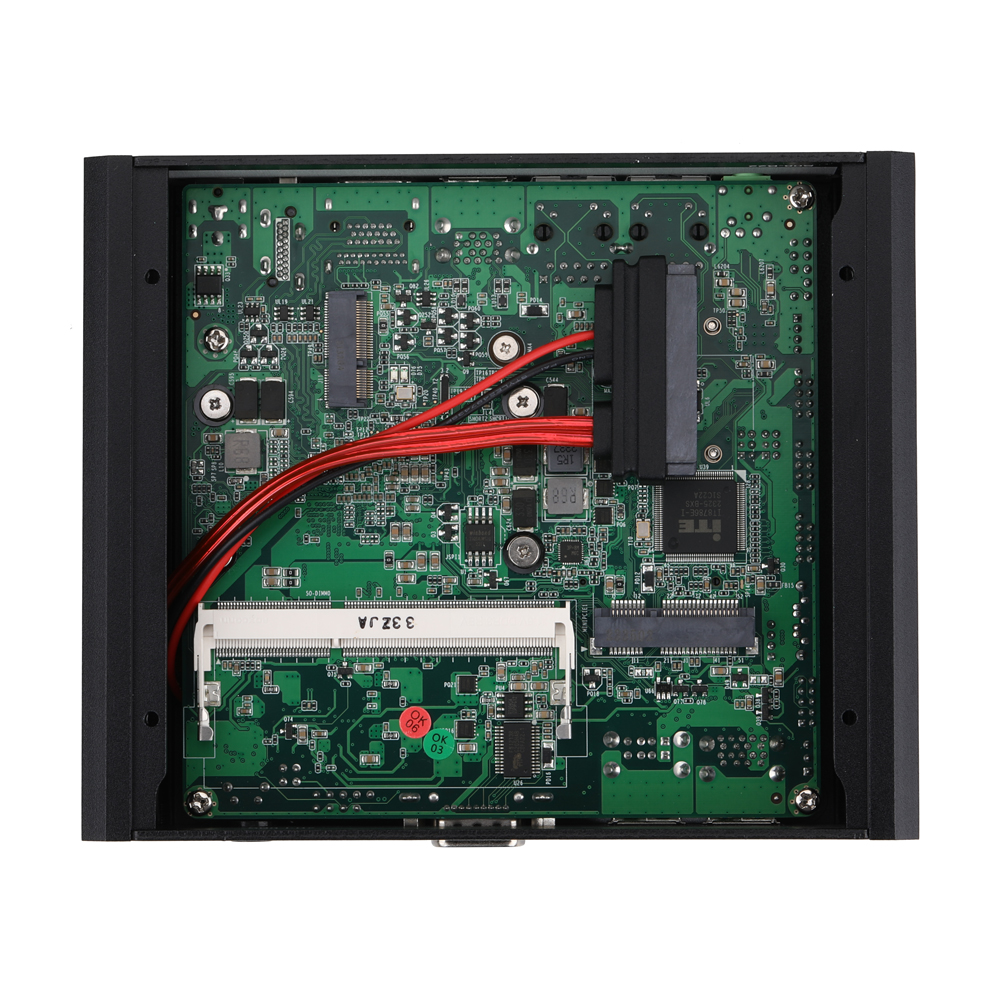

| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| Mini PCIe | 1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi |
| M.2 Slot | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| SIM Card Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 0 |
| DC-in | No |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 155 × 127 × 48mm |
| Weight | 0.91kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | Windows 7 x64, Windows 8, Windows 10, Linux |
| Processor System | |
| CPU | Intel Braswell Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Realtek Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |
| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| Serial Port | 1 × RS-232 (COM1) |
| USB | 2 × USB 3.0, 2 × USB 2.0 |
| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 2 × HDMI |
| Video Output | 1 × Display Port |
| USB | 2 × USB 3.0 |
| LAN | 2 × Realtek Gigabit LAN |
| Audio | 1 (Mic-in, Line-out) |
| Serial Port | 0 |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| Mini PCIe | 1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi |
| M.2 Slot | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| SIM Card Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 0 |
| DC-in | No |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 155 × 127 × 48mm |
| Weight | 0.91kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | Windows 7 x64, Windows 8, Windows 10, Linux |
Ordering and Specifications Information
Quick Order Model: Q177S-S08
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
Q161S (Q10311SN) | S08 | Braswell | Celeron | N3060 | 2 | 2 | 1.6Ghz | 2.48Ghz | 2M | Intel HD Graphics | 6W |
Q160S (Q10321SN) | S08 | Braswell | Celeron | N3160 | 4 | 4 | 1.6Ghz | 2.24Ghz | 2M | Intel HD Graphics | 6W |
Q177S (Q10331SN) | S08 | Braswell | Pentium | J3710 | 4 | 4 | 1.6Ghz | 2.64Ghz | 2M | Intel HD Graphics | 6.5W |
Custom Options
| Category | Description |
| GPIO | 1 |
| Serial Port | 3 × RS-232 |
