Mini PC Q30400S S03 Series
Qotom Q30400S mini pc with Haswell/Broadwell-U CPU, dual HDMI, triple storage slots, and 2 Gigabit LANs—ideal for digital signage, industrial PCs, and office thin clients.
Main Features
Intel 4th Haswell –U/Y Processor
Intel 5th Broadwell-U Processor
2 × HDMI
4 × USB 3.0, 2 × USB 2.0
1 × Mini PCIe, 1 × M.2, 1 × mSATA
2 × Realtek Gigabit LAN
| Processor System | |
| CPU | Intel 4thHaswell –U/Y Processor Intel 5thBroadwell-U Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Realtek Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |

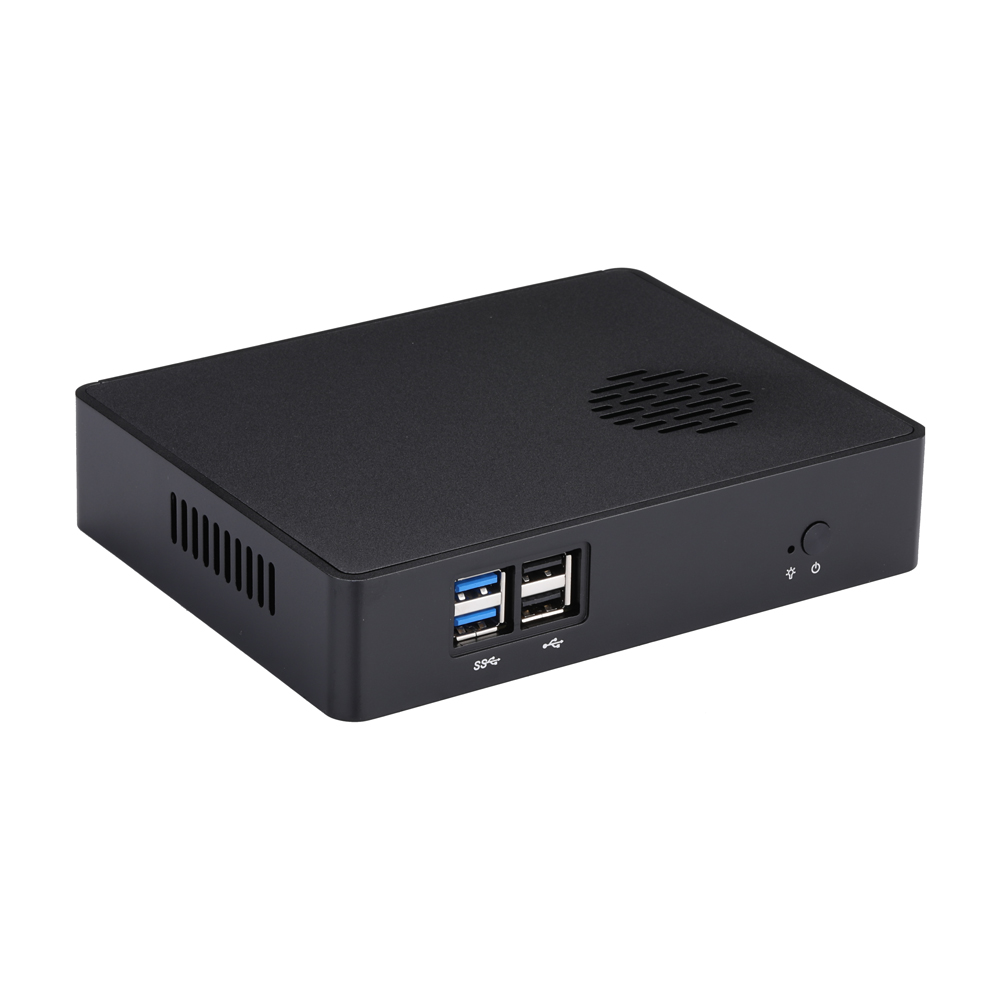

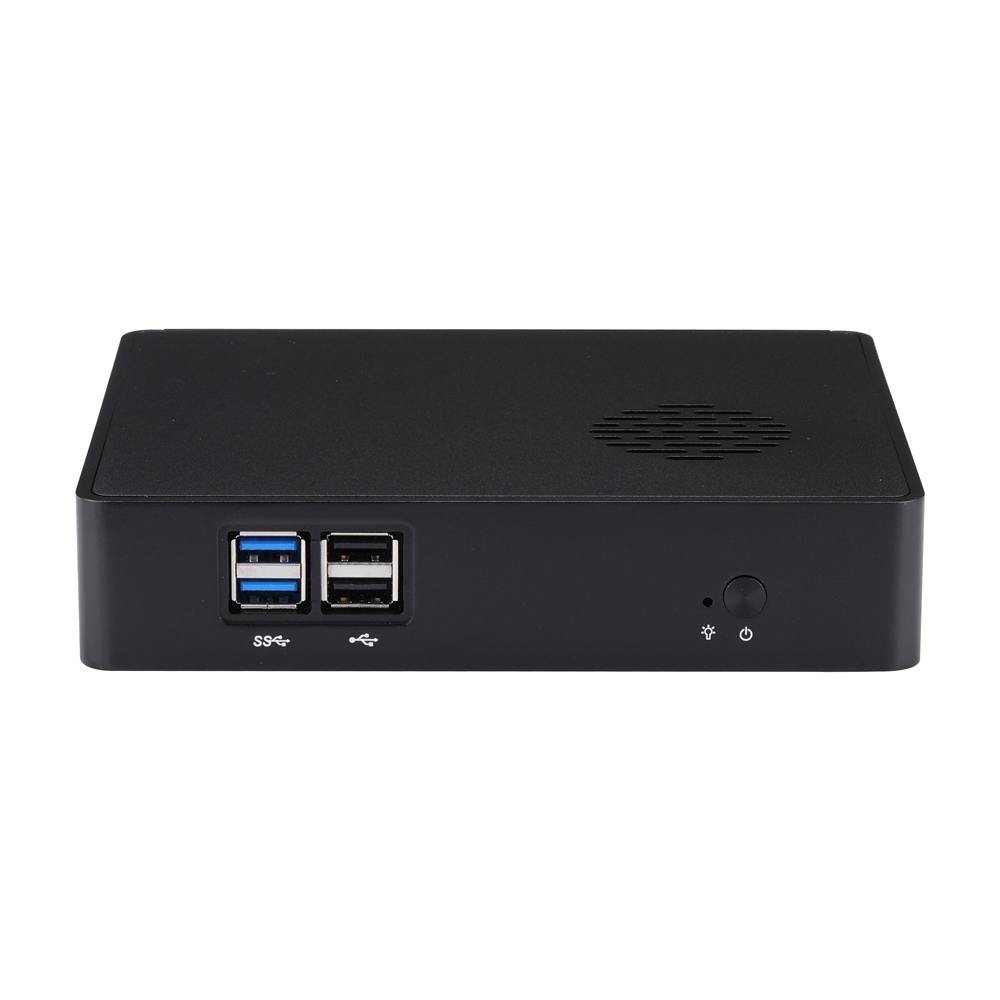

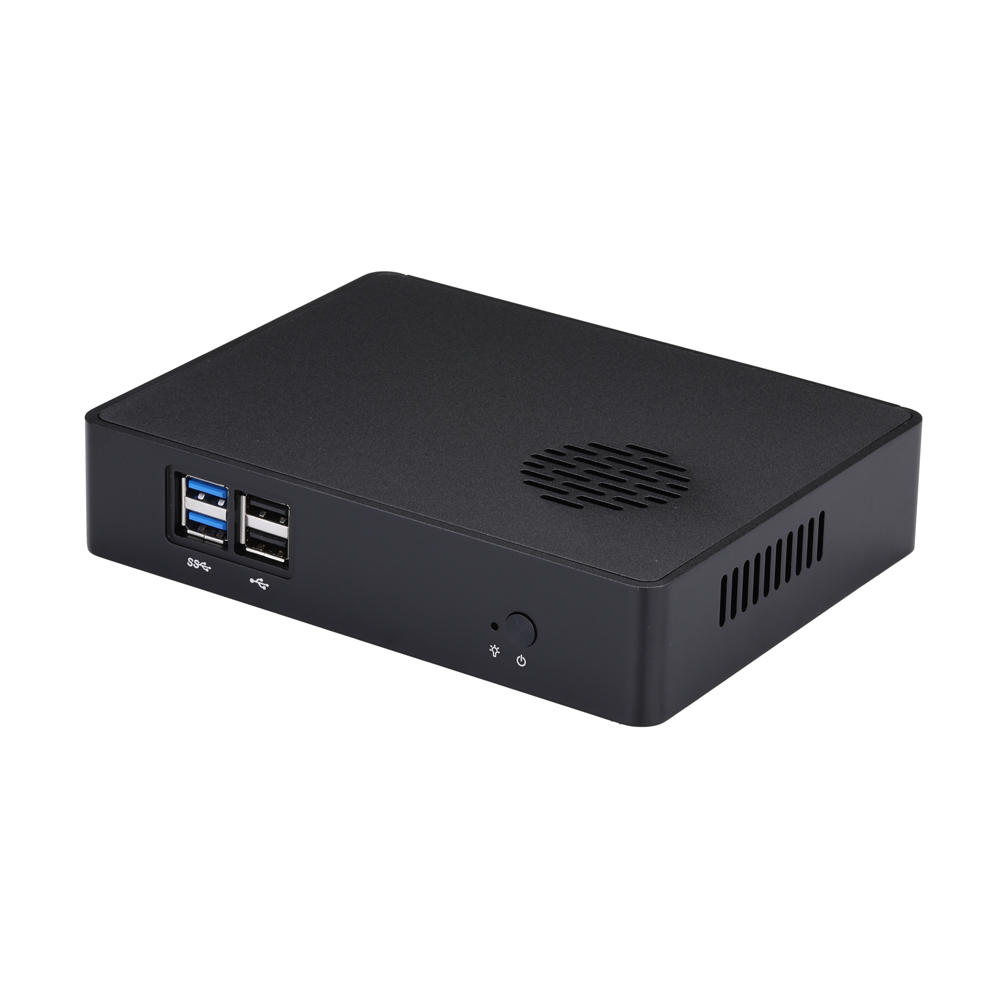

| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED |
| USB | 2 × USB 3.0, 2 × USB 2.0 |
| Serial Port | 0 |

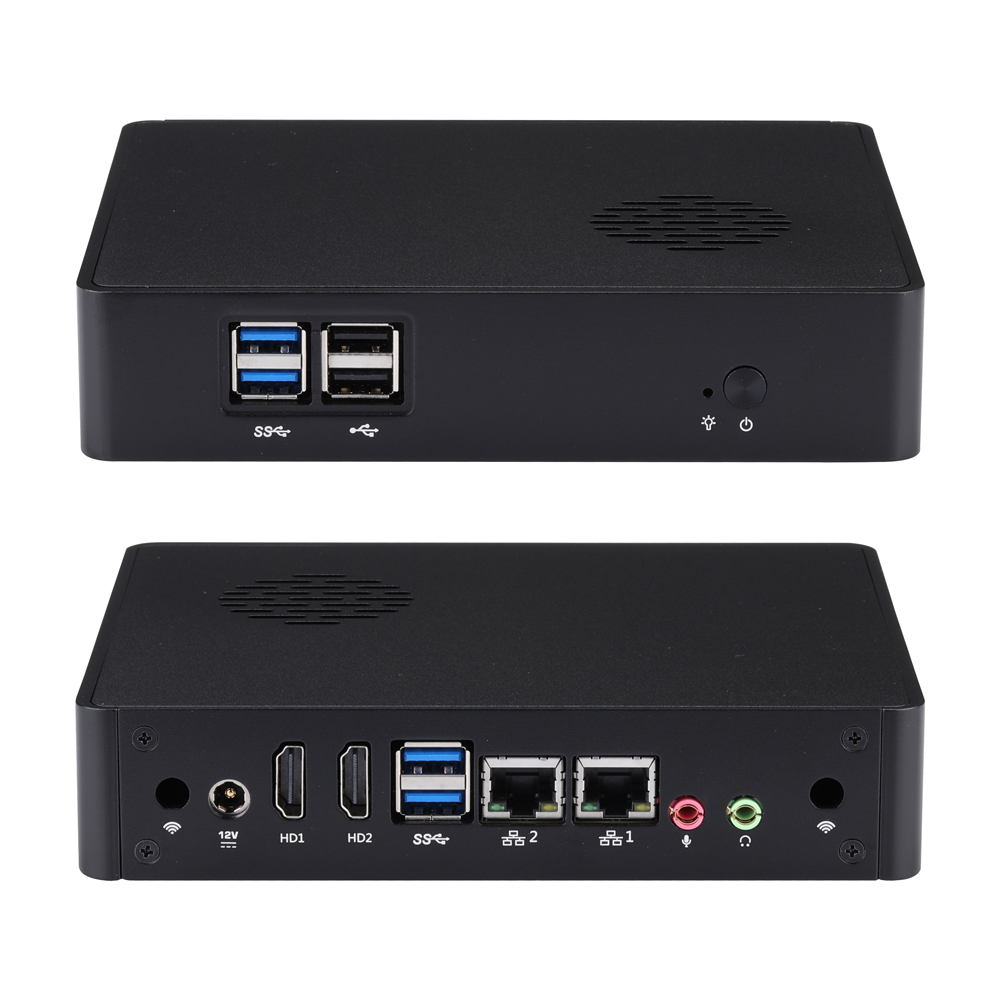

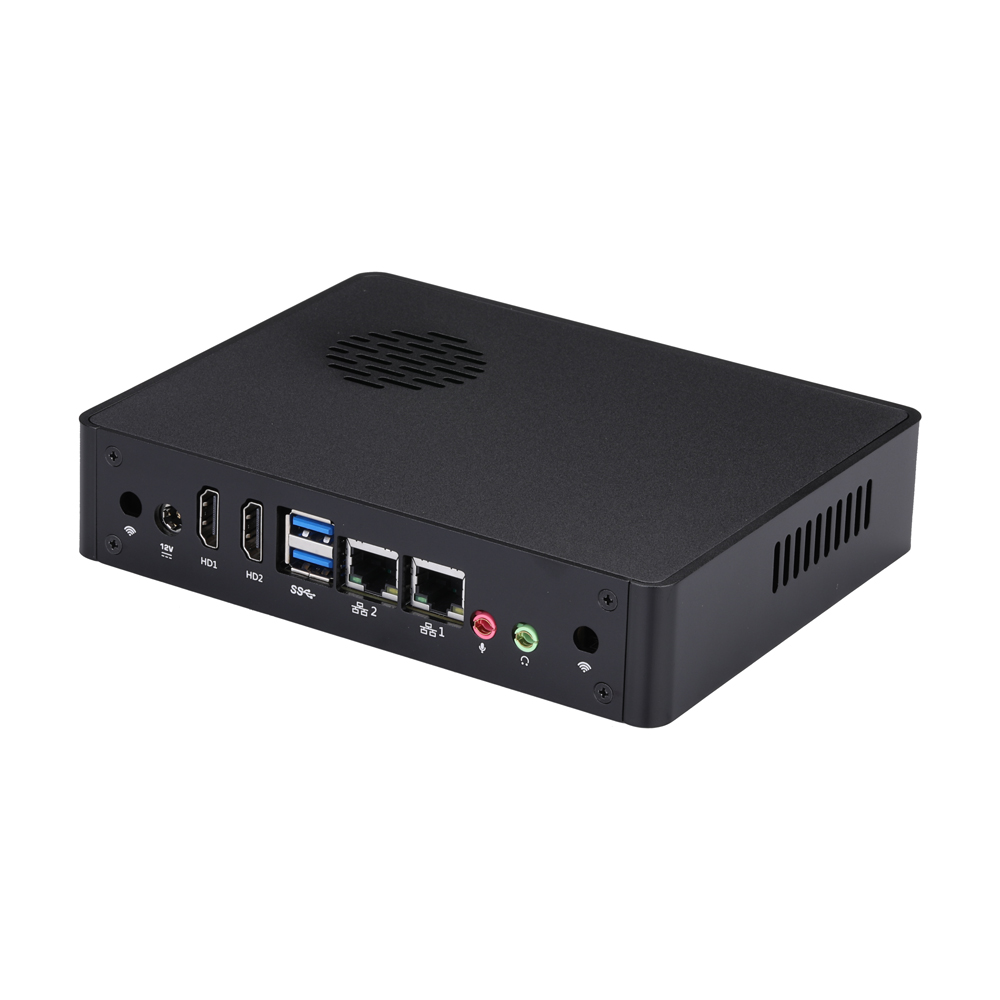

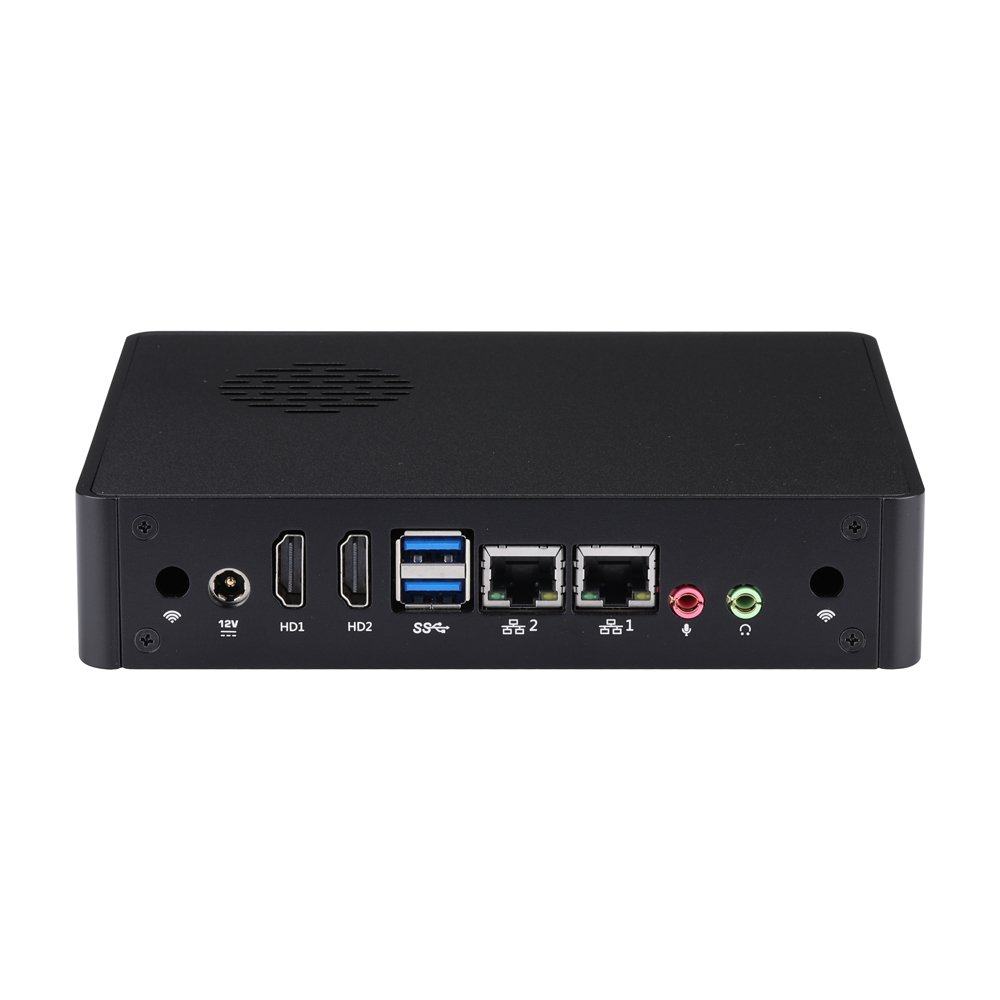

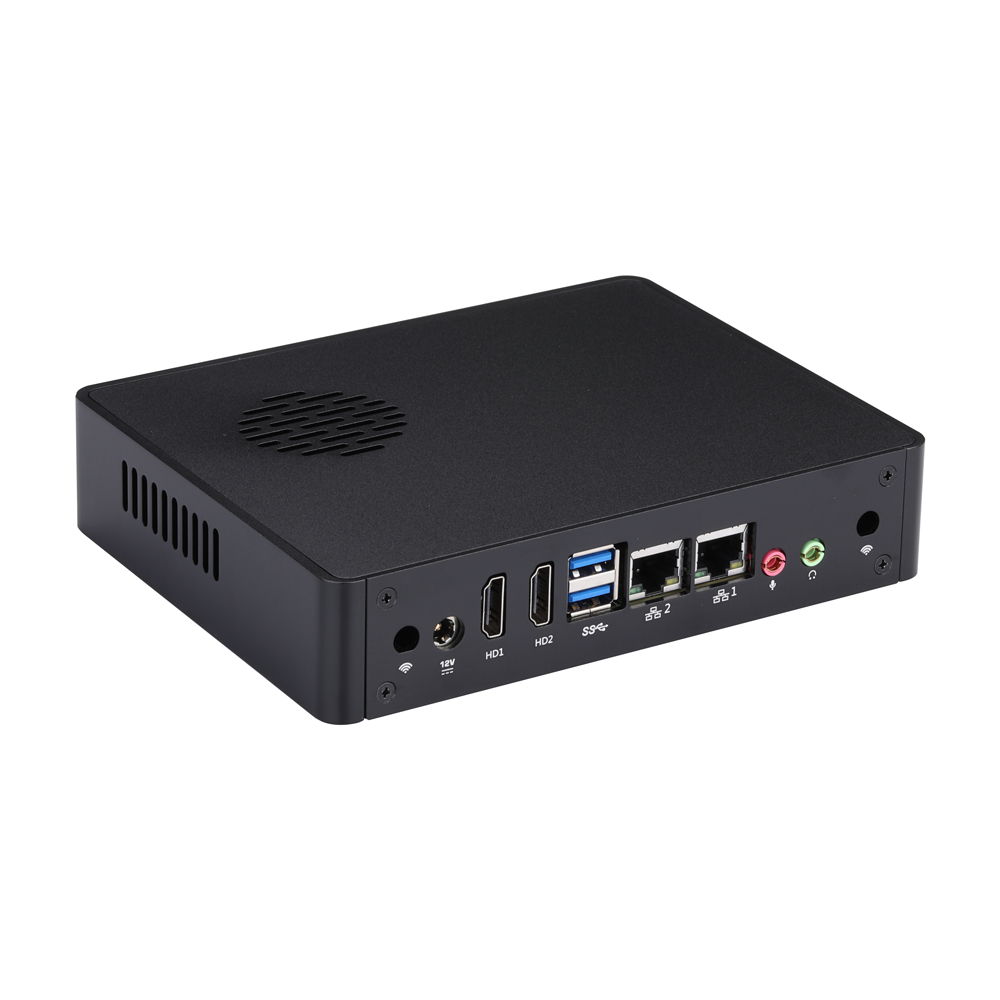

| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 2 × HDMI |
| LAN | 2 × Realtek Gigabit LAN |
| USB | 2 × USB 3.0 |
| Audio | 1 × Mic-in, 1 × Line-out |
| Serial Port | 0 |
| Storage | |
| Type | 1 × Mini PCIe for mSATA SSD |

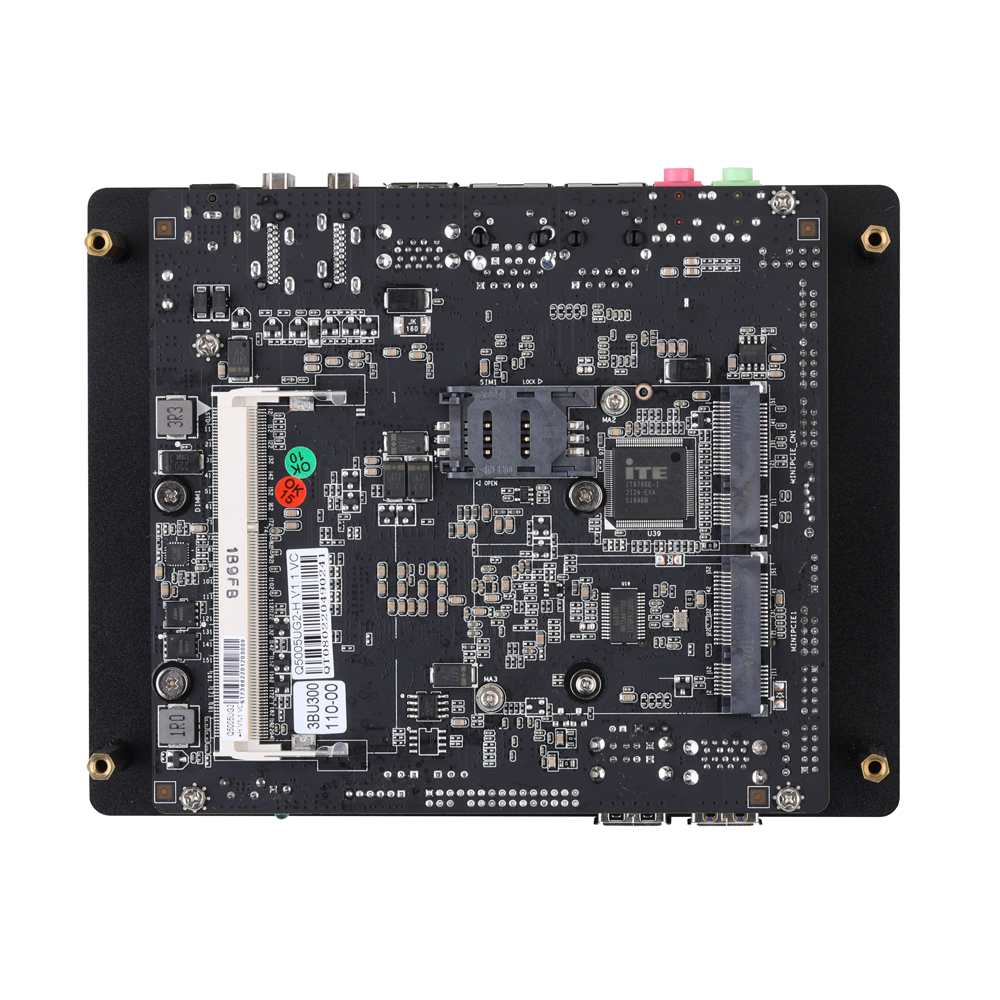

| Expansion | |
| mSATA | 1 × Mini PCIe, Full-length for SSD |
| Mini PCIe | 1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| SIM Card Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 0 |
| DC-in | No |
| Power Requirement | |
| Power Adapter | 12V4A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 166 × 130 × 35mm |
| Weight | 0.67kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | Windows 7, Windows 8, Windows 10, Linux |
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
Ordering and Specifications Information
Quick Order Model: Q30531S-S08
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
| Q30411S | S08 | Haswell | Celeron | 2955U | 2 | 2 | 1.4GHz | / | 2M | Intel HD Graphics | 15W |
| Q30431S | S08 | Haswell | Core i3 | 4005U | 2 | 4 | 1.7GHz | / | 3M | Intel HD 4400 | 15W |
| Q30451S | S08 | Haswell | Core i5 | 4200U | 2 | 4 | 1.6GHz | 2.6GHz | 3M | Intel HD 4400 | 15W |
| Q30471S | S08 | Haswell | Core i7 | 4500U | 2 | 4 | 1.8GHz | 3.0GHz | 4M | Intel HD 4400 | 15W |
| Q30432S | S08 | Haswell | Core i3 | 4010Y | 2 | 4 | 1.3GHz | / | 3M | Intel HD 4200 | 11.5W |
| Q30452S | S08 | Haswell | Core i5 | 4200Y | 2 | 4 | 1.4GHz | 1.9GHz | 3M | Intel HD 4200 | 11.5W |
| Q30511S | S08 | Broadwell | Celeron | 3205U | 2 | 2 | 1.5GHz | / | 2M | Intel HD Graphics | 15W |
| Q30512S | S08 | Broadwell | Celeron | 3215U | 2 | 2 | 1.7GHz | / | 2M | Intel HD Graphics | 15W |
| Q30521S | S08 | Broadwell | Pentium | 3805U | 2 | 2 | 1.9GHz | / | 2M | Intel HD Graphics | 15W |
| Q30531S | S08 | Broadwell | Core i3 | 5005U | 2 | 4 | 2.0GHz | / | 3M | Intel HD 5500 | 15W |
| Q30551S | S08 | Broadwell | Core i5 | 5200U | 2 | 4 | 2.2GHz | 2.7GHz | 3M | Intel HD 5500 | 15W |
| Q30571S | S08 | Broadwell | Core i7 | 5500U | 2 | 4 | 2.4GHz | 3.0GHz | 4M | Intel HD 5500 | 15W |
PC Case Options
| Category | SATA Support |
| S03 | - |
| S08 | Yes |
Custom Options
| Category | Description |
| USB 2.0 | 3 |
| GPIO | 1 |
| LVDS | 1 |
| Serial Port | 4 × RS-232 |
