Mini PC Q10700C S08 Series
Q10700C mini PC with Intel Jasper Lake, HDMI + DP, dual RS-232, USB 3.0, USB 2.0, Type-C, 3× M.2, SATA 3.0, and dual Gigabit LAN. Compact and versatile for industrial and embedded applications.
Main Features
Intel Jasper Lake Processor
1 × HDMI, 1 × Display Port
2 × RS-232
1 × USB 3.0, 5 × USB 2.0, 1 × Type C
3 × M.2, 1 × SATA 3.0
2 × Realtek Gigabit LAN
| Processor System | |
| CPU | Intel Jasper Lake Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR4 SO-DIMM Socket (Up to 16G) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Realtek Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |

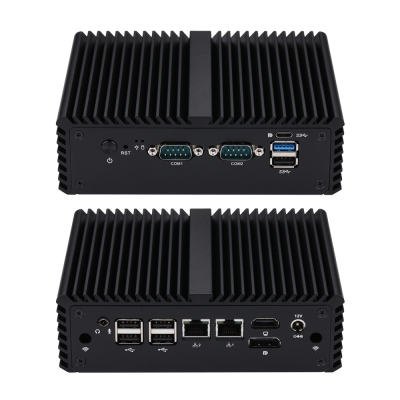

| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| Serial Port | 2 × RS-232 (COM1/2 can be set up as RS-485, Support 5V/12V) |
| USB | 1 × USB3.0, 1 × USB2.0, 1 × Type C (USB 3.0) |
| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 1 × HDMI, 1 × Display Port |
| USB | 4 × USB 2.0 |
| LAN | 2 × Realtek Gigabit LAN |
| Audio | 1 (Mic-in, Line-out) |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1) |
| Expansion | |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1) |
| M.2 | 1 × M.2 for 4G/5G (B key, Type: 3042/3052) |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| Power Header | 1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option) |
| SIM Card Slot | 1 |
| Clear CMOS Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 155 × 127 × 48mm |
| Weight | 0.86kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
Ordering and Specifications Information
Quick Order Model: Q10722C-S08
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
| Q10711C | S08 | Jasper Lake | Celeron | N4500 | 2 | 2 | 1.1GHz | 2.8GHz | 4M | Intel UHD Graphics | 6W |
| Q10712C | S08 | Jasper Lake | Celeron | N4505 | 2 | 2 | 2.0GHz | 2.9GHz | 4M | Intel UHD Graphics | 10W |
| Q10721C | S08 | Jasper Lake | Celeron | N5100 | 4 | 4 | 1.1GHz | 2.8GHz | 4M | Intel UHD Graphics | 6W |
| Q10722C | S08 | Jasper Lake | Celeron | N5105 | 4 | 4 | 2.0GHz | 2.9GHz | 4M | Intel UHD Graphics | 10W |
| Q10723C | S08 | Jasper Lake | Celeron | N5095 | 4 | 4 | 2.0GHz | 2.9GHz | 4M | Intel UHD Graphics | 15W |
| Q10731C | S08 | Jasper Lake | Pentium | N6000 | 4 | 4 | 1.1GHz | 3.0GHz | 4M | Intel UHD Graphics | 6W |
| Q10732C | S08 | Jasper Lake | Pentium | N6005 | 4 | 4 | 2.0GHz | 3.3GHz | 4M | Intel UHD Graphics | 10W |
