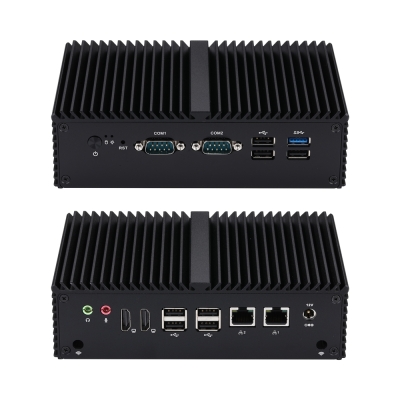

Mini PC Q10900C S04 Series
Q10900C mini PC with Intel Core i3-N305 Alder Lake-N processor delivers strong performance. Features dual HDMI, 8× USB, 2× COM, triple M.2, and dual 2.5G LAN—compact yet powerful for industrial tasks.
Main Features
Intel Alder Lake-N Processor
Intel Twin Lake-N Processor
2 × HDMI
1 × USB 3.0, 7 × USB 2.0, 2 × RS-232
3 × M.2, 1 × SATA 3.0
2 × Realtek 2.5 Gigabit LAN
| Processor System | |
| CPU | Intel Alder Lake-N Processor Intel Twin Lake-N Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR5 SO-DIMM Socket (Up to 48G) |
| Chipset | By CPU |
| Graphics | By CPU |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |

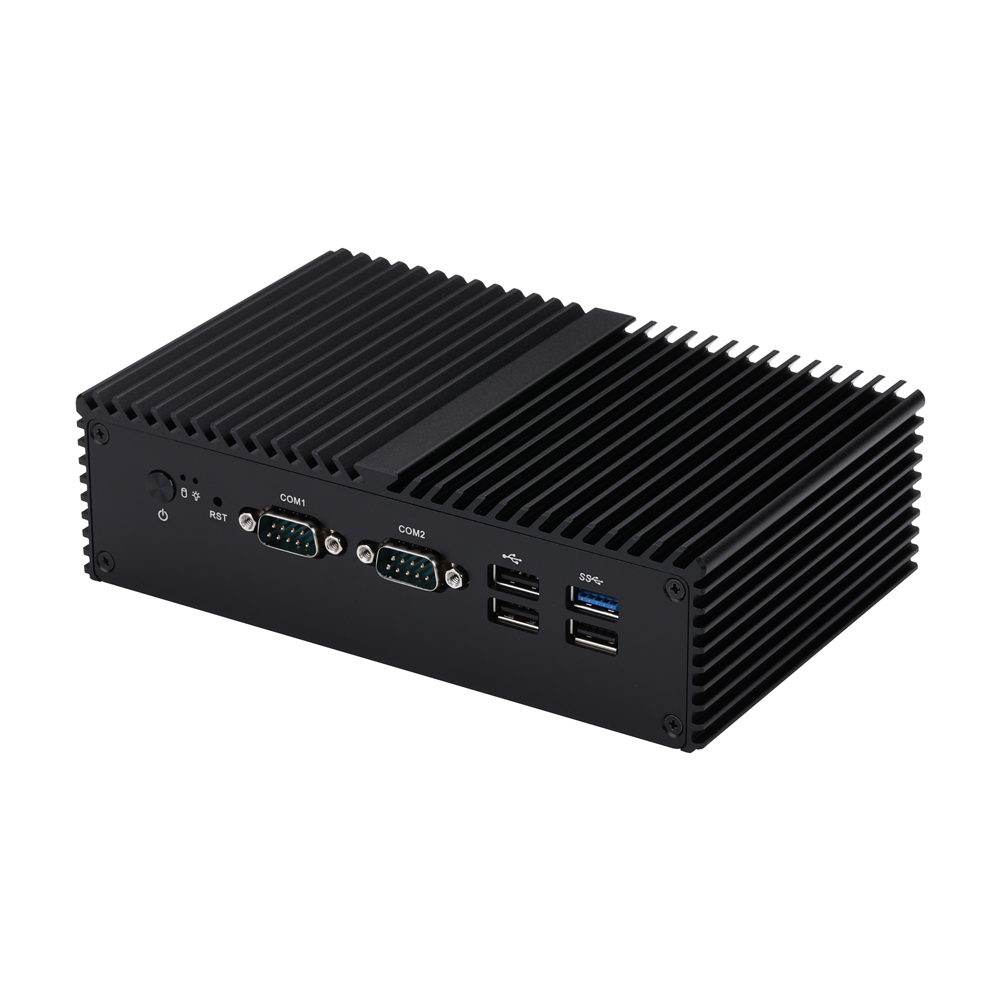

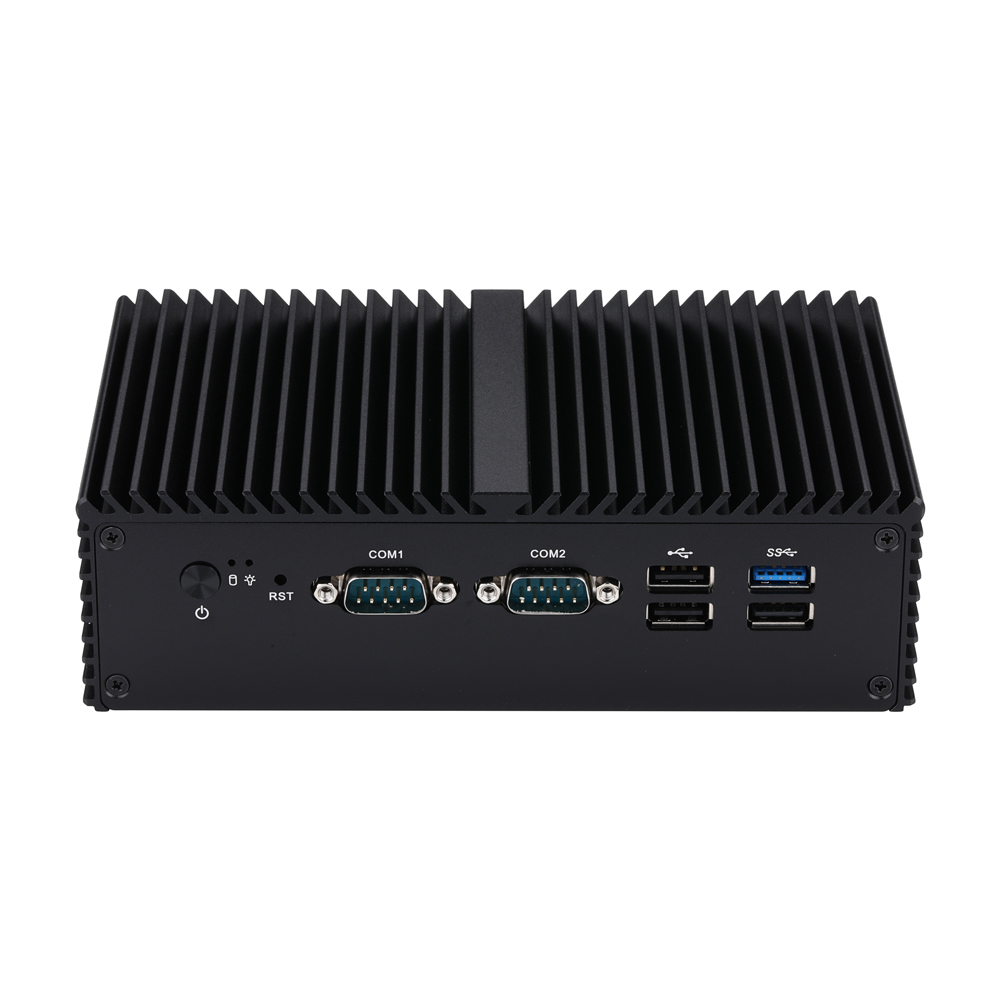

| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| GPIO | 0 |
| PS/2 | 0 |
| USB | 3 × USB 2.0, 1 × USB 3.0 |
| Serial Port | 2 × RS-232 (COM1/2 can be set up as RS-485) |

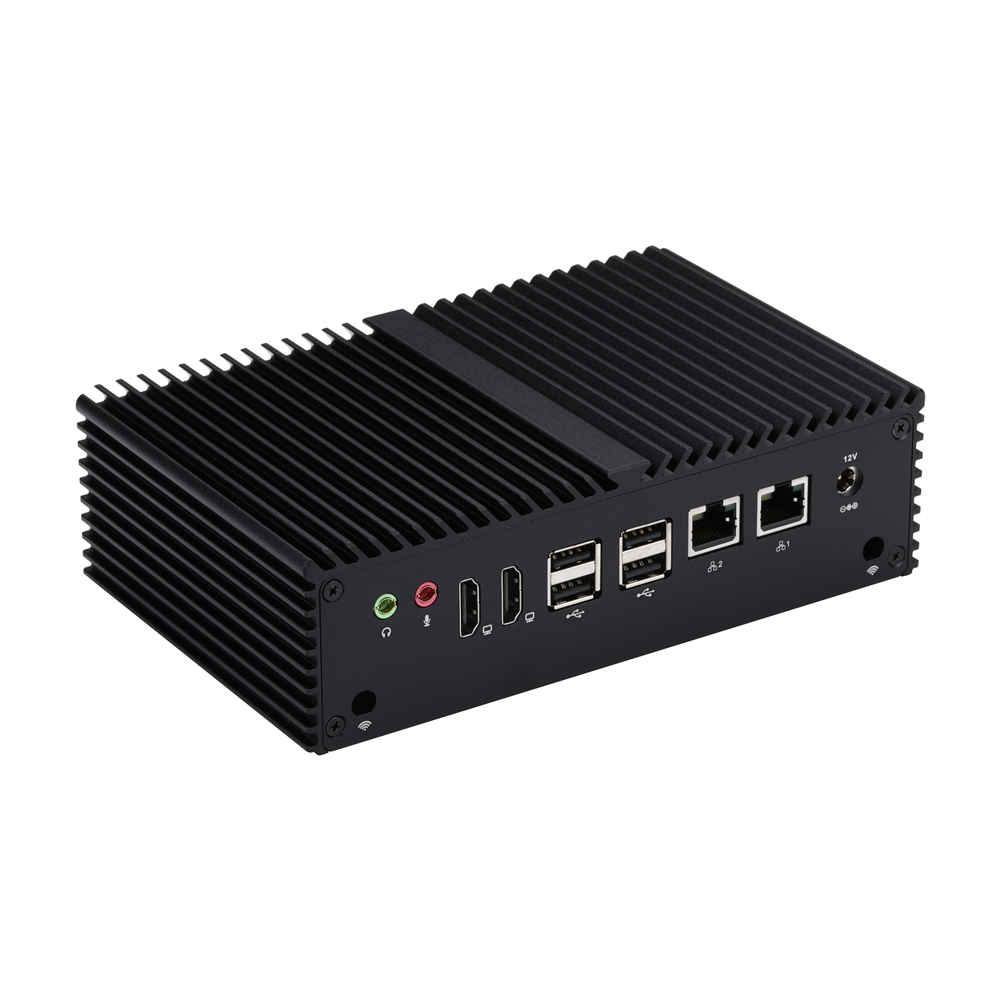

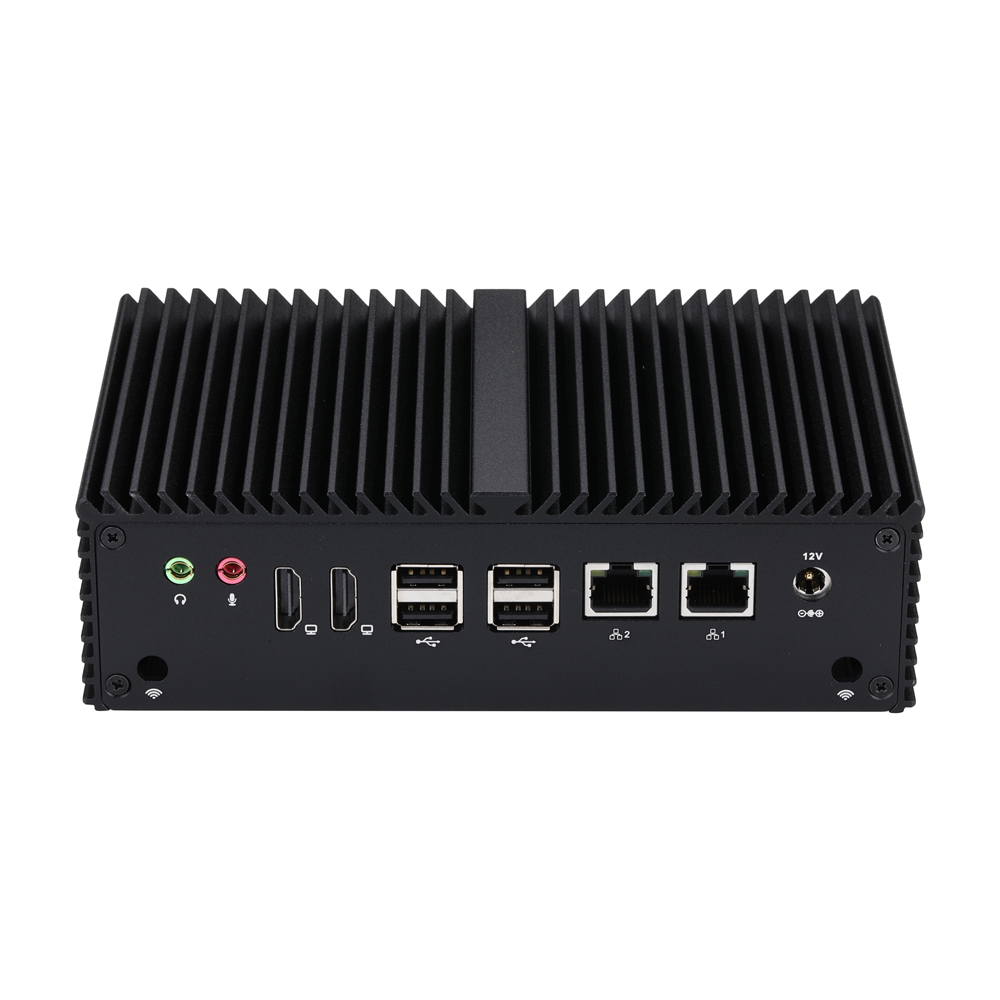

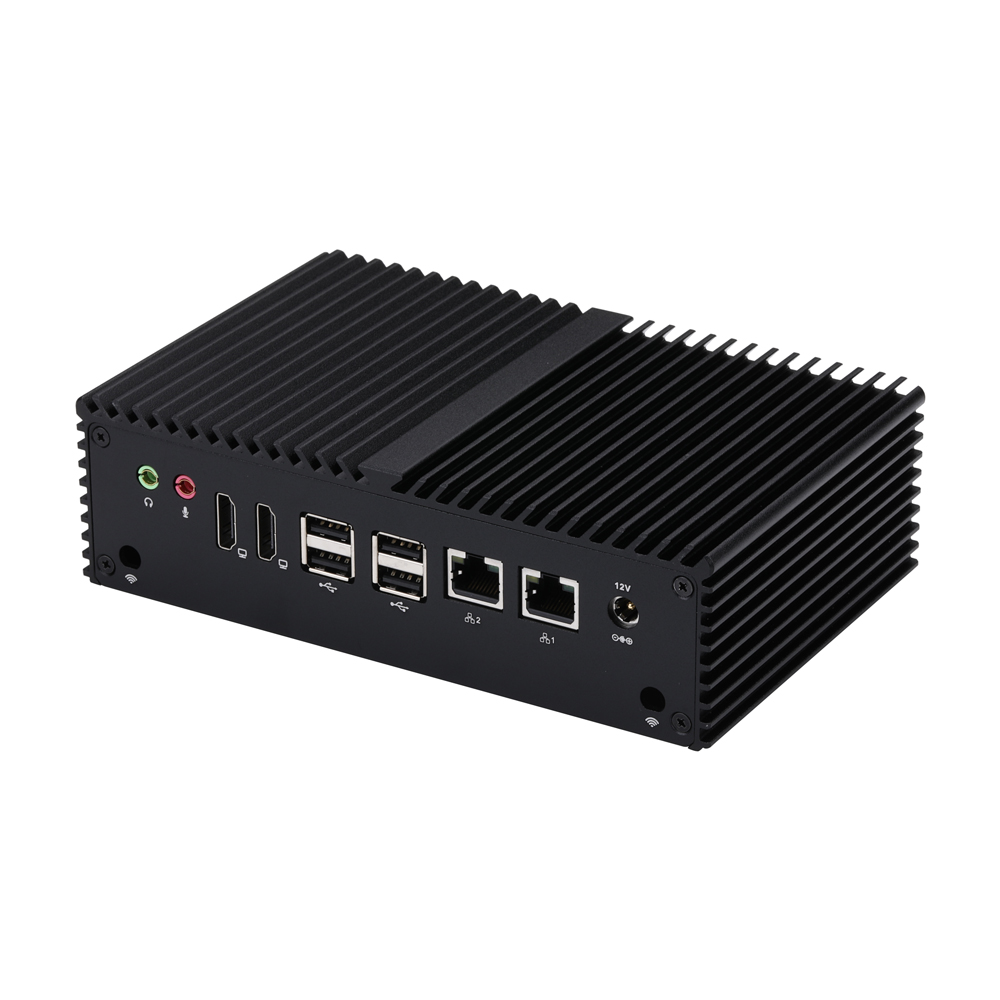

| Rear I/O | |
| Power | 1 × DC Jack |
| LAN | 2 × Realtek 2.5 Gigabit LAN |
| USB | 4 × USB 2.0 |
| Display | 2 × HDMI |
| Serial Port | 0 |
| Audio | 1 × Mic-in, 1 × Line-out |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1) |
| Expansion | |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1) |
| M.2 | 1 × M.2 for 4G/5G (B key, Type: 3042/3052) 5G Mode Requires Customization |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| VGA | 0 |
| Serial Port | 0 |
| SIM Card Slot | 1 |
| Clear CMOS Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| Front Panel header | 1, 2 × 5Pin, Pitch 2.0mm |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 178 × 111 × 52mm |
| Weight | 0.78kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
Ordering and Specifications Information
Quick Order Model: Q10922C-S04
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
| Q10911C | S04 | Alder lake-N | - | N50 | 2 | - | - | 3.4GHz | 6M | Intel UHD Graphics | 6W |
| Q10921C | S04 | Alder lake-N | - | N97 | 4 | - | - | 3.6GHz | 6M | Intel UHD Graphics | 12W |
| Q10922C | S04 | Alder lake-N | - | N100 | 4 | 4 | - | 3.4GHz | 6M | Intel UHD Graphics | 6W |
| Q10923C | S04 | Alder lake-N | - | N200 | 4 | 4 | - | 3.7GHz | 6M | Intel UHD Graphics | 6W |
| Q10931C | S04 | Alder lake-N | Core i3 | N300 | 8 | 8 | - | 3.8GHz | 6M | Intel UHD Graphics | 7W |
| Q10932C | S04 | Alder lake-N | Core i3 | N305 | 8 | 8 | - | 3.8GHz | 6M | Intel UHD Graphics | 15W |
| Q11022C | S04 | Twin Lake-N | - | N150 | 4 | 4 | - | 3.6GHz | 6M | Intel Graphics | 6W |
| Q11023C | S04 | Twin Lake-N | - | N250 | 4 | 4 | - | 3.8GHz | 6M | Intel Graphics | 6W |
| Q11031C | S04 | Twin Lake-N | Core i3 | N350 | 8 | 8 | - | 3.9GHz | 6M | Intel Graphics | 7W |
| Q11032C | S04 | Twin Lake-N | Core i3 | N355 | 8 | 8 | - | 3.9GHz | 6M | Intel Graphics | 15W |
