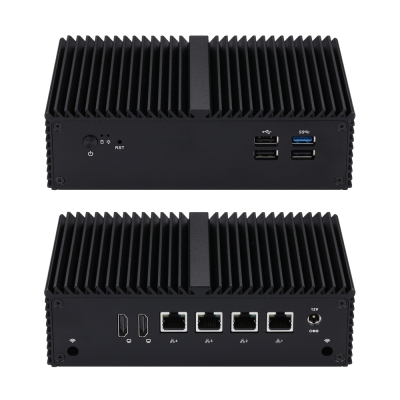

Q10900G4 mini PC powered by Intel Alder Lake-N processor. Equipped with dual HDMI, 4× USB, 3× M.2, SATA 3.0, and 4× 2.5G LAN ports—ideal for compact network applications and industrial use.
Intel Alder Lake-N Processor
Intel Twin Lake-N Processor
2 × HDMI
1 × USB 3.0, 3 × USB 2.0
3 × M.2, 1 × SATA 3.0
4 × Realtek 2.5 Gigabit LAN
| Processor System | |
| CPU | Intel Alder Lake-N Processor Intel Twin Lake-N Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR5 SO-DIMM Socket (Up to 48G) |
| Chipset | By CPU |
| Graphics | By CPU |
| Audio | No |
| Watch Dog | Yes |

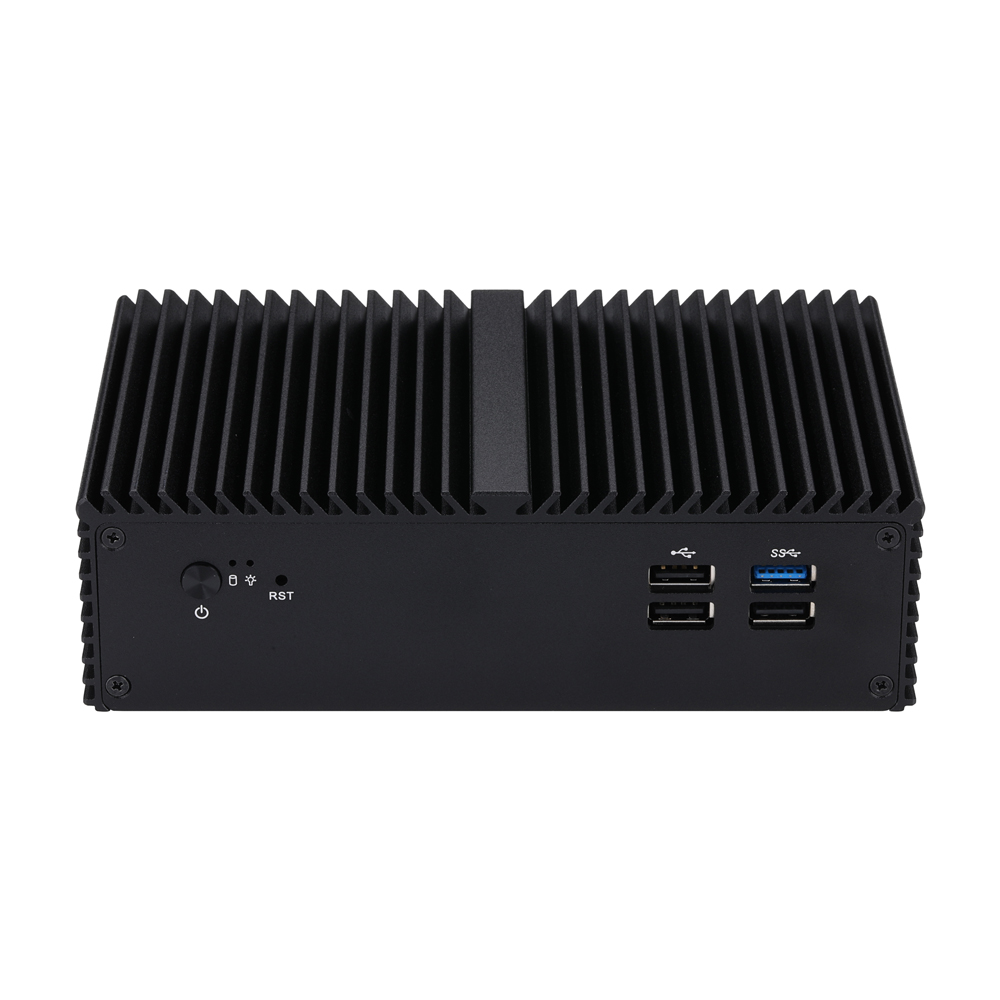

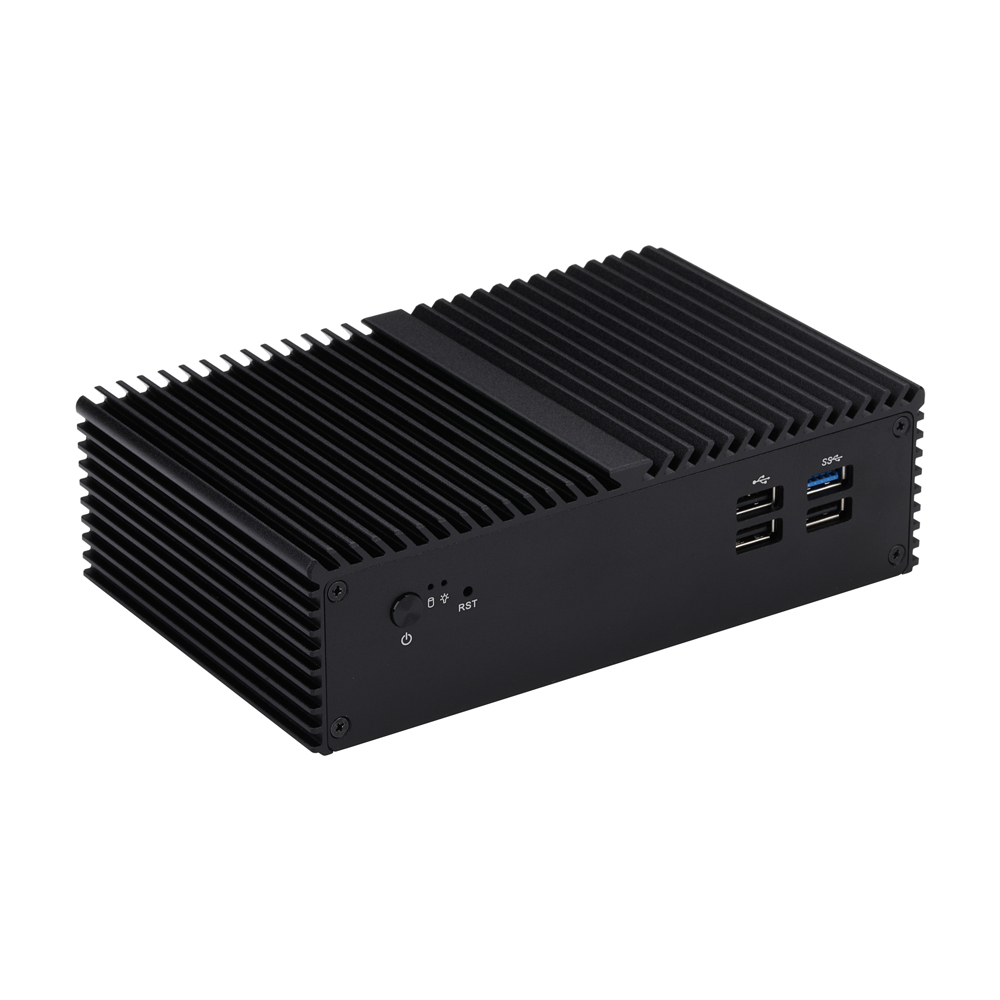

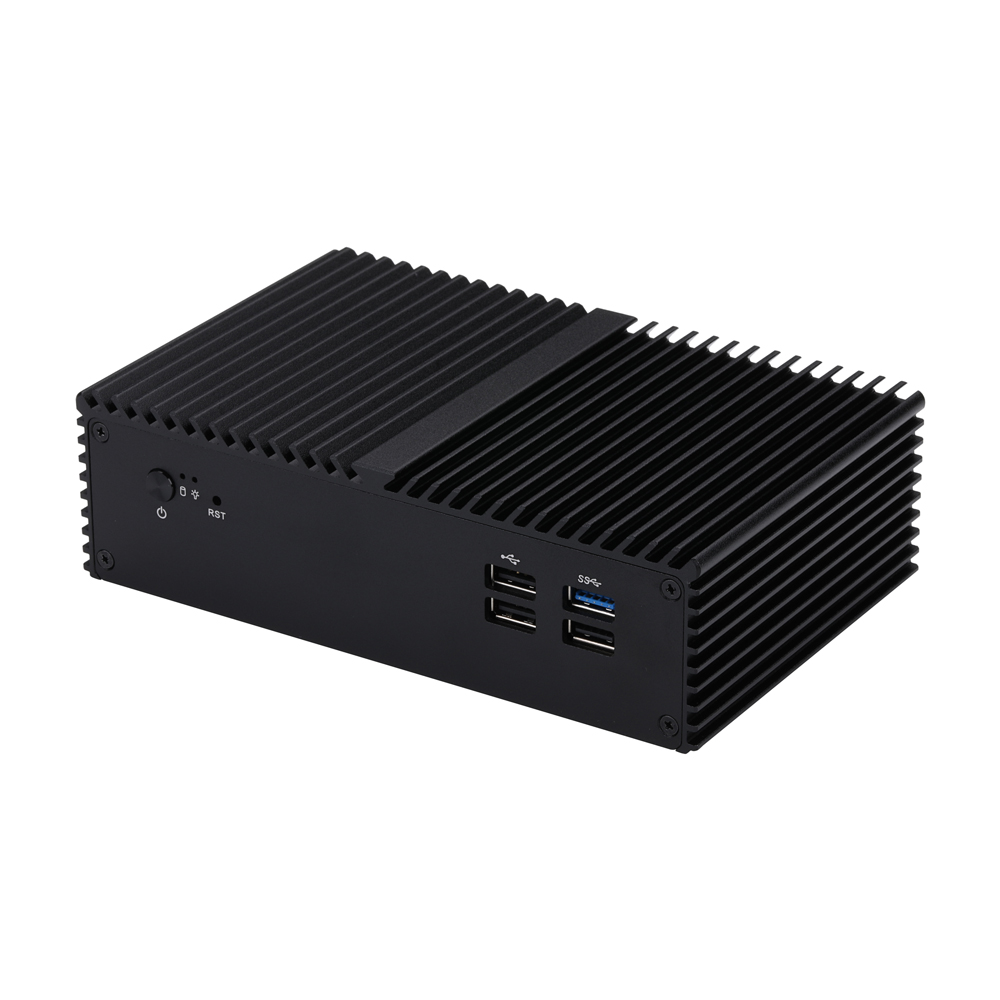

| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| GPIO | 0 |
| PS/2 | 0 |
| USB | 3 × USB 2.0, 1 × USB 3.0 |
| Serial Port | 0 |

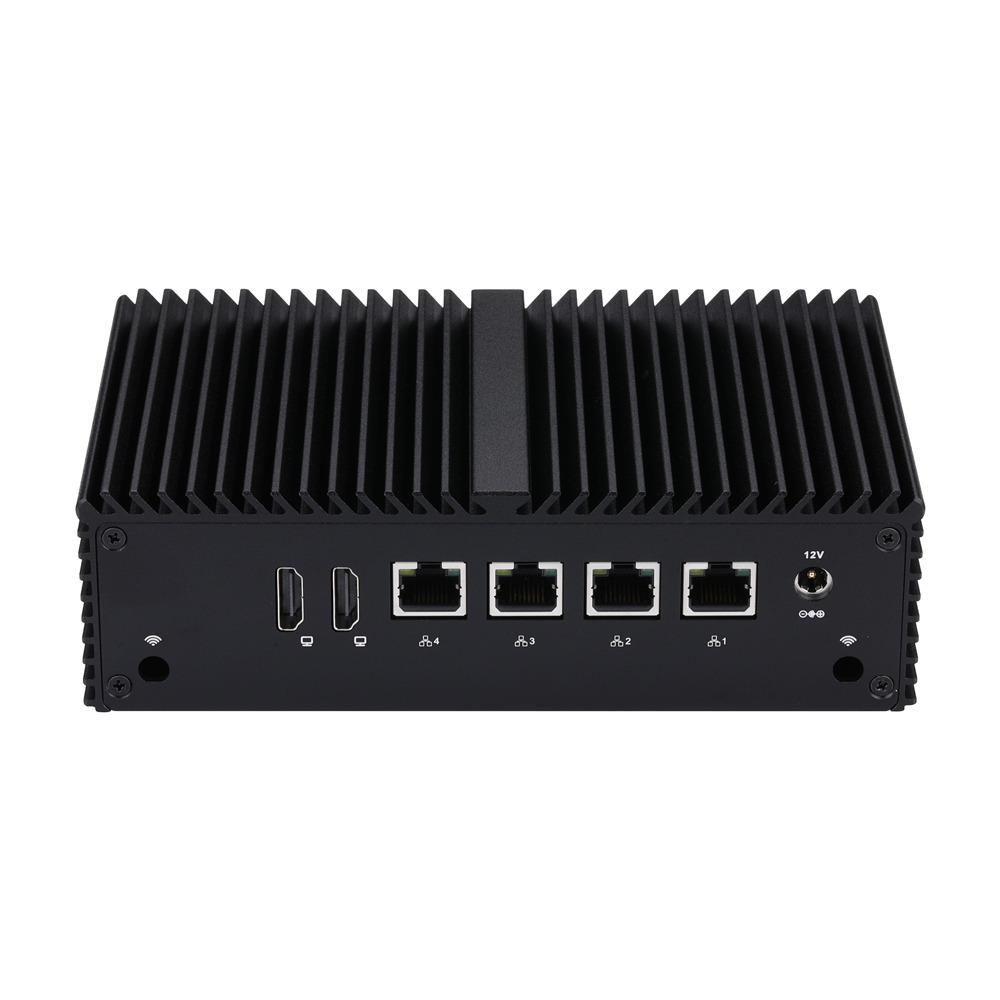

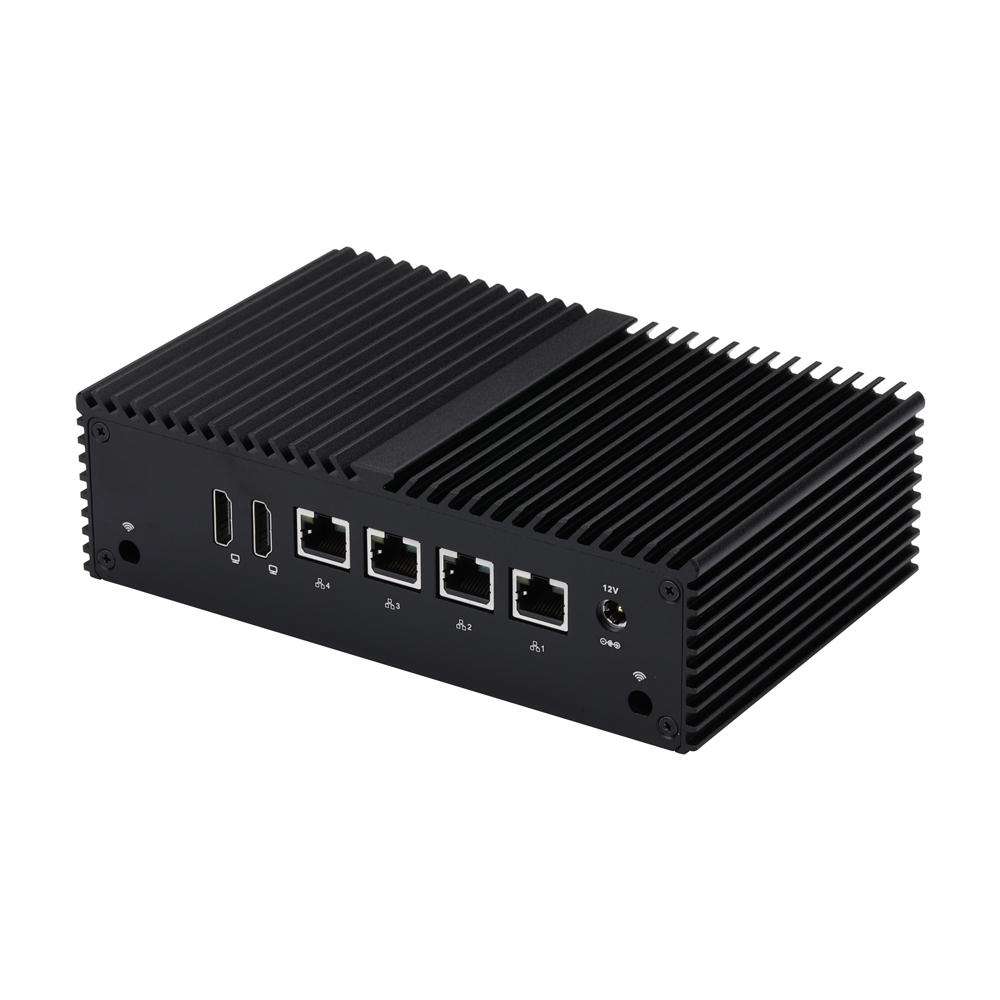

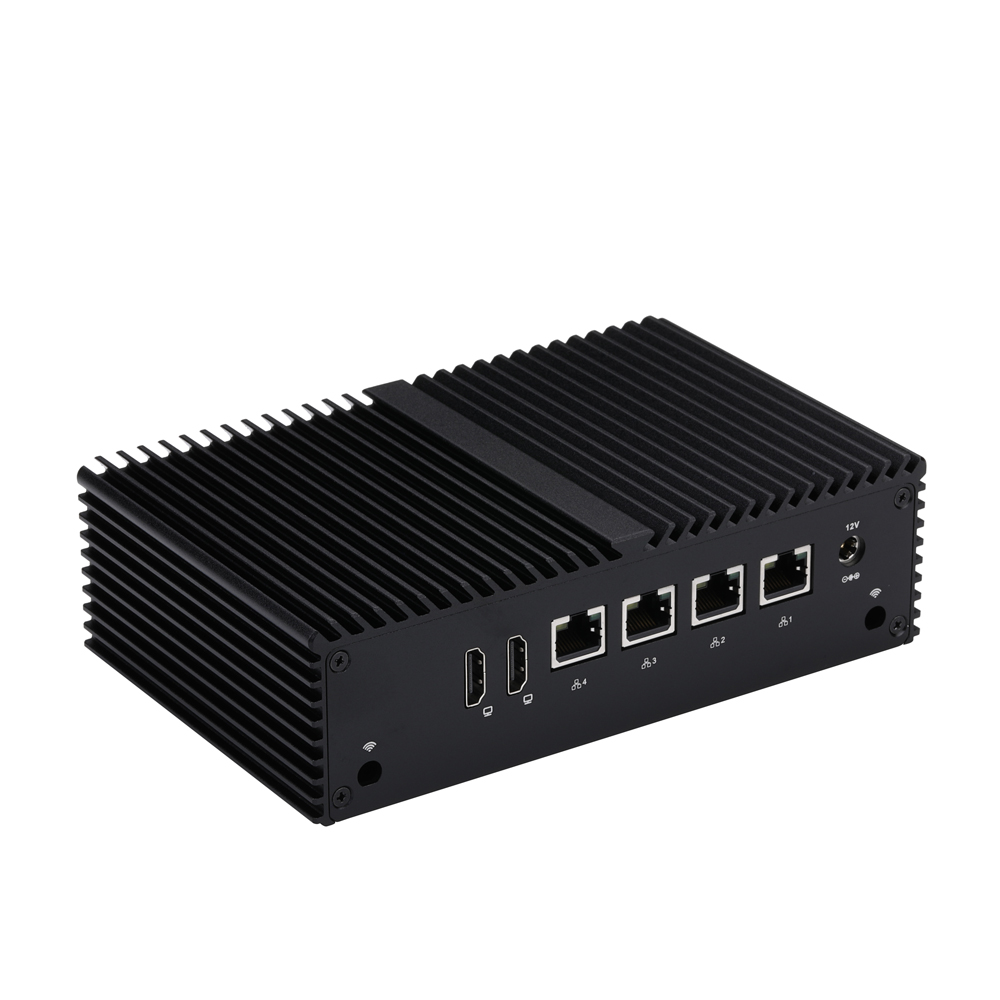

| Rear I/O | |
| Power | 1 × DC Jack |
| LAN | 4 × Realtek 2.5 Gigabit LAN |
| USB | 0 × USB 2.0 |
| Display | 2 × HDMI |
| Serial Port | 0 |
| Audio | 0 |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1) |

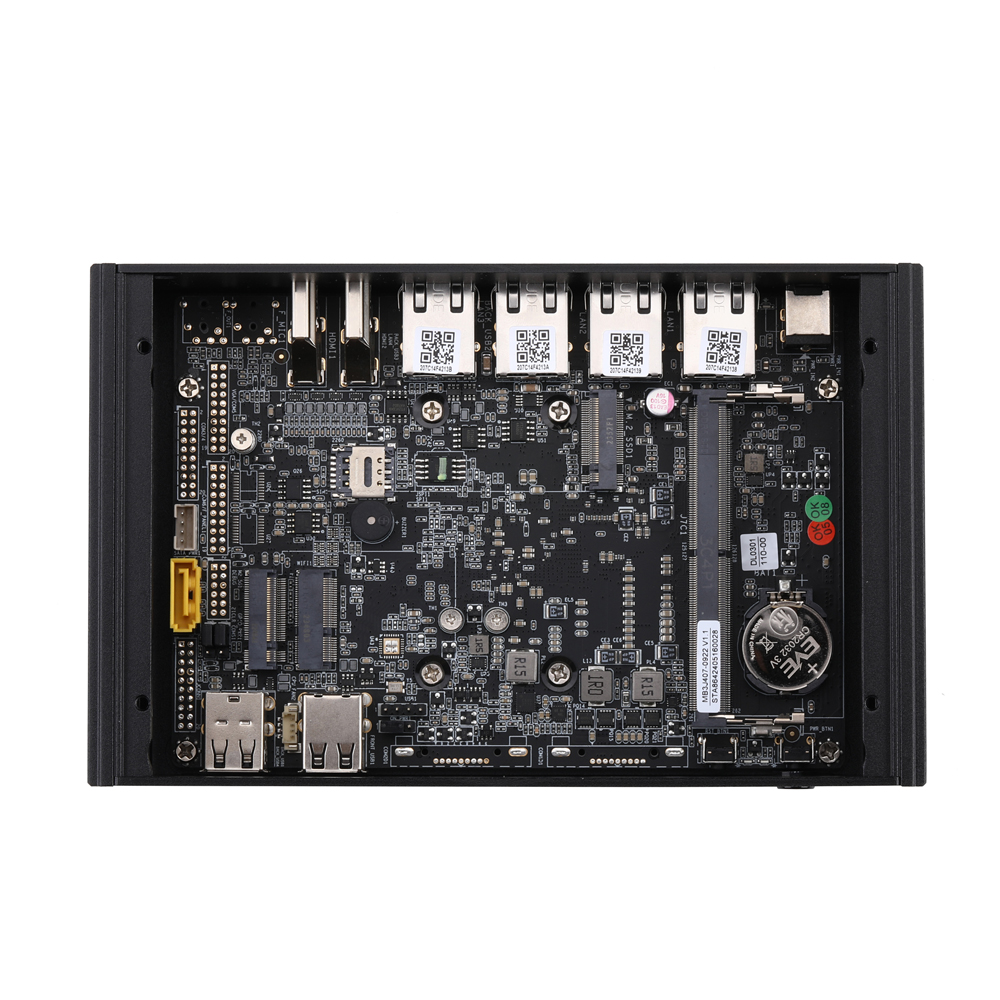

| Expansion | |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1) |
| M.2 | 1 × M.2 for 4G/5G (B key, Type: 3042/3052) 5G Mode Requires Customization |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| VGA | 0 |
| Serial Port | 0 |
| SIM Card Slot | 1 |
| Clear CMOS Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| Front Panel header | 1, 2 × 5Pin, Pitch 2.0mm |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 178 × 111 × 52mm |
| Weight | 0.77kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
Quick Order Model: Q10922G4-S04
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
| Q10911G4 | S04 | Alder lake-N | - | N50 | 2 | - | - | 3.4GHz | 6M | Intel UHD Graphics | 6W |
| Q10921G4 | S04 | Alder lake-N | - | N97 | 4 | - | - | 3.6GHz | 6M | Intel UHD Graphics | 12W |
| Q10922G4 | S04 | Alder lake-N | - | N100 | 4 | 4 | - | 3.4GHz | 6M | Intel UHD Graphics | 6W |
| Q10923G4 | S04 | Alder lake-N | - | N200 | 4 | 4 | - | 3.7GHz | 6M | Intel UHD Graphics | 6W |
| Q10931G4 | S04 | Alder lake-N | Core i3 | N300 | 8 | 8 | - | 3.8GHz | 6M | Intel UHD Graphics | 7W |
| Q10932G4 | S04 | Alder lake-N | Core i3 | N305 | 8 | 8 | - | 3.8GHz | 6M | Intel UHD Graphics | 15W |
| Q11022G4 | S04 | Twin Lake-N | - | N150 | 4 | 4 | - | 3.6GHz | 6M | Intel Graphics | 6W |
| Q11023G4 | S04 | Twin Lake-N | - | N250 | 4 | 4 | - | 3.8GHz | 6M | Intel Graphics | 6W |
| Q11031G4 | S04 | Twin Lake-N | Core i3 | N350 | 8 | 8 | - | 3.9GHz | 6M | Intel Graphics | 7W |
| Q11032G4 | S04 | Twin Lake-N | Core i3 | N355 | 8 | 8 | - | 3.9GHz | 6M | Intel Graphics | 15W |
| Category | SATA Support |
| S04 | Yes |
| 1U14 | Yes |
