Mini PC Q30600S S02 Series
Q30600S Mini PC features Intel Skylake-U/Kabylake-U CPUs, dual HDMI, dual M.2, and rich I/O. Ideal for digital signage, IoT, and edge computing in compact, low-power industrial environments.
Main Features
Intel 6th Skylake-U Processor
Intel 7th Kabylake-U Processor
2 × HDMI,
4 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
2 × M.2 Slot
2 × Realtek Gigabit LAN
| Processor System | |
| CPU | Intel 6thSkylake-U Processor Intel 7thKabylake-U Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Realtek Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |

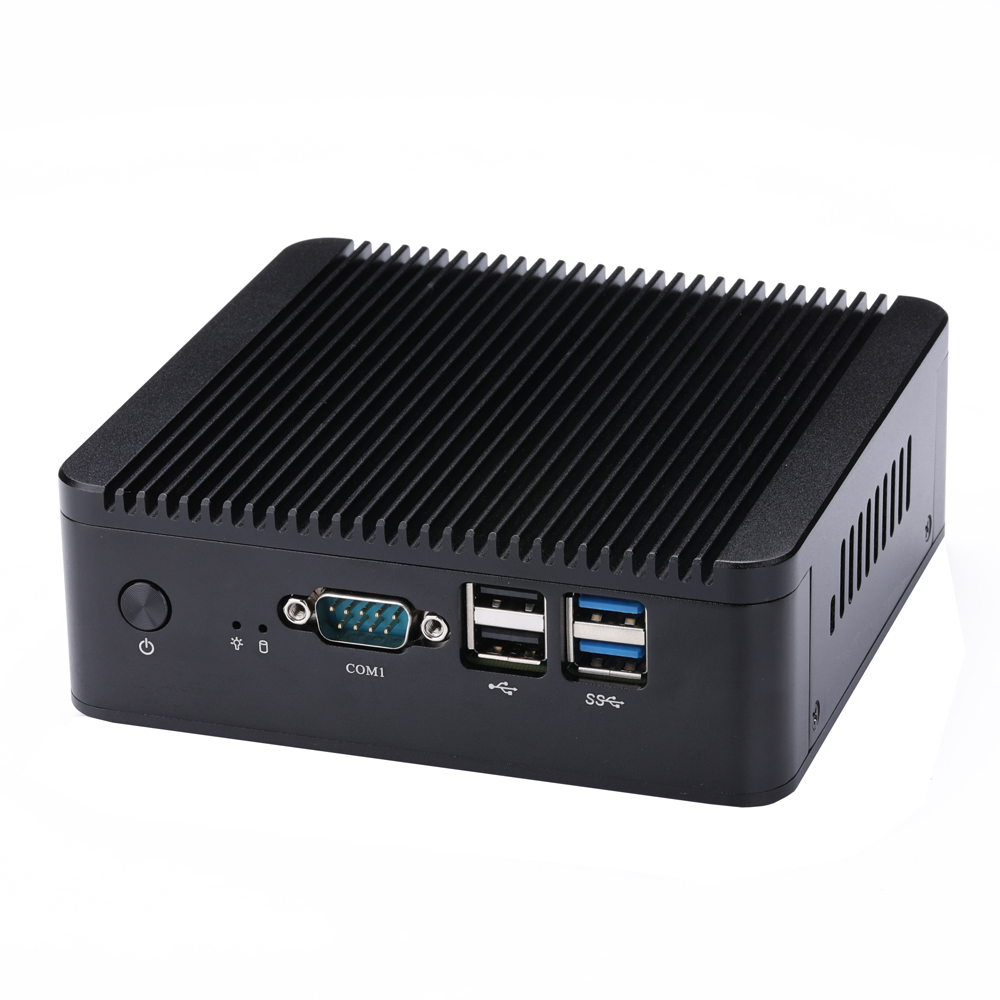

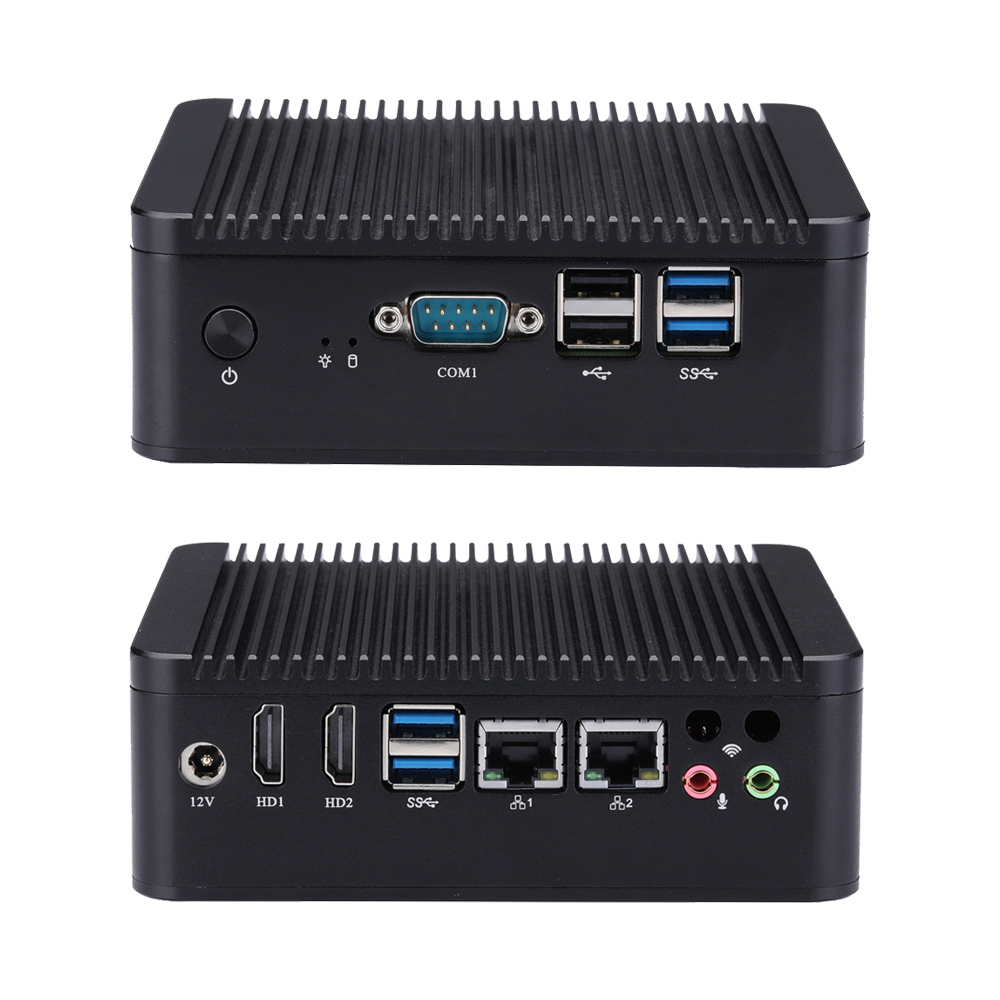

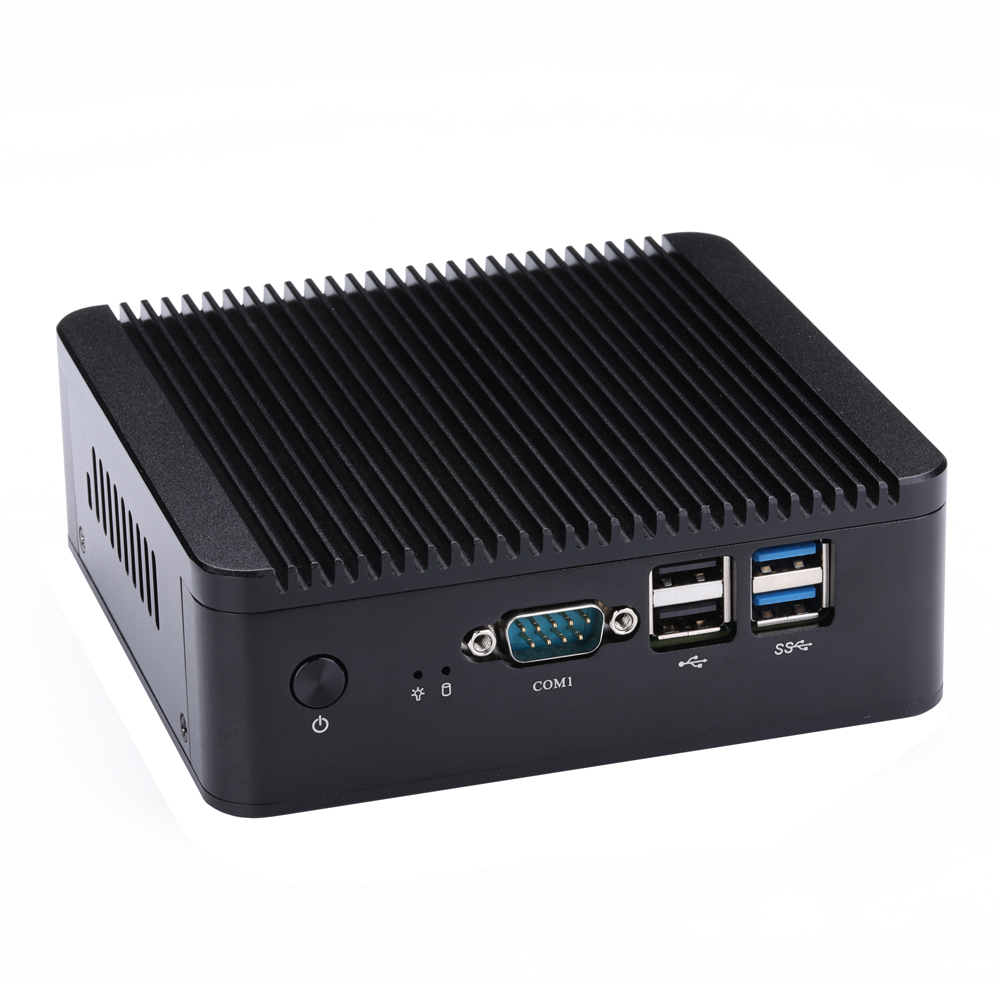

| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| Serial Port | 1 × RS-232 (COM1) |
| USB | 2 × USB 3.0, 2 × USB 2.0 |
| Audio | 0 |

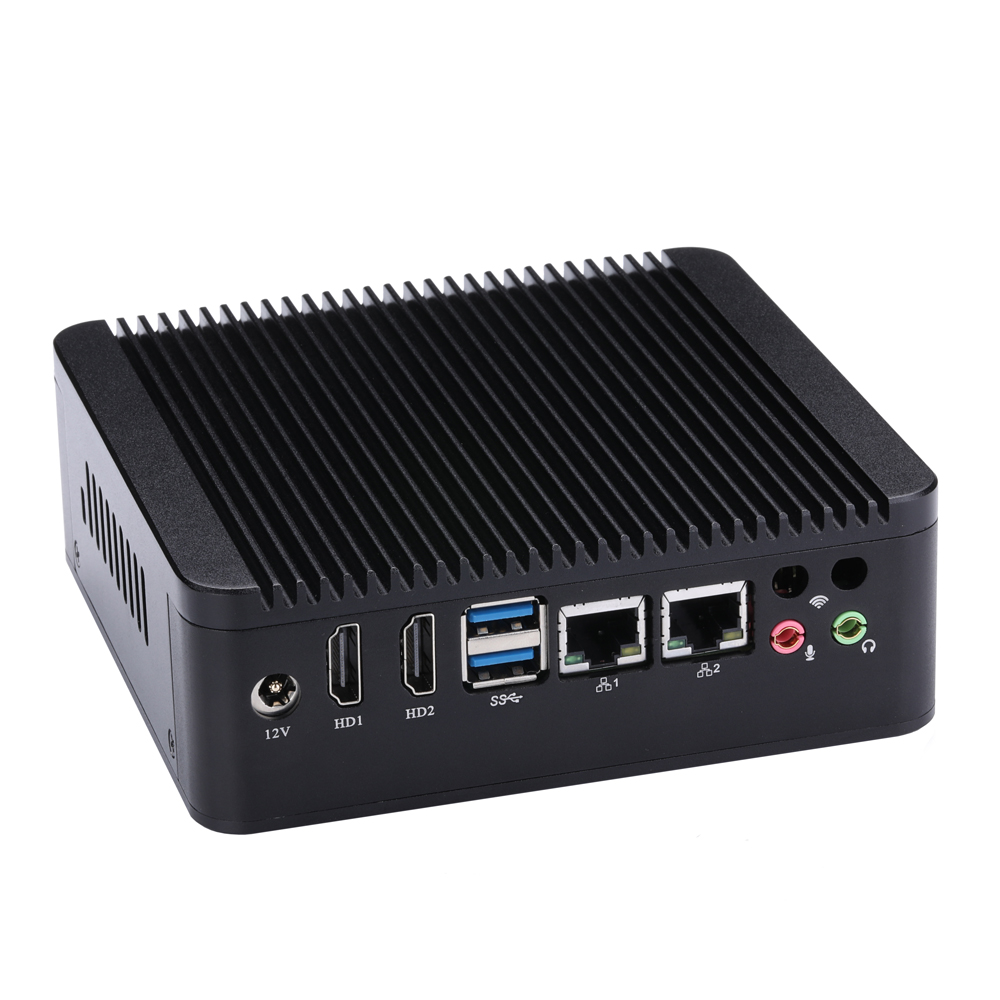

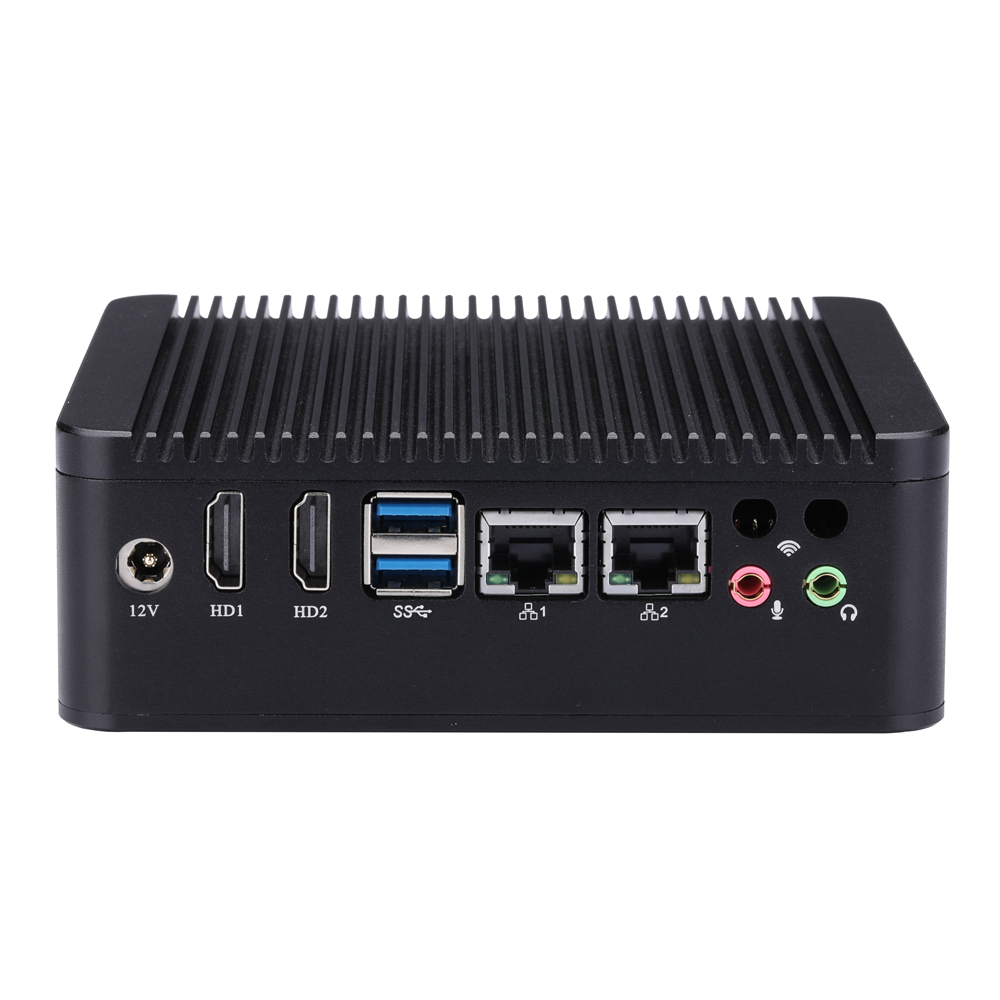

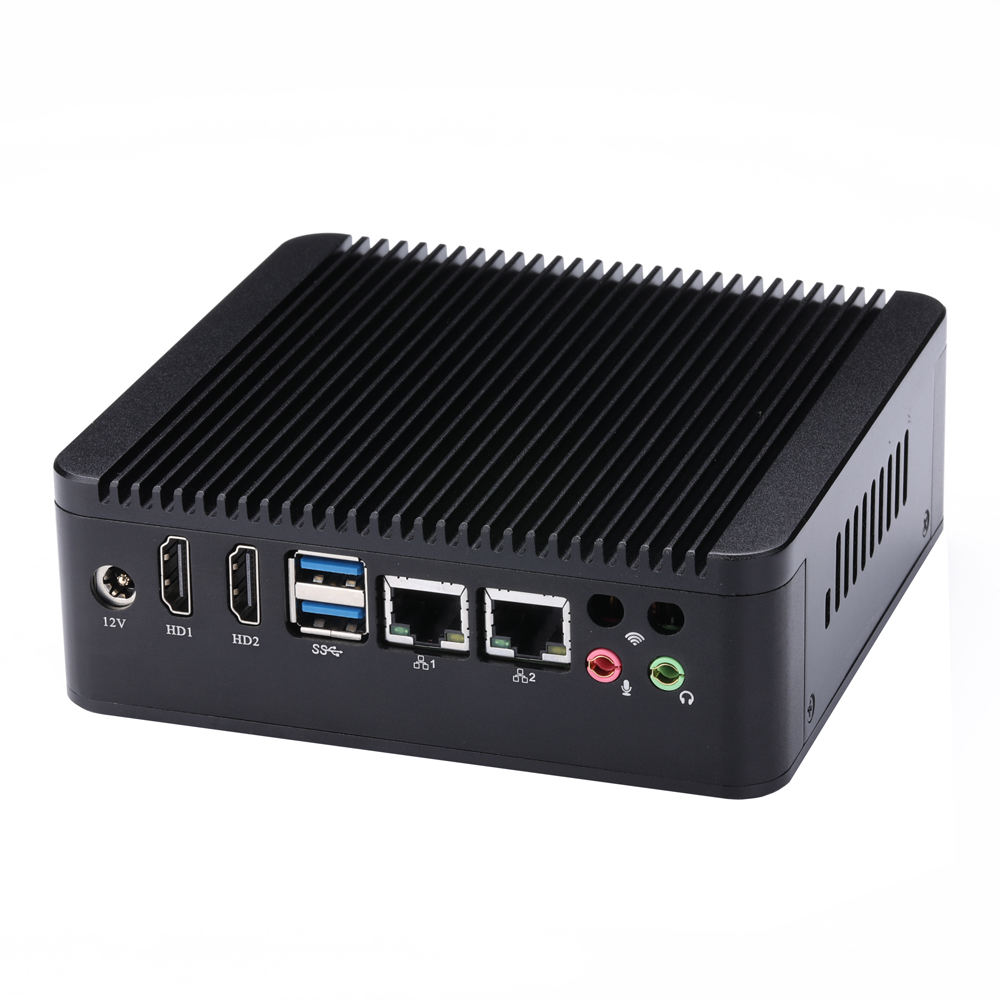

| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 2 × HDMI |
| LAN | 2 × Realtek Gigabit LAN |
| USB | 2 × USB 3.0 |
| Audio | 1 × Mic-in, 1 × Line-out |
| Serial Port | 0 |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M.key, Type: 2280) |
| Expansion | |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280) |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| SIM Card Slot | 0 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| CMOS Clear Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| VGA | 0 |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 0 |
| Power Requirement | |
| Power Adapter | 12V4A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 134 × 127 × 46mm |
| Weight | 0.70kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | Support |
| Cooling Mode | With Fan |
| OS Support | |
| OS | Windows 10, Linux Windows 7 (Only for 6th Gen Skylake) |
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
Ordering and Specifications Information
Quick Order Model: Q535S-S02
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
Q510S (Q30611S) | S02 | Skylake | Celeron | 3855U | 2 | 2 | 1.6GHz | / | 2M | Intel HD 510 | 15W |
Q520S (Q30612S) | S02 | Skylake | Celeron | 3955U | 2 | 2 | 2.0GHz | / | 2M | Intel HD 510 | 15W |
Q530S (Q30631S) | S02 | Skylake | Core i3 | 6100U | 2 | 4 | 2.3GHz | / | 3M | Intel HD 520 | 15W |
Q550S (Q30651S) | S02 | Skylake | Core i5 | 6200U | 2 | 4 | 2.3GHz | 2.8GHz | 3M | Intel HD 520 | 15W |
Q570S (Q30671S) | S02 | Skylake | Core i7 | 6500U | 2 | 4 | 2.5GHz | 3.1GHz | 4M | Intel HD 520 | 15W |
Q515S (Q30711S) | S02 | Kaby Lake | Celeron | 3865U | 2 | 2 | 1.8GHz | / | 2M | Intel HD 610 | 15W |
Q525S (Q30712S) | S02 | Kaby Lake | Celeron | 3965U | 2 | 2 | 2.2GHz | / | 2M | Intel HD 610 | 15W |
Q535S (Q30731S) | S02 | Kaby Lake | Core i3 | 7100U | 2 | 4 | 2.4GHz | / | 3M | Intel HD 620 | 15W |
Q555S (Q30751S) | S02 | Kaby Lake | Core i5 | 7200U | 2 | 4 | 2.5GHz | 3.1GHz | 3M | Intel HD 620 | 15W |
Q575S (Q30771S) | S02 | Kaby Lake | Core i7 | 7500U | 2 | 4 | 2.7GHz | 3.5GHz | 4M | Intel HD 620 | 15W |
PC Case Options
| Category | SATA Support |
| S02 | Yes |
| S12 | - |
Custom Options
| Category | Description |
| USB 2.0 | 3 |
| GPIO | 1 |
| VGA | 1 |
| Serial Port | 3 × RS-232 |
| TPM 2.0 | 1 |
