Mini PC Q10100P S02 Series
Q10100P Low-power industrial PC with Intel Bay Trail CPU, VGA & HDMI, 4× RS-232, USB 3.0, mSATA, SATA, Mini PCIe, and dual Realtek Gigabit LAN—compact and reliable for embedded use.
- NIC
- 2
- USB
- 1 × USB 3.0, 3 × USB 2.0
- RS-232
- 4
- RS-485
- None
- VGA
- Yes
- PS/2
- None
- GPIO
- None
Tell us the configuration and quantity you need.
OVERVIEW
Main Features
Intel Bay Trail Processor
1 × VGA, 1 × HDMI, 4 × RS-232
1 × USB 3.0, 3 × USB 2.0, 1 × SATA 3.0
1 × Mini PCIe, 1 × mSATA
2 × Realtek Gigabit LAN
SPECIFICATION
| Processor System | |
| CPU | Intel Bay Trail Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR3L SO-DIMM Socket
(Up to 8G, 1333/1600MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Realtek Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | No |

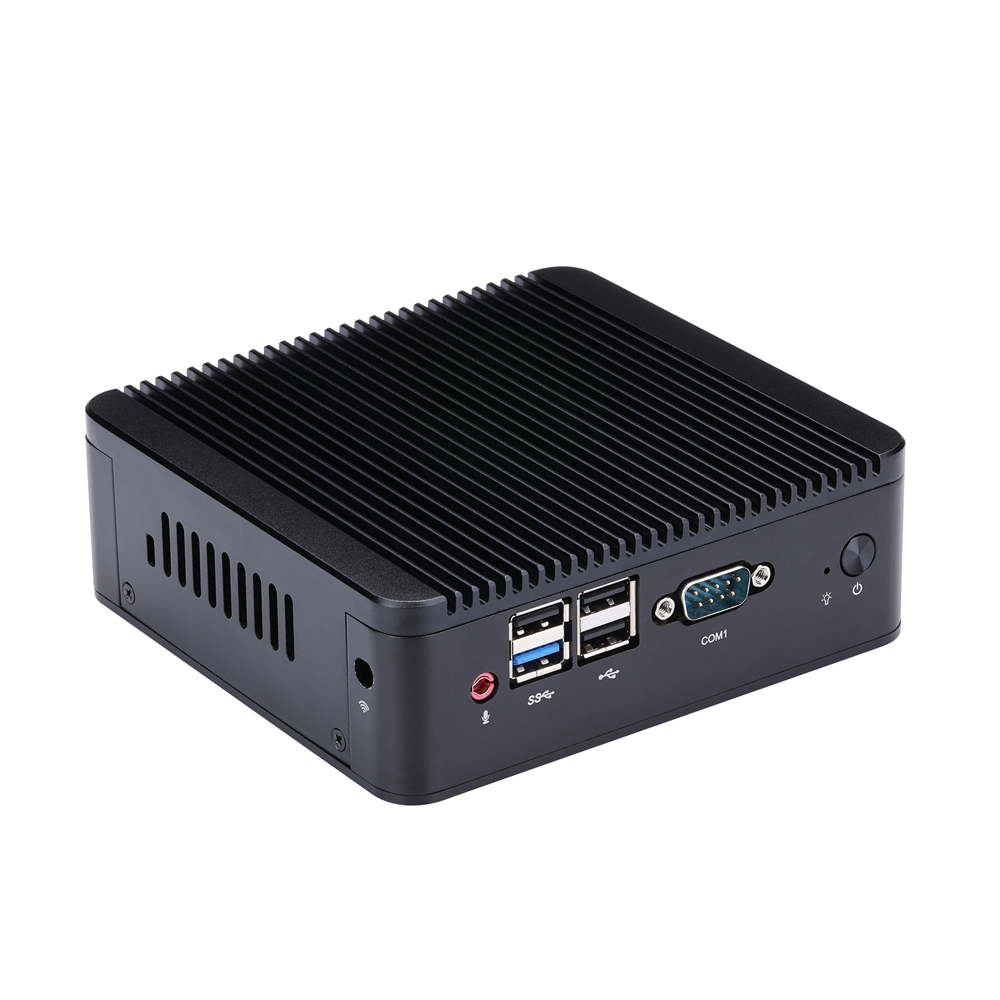

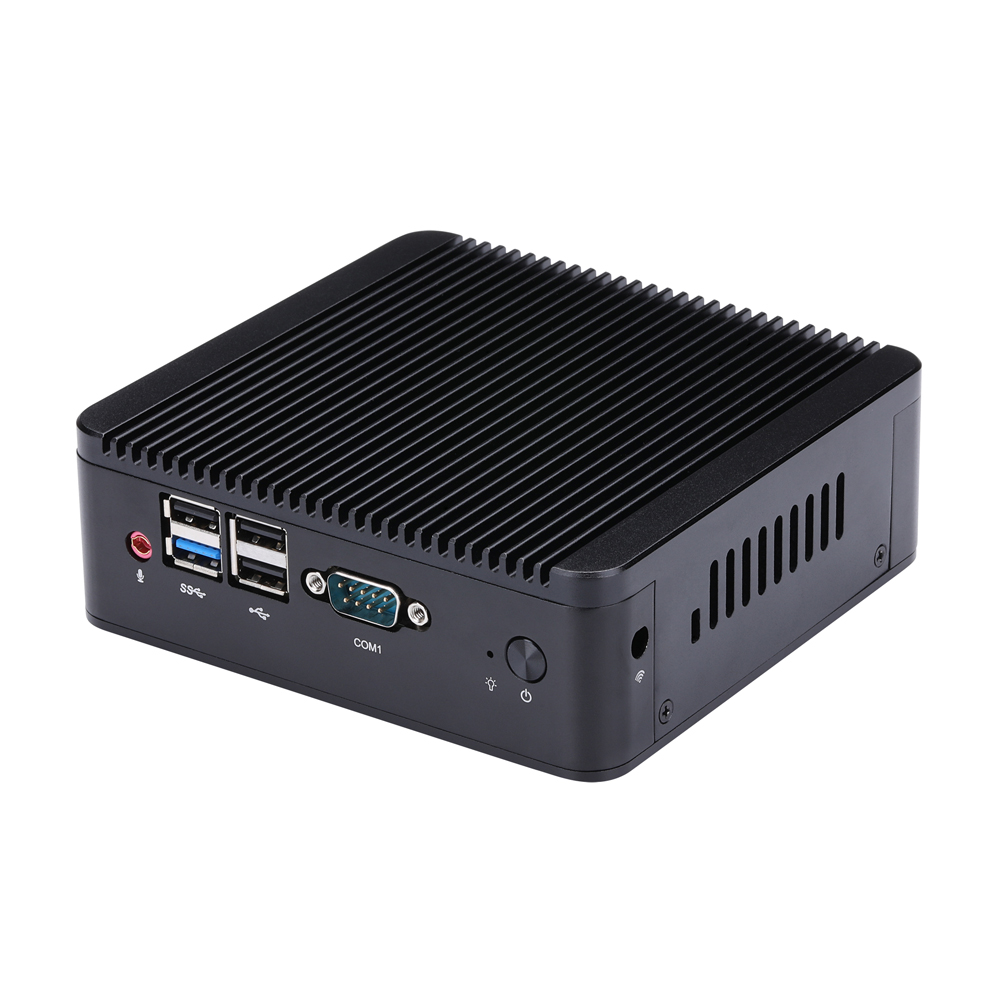

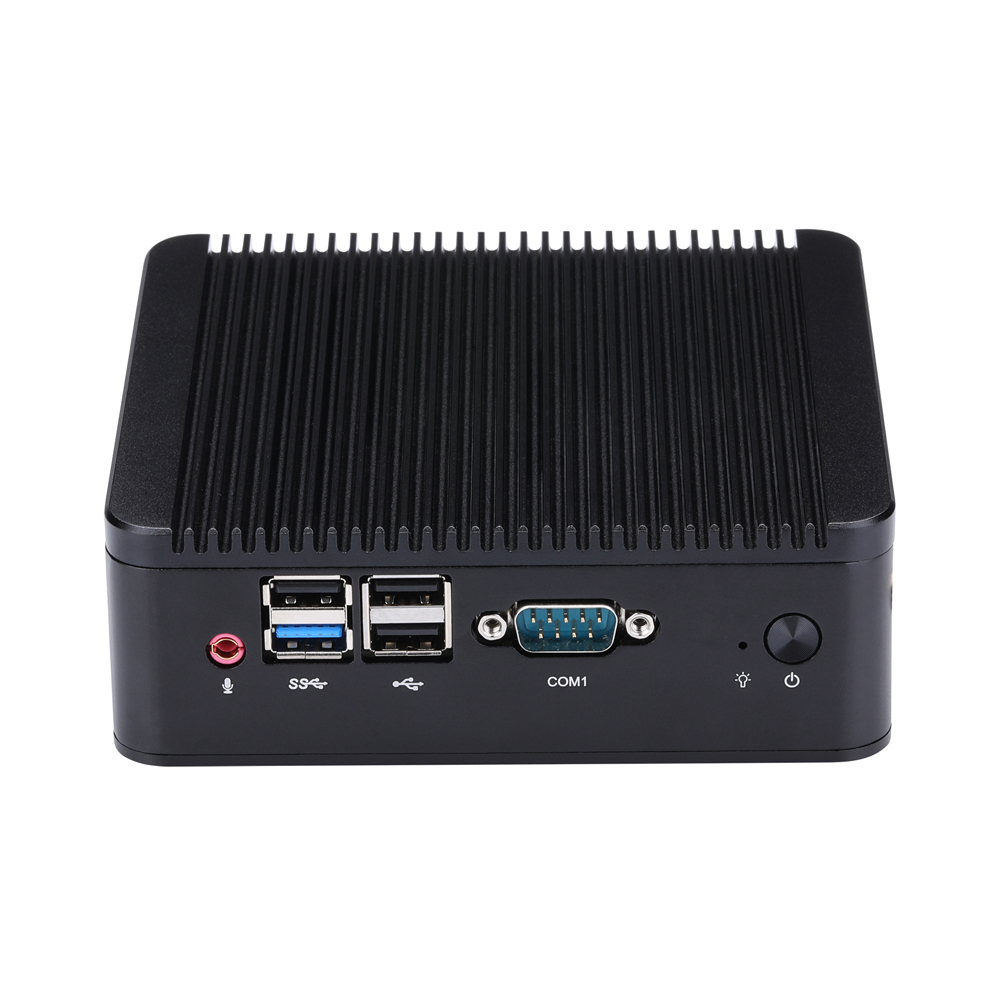

| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED |
| Serial Port | 1 × RS-232 (COM1) |
| USB | 1 × USB 3.0, 3 × USB 2.0 |
| Audio | 1 (Mic-in) |

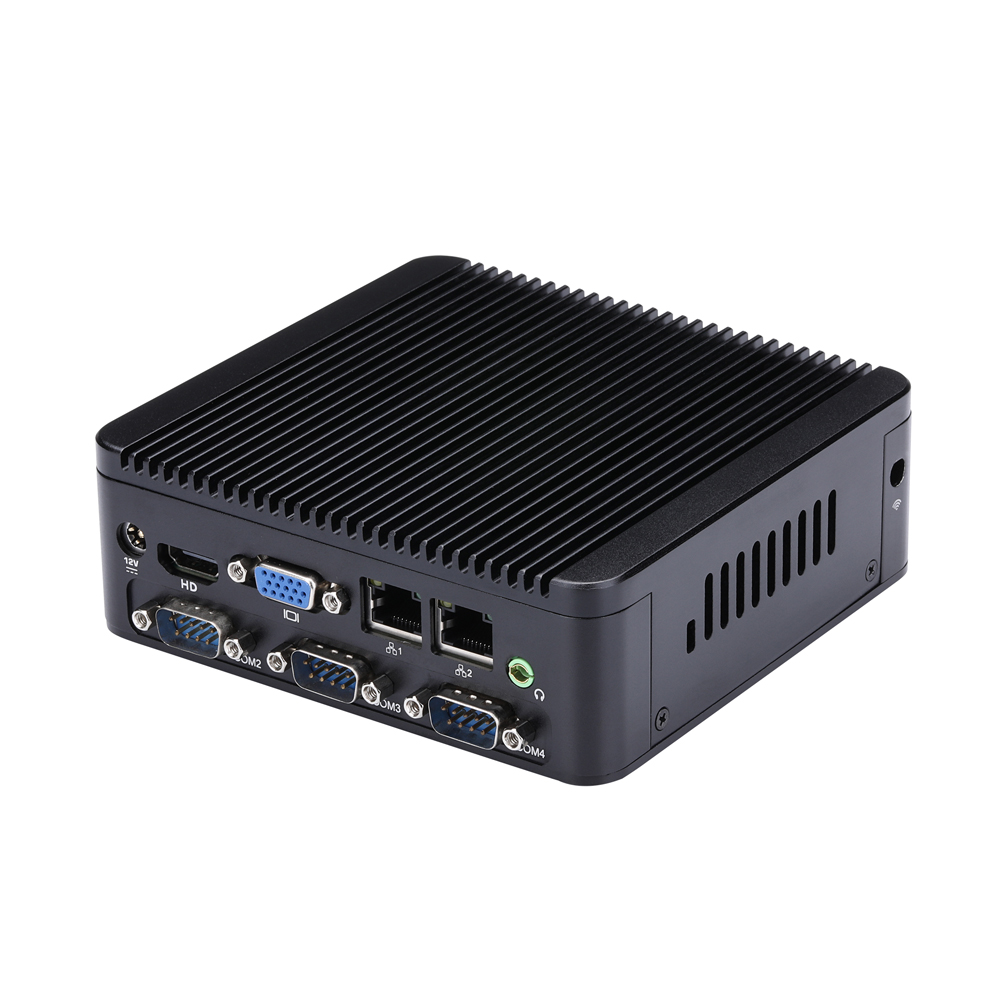

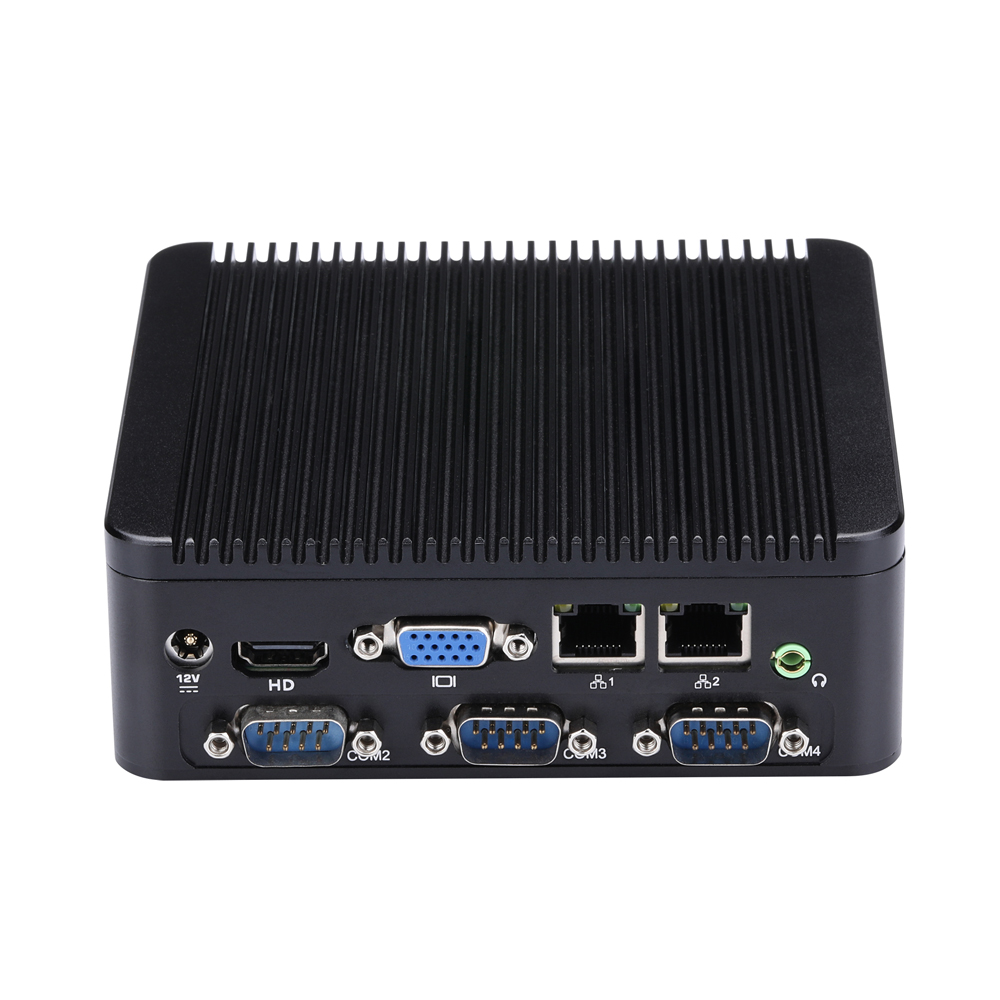

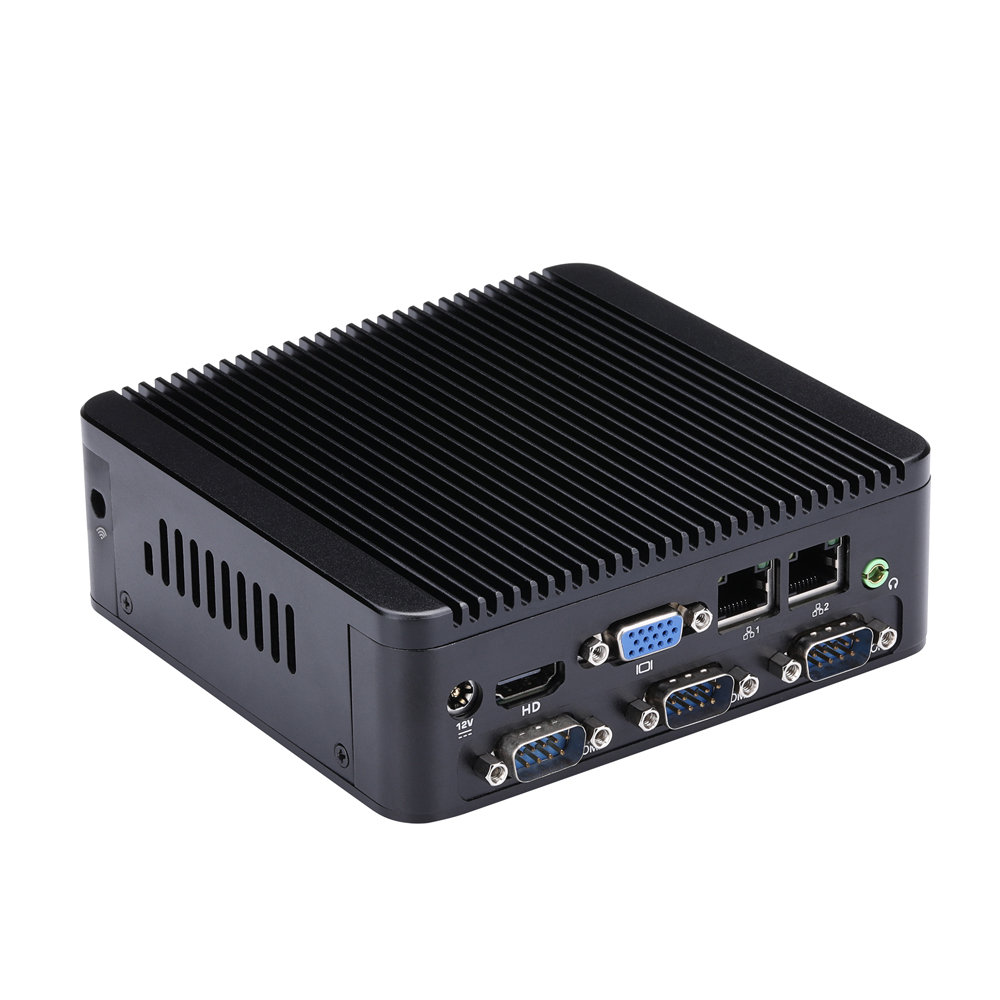

| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 1 × HDMI, 1 × VGA |
| LAN | 2 × Realtek Gigabit LAN |
| USB | 0 |
| Audio | 1 (Line-out) |
| Serial Port | 3 × RS-232 (COM2, COM3, COM4) |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| mSATA | 1 × Full Length Mini PCIe for SSD |
| Mini PCIe | 1 × Half-length Mini PCIe for Wi-Fi |
| SIM Card Slot | 0 |
| AutoStart Jumper | No |
| VGA | 0 |
| GPIO | No |
| DC-in | No |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 134 × 127 × 46mm |
| Weight | 0.75kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | Support |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | Windows 7, Windows 8, Windows 10, Linux |
PACKING
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
ItemQuantity
- 1Mini PC1
- 2Silicone Mat4
- 3VESA Bracket1
- 4Screws for VESA Bracket1
- 5Power Adapter1
- 6AC Power Cord1
- 7Screws for SATA SSD/HDD1
- 8SATA cable for SSD/HDD1Option
- 9Antennas2Option
ORDERING
Ordering and Specifications Information
Quick Order Model: Q190P-S02
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
Q180P (Q10111P | S02 | Bay trail | Celeron | J1800 | 2 | 2 | 2.41Ghz | 2.58Ghz | 1M | Intel HD Graphics | 10W |
Q190P Q10121P | S02 | Bay trail | Celeron | J1900 | 4 | 4 | 2.00Ghz | 2.42Ghz | 2M | Intel HD Graphics | 10W |
Q192P Q10122P | S02 | Bay trail | Celeron | N2920 | 4 | 4 | 1.86Ghz | 2.0Ghz | 2M | Intel HD Graphics | 7.5W |
Q193P Q10123P | S02 | Bay trail | Celeron | N2930 | 4 | 4 | 1.83Ghz | 2.16Ghz | 2M | Intel HD Graphics | 7.5W |
Q195P Q10134P | S02 | Bay trail | Pentium | N3540 | 4 | 4 | 2.16Ghz | 2.66Ghz | 2M | Intel HD Graphics | 7.5W |
Q180P
(Q10111P
S02
- Case
- S02
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- J1800
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 2.41Ghz
- Max Turbo Frequency
- 2.58Ghz
- Cache
- 1M
- Processor Graphics
- Intel HD Graphics
- TDP
- 10W
Q190P
Q10121P
S02
- Case
- S02
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- J1900
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 2.00Ghz
- Max Turbo Frequency
- 2.42Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 10W
Q192P
Q10122P
S02
- Case
- S02
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- N2920
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 1.86Ghz
- Max Turbo Frequency
- 2.0Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 7.5W
Q193P
Q10123P
S02
- Case
- S02
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- N2930
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 1.83Ghz
- Max Turbo Frequency
- 2.16Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 7.5W
Q195P
Q10134P
S02
- Case
- S02
- Code Name
- Bay trail
- Processor Type
- Pentium
- Processor Number
- N3540
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 2.16Ghz
- Max Turbo Frequency
- 2.66Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 7.5W
PC Case Options
| Category | SATA Support |
| S02 | Yes |
| S08 | Yes |
Custom Options
| Category | Description |
| USB 2.0 | 2 |
