Q10800G4 mini PC with Intel Elkhart Lake CPU, 4× LAN, rich I/O, and flexible storage—ideal for industrial gateway, edge computing, and compact firewall deployments.
Intel Elkhart Lake Processor
1 × HDMI
2 × USB 3.0, 2 × USB 2.0
2 × M.2, 1 × mSATA, 1 × SATA 3.0
4 × Realtek Gigabit LAN
| Processor System | |
| CPU | Intel Elkhart Lake Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR4 SO-DIMM Socket (Up to 32G) |
| Chipset | By CPU |
| Graphics | By CPU |
| Audio | No |
| Watch Dog | Yes |

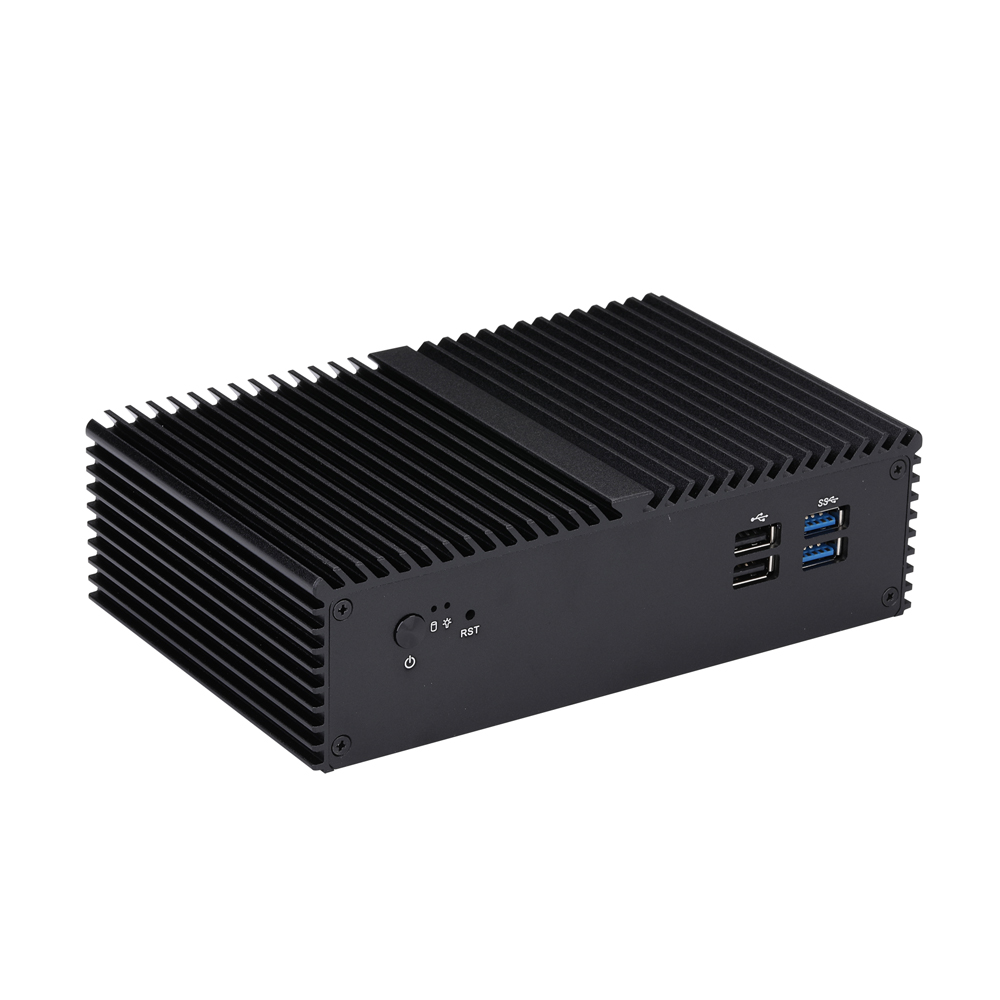

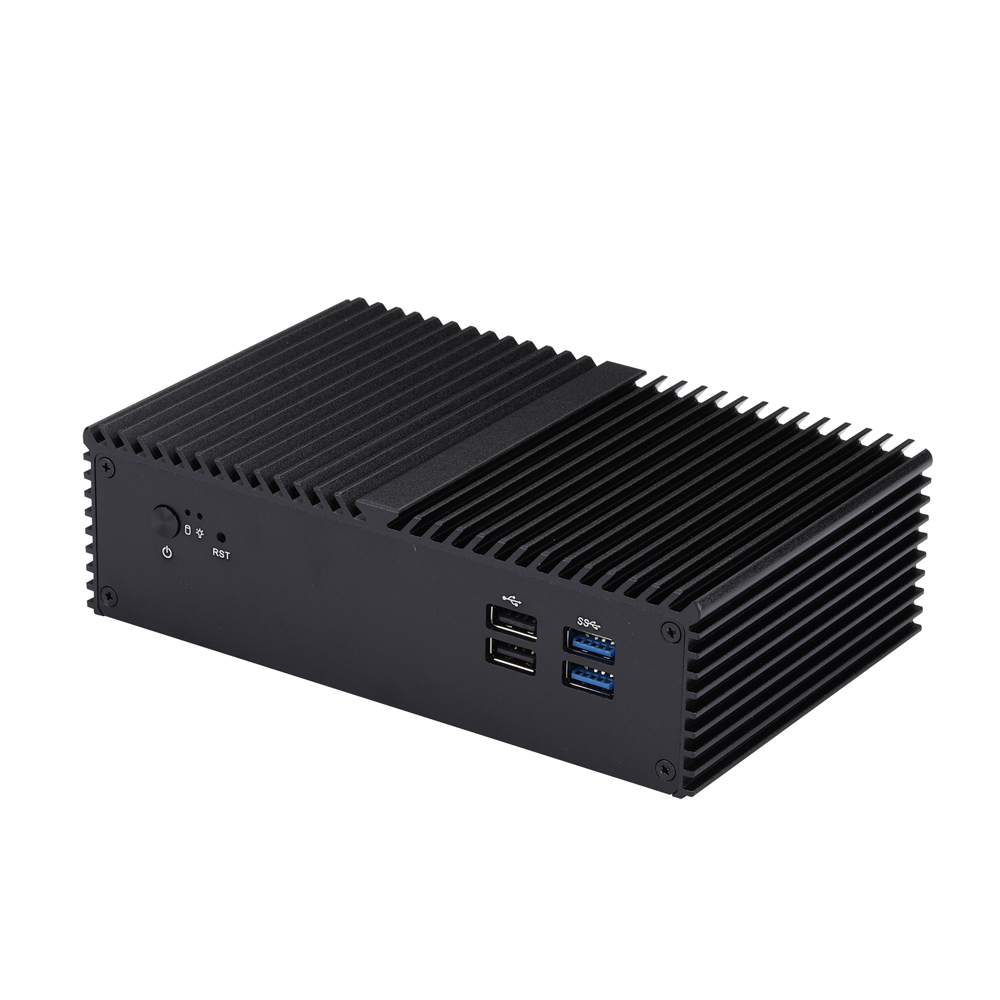

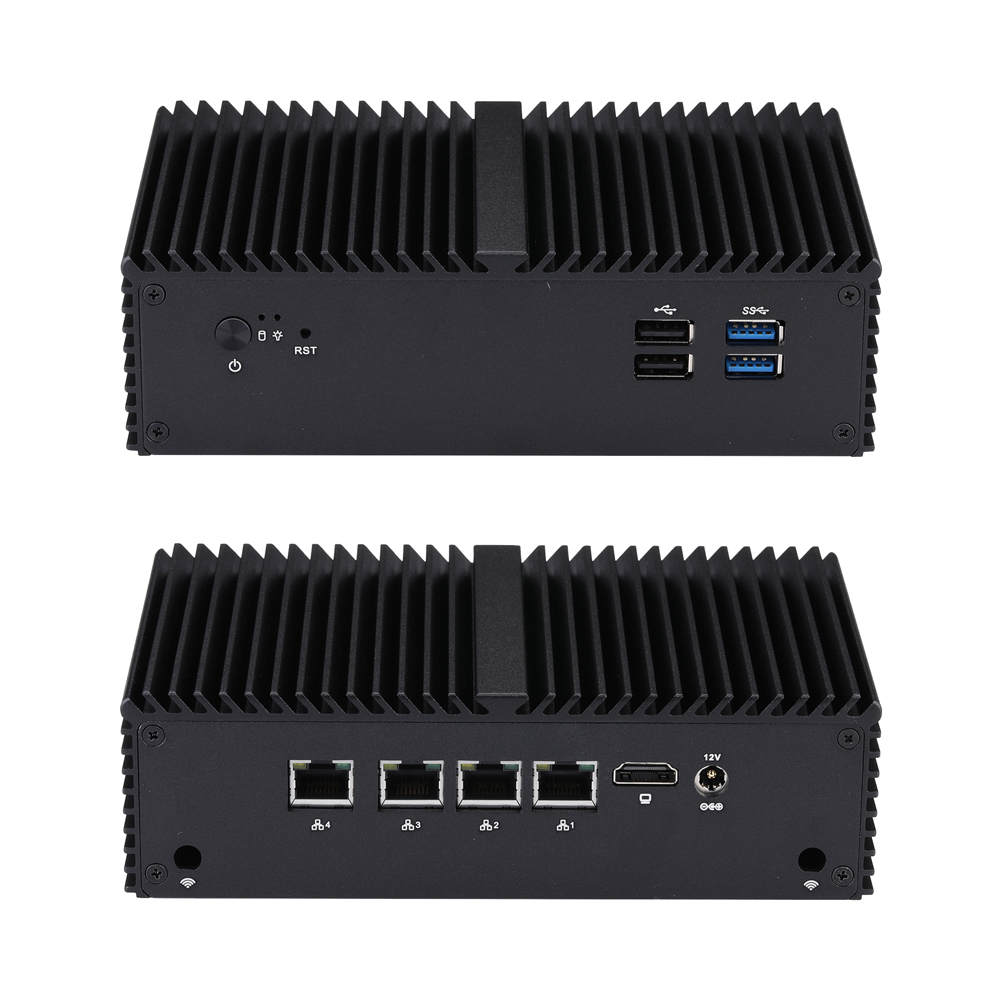

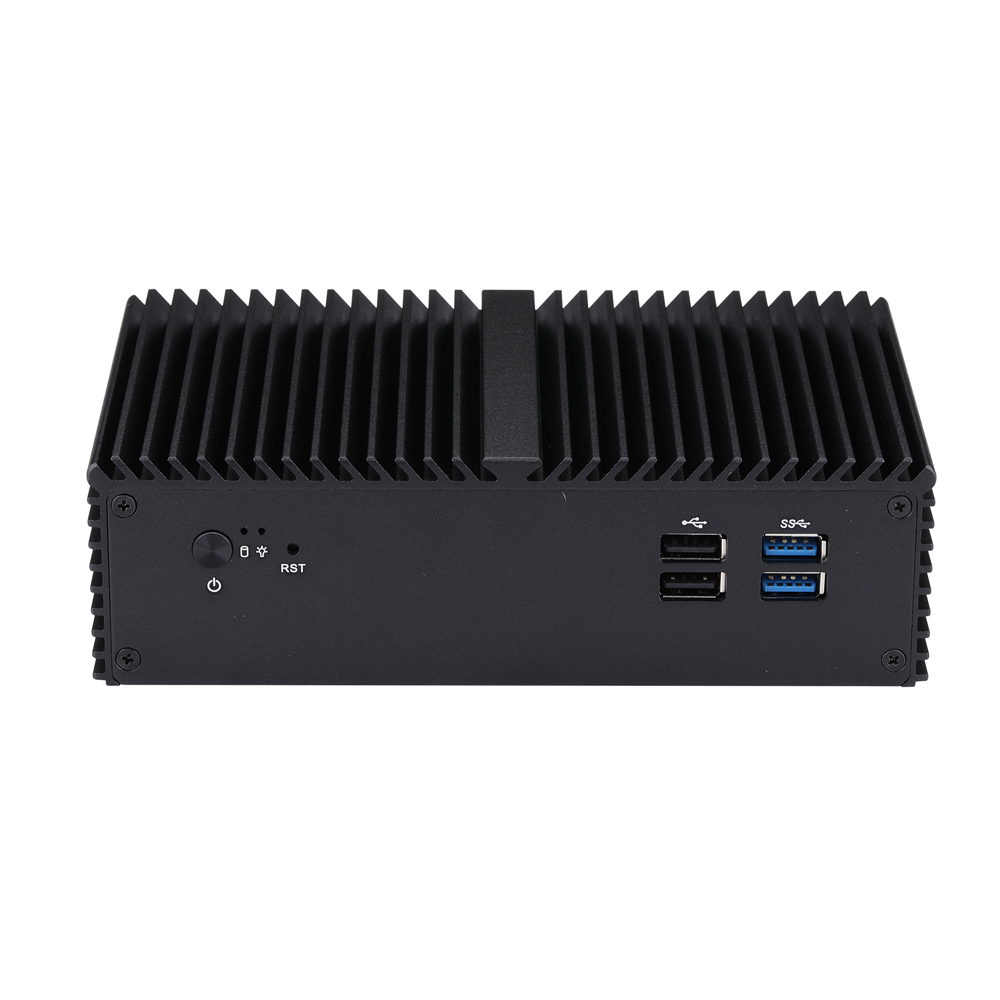

| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 2 × USB 2.0, 2 × USB 3.0 |

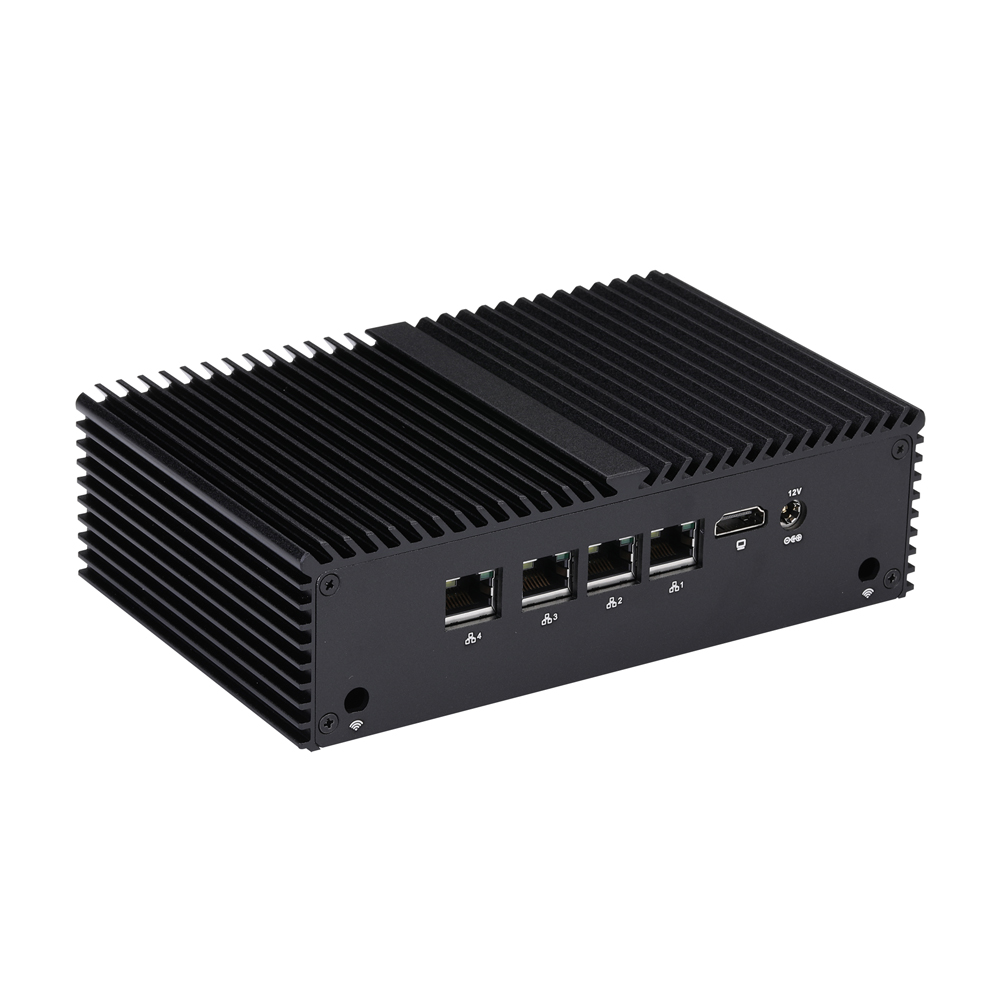

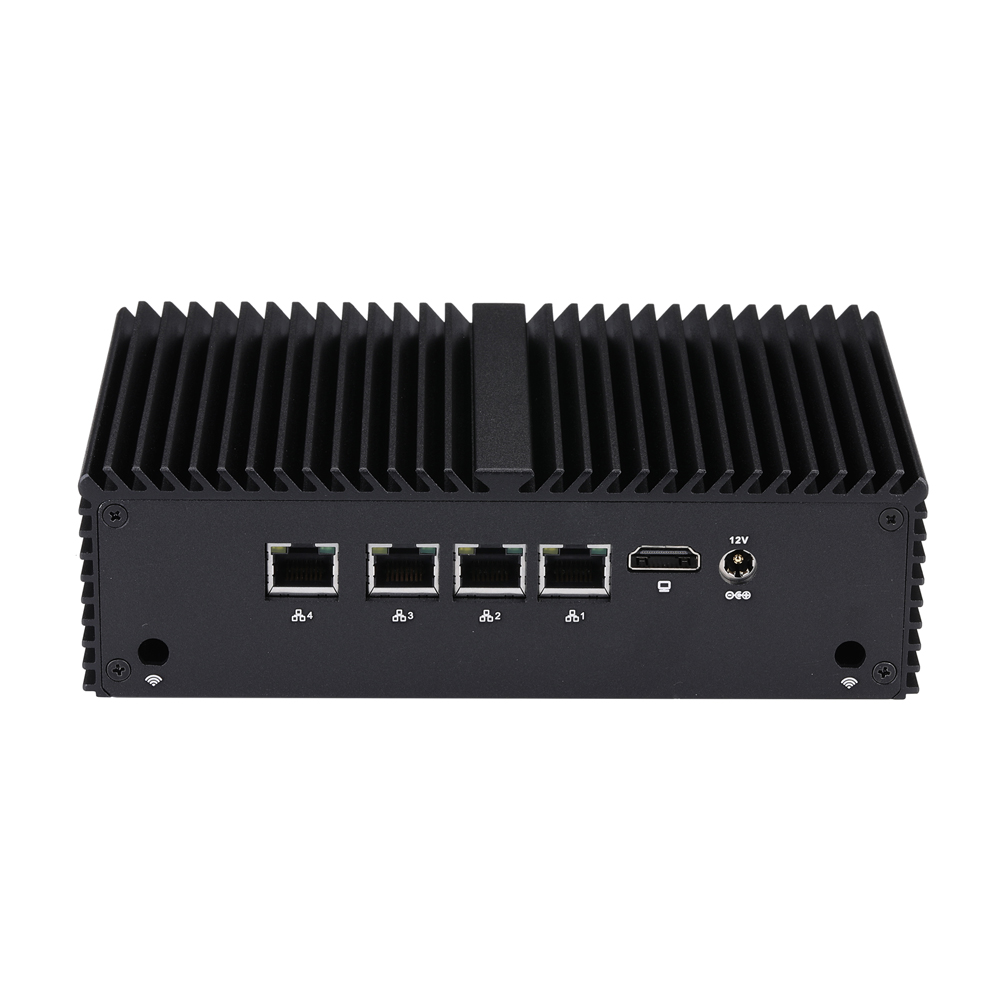

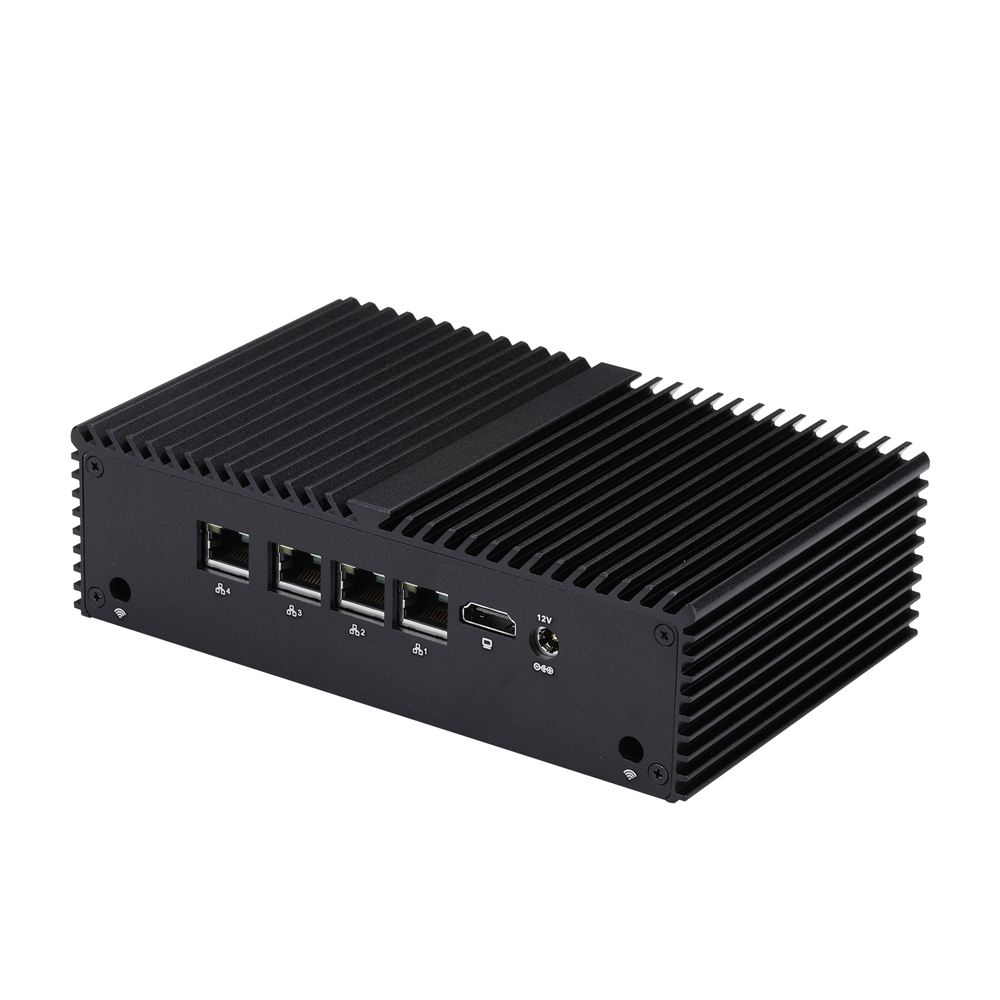

| Rear I/O | |
| Power | 1 × DC Jack |
| Phoenix | 0 |
| LAN | 4 × Realtek Gigabit LAN |
| Display | 1 × HDMI |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| mSATA | 1 × mSATA for SSD |
| M.2 | 1 × M.2 for 4G/5G (B key, Type: 3042/3052) 5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| VGA | 1 |
| Serial Port | 0 |
| SIM Card Slot | 1 |
| Clear CMOS Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| Front Panel | 1, 2 × 5Pin, Pitch 2.0mm |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 178 × 111 × 52mm |
| Weight | 0.76kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
Quick Order Model: Q790G4-S04
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | ProcessorGraphics | TDP |
Q780G4 (Q10811G4) | S04 | Elkhart Lake | Celeron | N6210 | 2 | 2 | 1.20Ghz | 2.6Ghz | 1.5M | Intel UHD Graphics | 6.5W |
Q790G4 (Q10821G4) | S04 | Elkhart Lake | Celeron | J6412 | 4 | 4 | 2.00Ghz | 2.60Ghz | 1.5M | Intel UHD Graphics | 10W |
| Category | SATA Support |
| S04 | Yes |
| Category | Description |
| VGA | 1 |
| Serial Port | 6 × RS-232 |
| Audio | 1 × Mic-in, 1 × Line-out |
| GPIO | 1 |
| PS/2 | 2 |
| LPT | 1 |
