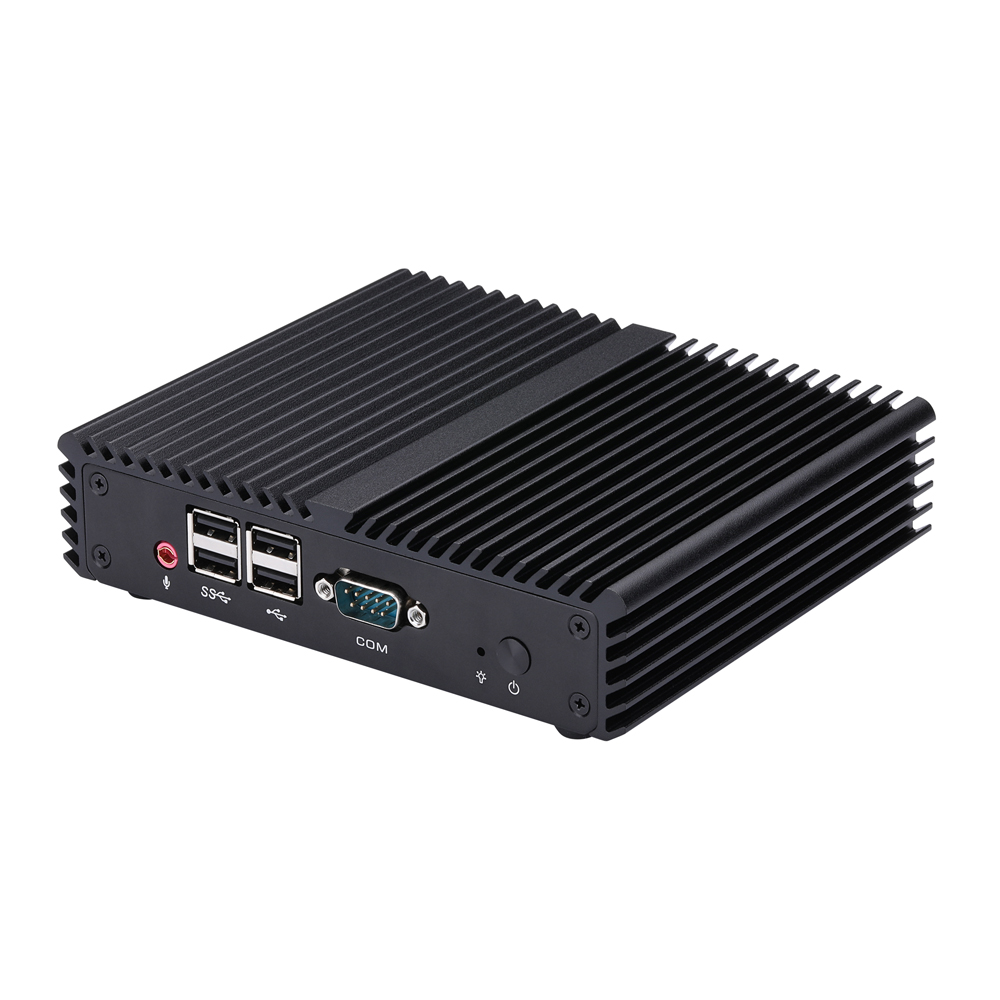

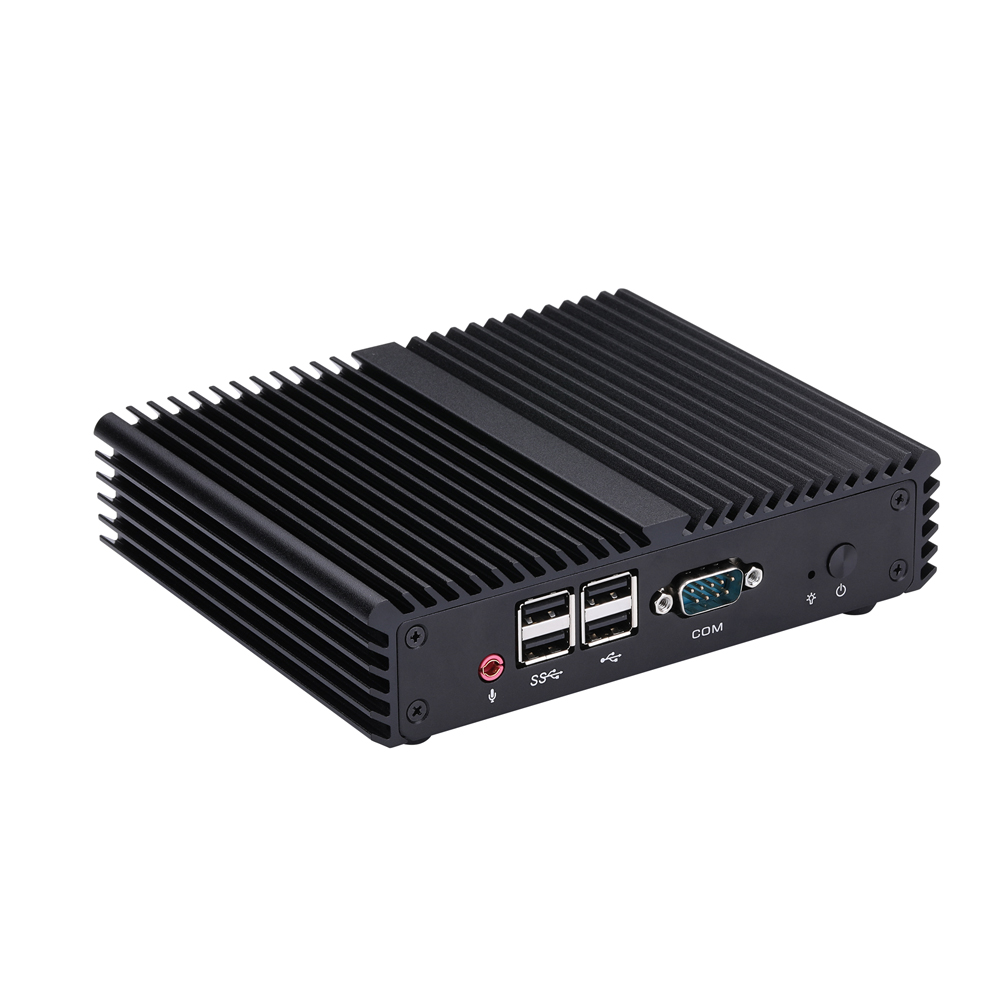

Mini PC Q30300S S07 Series
Q30300S features Ivy Bridge processor, dual display, 1× RS-232, 4× USB 2.0, and dual Realtek LAN. Supports Mini PCIe and mSATA—stable platform for industrial applications.
Tell us the configuration and quantity you need.
OVERVIEW
Main Features
Intel 3rd Ivy Bridge Processor
1 × VGA, 1 × HDMI, 1 × RS-232
4 × USB 2.0
1 × Mini PCIe, 1 × mSATA
2 × Realtek Gigabit LAN
SPECIFICATION
| Processor System | |
| CPU | Intel 3rd Ivy Bridge Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR3 SO-DIMM Socket (Up to 8G, 1333/1600MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Realtek Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | No |

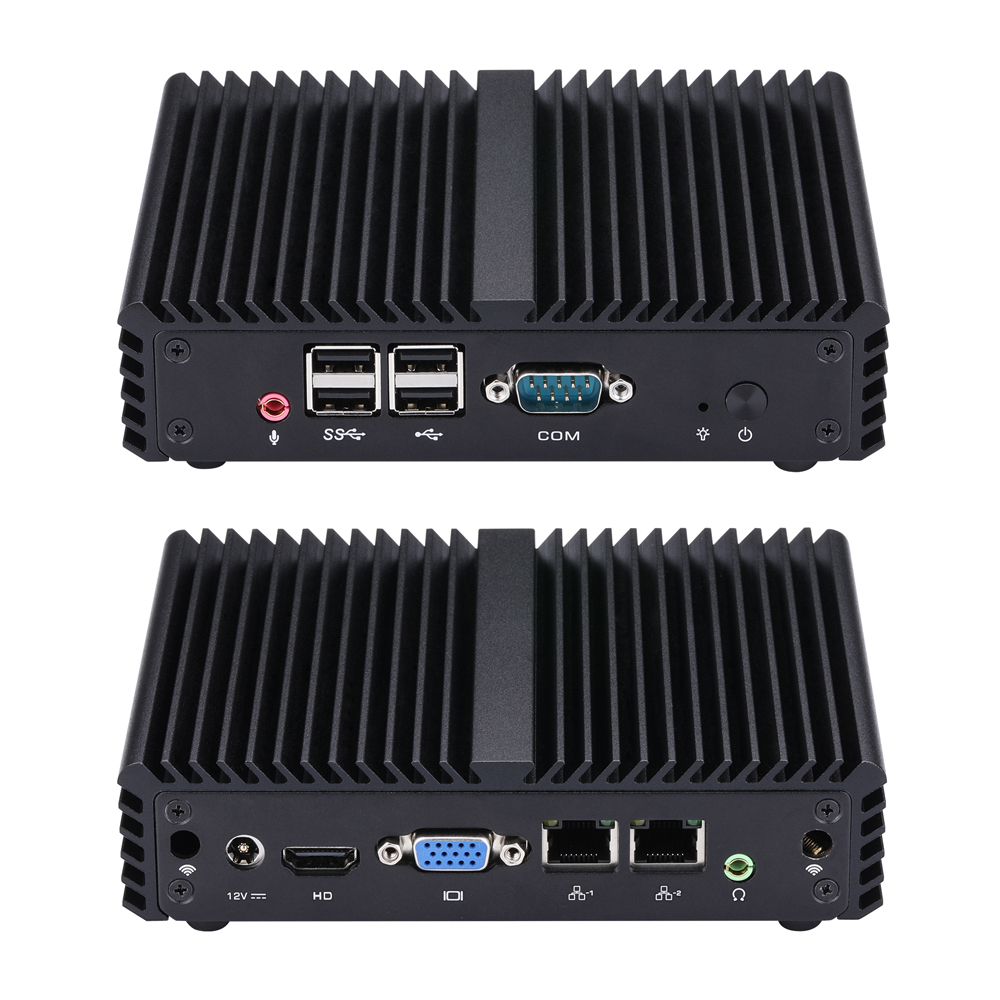

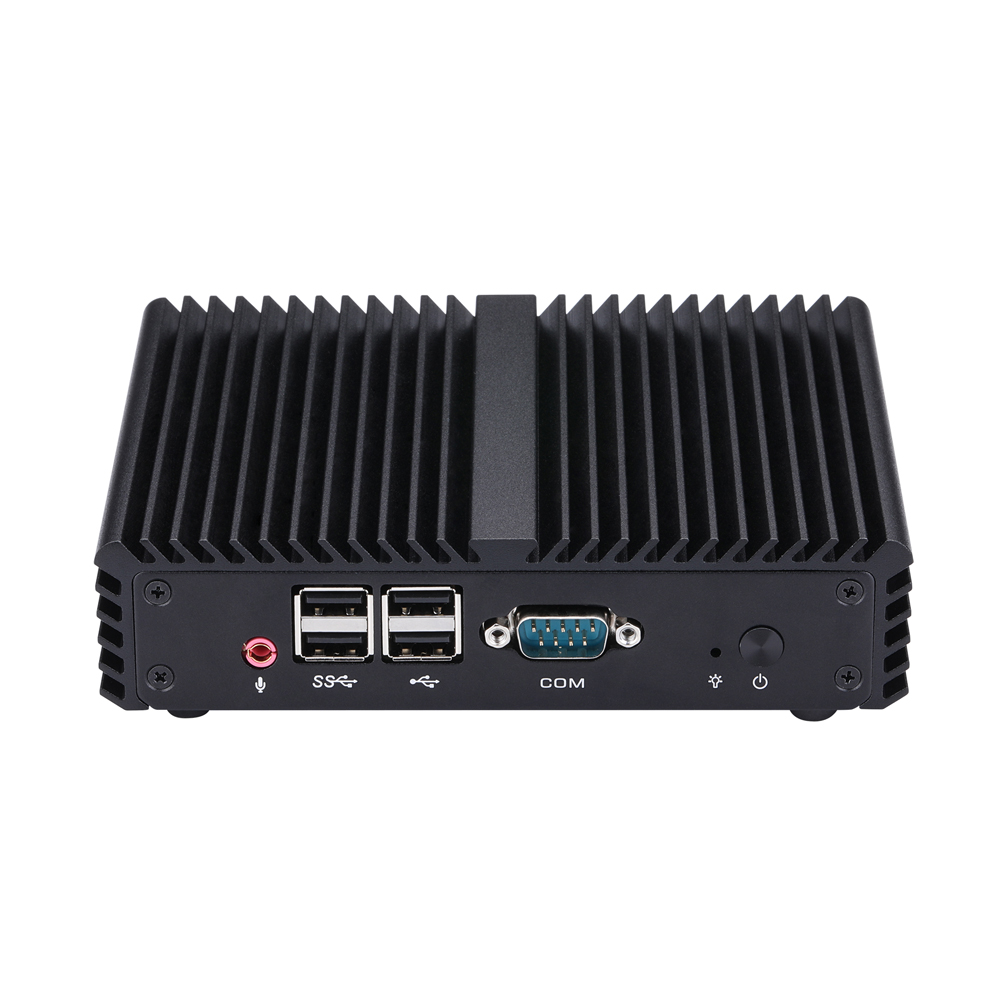

| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED |
| Serial Port | 1 × RS-232 |
| USB | 4 × USB 2.0 |
| Audio | 1 (Mic-in) |

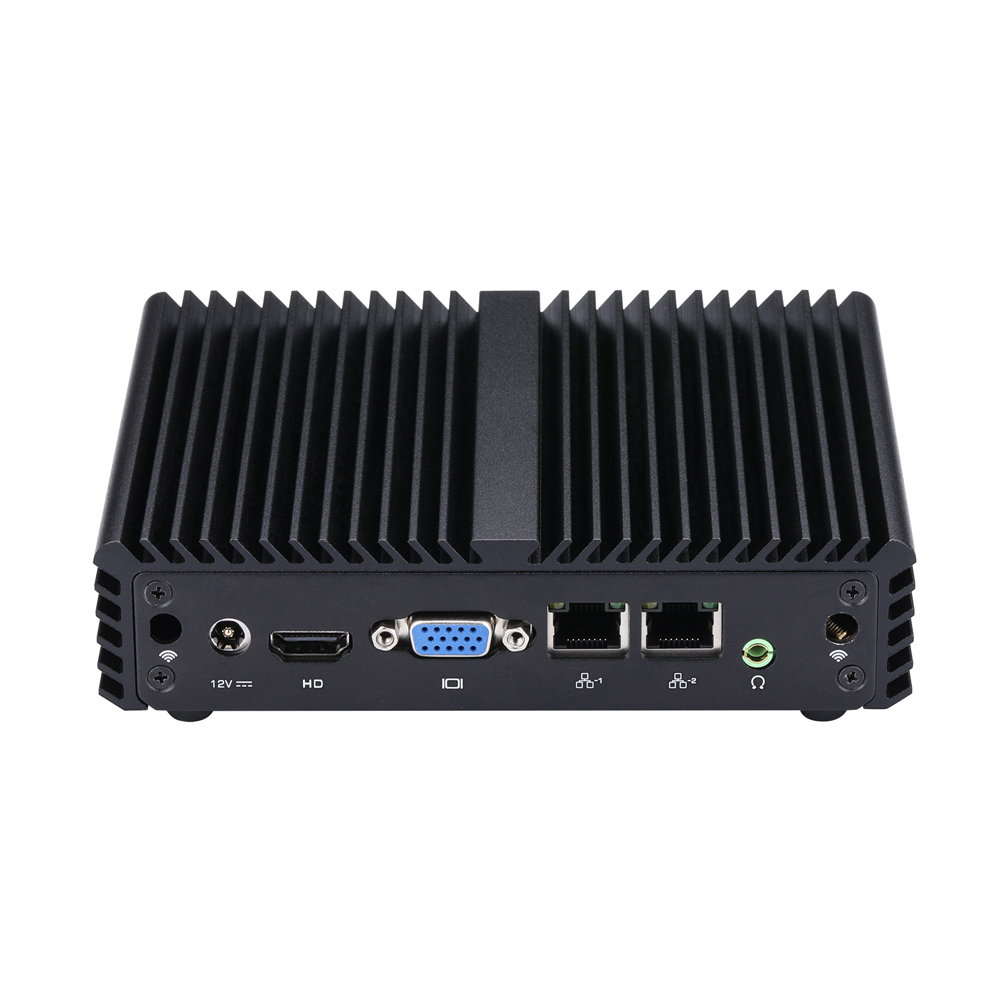

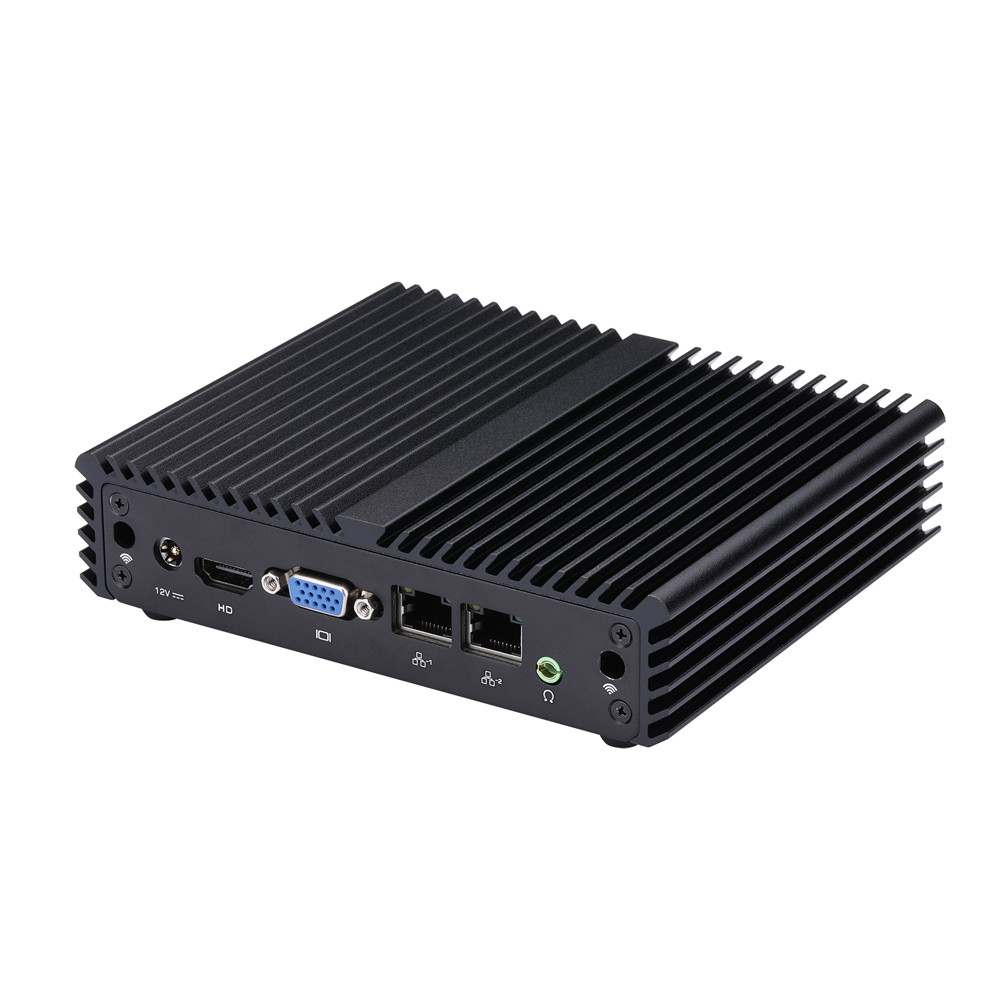

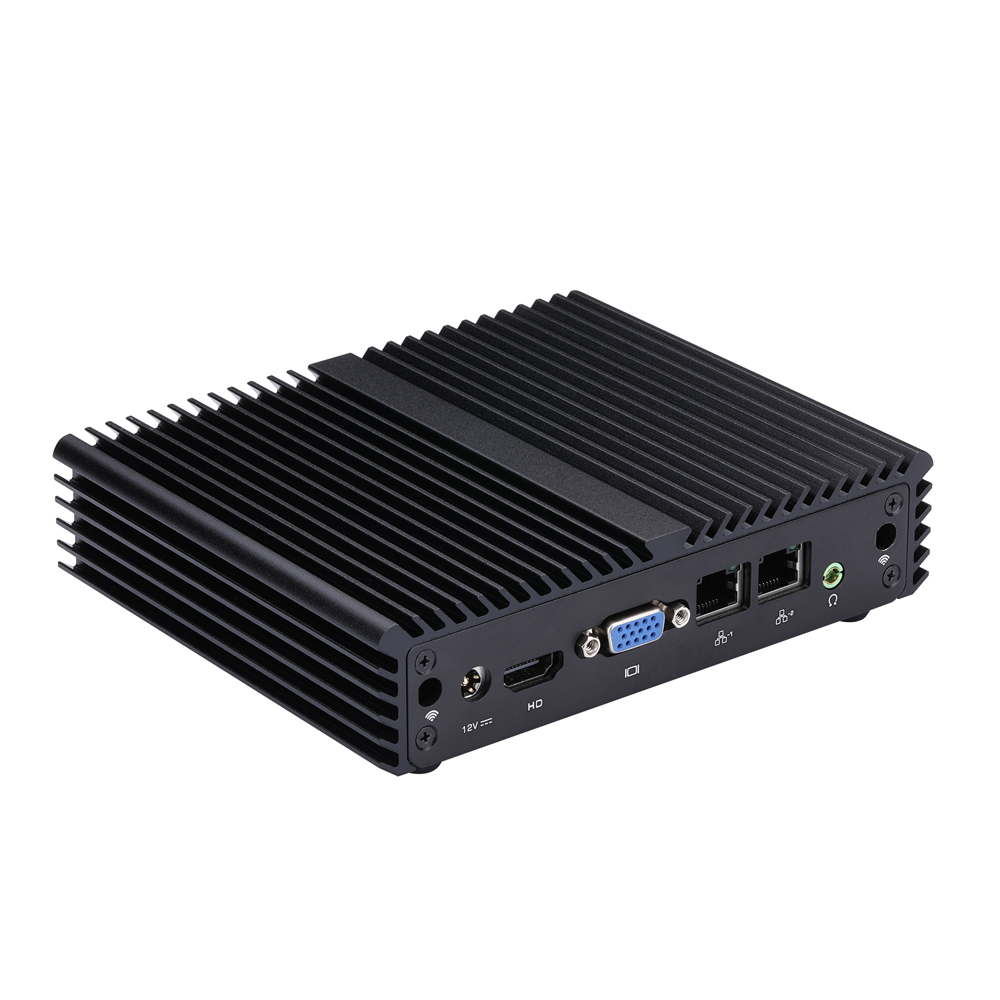

| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 1 × HDMI, 1 × VGA |
| LAN | 2 × Realtek Gigabit LAN |
| USB | 0 |
| Audio | 1 (Line-out) |
| Serial Port | 0 |
| Storage | |
| Type | 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| Mini PCIe | 1 × Half-length Mini PCIe for Wi-Fi |
| SIM Card Slot | 0 |
| AutoStart Jumper | No |
| VGA | 0 |
| GPIO | No |
| DC-in | No |
| Power Requirement | |
| Power Adapter | 12V4A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 155 × 127 × 36mm |
| Weight | 0.82kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless |
| OS Support | |
| OS | Windows XP, Windows 7, Windows 8, Windows 10, Linux |
PACKING
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
ORDERING
Ordering and Specifications Information
Quick Order Model: Q107S-S07
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
Q107S (Q30311S) | S07 | Ivy Bridge | Celeron | 1007U | 2 | 2 | 1.5GHz | / | 2M | Intel HD Graphics | 17W |
Q100S (Q30312S) | S07 | Ivy Bridge | Celeron | 1037U | 2 | 2 | 1.8GHz | / | 2M | Intel HD Graphics | 17W |
Q210S (Q30331S) | S07 | Ivy Bridge | Core i3 | 3217U | 2 | 4 | 1.8GHz | / | 3M | Intel HD Graphics 4000 | 17W |
Q220S (Q30351S) | S07 | Ivy Bridge | Core i5 | 3317U | 2 | 4 | 1.7GHz | 2.6GHz | 3M | Intel HD Graphics 4000 | 17W |
PC Case Options
| Category | SATA Support |
| S01 | - |
| S02 | Yes |
| S07 | - |
| S08 | Yes |
Custom Options
| Category | Description |
| USB 2.0 | 3 |
| LVDS | 1 |
