Mini PC Q30600G6 1U03 Series

Q30600G6 1U firewall system with 6x Intel I211/I210 Gigabit LAN, HDMI, RS-232, USB, SATA, Mini PCIe, and mSATA; supports 6th/7th Gen Skylake/Kabylake-U processors.

Total of Network Interfaces: 6
SFP(+): None
10G RJ45: None
2.5G RJ45: None
1G RJ45: 6
Serial Ports: 1

Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

Main Features

Intel 6th Skylake-U Processor
Intel 7th Kabylake-U Processor
1 × HDMI, 1 × RS-232
2 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
1 × Mini PCIe, 1 × mSATA
6 × Intel I211-AT/I210-AT Gigabit LAN

Specifications

Processor System
CPU	Intel 6thSkylake-U Processor Intel 7thKabylake-U Processor
CPU TDP	By CPU
Memory	1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
Chipset	By CPU
Graphics	By CPU
LAN Chipset	6 × Intel I211-AT/I210-AT Gigabit LAN
Audio	No
Watch Dog	Yes

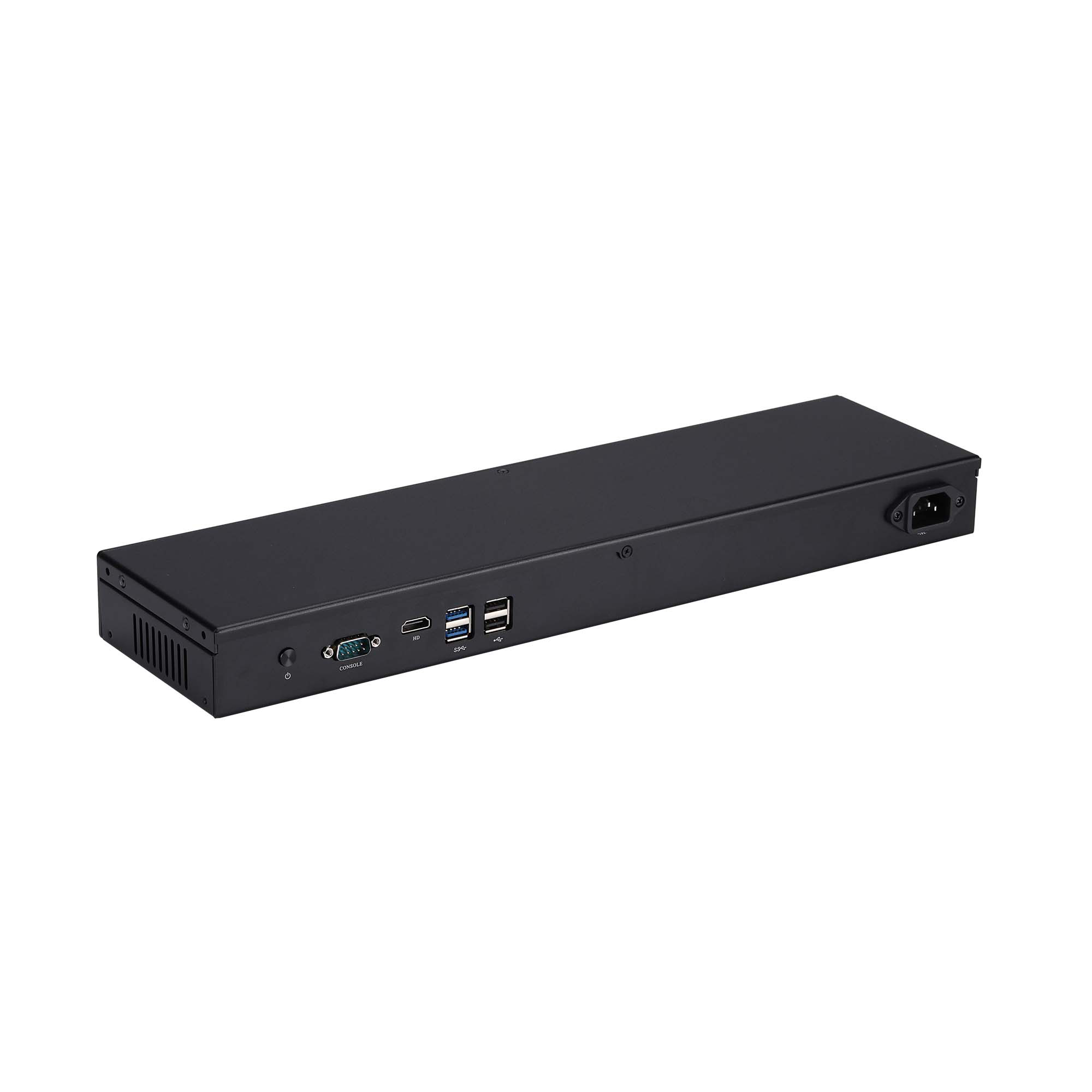

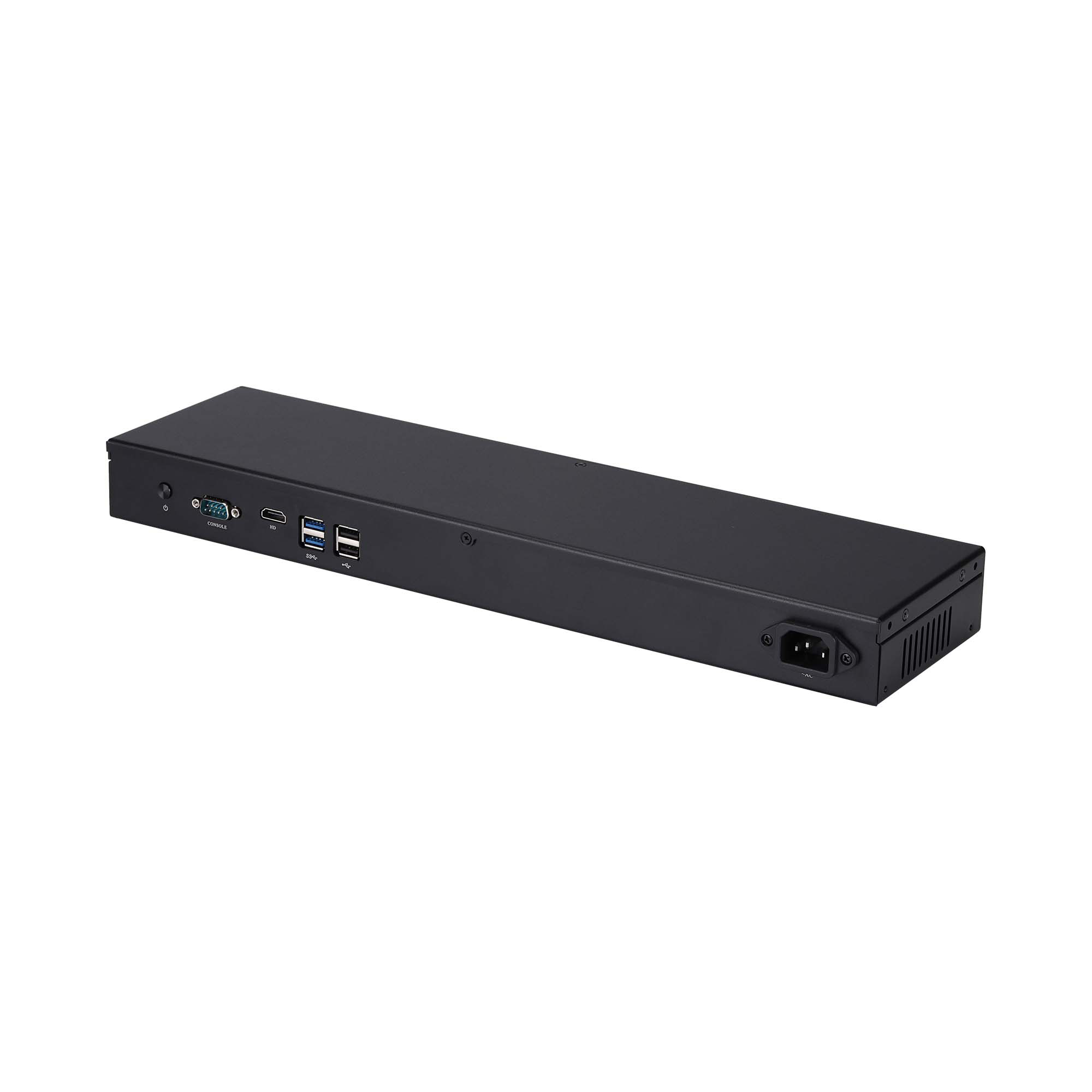

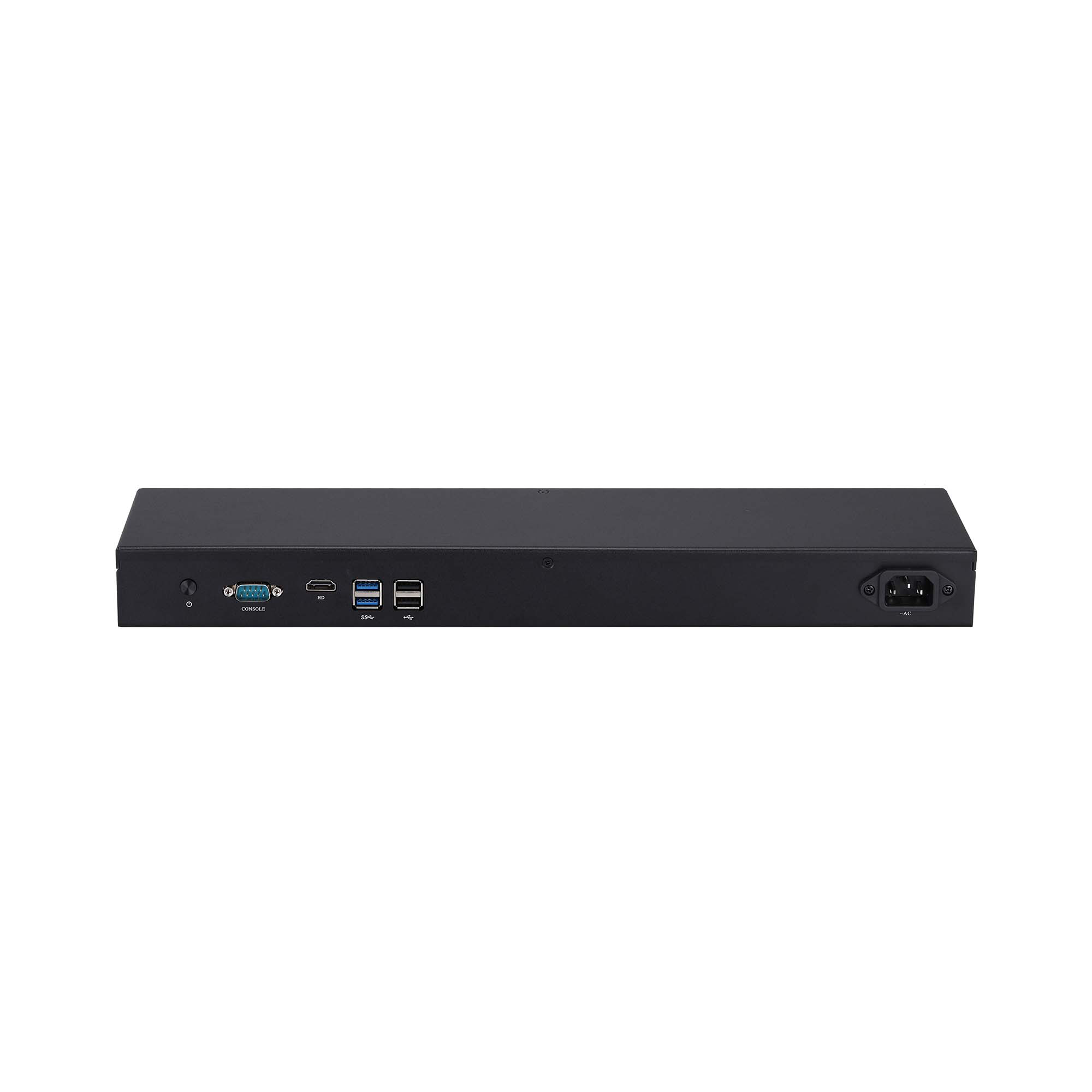

Front I/O
Power Button	1
USB	2 × USB 3.0, 2 × USB 2.0
Video Output	1 × HDMI
Serial Port	1 × RS-232

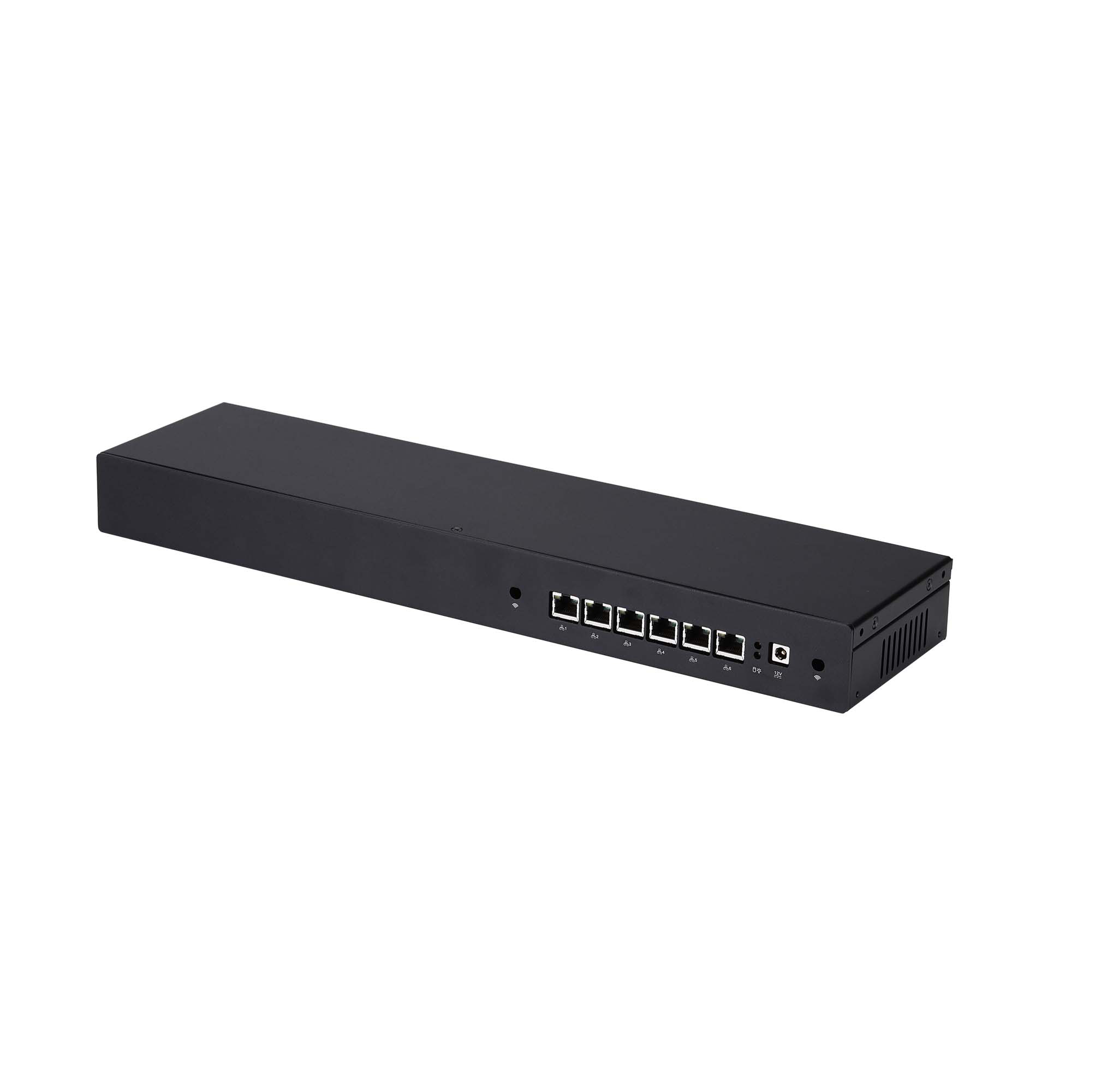

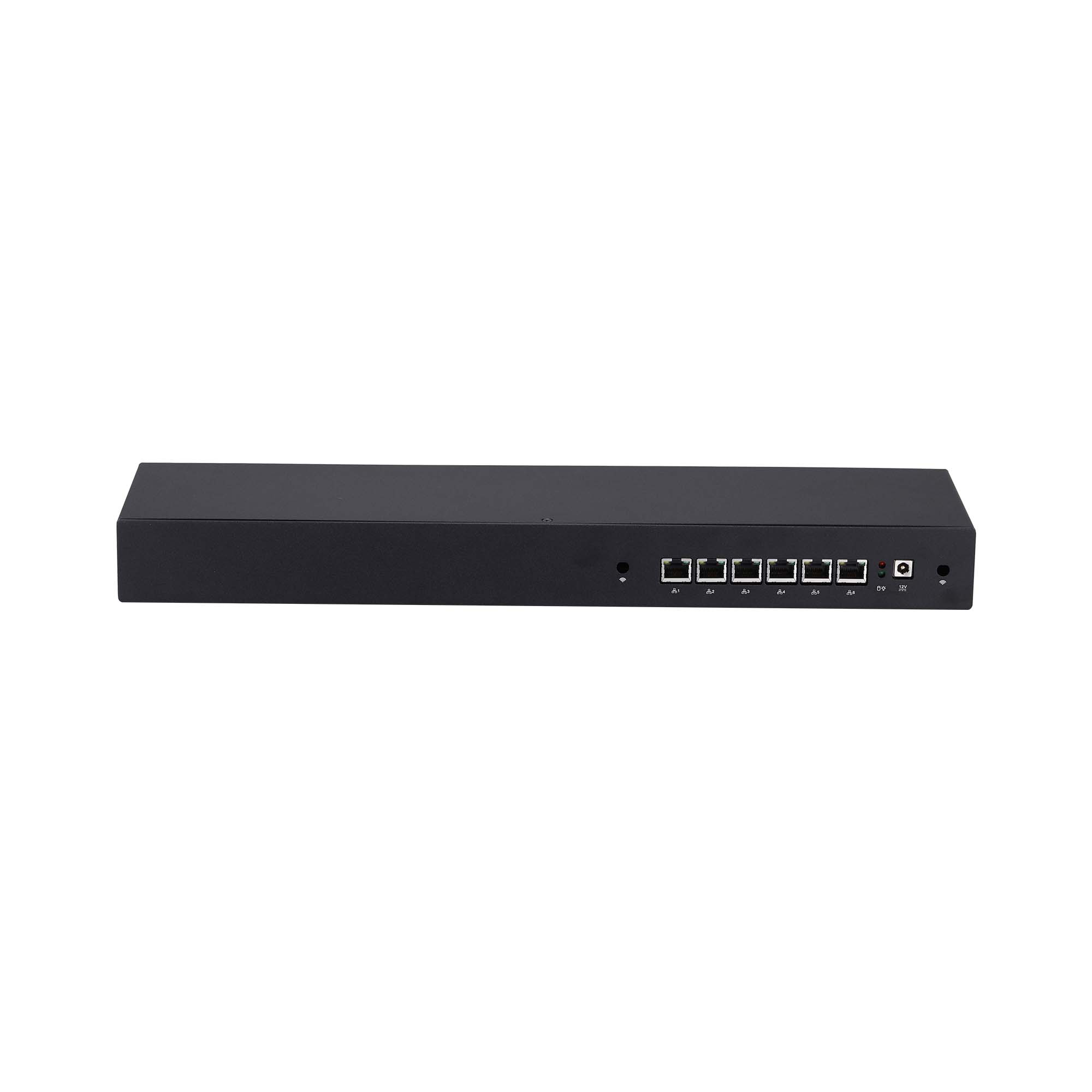

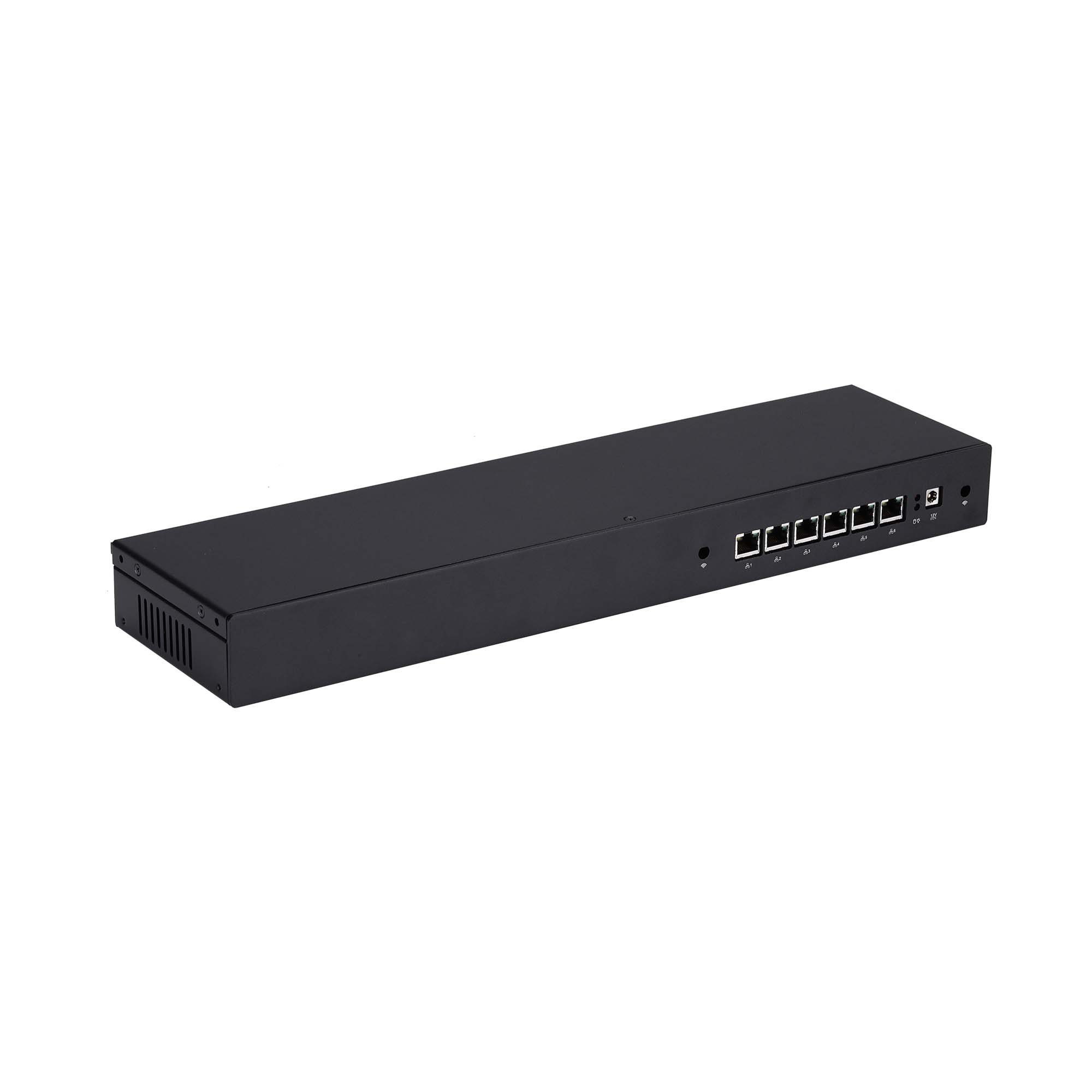

Rear I/O
Power	1 × DC Jack
LED	1 × Power LED, 1 × HDD LED
LAN	6 × Intel I211-AT/I210-AT Gigabit LAN
Storage
Type	1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD
Expansion
mSATA	1 × Full-length Mini PCIe for SSD
Mini PCIe	1 × Mini PCIe Full-length for 4G Half-length for Wi-Fi
SIM Card Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.54mm
CMOS Clear Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
VGA	0
GPIO	1, 2 × 5Pin, Pitch 2.0mm
RS-485/Serial Port	0
Power Requirement
AC Input	AC 100-240V by Default
Power Adapter	DC 12V (5.5mm, 2.5mm)
Environmental
Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%
Mechanical
Material	Aluminium Alloy
Dimension	440 × 112 × 44mm
Weight	1.27kg
Mounting	No
Packaging Dimension	545 × 180 × 90mm
Kensington Lock	No
Cooling Mode	Fan
OS Support
OS	Windows 10, Linux Windows 7 (Only for 6th Gen Skylake)

In the box

Packing List

NO.	Category	Quantity	Remark
1	Mini PC	1
2	AC Power Cord	1
3	Screws for SATA SSD/HDD	1
4	SATA cable for SSD/HDD	1	Option
5	Antennas	2	Option

ItemQuantity

1
Mini PC
1
2
AC Power Cord
1
3
Screws for SATA SSD/HDD
1
4
SATA cable for SSD/HDD
Option
1
5
Antennas
Option
2

Models & options

Ordering and Specifications Information

Quick Order Model: Q535G6-1U03

Ordering Code	Case	Code Name	Processor Type	Processor Number	# of Cores	# of Threads	Base Frequency	Max Turbo Frequency	Cache	Processor Graphics	TDP
Q510G6 (Q30611G6)	1U03	Skylake	Celeron	3855U	2	2	1.6GHz	/	2M	Intel HD 510	15W
Q520G6 (Q30612G6)	1U03	Skylake	Celeron	3955U	2	2	2.0GHz	/	2M	Intel HD 510	15W
Q530G6 (Q30631G6)	1U03	Skylake	Core i3	6100U	2	4	2.3GHz	/	3M	Intel HD 520	15W
Q550G6 (Q30651G6)	1U03	Skylake	Core i5	6200U	2	4	2.3GHz	2.8GHz	3M	Intel HD 520	15W
Q570G6 (Q30671G6)	1U03	Skylake	Core i7	6500U	2	4	2.5GHz	3.1GHz	4M	Intel HD 520	15W
Q515G6 (Q30711G6)	1U03	Kaby Lake	Celeron	3865U	2	2	1.8GHz	/	2M	Intel HD 610	15W
Q525G6 (Q30712G6)	1U03	Kaby Lake	Celeron	3965U	2	2	2.2GHz	/	2M	Intel HD 610	15W
Q535G6 (Q30731G6)	1U03	Kaby Lake	Core i3	7100U	2	4	2.4GHz	/	3M	Intel HD 620	15W
Q555G6 (Q30751G6)	1U03	Kaby Lake	Core i5	7200U	2	4	2.5GHz	3.1GHz	3M	Intel HD 620	15W
Q575G6 (Q30771G6)	1U03	Kaby Lake	Core i7	7500U	2	4	2.7GHz	3.5GHz	4M	Intel HD 620	15W

Q510G6
(Q30611G6)
1U03

Case: 1U03
Code Name: Skylake
Processor Type: Celeron
Processor Number: 3855U
# of Cores: 2
# of Threads: 2
Base Frequency: 1.6GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel HD 510
TDP: 15W

Q520G6
(Q30612G6)
1U03

Case: 1U03
Code Name: Skylake
Processor Type: Celeron
Processor Number: 3955U
# of Cores: 2
# of Threads: 2
Base Frequency: 2.0GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel HD 510
TDP: 15W

Q530G6
(Q30631G6)
1U03

Case: 1U03
Code Name: Skylake
Processor Type: Core i3
Processor Number: 6100U
# of Cores: 2
# of Threads: 4
Base Frequency: 2.3GHz
Max Turbo Frequency: /
Cache: 3M
Processor Graphics: Intel HD 520
TDP: 15W

Q550G6
(Q30651G6)
1U03

Case: 1U03
Code Name: Skylake
Processor Type: Core i5
Processor Number: 6200U
# of Cores: 2
# of Threads: 4
Base Frequency: 2.3GHz
Max Turbo Frequency: 2.8GHz
Cache: 3M
Processor Graphics: Intel HD 520
TDP: 15W

Q570G6
(Q30671G6)
1U03

Case: 1U03
Code Name: Skylake
Processor Type: Core i7
Processor Number: 6500U
# of Cores: 2
# of Threads: 4
Base Frequency: 2.5GHz
Max Turbo Frequency: 3.1GHz
Cache: 4M
Processor Graphics: Intel HD 520
TDP: 15W

Q515G6
(Q30711G6)
1U03

Case: 1U03
Code Name: Kaby Lake
Processor Type: Celeron
Processor Number: 3865U
# of Cores: 2
# of Threads: 2
Base Frequency: 1.8GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel HD 610
TDP: 15W

Q525G6
(Q30712G6)
1U03

Case: 1U03
Code Name: Kaby Lake
Processor Type: Celeron
Processor Number: 3965U
# of Cores: 2
# of Threads: 2
Base Frequency: 2.2GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel HD 610
TDP: 15W

Q535G6
(Q30731G6)
1U03

Case: 1U03
Code Name: Kaby Lake
Processor Type: Core i3
Processor Number: 7100U
# of Cores: 2
# of Threads: 4
Base Frequency: 2.4GHz
Max Turbo Frequency: /
Cache: 3M
Processor Graphics: Intel HD 620
TDP: 15W

Q555G6
(Q30751G6)
1U03

Case: 1U03
Code Name: Kaby Lake
Processor Type: Core i5
Processor Number: 7200U
# of Cores: 2
# of Threads: 4
Base Frequency: 2.5GHz
Max Turbo Frequency: 3.1GHz
Cache: 3M
Processor Graphics: Intel HD 620
TDP: 15W

Q575G6
(Q30771G6)
1U03

Case: 1U03
Code Name: Kaby Lake
Processor Type: Core i7
Processor Number: 7500U
# of Cores: 2
# of Threads: 4
Base Frequency: 2.7GHz
Max Turbo Frequency: 3.5GHz
Cache: 4M
Processor Graphics: Intel HD 620
TDP: 15W

PC Case Options

Category	SATA Support
S05	Yes
1U03	Yes

Custom Options

Category	Description
USB 2.0	4
GPIO	1
VGA	1
RS-485	2 (COM1/COM2 Support 5V/12V)
Serial Port	1 × RS-232
