Mini PC Q30600GE 1U05 Series

Q30600GE 1U firewall appliance with Intel 6th–8th Gen CPUs, 8× Intel LAN, HDMI, rich storage expansion, and RJ-45 COM—perfect for pfSense, network security, and rackmount gateway deployments.

Total of Network Interfaces
8
SFP(+)
None
10G RJ45
None
2.5G RJ45
None
1G RJ45
8
Serial Ports
1
Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

Main Features

  • Intel 6th Skylake-U Processor

  • Intel 7th Kabylake-U Processor

  • Intel 8th Kabylake-R-U Processor

  • 1 × HDMI

  • 4 × USB 3.0, 2 × USB 2.0

  • 1 × mSATA, 1 × Mini PCIe, 1 × M.2, 1 × SATA 3.0

  • 1 × RS-232 (RJ-45)

  • 8 × Intel I211-AT/I210-AT Gigabit LAN

Specifications

Processor System
CPUIntel 6thSkylake-U Processor
Intel 7thKabylake-U Processor
Intel 8thKabylake-R-U Processor
CPU TDPBy CPU
Memory1 × DDR4 SO-DIMM Socket (Up to 32G,
2133/2400MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset8 × Intel I211-AT/I210-AT Gigabit LAN
Watch DogYes

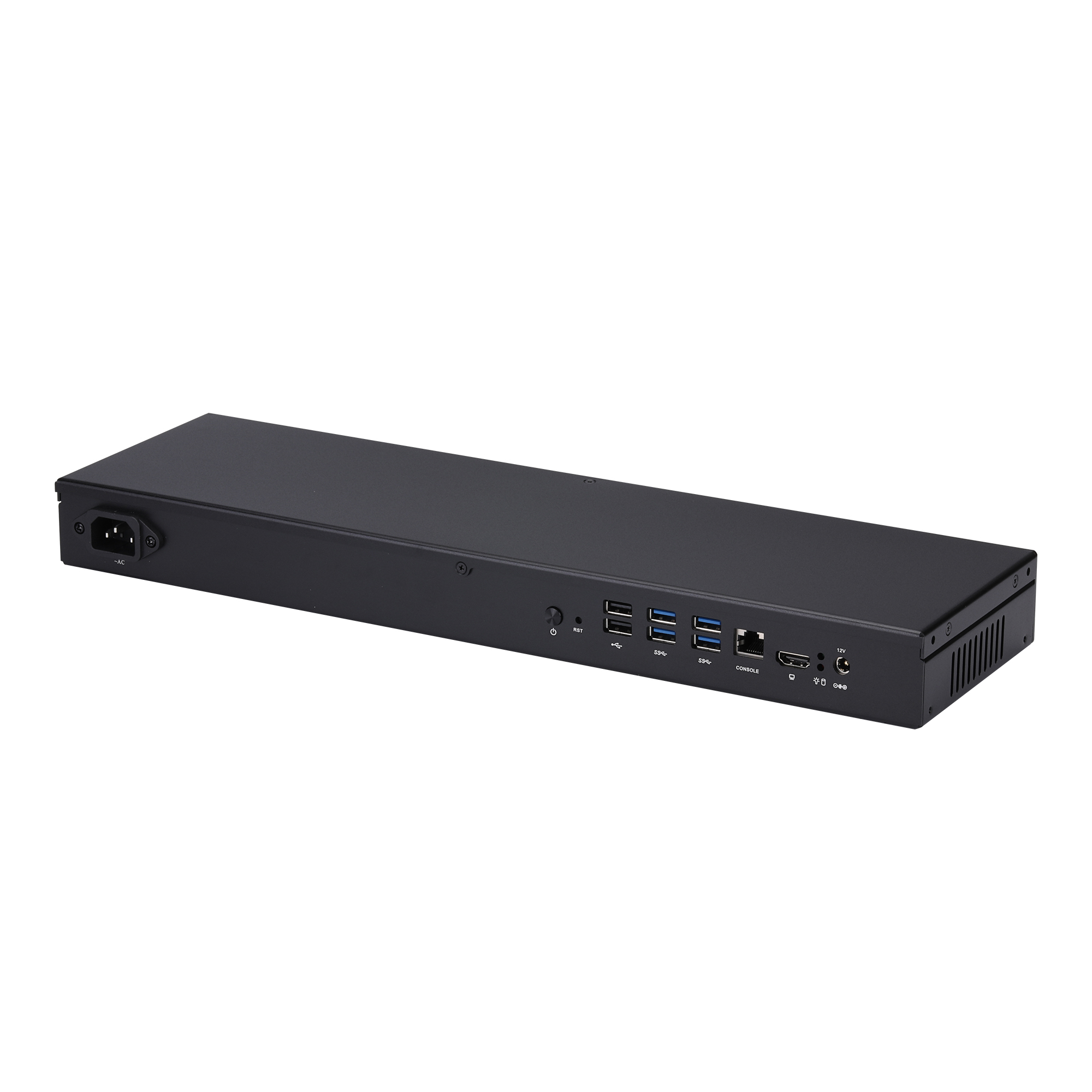

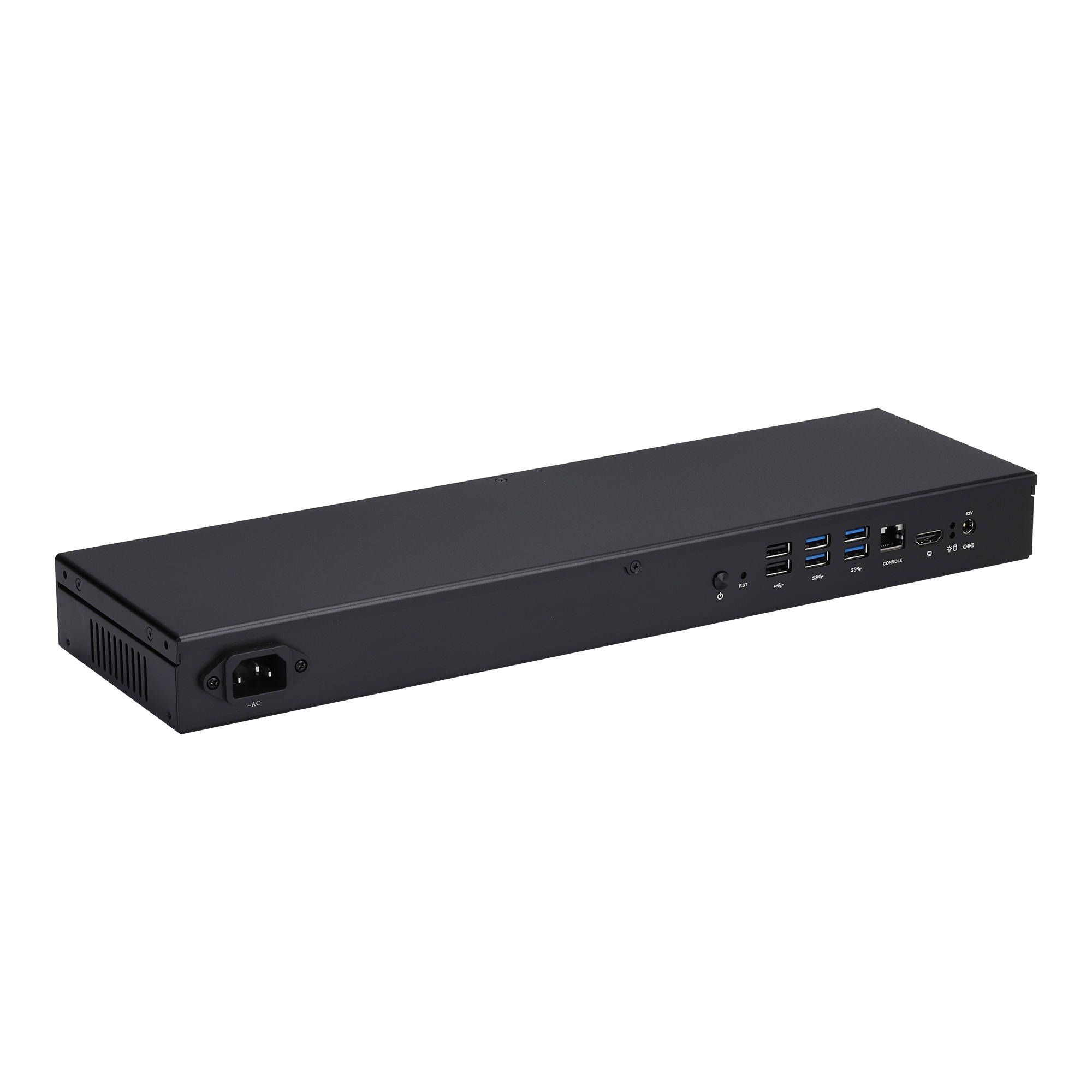

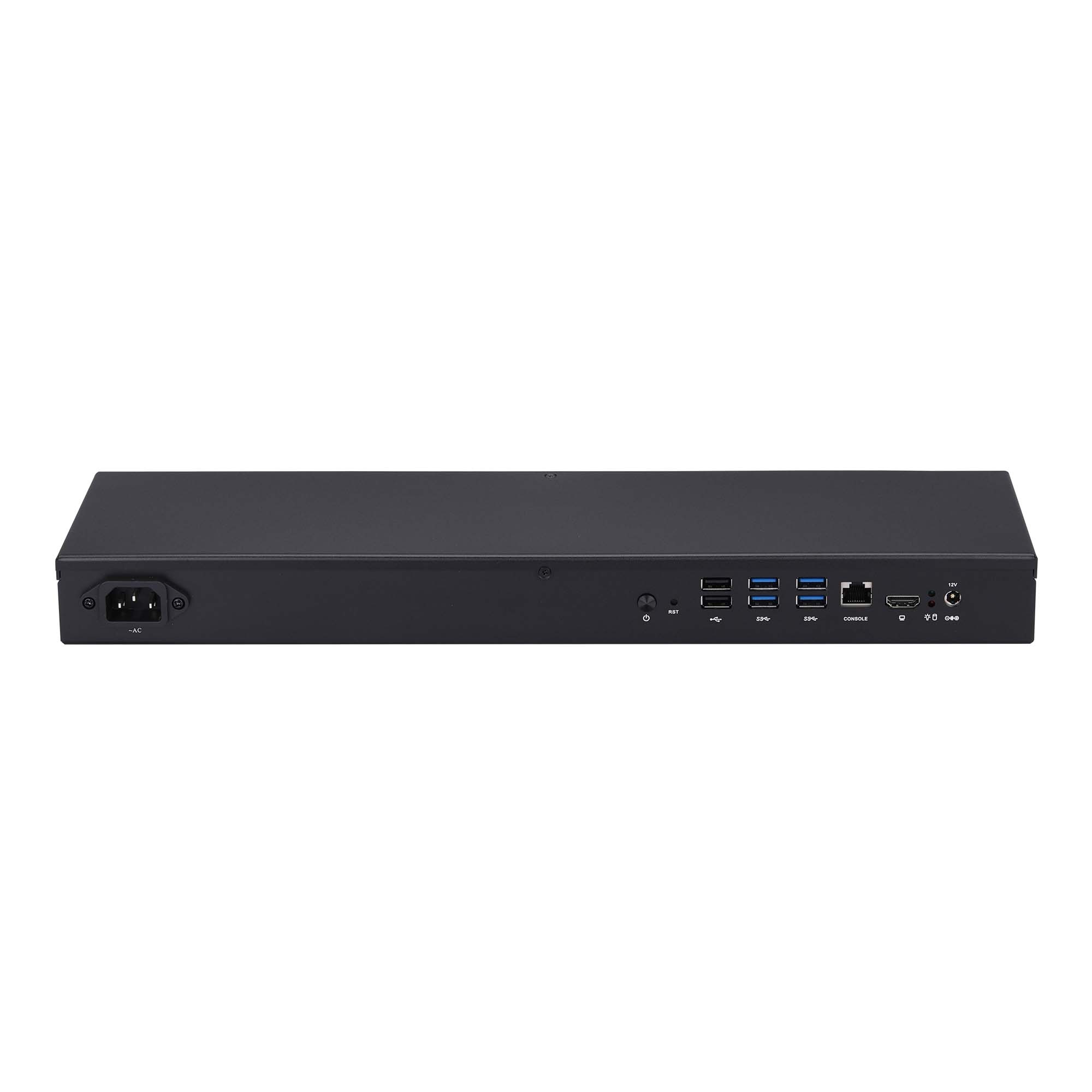

Front I/O
Power Button1
Reset Button1
LED1 × Power LED, 1 × HDD LED
USB4 × USB 3.0, 2 × USB 2.0
Power1 × DC Jack
Video Output1 × HDMI
Serial Port1 × RS-232 Port (RJ-45)

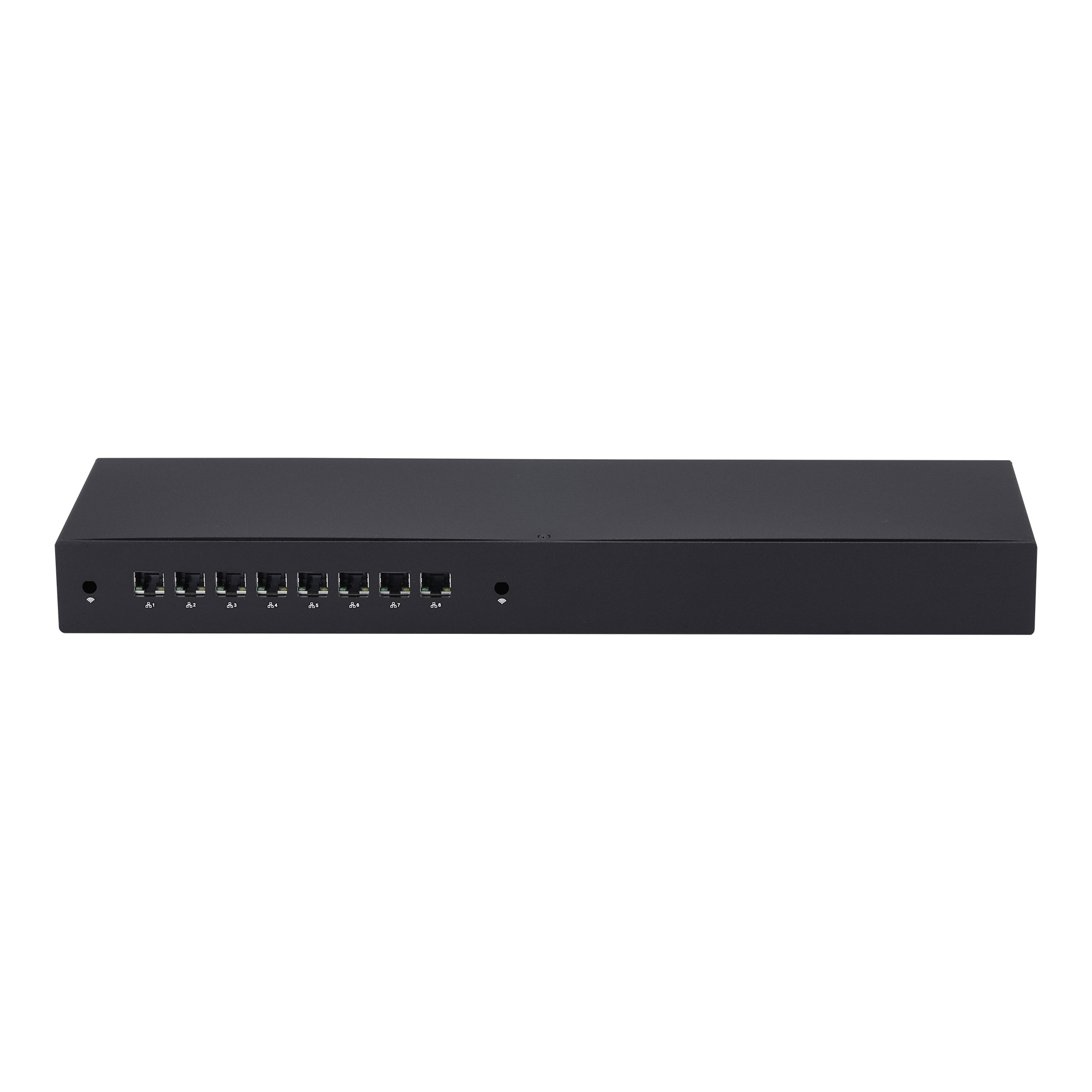

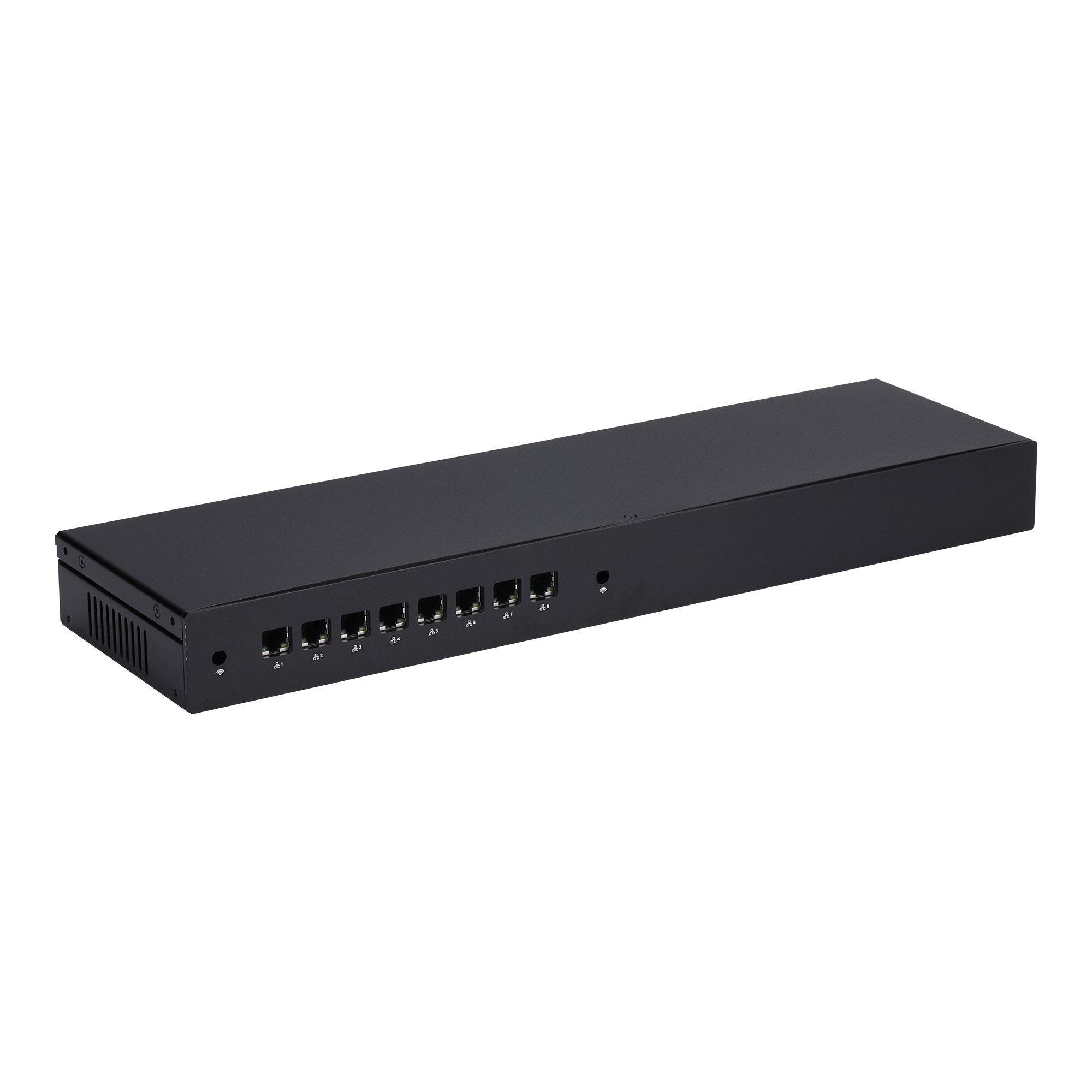

Rear I/O
LAN8 × Intel I211-AT/I210-AT Gigabit LAN
Storage
Type1 × 2.5-inch HDD/SSD
1 × Mini PCIe for mSATA SSD
Expansion
Mini PCIe1 × Mini PCIe (Only Support USB Device)
Full-length for 4G
Half-length for Wi-Fi
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
CMOS Clear JumperYes, 1 × 3Pin, Pitch 2.0mm
GPIO1, 2 × 5Pin, Pitch 2.0mm
RS-4850
DC-inNo
Power Requirement
AC InputAC 100-240V by Default
Power AdapterDC 12V (5.5mm, 2.5mm)
Environmental
Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%
Mechanical
MaterialAluminium Alloy
Dimension440 × 113 × 44mm
Weight1.20kg
MountingNo
Packaging Dimension545 × 180 × 90mm
Kensington LockNo
Cooling ModeFan
OS Support
OSWindows 10, Linux
Windows 7 (only for 6th Gen Skylake)

In the box

Packing List

NO.CategoryQuantityRemark
1Mini PC1
2AC Power Cord1
3Screws for SATA SSD/HDD1
4SATA cable for SSD/HDD1Option
5Antennas2Option
ItemQuantity
  • 1
    Mini PC
    1
  • 2
    AC Power Cord
    1
  • 3
    Screws for SATA SSD/HDD
    1
  • 4
    SATA cable for SSD/HDD
    Option
    1
  • 5
    Antennas
    Option
    2

Models & options

Ordering and Specifications Information

Quick Order Model: Q30600GE-1U05

Ordering CodeCaseCode Name Processor TypeProcessor Number# of Cores# of ThreadsBase FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP
Q30611GE1U05SkylakeCeleron3855U221.6GHz/2MIntel HD 51015W
Q30612GE1U05SkylakeCeleron3955U222.0GHz/2MIntel HD 51015W
Q30631GE1U05SkylakeCore i36100U242.3GHz/3MIntel HD 52015W
Q30651GE1U05SkylakeCore i56200U242.3GHz2.8GHz3MIntel HD 52015W
Q30671GE1U05SkylakeCore i76500U242.5GHz3.1GHz4MIntel HD 52015W
Q30711GE1U05Kaby LakeCeleron3865U221.8GHz/2MIntel HD 61015W
Q30712GE1U05Kaby LakeCeleron3965U222.2GHz/2MIntel HD 61015W
Q30731GE1U05Kaby LakeCore i37100U242.4GHz/3MIntel HD 62015W
Q30751GE1U05Kaby LakeCore i57200U242.5GHz3.1GHz3MIntel HD 62015W
Q30771GE1U05Kaby LakeCore i77500U242.7GHz3.5GHz4MIntel HD 62015W
Q30811GE1U05Kaby Lake RCeleron3867U221.8GHz/2MIntel HD 61015W
Q30821GE1U05Kaby Lake RPentium4417U222.3GHz/2MIntel HD 61015W
Q30831GE1U05Kaby Lake RCore i38130U242.0GHz3.40GHz4MIntel UHD 62015W
Q30851GE1U05Kaby Lake RCore i58250U481.6GHz3.4GHz6MIntel UHD 62015W
Q30871GE1U05Kaby Lake RCore i78550U481.8GHz4.0GHz8MIntel UHD 62015W
Q30611GE1U05
Case
1U05
Code Name
Skylake
Processor Type
Celeron
Processor Number
3855U
# of Cores
2
# of Threads
2
Base Frequency
1.6GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 510
TDP
15W
Q30612GE1U05
Case
1U05
Code Name
Skylake
Processor Type
Celeron
Processor Number
3955U
# of Cores
2
# of Threads
2
Base Frequency
2.0GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 510
TDP
15W
Q30631GE1U05
Case
1U05
Code Name
Skylake
Processor Type
Core i3
Processor Number
6100U
# of Cores
2
# of Threads
4
Base Frequency
2.3GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 520
TDP
15W
Q30651GE1U05
Case
1U05
Code Name
Skylake
Processor Type
Core i5
Processor Number
6200U
# of Cores
2
# of Threads
4
Base Frequency
2.3GHz
Max Turbo Frequency
2.8GHz
Cache
3M
Processor Graphics
Intel HD 520
TDP
15W
Q30671GE1U05
Case
1U05
Code Name
Skylake
Processor Type
Core i7
Processor Number
6500U
# of Cores
2
# of Threads
4
Base Frequency
2.5GHz
Max Turbo Frequency
3.1GHz
Cache
4M
Processor Graphics
Intel HD 520
TDP
15W
Q30711GE1U05
Case
1U05
Code Name
Kaby Lake
Processor Type
Celeron
Processor Number
3865U
# of Cores
2
# of Threads
2
Base Frequency
1.8GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 610
TDP
15W
Q30712GE1U05
Case
1U05
Code Name
Kaby Lake
Processor Type
Celeron
Processor Number
3965U
# of Cores
2
# of Threads
2
Base Frequency
2.2GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 610
TDP
15W
Q30731GE1U05
Case
1U05
Code Name
Kaby Lake
Processor Type
Core i3
Processor Number
7100U
# of Cores
2
# of Threads
4
Base Frequency
2.4GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 620
TDP
15W
Q30751GE1U05
Case
1U05
Code Name
Kaby Lake
Processor Type
Core i5
Processor Number
7200U
# of Cores
2
# of Threads
4
Base Frequency
2.5GHz
Max Turbo Frequency
3.1GHz
Cache
3M
Processor Graphics
Intel HD 620
TDP
15W
Q30771GE1U05
Case
1U05
Code Name
Kaby Lake
Processor Type
Core i7
Processor Number
7500U
# of Cores
2
# of Threads
4
Base Frequency
2.7GHz
Max Turbo Frequency
3.5GHz
Cache
4M
Processor Graphics
Intel HD 620
TDP
15W
Q30811GE1U05
Case
1U05
Code Name
Kaby Lake R
Processor Type
Celeron
Processor Number
3867U
# of Cores
2
# of Threads
2
Base Frequency
1.8GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 610
TDP
15W
Q30821GE1U05
Case
1U05
Code Name
Kaby Lake R
Processor Type
Pentium
Processor Number
4417U
# of Cores
2
# of Threads
2
Base Frequency
2.3GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 610
TDP
15W
Q30831GE1U05
Case
1U05
Code Name
Kaby Lake R
Processor Type
Core i3
Processor Number
8130U
# of Cores
2
# of Threads
4
Base Frequency
2.0GHz
Max Turbo Frequency
3.40GHz
Cache
4M
Processor Graphics
Intel UHD 620
TDP
15W
Q30851GE1U05
Case
1U05
Code Name
Kaby Lake R
Processor Type
Core i5
Processor Number
8250U
# of Cores
4
# of Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
3.4GHz
Cache
6M
Processor Graphics
Intel UHD 620
TDP
15W
Q30871GE1U05
Case
1U05
Code Name
Kaby Lake R
Processor Type
Core i7
Processor Number
8550U
# of Cores
4
# of Threads
8
Base Frequency
1.8GHz
Max Turbo Frequency
4.0GHz
Cache
8M
Processor Graphics
Intel UHD 620
TDP
15W

PC Case Options

CategorySATA Support
1U05Yes
1U05Yes
1U05Yes
1U05Yes

Custom Options

CategoryDescription
USB 2.02
Serial Port5 × RS-232, DB9
GPIO1
VGA1
RS-4852
