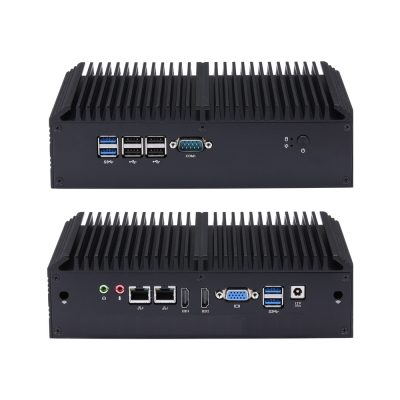

Mini PC Q30600SN S10 Series
Q30600SN compact signage PC with dual HDMI, VGA, RS-232, 4 USB 3.0, and dual LAN. Designed for digital signage, kiosks, and commercial display terminals.
Tell us the configuration and quantity you need.
OVERVIEW
Main Features
Intel 6th Skylake-U Processor
Intel 7th Kabylake-U Processor
Intel 8th Kabylake-R-U Processor
1 × VGA, 2 × HDMI, 1 × RS-232
4 × USB 3.0, 4 × USB 2.0, 1 × SATA 3.0
1 × Mini PCIe, 2 × M.2
2 × Realtek Gigabit LAN
SPECIFICATION
| Processor System | |
| CPU | Intel 6thSkylake-U Processor Intel 7thKabylake-U Processor ntel 8thKabylake-R-U Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Realtek Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |

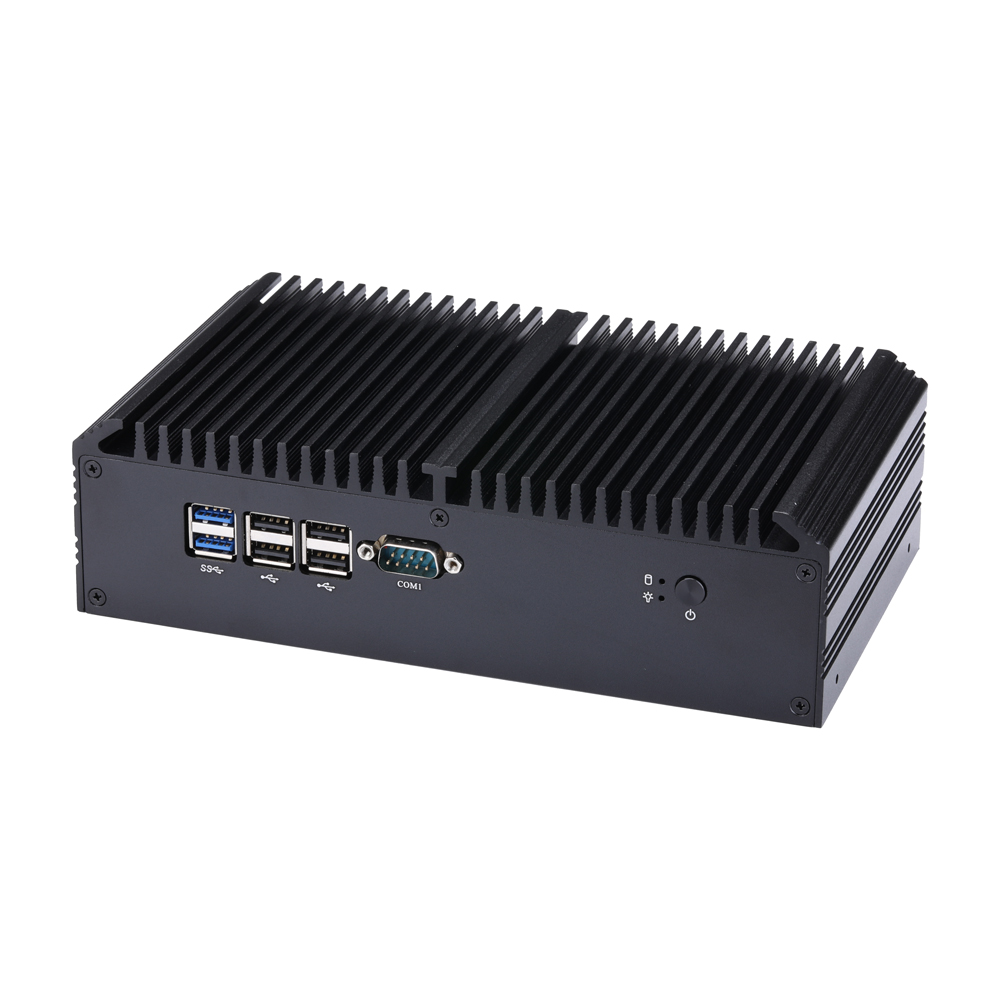

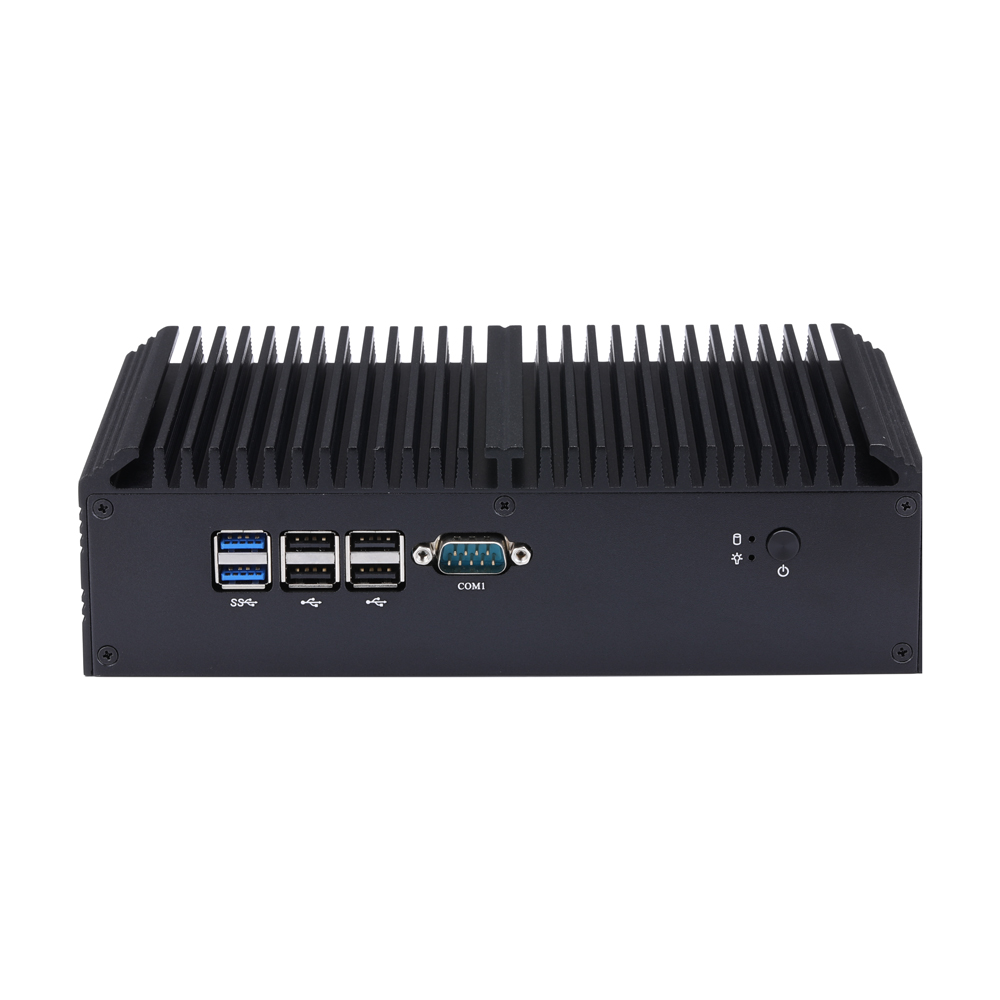

| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 2 × USB 3.0, 4 × USB 2.0 |
| Serial Port | 1 × RS-232 |

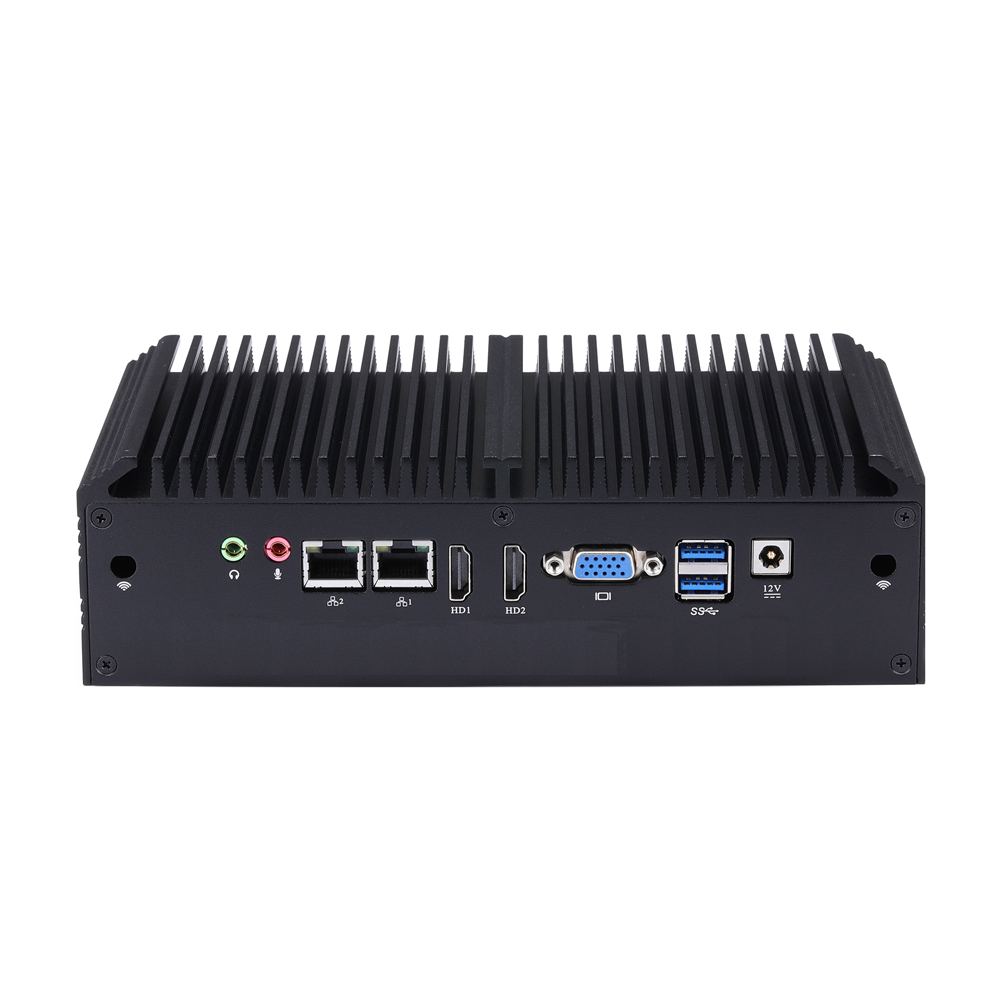

| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 2 × HDMI, 1 × VGA |
| LAN | 2 × Realtek Gigabit LAN |
| USB | 2 × USB 3.0 |
| Audio | 1 × Mic-in, 1 × Line-out |
| Serial Port | 0 |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280) |
| Expansion | |
| Mini PCIe | 1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280) 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| SIM Card Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| CMOS Clear Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| Serial Port | 0 |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 0 |
| Power Requirement | |
| Power Adapter | 12V5A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 217 × 122 × 62mm |
| Weight | 1.33kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 285 × 260 × 93mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | Windows 10, Linux Windows 7 (Only for 6th Gen Skylake) |
PACKING
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
ItemQuantity
- 1Mini PC1
- 2Silicone Mat4
- 3VESA Bracket1
- 4Screws for VESA Bracket1
- 5Power Adapter1
- 6AC Power Cord1
- 7Screws for SATA SSD/HDD1
- 8SATA cable for SSD/HDD1Option
- 9Antennas2Option
ORDERING
Ordering and Specifications Information
Quick Order Model: Q30651C-S13
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
| Q30611SN | S13 | Skylake | Celeron | 3855U | 2 | 2 | 1.6GHz | / | 2M | Intel HD 510 | 15W |
| Q30612SN | S13 | Skylake | Celeron | 3955U | 2 | 2 | 2.0GHz | / | 2M | Intel HD 510 | 15W |
| Q30631SN | S13 | Skylake | Core i3 | 6100U | 2 | 4 | 2.3GHz | / | 3M | Intel HD 520 | 15W |
| Q30651SN | S13 | Skylake | Core i5 | 6200U | 2 | 4 | 2.3GHz | 2.8GHz | 3M | Intel HD 520 | 15W |
| Q30671SN | S13 | Skylake | Core i7 | 6500U | 2 | 4 | 2.5GHz | 3.1GHz | 4M | Intel HD 520 | 15W |
| Q30711SN | S13 | Kaby Lake | Celeron | 3865U | 2 | 2 | 1.8GHz | / | 2M | Intel HD 610 | 15W |
| Q30712SN | S13 | Kaby Lake | Celeron | 3965U | 2 | 2 | 2.2GHz | / | 2M | Intel HD 610 | 15W |
| Q30731SN | S13 | Kaby Lake | Core i3 | 7100U | 2 | 4 | 2.4GHz | / | 3M | Intel HD 620 | 15W |
| Q30751SN | S13 | Kaby Lake | Core i5 | 7200U | 2 | 4 | 2.5GHz | 3.1GHz | 3M | Intel HD 620 | 15W |
| Q30771SN | S13 | Kaby Lake | Core i7 | 7500U | 2 | 4 | 2.7GHz | 3.5GHz | 4M | Intel HD 620 | 15W |
| Q30811SN | S13 | Kaby Lake R | Celeron | 3867U | 2 | 2 | 1.8GHz | / | 2M | Intel HD 610 | 15W |
| Q30821SN | S13 | Kaby Lake R | Pentium | 4417U | 2 | 2 | 2.3GHz | / | 2M | Intel HD 610 | 15W |
| Q30831SN | S13 | Kaby Lake R | Core i3 | 8130U | 2 | 4 | 2.0GHz | 3.40GHz | 4M | Intel UHD 620 | 15W |
| Q30851SN | S13 | Kaby Lake R | Core i5 | 8250U | 4 | 8 | 1.6GHz | 3.4GHz | 6M | Intel UHD 620 | 15W |
| Q30871SN | S13 | Kaby Lake R | Core i7 | 8550U | 4 | 8 | 1.8GHz | 4.0GHz | 8M | Intel UHD 620 | 15W |
Q30611SNS13
- Case
- S13
- Code Name
- Skylake
- Processor Type
- Celeron
- Processor Number
- 3855U
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 1.6GHz
- Max Turbo Frequency
- /
- Cache
- 2M
- Processor Graphics
- Intel HD 510
- TDP
- 15W
Q30612SNS13
- Case
- S13
- Code Name
- Skylake
- Processor Type
- Celeron
- Processor Number
- 3955U
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 2.0GHz
- Max Turbo Frequency
- /
- Cache
- 2M
- Processor Graphics
- Intel HD 510
- TDP
- 15W
Q30631SNS13
- Case
- S13
- Code Name
- Skylake
- Processor Type
- Core i3
- Processor Number
- 6100U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 2.3GHz
- Max Turbo Frequency
- /
- Cache
- 3M
- Processor Graphics
- Intel HD 520
- TDP
- 15W
Q30651SNS13
- Case
- S13
- Code Name
- Skylake
- Processor Type
- Core i5
- Processor Number
- 6200U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 2.3GHz
- Max Turbo Frequency
- 2.8GHz
- Cache
- 3M
- Processor Graphics
- Intel HD 520
- TDP
- 15W
Q30671SNS13
- Case
- S13
- Code Name
- Skylake
- Processor Type
- Core i7
- Processor Number
- 6500U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 2.5GHz
- Max Turbo Frequency
- 3.1GHz
- Cache
- 4M
- Processor Graphics
- Intel HD 520
- TDP
- 15W
Q30711SNS13
- Case
- S13
- Code Name
- Kaby Lake
- Processor Type
- Celeron
- Processor Number
- 3865U
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 1.8GHz
- Max Turbo Frequency
- /
- Cache
- 2M
- Processor Graphics
- Intel HD 610
- TDP
- 15W
Q30712SNS13
- Case
- S13
- Code Name
- Kaby Lake
- Processor Type
- Celeron
- Processor Number
- 3965U
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 2.2GHz
- Max Turbo Frequency
- /
- Cache
- 2M
- Processor Graphics
- Intel HD 610
- TDP
- 15W
Q30731SNS13
- Case
- S13
- Code Name
- Kaby Lake
- Processor Type
- Core i3
- Processor Number
- 7100U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 2.4GHz
- Max Turbo Frequency
- /
- Cache
- 3M
- Processor Graphics
- Intel HD 620
- TDP
- 15W
Q30751SNS13
- Case
- S13
- Code Name
- Kaby Lake
- Processor Type
- Core i5
- Processor Number
- 7200U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 2.5GHz
- Max Turbo Frequency
- 3.1GHz
- Cache
- 3M
- Processor Graphics
- Intel HD 620
- TDP
- 15W
Q30771SNS13
- Case
- S13
- Code Name
- Kaby Lake
- Processor Type
- Core i7
- Processor Number
- 7500U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 2.7GHz
- Max Turbo Frequency
- 3.5GHz
- Cache
- 4M
- Processor Graphics
- Intel HD 620
- TDP
- 15W
Q30811SNS13
- Case
- S13
- Code Name
- Kaby Lake R
- Processor Type
- Celeron
- Processor Number
- 3867U
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 1.8GHz
- Max Turbo Frequency
- /
- Cache
- 2M
- Processor Graphics
- Intel HD 610
- TDP
- 15W
Q30821SNS13
- Case
- S13
- Code Name
- Kaby Lake R
- Processor Type
- Pentium
- Processor Number
- 4417U
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 2.3GHz
- Max Turbo Frequency
- /
- Cache
- 2M
- Processor Graphics
- Intel HD 610
- TDP
- 15W
Q30831SNS13
- Case
- S13
- Code Name
- Kaby Lake R
- Processor Type
- Core i3
- Processor Number
- 8130U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 2.0GHz
- Max Turbo Frequency
- 3.40GHz
- Cache
- 4M
- Processor Graphics
- Intel UHD 620
- TDP
- 15W
Q30851SNS13
- Case
- S13
- Code Name
- Kaby Lake R
- Processor Type
- Core i5
- Processor Number
- 8250U
- # of Cores
- 4
- # of Threads
- 8
- Base Frequency
- 1.6GHz
- Max Turbo Frequency
- 3.4GHz
- Cache
- 6M
- Processor Graphics
- Intel UHD 620
- TDP
- 15W
Q30871SNS13
- Case
- S13
- Code Name
- Kaby Lake R
- Processor Type
- Core i7
- Processor Number
- 8550U
- # of Cores
- 4
- # of Threads
- 8
- Base Frequency
- 1.8GHz
- Max Turbo Frequency
- 4.0GHz
- Cache
- 8M
- Processor Graphics
- Intel UHD 620
- TDP
- 15W
PC Case Options
| Category | SATA Support |
| S10 | Yes |
| S20 | Yes |
| S13 | Yes |
Custom Options
| Category | Description |
| USB 2.0 | 1 |
| GPIO | 1 |
| Serial Port | 5 × RS-232 |
| RS-485 | 2 |
| SATA | 1 (Only for i5/i7) |
| TPM 2.0 | 1 |
