Mini PC Q30600X S20 Series

Qotom Q30600X mini PC with Skylake/Kabylake-U CPU, 6 COM ports (2 RS-485), dual HDMI, VGA, and dual LAN, ideal for automation, embedded control, and serial communication systems.

NIC
2
USB
8
RS-232
6 × RS-232
RS-485
2, COM3/4 can be set up as RS-485
VGA
Yes
PS/2
None
GPIO
Yes
Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

OVERVIEW

Main Features

  • Intel 6th Skylake-U Processor

  • Intel 7th Kabylake-U Processor

  • Intel 8th Kabylake-R-U Processor

  • Intel HD Graphics 520

  • 1 × VGA, 2 × HDMI, 6 × RS-232 (2 × RS-485)

  • 4 × USB 3.0, 4 × USB 2.0, 1 × SATA 3.0

  • 1 × Mini PCIe, 2 × M.2

  • 2 × Realtek Gigabit LAN

SPECIFICATION

Processor System
CPUIntel 6thSkylake-U Processor
Intel 7thKabylake-U Processor
Intel 8thKabylake-R-U Processor
CPU TDPBy CPU
Memory1 × DDR4 SO-DIMM Socket
(Up to 32G, 2133/2400MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset2 × Realtek Gigabit LAN
AudioRealtek HD Audio
Watch DogYes

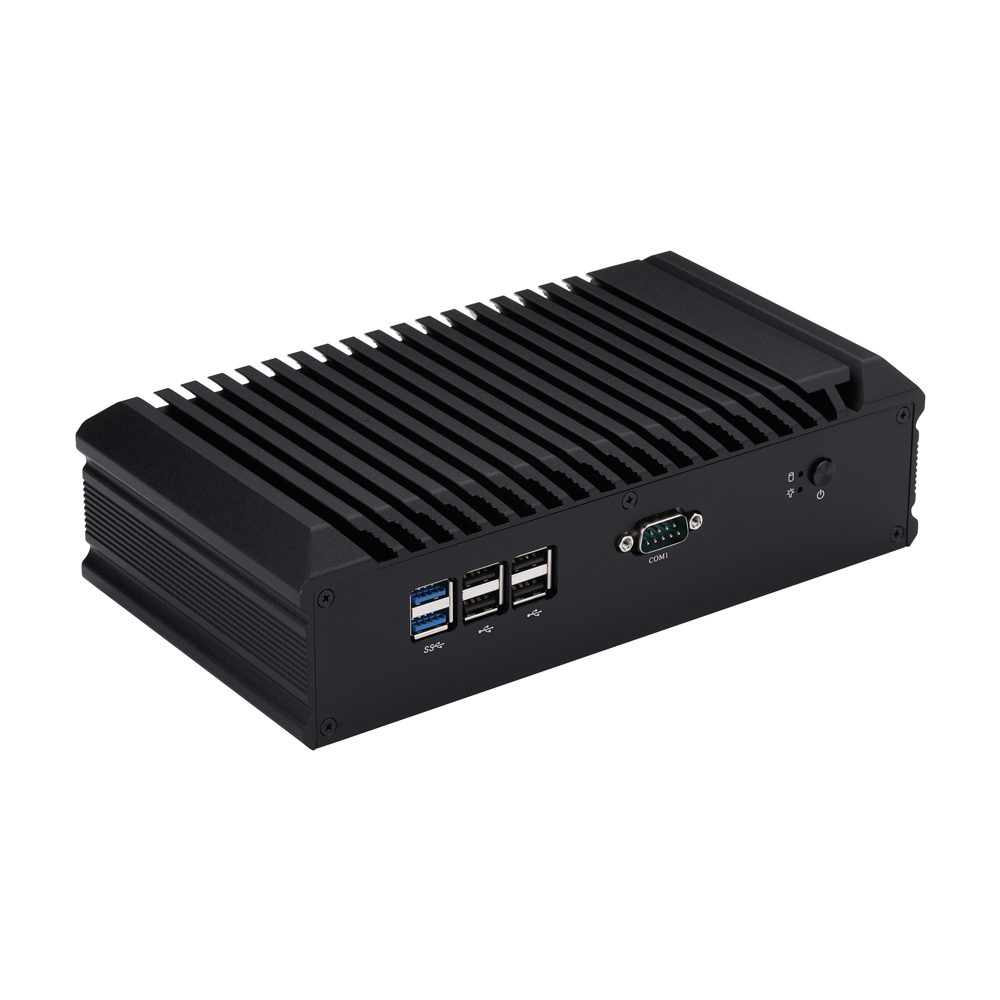

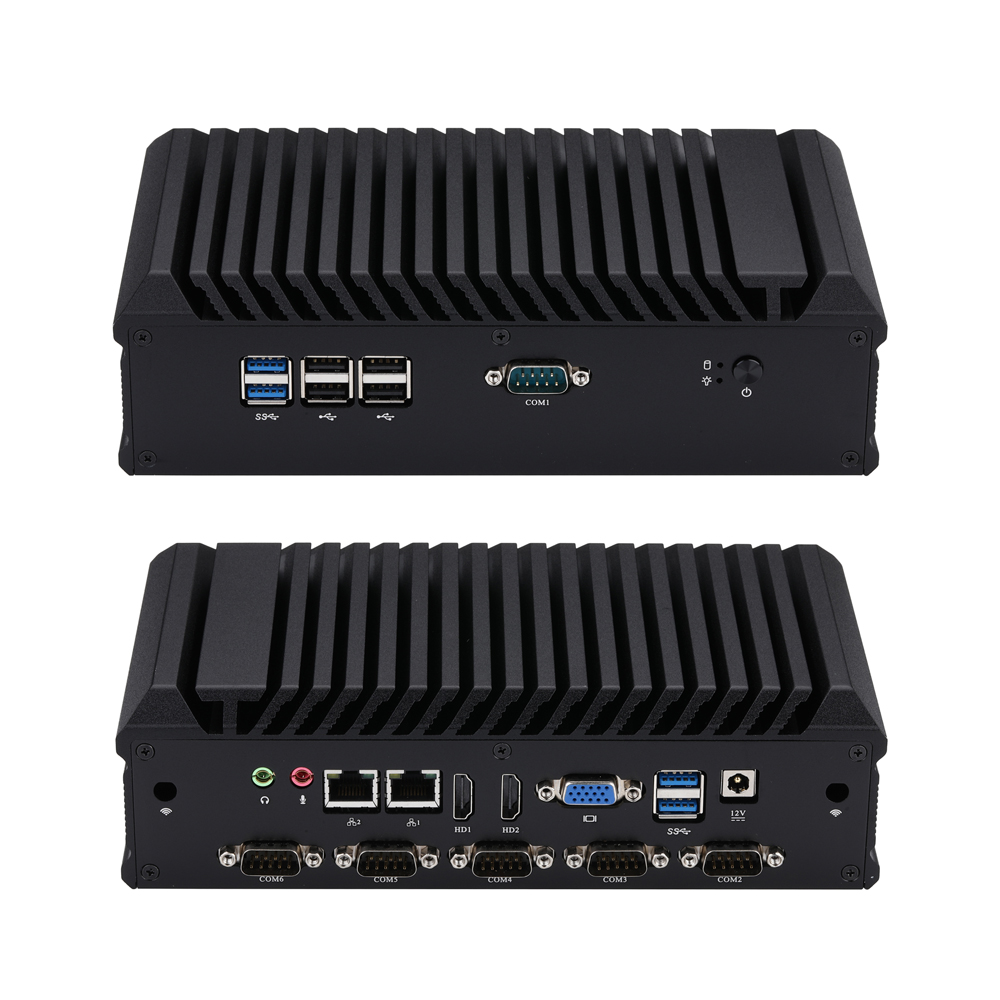

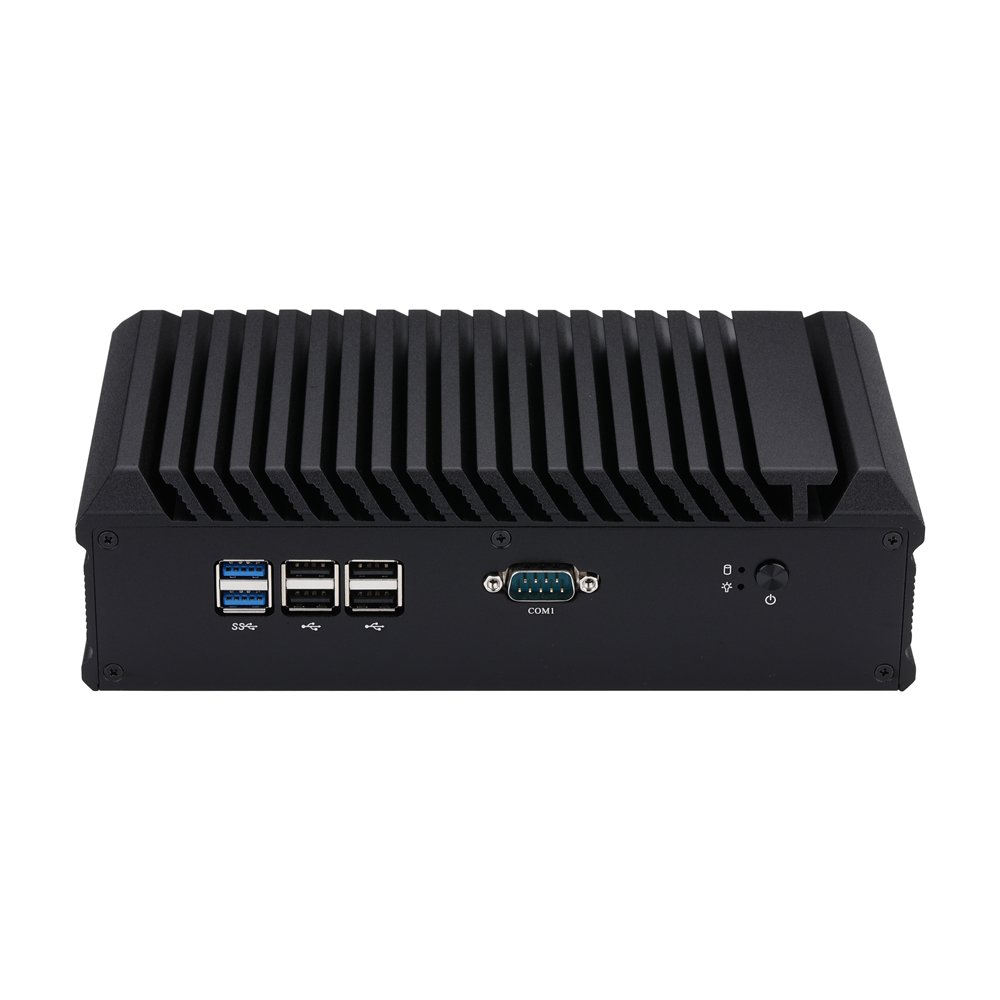

Front I/O
Power Button1
LED1 × Power LED, 1 × HDD LED
USB2 × USB 3.0, 4 × USB 2.0
Serial Port1 × RS-232

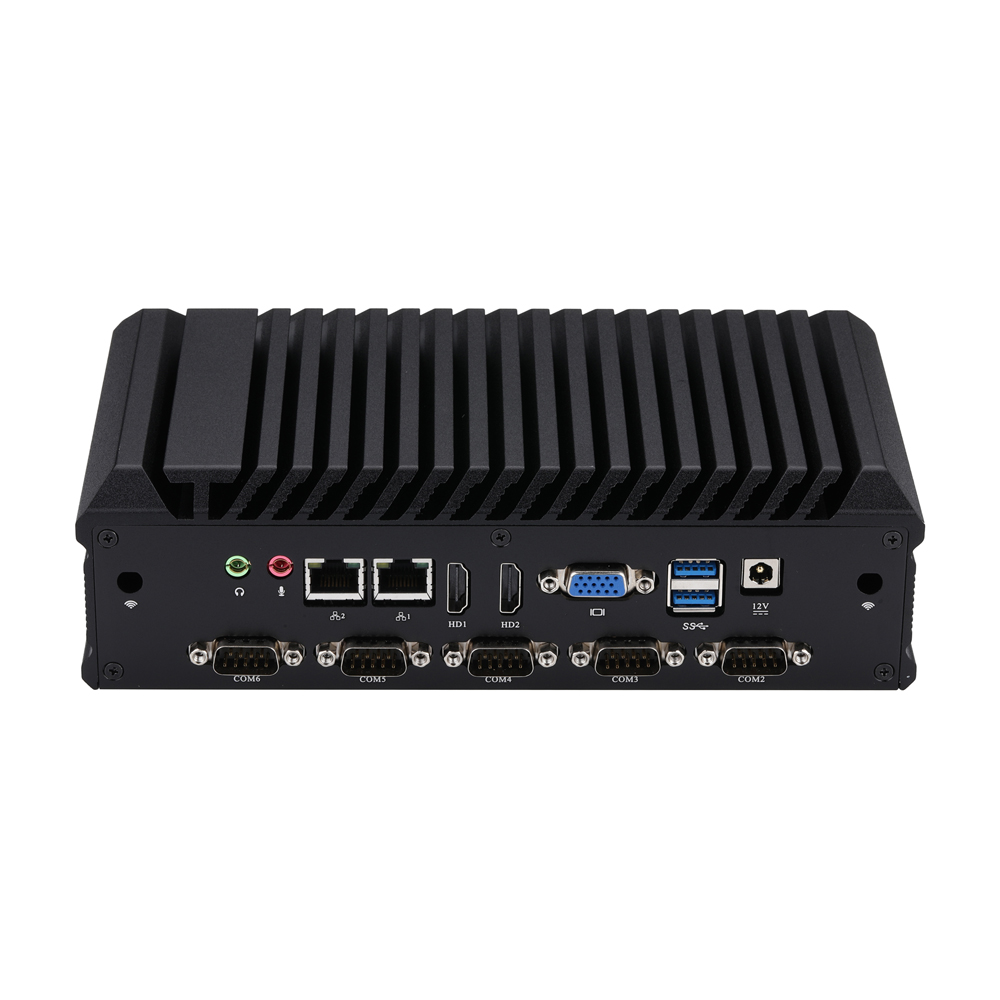

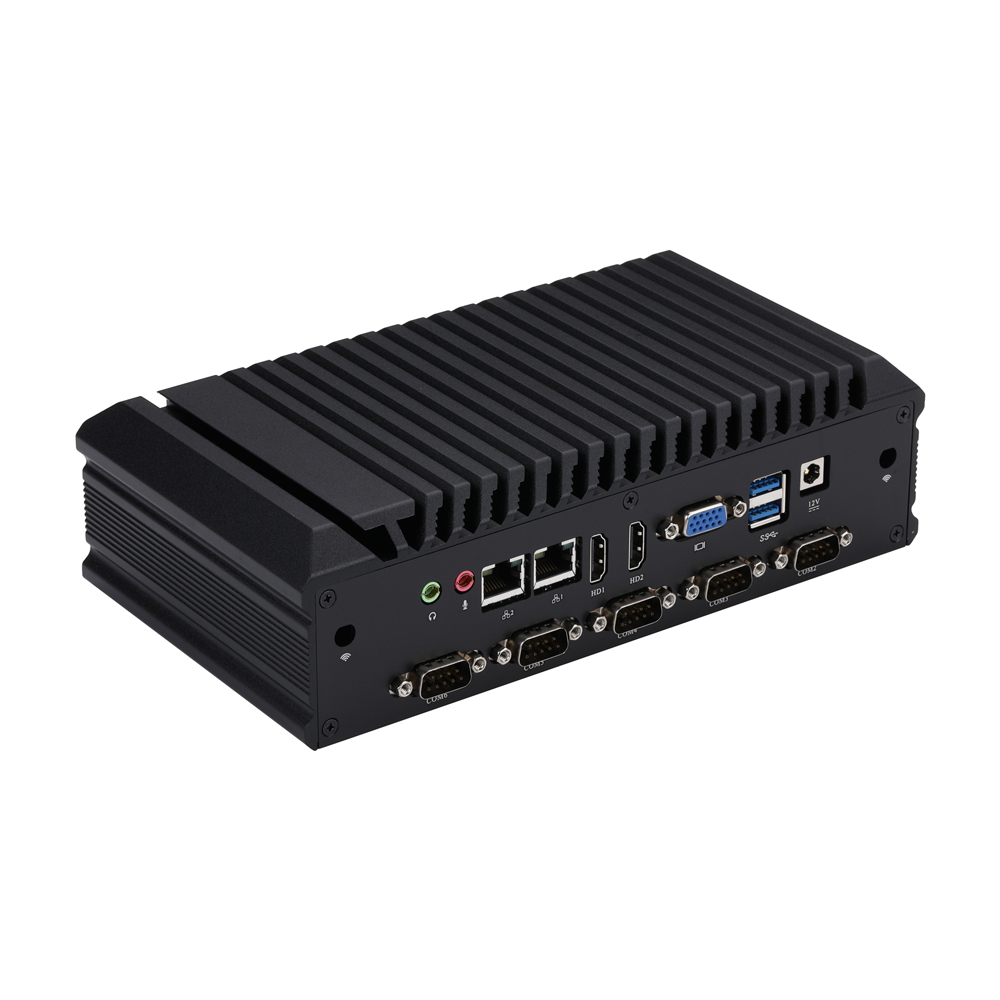

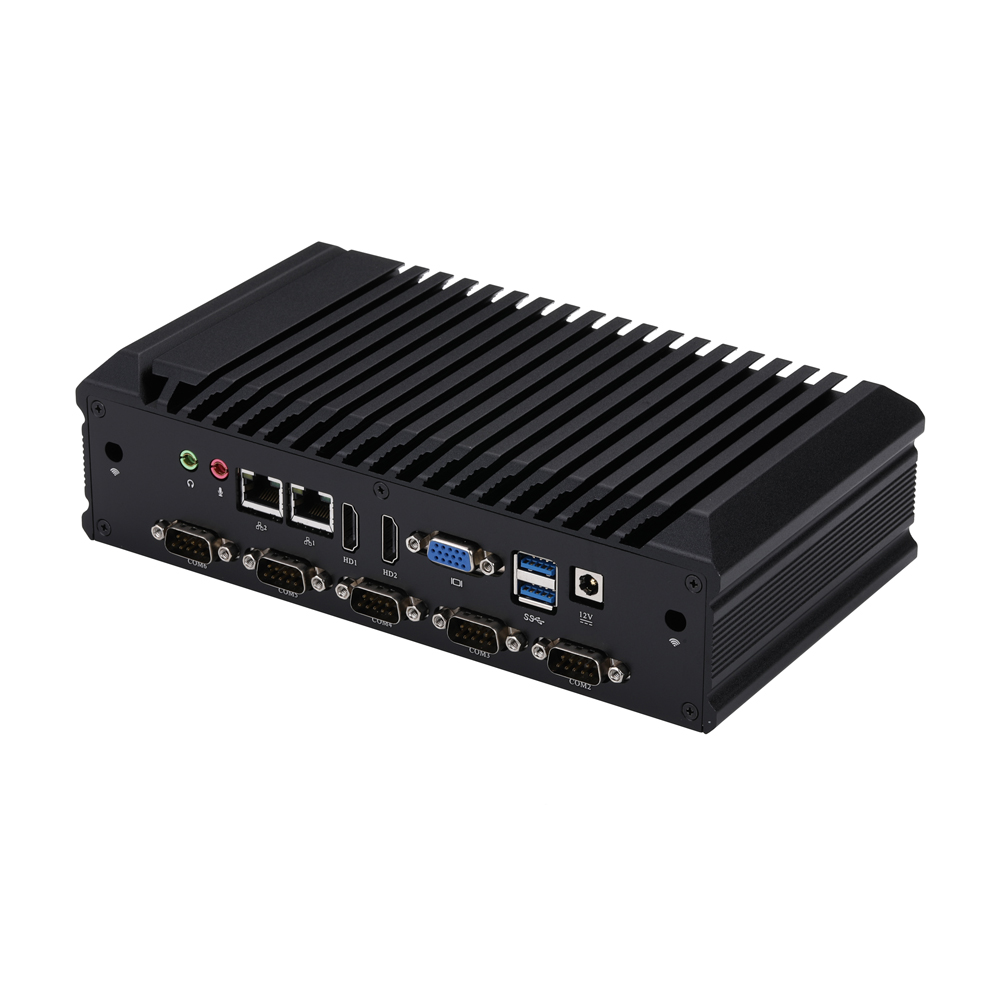

Rear I/O
Power1 × DC Jack
Video Output2 × HDMI, 1 × VGA
LAN2 × Realtek Gigabit LAN
USB2 × USB 3.0
Audio1 × Mic-in, 1 × Line-out
Serial Port5 × RS-232
Storage
Type1 × 2.5-inch HDD/SSD
1 × M.2 for SSD (M key, Type: 2280)
Expansion
Mini PCIe1 × Mini PCIe
Full-length for 4G, Half-length for Wi-Fi
M.21 × M.2 for SSD (M key, Type: 2280)
1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
CMOS Clear JumperYes, 1 × 3Pin, Pitch 2.0mm
Serial PortCOM3/COM4 support 5V/12V
GPIO1, 2 × 5Pin, Pitch 2.0mm
RS-4852, COM3/4 can be set up as RS-485
Power Requirement
Power Adapter12V5A
DC Jack5.5mm, 2.5mm
Environmental
Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%
Mechanical
MaterialAluminium Alloy
Dimension221 × 121 × 62mm
Weight1.42kg
MountingVESA Mounting Bracket
Packaging Dimension285 × 260 × 93mm
Kensington LockNo
Cooling ModeFanless Design
OS Support
OSWindows 10, Linux
Windows 7 (Only for 6th Gen Skylake)

PACKING

Packing List

NO.CategoryQuantityRemark
1Mini PC1
2Silicone Mat4
3VESA Bracket1
4Screws for VESA Bracket1
5Power Adapter1
6AC Power Cord1
7Screws for SATA SSD/HDD1
8SATA cable for SSD/HDD1Option
9Antennas2Option
ItemQuantity
  • 1
    Mini PC
    1
  • 2
    Silicone Mat
    4
  • 3
    VESA Bracket
    1
  • 4
    Screws for VESA Bracket
    1
  • 5
    Power Adapter
    1
  • 6
    AC Power Cord
    1
  • 7
    Screws for SATA SSD/HDD
    1
  • 8
    SATA cable for SSD/HDD
    Option
    1
  • 9
    Antennas
    Option
    2

ORDERING

Ordering and Specifications Information

Quick Order Model: Q30651X-S10

Ordering CodeCaseCode Name Processor TypeProcessor Number# of Cores# of ThreadsBase FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP
Q30611XS10SkylakeCeleron3855U221.6GHz/2MIntel HD 51015W
Q30612XS10SkylakeCeleron3955U222.0GHz/2MIntel HD 51015W
Q30631XS10SkylakeCore i36100U242.3GHz/3MIntel HD 52015W
Q30651XS10SkylakeCore i56200U242.3GHz2.8GHz3MIntel HD 52015W
Q30671XS10SkylakeCore i76500U242.5GHz3.1GHz4MIntel HD 52015W
Q30711XS10Kaby LakeCeleron3865U221.8GHz/2MIntel HD 61015W
Q30712XS10Kaby LakeCeleron3965U222.2GHz/2MIntel HD 61015W
Q30731XS10Kaby LakeCore i37100U242.4GHz/3MIntel HD 62015W
Q30751XS10Kaby LakeCore i57200U242.5GHz3.1GHz3MIntel HD 62015W
Q30771XS10Kaby LakeCore i77500U242.7GHz3.5GHz4MIntel HD 62015W
Q30811XS10Kaby Lake RCeleron3867U221.8GHz/2MIntel HD 61015W
Q30821XS10Kaby Lake RPentium4417U222.3GHz/2MIntel HD 61015W
Q30831XS10Kaby Lake RCore i38130U242.0GHz3.40GHz4MIntel UHD 62015W
Q30851XS10Kaby Lake RCore i58250U481.6GHz3.4GHz6MIntel UHD 62015W
Q30871XS10Kaby Lake RCore i78550U481.8GHz4.0GHz8MIntel UHD 62015W
Q30611XS10
Case
S10
Code Name
Skylake
Processor Type
Celeron
Processor Number
3855U
# of Cores
2
# of Threads
2
Base Frequency
1.6GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 510
TDP
15W
Q30612XS10
Case
S10
Code Name
Skylake
Processor Type
Celeron
Processor Number
3955U
# of Cores
2
# of Threads
2
Base Frequency
2.0GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 510
TDP
15W
Q30631XS10
Case
S10
Code Name
Skylake
Processor Type
Core i3
Processor Number
6100U
# of Cores
2
# of Threads
4
Base Frequency
2.3GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 520
TDP
15W
Q30651XS10
Case
S10
Code Name
Skylake
Processor Type
Core i5
Processor Number
6200U
# of Cores
2
# of Threads
4
Base Frequency
2.3GHz
Max Turbo Frequency
2.8GHz
Cache
3M
Processor Graphics
Intel HD 520
TDP
15W
Q30671XS10
Case
S10
Code Name
Skylake
Processor Type
Core i7
Processor Number
6500U
# of Cores
2
# of Threads
4
Base Frequency
2.5GHz
Max Turbo Frequency
3.1GHz
Cache
4M
Processor Graphics
Intel HD 520
TDP
15W
Q30711XS10
Case
S10
Code Name
Kaby Lake
Processor Type
Celeron
Processor Number
3865U
# of Cores
2
# of Threads
2
Base Frequency
1.8GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 610
TDP
15W
Q30712XS10
Case
S10
Code Name
Kaby Lake
Processor Type
Celeron
Processor Number
3965U
# of Cores
2
# of Threads
2
Base Frequency
2.2GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 610
TDP
15W
Q30731XS10
Case
S10
Code Name
Kaby Lake
Processor Type
Core i3
Processor Number
7100U
# of Cores
2
# of Threads
4
Base Frequency
2.4GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 620
TDP
15W
Q30751XS10
Case
S10
Code Name
Kaby Lake
Processor Type
Core i5
Processor Number
7200U
# of Cores
2
# of Threads
4
Base Frequency
2.5GHz
Max Turbo Frequency
3.1GHz
Cache
3M
Processor Graphics
Intel HD 620
TDP
15W
Q30771XS10
Case
S10
Code Name
Kaby Lake
Processor Type
Core i7
Processor Number
7500U
# of Cores
2
# of Threads
4
Base Frequency
2.7GHz
Max Turbo Frequency
3.5GHz
Cache
4M
Processor Graphics
Intel HD 620
TDP
15W
Q30811XS10
Case
S10
Code Name
Kaby Lake R
Processor Type
Celeron
Processor Number
3867U
# of Cores
2
# of Threads
2
Base Frequency
1.8GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 610
TDP
15W
Q30821XS10
Case
S10
Code Name
Kaby Lake R
Processor Type
Pentium
Processor Number
4417U
# of Cores
2
# of Threads
2
Base Frequency
2.3GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 610
TDP
15W
Q30831XS10
Case
S10
Code Name
Kaby Lake R
Processor Type
Core i3
Processor Number
8130U
# of Cores
2
# of Threads
4
Base Frequency
2.0GHz
Max Turbo Frequency
3.40GHz
Cache
4M
Processor Graphics
Intel UHD 620
TDP
15W
Q30851XS10
Case
S10
Code Name
Kaby Lake R
Processor Type
Core i5
Processor Number
8250U
# of Cores
4
# of Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
3.4GHz
Cache
6M
Processor Graphics
Intel UHD 620
TDP
15W
Q30871XS10
Case
S10
Code Name
Kaby Lake R
Processor Type
Core i7
Processor Number
8550U
# of Cores
4
# of Threads
8
Base Frequency
1.8GHz
Max Turbo Frequency
4.0GHz
Cache
8M
Processor Graphics
Intel UHD 620
TDP
15W

PC Case Options

CategorySATA Support
S10Yes
S20Yes

Custom Options

CategoryDescription
USB 2.01
GPIO1
RS-4852
SATA1 (Only for Corei5/i7)
TPM 2.01
