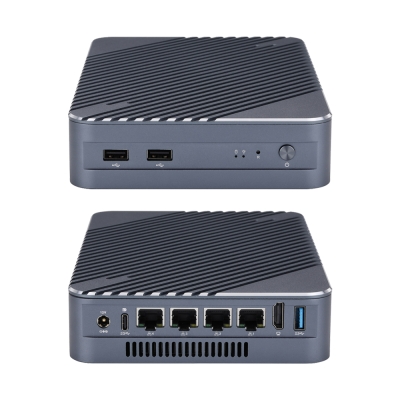

Mini PC Q31100G4 S17 Series
Q31100G4 mini PC features an 11th Gen Intel Tiger Lake CPU, 4× Intel 2.5G LAN, 4× M.2 slots, and USB Type-C. A compact solution for NAS, firewall, and edge computing applications.
- Total of Network Interfaces
- 4
- SFP(+)
- None
- 10G RJ45
- None
- 2.5G RJ45
- 4
- 1G RJ45
- None
- Serial Ports
- None
Tell us the configuration and quantity you need.
Detailed Information
Main Features
Intel 11th Tiger Lake Processor
1× HDMI
1 × USB 3.0, 2 × USB 2.0
1 × Type C
4 × M.2
4 × Intel I226-V 2.5 Gigabit LAN
Specification
| Processor System | |
| CPU | Intel 11th Tiger Lake Processor |
| CPU TDP | By CPU |
| Memory | 2 × DDR4 SO-DIMM Sockets (Up to 64G, 2133/2400MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 4 × Intel I226-V 2.5 Gigabit LAN |
| Watch Dog | Yes |
| Chipset | By CPU |

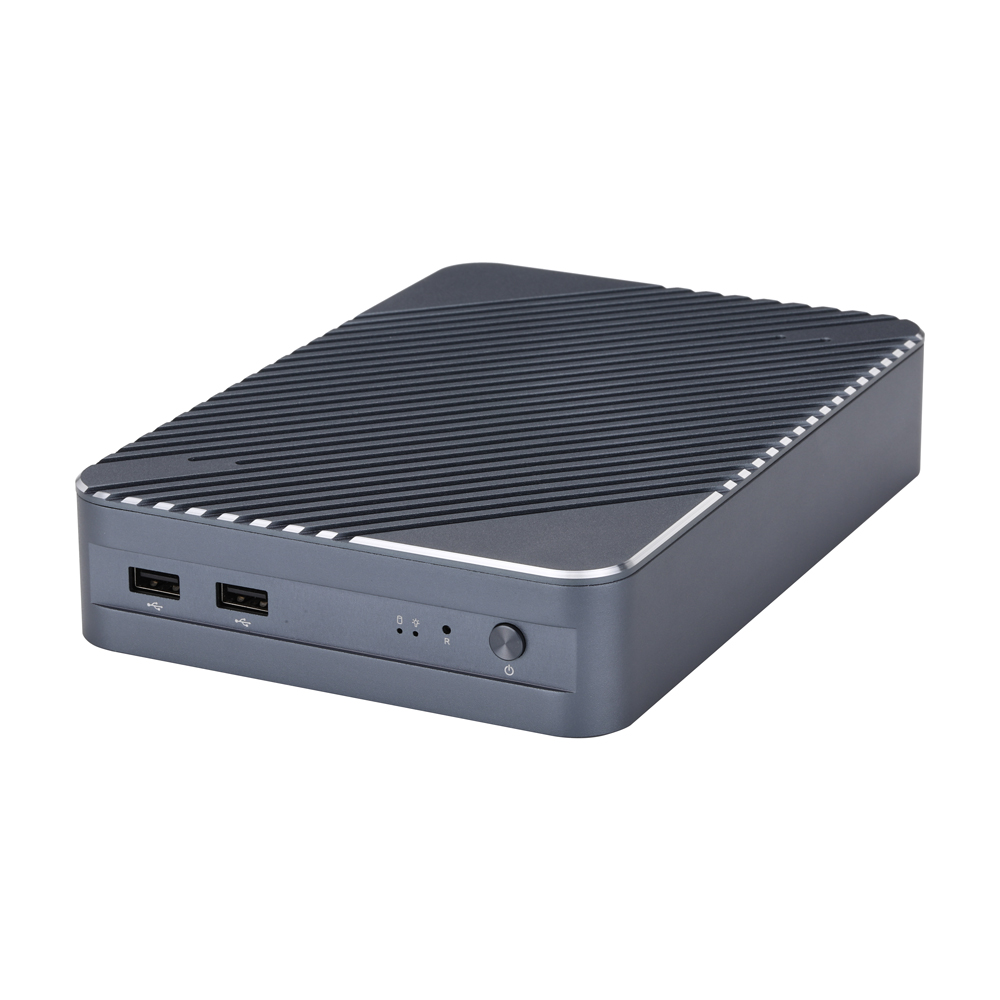

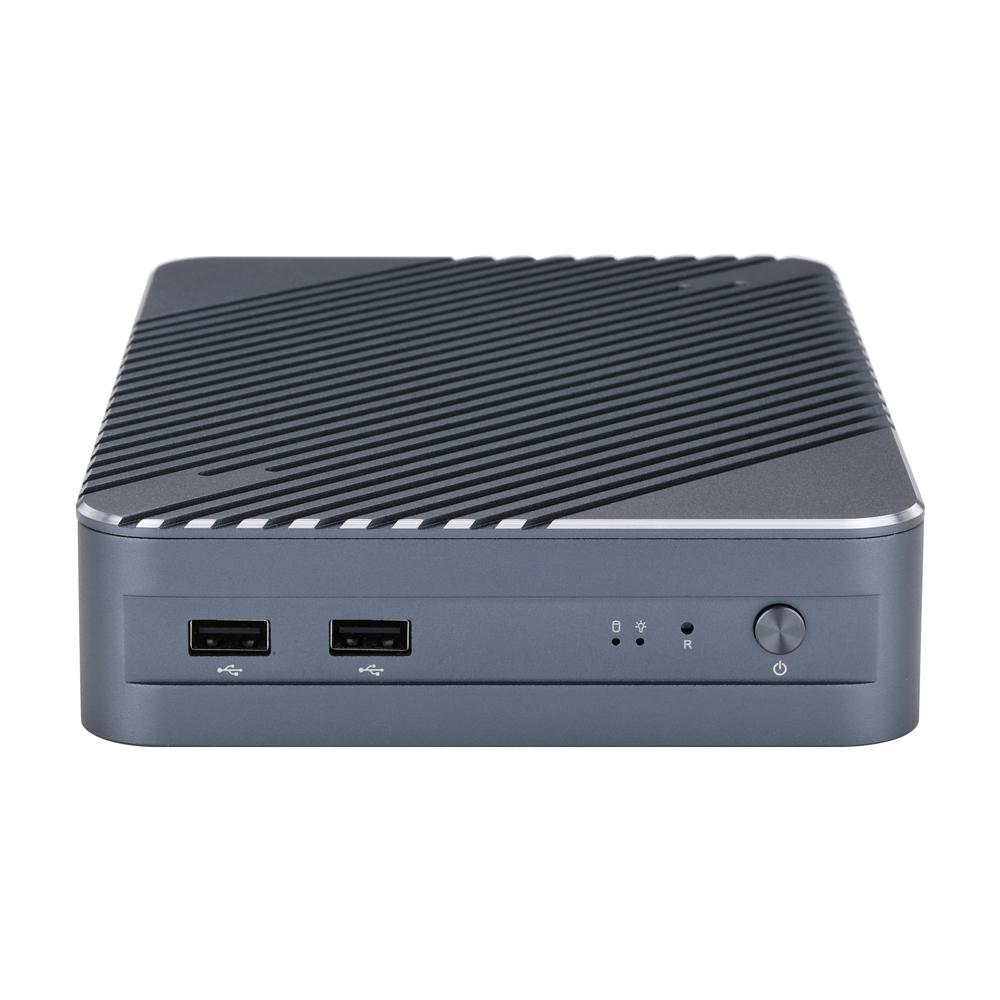

| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 2 × USB 2.0 |

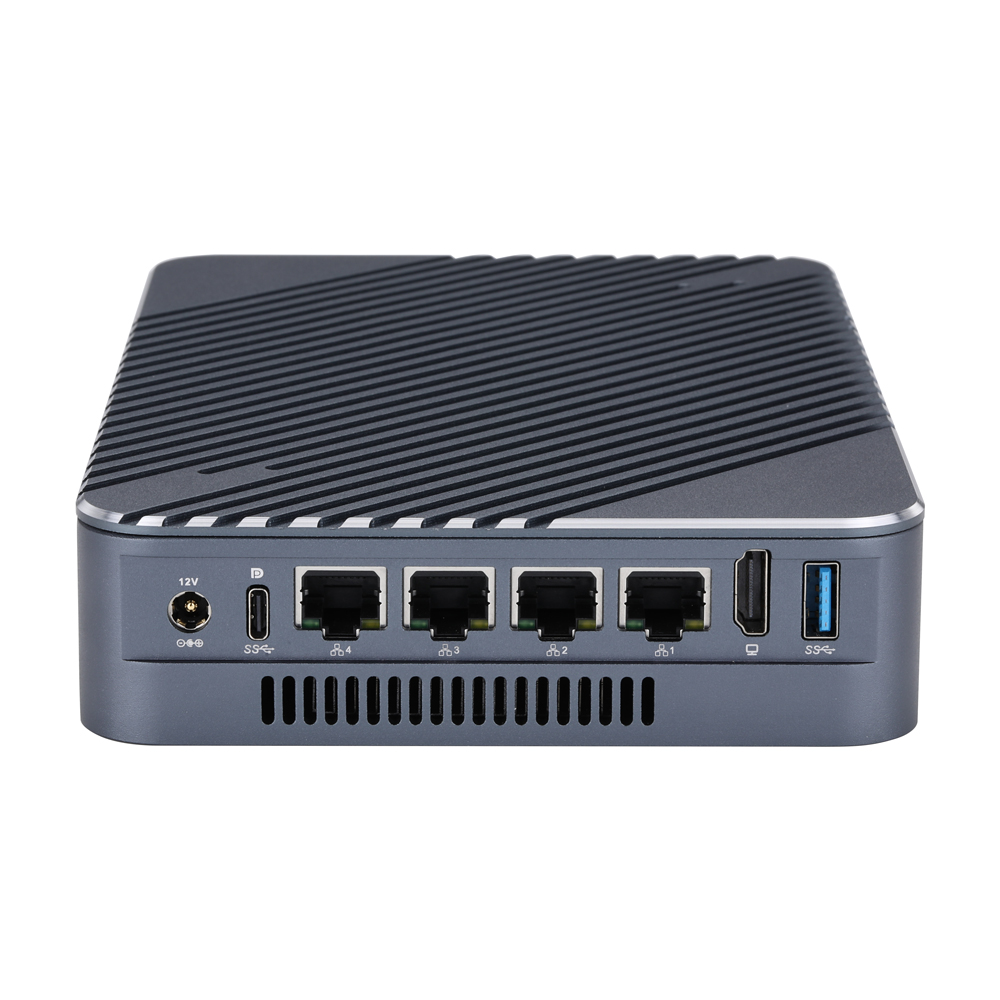

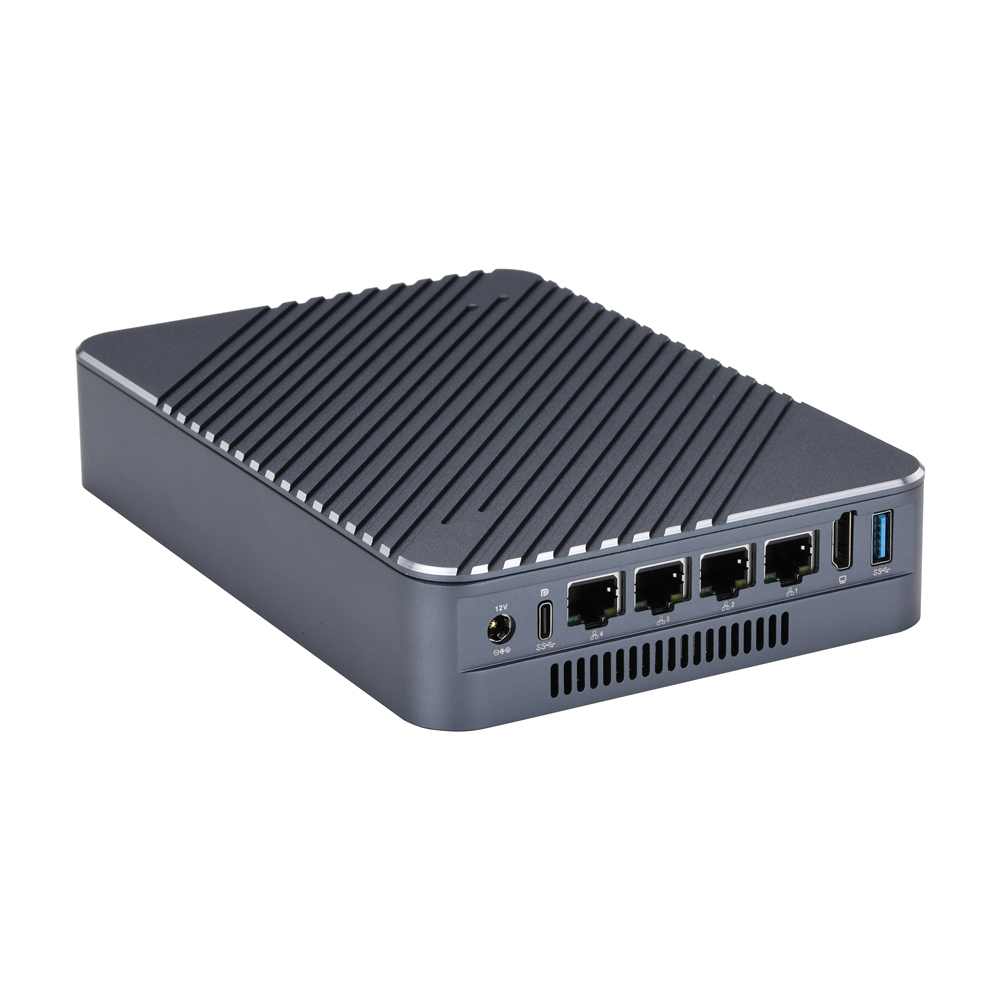

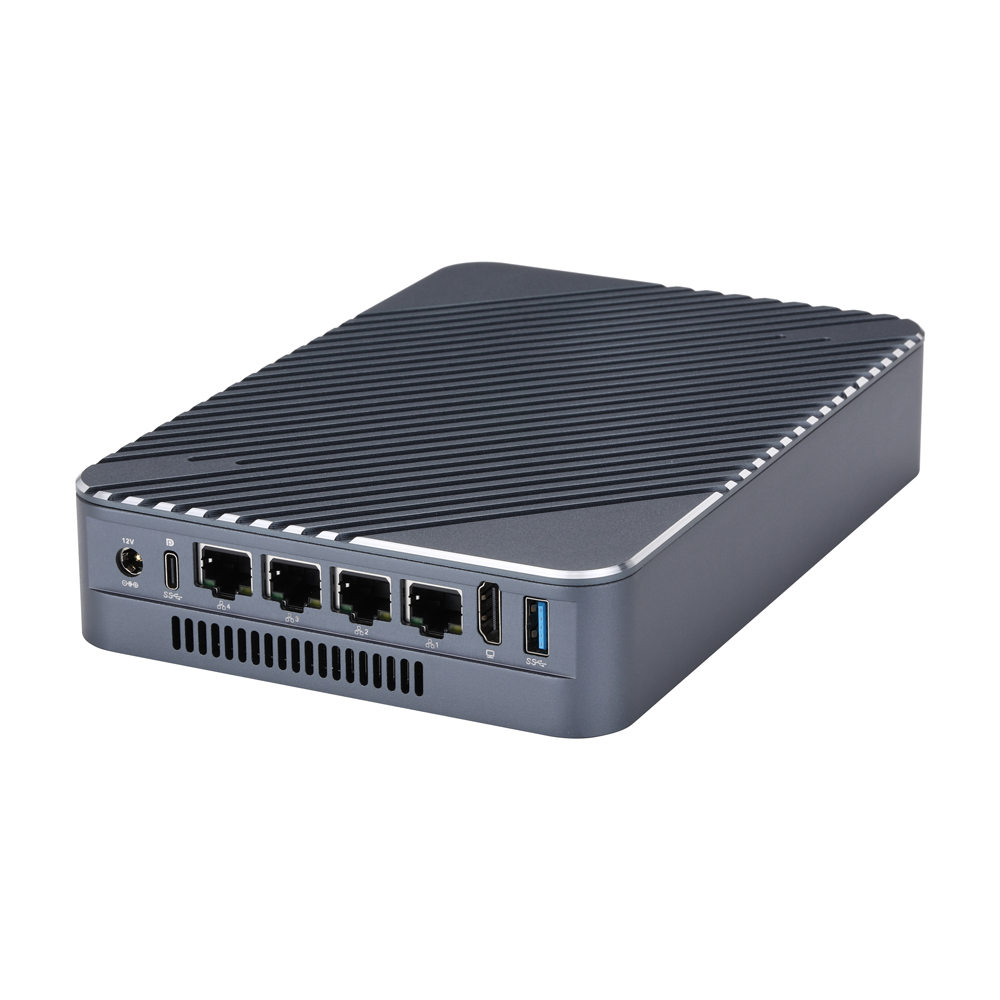

| Rear I/O | |
| Power | 1 × DC Jack |
| LAN | 4 × Intel I226-V 2.5 Gigabit LAN |
| Video Output | 1 × HDMI |
| USB | 1 × USB 3.0 |
| Type C | 1 × Type C (USB3.0, Display Port) |

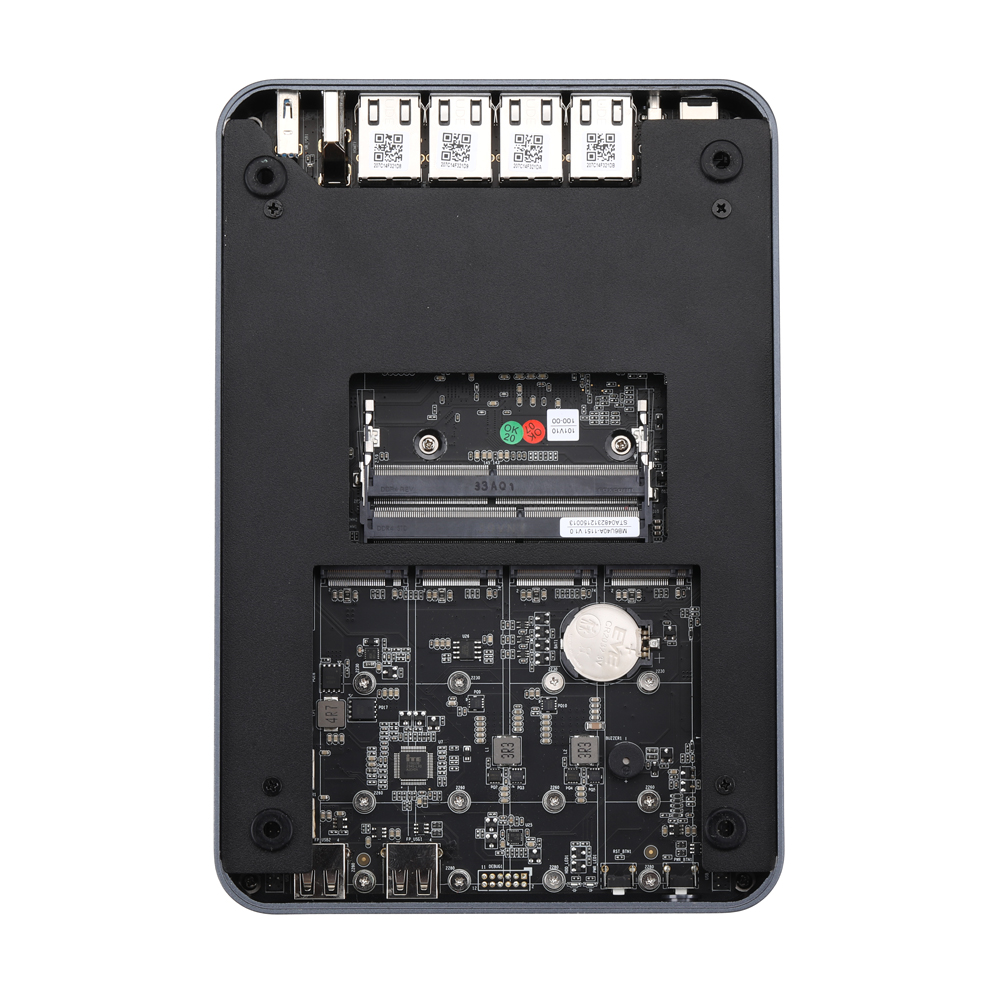

| Storage | |
| Type | 2 × M.2 for SSD (M key, Type: 2242/2260/2280, PCIe 3.0 × 2) 2 × M.2 for SSD (M key, Type: 2242/2260/2280, PCIe 3.0 × 1) |
| Expansion | |
| M.2 | 2 × M.2 for SSD (M key, Type: 2242/2260/2280, PCIe 3.0 × 2) |
| M.2 | 2 × M.2 for SSD (M key, Type: 2242/2260/2280, PCIe 3.0 × 1) |
| PCIe | 1, PCIe slot (Type: X16, PCIe 4.0 × 4) |
| AutoStart Jumper | 1, 1 × 3Pin, Pitch 2.0mm |
| CMOS Clear Jumper | 1, 1 × 3Pin, Pitch 2.0mm |
| Front Panel Header | 1, 2 × 5Pin, Pitch 2.0mm |
| USB | 2, 2 × 5Pin, Pitch 2.0mm |
| Serial Port | 1 × RS-232, 1, 2 × 5Pin, Pitch 2.0mm |
| Power Header | 1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option) |
| Power Requirement | |
| Power Adapter | 12V7A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 142 × 210 × 39mm |
| Weight | 1.04kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 285 × 260 × 93mm |
| Kensington Lock | No |
| Cooling Mode | Fan |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
Packing
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
Ordering and spec information
Ordering and Specifications Information
Quick Order Model: Q31151G4-S17
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
| Q31111G4 | S17 | Tiger Lake | Celeron | 6305 | 2 | 2 | 1.80 GHz | 4M | Intel UHD Graphics | 15W | |
| Q31121G4 | S17 | Tiger Lake | Pentium | 7505 | 2 | 4 | 2.00 GHz | 3.50 GHz | 4M | Intel UHD Graphics | 15W |
| Q31131G4 | S17 | Tiger Lake | Core i3 | 1115G4 | 2 | 4 | 3.00 GHz | 4.10 GHz | 6M | Intel UHD Graphics | 12-28W |
| Q31132G4 | S17 | Tiger Lake | Core i3 | 1125G4 | 4 | 8 | 2.00 GHz | 3.70 GHz | 8M | Intel UHD Graphics | 12-28W |
| Q31151G4 | S17 | Tiger Lake | Core i5 | 1135G7 | 4 | 8 | 2.40 GHz | 4.20 GHz | 8M | Intel Iris Xe Graphics | 12-28W |
| Q31152G4 | S17 | Tiger Lake | Core i5 | 1145G7 | 4 | 8 | 2.60 GHz | 4.40 GHz | 8M | Intel Iris Xe Graphics | 12-28W |
| Q31153G4 | S17 | Tiger Lake | Core i5 | 1155G7 | 4 | 8 | 2.50 GHz | 4.50 GHz | 8M | Intel Iris Xe Graphics eligible | 12-28W |
| Q31171G4 | S17 | Tiger Lake | Core i7 | 1165G7 | 4 | 8 | 2.80 GHz | 4.70 GHz | 12M | Intel Iris Xe Graphics | 12-28W |
| Q31172G4 | S17 | Tiger Lake | Core i7 | 1185G7 | 4 | 8 | 3.00 GHz | 4.80 GHz | 12M | Intel Iris Xe Graphics | 12-28W |
| Q31173G4 | S17 | Tiger Lake | Core i7 | 1195G7 | 4 | 8 | 2.90 GHz | 5.00 GHz | 12M | Intel Iris Xe Graphics eligible | 12-28W |
| Q51151G4 | S17 | Tiger Lake | Core i5 | 11300H | 4 | 8 | 2.60 GHz | 4.40 GHz | 8M | Intel Iris Xe Graphics | 28-35W |
| Q51152G4 | S17 | Tiger Lake | Core i5 | 11320H | 4 | 8 | 2.50 GHz | 4.50 GHz | 8M | Intel Iris Xe Graphics eligible | 28-35W |
| Q51171G4 | S17 | Tiger Lake | Core i7 | 11370H | 4 | 8 | 3.00 GHz | 4.80 GHz | 12M | Intel Iris Xe Graphics | 28-35W |
| Q51172G4 | S17 | Tiger Lake | Core i7 | 11375H | 4 | 8 | 3.00 GHz | 5.00 GHz | 12M | Intel Iris Xe Graphics | 28-35W |
| Q51173G4 | S17 | Tiger Lake | Core i7 | 11390H | 4 | 8 | 2.90 GHz | 5.00 GHz | 12M | Intel Iris Xe Graphics eligible | 28-35W |
