Mini PC Q31100GT S23 Series

Main FeaturesIntel 11thTiger Lake Processor1 × Display Port, 1 × HDMI2 × USB 3.02 × M.2, 1 × SATA 3.01 × RS-232 (RJ-45)10 × Intel I226-V 2.5 Gigabit LAN

Total of Network Interfaces
10
SFP(+)
None
10G RJ45
None
2.5G RJ45
10
1G RJ45
None
Serial Ports
2
Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

Main Features

  • Intel 11thTiger Lake Processor

  • 1 × Display Port, 1 × HDMI

  • 2 × USB 3.0

  • 2 × M.2, 1 × SATA 3.0

  • 1 × RS-232 (RJ-45)

  • 10 × Intel I226-V 2.5 Gigabit LAN

Specifications

Processor System
CPUntel 11th Tiger Lake Processor
CPU TDPBy CPU
Memory2 × DDR4 SO-DIMM Socket (Up to 64G, 2133/2400MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset10 × Intel I226-V 2.5 Gigabit LAN
Watch DogYes
Front I/O
Power Button1 × Power Button, 1 ×  CMOS Clear Button
LED1 × Power LED, 1 × HDD LED
Rear I/O
Power1 × DC Jack
USB2 × USB 3.0
Video Output1 × Display Port, 1 × HDMI
LAN10 × Intel I226-V 2.5 Gigabit LAN
Storage
Type1 × 2.5-inch HDD/SSD
1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4)
1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1)
Expansion
M.21 × M.2 for SSD

(M key, Type: 2280, PCIe 4.0 × 4)

1 × M.2 for 4G/5G (B key, Type: 3042/3052)

1 × M.2 for SSD (Option 2)

(M key, Type: 2280, PCIe 3.0 × 1)

1 × M.2 for Wi-Fi (E key, Type: 2230)
(Option 1, Preferred)
SIM Card Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.0mm
CMOS Clear JumperYes, 1 × 3Pin, Pitch 2.0mm
GPIO1, 2 × 5Pin, Pitch 2.0mm
Power Requirement
Power Adapter12V7A
DC Jack5.5mm, 2.5mm
Environmental
Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%
Mechanical
MaterialAluminium Alloy
Dimension196 × 122 × 59mm
Weight1.5kg
MountingVESA Mounting Bracket
Packaging Dimension285 × 260 × 93mm
Kensington LockNo

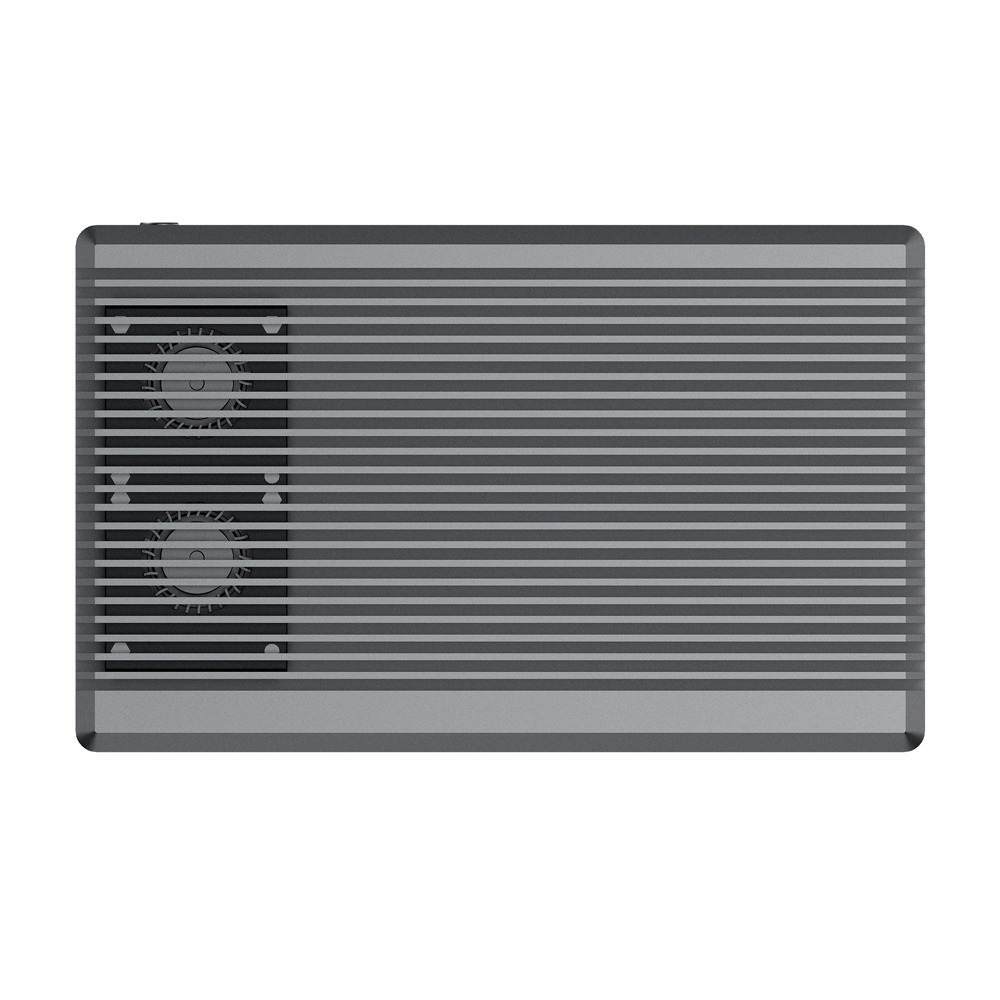

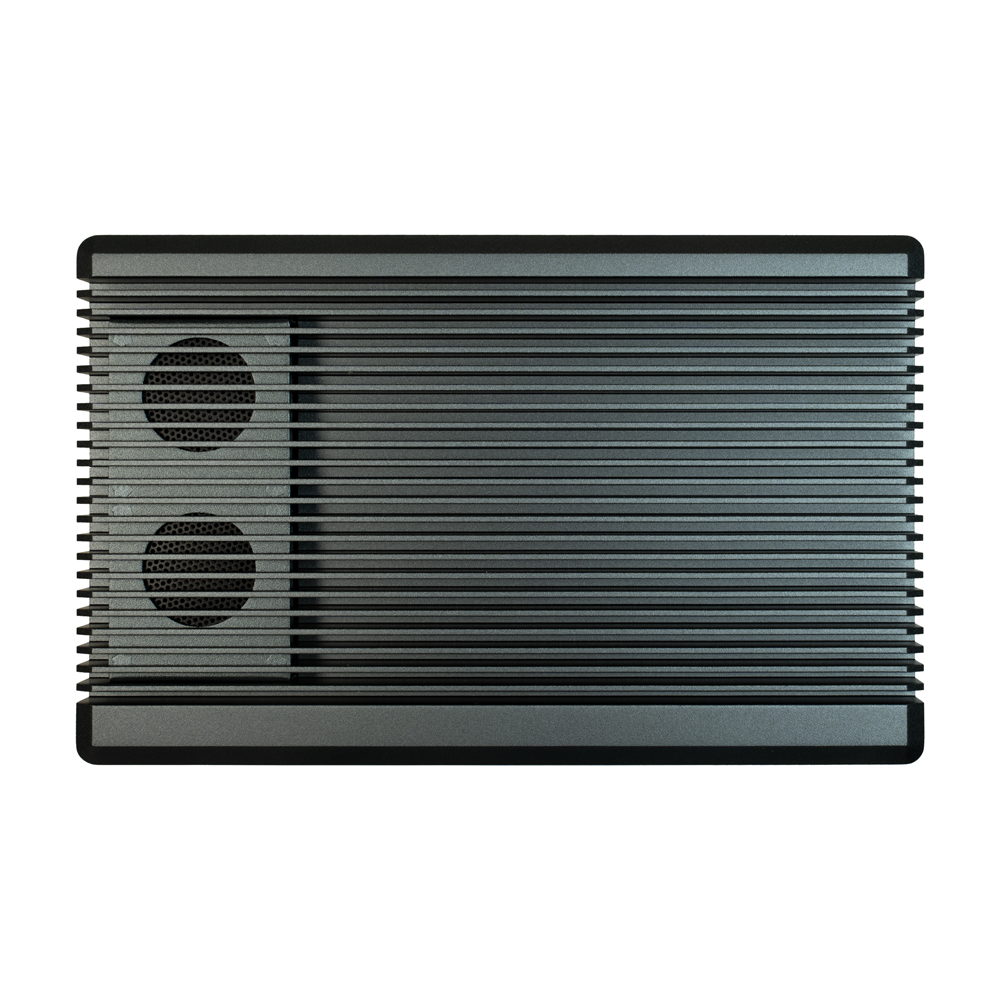

Cooling ModeFanless Design, Fan-assisted Cooling
OS Support
OSUEFI Windows 10, UEFI Linux

In the box

Packing List

NO.CategoryQuantityRemark
1Mini PC1
2Silicone Mat4
3VESA Bracket1
4Screws for VESA Bracket1
5Power Adapter1
6AC Power Cord1
7Screws for SATA SSD/HDD1
8SATA cable for SSD/HDD1Option
9Antennas2Option
ItemQuantity
  • 1
    Mini PC
    1
  • 2
    Silicone Mat
    4
  • 3
    VESA Bracket
    1
  • 4
    Screws for VESA Bracket
    1
  • 5
    Power Adapter
    1
  • 6
    AC Power Cord
    1
  • 7
    Screws for SATA SSD/HDD
    1
  • 8
    SATA cable for SSD/HDD
    Option
    1
  • 9
    Antennas
    Option
    2

Models & options

Ordering and Specifications Information

Quick Order Model: Q31100GT-S23

Ordering CodeCaseCode Name Processor TypeProcessor Number# of Cores# of ThreadsBase FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP
Q31111GTS23Tiger LakeCeleron6305221.8GHz/4MIntel UHD Graphics15W
Q31121GTS23Tiger LakePentium7505242.0GHz3.5GHz4MIntel UHD Graphics15W
Q31131GTS23Tiger LakeCore i31115G4243.0GHz4.1GHz6MIntel UHD Graphics12-28W
Q31132GTS23Tiger LakeCore i31125G4482.0GHz3.7GHz8MIntel UHD Graphics12-28W
Q31151GTS23Tiger LakeCore i51135G7482.4GHz4.2GHz8MIntel Iris Xe Graphics12-28W
Q31152GTS23Tiger LakeCore i51145G7482.6GHz4.4GHz8MIntel Iris Xe Graphics12-28W
Q31153GTS23Tiger LakeCore i51155G7482.5GHz4.5GHz8MIntel Iris Xe Graphics eligible12-28W
Q31171GTS23Tiger LakeCore i71165G7482.8GHz4.7GHz12MIntel Iris Xe Graphics12-28W
Q31172GTS23Tiger LakeCore i71185G7483.0GHz4.8GHz12MIntel Iris Xe Graphics12-28W
Q31173GTS23Tiger LakeCore i71195G7482.9GHz5.0GHz12MIntel Iris Xe Graphics eligible12-28W
Q51151GTS23Tiger LakeCore i511300H482.6GHz4.4GHz8MIntel Iris Xe Graphics28-35W
Q51152GTS23Tiger LakeCore i511320H482.5GHz4.5GHz8MIntel Iris Xe Graphics eligible28-35W
Q51171GTS23Tiger LakeCore i711370H483.0GHz4.8GHz12MIntel Iris Xe Graphics28-35W
Q51172GTS23Tiger LakeCore i711375H483.0GHz5.0GHz12MIntel Iris Xe Graphics28-35W
Q51173GTS23Tiger LakeCore i711390H482.9GHz5.0GHz12MIntel Iris Xe Graphics eligible28-35W
Q31111GTS23
Case
S23
Code Name
Tiger Lake
Processor Type
Celeron
Processor Number
6305
# of Cores
2
# of Threads
2
Base Frequency
1.8GHz
Max Turbo Frequency
/
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
15W
Q31121GTS23
Case
S23
Code Name
Tiger Lake
Processor Type
Pentium
Processor Number
7505
# of Cores
2
# of Threads
4
Base Frequency
2.0GHz
Max Turbo Frequency
3.5GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
15W
Q31131GTS23
Case
S23
Code Name
Tiger Lake
Processor Type
Core i3
Processor Number
1115G4
# of Cores
2
# of Threads
4
Base Frequency
3.0GHz
Max Turbo Frequency
4.1GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
12-28W
Q31132GTS23
Case
S23
Code Name
Tiger Lake
Processor Type
Core i3
Processor Number
1125G4
# of Cores
4
# of Threads
8
Base Frequency
2.0GHz
Max Turbo Frequency
3.7GHz
Cache
8M
Processor Graphics
Intel UHD Graphics
TDP
12-28W
Q31151GTS23
Case
S23
Code Name
Tiger Lake
Processor Type
Core i5
Processor Number
1135G7
# of Cores
4
# of Threads
8
Base Frequency
2.4GHz
Max Turbo Frequency
4.2GHz
Cache
8M
Processor Graphics
Intel Iris Xe Graphics
TDP
12-28W
Q31152GTS23
Case
S23
Code Name
Tiger Lake
Processor Type
Core i5
Processor Number
1145G7
# of Cores
4
# of Threads
8
Base Frequency
2.6GHz
Max Turbo Frequency
4.4GHz
Cache
8M
Processor Graphics
Intel Iris Xe Graphics
TDP
12-28W
Q31153GTS23
Case
S23
Code Name
Tiger Lake
Processor Type
Core i5
Processor Number
1155G7
# of Cores
4
# of Threads
8
Base Frequency
2.5GHz
Max Turbo Frequency
4.5GHz
Cache
8M
Processor Graphics
Intel Iris Xe Graphics eligible
TDP
12-28W
Q31171GTS23
Case
S23
Code Name
Tiger Lake
Processor Type
Core i7
Processor Number
1165G7
# of Cores
4
# of Threads
8
Base Frequency
2.8GHz
Max Turbo Frequency
4.7GHz
Cache
12M
Processor Graphics
Intel Iris Xe Graphics
TDP
12-28W
Q31172GTS23
Case
S23
Code Name
Tiger Lake
Processor Type
Core i7
Processor Number
1185G7
# of Cores
4
# of Threads
8
Base Frequency
3.0GHz
Max Turbo Frequency
4.8GHz
Cache
12M
Processor Graphics
Intel Iris Xe Graphics
TDP
12-28W
Q31173GTS23
Case
S23
Code Name
Tiger Lake
Processor Type
Core i7
Processor Number
1195G7
# of Cores
4
# of Threads
8
Base Frequency
2.9GHz
Max Turbo Frequency
5.0GHz
Cache
12M
Processor Graphics
Intel Iris Xe Graphics eligible
TDP
12-28W
Q51151GTS23
Case
S23
Code Name
Tiger Lake
Processor Type
Core i5
Processor Number
11300H
# of Cores
4
# of Threads
8
Base Frequency
2.6GHz
Max Turbo Frequency
4.4GHz
Cache
8M
Processor Graphics
Intel Iris Xe Graphics
TDP
28-35W
Q51152GTS23
Case
S23
Code Name
Tiger Lake
Processor Type
Core i5
Processor Number
11320H
# of Cores
4
# of Threads
8
Base Frequency
2.5GHz
Max Turbo Frequency
4.5GHz
Cache
8M
Processor Graphics
Intel Iris Xe Graphics eligible
TDP
28-35W
Q51171GTS23
Case
S23
Code Name
Tiger Lake
Processor Type
Core i7
Processor Number
11370H
# of Cores
4
# of Threads
8
Base Frequency
3.0GHz
Max Turbo Frequency
4.8GHz
Cache
12M
Processor Graphics
Intel Iris Xe Graphics
TDP
28-35W
Q51172GTS23
Case
S23
Code Name
Tiger Lake
Processor Type
Core i7
Processor Number
11375H
# of Cores
4
# of Threads
8
Base Frequency
3.0GHz
Max Turbo Frequency
5.0GHz
Cache
12M
Processor Graphics
Intel Iris Xe Graphics
TDP
28-35W
Q51173GTS23
Case
S23
Code Name
Tiger Lake
Processor Type
Core i7
Processor Number
11390H
# of Cores
4
# of Threads
8
Base Frequency
2.9GHz
Max Turbo Frequency
5.0GHz
Cache
12M
Processor Graphics
Intel Iris Xe Graphics eligible
TDP
28-35W
