Mini PC Q70600P S09 Series

Qotom Q70600P Mini PC supports Intel 6th-9th Gen CPUs, dual DDR4, 2x HDMI/VGA, 8x USB ports, dual M.2/SATA storage, and dual Intel LAN. Ideal for office, home, or industrial use in Silver/Grey S09 case.

NIC: 2 × Intel I211-AT/I210-AT Gigabit LAN
USB: 3 × USB 3.0, 5 × USB 2.0
RS-232: 4 × RS-232 (COM1/COM2 Support 5V/12V)
RS-485: 2 × RS-232 (COM1/2 can be set up as RS-485)
VGA: Yes
PS/2: None
GPIO: Yes

Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

OVERVIEW

Main Features

Intel 6thSkylake-S Processor
Intel 7thKabylake-S Processor
Intel 8thCoffee Lake-S Processor
Intel 9thCoffee Lake-R-S Processor
2 × DDR4 2133 MHz SO-DIMM up to 32GB
2 × HDMI, 1 × VGA
3 × USB 3.0, 5 × USB 2.0, 2 × M.2, 1 × SATA 3.0
2 × Intel I211-AT/I210-AT Gigabit LAN
S09 computer case, either Silver or Grey color

SPECIFICATION

Processor System
CPU	Intel 6th Skylake-S Processor ntel 7th Kabylake-S Processor Intel 8th Coffee Lake-S Processor ntel 9th Coffee Lake-R-S Processor
CPU TDP	By CPU
Memory	2 × DDR4 SO-DIMM Socket (Up to 64G, 2133MHz)
Chipset	Intel H110
Graphics	By CPU
LAN Chipset	2 × Intel I211-AT/I210-AT Gigabit LAN
Audio	Realtek HD Audio
Watch Dog	Yes

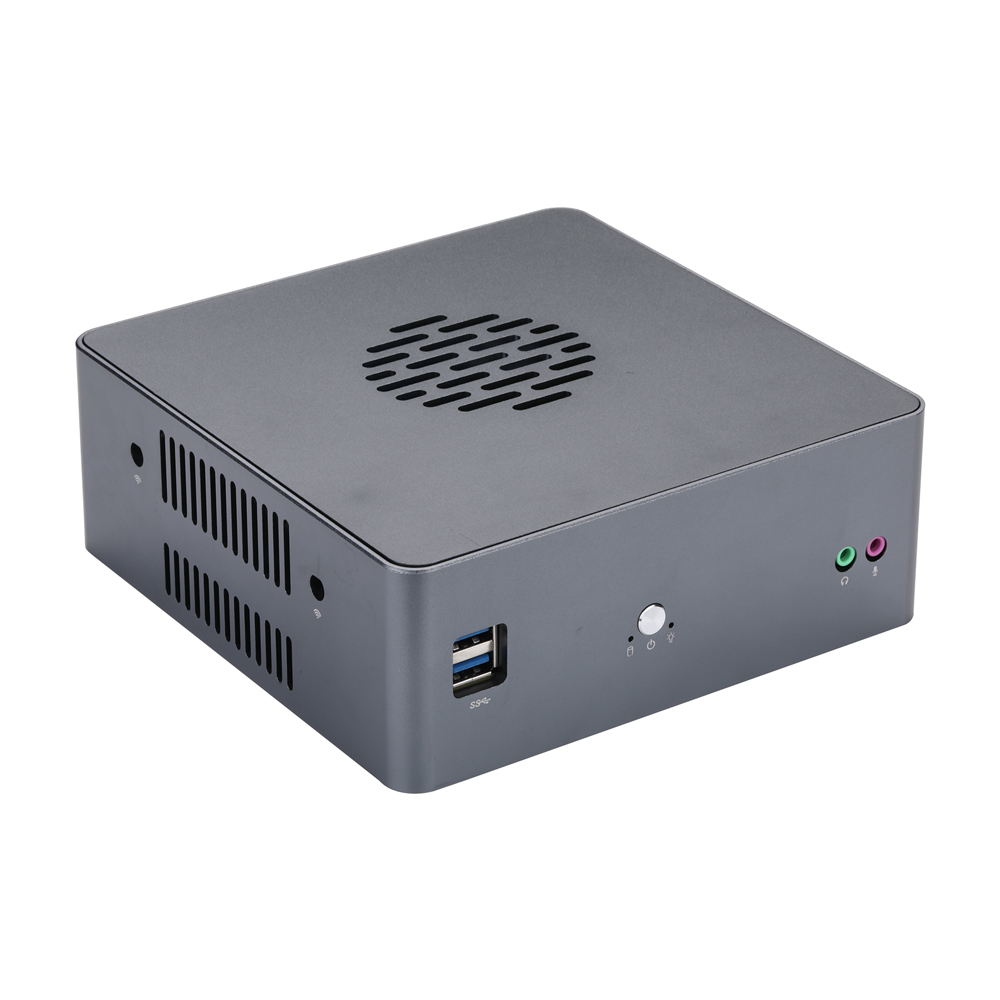

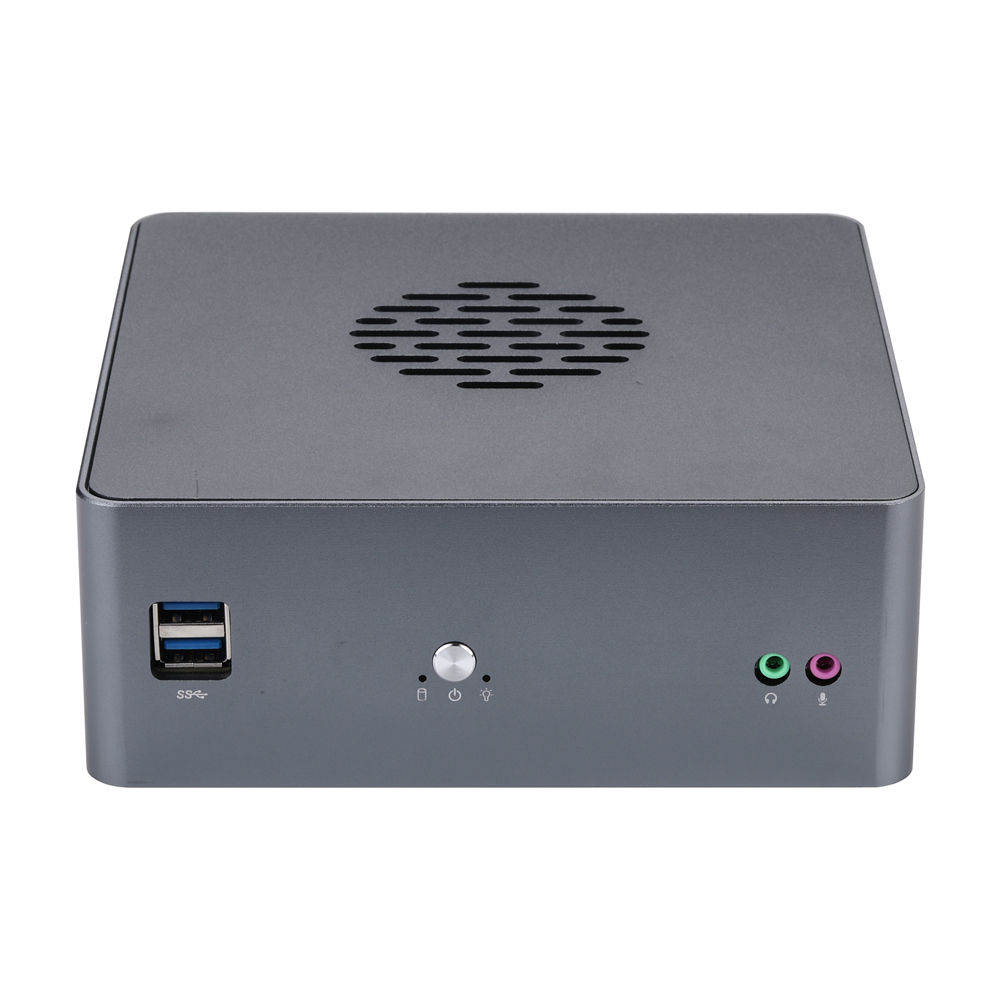

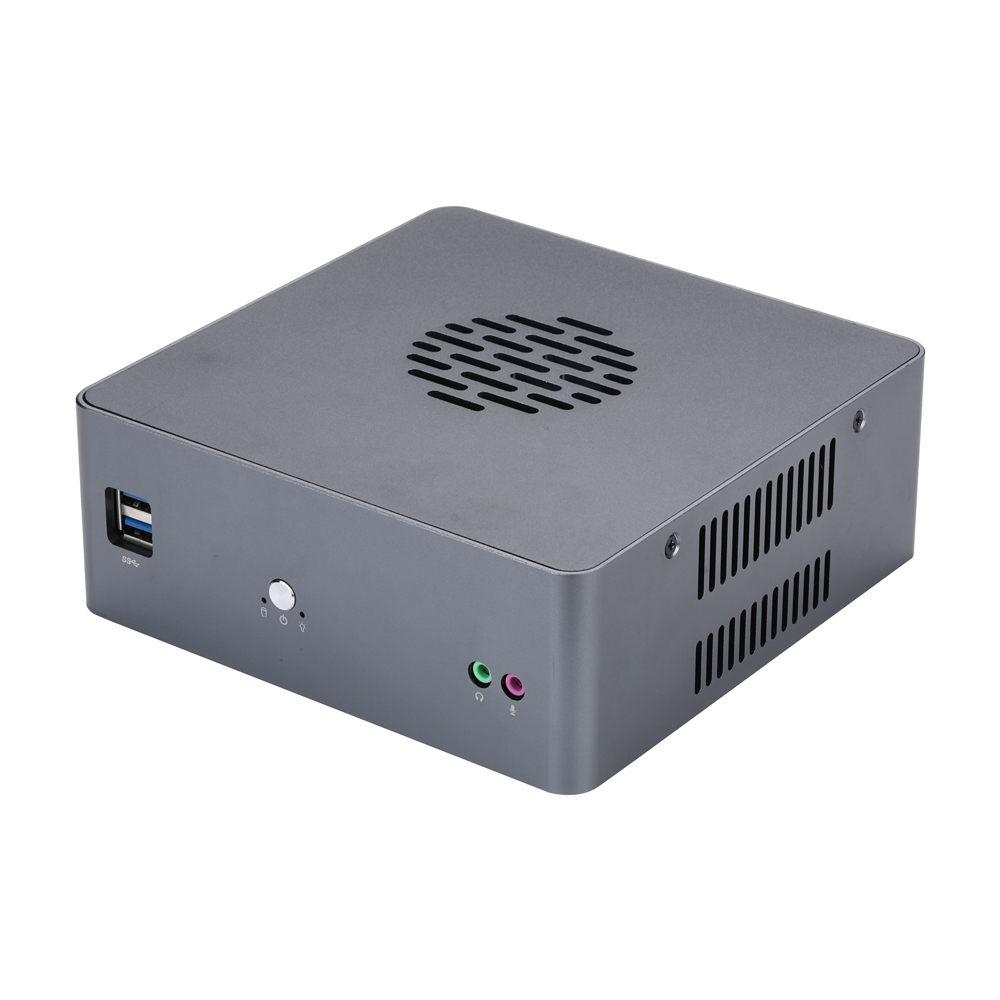

Front I/O
Power Button	1
USB	2 × USB 3.0
LED	1 × Power LED, 1 × HDD LED
Audio	1 × Mic-in, 1 × Line-out

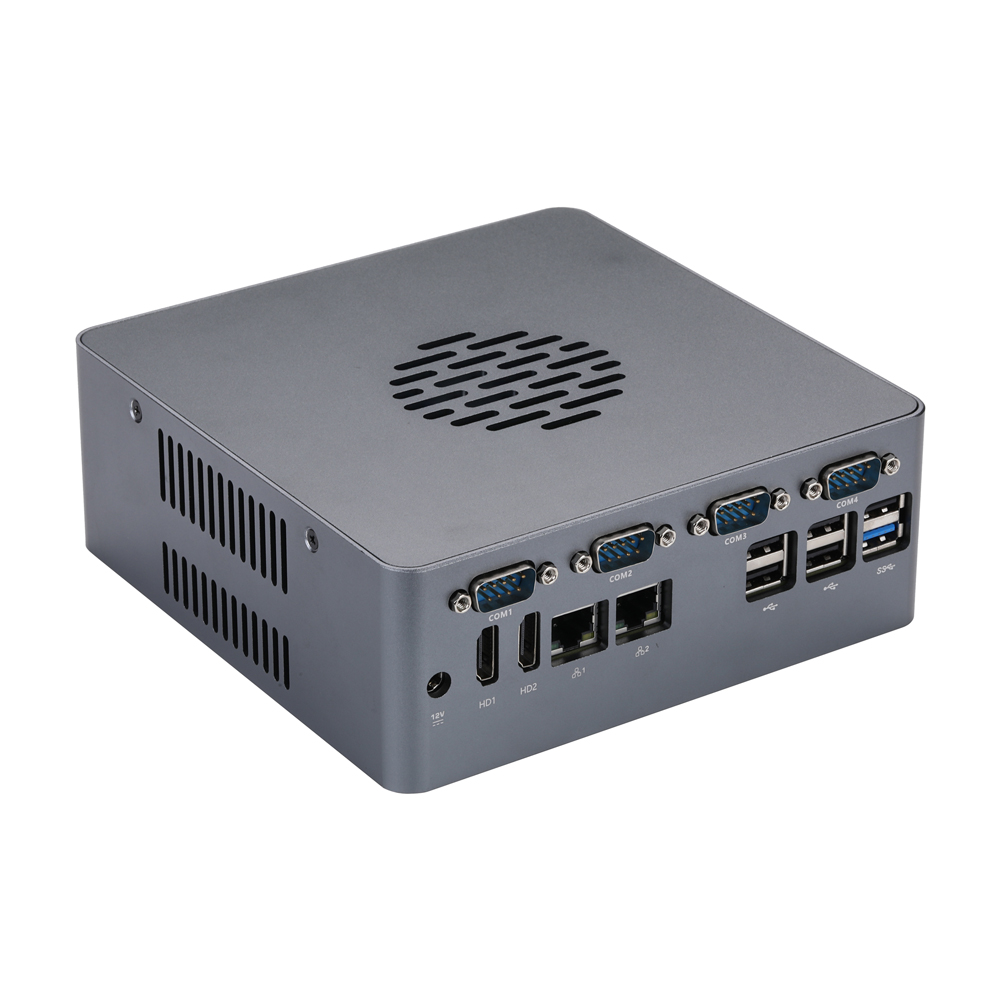

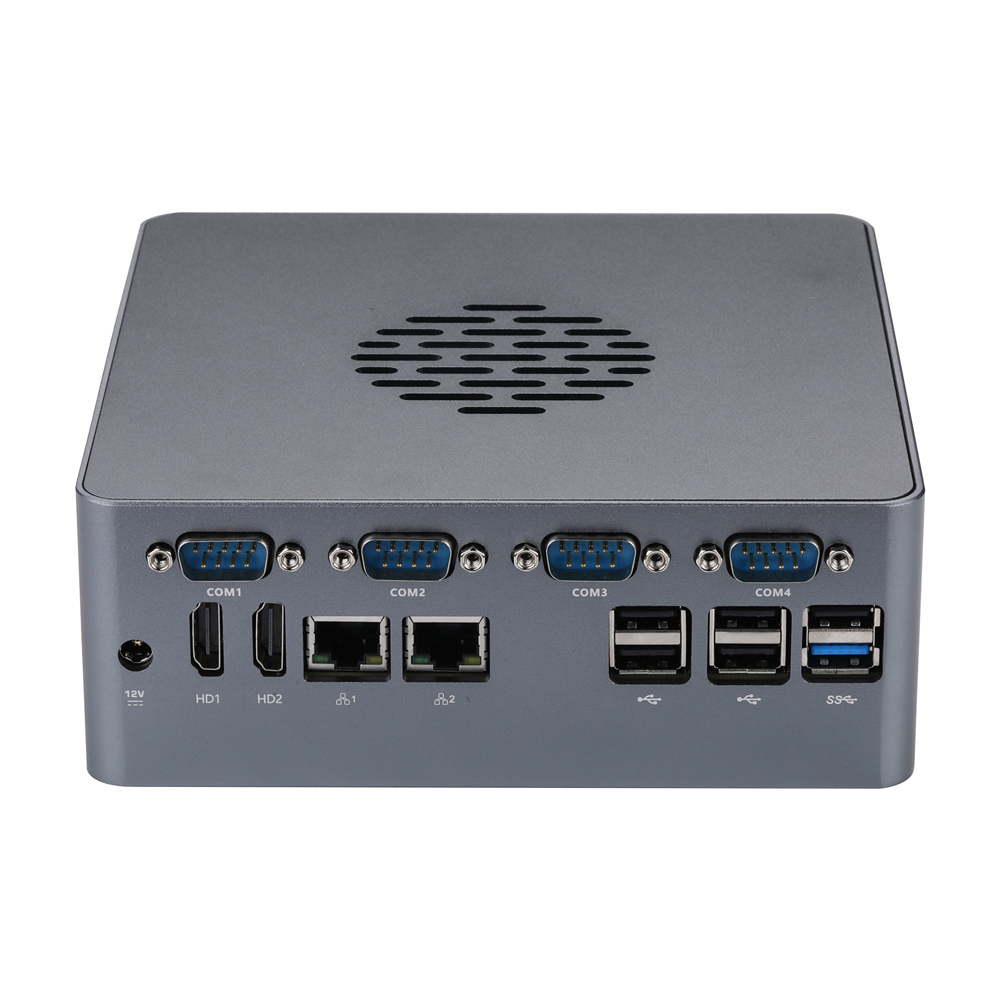

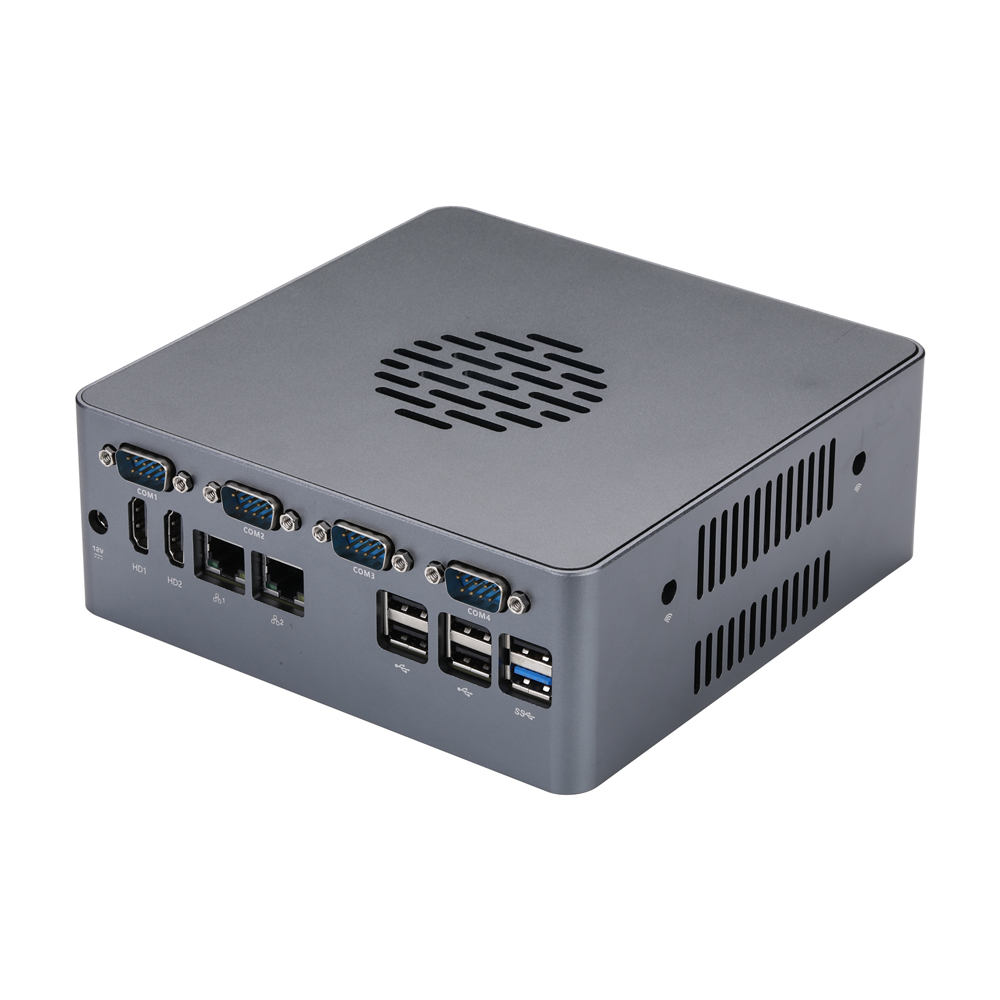

Rear I/O
Power	1 × DC Jack
Video Output	2 × HDMI
LAN	2 × Intel I211-AT/I210-AT Gigabit LAN
USB	1 × USB 2.0, 5 × USB 2.0
Serial Port	4 × RS-232 (COM1/COM2 Support 5V/12V)
Storage
Type	1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280)
Expansion
M.2	1 × M.2 for SSD (M key, Type: 2280) 1 × M.2 for Wi-Fi (E key, Type: 2230
Mini PCIe	1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi
SIM Card Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.54mm
CMOS Clear Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
GPIO	1, 2 × 5Pin, Pitch 2.0mm
RS-485	2 × RS-232 (COM1/2 can be set up as RS- 485)
Power Requirement
Power Adapter	12V5A/12V7A
DC Jack	5.5mm, 2.5mm
Environmental
Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%
Mechanical
Material	Aluminium Alloy
Dimension	164 × 164 × 61mm
Weight	1.23kg
Mounting	No
Packaging Dimension	285 × 260 × 93mm
Kensington Lock	No

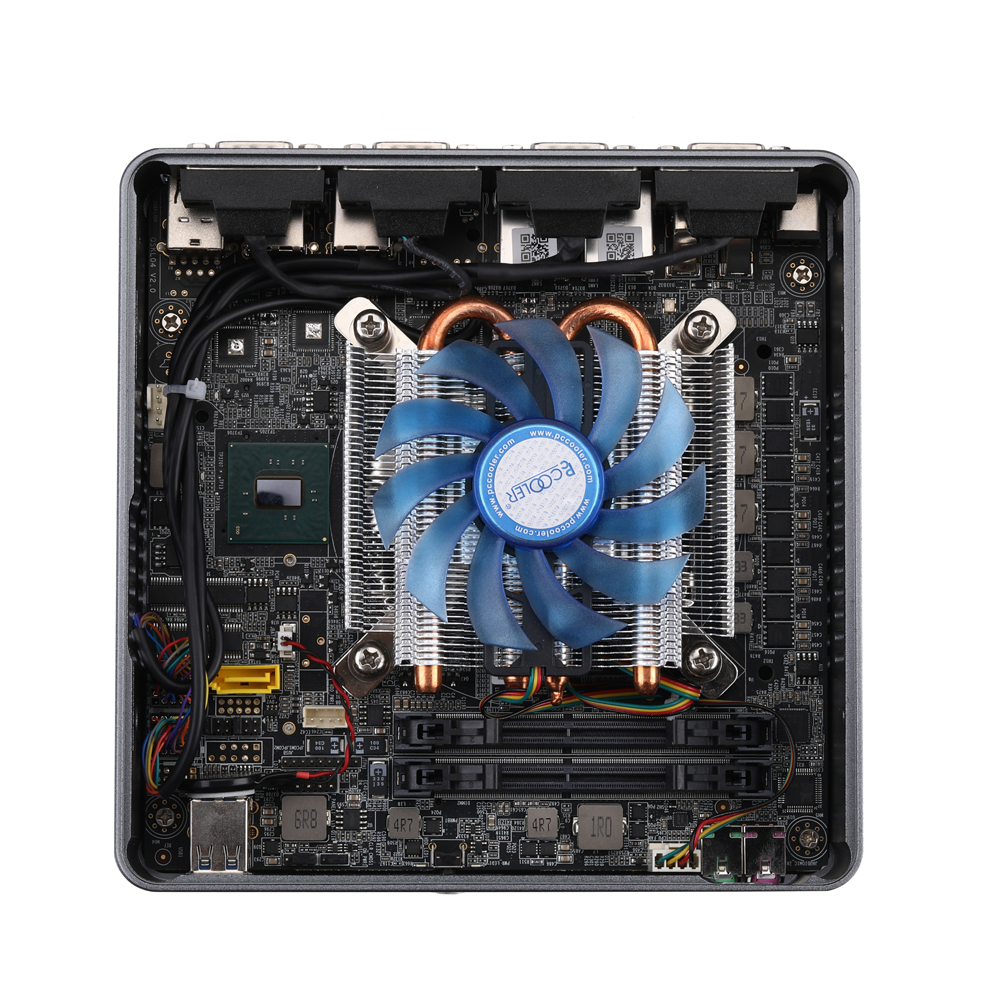

Cooling Mode	Fan
OS Support
OS	Windows 10, Linux Windows 7 (Only for 6th Gen Skylake)

PACKING

Packing List

NO.	Category	Quantity	Remark
1	Mini PC	1
2	Silicone Mat	4
3	VESA Bracket	1
4	Screws for VESA Bracket	1
5	Power Adapter	1
6	AC Power Cord	1
7	Screws for SATA SSD/HDD	1
8	SATA cable for SSD/HDD	1	Option
9	Antennas	2	Option

ItemQuantity

1
Mini PC
1
2
Silicone Mat
4
3
VESA Bracket
1
4
Screws for VESA Bracket
1
5
Power Adapter
1
6
AC Power Cord
1
7
Screws for SATA SSD/HDD
1
8
SATA cable for SSD/HDD
Option
1
9
Antennas
Option
2

ORDERING

Ordering and Specifications Information

Quick Order Model: Q650P-S09

Ordering Code	Case	Code Name	Processor Type	Processor Number	# of Cores	# of Threads	Base Frequency	Max Turbo Frequency	Cache	Processor Graphics	TDP
Q610P (Q70611P)	S09	Skylake	Celeron	G3900	2	2	2.8GHz	/	2M	Intel HD 510	51W
Q620P (Q70621P)	S09	Skylake	Pentium	G4500	2	2	3.5GHz	/	3M	Intel HD 530	51W
Q630P (Q70631P)	S09	Skylake	Core i3	6100	2	4	3.7GHz	/	3M	Intel HD 530	51W
Q650P (Q70651P)	S09	Skylake	Core i5	6400	4	4	2.7GHz	3.3GHz	6M	Intel HD 530	65W
Q615P (Q70711P)	S09	Kaby Lake	Celeron	G3930	2	2	2.9GHz	/	2M	Intel HD 610	51W
Q625P (Q70721P)	S09	Kaby Lake	Pentium	G4560	2	4	3.5GHz	/	3M	Intel HD 610	54W
Q635P (Q70731P)	S09	Kaby Lake	Core i3	7100	2	4	3.9GHz	/	3M	Intel HD 630	51W
Q655P (Q70751P)	S09	Kaby Lake	Core i5	7500	4	4	3.4GHz	3.8GHz	6M	Intel HD 630	65W
Q70811P	S09	Coffee Lake	Celeron	G4900	2	2	3.1GHz	/	2M	Intel UHD Graphics 610	54W
Q70821P	S09	Coffee Lake	Pentium	G5400	2	4	3.7GHz	/	4M	Intel UHD Graphics 610	58W
Q70831P	S09	Coffee Lake	Core i3	8100	4	4	3.6GHz	/	6M	Intel UHD Graphics 630	65W
Q70851P	S09	Coffee Lake	Core i5	8400	6	6	2.9GHz	4.1GHz	9M	Intel UHD Graphics 630	65W
Q70911P	S09	Coffee Lake	Celeron	G4930	2	2	3.2GHz	/	2M	Intel UHD Graphics 610	54W
Q70921P	S09	Coffee Lake	Pentium	G5420	2	4	3.8GHz	/	4M	Intel UHD Graphics 610	54W
Q70931P	S09	Coffee Lake	Core i3	9100	4	4	3.6GHz	4.2GHz	6M	Intel UHD Graphics 630	65W
Q70951P	S09	Coffee Lake	Core i5	9400	6	6	2.9GHz	4.1GHz	9M	Intel UHD Graphics 630	65W

Q610P
(Q70611P)
S09

Case: S09
Code Name: Skylake
Processor Type: Celeron
Processor Number: G3900
# of Cores: 2
# of Threads: 2
Base Frequency: 2.8GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel HD 510
TDP: 51W

Q620P
(Q70621P)
S09

Case: S09
Code Name: Skylake
Processor Type: Pentium
Processor Number: G4500
# of Cores: 2
# of Threads: 2
Base Frequency: 3.5GHz
Max Turbo Frequency: /
Cache: 3M
Processor Graphics: Intel HD 530
TDP: 51W

Q630P
(Q70631P)
S09

Case: S09
Code Name: Skylake
Processor Type: Core i3
Processor Number: 6100
# of Cores: 2
# of Threads: 4
Base Frequency: 3.7GHz
Max Turbo Frequency: /
Cache: 3M
Processor Graphics: Intel HD 530
TDP: 51W

Q650P
(Q70651P)
S09

Case: S09
Code Name: Skylake
Processor Type: Core i5
Processor Number: 6400
# of Cores: 4
# of Threads: 4
Base Frequency: 2.7GHz
Max Turbo Frequency: 3.3GHz
Cache: 6M
Processor Graphics: Intel HD 530
TDP: 65W

Q615P
(Q70711P)
S09

Case: S09
Code Name: Kaby Lake
Processor Type: Celeron
Processor Number: G3930
# of Cores: 2
# of Threads: 2
Base Frequency: 2.9GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel HD 610
TDP: 51W

Q625P
(Q70721P)
S09

Case: S09
Code Name: Kaby Lake
Processor Type: Pentium
Processor Number: G4560
# of Cores: 2
# of Threads: 4
Base Frequency: 3.5GHz
Max Turbo Frequency: /
Cache: 3M
Processor Graphics: Intel HD 610
TDP: 54W

Q635P
(Q70731P)
S09

Case: S09
Code Name: Kaby Lake
Processor Type: Core i3
Processor Number: 7100
# of Cores: 2
# of Threads: 4
Base Frequency: 3.9GHz
Max Turbo Frequency: /
Cache: 3M
Processor Graphics: Intel HD 630
TDP: 51W

Q655P
(Q70751P)
S09

Case: S09
Code Name: Kaby Lake
Processor Type: Core i5
Processor Number: 7500
# of Cores: 4
# of Threads: 4
Base Frequency: 3.4GHz
Max Turbo Frequency: 3.8GHz
Cache: 6M
Processor Graphics: Intel HD 630
TDP: 65W

Q70811PS09

Case: S09
Code Name: Coffee Lake
Processor Type: Celeron
Processor Number: G4900
# of Cores: 2
# of Threads: 2
Base Frequency: 3.1GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel UHD Graphics 610
TDP: 54W

Q70821PS09

Case: S09
Code Name: Coffee Lake
Processor Type: Pentium
Processor Number: G5400
# of Cores: 2
# of Threads: 4
Base Frequency: 3.7GHz
Max Turbo Frequency: /
Cache: 4M
Processor Graphics: Intel UHD Graphics 610
TDP: 58W

Q70831PS09

Case: S09
Code Name: Coffee Lake
Processor Type: Core i3
Processor Number: 8100
# of Cores: 4
# of Threads: 4
Base Frequency: 3.6GHz
Max Turbo Frequency: /
Cache: 6M
Processor Graphics: Intel UHD Graphics 630
TDP: 65W

Q70851PS09

Case: S09
Code Name: Coffee Lake
Processor Type: Core i5
Processor Number: 8400
# of Cores: 6
# of Threads: 6
Base Frequency: 2.9GHz
Max Turbo Frequency: 4.1GHz
Cache: 9M
Processor Graphics: Intel UHD Graphics 630
TDP: 65W

Q70911PS09

Case: S09
Code Name: Coffee Lake
Processor Type: Celeron
Processor Number: G4930
# of Cores: 2
# of Threads: 2
Base Frequency: 3.2GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel UHD Graphics 610
TDP: 54W

Q70921PS09

Case: S09
Code Name: Coffee Lake
Processor Type: Pentium
Processor Number: G5420
# of Cores: 2
# of Threads: 4
Base Frequency: 3.8GHz
Max Turbo Frequency: /
Cache: 4M
Processor Graphics: Intel UHD Graphics 610
TDP: 54W

Q70931PS09

Case: S09
Code Name: Coffee Lake
Processor Type: Core i3
Processor Number: 9100
# of Cores: 4
# of Threads: 4
Base Frequency: 3.6GHz
Max Turbo Frequency: 4.2GHz
Cache: 6M
Processor Graphics: Intel UHD Graphics 630
TDP: 65W

Q70951PS09

Case: S09
Code Name: Coffee Lake
Processor Type: Core i5
Processor Number: 9400
# of Cores: 6
# of Threads: 6
Base Frequency: 2.9GHz
Max Turbo Frequency: 4.1GHz
Cache: 9M
Processor Graphics: Intel UHD Graphics 630
TDP: 65W

Custom Options

Category	Description
USB 2.0	2
GPIO	1
RS-485	2
VGA	1
RJ-45	4
TPM 2.0	1
