Mini PC Q70600S S09 Series

Qotom Q70600S Mini PC supports Intel 6th-9th Gen CPUs, dual DDR4, 2x HDMI, 8x USB ports, dual M.2/SATA storage, and dual Intel LAN. Ideal for office, home, or industrial use in compact Grey S09 case

Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

OVERVIEW

Main Features

  • Intel 6th Skylake-S Processor

  • Intel 7th Kabylake-S Processor

  • Intel 8th Coffee Lake-S Processor

  • Intel 9th Coffee Lake-R-S Processor

  • 2 × DDR4 2133 MHz SO-DIMM Up to 32GB

  • 2 × HDMI

  • 3 × USB 3.0, 5 × USB 2.0, 2 × M.2, 1 × SATA 3.0

  • 2 × Intel I211-AT/I210-AT Gigabit LAN

  • S09 computer case in Grey color

SPECIFICATION

Processor System
CPUIntel 6thSkylake-S Processor
Intel 7thKabylake-S Processor
Intel 8thCoffee Lake-S Processor
Intel 9thCoffee Lake-R-S Processor
CPU TDPBy CPU
Memory2 × DDR4 SO-DIMM Socket (Up to 64G, 2133MHz)
ChipsetIntel H110
GraphicsBy CPU
LAN Chipset2 × Intel I211-AT/I210-AT Gigabit LAN
AudioRealtek HD Audio
Watch DogYes

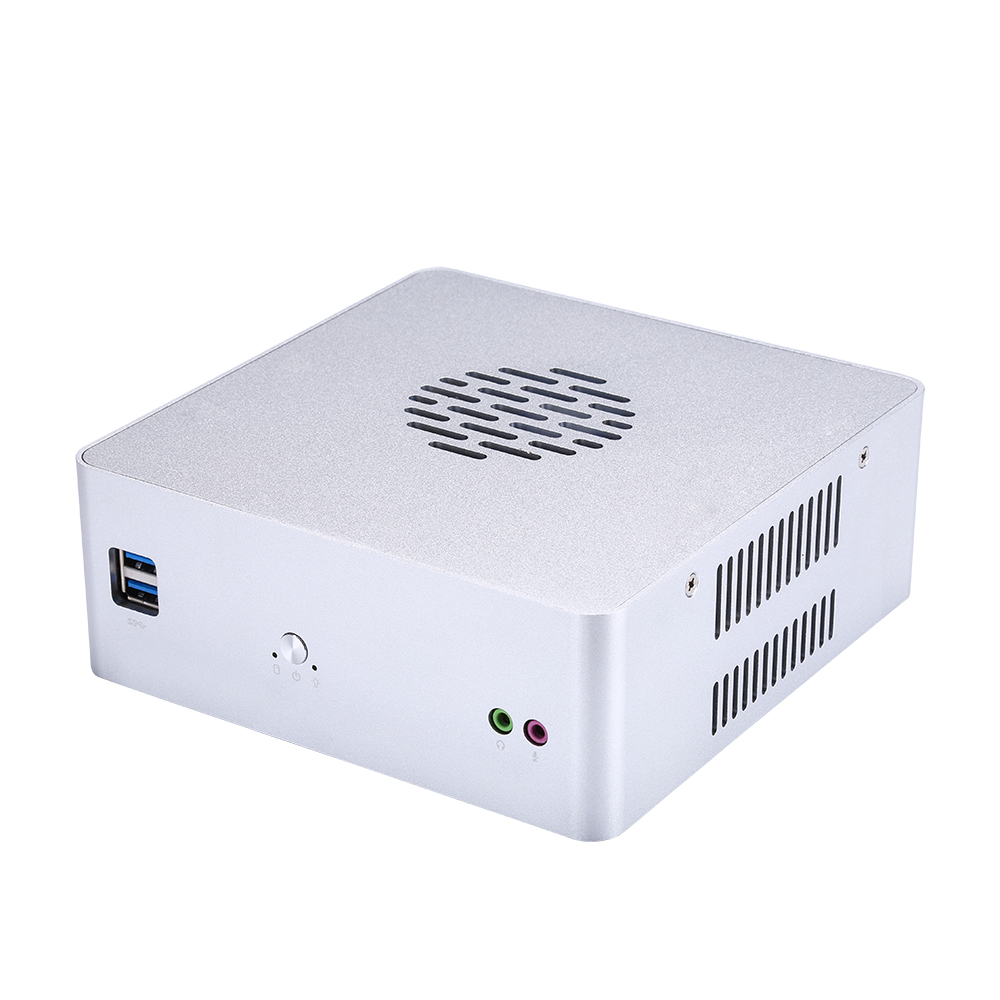

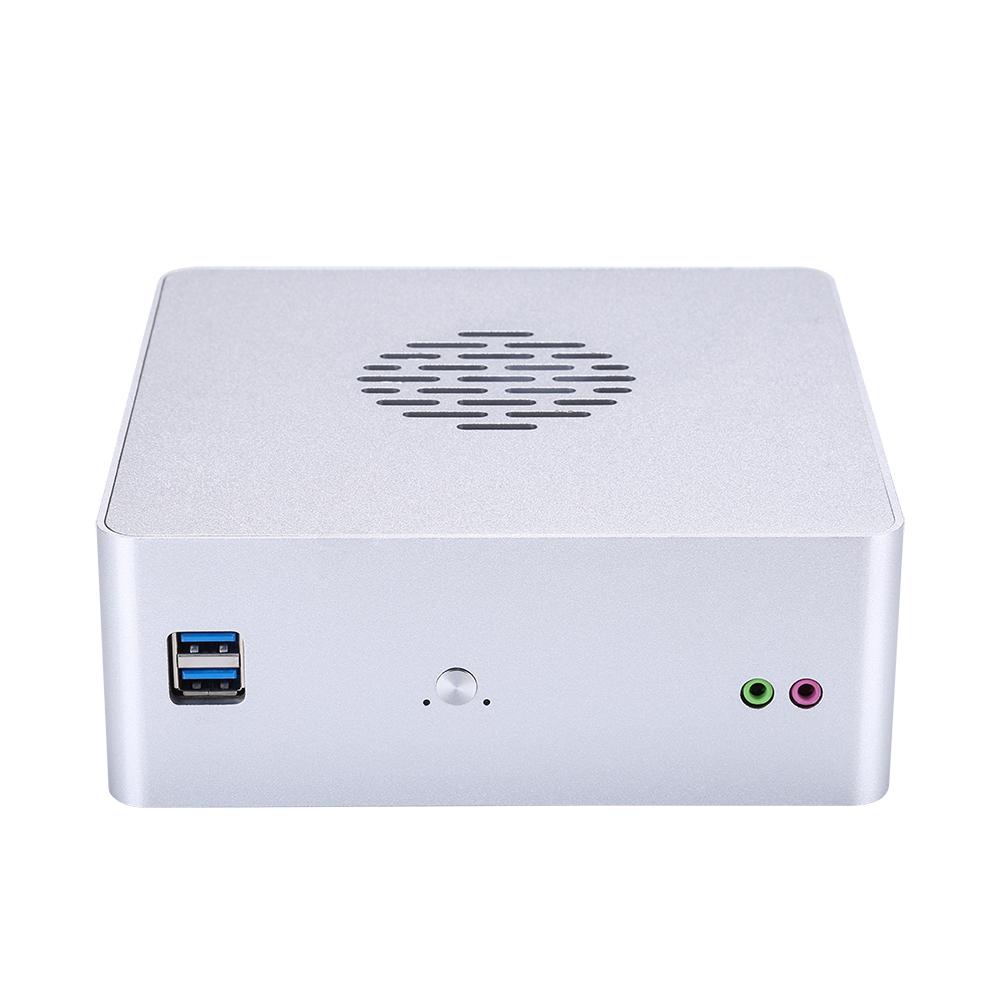

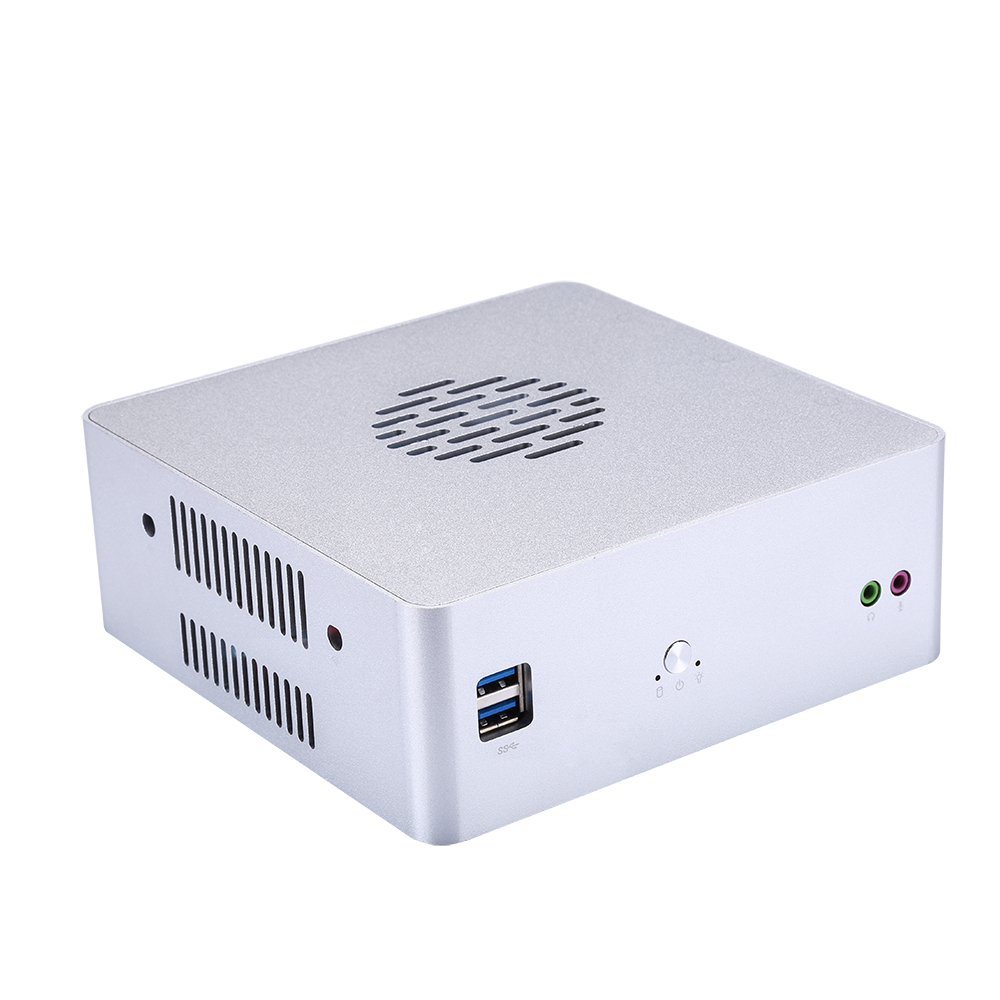

Front I/O
Power Button1
USB2 × USB 3.0
LED1 × Power LED, 1 × HDD LED
Audio1 × Mic-in, 1 × Line-out

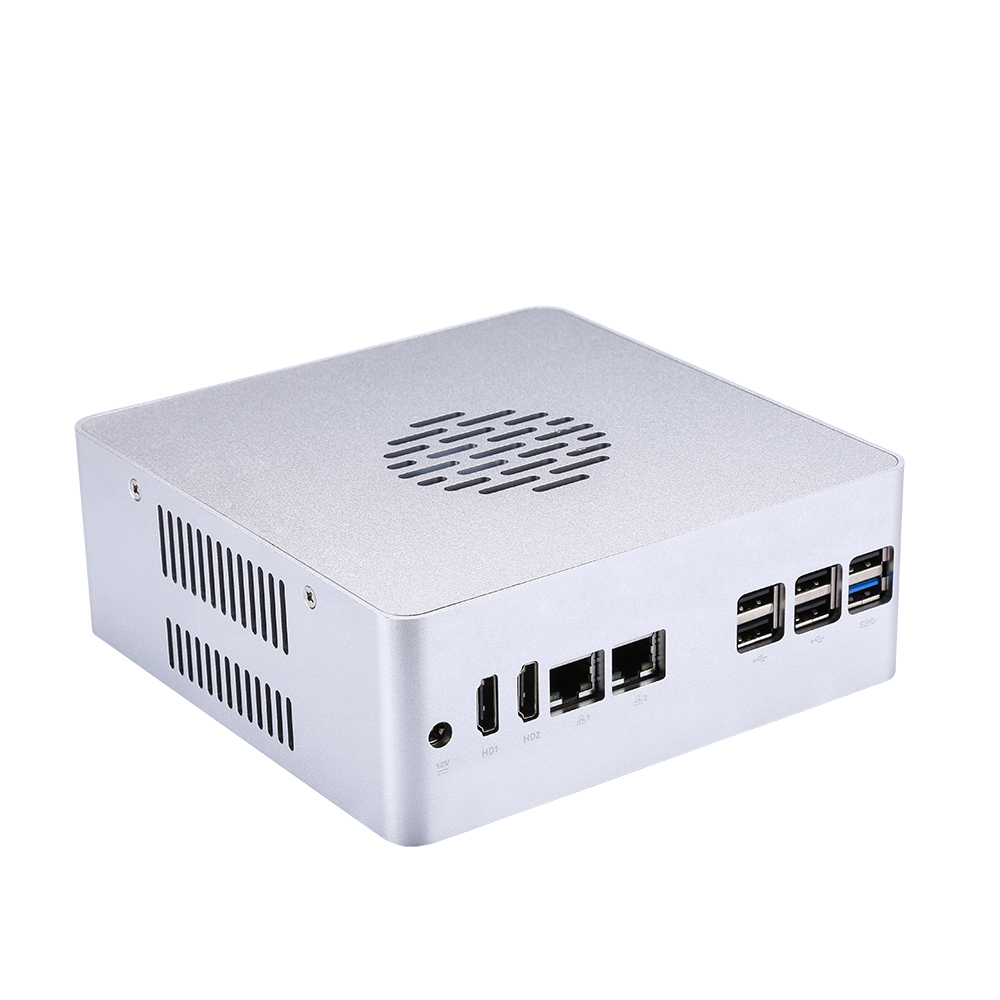

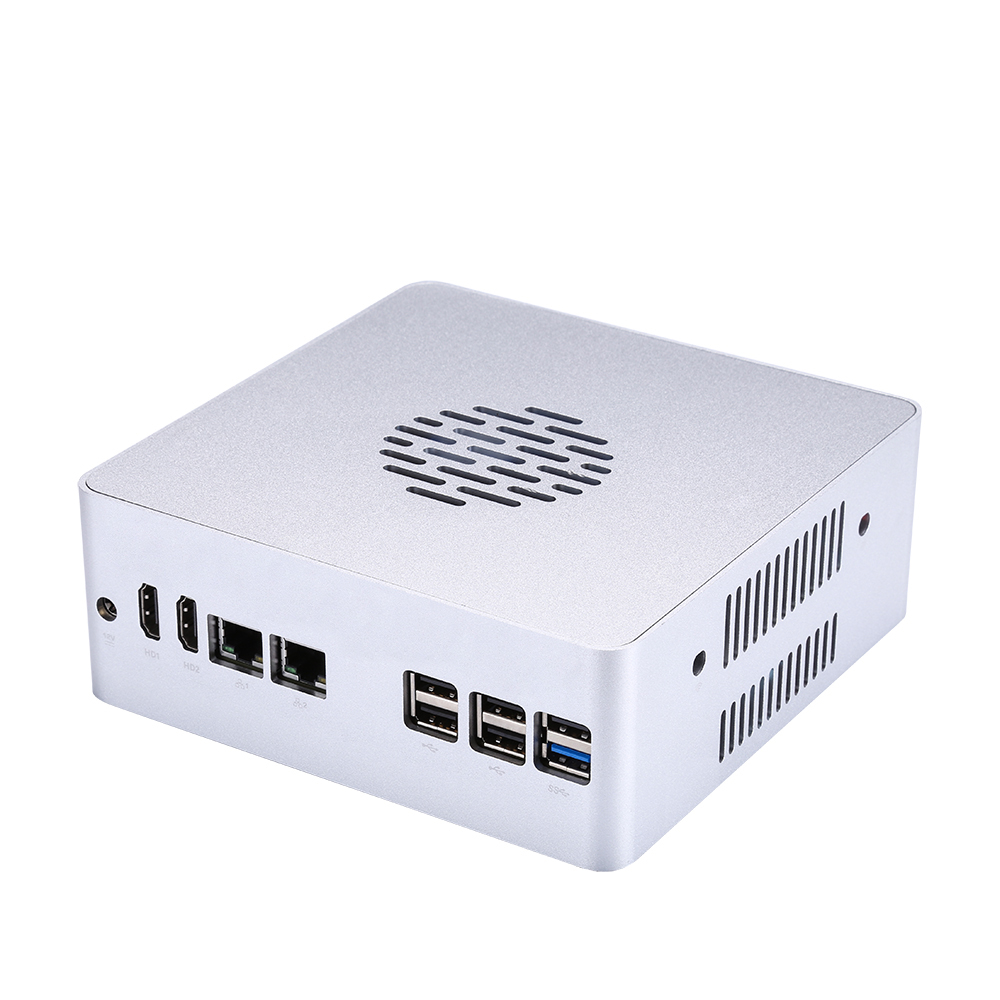

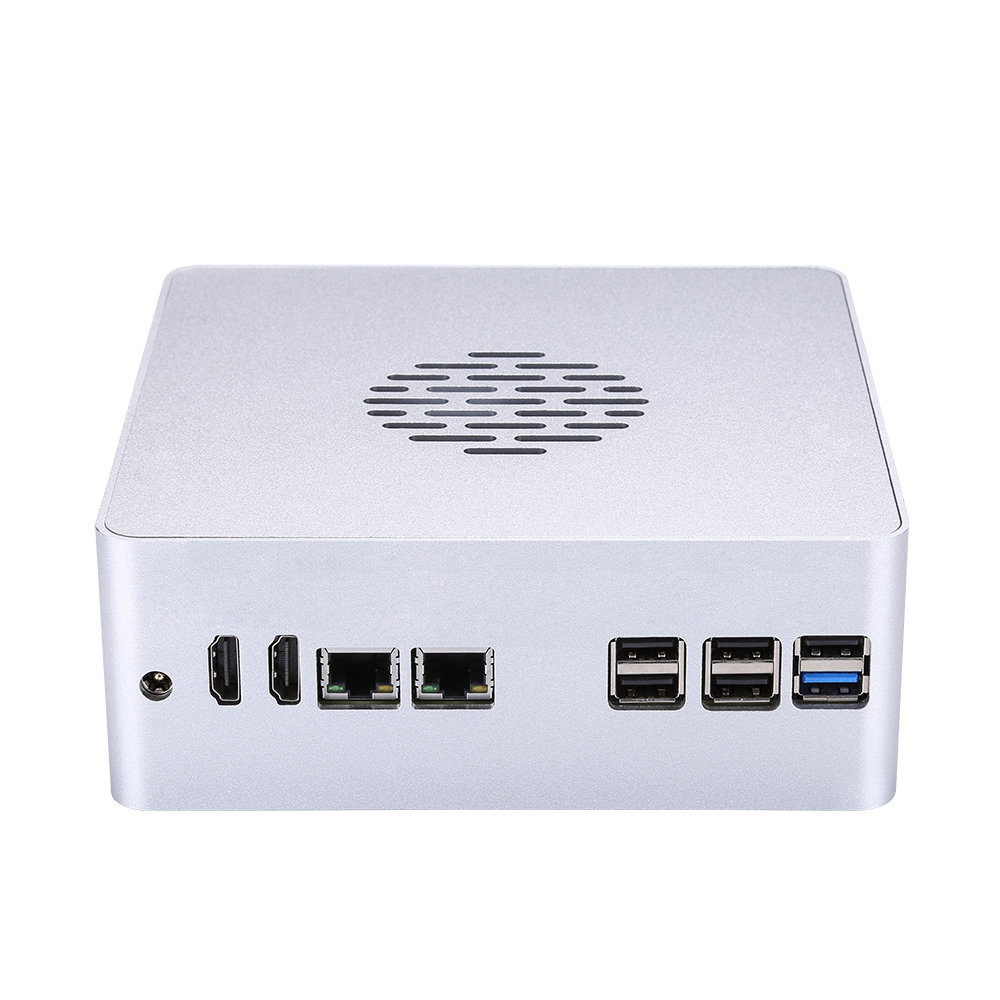

Rear I/O
Power1 × DC Jack
Video Output2 × HDMI
LAN2 × Intel I211-AT/I210-AT Gigabit LAN
USB1 × USB 2.0, 5 × USB 2.0
Serial Port0
Storage
Type1 × 2.5-inch HDD/SSD
1 × M.2 for SSD (M key, Type: 2280)
Expansion
M.21 × M.2 for SSD (M key, Type: 2280)
1 × M.2 for Wi-Fi (E key, Type: 2230)
Mini PCIe1 × Mini PCIe
Full-length for 4G, Half-length for Wi-Fi
SIM Card Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
CMOS Clear JumperYes, 1 × 3Pin, Pitch 2.0mm
GPIO1, 2 × 5Pin, Pitch 2.0mm
RS-4850
Power Requirement
Power Adapter12V5A/12V7A
DC Jack5.5mm, 2.5mm
Environmental
Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%
Mechanical
MaterialAluminium Alloy
Dimension164 × 164 × 61mm
Weight1.19kg
MountingNo
Packaging Dimension285 × 260 × 93mm
Kensington LockNo
Cooling ModeFan
OS Support
OSWindows 10, Linux
Windows 7 (Only for 6th Gen Skylake)

PACKING

Packing List

NO.CategoryQuantityRemark
1Mini PC1
2Silicone Mat4
3VESA Bracket1
4Screws for VESA Bracket1
5Power Adapter1
6AC Power Cord1
7Screws for SATA SSD/HDD1
8SATA cable for SSD/HDD1Option
9Antennas2Option
ItemQuantity
  • 1
    Mini PC
    1
  • 2
    Silicone Mat
    4
  • 3
    VESA Bracket
    1
  • 4
    Screws for VESA Bracket
    1
  • 5
    Power Adapter
    1
  • 6
    AC Power Cord
    1
  • 7
    Screws for SATA SSD/HDD
    1
  • 8
    SATA cable for SSD/HDD
    Option
    1
  • 9
    Antennas
    Option
    2

mini pc

ORDERING

Ordering and Specifications Information

Quick Order Model: Q650S-S09

Ordering CodeCaseCode Name Processor TypeProcessor Number# of Cores# of ThreadsBase FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP

Q610S

(Q70611S)

S09SkylakeCeleronG3900222.8GHz/2MIntel HD 51051W

Q620S

(Q70621S)

S09SkylakePentiumG4500223.5GHz/3MIntel HD 53051W

Q630S

(Q70631S)

S09SkylakeCore i36100243.7GHz/3MIntel HD 53051W

Q650S

(Q70651S)

S09SkylakeCore i56400442.7GHz3.3GHz6MIntel HD 53065W

Q615S

(Q70711S)

S09Kaby LakeCeleronG3930222.9GHz/2MIntel HD 61051W

Q625S

(Q70721S)

S09Kaby LakePentiumG4560243.5GHz/3MIntel HD 61054W

Q635S

(Q70731S)

S09Kaby LakeCore i37100243.9GHz/3MIntel HD 63051W

Q655S

(Q70751S)

S09Kaby LakeCore i57500443.4GHz3.8GHz6MIntel HD 63065W
Q70811SS09Coffee LakeCeleronG4900223.1GHz/2MIntel UHD Graphics 61054W
Q70821SS09Coffee LakePentiumG5400243.7GHz/4MIntel UHD Graphics 61058W
Q70831SS09Coffee LakeCore i38100443.6GHz/6MIntel UHD Graphics 63065W
Q70851SS09Coffee LakeCore i58400662.9GHz4.1GHz9MIntel UHD Graphics 63065W
Q70911SS09Coffee LakeCeleronG4930223.2GHz/2MIntel UHD Graphics 61054W
Q70921SS09Coffee LakePentiumG5420243.8GHz/4MIntel UHD Graphics 61054W
Q70931SS09Coffee LakeCore i39100443.6GHz4.2GHz6MIntel UHD Graphics 63065W
Q70951SS09Coffee LakeCore i59400662.9GHz4.1GHz9MIntel UHD Graphics 63065W

Q610S

(Q70611S)

S09
Case
S09
Code Name
Skylake
Processor Type
Celeron
Processor Number
G3900
# of Cores
2
# of Threads
2
Base Frequency
2.8GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 510
TDP
51W

Q620S

(Q70621S)

S09
Case
S09
Code Name
Skylake
Processor Type
Pentium
Processor Number
G4500
# of Cores
2
# of Threads
2
Base Frequency
3.5GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 530
TDP
51W

Q630S

(Q70631S)

S09
Case
S09
Code Name
Skylake
Processor Type
Core i3
Processor Number
6100
# of Cores
2
# of Threads
4
Base Frequency
3.7GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 530
TDP
51W

Q650S

(Q70651S)

S09
Case
S09
Code Name
Skylake
Processor Type
Core i5
Processor Number
6400
# of Cores
4
# of Threads
4
Base Frequency
2.7GHz
Max Turbo Frequency
3.3GHz
Cache
6M
Processor Graphics
Intel HD 530
TDP
65W

Q615S

(Q70711S)

S09
Case
S09
Code Name
Kaby Lake
Processor Type
Celeron
Processor Number
G3930
# of Cores
2
# of Threads
2
Base Frequency
2.9GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 610
TDP
51W

Q625S

(Q70721S)

S09
Case
S09
Code Name
Kaby Lake
Processor Type
Pentium
Processor Number
G4560
# of Cores
2
# of Threads
4
Base Frequency
3.5GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 610
TDP
54W

Q635S

(Q70731S)

S09
Case
S09
Code Name
Kaby Lake
Processor Type
Core i3
Processor Number
7100
# of Cores
2
# of Threads
4
Base Frequency
3.9GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 630
TDP
51W

Q655S

(Q70751S)

S09
Case
S09
Code Name
Kaby Lake
Processor Type
Core i5
Processor Number
7500
# of Cores
4
# of Threads
4
Base Frequency
3.4GHz
Max Turbo Frequency
3.8GHz
Cache
6M
Processor Graphics
Intel HD 630
TDP
65W
Q70811SS09
Case
S09
Code Name
Coffee Lake
Processor Type
Celeron
Processor Number
G4900
# of Cores
2
# of Threads
2
Base Frequency
3.1GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics 610
TDP
54W
Q70821SS09
Case
S09
Code Name
Coffee Lake
Processor Type
Pentium
Processor Number
G5400
# of Cores
2
# of Threads
4
Base Frequency
3.7GHz
Max Turbo Frequency
/
Cache
4M
Processor Graphics
Intel UHD Graphics 610
TDP
58W
Q70831SS09
Case
S09
Code Name
Coffee Lake
Processor Type
Core i3
Processor Number
8100
# of Cores
4
# of Threads
4
Base Frequency
3.6GHz
Max Turbo Frequency
/
Cache
6M
Processor Graphics
Intel UHD Graphics 630
TDP
65W
Q70851SS09
Case
S09
Code Name
Coffee Lake
Processor Type
Core i5
Processor Number
8400
# of Cores
6
# of Threads
6
Base Frequency
2.9GHz
Max Turbo Frequency
4.1GHz
Cache
9M
Processor Graphics
Intel UHD Graphics 630
TDP
65W
Q70911SS09
Case
S09
Code Name
Coffee Lake
Processor Type
Celeron
Processor Number
G4930
# of Cores
2
# of Threads
2
Base Frequency
3.2GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics 610
TDP
54W
Q70921SS09
Case
S09
Code Name
Coffee Lake
Processor Type
Pentium
Processor Number
G5420
# of Cores
2
# of Threads
4
Base Frequency
3.8GHz
Max Turbo Frequency
/
Cache
4M
Processor Graphics
Intel UHD Graphics 610
TDP
54W
Q70931SS09
Case
S09
Code Name
Coffee Lake
Processor Type
Core i3
Processor Number
9100
# of Cores
4
# of Threads
4
Base Frequency
3.6GHz
Max Turbo Frequency
4.2GHz
Cache
6M
Processor Graphics
Intel UHD Graphics 630
TDP
65W
Q70951SS09
Case
S09
Code Name
Coffee Lake
Processor Type
Core i5
Processor Number
9400
# of Cores
6
# of Threads
6
Base Frequency
2.9GHz
Max Turbo Frequency
4.1GHz
Cache
9M
Processor Graphics
Intel UHD Graphics 630
TDP
65W

Custom Options

CategoryDescription
USB 2.02
GPIO1
RS-4852
VGA1
RJ-454
TPM 2.01
