Mini PC Q71200C S15 Series

Q71200C is a compact desktop mini PC powered by 12th/13th Gen Intel Alder/Raptor Lake-S CPUs, supporting up to 64GB RAM, dual display, dual 2.5G LAN—ideal for office, digital signage, or light industrial use.

Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

OVERVIEW

Main Features

Intel 12th Alder lake -S Processor
Intel 13th Raptor Lake-S Processor
2 × DDR4 3200 MHz SO-DIMM Up to 64GB
1 × Display Port, 1 × HDMI
4 × USB 3.0, 4 × USB 2.0, 3 × M.2, 2 × SATA 3.0
2 × Intel I225-V/I226-V 2.5 Gigabit LAN
2 × RS-232

SPECIFICATION

Processor System
CPU	Intel12th Alder lake -S Processor Intel 13th Raptor Lake-S Processor
CPU TDP	By CPU
Memory	2 × DDR4 SO-DIMM Socket (Up to 64G)
Chipset	Intel H610
Graphics	By CPU
LAN Chipset	2 × Intel I225-V/I226-V 2.5 Gigabit LAN
Audio	Realtek HD Audio
Watch Dog	Yes

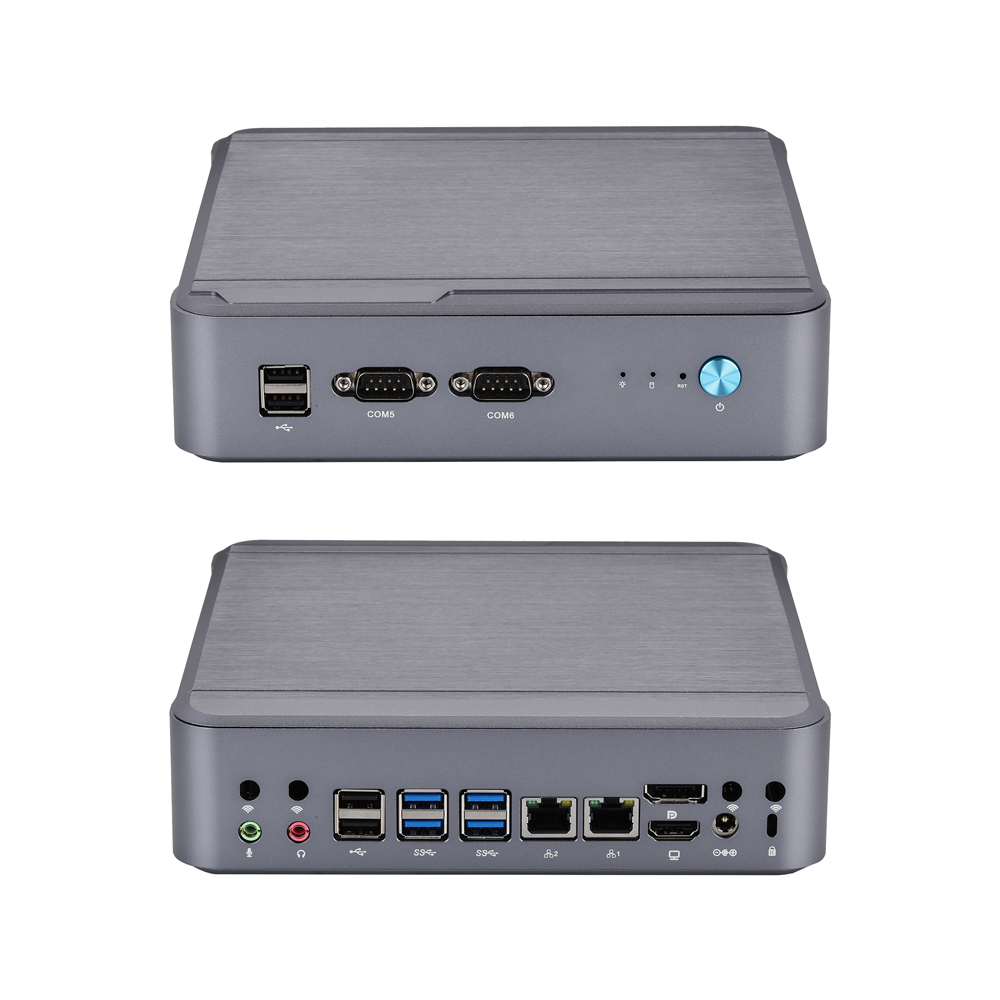

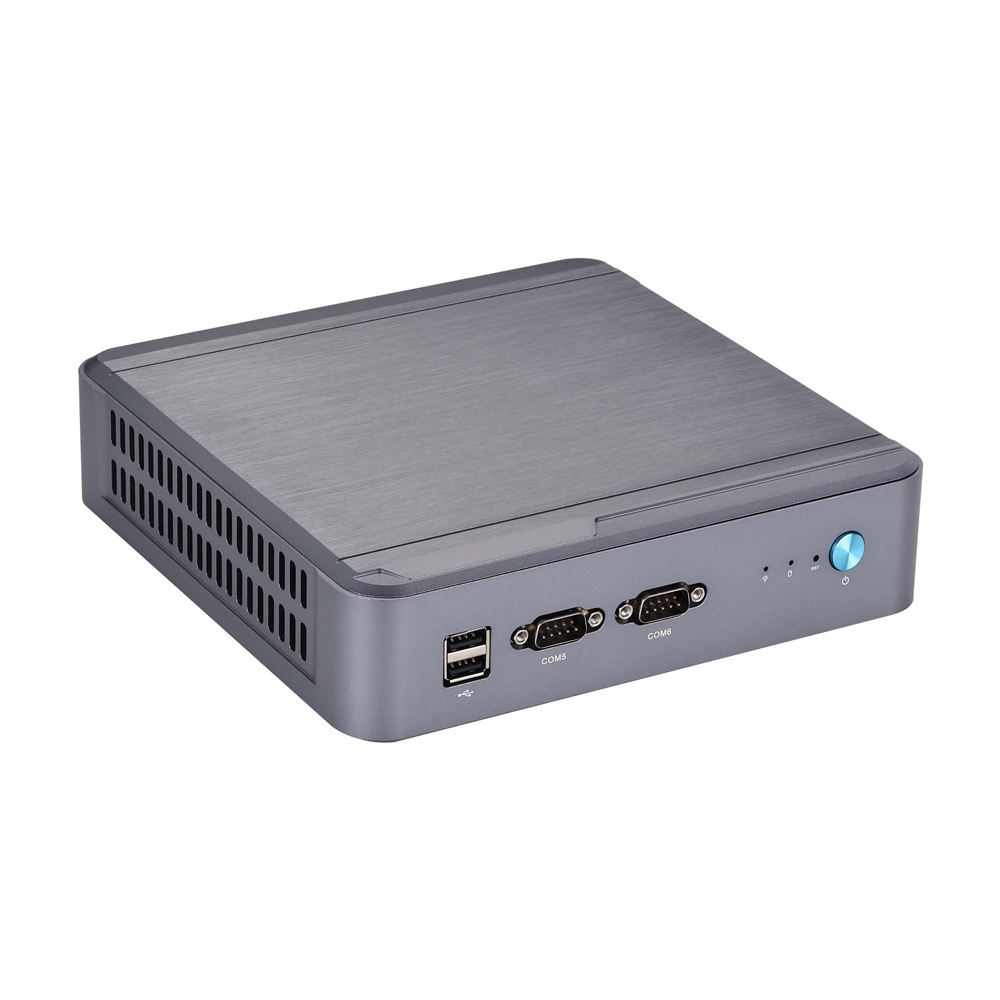

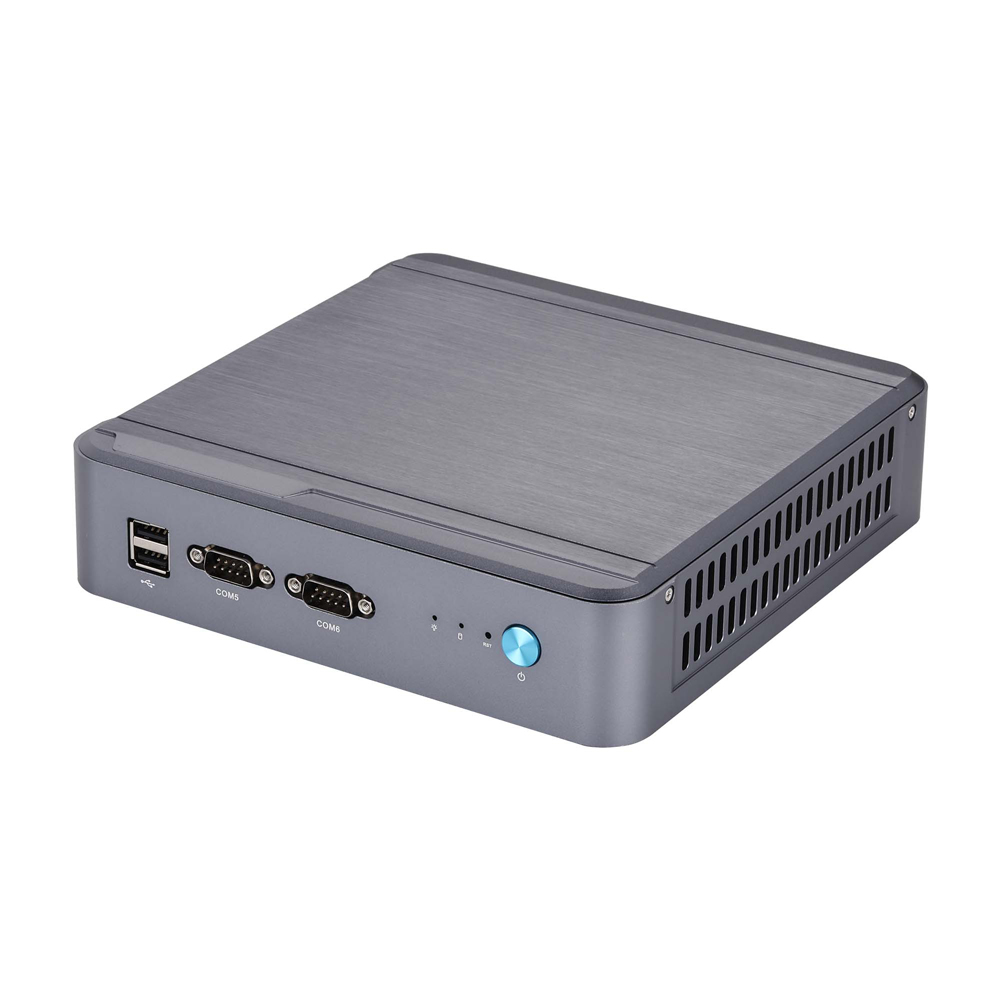

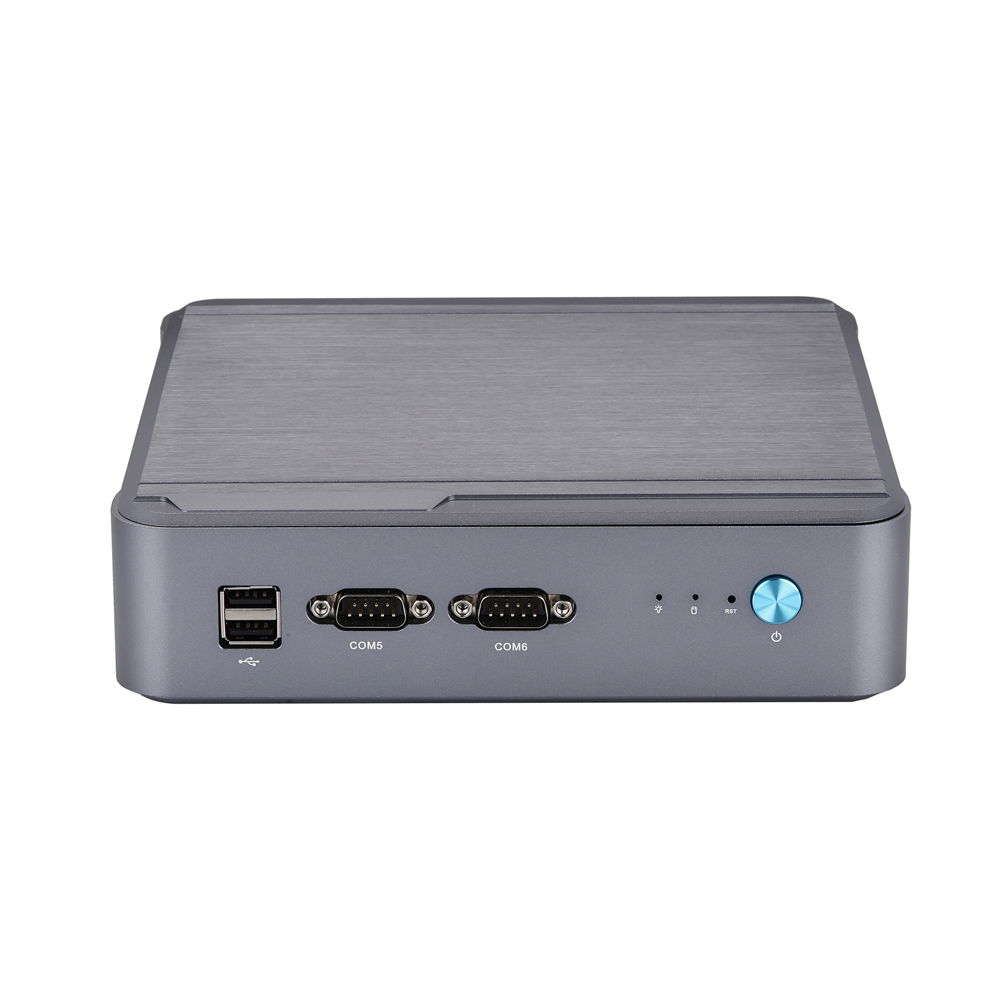

Front I/O
Power Button	1 × Power Button, 1 × Reset Button
LED	1 × Power LED, 1 × HDD LED
Serial Port	2 × RS-232
USB	2 × USB 2.0

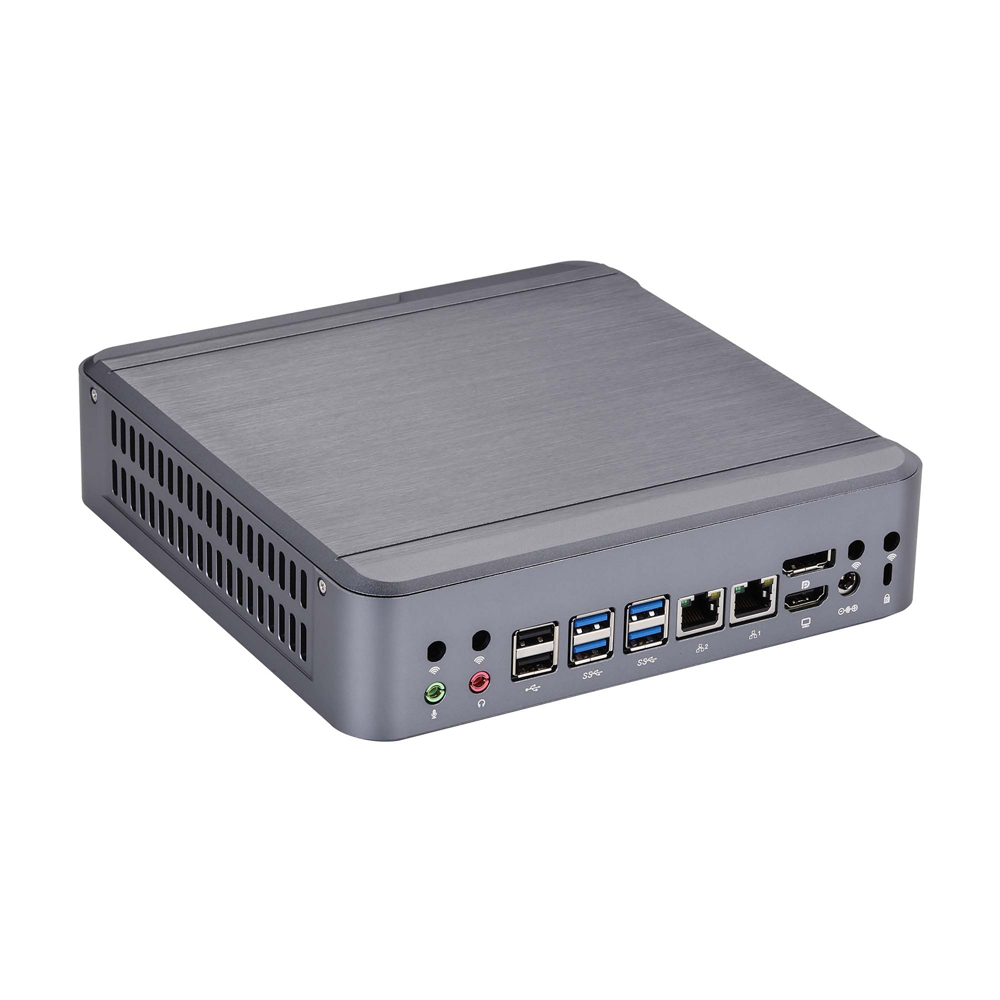

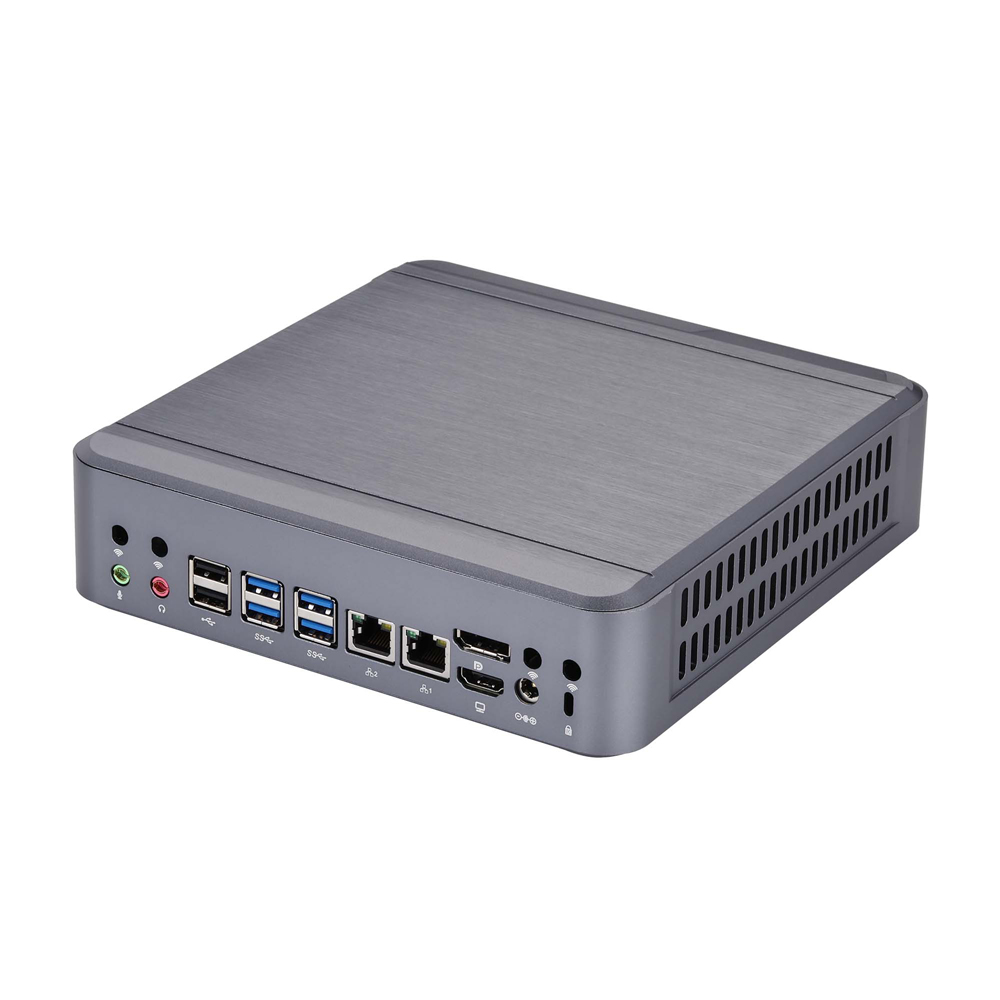

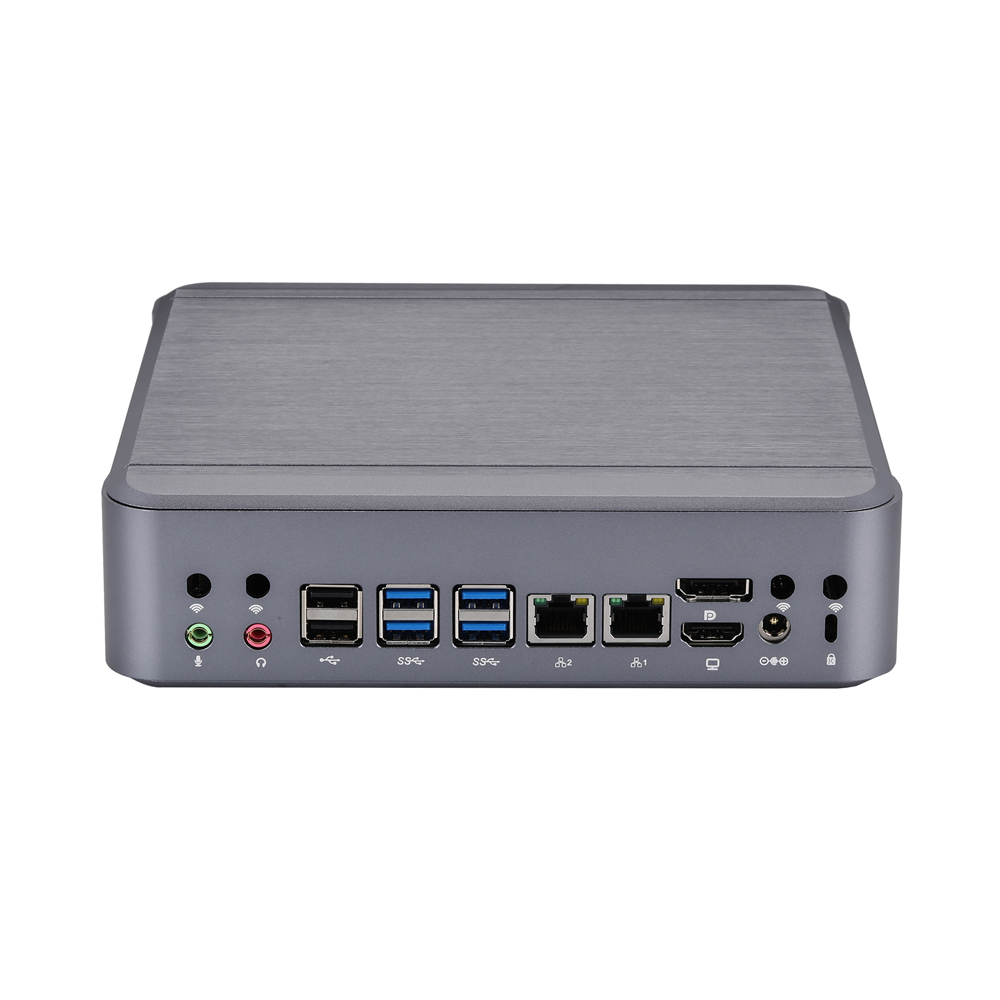

Rear I/O
Power	1 × DC Jack
Video Output	1 × Display Port, 1 × HDMI
LAN	2 × Intel I225-V/I226-V 2.5 Gigabit LAN
USB	4 × USB 3.0, 2 × USB 2.0
Audio	1 × Mic-in, 1 × Line-out
Serial Port	0
Storage
Type	1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4)
Expansion
M.2	1 × M.2 for SSD (M key, Type: 2280) 1 × M.2 for Wi-Fi (E key, Type: 2230) 1 × M.2 for 4G/5G (B key, Type: 3042/3052) 5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization
SIM Card Slot	1
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
CMOS Clear Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
GPIO	1, 2 × 5Pin, Pitch 2.0mm
RS-485	0
Serial Port	0
Power Requirement
Power Adapter	19V4.74A
DC Jack	5.5mm, 2.5mm
Environmental
Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%
Mechanical
Material	Aluminium Alloy
Dimension	200 × 200 × 53mm
Weight	1.74kg
Mounting	VESA Mounting Bracket
Packaging Dimension	285 × 260 × 120mm
Kensington Lock	Yes
Cooling Mode	Fan
OS Support
OS	UEFI Windows 10, UEFI Linux

PACKING

Packing List

NO.	Category	Quantity	Remark
1	Mini PC	1
2	Silicone Mat	4
3	VESA Bracket	1
4	Screws for VESA Bracket	1
5	Power Adapter	1
6	AC Power Cord	1
7	Screws for SATA SSD/HDD	1
8	SATA cable for SSD/HDD	1	Option
9	Antennas	2	Option

ItemQuantity

1
Mini PC
1
2
Silicone Mat
4
3
VESA Bracket
1
4
Screws for VESA Bracket
1
5
Power Adapter
1
6
AC Power Cord
1
7
Screws for SATA SSD/HDD
1
8
SATA cable for SSD/HDD
Option
1
9
Antennas
Option
2

ORDERING

Ordering and Specifications Information

Quick Order Model: Q71231C-S15

Custom Options

Ordering Code	Q71211C	Q71221C	Q71231C	Q71251C	Q71271C
Case	S15	S15	S15	S15	S15
Code Name	Alder Lake S	Alder Lake S	Alder Lake S	Alder Lake S	Alder Lake S
Processor Type	Celeron	Pentium	Core i3	Core i5	Core i7
Processor Number	G6900	G7400	12100	12400	12700
Total Cores	2	2	4	6	12
# of Performance-cores	2	2	4	6	8
# of Efficient-cores	-	-	-	-	4
# of Threads	2	4	8	12	20
Max Turbo Frequency			4.30 GHz	4.40 GHz	4.80 GHz
Performance-core Base Frequency	3.40 GHz	3.70 GHz	3.30 GHz	2.50 GHz	2.10 GHz
Performance-core Max Turbo Frequency	-	-	4.30 GHz	4.40 GHz	4.80 GHz
Efficient-core Base Frequency	-	-	-	-	1.60 GHz
Efficient-core Max Turbo Frequency	-	-	-	-	3.60 GHz
Cache	4M	6M	12M	18M	25M
Processor Graphics	Intel UHD Graphics 710	Intel UHD Graphics 710	Intel UHD Graphics 730	Intel UHD Graphics 730	Intel UHD Graphics 770
TDP	46W	46W	60W-89W	65W-117W	65W-180W
Ordering Code	Q71311C	Q71321C	Q71331C	Q71351C	Q71371C
Case	S15	S15	S15	S15	S15
Code Name	Raptor Lake S	Raptor Lake S	Raptor Lake S	Raptor Lake S	Raptor Lake S
Processor Type	Celeron	Pentium	Core i3	Core i5	Core i7
Processor Number	-	-	13100	13400	13700
Total Cores	-	-	4	10	16
# of Performance-cores	-	-	4	6	8
# of Efficient-cores	-	-	-	4	8
# of Threads	-	-	8	16	24
Max Turbo Frequency	-	-	4.50 GHz	4.60 GHz	5.10 GHz
Performance-core Base Frequency	-	-	3.40 GHz	2.50 GHz	2.10 GHz
Performance-core Max Turbo Frequency	-	-	4.50 GHz	4.60 GHz	5.10 GHz
Efficient-core Base Frequency	-	-	-	-	1.50 GHz
Efficient-core Max Turbo Frequency	-	-	-	-	4.10 GHz
Cache	-	-	12M	20M	30M
Processor Graphics	-	-	Intel UHD Graphics 730	Intel UHD Graphics 730	Intel UHD Graphics 770
TDP			60W-110W	65-148W	65W-219W

CaseS15

Q71211C: S15
Q71221C: S15
Q71231C: S15
Q71251C: S15
Q71271C: S15

Code NameAlder Lake S

Q71211C: Alder Lake S
Q71221C: Alder Lake S
Q71231C: Alder Lake S
Q71251C: Alder Lake S
Q71271C: Alder Lake S

Processor TypeCeleron

Q71211C: Celeron
Q71221C: Pentium
Q71231C: Core i3
Q71251C: Core i5
Q71271C: Core i7

Processor NumberG6900

Q71211C: G6900
Q71221C: G7400
Q71231C: 12100
Q71251C: 12400
Q71271C: 12700

Total Cores2

Q71211C: 2
Q71221C: 2
Q71231C: 4
Q71251C: 6
Q71271C: 12

# of Performance-cores2

Q71211C: 2
Q71221C: 2
Q71231C: 4
Q71251C: 6
Q71271C: 8

# of Efficient-cores-

Q71211C: -
Q71221C: -
Q71231C: -
Q71251C: -
Q71271C: 4

# of Threads2

Q71211C: 2
Q71221C: 4
Q71231C: 8
Q71251C: 12
Q71271C: 20

Max Turbo Frequency

Q71231C: 4.30 GHz
Q71251C: 4.40 GHz
Q71271C: 4.80 GHz

Performance-core Base Frequency3.40 GHz

Q71211C: 3.40 GHz
Q71221C: 3.70 GHz
Q71231C: 3.30 GHz
Q71251C: 2.50 GHz
Q71271C: 2.10 GHz

Performance-core Max Turbo Frequency-

Q71211C: -
Q71221C: -
Q71231C: 4.30 GHz
Q71251C: 4.40 GHz
Q71271C: 4.80 GHz

Efficient-core Base Frequency-

Q71211C: -
Q71221C: -
Q71231C: -
Q71251C: -
Q71271C: 1.60 GHz

Efficient-core Max Turbo Frequency-

Q71211C: -
Q71221C: -
Q71231C: -
Q71251C: -
Q71271C: 3.60 GHz

Cache4M

Q71211C: 4M
Q71221C: 6M
Q71231C: 12M
Q71251C: 18M
Q71271C: 25M

Processor GraphicsIntel UHD Graphics 710

Q71211C: Intel UHD Graphics 710
Q71221C: Intel UHD Graphics 710
Q71231C: Intel UHD Graphics 730
Q71251C: Intel UHD Graphics 730
Q71271C: Intel UHD Graphics 770

TDP46W

Q71211C: 46W
Q71221C: 46W
Q71231C: 60W-89W
Q71251C: 65W-117W
Q71271C: 65W-180W

Ordering CodeQ71311C

Q71211C: Q71311C
Q71221C: Q71321C
Q71231C: Q71331C
Q71251C: Q71351C
Q71271C: Q71371C

CaseS15

Q71211C: S15
Q71221C: S15
Q71231C: S15
Q71251C: S15
Q71271C: S15

Code NameRaptor Lake S

Q71211C: Raptor Lake S
Q71221C: Raptor Lake S
Q71231C: Raptor Lake S
Q71251C: Raptor Lake S
Q71271C: Raptor Lake S

Processor TypeCeleron

Q71211C: Celeron
Q71221C: Pentium
Q71231C: Core i3
Q71251C: Core i5
Q71271C: Core i7

Processor Number-

Q71211C: -
Q71221C: -
Q71231C: 13100
Q71251C: 13400
Q71271C: 13700

Total Cores-

Q71211C: -
Q71221C: -
Q71231C: 4
Q71251C: 10
Q71271C: 16

# of Performance-cores-

Q71211C: -
Q71221C: -
Q71231C: 4
Q71251C: 6
Q71271C: 8

# of Efficient-cores-

Q71211C: -
Q71221C: -
Q71231C: -
Q71251C: 4
Q71271C: 8

# of Threads-

Q71211C: -
Q71221C: -
Q71231C: 8
Q71251C: 16
Q71271C: 24

Max Turbo Frequency-

Q71211C: -
Q71221C: -
Q71231C: 4.50 GHz
Q71251C: 4.60 GHz
Q71271C: 5.10 GHz

Performance-core Base Frequency-

Q71211C: -
Q71221C: -
Q71231C: 3.40 GHz
Q71251C: 2.50 GHz
Q71271C: 2.10 GHz

Performance-core Max Turbo Frequency-

Q71211C: -
Q71221C: -
Q71231C: 4.50 GHz
Q71251C: 4.60 GHz
Q71271C: 5.10 GHz

Efficient-core Base Frequency-

Q71211C: -
Q71221C: -
Q71231C: -
Q71251C: -
Q71271C: 1.50 GHz

Efficient-core Max Turbo Frequency-

Q71211C: -
Q71221C: -
Q71231C: -
Q71251C: -
Q71271C: 4.10 GHz

Cache-

Q71211C: -
Q71221C: -
Q71231C: 12M
Q71251C: 20M
Q71271C: 30M

Processor Graphics-

Q71211C: -
Q71221C: -
Q71231C: Intel UHD Graphics 730
Q71251C: Intel UHD Graphics 730
Q71271C: Intel UHD Graphics 770

TDP

Q71231C: 60W-110W
Q71251C: 65-148W
Q71271C: 65W-219W

Category	Description
EDP	1
RJ-45	4
USB 3.0	4
USB 2.0	2
Serial Port	6 × RS-232
RS-485	2
VGA	1
Audio	1
TPM 2.0	1 (SLB9670)
