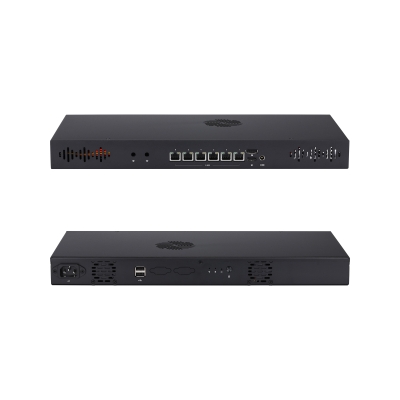

Mini PC Q71200G6 S15 Series
Q71200G6-1U17 is a powerful 1U rack mount mini PC powered by 12th Gen Intel Alder Lake-S processor. Featuring 6× Intel 2.5G LAN ports, dual M.2 expansion, flexible storage options and industrial-grade design, it is ideal for network appliances, edge computing, firewall, virtualization and industrial applications.
- Total of Network Interfaces
- 6
- SFP(+)
- 0
- 10G RJ45
- 0
- 2.5G RJ45
- 6
- 1G RJ45
- 0
- Serial Ports
- 0
Tell us the configuration and quantity you need.
Overview
Main Features
Intel 12th Alder lake -S Processor
Intel 13th Raptor Lake-S Processor
2 × DDR4 3200 MHz SO-DIMM Up to 64GB
1 × Display Port, 1 × HDMI
2 × USB 2.0, 3 × M.2, 2 × SATA 3.0
6 × Intel I225-V/I226-V 2.5 Gigabit LAN
Specifications
| Processor System | |
| CPU | Intel12th Alder lake -S Processor Intel 13th Raptor Lake-S Processor |
| CPU TDP | By CPU |
| Memory | 2 × DDR4 SO-DIMM Socket (Up to 64G) |
| Chipset | Intel H610 |
| Graphics | By CPU |
| LAN Chipset | 6 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| Audio | No |
| Watch Dog | Yes |
| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| Serial Port | 0 |
| USB | 2 × USB 2.0 |
| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 1 × Display Port, 1 × HDMI |
| LAN | 6 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| USB | 0 |
| Audio | 0 |
| Serial Port | 0 |
| Storage | |
| Type | Option 1: 4 × 2.5-inch HDD/SSD Option 2: 2 × 2.5-inch HDD/SSD + 1 × 3.5-inch HDD 1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4) |
| Expansion | |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280) 1 × M.2 for Wi-Fi (E key, Type: 2230) 1 × M.2 for 4G/5G (B key, Type: 3042/3052) |
| SIM Card Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| CMOS Clear Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 0 |
| Serial Port | 0 |
| Power Requirement | |
| Power Adapter | DC 12V (5.5mm, 2.5mm) |
| AC Input | AC 100-240V by Default |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 440 × 44 × 202mm |
| Weight | 2.2kg |
| Mounting | No |
| Packaging Dimension | 545 × 90 × 255mm |
| Kensington Lock | No |
| Cooling Mode | Fan |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
In the box
Models & options
Ordering and Specifications Information
Quick Order Model: Q71231G6-1U17
Custom Options
| Ordering Code | Q71211G6 | Q71221G6 | Q71231G6 | Q71251G6 | Q71271G6 |
| Case | 1U17 | 1U17 | 1U17 | 1U17 | 1U17 |
| Code Name | Alder Lake S | Alder Lake S | Alder Lake S | Alder Lake S | Alder Lake S |
| Processor Type | Celeron | Pentium | Core i3 | Core i5 | Core i7 |
| Processor Number | G6900 | G7400 | 12100 | 12400 | 12700 |
| Total Cores | 2 | 2 | 4 | 6 | 12 |
| # of Performance-cores | 2 | 2 | 4 | 6 | 8 |
| # of Efficient-cores | 4 | ||||
| # of Threads | 2 | 4 | 8 | 12 | 20 |
| Max Turbo Frequency | 4.30 GHz | 4.40 GHz | 4.80 GHz | ||
| Performance-core Base Frequency | 3.40 GHz | 3.70 GHz | 3.30 GHz | 2.50 GHz | 2.10 GHz |
| Performance-core Max Turbo Frequency | - | - | 4.30 GHz | 4.40 GHz | 4.80 GHz |
| Efficient-core Base Frequency | 1.60 GHz | ||||
| Efficient-core Max Turbo Frequency | 3.60 GHz | ||||
| Cache | 4M | 6M | 12M | 18M | 25M |
| Processor Graphics | Intel UHD Graphics 710 | Intel UHD Graphics 710 | Intel UHD Graphics 730 | Intel UHD Graphics 730 | Intel UHD Graphics 770 |
| TDP | 46W | 46W | 60W-89W | 65W-117W | 65W-180W |
| Ordering Code | Q71311G6 | Q71321G6 | Q71331G6 | Q71351G6 | Q71371G6 |
| Case | 1U17 | 1U17 | 1U17 | 1U17 | 1U17 |
| Code Name | Raptor Lake S | Raptor Lake S | Raptor Lake S | Raptor Lake S | Raptor Lake S |
| Processor Type | Celeron | Pentium | Core i3 | Core i5 | Core i7 |
| Processor Number | 13100 | 13400 | 13700 | ||
| Total Cores | 4 | 10 | 16 | ||
| # of Performance-cores | 4 | 6 | 8 | ||
| # of Efficient-cores | 4 | 8 | |||
| # of Threads | 8 | 16 | 24 | ||
| Max Turbo Frequency | 4.50 GHz | 4.60 GHz | 5.10 GHz | ||
| Performance-core Base Frequency | 3.40 GHz | 2.50 GHz | 2.10 GHz | ||
| Performance-core Max Turbo Frequency | 4.50 GHz | 4.60 GHz | 5.10 GHz | ||
| Efficient-core Base Frequency | 1.50 GHz | ||||
| Efficient-core Max Turbo Frequency | 4.10 GHz | ||||
| Cache | 12M | 20M | 30M | ||
| Processor Graphics | Intel UHD Graphics 730 | Intel UHD Graphics 730 | Intel UHD Graphics 770 | ||
| TDP | 60W-110W | 65-148W | 65W-219W |
Case1U17
- Q71211G6
- 1U17
- Q71221G6
- 1U17
- Q71231G6
- 1U17
- Q71251G6
- 1U17
- Q71271G6
- 1U17
Code NameAlder Lake S
- Q71211G6
- Alder Lake S
- Q71221G6
- Alder Lake S
- Q71231G6
- Alder Lake S
- Q71251G6
- Alder Lake S
- Q71271G6
- Alder Lake S
Processor TypeCeleron
- Q71211G6
- Celeron
- Q71221G6
- Pentium
- Q71231G6
- Core i3
- Q71251G6
- Core i5
- Q71271G6
- Core i7
Processor NumberG6900
- Q71211G6
- G6900
- Q71221G6
- G7400
- Q71231G6
- 12100
- Q71251G6
- 12400
- Q71271G6
- 12700
Total Cores2
- Q71211G6
- 2
- Q71221G6
- 2
- Q71231G6
- 4
- Q71251G6
- 6
- Q71271G6
- 12
# of Performance-cores2
- Q71211G6
- 2
- Q71221G6
- 2
- Q71231G6
- 4
- Q71251G6
- 6
- Q71271G6
- 8
# of Efficient-cores
- Q71271G6
- 4
# of Threads2
- Q71211G6
- 2
- Q71221G6
- 4
- Q71231G6
- 8
- Q71251G6
- 12
- Q71271G6
- 20
Max Turbo Frequency
- Q71231G6
- 4.30 GHz
- Q71251G6
- 4.40 GHz
- Q71271G6
- 4.80 GHz
Performance-core Base Frequency3.40 GHz
- Q71211G6
- 3.40 GHz
- Q71221G6
- 3.70 GHz
- Q71231G6
- 3.30 GHz
- Q71251G6
- 2.50 GHz
- Q71271G6
- 2.10 GHz
Performance-core Max Turbo Frequency-
- Q71211G6
- -
- Q71221G6
- -
- Q71231G6
- 4.30 GHz
- Q71251G6
- 4.40 GHz
- Q71271G6
- 4.80 GHz
Efficient-core Base Frequency
- Q71271G6
- 1.60 GHz
Efficient-core Max Turbo Frequency
- Q71271G6
- 3.60 GHz
Cache4M
- Q71211G6
- 4M
- Q71221G6
- 6M
- Q71231G6
- 12M
- Q71251G6
- 18M
- Q71271G6
- 25M
Processor GraphicsIntel UHD Graphics 710
- Q71211G6
- Intel UHD Graphics 710
- Q71221G6
- Intel UHD Graphics 710
- Q71231G6
- Intel UHD Graphics 730
- Q71251G6
- Intel UHD Graphics 730
- Q71271G6
- Intel UHD Graphics 770
TDP46W
- Q71211G6
- 46W
- Q71221G6
- 46W
- Q71231G6
- 60W-89W
- Q71251G6
- 65W-117W
- Q71271G6
- 65W-180W
Ordering CodeQ71311G6
- Q71211G6
- Q71311G6
- Q71221G6
- Q71321G6
- Q71231G6
- Q71331G6
- Q71251G6
- Q71351G6
- Q71271G6
- Q71371G6
Case1U17
- Q71211G6
- 1U17
- Q71221G6
- 1U17
- Q71231G6
- 1U17
- Q71251G6
- 1U17
- Q71271G6
- 1U17
Code NameRaptor Lake S
- Q71211G6
- Raptor Lake S
- Q71221G6
- Raptor Lake S
- Q71231G6
- Raptor Lake S
- Q71251G6
- Raptor Lake S
- Q71271G6
- Raptor Lake S
Processor TypeCeleron
- Q71211G6
- Celeron
- Q71221G6
- Pentium
- Q71231G6
- Core i3
- Q71251G6
- Core i5
- Q71271G6
- Core i7
Processor Number
- Q71231G6
- 13100
- Q71251G6
- 13400
- Q71271G6
- 13700
Total Cores
- Q71231G6
- 4
- Q71251G6
- 10
- Q71271G6
- 16
# of Performance-cores
- Q71231G6
- 4
- Q71251G6
- 6
- Q71271G6
- 8
# of Efficient-cores
- Q71251G6
- 4
- Q71271G6
- 8
# of Threads
- Q71231G6
- 8
- Q71251G6
- 16
- Q71271G6
- 24
Max Turbo Frequency
- Q71231G6
- 4.50 GHz
- Q71251G6
- 4.60 GHz
- Q71271G6
- 5.10 GHz
Performance-core Base Frequency
- Q71231G6
- 3.40 GHz
- Q71251G6
- 2.50 GHz
- Q71271G6
- 2.10 GHz
Performance-core Max Turbo Frequency
- Q71231G6
- 4.50 GHz
- Q71251G6
- 4.60 GHz
- Q71271G6
- 5.10 GHz
Efficient-core Base Frequency
- Q71271G6
- 1.50 GHz
Efficient-core Max Turbo Frequency
- Q71271G6
- 4.10 GHz
Cache
- Q71231G6
- 12M
- Q71251G6
- 20M
- Q71271G6
- 30M
Processor Graphics
- Q71231G6
- Intel UHD Graphics 730
- Q71251G6
- Intel UHD Graphics 730
- Q71271G6
- Intel UHD Graphics 770
TDP
- Q71231G6
- 60W-110W
- Q71251G6
- 65-148W
- Q71271G6
- 65W-219W
| Category | Description |
| USB 3.0 | 4 |
| USB 2.0 | 2 |
| Serial Port | 6 × RS-232 |
| RS-485 | 2 |
| VGA | 1 |
| Audio | 2 |
| TPM 2.0 | 1 (SLB9670) |
