Mini PC Q71200X S18 Series
Q71200X industrial mini PC with Intel 12th/13th, 64GB DDR4, dual 2.5GbE, 6×RS-232, M.2+SATA storage, and triple display (HDMI/DP/VGA). Built for IoT, automation, serial devices, and edge computing.
- NIC
- 2
- USB
- 4 × USB 3.0, 4 × USB 2.0
- RS-232
- 6 × RS-232
- RS-485
- None
- VGA
- Yes
- PS/2
- None
- GPIO
- Yes
Tell us the configuration and quantity you need.
OVERVIEW
Main Features
Intel 12thAlder lake -S Processor
Intel 13thRaptor Lake-S Processor
2 × DDR4 3200 MHz SO-DIMM up to 64GB
1 × Display Port, 1 × HDMI, 1 × VGA
4 × USB 3.0, 4 × USB 2.0, 3 × M.2, 2 × SATA 3.0
2 × Intel I225-V/I226-V 2.5 Gigabit LAN
6 × RS-232
SPECIFICATION

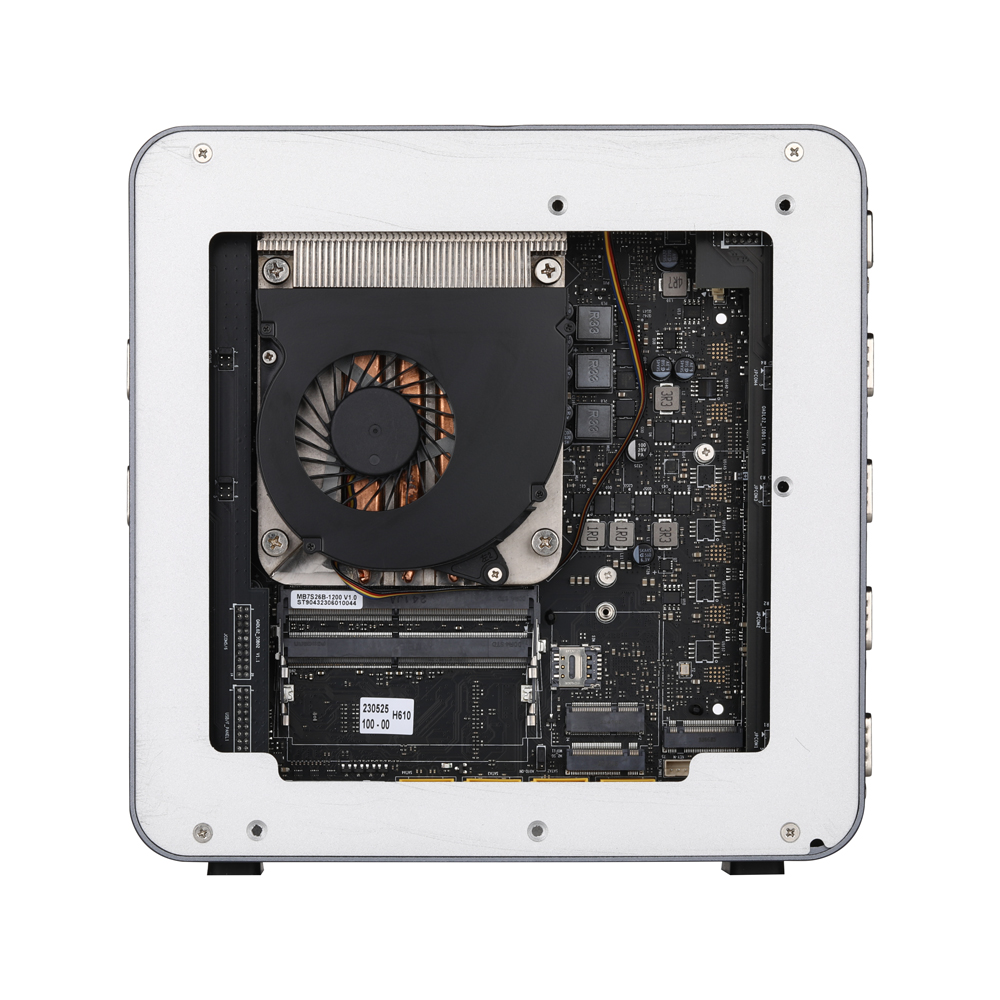

| Processor System | |
| CPU | Intel12th Alder lake -S Processor Intel 13th Raptor Lake-S Processor |
| CPU TDP | By CPU |
| Memory | 2 × DDR4 SO-DIMM Socket (Up to 64G) |
| Chipset | Intel H610 |
| Graphics | By CPU |
| LAN Chipset | 2 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |

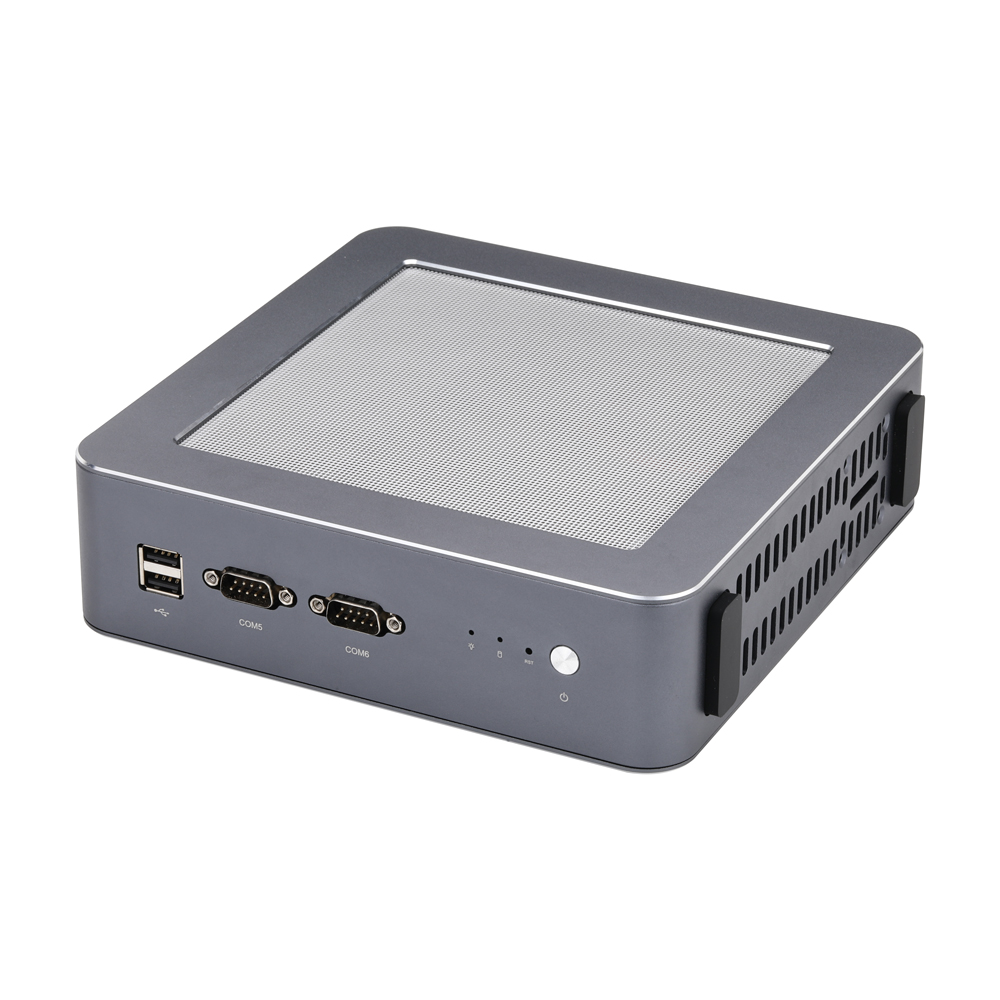

| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| Serial Port | 2 × RS-232 |
| USB | 2 × USB 2.0 |

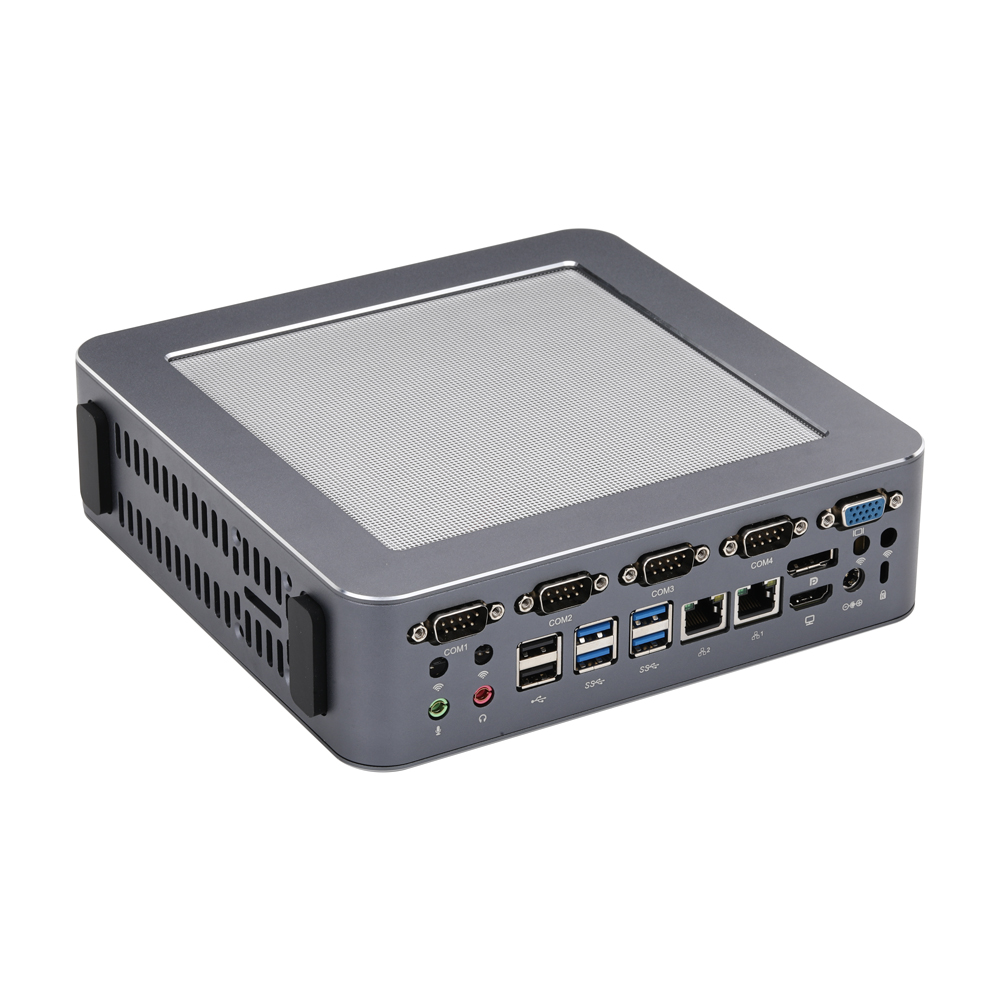

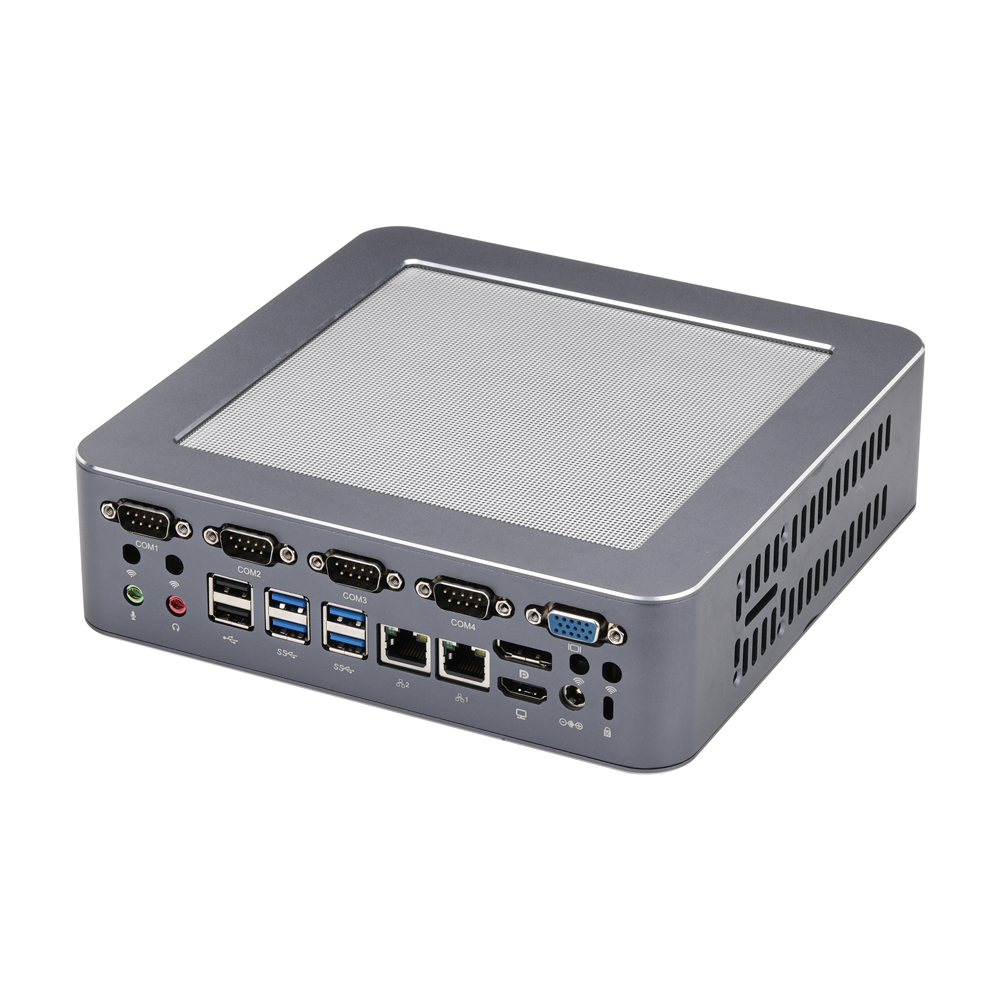

| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 1 × Display Port, 1 × HDMI, 1 × VGA |
| LAN | 2 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| USB | 4 × USB 3.0, 2 × USB 2.0 |
| Audio | 1 × Mic-in, 1 × Line-out |
| Serial Port | 4 × RS-232 |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4) |
| Expansion | |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280) 1 × M.2 for Wi-Fi (E key, Type: 2230) 1 × M.2 for 4G/5G (B key, Type: 3042/3052) 5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization |
| SIM Card Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| CMOS Clear Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 2 × RS-232 (COM3/4 can be set up as RS -422/RS-485) |
| Serial Port | COM1-COM6 Support 5V/12V |
| Power Requirement | |
| Power Adapter | 19V4.74A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 200 × 200 × 57mm |
| Weight | 1.65kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 285 × 260 × 120mm |
| Kensington Lock | Yes |
| Cooling Mode | Fan |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
PACKING
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
ItemQuantity
- 1Mini PC1
- 2Silicone Mat4
- 3VESA Bracket1
- 4Screws for VESA Bracket1
- 5Power Adapter1
- 6AC Power Cord1
- 7Screws for SATA SSD/HDD1
- 8SATA cable for SSD/HDD1Option
- 9Antennas2Option
ORDERING
Ordering and Specifications Information
Quick Order Model: Q71231X-S18
Custom Options
| Ordering Code | Q71211X | Q71221X | Q71231X | Q71251X | Q71271X |
| Case | S18 | S18 | S18 | S18 | S18 |
| Code Name | Alder Lake S | Alder Lake S | Alder Lake S | Alder Lake S | Alder Lake S |
| Processor Type | Celeron | Pentium | Core i3 | Core i5 | Core i7 |
| Processor Number | G6900 | G7400 | 12100 | 12400 | 12700 |
| Total Cores | 2 | 2 | 4 | 6 | 12 |
| # of Performance-cores | 2 | 2 | 4 | 6 | 8 |
| # of Efficient-cores | 4 | ||||
| # of Threads | 2 | 4 | 8 | 12 | 20 |
| Max Turbo Frequency | 4.30 GHz | 4.40 GHz | 4.80 GHz | ||
| Performance-core Base Frequency | 3.40 GHz | 3.70 GHz | 3.30 GHz | 2.50 GHz | 2.10 GHz |
| Performance-core Max Turbo Frequency | - | - | 4.30 GHz | 4.40 GHz | 4.80 GHz |
| Efficient-core Base Frequency | 1.60 GHz | ||||
| Efficient-core Max Turbo Frequency | 3.60 GHz | ||||
| Cache | 4M | 6M | 12M | 18M | 25M |
| Processor Graphics | Intel UHD Graphics 710 | Intel UHD Graphics 710 | Intel UHD Graphics 730 | Intel UHD Graphics 730 | Intel UHD Graphics 770 |
| TDP | 46W | 46W | 60W-89W | 65W-117W | 65W-180W |
| Ordering Code | Q71311X | Q71321X | Q71331X | Q71351X | Q71371X |
| Case | S18 | S18 | S18 | S18 | S18 |
| Code Name | Raptor Lake S | Raptor Lake S | Raptor Lake S | Raptor Lake S | Raptor Lake S |
| Processor Type | Celeron | Pentium | Core i3 | Core i5 | Core i7 |
| Processor Number | 13100 | 13400 | 13700 | ||
| Total Cores | 4 | 10 | 16 | ||
| # of Performance-cores | 4 | 6 | 8 | ||
| # of Efficient-cores | 4 | 8 | |||
| # of Threads | 8 | 16 | 24 | ||
| Max Turbo Frequency | 4.50 GHz | 4.60 GHz | 5.10 GHz | ||
| Performance-core Base Frequency | 3.40 GHz | 2.50 GHz | 2.10 GHz | ||
| Performance-core Max Turbo Frequency | 4.50 GHz | 4.60 GHz | 5.10 GHz | ||
| Efficient-core Base Frequency | 1.50 GHz | ||||
| Efficient-core Max Turbo Frequency | 4.10 GHz | ||||
| Cache | 12M | 20M | 30M | ||
| Processor Graphics | Intel UHD Graphics 730 | Intel UHD Graphics 730 | Intel UHD Graphics 770 | ||
| TDP | 60W-110W | 65-148W | 65W-219W |
CaseS18
- Q71211X
- S18
- Q71221X
- S18
- Q71231X
- S18
- Q71251X
- S18
- Q71271X
- S18
Code NameAlder Lake S
- Q71211X
- Alder Lake S
- Q71221X
- Alder Lake S
- Q71231X
- Alder Lake S
- Q71251X
- Alder Lake S
- Q71271X
- Alder Lake S
Processor TypeCeleron
- Q71211X
- Celeron
- Q71221X
- Pentium
- Q71231X
- Core i3
- Q71251X
- Core i5
- Q71271X
- Core i7
Processor NumberG6900
- Q71211X
- G6900
- Q71221X
- G7400
- Q71231X
- 12100
- Q71251X
- 12400
- Q71271X
- 12700
Total Cores2
- Q71211X
- 2
- Q71221X
- 2
- Q71231X
- 4
- Q71251X
- 6
- Q71271X
- 12
# of Performance-cores2
- Q71211X
- 2
- Q71221X
- 2
- Q71231X
- 4
- Q71251X
- 6
- Q71271X
- 8
# of Efficient-cores
- Q71271X
- 4
# of Threads2
- Q71211X
- 2
- Q71221X
- 4
- Q71231X
- 8
- Q71251X
- 12
- Q71271X
- 20
Max Turbo Frequency
- Q71231X
- 4.30 GHz
- Q71251X
- 4.40 GHz
- Q71271X
- 4.80 GHz
Performance-core Base Frequency3.40 GHz
- Q71211X
- 3.40 GHz
- Q71221X
- 3.70 GHz
- Q71231X
- 3.30 GHz
- Q71251X
- 2.50 GHz
- Q71271X
- 2.10 GHz
Performance-core Max Turbo Frequency-
- Q71211X
- -
- Q71221X
- -
- Q71231X
- 4.30 GHz
- Q71251X
- 4.40 GHz
- Q71271X
- 4.80 GHz
Efficient-core Base Frequency
- Q71271X
- 1.60 GHz
Efficient-core Max Turbo Frequency
- Q71271X
- 3.60 GHz
Cache4M
- Q71211X
- 4M
- Q71221X
- 6M
- Q71231X
- 12M
- Q71251X
- 18M
- Q71271X
- 25M
Processor GraphicsIntel UHD Graphics 710
- Q71211X
- Intel UHD Graphics 710
- Q71221X
- Intel UHD Graphics 710
- Q71231X
- Intel UHD Graphics 730
- Q71251X
- Intel UHD Graphics 730
- Q71271X
- Intel UHD Graphics 770
TDP46W
- Q71211X
- 46W
- Q71221X
- 46W
- Q71231X
- 60W-89W
- Q71251X
- 65W-117W
- Q71271X
- 65W-180W
Ordering CodeQ71311X
- Q71211X
- Q71311X
- Q71221X
- Q71321X
- Q71231X
- Q71331X
- Q71251X
- Q71351X
- Q71271X
- Q71371X
CaseS18
- Q71211X
- S18
- Q71221X
- S18
- Q71231X
- S18
- Q71251X
- S18
- Q71271X
- S18
Code NameRaptor Lake S
- Q71211X
- Raptor Lake S
- Q71221X
- Raptor Lake S
- Q71231X
- Raptor Lake S
- Q71251X
- Raptor Lake S
- Q71271X
- Raptor Lake S
Processor TypeCeleron
- Q71211X
- Celeron
- Q71221X
- Pentium
- Q71231X
- Core i3
- Q71251X
- Core i5
- Q71271X
- Core i7
Processor Number
- Q71231X
- 13100
- Q71251X
- 13400
- Q71271X
- 13700
Total Cores
- Q71231X
- 4
- Q71251X
- 10
- Q71271X
- 16
# of Performance-cores
- Q71231X
- 4
- Q71251X
- 6
- Q71271X
- 8
# of Efficient-cores
- Q71251X
- 4
- Q71271X
- 8
# of Threads
- Q71231X
- 8
- Q71251X
- 16
- Q71271X
- 24
Max Turbo Frequency
- Q71231X
- 4.50 GHz
- Q71251X
- 4.60 GHz
- Q71271X
- 5.10 GHz
Performance-core Base Frequency
- Q71231X
- 3.40 GHz
- Q71251X
- 2.50 GHz
- Q71271X
- 2.10 GHz
Performance-core Max Turbo Frequency
- Q71231X
- 4.50 GHz
- Q71251X
- 4.60 GHz
- Q71271X
- 5.10 GHz
Efficient-core Base Frequency
- Q71271X
- 1.50 GHz
Efficient-core Max Turbo Frequency
- Q71271X
- 4.10 GHz
Cache
- Q71231X
- 12M
- Q71251X
- 20M
- Q71271X
- 30M
Processor Graphics
- Q71231X
- Intel UHD Graphics 730
- Q71251X
- Intel UHD Graphics 730
- Q71271X
- Intel UHD Graphics 770
TDP
- Q71231X
- 60W-110W
- Q71251X
- 65-148W
- Q71271X
- 65W-219W
Custom Options
| Category | Description |
| EDP | 1 |
| RJ-45 | 4 |
| TPM 2.0 | 1 (SLB9670) |
