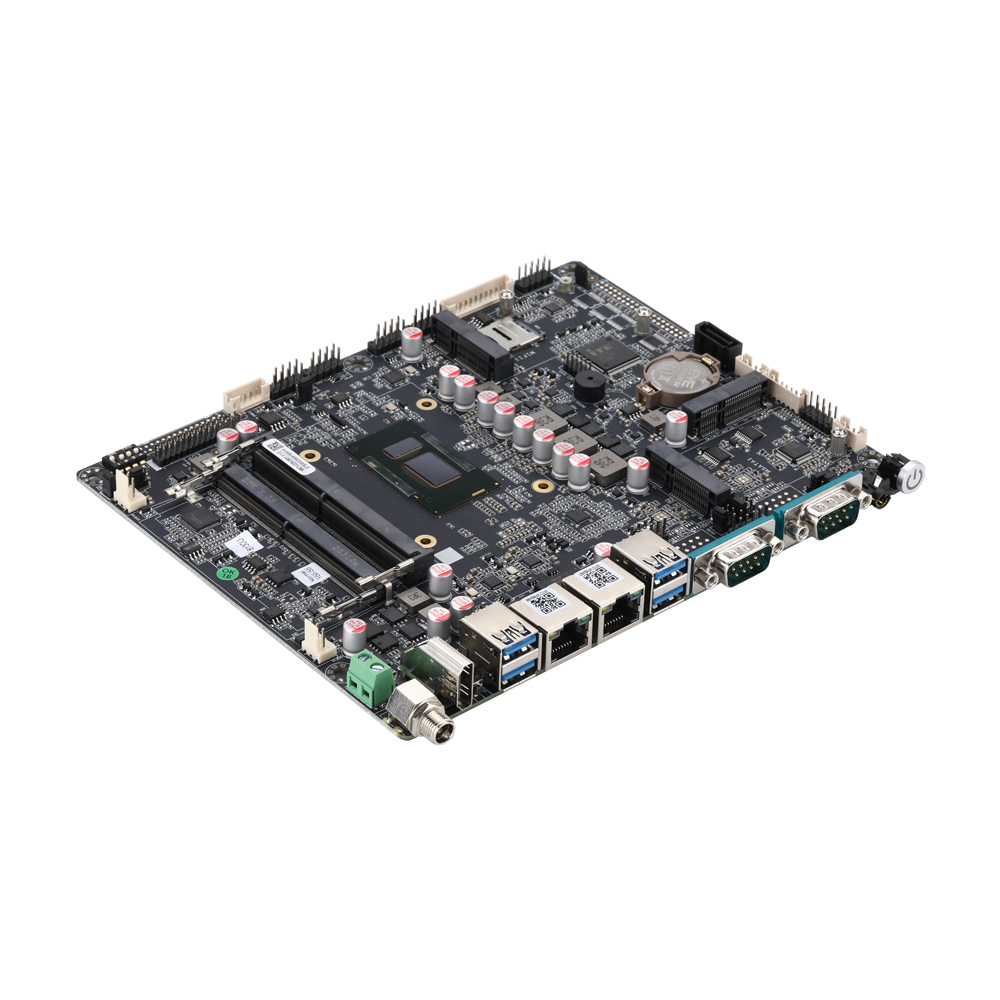

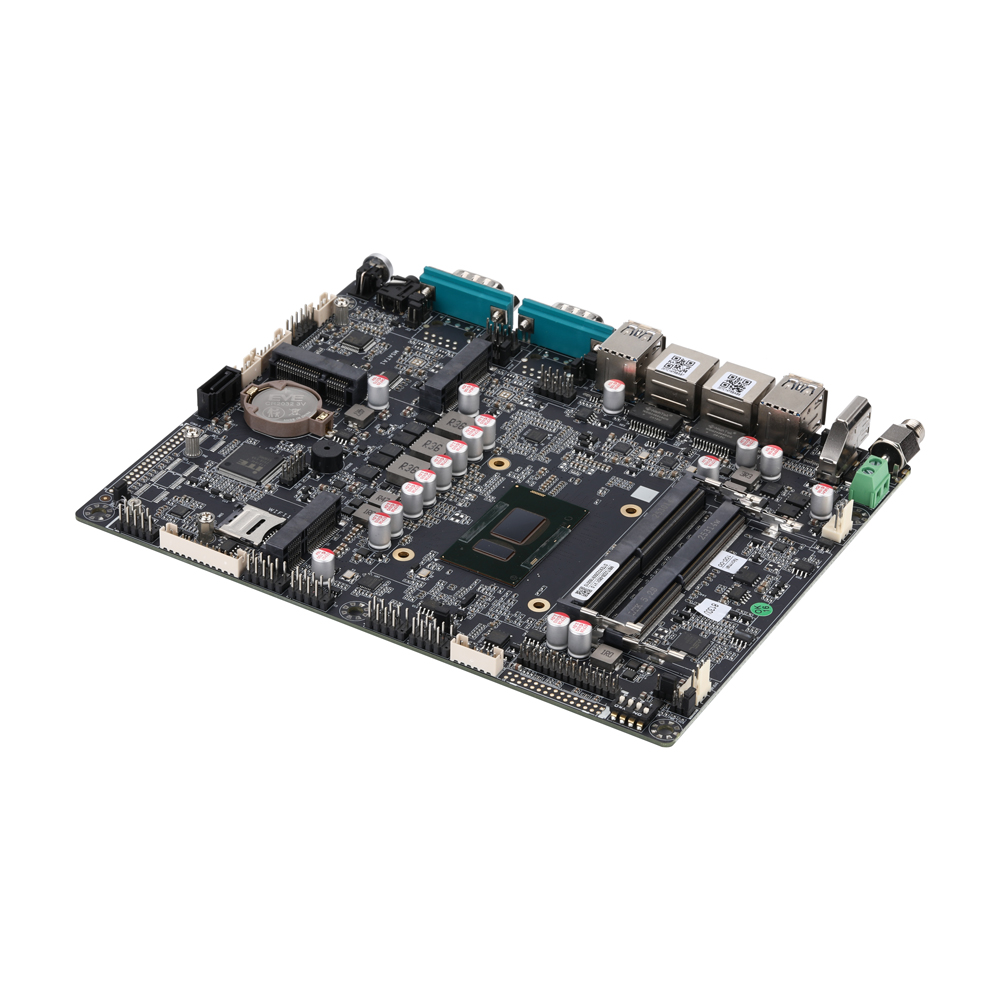

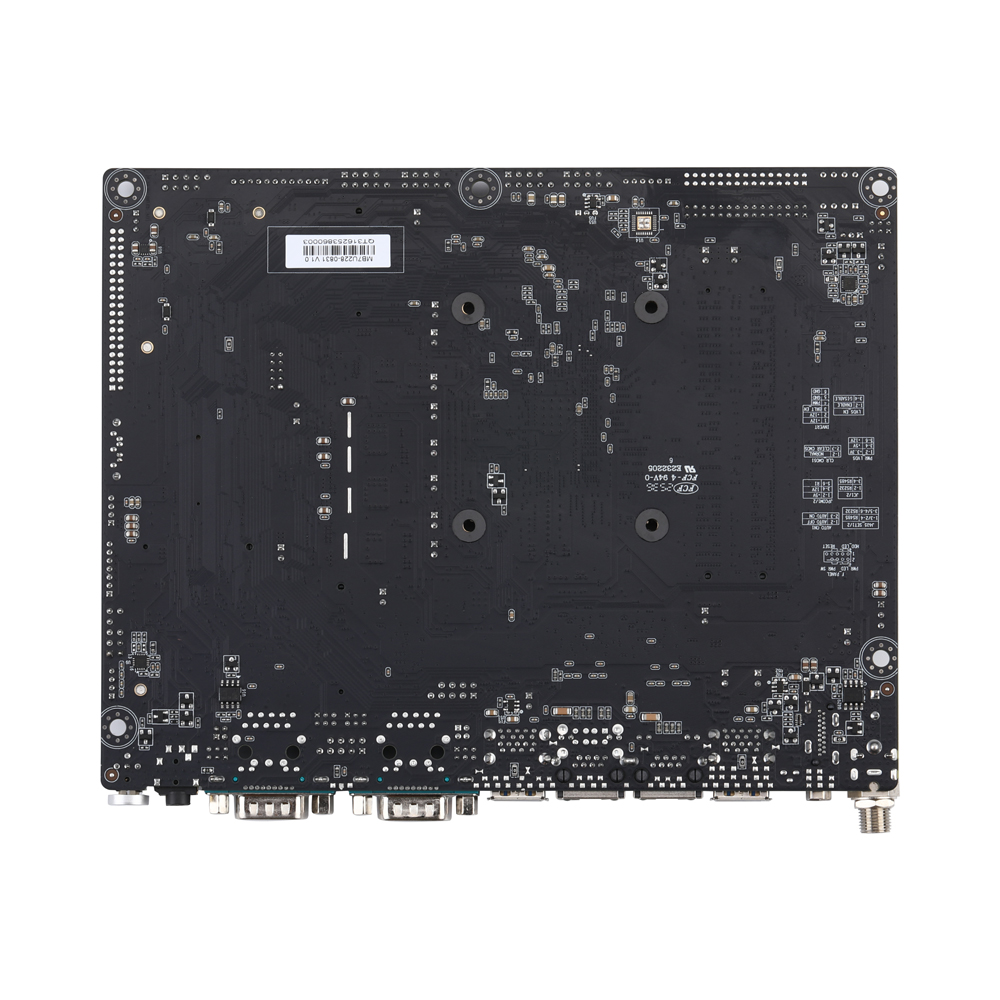

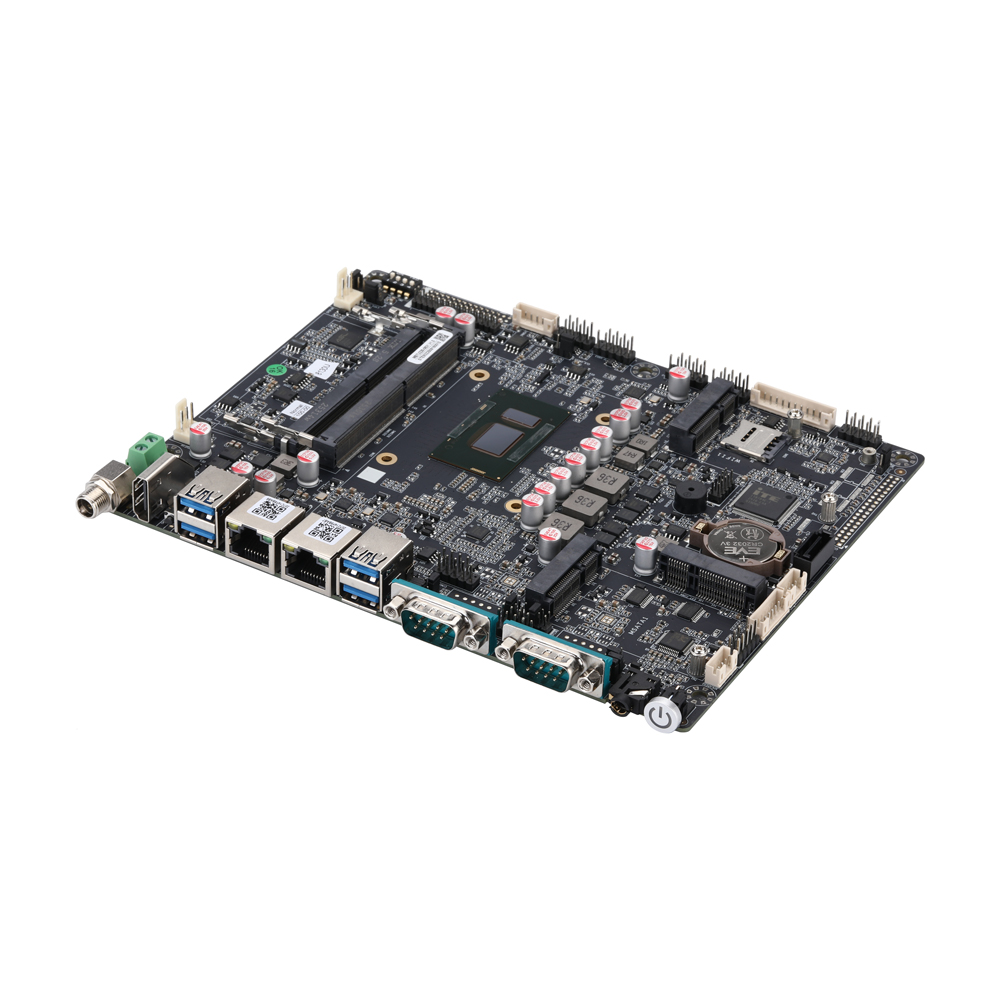

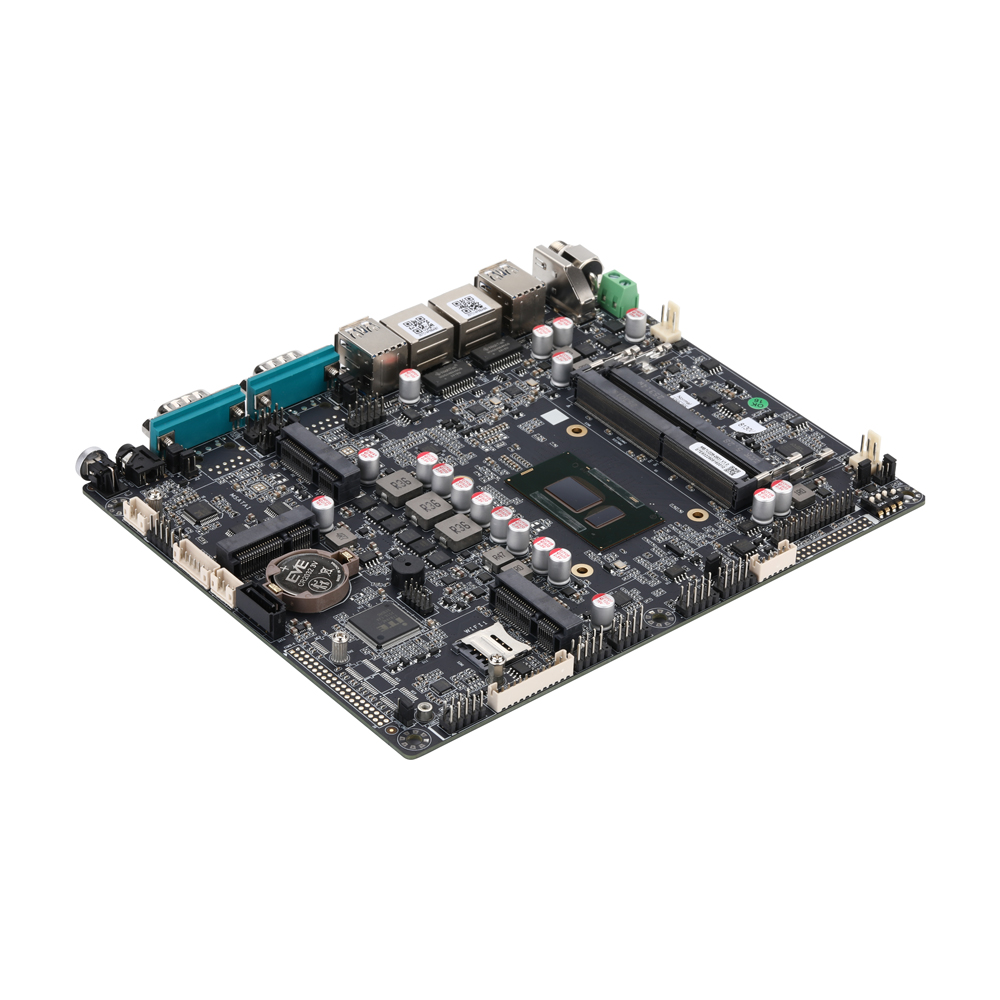

Motherboard MB7U268-0600 Series

Intel Skylake/Kaby Lake-U based industrial embedded motherboard with dual Gigabit LAN, RS232/RS485 serial ports, multiple display outputs and expansion slots, designed for compact industrial computing and network appliance systems.

NIC
2
USB
4
RS-232
10
RS-485
2
VGA
1
PS/2
0
GPIO
0
Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

  • Intel 6th Skylake-U Processor

  • Intel 7th Kabylake-U Processor

  • Intel 8th Kabylake-R-U Processor

  • 1 × VGA, 1 × LVDS, 1 × EDP

  • 10 × RS-232, 2 × RS-485

  • 4 × USB 3.0, 1 × SATA 3.0

  • 2 × Mini-PCIe

  • 2 × Realtek Gigabit LAN

Specifications

Processor System
Dimension190 × 150mm
CPUIntel 6th Skylake-U Processor
Intel 7th Kabylake-U Processor
Intel 8th Kabylake-R-U Processor
Core NumberBy CPU
Max. SpeedBy CPU
L2 CacheBy CPU
ChipsetBy CPU
BIOSUEFI
Expansion Slot
Mini-PCIe1 × Mini PCIe, Half-length Mini PCIe for Wi-Fi, Full-
length Mini PCIe for 4G by Default
mSATA1 × Full-length Mini PCIe for SSD
Memory
TechnologyDDR4 2133MHz SDRAM
Max.64GB
Socket2 × SO-DIMM
Graphics
ControllerBy CPU
VRAMShared Memory
VGA0
LVDSYES
HDMI1 (Support HDMI 1.4a)
Multi DisplayYes
Ethernet
Interface10/100/1000Mbps
Controller2 × Realtek Gigabit LAN
Connector2 × RJ-45
Audio
ControllerRealtek HD Audio
SATA
Max. Data Transfer RateSATA 3.0 (6.0Gb/S)
Accessories
AccessoriesCable for HDD, Cable for Serial Port
Real I/O
DC-IN1
Reset Button1
HDMI1
Ethernet2
USB4 × USB 3.0
Serial Port2 × RS-232
Audio2 (Mic-in, Line-out)
Power Button1 × Power Button, 1 ×Power LED
Internal Connector
TMP1 (Option)
VGA Header1, 2 × 10Pin, Pitch 2.0mm
Serial Port6, 2 × 20Pin, Pitch 2.0mm
Mini-PCIe4 × RS-232(Option)
RS-485COM1/2 can be set up as RS-485, support 5V/12V
SIM Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.0mm
Clear CMOS JumperYes, 1 × 3Pin, Pitch 2.0mm
GPIO Header1, 2 × 5Pin, Pitch 2.0mm
EDP Header1, 2 × 15Pin, Pitch 2.0mm(Option)
LVDS Header1, 2 × 15Pin, Pitch 2.0mm
USB2.0 Header1,2 × 15Pin, Pitch 2.0mm
Front Panel Header1, 2 × 5Pin, Pitch 2.54mm
Speakers Header1, 2 × 5Pin, Pitch 2.54mm
1, 1 × 4Pin, Pitch PH2.0mm
PS22, 1 × 7Pin, Pitch PH2.0mm
Power Header1, 1 × 2Pin, Pitch 5.0mm
Watchdog Timer
OutputFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min
Power Requirement
Input PWR12V DC in, 5.5mm/2.5mm
Environment
Operating Temperature0-50 ℃
OS Support
OSWindows 10, Linux
Windows 7 (Only for 6th Gen Skylake)

In the box

Packing List

NO.CategoryQuantityRemark
1Motherboard1
2HDD cable1
3Radiator1Option
4Fan1Option
5Serial cableSeveral Depending on the model
ItemQuantity
  • 1
    Motherboard
    1
  • 2
    HDD cable
    1
  • 3
    Radiator
    Option
    1
  • 4
    Fan
    Option
    1
  • 5
    Serial cable
    Depending on the model
    Several

Models & options

Ordering and Specifications Information

Quick Order Model: MB4U260-0912

Ordering CodeCode NameProcessor TypeProcessor Number# of Cores# of Threads Base FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP
MB4U260-0912Whiskey LakeCeleron4305U222.2GHz/2MIntel UHD Graphics15W
MB4U260-0921Whiskey LakePentium5405U242.3GHz/2MIntel UHD Graphics15W
MB4U260-0931Whiskey LakeCore i38145U242.1GHz3.9GHz4MIntel UHD Graphics15W
MB4U260-0951Whiskey LakeCore i58265U481.6GHz3.9GHz6MIntel UHD Graphics15W
MB4U260-0971Whiskey LakeCore i78565U481.8GHz4.6GHz8MIntel UHD Graphics15W
MB4U260-0952Coffee LakeCore i58260U481.6GHz3.9GHz6MIntel UHD Graphics 62015W
MB4U260-1011Comet LakeCeleron5205U221.9GHz/2MIntel UHD Graphics15W
MB4U260-1012Comet LakeCeleron5305U222.3GHz/2MIntel UHD Graphics15W
MB4U260-1021Comet LakePentium6405U242.4GHz/2MIntel UHD Graphics15W
MB4U260-1031Comet LakeCore i310110U242.1GHz4.1GHz4MIntel UHD Graphics15W
MB4U260-1051Comet LakeCore i510210U481.6GHz4.2GHz6MIntel UHD Graphics15W
MB4U260-1071Comet LakeCore i710610U481.8GHz4.9GHz8MIntel UHD Graphics15W
MB4U260-1072Comet LakeCore i710810U6121.1GHz4.9GHz12MIntel UHD Graphics15W
MB4U260-1073Comet LakeCore i710710U6121.1GHz4.7GHz12MIntel UHD Graphics15W
MB4U260-0912Whiskey Lake
Code Name
Whiskey Lake
Processor Type
Celeron
Processor Number
4305U
# of Cores
2
# of Threads
2
Base Frequency
2.2GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W
MB4U260-0921Whiskey Lake
Code Name
Whiskey Lake
Processor Type
Pentium
Processor Number
5405U
# of Cores
2
# of Threads
4
Base Frequency
2.3GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W
MB4U260-0931Whiskey Lake
Code Name
Whiskey Lake
Processor Type
Core i3
Processor Number
8145U
# of Cores
2
# of Threads
4
Base Frequency
2.1GHz
Max Turbo Frequency
3.9GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
15W
MB4U260-0951Whiskey Lake
Code Name
Whiskey Lake
Processor Type
Core i5
Processor Number
8265U
# of Cores
4
# of Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
3.9GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
15W
MB4U260-0971Whiskey Lake
Code Name
Whiskey Lake
Processor Type
Core i7
Processor Number
8565U
# of Cores
4
# of Threads
8
Base Frequency
1.8GHz
Max Turbo Frequency
4.6GHz
Cache
8M
Processor Graphics
Intel UHD Graphics
TDP
15W
MB4U260-0952Coffee Lake
Code Name
Coffee Lake
Processor Type
Core i5
Processor Number
8260U
# of Cores
4
# of Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
3.9GHz
Cache
6M
Processor Graphics
Intel UHD Graphics 620
TDP
15W
MB4U260-1011Comet Lake
Code Name
Comet Lake
Processor Type
Celeron
Processor Number
5205U
# of Cores
2
# of Threads
2
Base Frequency
1.9GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W
MB4U260-1012Comet Lake
Code Name
Comet Lake
Processor Type
Celeron
Processor Number
5305U
# of Cores
2
# of Threads
2
Base Frequency
2.3GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W
MB4U260-1021Comet Lake
Code Name
Comet Lake
Processor Type
Pentium
Processor Number
6405U
# of Cores
2
# of Threads
4
Base Frequency
2.4GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W
MB4U260-1031Comet Lake
Code Name
Comet Lake
Processor Type
Core i3
Processor Number
10110U
# of Cores
2
# of Threads
4
Base Frequency
2.1GHz
Max Turbo Frequency
4.1GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
15W
MB4U260-1051Comet Lake
Code Name
Comet Lake
Processor Type
Core i5
Processor Number
10210U
# of Cores
4
# of Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
4.2GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
15W
MB4U260-1071Comet Lake
Code Name
Comet Lake
Processor Type
Core i7
Processor Number
10610U
# of Cores
4
# of Threads
8
Base Frequency
1.8GHz
Max Turbo Frequency
4.9GHz
Cache
8M
Processor Graphics
Intel UHD Graphics
TDP
15W
MB4U260-1072Comet Lake
Code Name
Comet Lake
Processor Type
Core i7
Processor Number
10810U
# of Cores
6
# of Threads
12
Base Frequency
1.1GHz
Max Turbo Frequency
4.9GHz
Cache
12M
Processor Graphics
Intel UHD Graphics
TDP
15W
MB4U260-1073Comet Lake
Code Name
Comet Lake
Processor Type
Core i7
Processor Number
10710U
# of Cores
6
# of Threads
12
Base Frequency
1.1GHz
Max Turbo Frequency
4.7GHz
Cache
12M
Processor Graphics
Intel UHD Graphics
TDP
15W

MB7U268-0611 MB7U268-0612 MB7U268-0631 MB7U268-0651 MB7U268-0671 MB7U268-0711 MB7U268-0712 MB7U268-0731 MB7U268-0751 MB7U268-0771 MB7U268-0811 MB7U268-0821 MB7U268-0831 MB7U268-0851 MB7U268-0871 Intel Skylake Kaby Lake Kaby Lake-R Celeron Pentium Core i3 Core i5 Core i7 3855U 3955U 4405U 6006U 6100U 6200U 6300U 6500U 6600U 3865U 3965U 4415U 7020U 7100U 7130U 7200U 7500U 7560U 7660U 7600U 3867U 4417U 8130U 8250U 8350U
