Industrial Tablets Q30600PPC 215 Series

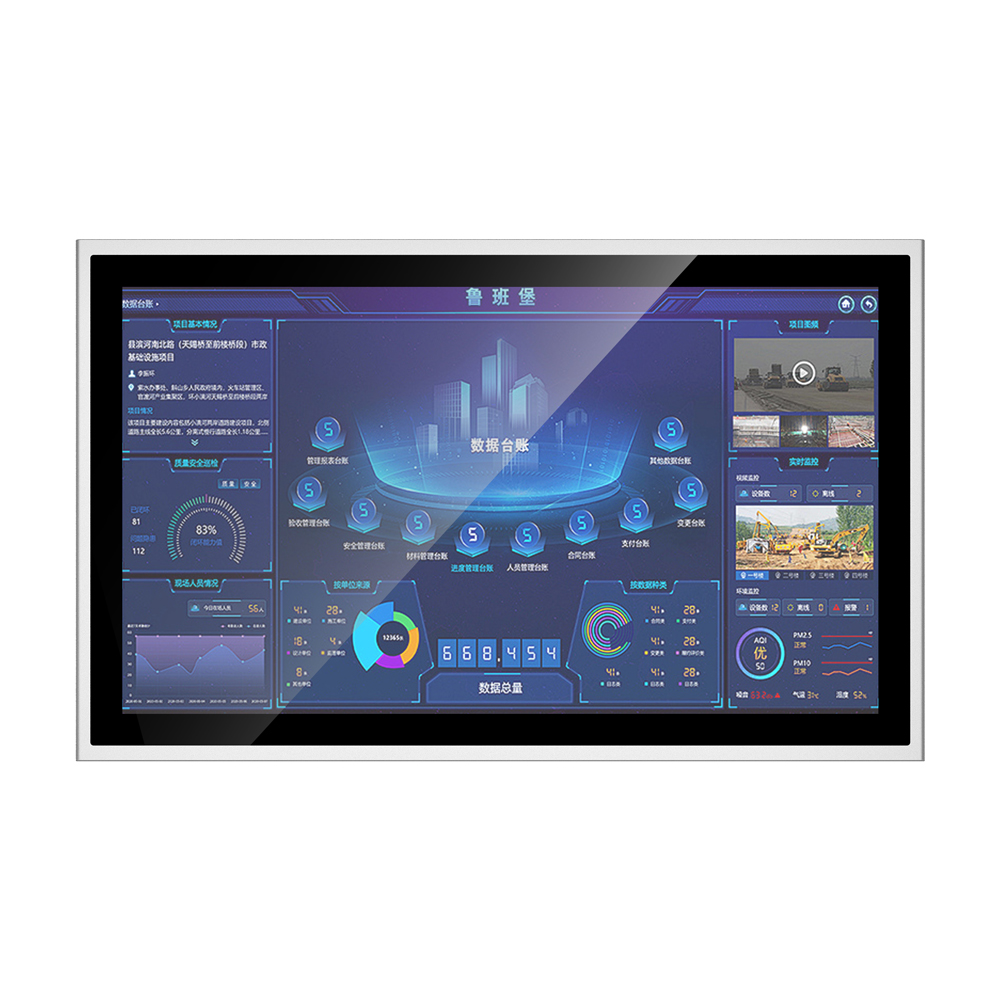

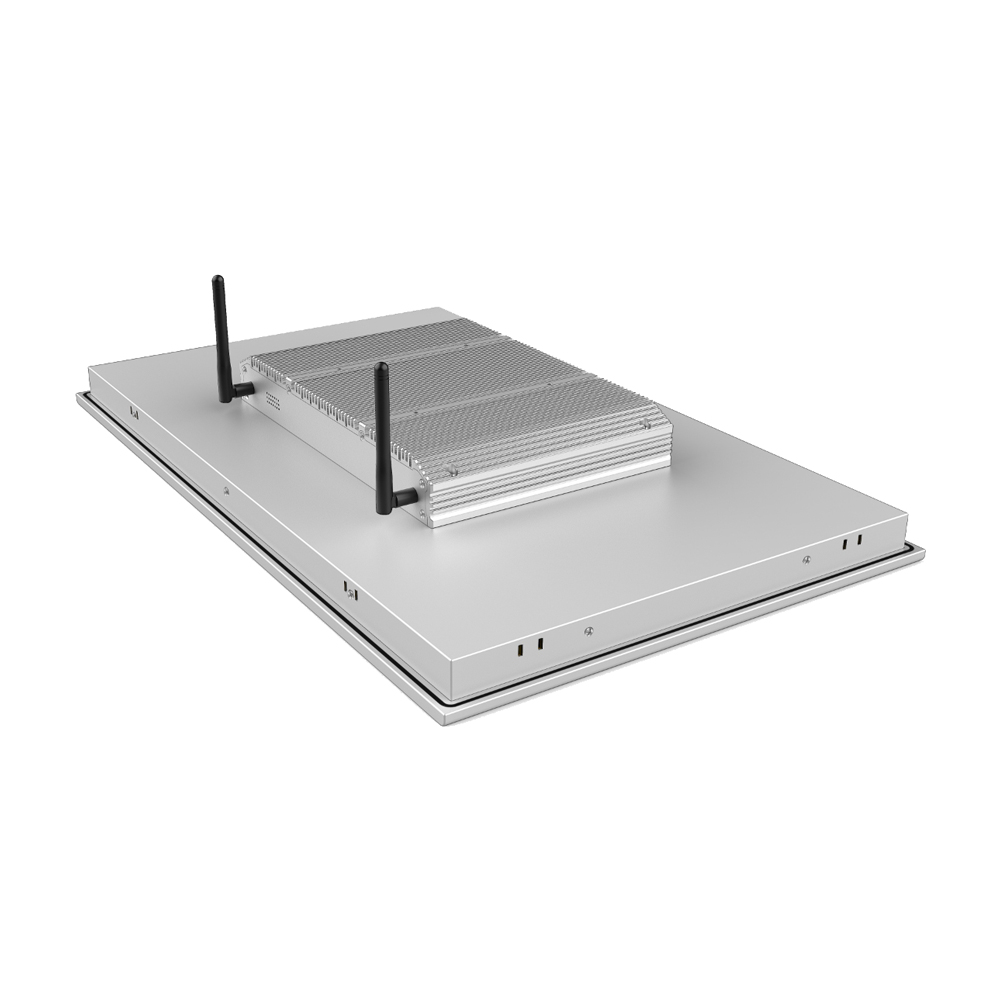

Qotom Q30600PPC is a fanless industrial panel PC with Intel Skylake-U to Kabylake-R CPUs, dual LAN, RS-232 ports, and a rugged design—ideal for factory automation and control systems.

Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

Main Features

  • Intel 6thSkylake-U Processor

  • Intel 7thKabylake-U Processor

  • Intel 8thKabylake-R-U Processor

  • 1 × HDMI

  • 4 × USB 3.0

  • 2 × Mini PCIe, 1 × mSATA

  • 2 × RS-232 (RS-485)

  • 2 × Realtek Gigabit LAN

Specifications

Processor System
CPUIntel 6thSkylake-U Processor
Intel 7thKabylake-U Processor
Intel 8thKabylake-R-U Processor
CPU TDPBy CPU
Memory2 × DDR4 SO-DIMM Sockets(Up to 64G, 2133/2400MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset2 × Realtek Gigabit LAN
AudioRealtek HD Audio
Watch DogYes
Front I/O
ANT2

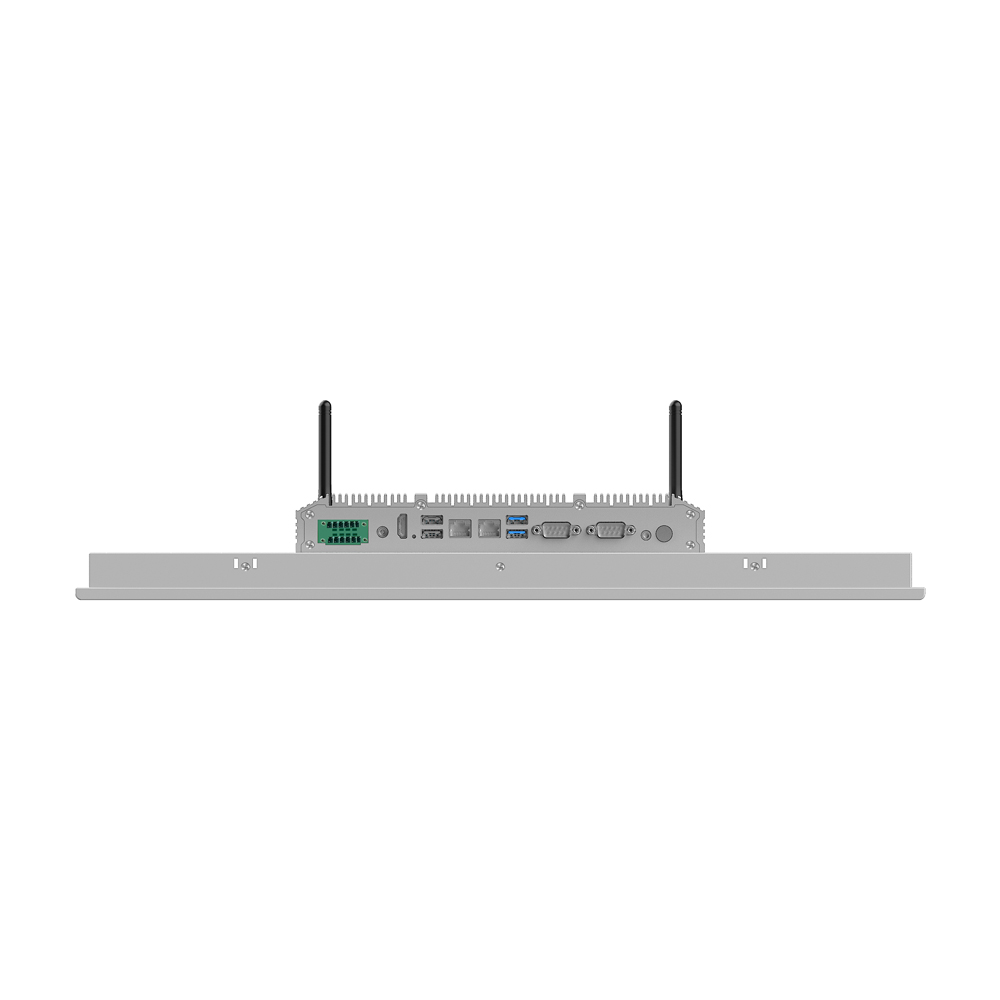

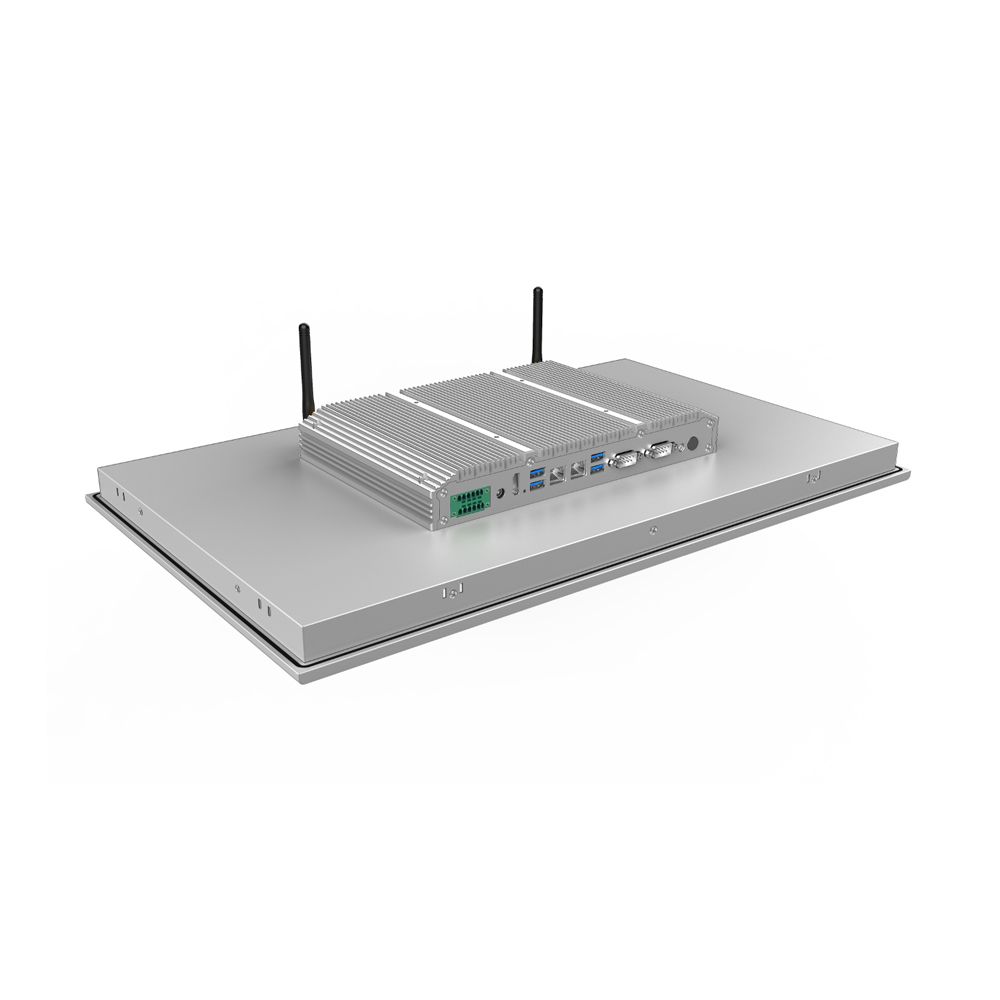

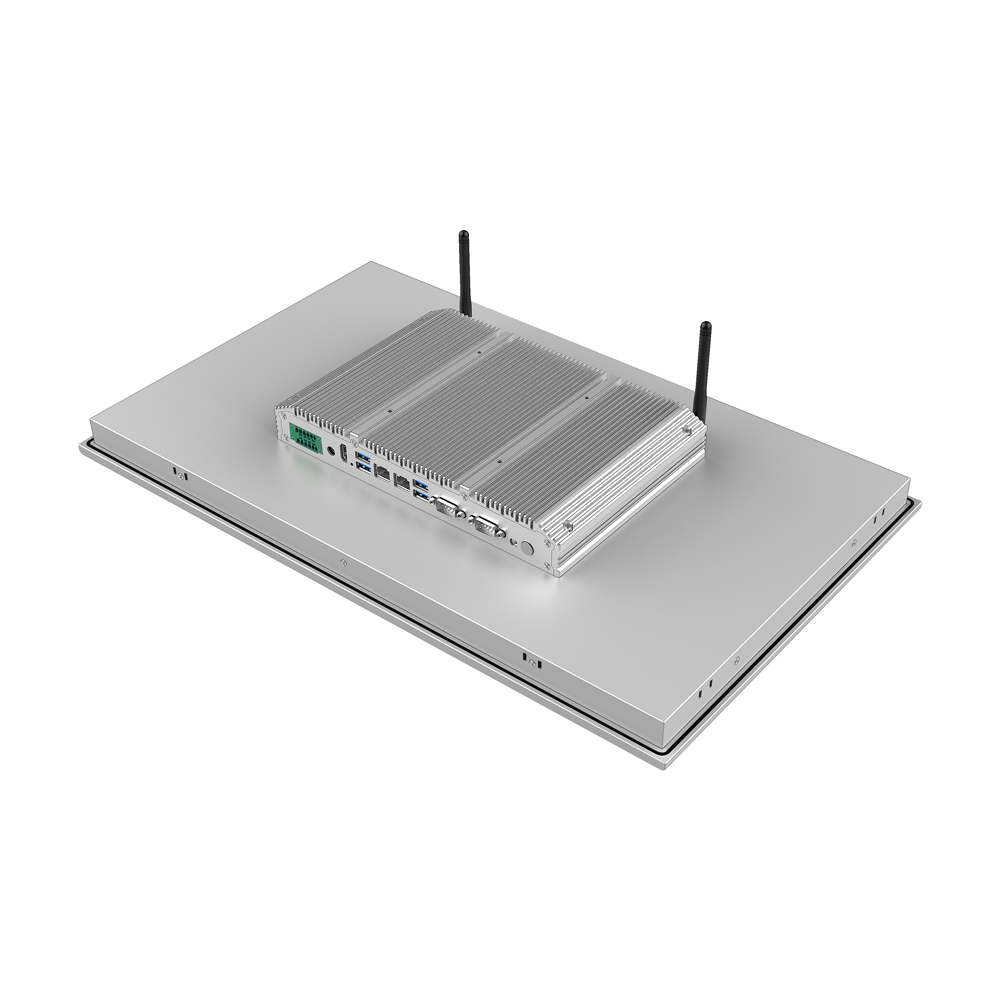

Rear I/O
Video Output1 × HDMI
LAN2 × Realtek Gigabit LAN
USB4 × USB 3.0
Serial Port2 × RS-232 (COM1/2 can be set up as RS-485, Support 5V/12V)
Audio1 (Mic-in, Line-out)
Power Button1 × Power Button, 1 × Power LED
PhoenixGPIO ( 4 DIs/4DOs ) , Power Button Connector
CMOS Clear Button1
Storage
Type1 × Mini PCIe for mSATA SSD
Expansion
mSATA1 × Full-length Mini PCIe for SSD
Mini PCIe1 × Half-length Mini PCIe for Wi-Fi
Mini PCIe1 × Mini PCIe, Full-length for 4G
SIM Card Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.0mm
Power Requirement
Power Adapter12V7A
DC Jack5.5mm, 2.5mm
Environmental
Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%
Mechanical
MaterialAluminium Alloy
Dimension536 × 330 × 68mm
Weight7.42kg

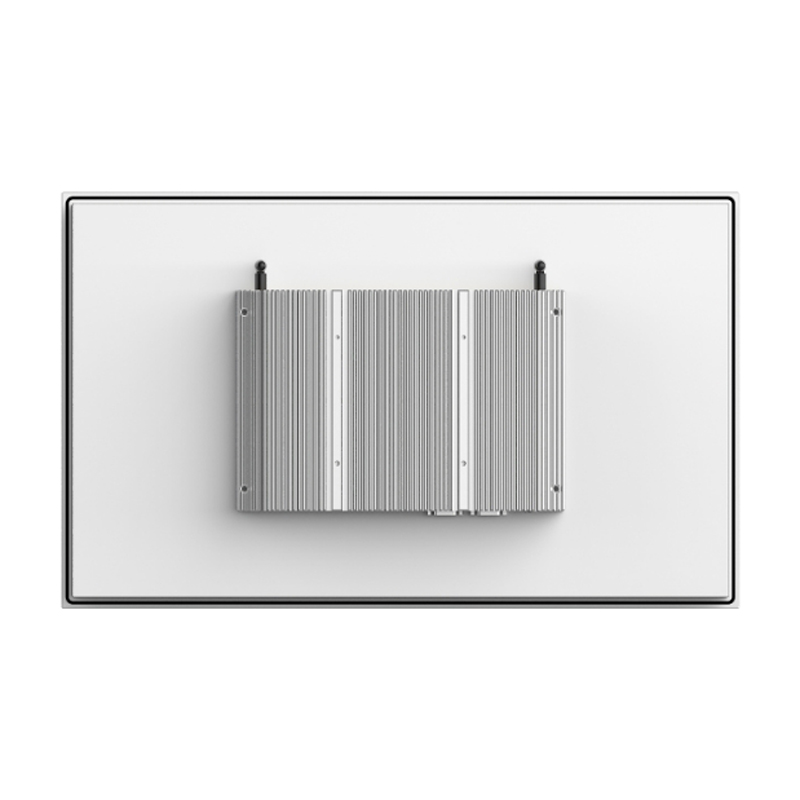

MountingVESA Mounting Bracket
Packaging Dimension620 × 400 × 150mm
Kensington LockNo
Cooling ModeFanless Design
OS Support
OSWindows 10, Windows 11, Linux
Windows 7 (Only for 6th Gen Skylake)

In the box

Packing List

NO.CategoryQuantityRemark
1Panel PC1
2Antennas2
3VESA Bracket1
4Screws for VESA Bracket1
5Power Adapter1
6AC Power Cord1
ItemQuantity
  • 1
    Panel PC
    1
  • 2
    Antennas
    2
  • 3
    VESA Bracket
    1
  • 4
    Screws for VESA Bracket
    1
  • 5
    Power Adapter
    1
  • 6
    AC Power Cord
    1

Models & options

Ordering and Specifications Information

Quick Order Model: Q30851PPC-215

Ordering CodeCaseCode Name Processor TypeProcessor Number# of Cores# of ThreadsBase FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP
Q30611PPC215SkylakeCeleron3855U221.6GHz/2MIntel HD 51015W
Q30612PPC215SkylakeCeleron3955U222.0GHz/2MIntel HD 51015W
Q30631PPC215SkylakeCore i36100U242.3GHz/3MIntel HD 52015W
Q30651PPC215SkylakeCore i56200U242.3GHz2.8GHz3MIntel HD 52015W
Q30671PPC215SkylakeCore i76500U242.5GHz3.1GHz4MIntel HD 52015W
Q30711PPC215Kaby LakeCeleron3865U221.8GHz/2MIntel HD 61015W
Q30712PPC215Kaby LakeCeleron3965U222.2GHz/2MIntel HD 61015W
Q30731PPC215Kaby LakeCore i37100U242.4GHz/3MIntel HD 62015W
Q30751PPC215Kaby LakeCore i57200U242.5GHz3.1GHz3MIntel HD 62015W
Q30771PPC215Kaby LakeCore i77500U242.7GHz3.5GHz4MIntel HD 62015W
Q30811PPC215Kaby Lake RCeleron3867U221.8GHz/2MIntel HD 61015W
Q30821PPC215Kaby Lake RPentium4417U222.3GHz/2MIntel HD 61015W
Q30831PPC215Kaby Lake RCore i38130U242.0GHz3.40GHz4MIntel UHD 62015W
Q30851PPC215Kaby Lake RCore i58250U481.6GHz3.4GHz6MIntel UHD 62015W
Q30871PPC215Kaby Lake RCore i78550U481.8GHz4.0GHz8MIntel UHD 62015W
Q30611PPC215
Case
215
Code Name
Skylake
Processor Type
Celeron
Processor Number
3855U
# of Cores
2
# of Threads
2
Base Frequency
1.6GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 510
TDP
15W
Q30612PPC215
Case
215
Code Name
Skylake
Processor Type
Celeron
Processor Number
3955U
# of Cores
2
# of Threads
2
Base Frequency
2.0GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 510
TDP
15W
Q30631PPC215
Case
215
Code Name
Skylake
Processor Type
Core i3
Processor Number
6100U
# of Cores
2
# of Threads
4
Base Frequency
2.3GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 520
TDP
15W
Q30651PPC215
Case
215
Code Name
Skylake
Processor Type
Core i5
Processor Number
6200U
# of Cores
2
# of Threads
4
Base Frequency
2.3GHz
Max Turbo Frequency
2.8GHz
Cache
3M
Processor Graphics
Intel HD 520
TDP
15W
Q30671PPC215
Case
215
Code Name
Skylake
Processor Type
Core i7
Processor Number
6500U
# of Cores
2
# of Threads
4
Base Frequency
2.5GHz
Max Turbo Frequency
3.1GHz
Cache
4M
Processor Graphics
Intel HD 520
TDP
15W
Q30711PPC215
Case
215
Code Name
Kaby Lake
Processor Type
Celeron
Processor Number
3865U
# of Cores
2
# of Threads
2
Base Frequency
1.8GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 610
TDP
15W
Q30712PPC215
Case
215
Code Name
Kaby Lake
Processor Type
Celeron
Processor Number
3965U
# of Cores
2
# of Threads
2
Base Frequency
2.2GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 610
TDP
15W
Q30731PPC215
Case
215
Code Name
Kaby Lake
Processor Type
Core i3
Processor Number
7100U
# of Cores
2
# of Threads
4
Base Frequency
2.4GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 620
TDP
15W
Q30751PPC215
Case
215
Code Name
Kaby Lake
Processor Type
Core i5
Processor Number
7200U
# of Cores
2
# of Threads
4
Base Frequency
2.5GHz
Max Turbo Frequency
3.1GHz
Cache
3M
Processor Graphics
Intel HD 620
TDP
15W
Q30771PPC215
Case
215
Code Name
Kaby Lake
Processor Type
Core i7
Processor Number
7500U
# of Cores
2
# of Threads
4
Base Frequency
2.7GHz
Max Turbo Frequency
3.5GHz
Cache
4M
Processor Graphics
Intel HD 620
TDP
15W
Q30811PPC215
Case
215
Code Name
Kaby Lake R
Processor Type
Celeron
Processor Number
3867U
# of Cores
2
# of Threads
2
Base Frequency
1.8GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 610
TDP
15W
Q30821PPC215
Case
215
Code Name
Kaby Lake R
Processor Type
Pentium
Processor Number
4417U
# of Cores
2
# of Threads
2
Base Frequency
2.3GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 610
TDP
15W
Q30831PPC215
Case
215
Code Name
Kaby Lake R
Processor Type
Core i3
Processor Number
8130U
# of Cores
2
# of Threads
4
Base Frequency
2.0GHz
Max Turbo Frequency
3.40GHz
Cache
4M
Processor Graphics
Intel UHD 620
TDP
15W
Q30851PPC215
Case
215
Code Name
Kaby Lake R
Processor Type
Core i5
Processor Number
8250U
# of Cores
4
# of Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
3.4GHz
Cache
6M
Processor Graphics
Intel UHD 620
TDP
15W
Q30871PPC215
Case
215
Code Name
Kaby Lake R
Processor Type
Core i7
Processor Number
8550U
# of Cores
4
# of Threads
8
Base Frequency
1.8GHz
Max Turbo Frequency
4.0GHz
Cache
8M
Processor Graphics
Intel UHD 620
TDP
15W

PC Case Options

CategorySATA Support
