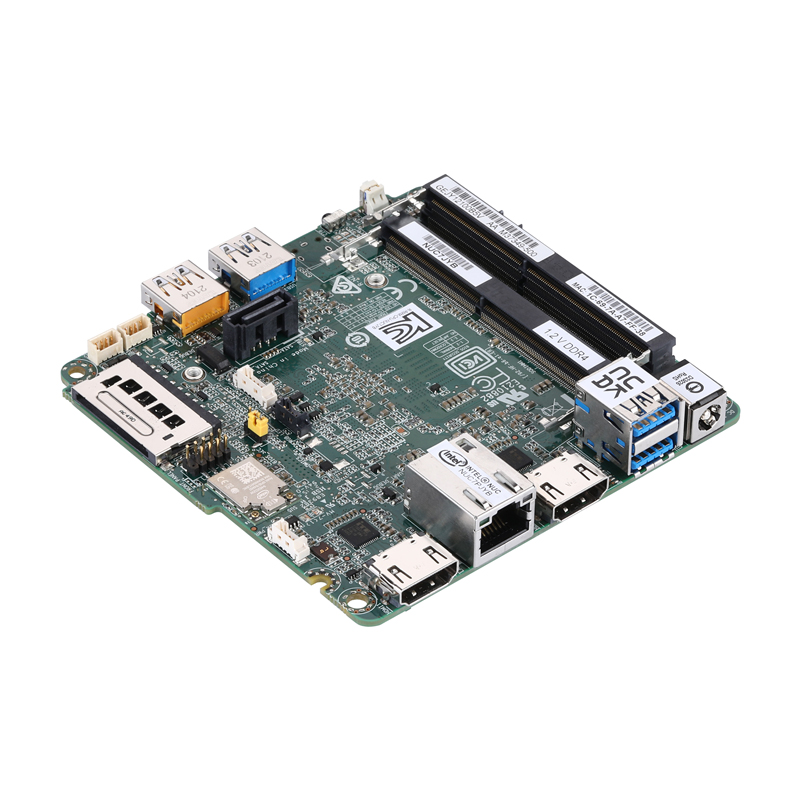

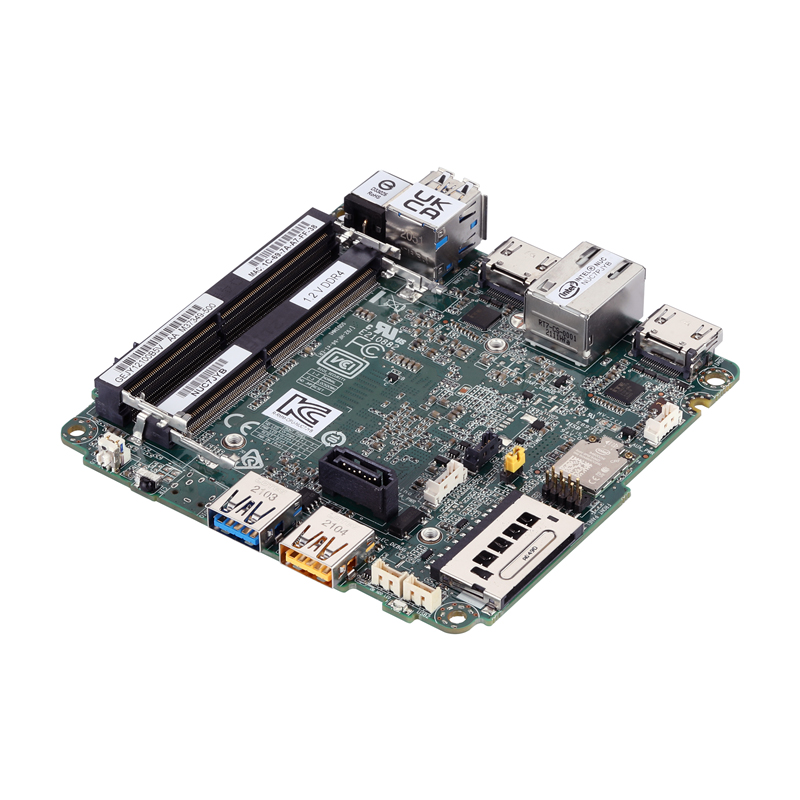

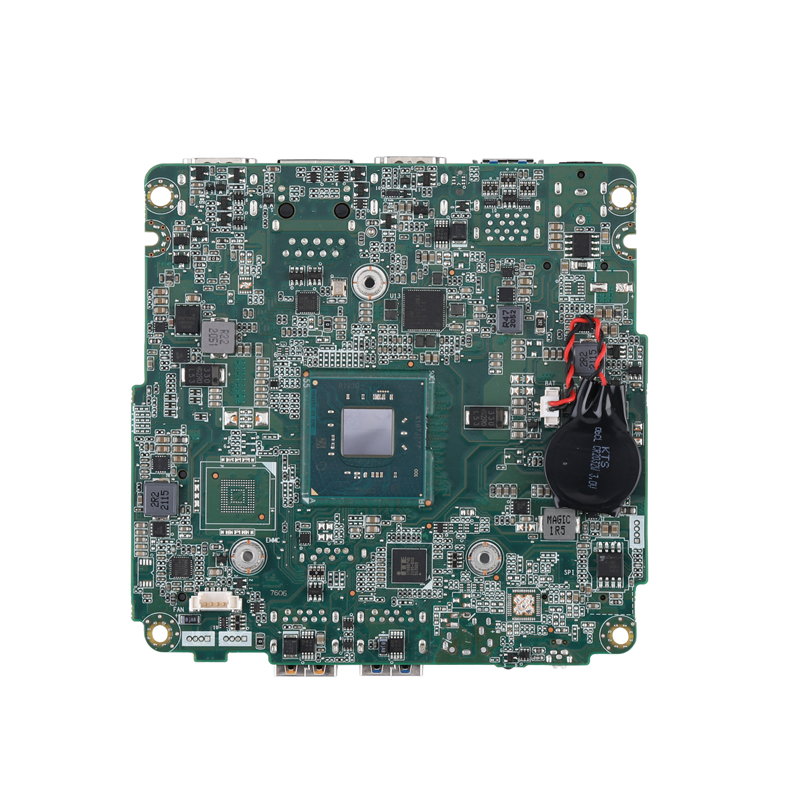

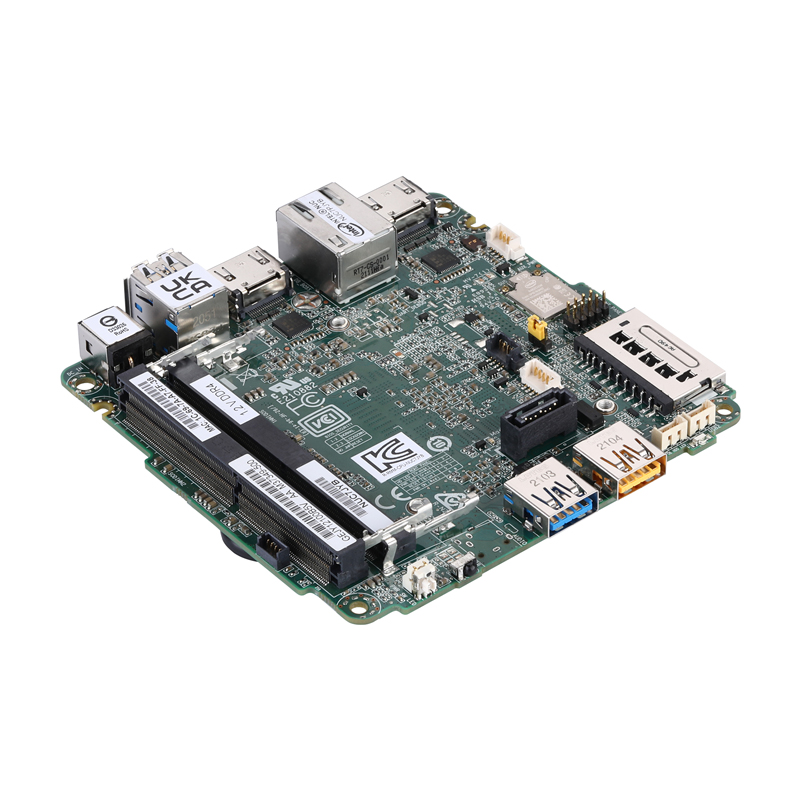

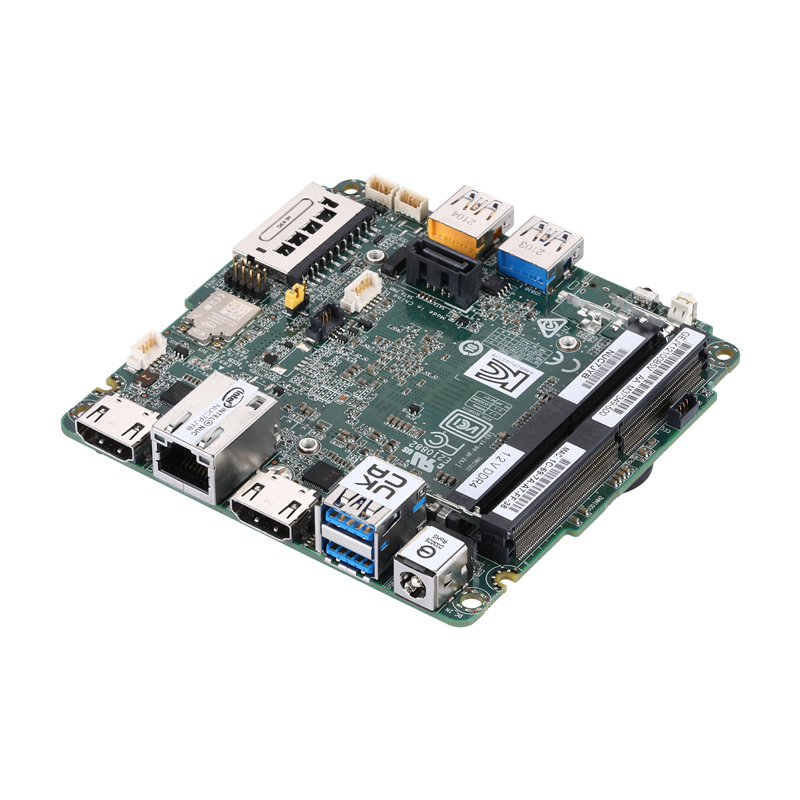

Motherboard NUC7JYB Series
Qotom NUC7JYB motherboard with Intel J5005 processor, UHD 605 graphics, dual HDMI, USB 3.0, SATA, and Gigabit LAN, designed for compact desktop computing.
Tell us the configuration and quantity you need.
Detailed Information
Main Features
Intel Pentium J5005 Gemini Lake Processor
Intel UHD Graphics 605
2 × HDMI
4 × USB 3.0
1 × SATA
1 × Realtek Gigabit LAN
Specification
| Processor System | |
| Dimension | 101.6 × 101.6mm |
| CPU | Intel Gemini Lake Processor Default Pentium J5005 Processor, 10W |
| Default Pentium J5005 Processor, 10W | |
| Core Number | 4 |
| Max. Speed | 1.5GHz, up to 2.8GHz |
| L2 Cache | 4M |
| Chipset | By CPU |
| BIOS | UEFI |
| Memory | |
| Technology | DDR4 2133/2400MHz SDRAM |
| Max. | 16GB |
| Socket | 2 × SO-DIMMs |
| Graphics | |
| Controller | Intel UHD Graphics 605 |
| HDMI | 2 × HDMI 2.0a |
| Multi Display | Yes |
| Ethernet | |
| Interface | 10/100/1000Mbps |
| Controller | 1 × Realtek Gigabit LAN |
| Connector | 1 × RJ-45 |
| Audio | |
| Controller | No |
| SATA | |
| Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
| Accessories | |
| Accessories | Cable for HDD, Fan module |
| Real I/O | |
| DC-IN | 1 |
| Display | 2 × HDMI |
| Ethernet | 1 |
| USB | 2 × USB 3.0 |
| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| IR | Consumer Infrared (CIR) sensor |
| USB | 2 × USB 3.0 |
| Side I/O | |
| SDXC card | 1 × SDXC card reader slot |
| Internal Connector | |
| Wi-Fi | Intel Wireless-AC 9462-D2W wireless LAN module |
| SATA | 1, SATA 3.0 (6.0Gb/S) |
| SATA PWR Connector | 1, 1 × 4Pin, Pitch 1.25mm |
| Clear CMOS Jumper | Yes, 1 × 3Pin, Pitch 1.25mm |
| USB 2.0 Header | 2, 1 × 4Pin, Pitch 1.25mm |
| Front Panel Header | 1, 2 × 5Pin, Pitch 1.25mm |
| CPU FAN Connector | 1, 1 × 4Pin, Pitch 1.25mm |
| Power Requirement | |
| Input PWR | 12V/19V DC in, 5.5mm/2.5mm |
| Environment | |
| Operating Temperature | 0-50 ℃ |
| OS Support | |
| OS | Windows 10, Linux |
Packing
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Motherboard | 1 | |
| 2 | HDD cable | 1 | |
| 3 | Radiator | 1 | Option |
| 4 | Fan | 1 | Option |
| 5 | Serial cable | Several | Depending on the model |
