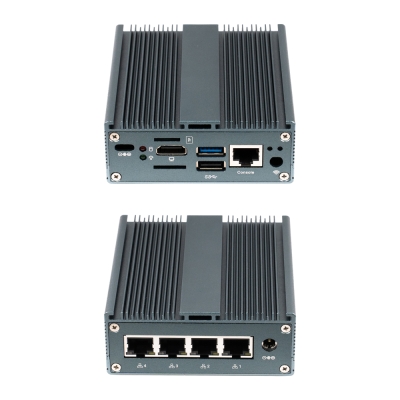

Mini PC Q00001G4 S16 Series
Q00001G4 is an ultra-compact mini PC powered by Rockchip RK3568 with 1TOPS NPU, 4 LAN ports (2.5G + 1G), HDMI, and versatile I/O—ideal for edge computing, IoT, and lightweight AI applications.
- Total of Network Interfaces
- 4
- SFP(+)
- None
- 10G RJ45
- None
- 2.5G RJ45
- 4
- 1G RJ45
- None
- Serial Ports
- 1
Tell us the configuration and quantity you need.
Detailed Information
Main Features
Rockchip RK3568 Cortex-A55 Processor
Mali-G52 GPU
1TOPS NPU
1 × HDMI, 1x RS-232 (RJ-45)
1 × USB 3.0, 2 × USB 2.0
2 × Realtek Gigabit LAN
2 × Realtek 2.5 Gigabit LAN
Specification
| Processor System | |
| CPU | Rockchip Processor Default RK3568 Quad Cores Cortex-A55 Processor up to 2.0GHz |
| Memory | 4GB, Integrated (Up to 8G) |
| GPU | Mali-G52 GPU |
| NPU | 1TOPS NPU |
| LAN Chipset | 2 × Realtek Gigabit LAN, 2 × Realtek 2.5 Gigabit LAN |

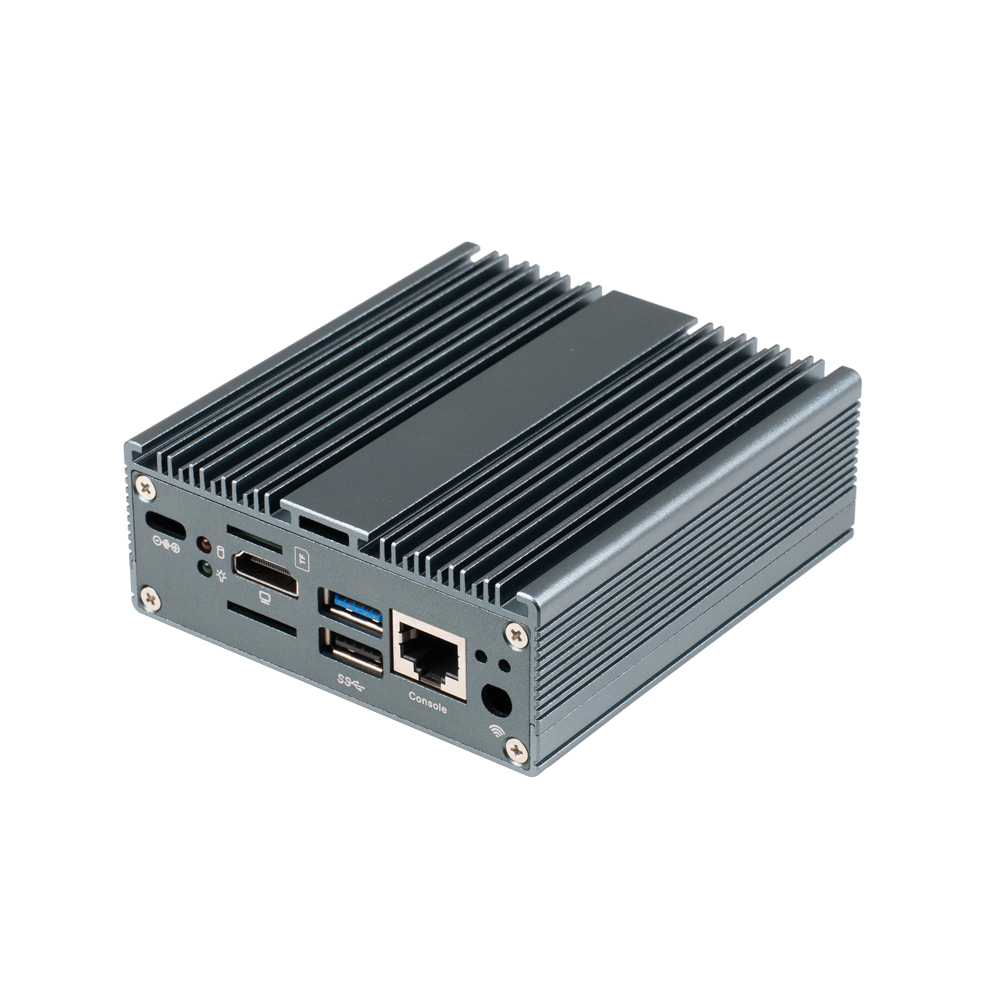

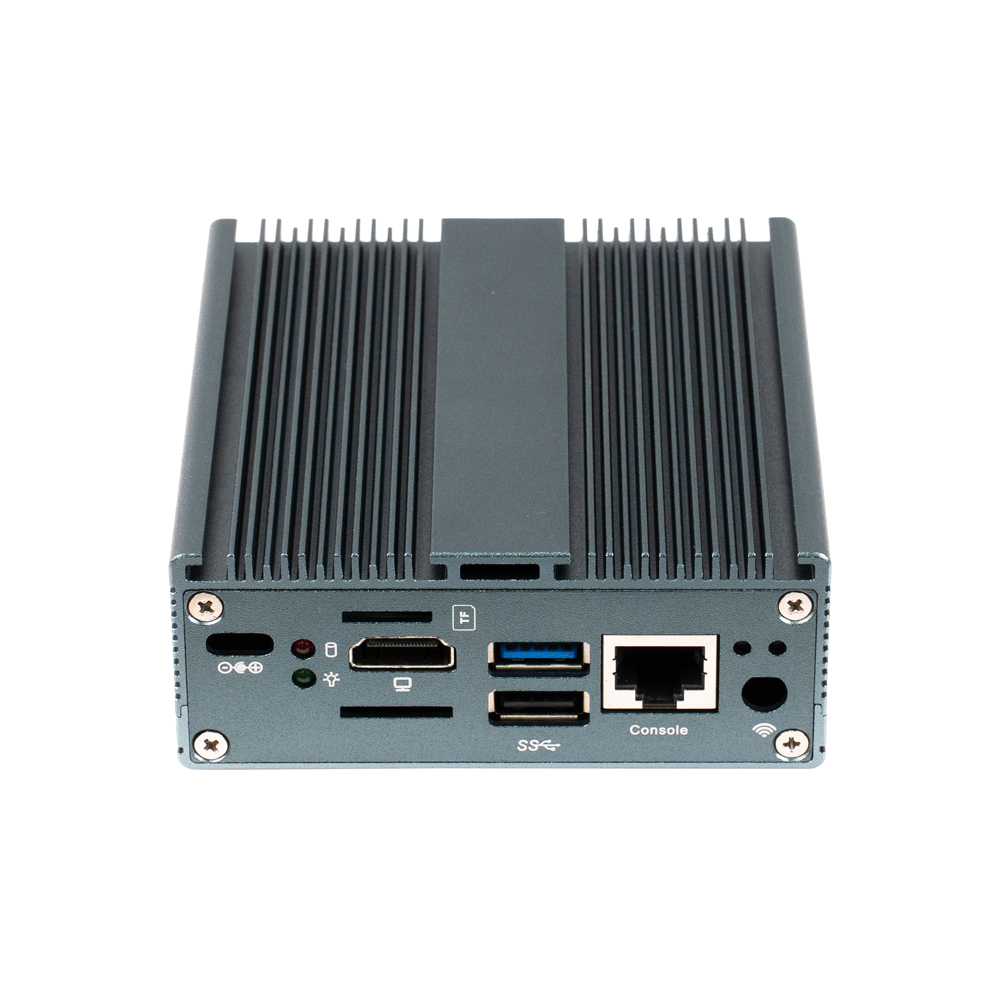

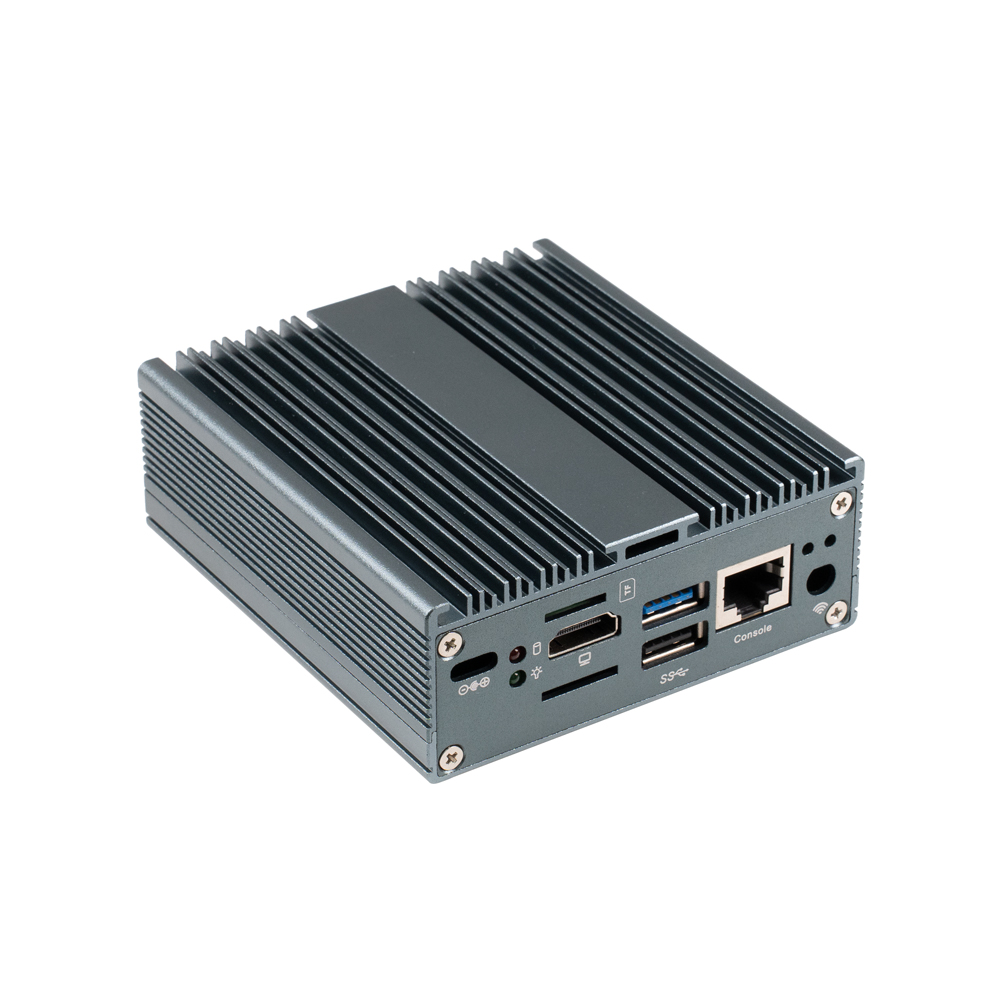

| Front I/O | |
| Button | 1 × Recovery Button, 1 × Mask ROM Button |
| Serial Port | 1 × RS-232 (RJ-45) |
| USB | 1 × USB 3.0, 1 × USB 2.0 |
| SIM Card Slot | 1 (Option) |
| Video Output | 1 × HDMI |
| TF Card Slot | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| Type C | 1 × Type C (Only for DC Input) |

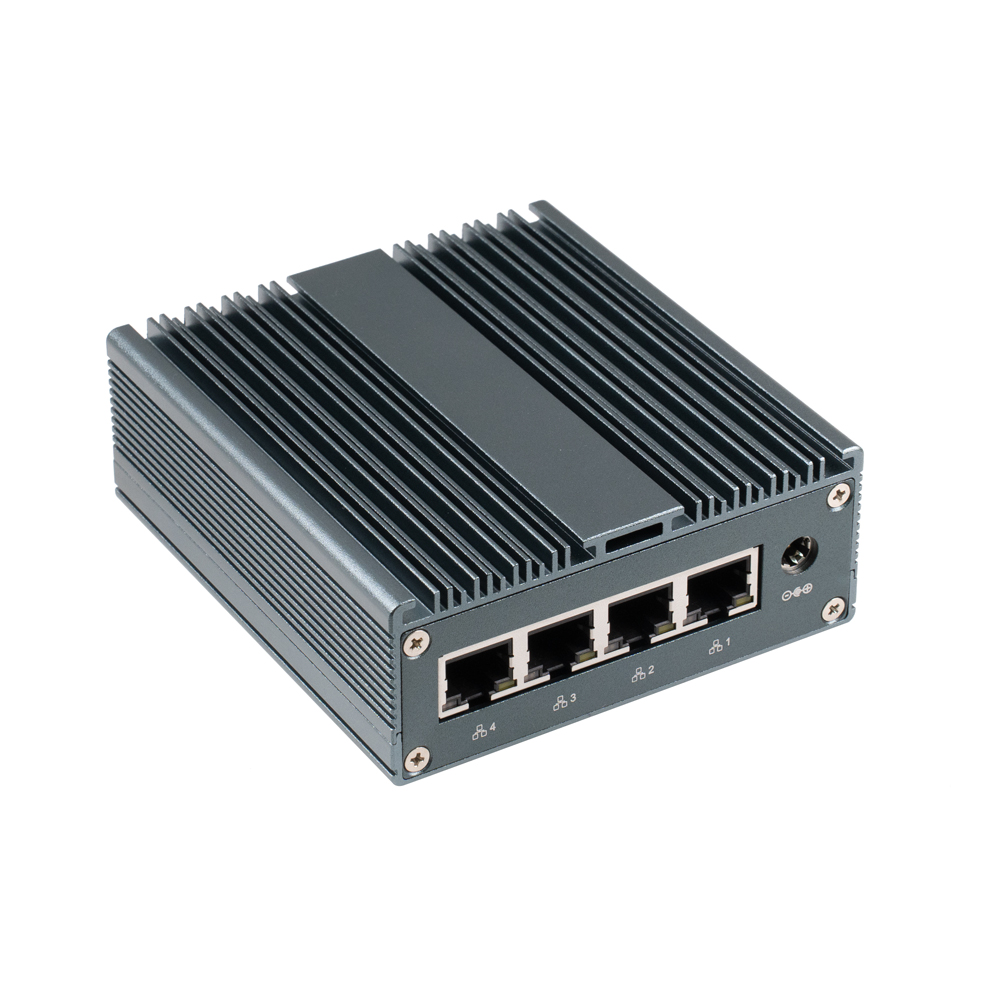

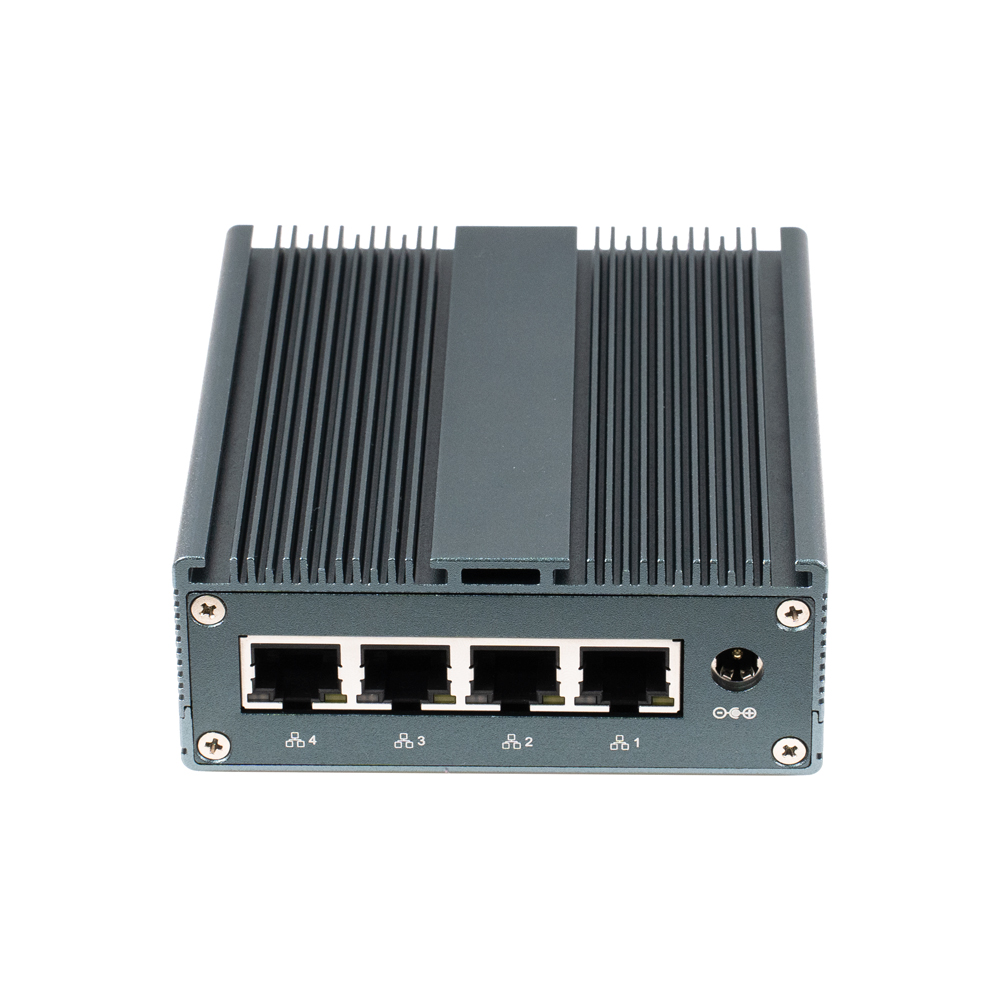

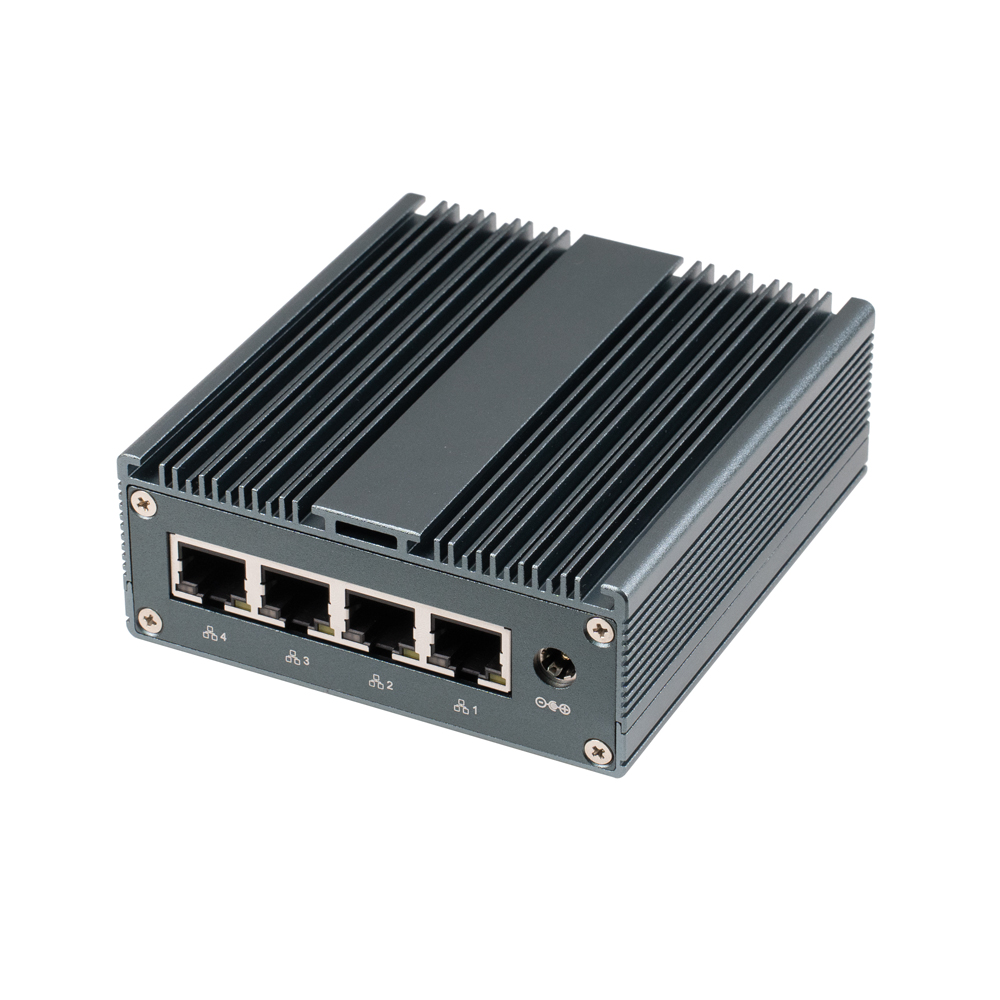

| Rear I/O | |
| Power | 1 × DC Jack |
| LAN | 2 × Realtek Gigabit LAN, 2 × Realtek 2.5 Gigabit LAN |
| Storage | |
| Type | 16GB, Integrated |
| Expansion | |
| Mini PCIe | 1 × Mini PCIe (Option) - Full-length for 4G - Half-length for Wi-Fi - Full-length for SSD |
| M.2 | 1 × M.2 for 4G/5G (B key, 3052) (Option) |
| Serial Port | 1, 1 × 4Pin, Pitch 2.54mm, Support 5V |
| USB Header | 1, 1 × 5Pin, Pitch 2.54mm |
| Power Requirement | |
| Power Adapter | 12V1A or 5V2A, DC Jack: 5.5mm, 2.5mm By Default |
| Type C | 12V1A or 5V2A (Option) (Only for DC Input) |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 102 × 94x 37mm |
| Weight | 0.34kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | Ubuntu 18.04, openWRT |
Packing
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
