OPS Q51200OPS Series

Q31200OPS is a compact OPS embedded mini PC powered by 12th/13th Gen Intel Alder/Raptor Lake-P processors. Supports dual displays, USB-C, dual M.2, and 2.5G LAN—ideal for smart education and digital signage.

Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

Main Features

Intel 12th Alder Lake–P Processor
Intel 13th Raptor Lake–P Processor
1 × Display Port, 1 × HDMI
2 × USB 3.0, 2 × USB 2.0, 1 × Type C
2 × M.2, 1 × SATA 3.0
1 × Intel I225-V/I226-V 2.5 Gigabit LAN

Specifications

Processor System
CPU	Intel 12th Alder Lake–P Processor Intel 13th Raptor Lake–P Processor
CPU TDP	By CPU
Memory	1 × DDR4 SO-DIMM Socket (Up to 32G, 3200MHz)
Chipset	By CPU
Graphics	By CPU
LAN Chipset	1 × Intel I225-V/I226-V 2.5 Gigabit LAN
Audio	Cmedia USB Audio（HS100B）
Watch Dog	No

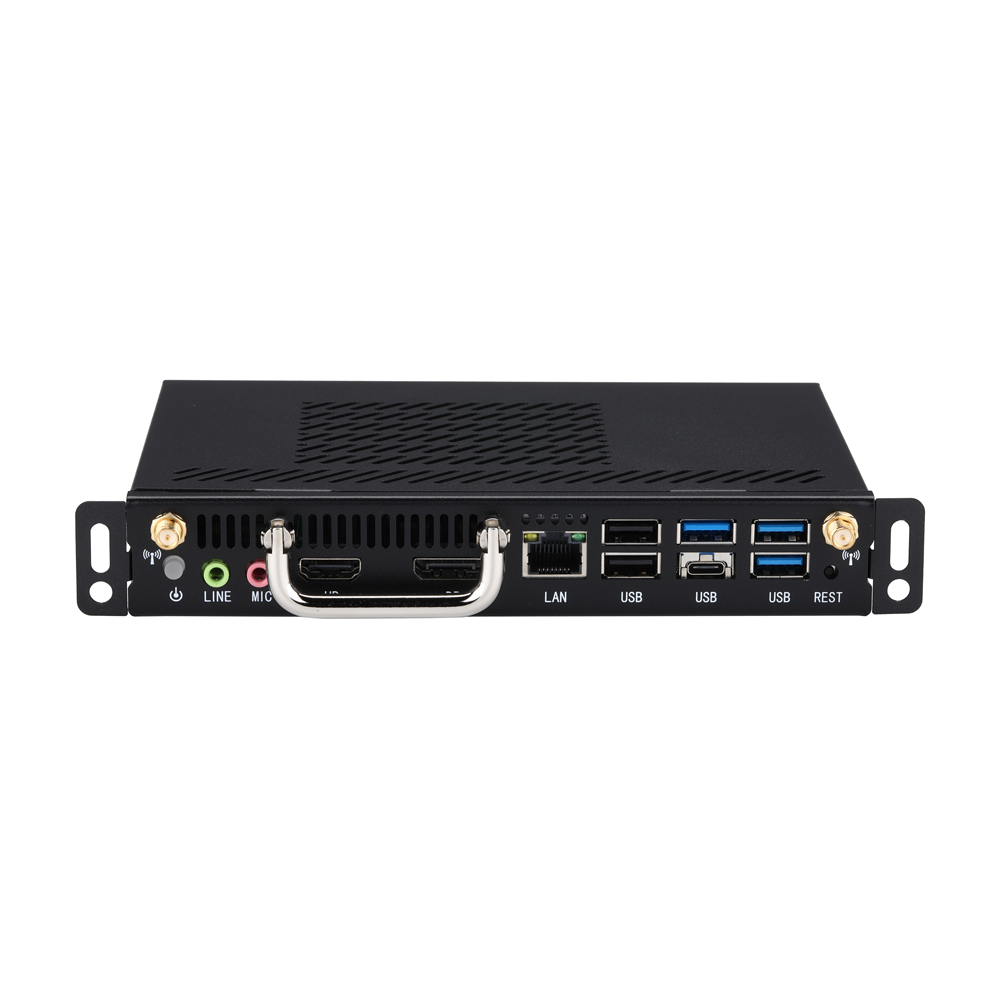

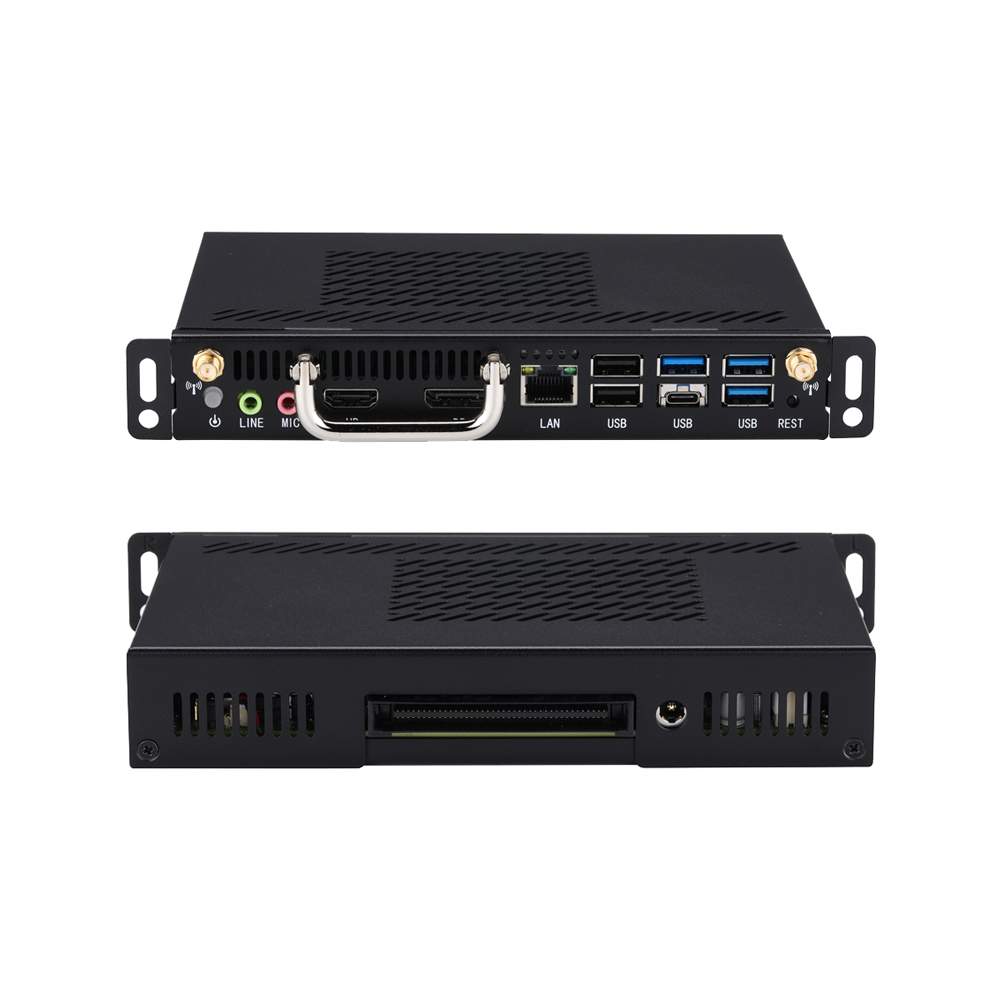

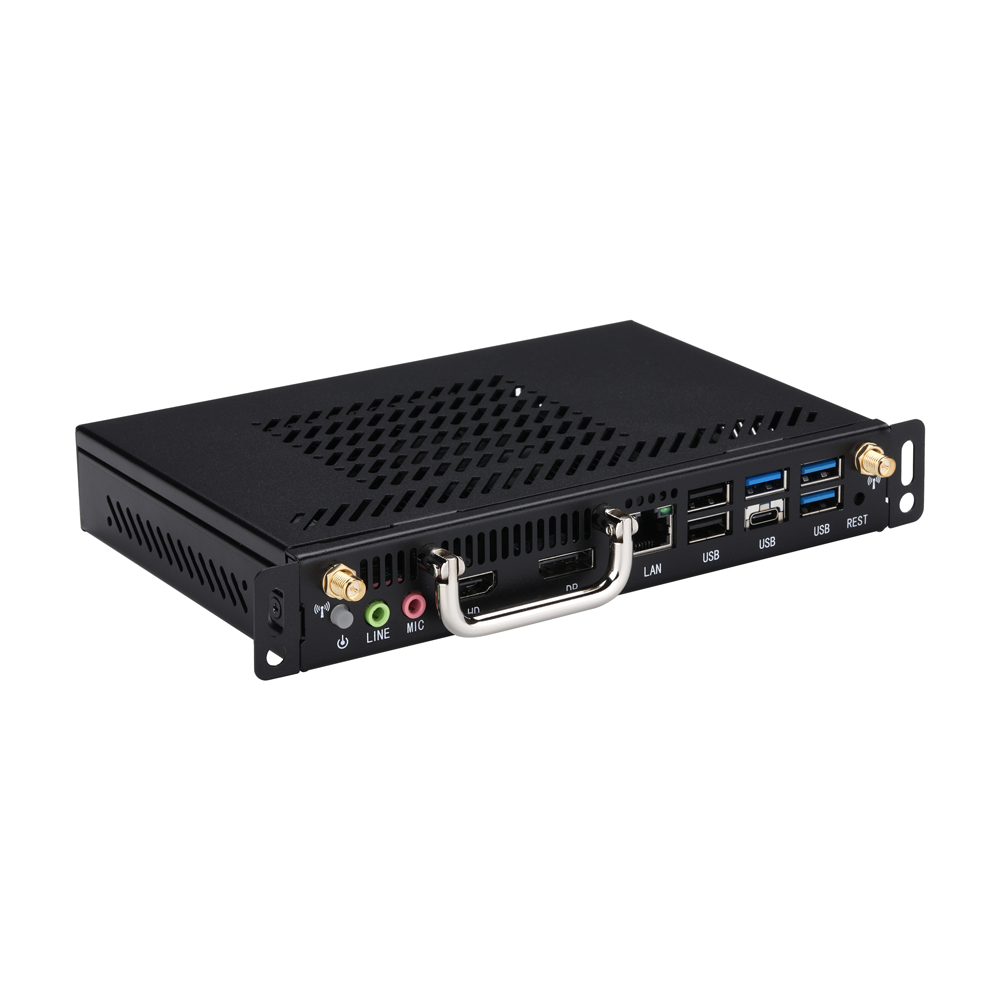

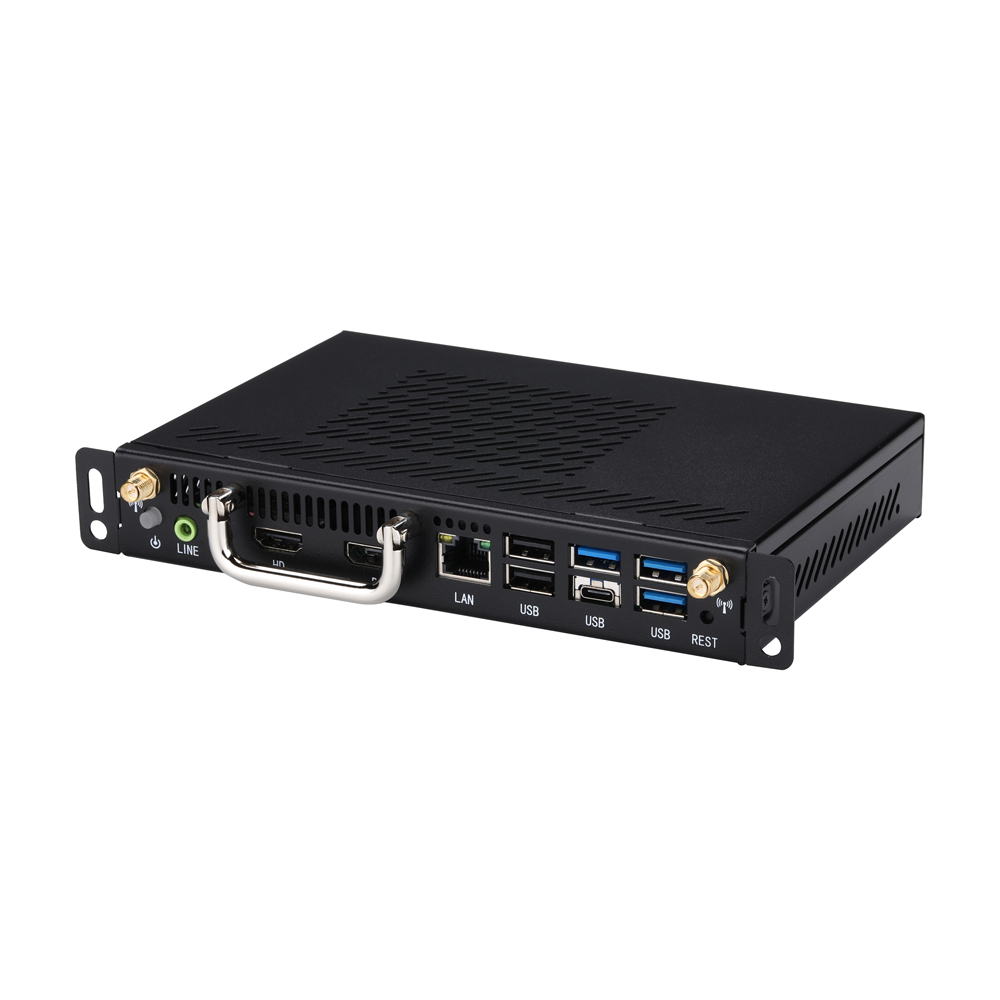

Front I/O
Audio	1 × Mic-in, 1 × Line-out
Video Output	1 × Display Port 1.4, 1 × HDMI 2.0
Type C	1 × Type C (USB3.0 , Display Port)
USB	2 × USB 3.0, 2 × USB 2.0
LAN	1 × Intel I225-V/I226-V 2.5 Gigabit LAN
Power Button	1 × Power Button, 1 × Reset Button
LED	1 × Power LED, 1 × HDD LED

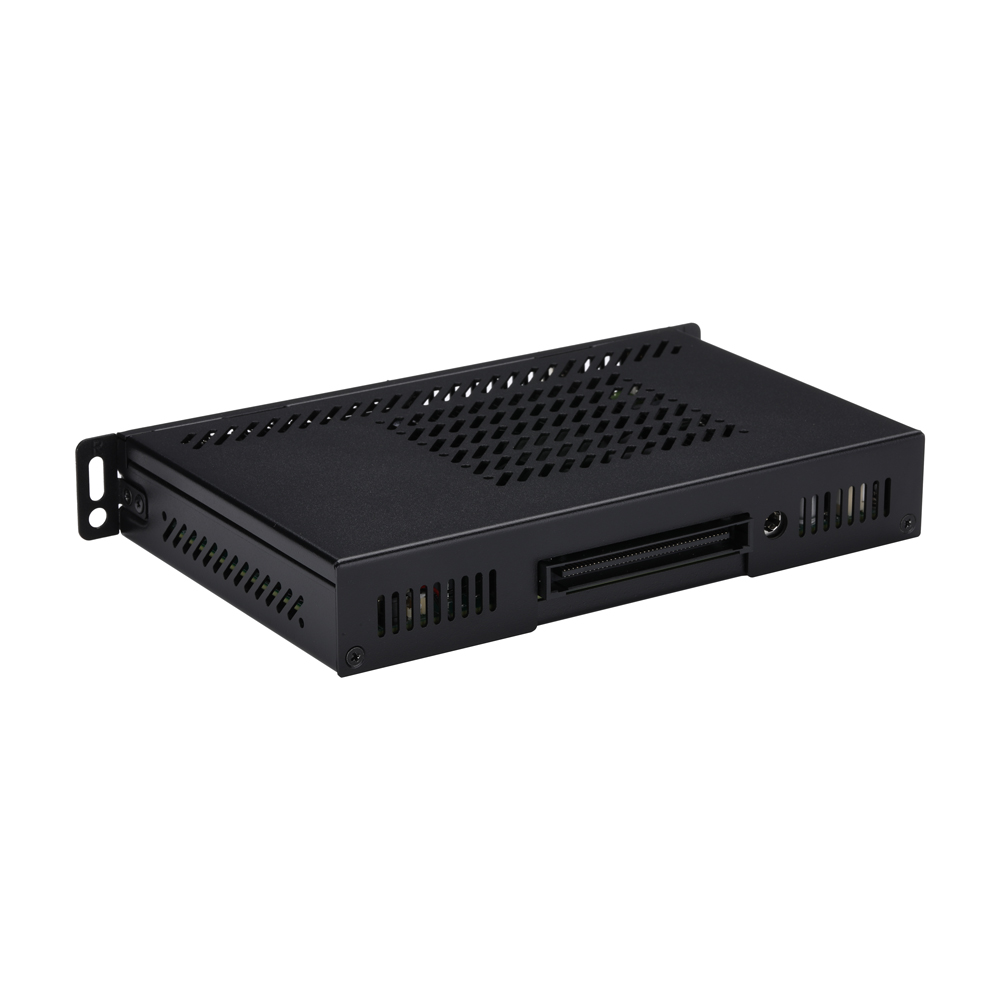

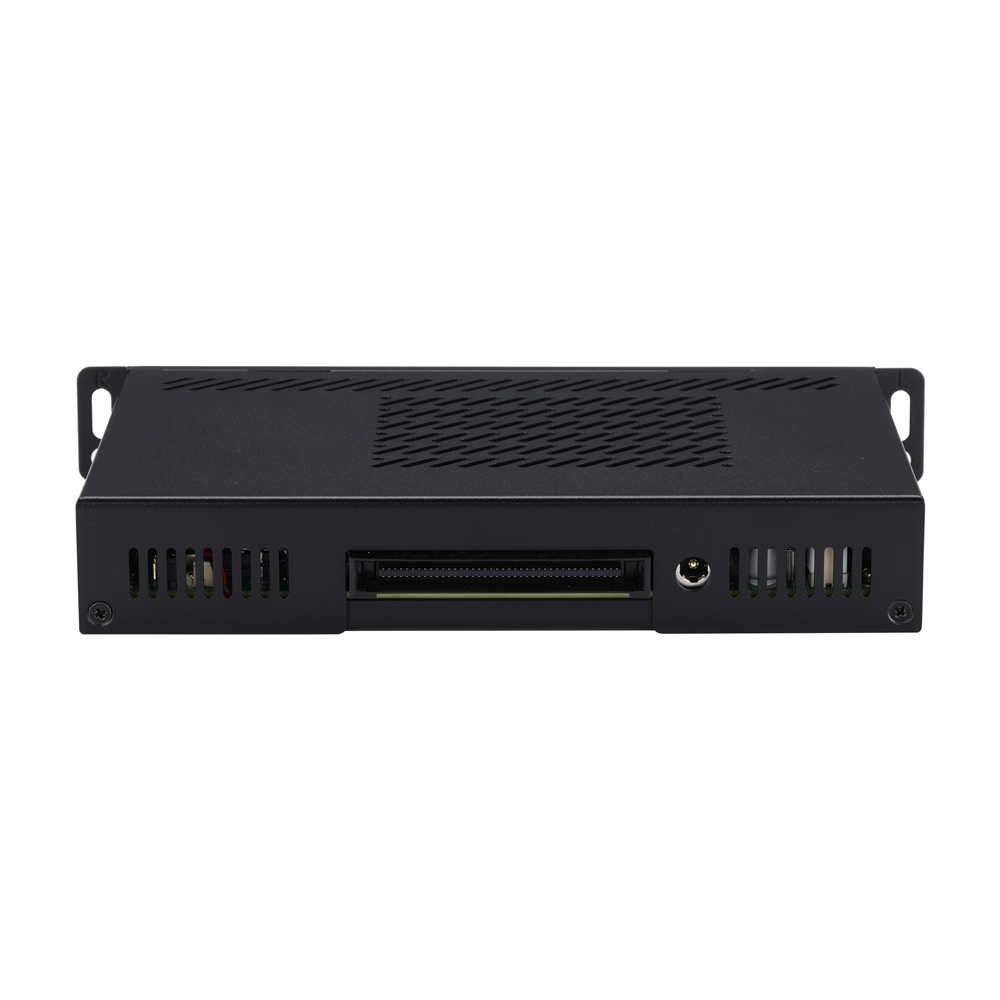

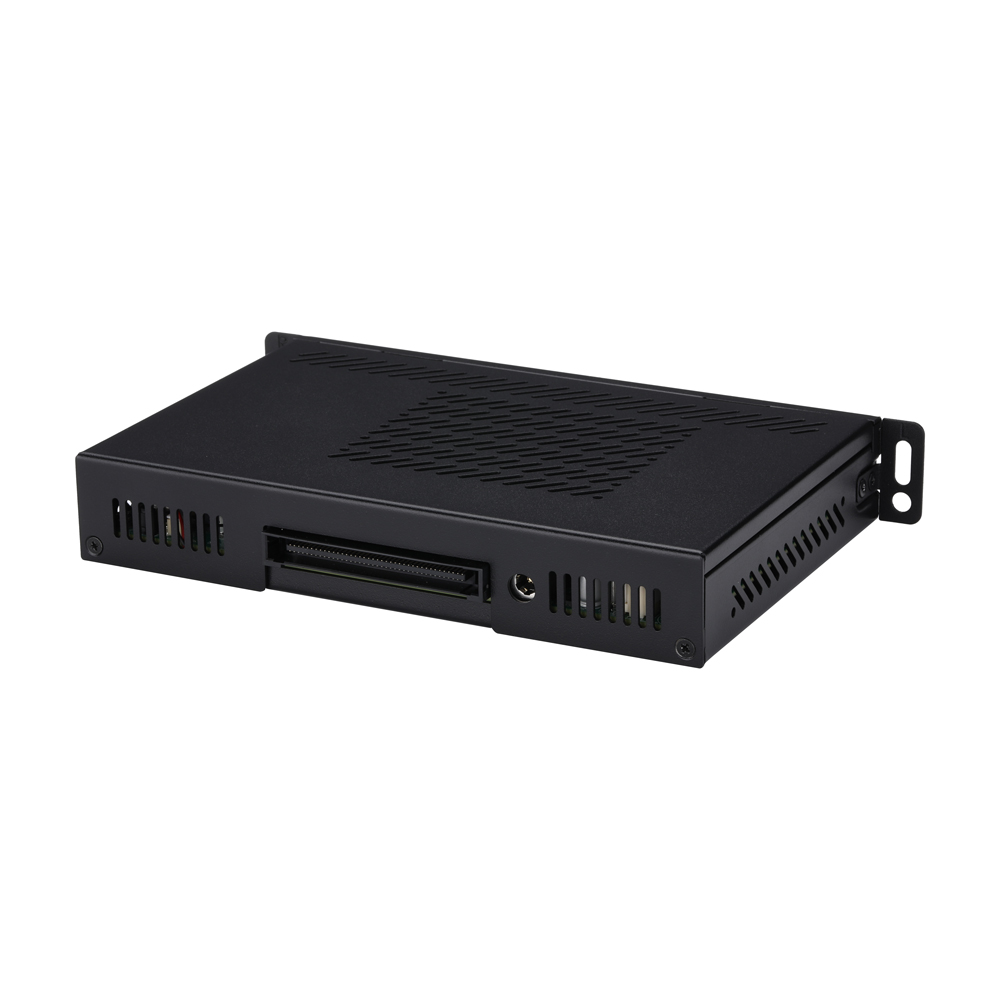

Rear I/O
Power	1 × DC Jack
JAE	1 × JAE Port (80pin)
Storage
Type	1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4)
Expansion
M.2	1 × M.2 for SSD (M key, Type: 2280)
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot	0
AutoStart Jumper	0
CMOS Clear Jumper	0
GPIO	0
RS-485	0
DC-in	0
Power Requirement
Power Adapter	19V
DC Jack	5.5mm, 2.5mm
Environmental
Operating Temp	0°C~45°C
Non-Operating Temp	-40°C~80°C
Humidity	10%~95%
Mechanical
Material	Aluminium Alloy
Dimension	118 × 180 × 30mm
Weight	0.74kg
Mounting	None
Packaging Dimension	282 × 257 × 79mm
Kensington Lock	No
Cooling Mode	Fan
OS Support
OS	UEFI Windows 10, UEFI Linux

In the box

Packing List

NO.	Category	Quantity	Remark
1	Mini PC	1
2	Silicone Mat	4
3	VESA Bracket	1
4	Screws for VESA Bracket	1
5	Power Adapter	1
6	AC Power Cord	1
7	Screws for SATA SSD/HDD	1
8	SATA cable for SSD/HDD	1	Option
9	Antennas	2	Option

ItemQuantity

1
Mini PC
1
2
Silicone Mat
4
3
VESA Bracket
1
4
Screws for VESA Bracket
1
5
Power Adapter
1
6
AC Power Cord
1
7
Screws for SATA SSD/HDD
1
8
SATA cable for SSD/HDD
Option
1
9
Antennas
Option
2

Models & options

Ordering and Specifications Information

Quick Order Model: Q31251OPS

Ordering Code	Q31211OPS	Q31221OPS	Q31231OPS	Q31251OPS	Q31271OPS
Code Name	Alder Lake U	Alder Lake U	Alder Lake U	Alder Lake U	Alder Lake U
Processor Type	Celeron	Pentium	Core i3	Core i5	Core i7
Processor Number	7305	8505	1215U	1235U	1255U
Total Cores	5	5	6	10	10
# of Performance-cores	1	1	2	2	2
# of Efficient-cores	4	4	4	8	8
# of Threads	5	6	8	12	12
Max Turbo Frequency	-	4.40 GHz	4.40 GHz	4.40 GHz	4.70 GHz
Performance-core Base Frequency	1.10 GHz	1.20 GHz	1.20 GHz	1.30 GHz	1.70 GHz
Performance-core Max Turbo Frequency	-	4.40 GHz	4.40 GHz	4.40 GHz	4.70 GHz
Efficient-core Base Frequency	0.9 GHz	0.9 GHz	0.9 GHz	0.9 GHz	1.20 GHz
Efficient-core Max Turbo Frequency	-	3.30 GHz	3.30 GHz	3.30 GHz	3.50 GHz
Cache	8M	8M	10M	12M	12M
Processor Graphics	Intel UHD Graphics	Intel UHD Graphics	Intel UHD Graphics	Intel Iris Xe Graphics eligible	Intel Iris Xe Graphics eligible
TDP	15-55W	15-55W	15-55W	15-55W	15-55W
Ordering Code	Q41231OPS	Q41251OPS	Q41271OPS
Code Name	Alder Lake P	Alder Lake P	Alder Lake P
Processor Type	Core i3	Core i5	Core i7
Processor Number	1220P	1240P	1260P
Total Cores	10	12	12
# of Performance-cores	2	4	4
# of Efficient-cores	8	8	8
# of Threads	12	16	16
Max Turbo Frequency	4.40 GHz	4.40 GHz	4.70 GHz
Performance-core Base Frequency	1.50 GHz	1.70 GHz	2.10 GHz
Performance-core Max Turbo Frequency	4.40 GHz	4.40 GHz	4.70 GHz
Efficient-core Base Frequency	1.10 GHz	1.20 GHz	1.50 GHz
Efficient-core Max Turbo Frequency	3.30 GHz	3.30 GHz	3.40 GHz
Cache	12M	12M	18M
Processor Graphics	Intel UHD Graphics	Intel Iris Xe Graphics eligible	Intel Iris Xe Graphics eligible
TDP	28-64W	28-64W	28-64W

Code NameAlder Lake U

Q31211OPS: Alder Lake U
Q31221OPS: Alder Lake U
Q31231OPS: Alder Lake U
Q31251OPS: Alder Lake U
Q31271OPS: Alder Lake U

Processor TypeCeleron

Q31211OPS: Celeron
Q31221OPS: Pentium
Q31231OPS: Core i3
Q31251OPS: Core i5
Q31271OPS: Core i7

Processor Number7305

Q31211OPS: 7305
Q31221OPS: 8505
Q31231OPS: 1215U
Q31251OPS: 1235U
Q31271OPS: 1255U

Total Cores5

Q31211OPS: 5
Q31221OPS: 5
Q31231OPS: 6
Q31251OPS: 10
Q31271OPS: 10

# of Performance-cores1

Q31211OPS: 1
Q31221OPS: 1
Q31231OPS: 2
Q31251OPS: 2
Q31271OPS: 2

# of Efficient-cores4

Q31211OPS: 4
Q31221OPS: 4
Q31231OPS: 4
Q31251OPS: 8
Q31271OPS: 8

# of Threads5

Q31211OPS: 5
Q31221OPS: 6
Q31231OPS: 8
Q31251OPS: 12
Q31271OPS: 12

Max Turbo Frequency-

Q31211OPS: -
Q31221OPS: 4.40 GHz
Q31231OPS: 4.40 GHz
Q31251OPS: 4.40 GHz
Q31271OPS: 4.70 GHz

Performance-core Base Frequency1.10 GHz

Q31211OPS: 1.10 GHz
Q31221OPS: 1.20 GHz
Q31231OPS: 1.20 GHz
Q31251OPS: 1.30 GHz
Q31271OPS: 1.70 GHz

Performance-core Max Turbo Frequency-

Q31211OPS: -
Q31221OPS: 4.40 GHz
Q31231OPS: 4.40 GHz
Q31251OPS: 4.40 GHz
Q31271OPS: 4.70 GHz

Efficient-core Base Frequency0.9 GHz

Q31211OPS: 0.9 GHz
Q31221OPS: 0.9 GHz
Q31231OPS: 0.9 GHz
Q31251OPS: 0.9 GHz
Q31271OPS: 1.20 GHz

Efficient-core Max Turbo Frequency-

Q31211OPS: -
Q31221OPS: 3.30 GHz
Q31231OPS: 3.30 GHz
Q31251OPS: 3.30 GHz
Q31271OPS: 3.50 GHz

Cache8M

Q31211OPS: 8M
Q31221OPS: 8M
Q31231OPS: 10M
Q31251OPS: 12M
Q31271OPS: 12M

Processor GraphicsIntel UHD Graphics

Q31211OPS: Intel UHD Graphics
Q31221OPS: Intel UHD Graphics
Q31231OPS: Intel UHD Graphics
Q31251OPS: Intel Iris Xe Graphics eligible
Q31271OPS: Intel Iris Xe Graphics eligible

TDP15-55W

Q31211OPS: 15-55W
Q31221OPS: 15-55W
Q31231OPS: 15-55W
Q31251OPS: 15-55W
Q31271OPS: 15-55W

Ordering CodeQ41231OPS

Q31211OPS: Q41231OPS
Q31221OPS: Q41251OPS
Q31231OPS: Q41271OPS

Code NameAlder Lake P

Q31211OPS: Alder Lake P
Q31221OPS: Alder Lake P
Q31231OPS: Alder Lake P

Processor TypeCore i3

Q31211OPS: Core i3
Q31221OPS: Core i5
Q31231OPS: Core i7

Processor Number1220P

Q31211OPS: 1220P
Q31221OPS: 1240P
Q31231OPS: 1260P

Total Cores10

Q31211OPS: 10
Q31221OPS: 12
Q31231OPS: 12

# of Performance-cores2

Q31211OPS: 2
Q31221OPS: 4
Q31231OPS: 4

# of Efficient-cores8

Q31211OPS: 8
Q31221OPS: 8
Q31231OPS: 8

# of Threads12

Q31211OPS: 12
Q31221OPS: 16
Q31231OPS: 16

Max Turbo Frequency4.40 GHz

Q31211OPS: 4.40 GHz
Q31221OPS: 4.40 GHz
Q31231OPS: 4.70 GHz

Performance-core Base Frequency1.50 GHz

Q31211OPS: 1.50 GHz
Q31221OPS: 1.70 GHz
Q31231OPS: 2.10 GHz

Performance-core Max Turbo Frequency4.40 GHz

Q31211OPS: 4.40 GHz
Q31221OPS: 4.40 GHz
Q31231OPS: 4.70 GHz

Efficient-core Base Frequency1.10 GHz

Q31211OPS: 1.10 GHz
Q31221OPS: 1.20 GHz
Q31231OPS: 1.50 GHz

Efficient-core Max Turbo Frequency3.30 GHz

Q31211OPS: 3.30 GHz
Q31221OPS: 3.30 GHz
Q31231OPS: 3.40 GHz

Cache12M

Q31211OPS: 12M
Q31221OPS: 12M
Q31231OPS: 18M

Processor GraphicsIntel UHD Graphics

Q31211OPS: Intel UHD Graphics
Q31221OPS: Intel Iris Xe Graphics eligible
Q31231OPS: Intel Iris Xe Graphics eligible

TDP28-64W

Q31211OPS: 28-64W
Q31221OPS: 28-64W
Q31231OPS: 28-64W

Ordering Code	Q51251OPS	Q51271OPS	Q51291OPS
Code Name	Alder Lake H	Alder Lake H	Alder Lake H
Processor Type	Core i5	Core i7	Core i9
Processor Number	12450H	12650H	12900H
Total Cores	8	10	14
# of Performance-cores	4	6	6
# of Efficient-cores	4	4	8
# of Threads	12	16	20
Max Turbo Frequency	4.40 GHz	4.70 GHz	5.00 GHz
Performance-core Base Frequency	2.00 GHz	2.30 GHz	2.50 GHz
Performance-core Max Turbo Frequency	4.40 GHz	4.70 GHz	5.00 GHz
Efficient-core Base Frequency	1.50 GHz	1.70 GHz	1.80 GHz
Efficient-core Max Turbo Frequency	3.30 GHz	3.50 GHz	3.80 GHz
Cache	12M	24M	24M
Processor Graphics	Intel UHD Graphics	Intel Iris Xe Graphics eligible	Intel Iris Xe Graphics eligible
TDP	45-95W	45-115W	45-115W

Code NameAlder Lake H

Q51251OPS: Alder Lake H
Q51271OPS: Alder Lake H
Q51291OPS: Alder Lake H

Processor TypeCore i5

Q51251OPS: Core i5
Q51271OPS: Core i7
Q51291OPS: Core i9

Processor Number12450H

Q51251OPS: 12450H
Q51271OPS: 12650H
Q51291OPS: 12900H

Total Cores8

Q51251OPS: 8
Q51271OPS: 10
Q51291OPS: 14

# of Performance-cores4

Q51251OPS: 4
Q51271OPS: 6
Q51291OPS: 6

# of Efficient-cores4

Q51251OPS: 4
Q51271OPS: 4
Q51291OPS: 8

# of Threads12

Q51251OPS: 12
Q51271OPS: 16
Q51291OPS: 20

Max Turbo Frequency4.40 GHz

Q51251OPS: 4.40 GHz
Q51271OPS: 4.70 GHz
Q51291OPS: 5.00 GHz

Performance-core Base Frequency2.00 GHz

Q51251OPS: 2.00 GHz
Q51271OPS: 2.30 GHz
Q51291OPS: 2.50 GHz

Performance-core Max Turbo Frequency4.40 GHz

Q51251OPS: 4.40 GHz
Q51271OPS: 4.70 GHz
Q51291OPS: 5.00 GHz

Efficient-core Base Frequency1.50 GHz

Q51251OPS: 1.50 GHz
Q51271OPS: 1.70 GHz
Q51291OPS: 1.80 GHz

Efficient-core Max Turbo Frequency3.30 GHz

Q51251OPS: 3.30 GHz
Q51271OPS: 3.50 GHz
Q51291OPS: 3.80 GHz

Cache12M

Q51251OPS: 12M
Q51271OPS: 24M
Q51291OPS: 24M

Processor GraphicsIntel UHD Graphics

Q51251OPS: Intel UHD Graphics
Q51271OPS: Intel Iris Xe Graphics eligible
Q51291OPS: Intel Iris Xe Graphics eligible

TDP45-95W

Q51251OPS: 45-95W
Q51271OPS: 45-115W
Q51291OPS: 45-115W
