Mini PC Q10100G4N S08 Series
Featuring Intel Bay Trail CPU, multiple LANs, and compact chassis, the Q10100G4N is perfect for embedded firewall and network applications.
- Total of Network Interfaces
- 4
- SFP(+)
- None
- 10G RJ45
- None
- 2.5G RJ45
- None
- 1G RJ45
- 4
- Serial Ports
- None
Tell us the configuration and quantity you need.
Overview
Main Features
Intel Bay Trail Processor
1 × VGA
1 × USB 3.0, 3 × USB 2.0, 1 × SATA 3.0
1 × Mini PCIe, 1 × mSATA
4 × Intel I211-AT/I210-AT Gigabit LAN
Specifications
| Processor System | |
| CPU | Intel Bay Trail Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 4 × Intel I211-AT/I210-AT Gigabit LAN |
| Audio | No |
| Watch Dog | No |

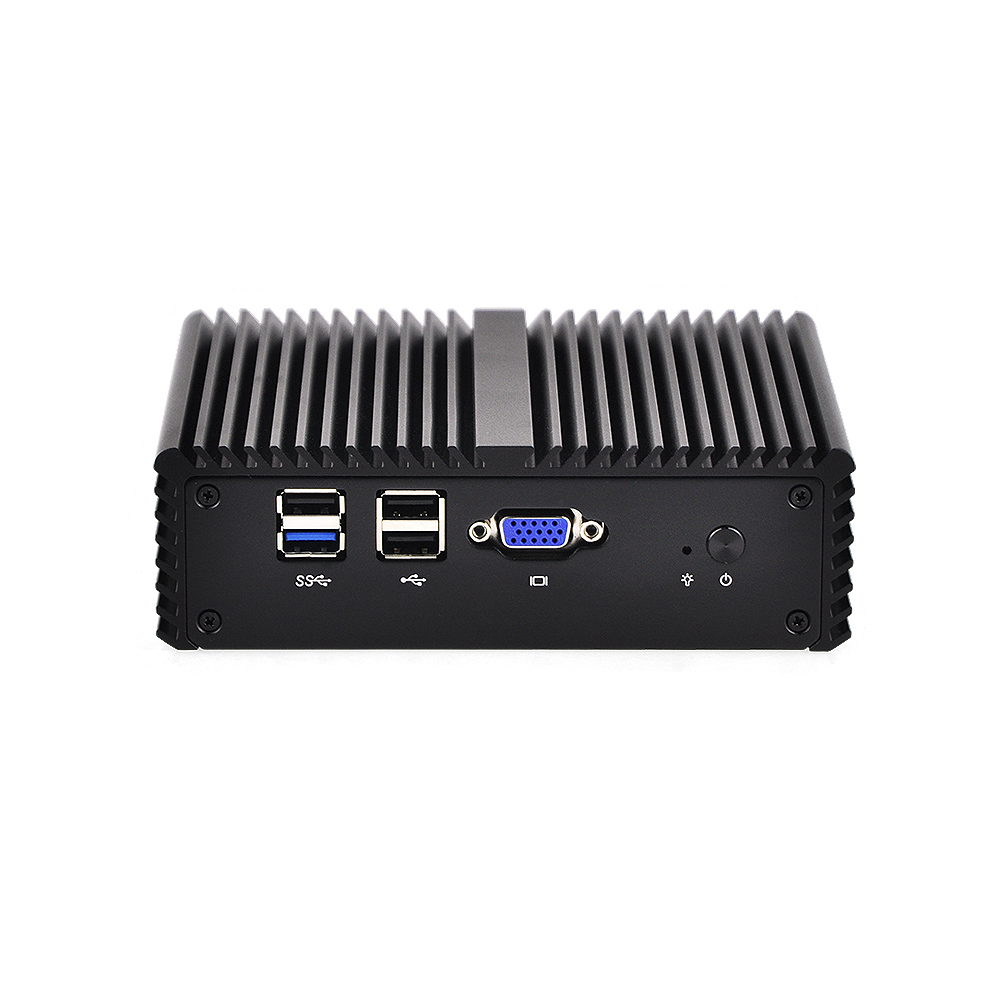

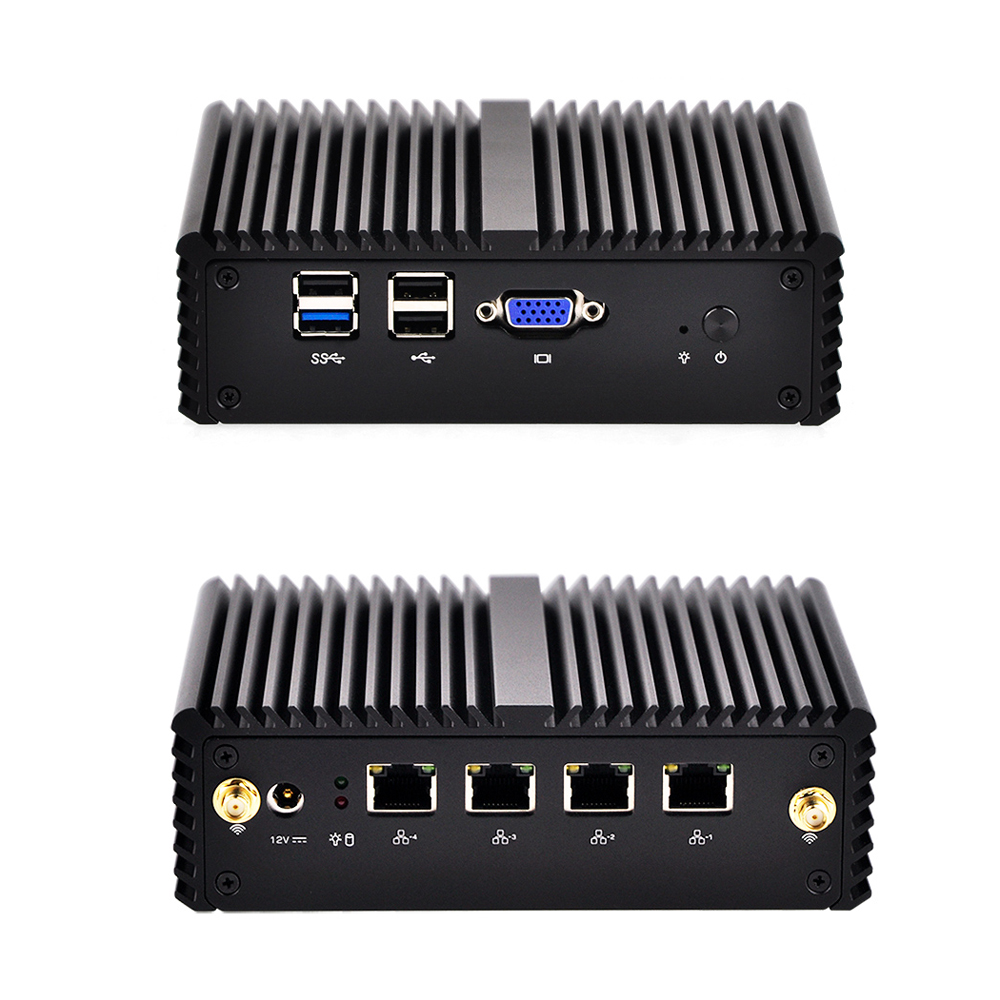

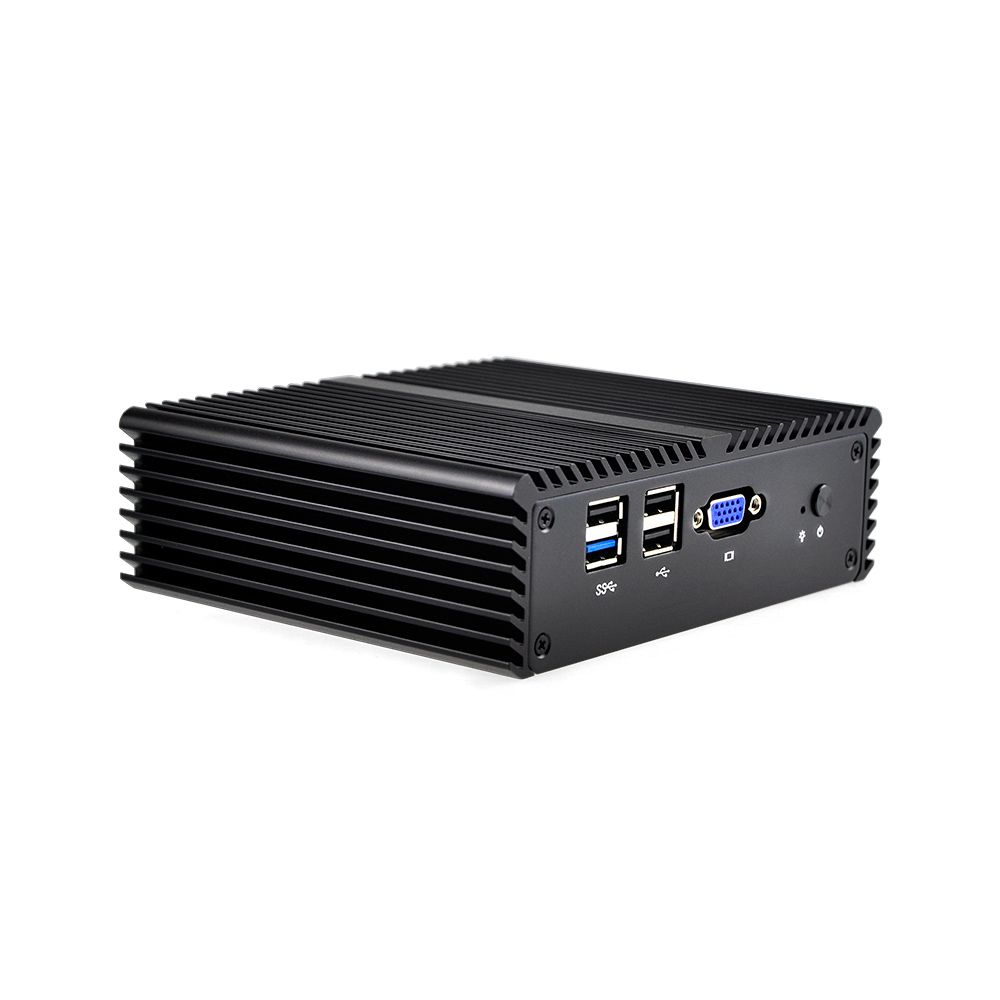

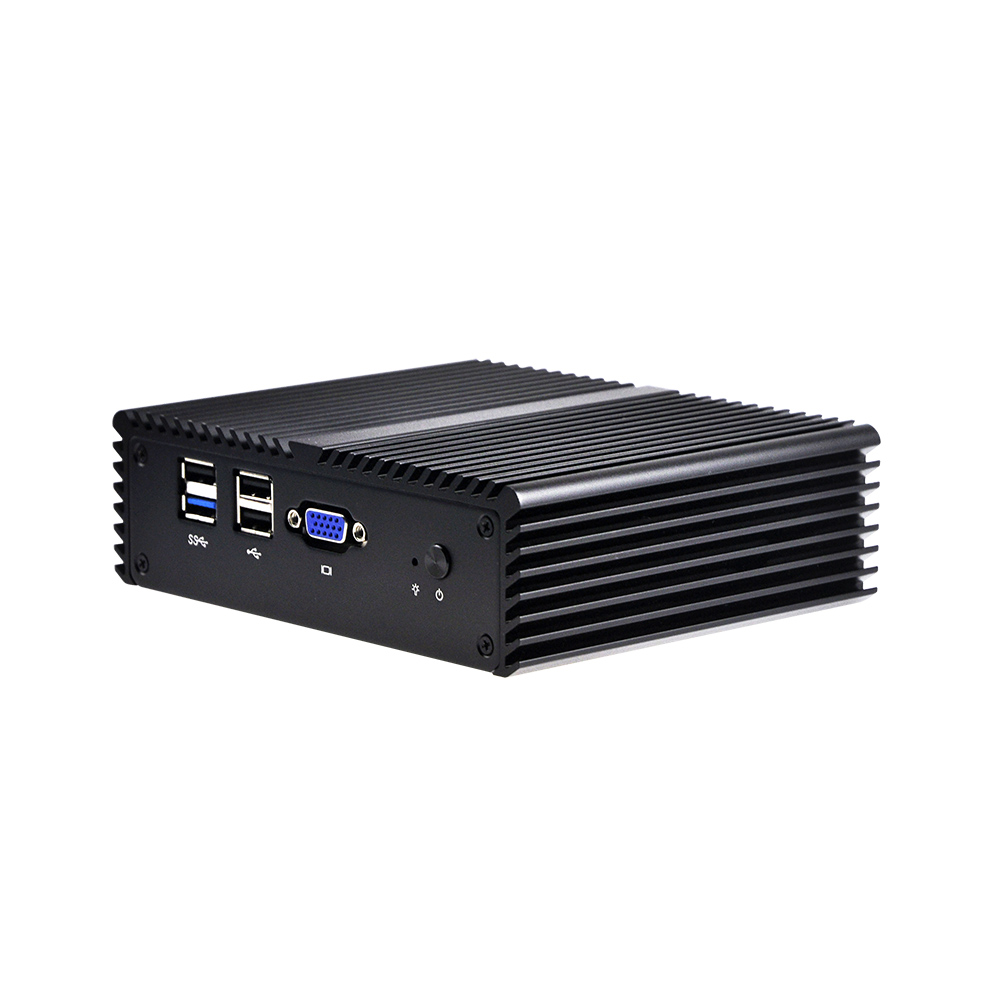

| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED |
| VGA | 1 |
| USB | 1 × USB 3.0, 3 × USB 2.0 |
| Audio | No |

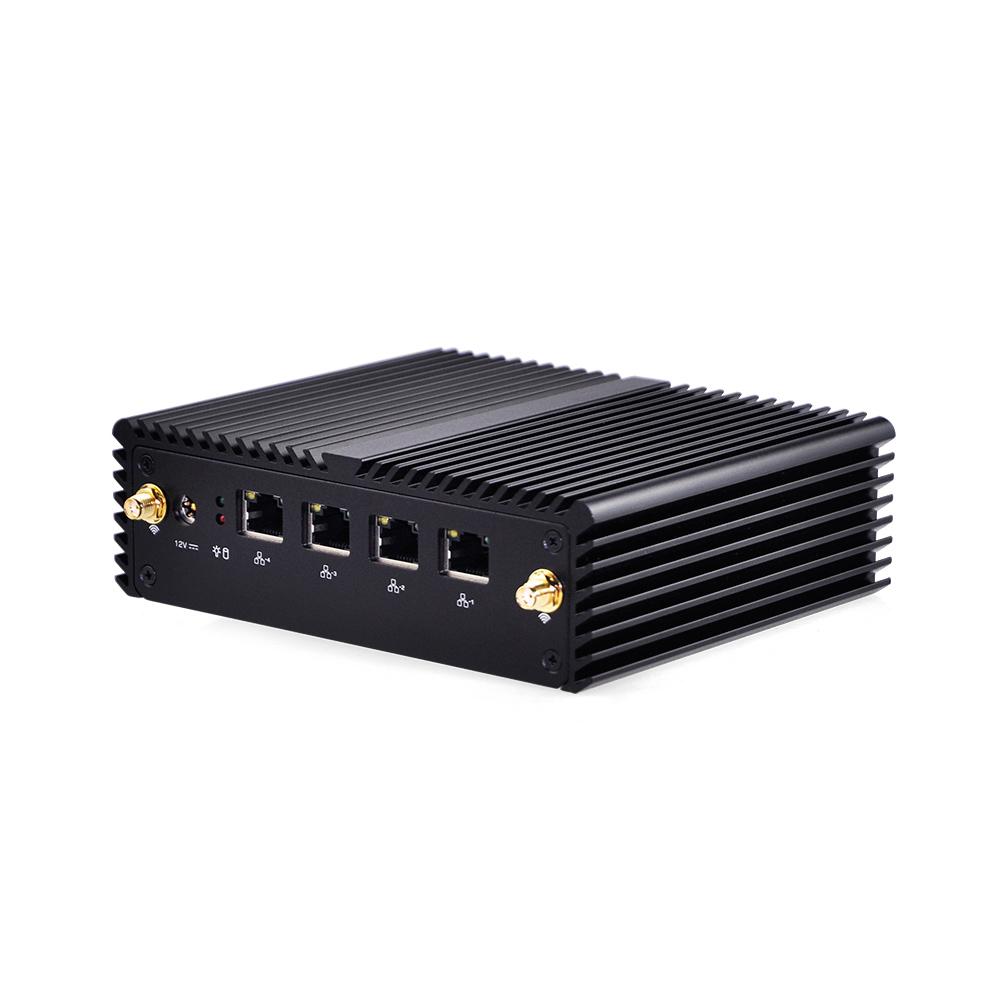

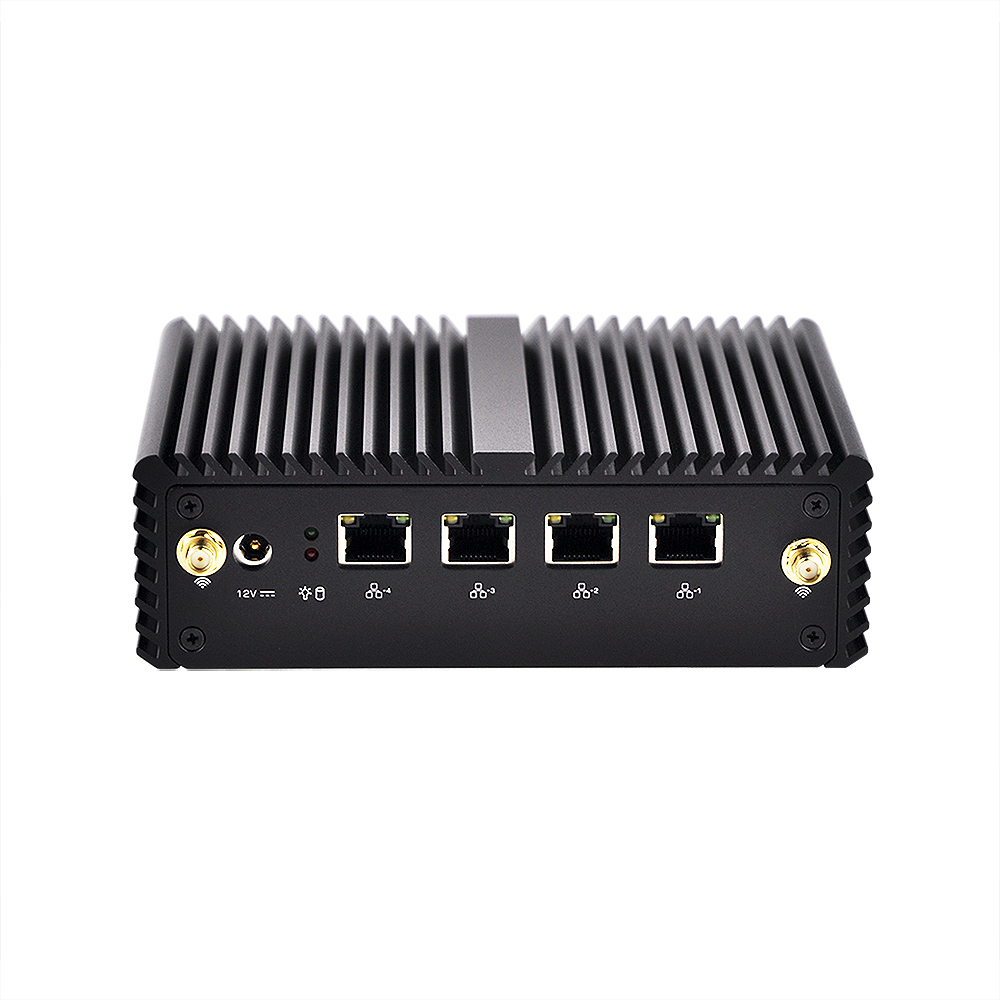

| Rear I/O | |
| Power | 1 × DC Jack |
| LED | 1 × Power LED, 1 × HDD LED |
| LAN | 4 × Intel I211-AT/I210-AT Gigabit LAN |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| Mini PCIe | 1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi (Default Only Support USB Device) |
| SIM Card Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| DC-in | No |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 155 × 127 × 48mm |
| Weight | 0.88kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | Windows 7, Windows 8, Windows 10, Linux |
In the box
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
ItemQuantity
- 1Mini PC1
- 2Silicone Mat4
- 3VESA Bracket1
- 4Screws for VESA Bracket1
- 5Power Adapter1
- 6AC Power Cord1
- 7Screws for SATA SSD/HDD1
- 8SATA cable for SSD/HDD1Option
- 9Antennas2Option
Models & options
Ordering and Specifications Information
Quick Order Model: Q190G4-S08
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
Q190G4 (Q10121G4) | S08 | Bay trail | Celeron | J1900 | 4 | 4 | 2.00Ghz | 2.42Ghz | 2M | Intel HD Graphics | 10W |
Q192G4 (Q10122G4) | S08 | Bay trail | Celeron | N2920 | 4 | 4 | 1.86Ghz | 2.00Ghz | 2M | Intel HD Graphics | 7.5W |
Q193G4 (Q10123G4) | S08 | Bay trail | Celeron | N2930 | 4 | 4 | 1.83Ghz | 2.16Ghz | 2M | Intel HD Graphics | 7.5W |
Q195G4 (Q10134G4) | S08 | Bay trail | Pentium | N3540 | 4 | 4 | 2.16Ghz | 2.66Ghz | 2M | Intel HD Graphics | 7.5W |
Q190G4
(Q10121G4)
S08
- Case
- S08
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- J1900
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 2.00Ghz
- Max Turbo Frequency
- 2.42Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 10W
Q192G4
(Q10122G4)
S08
- Case
- S08
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- N2920
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 1.86Ghz
- Max Turbo Frequency
- 2.00Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 7.5W
Q193G4
(Q10123G4)
S08
- Case
- S08
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- N2930
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 1.83Ghz
- Max Turbo Frequency
- 2.16Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 7.5W
Q195G4
(Q10134G4)
S08
- Case
- S08
- Code Name
- Bay trail
- Processor Type
- Pentium
- Processor Number
- N3540
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 2.16Ghz
- Max Turbo Frequency
- 2.66Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 7.5W
PC Case Options
| Category | SATA Support |
| S01 | - |
| S02 | Yes |
| S07 | - |
| S08 | Yes |
| 1U01 | Yes |
Custom Options
| Category | Description |
| Serial Port | 1 × RS-232 |
| USB 2.0 | 2 |
