Q10100G4 1U rack PC powered by Intel Bay Trail, equipped with 4× Intel I211/I210 LAN, mSATA & Mini PCIe—ideal for rack-based firewall and network deployment.
Intel Bay Trail Processor
1 × VGA
1 × USB 3.0, 3 × USB 2.0, 1 × SATA 3.0
1 × Mini PCIe, 1 × mSATA
4 × Intel I211-AT/I210-AT Gigabit LAN
| Processor System | |
| CPU | Intel Bay Trail Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 4 × Intel I211-AT/I210-AT Gigabit LAN |
| Audio | No |
| Watch Dog | No |

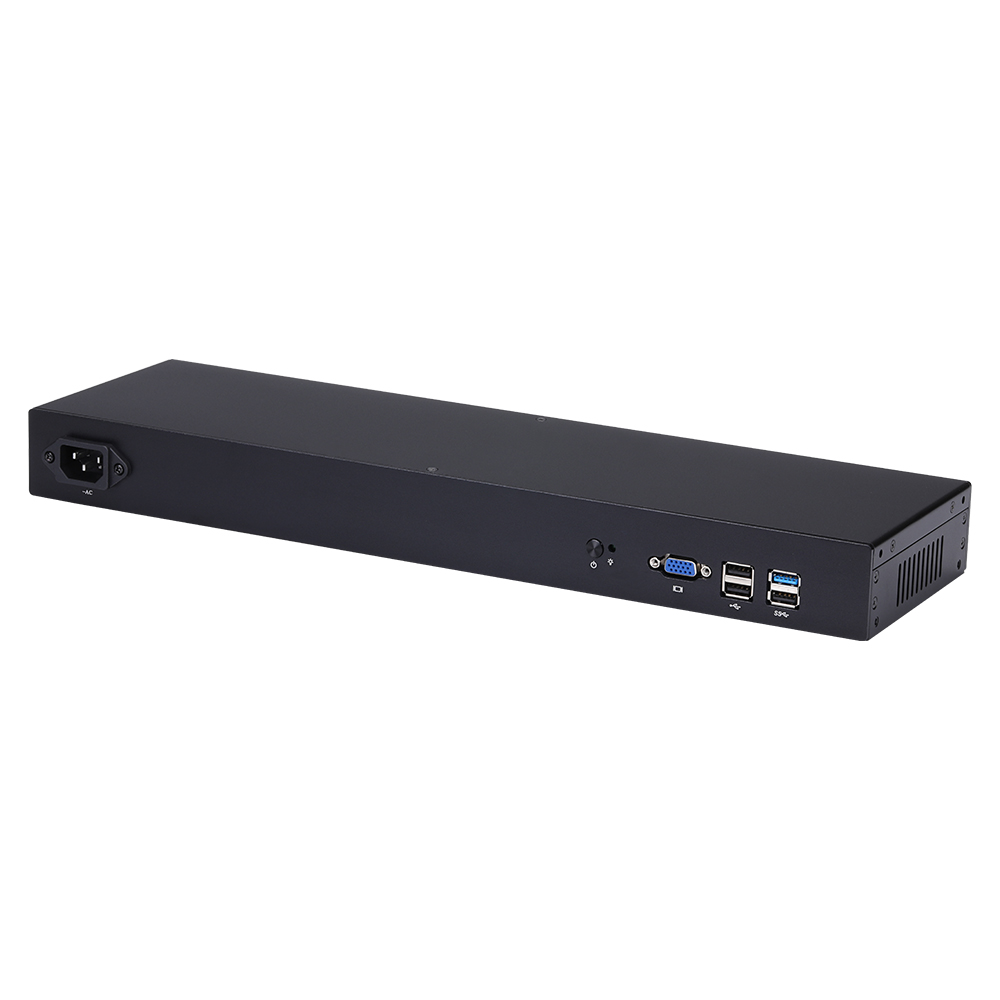

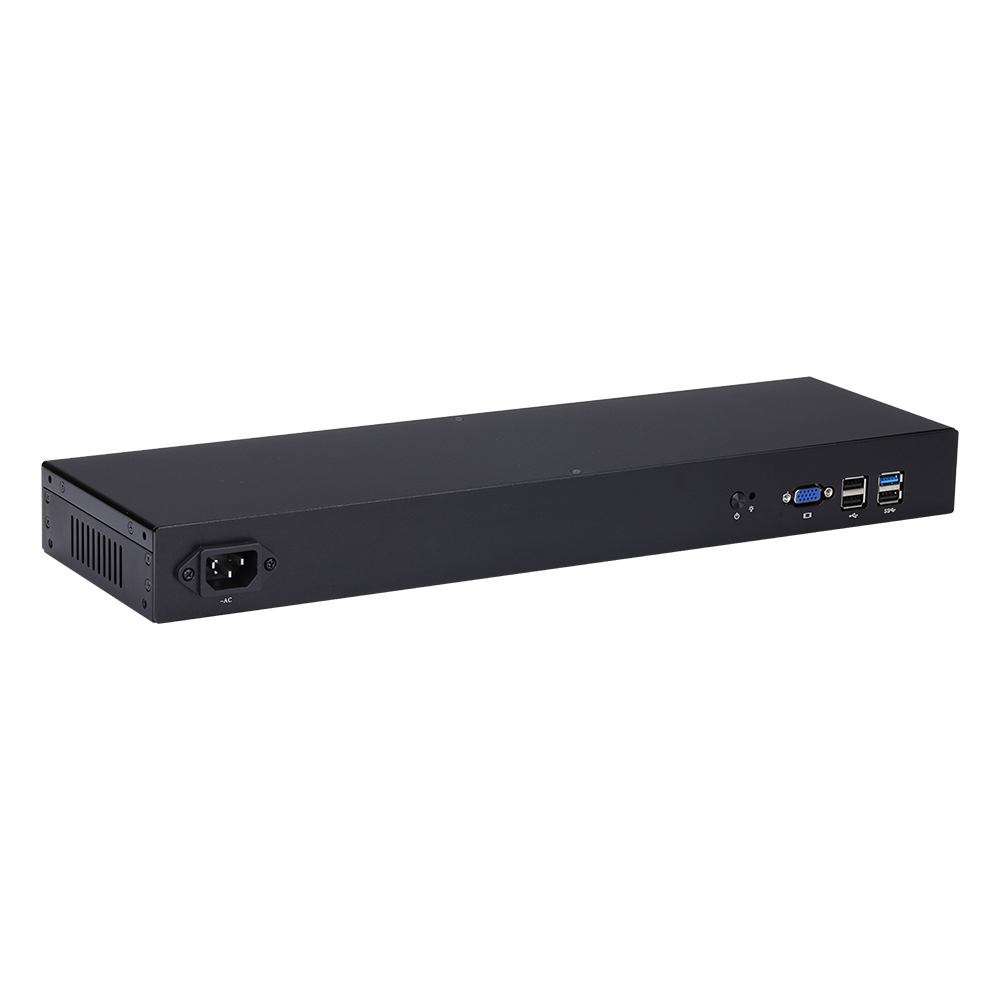

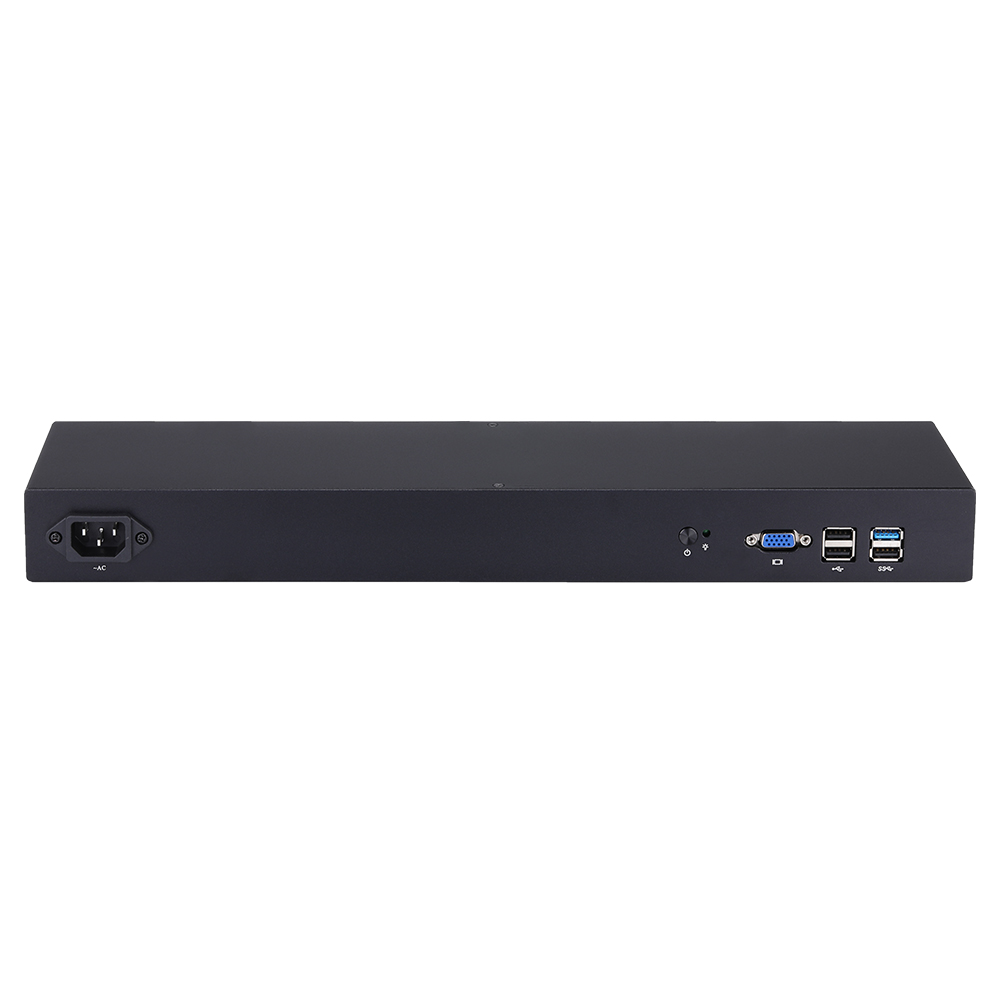

| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED |
| VGA | 1 |
| USB | 1 × USB 3.0, 3 × USB 2.0 |
| Audio | No |

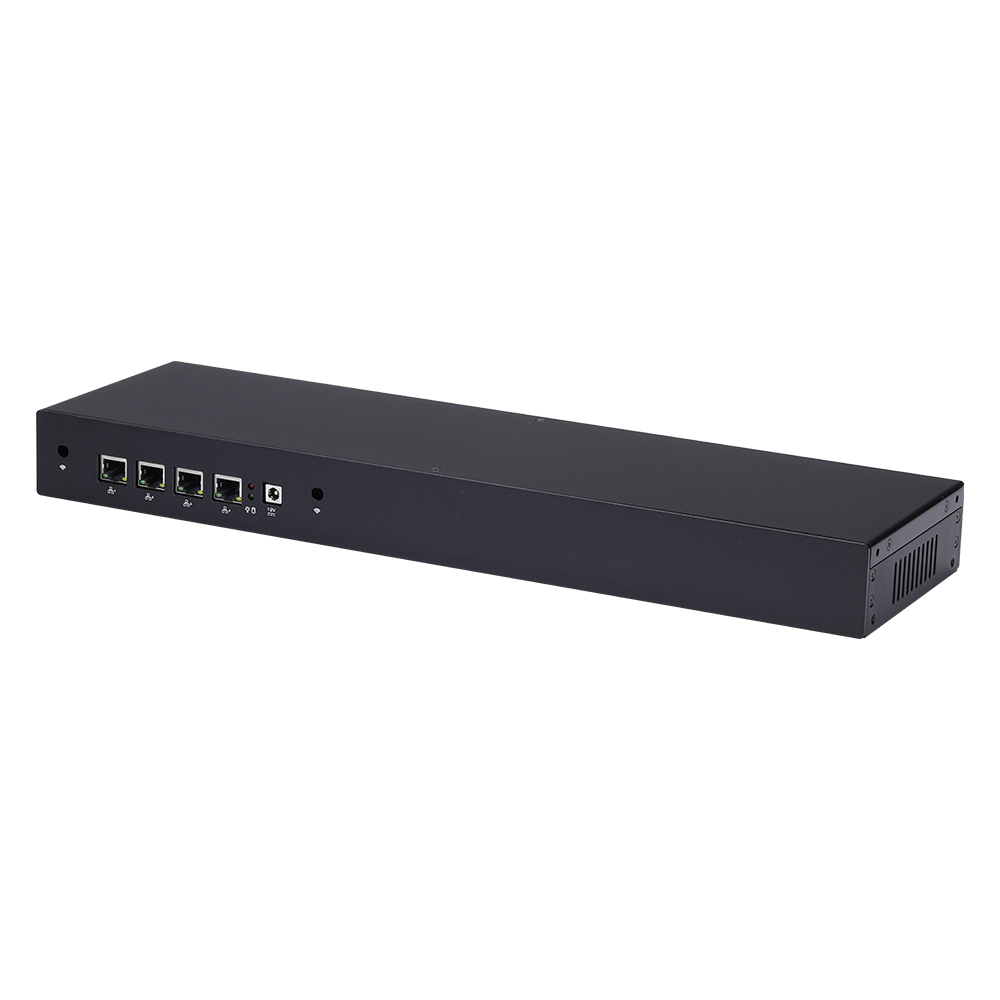

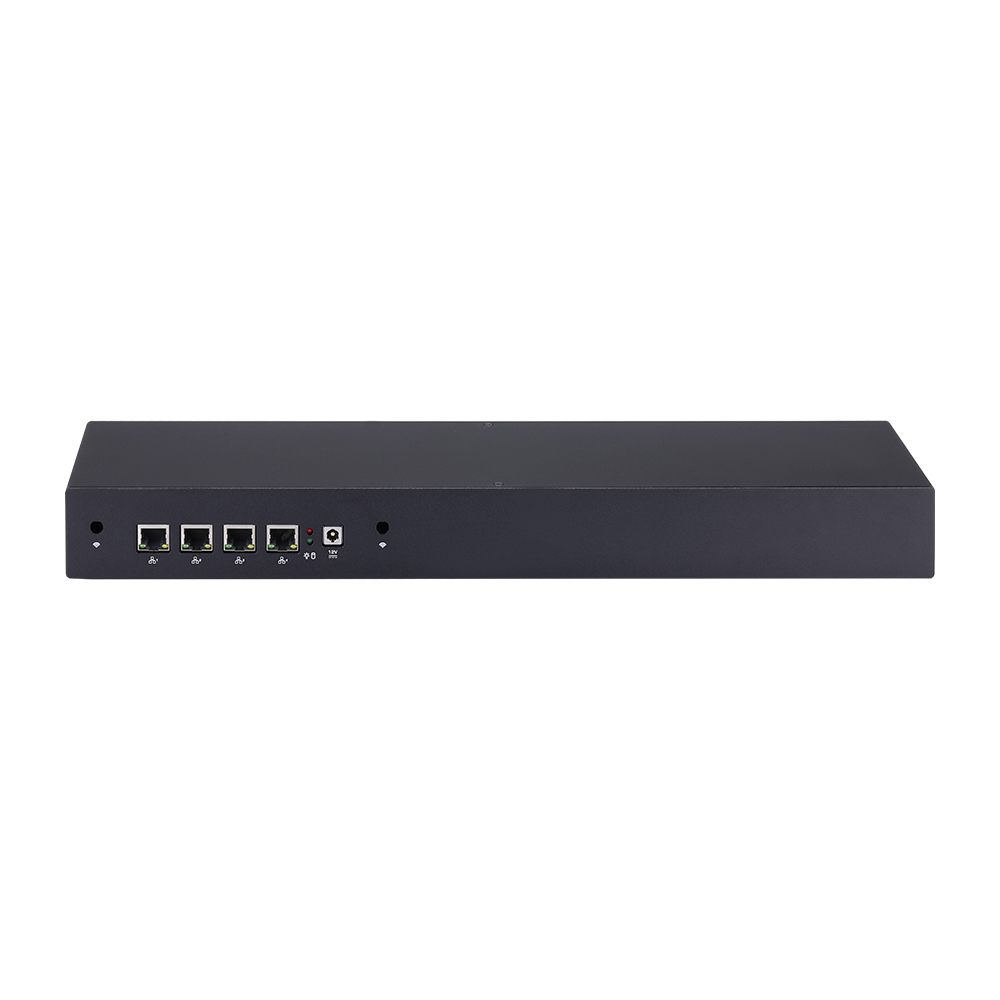

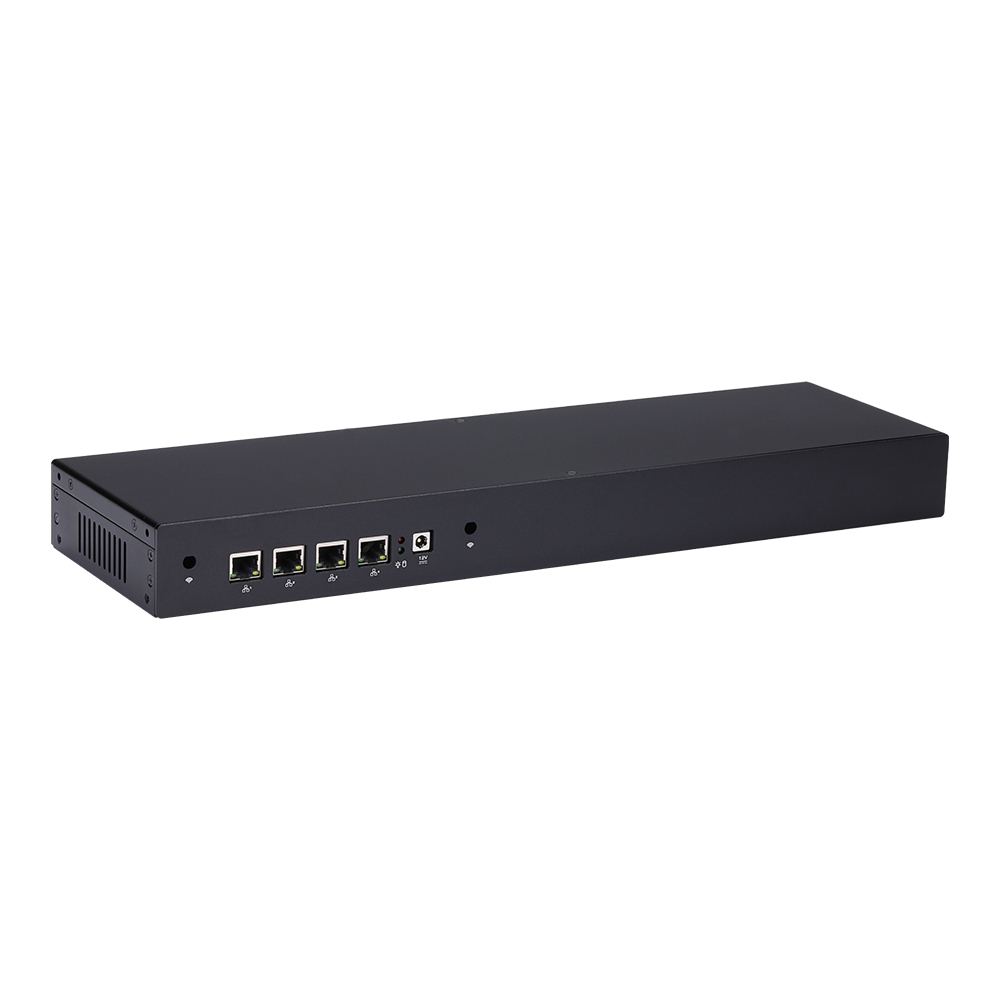

| Rear I/O | |
| Power | 1 × DC Jack |
| LED | 1 × Power LED, 1 × HDD LED |
| LAN | 4 × Intel I211-AT/I210-AT Gigabit LAN |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| Mini PCIe | 1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi (Default Only Support USB Device) |
| SIM Card Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| DC-in | No |
| Power Requirement | |
| AC Input | AC 100-240V by Default |
| Power Adapter | DC 12V (5.5mm, 2.5mm) |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 440 × 127 × 44mm |
| Weight | 1.16kg |
| Mounting | No |
| Packaging Dimension | 545 × 180 × 90mm |
| Kensington Lock | No |
| Cooling Mode | Fan |
| OS Support | |
| OS | Windows 7, Windows 8, Windows 10, Linux |
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | AC Power Cord | 1 | |
| 3 | Screws for SATA SSD/HDD | 1 | |
| 4 | SATA cable for SSD/HDD | 1 | Option |
| 5 | Antennas | 2 | Option |
Quick Order Model: Q190G4-1U01
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
Q190G4 (Q10121G4) | 1U01 | Bay trail | Celeron | J1900 | 4 | 4 | 2.00Ghz | 2.42Ghz | 2M | Intel HD Graphics | 10W |
Q192G4 (Q10122G4) | 1U01 | Bay trail | Celeron | N2920 | 4 | 4 | 1.86Ghz | 2.00Ghz | 2M | Intel HD Graphics | 7.5W |
Q193G4 (Q10123G4) | 1U01 | Bay trail | Celeron | N2930 | 4 | 4 | 1.83Ghz | 2.16Ghz | 2M | Intel HD Graphics | 7.5W |
Q195G4 (Q10134G4) | 1U01 | Bay trail | Pentium | N3540 | 4 | 4 | 2.16Ghz | 2.66Ghz | 2M | Intel HD Graphics | 7.5W |
| Category | SATA Support |
| S01 | - |
| S02 | Yes |
| S07 | - |
| S08 | Yes |
| 1U01 | Yes |
| Category | Description |
| Serial Port | 1 × RS-232 |
| USB 2.0 | 2 |
