Integrated low-power Celeron processor J1900, dual Gigabit network cards, HDMI+VGA dual display, 1 serial port, 4 USB
With low power consumption Intel Bay Trail j1900 processor , Qotom Mini PC Q190S can be configured as a common used desktop PC. With VESA bracket, it can be hung at the back of monitor to save space. Small, quiet, compact and cheap, running 24/7, Qotom Mini PC is a good solution for home, office, factory and so on.
| Processor System |
| CPU | Intel Bay Trail Processor |
| CPU TDP | By CPU |
| Memory | 1 x DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 x Realtek Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | No |

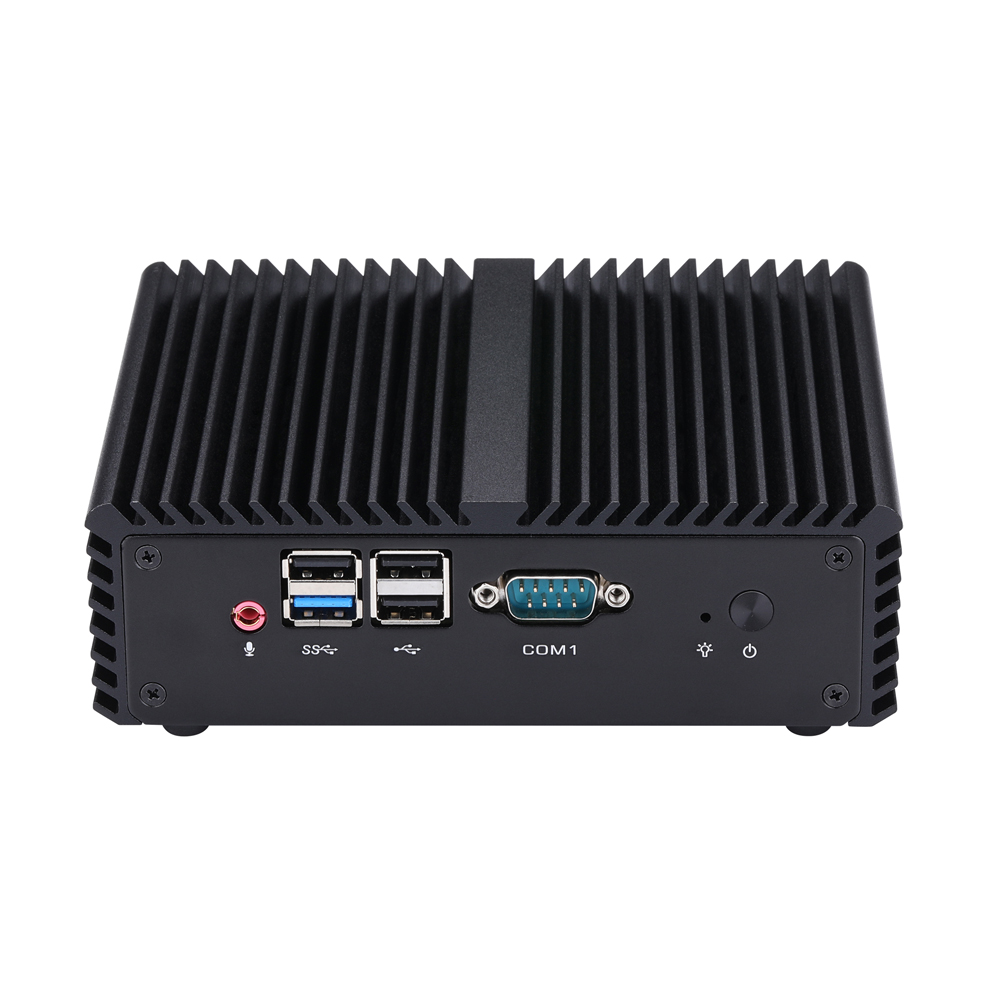

| Front I/O |
| Power Button | 1 |
| LED | 1 x Power LED |
| Serial Port | 1 x RS-232 (COM1) |
| USB | 1 x USB 3.0, 3 x USB 2.0 |
| Audio | 1 (Mic-in) |
| Rear I/O |
| Power | 1 x DC Jack |
| Video Output | 1 x HDMI, 1 x VGA |
| LAN | 2 x Realtek Gigabit LAN |
| USB | 0 |
| Audio | 1 (Line-out) |
| Serial Port | 0 |
| Storage |
| Type | 1 x 2.5-inch HDD/SSD 1 x Mini PCIe for mSATA SSD |
| Expansion |
| mSATA | 1 x Full Length Mini PCIe for SSD |
| Mini PCIe | 1 x Half-length Mini PCIe for Wi-Fi |
| SIM Card Slot | 0 |
| AutoStart Jumper | No |
| CMOS Clear Jumper | No |
| GPIO | No |
| VGA | 0 |
| DC-in | No |
| Power Requirement |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical |
| Material | Aluminium Alloy |
| Dimension | 155 x 127 x 48mm |
| Weight | 0.88kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 x 218 x 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support |
| OS | Windows 7, Windows 8, Windows 10, Linux |
Packing list:
1 x Mini PC Q190S
1 x Power supply (12V 3A adapter and plug)
1 x VESA bracket
1 x SATA power cable for 2.5" SATA SSD/ HDD (S02/S08)
2 x Antennas (If you choose Wi-Fi)
Some screws for VESA and SATA
We have 2 kinds of packaging box, color box and neutral packaing. We use color box by default.
Ordering and Specifications Information
Quick Order Model: Q190S-S08
PC Case Options
| Ordering Code | Case | Code Name | Processor Type | Processor Number | Cores | Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics |
Q180S Q10111S | S08 | Bay trail | Celeron | J1800 | 2 | 2 | 2.41Ghz | 2.58Ghz | 1M | Intel HD Graphics |
Q190S Q10121S | S08 | Bay trail | Celeron | J1900 | 4 | 4 | 2.00Ghz | 2.42Ghz | 2M | Intel HD Graphics |
Q192S Q10122S | S08 | Bay trail | Celeron | N2920 | 4 | 4 | 1.86Ghz | 2.0Ghz | 2M | Intel HD Graphics |
| Category | SATA Support |
| S01 | - |
| S02 | Yes |
| S07 | - |
| S08 | Yes |
Custom Options
| Category | Description |
| USB 2.0 | 2 |
| Serial Port | 3 x RS-232 |
