Mini PC Q10100X S04 Series
Compact and reliable, this Bay Trail mini PC offers 7 RS-232 ports, dual LAN, VGA/HDMI, rich I/O, and SSD expandability—ideal for industrial control and serial communication tasks.
- NIC
- 2 × Realtek Gigabit LAN
- USB
- 1 × USB 3.0, 7 × USB 2.0
- RS-232
- 7 × RS-232
- RS-485
- None
- VGA
- Yes
- PS/2
- Yes
- GPIO
- Yes
Tell us the configuration and quantity you need.
OVERVIEW
Main Features
Intel Bay Trail Processor
1 × VGA, 1 × HDMI, 7 × RS-232
1 × USB 3.0, 7 × USB 2.0, 1 × SATA 3.0
1 × Mini PCIe, 1 × mSATA
2 × Realtek Gigabit LAN

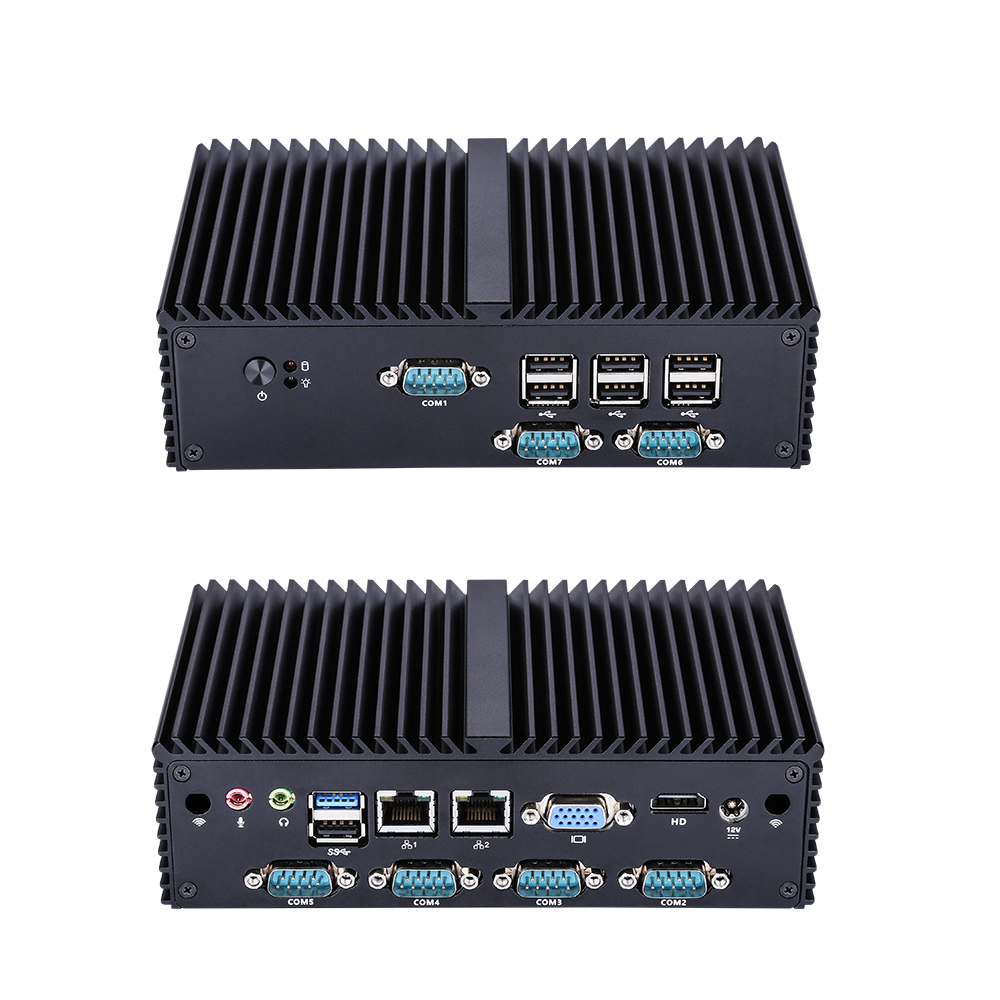

Q10100X Series Product Expansion and Product Image Differences
Based on the Q10100X as the standard model, all other extended chassis are developed from it.

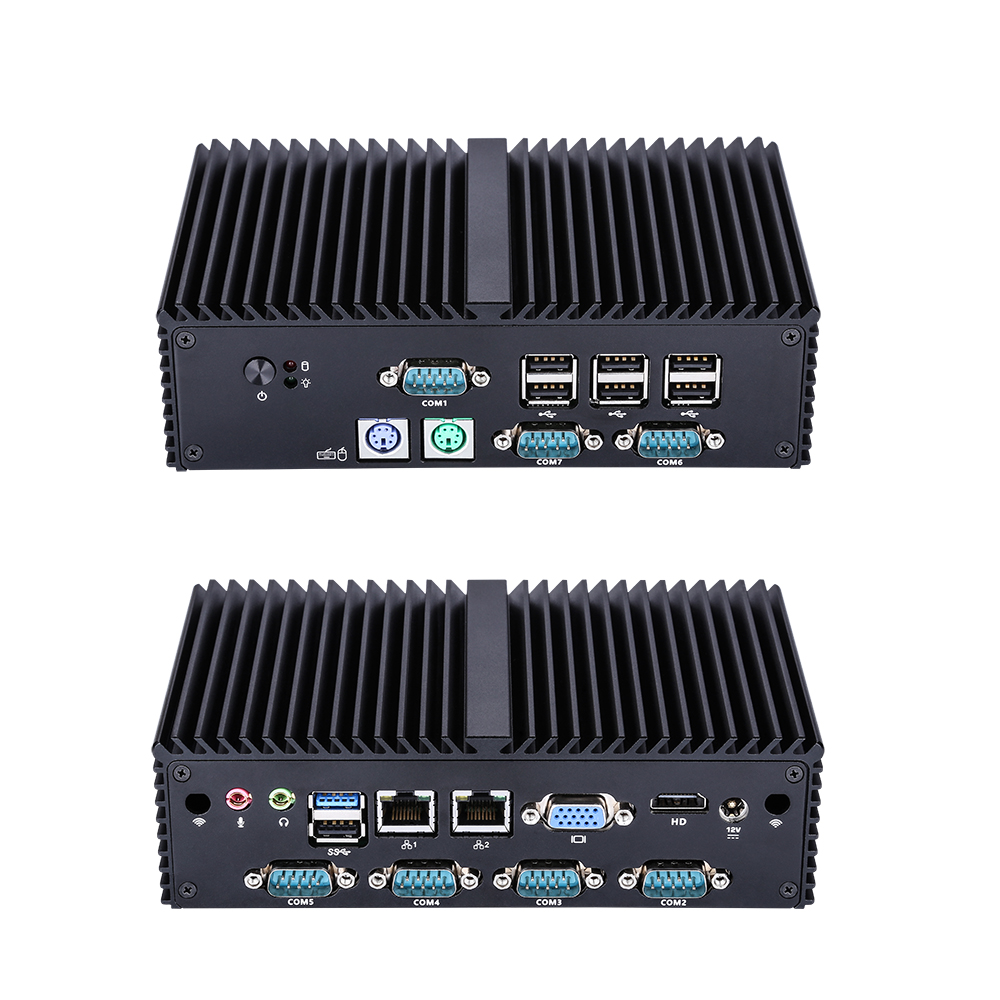

Q10100XP: Adds PS/2 port based on Q10100X

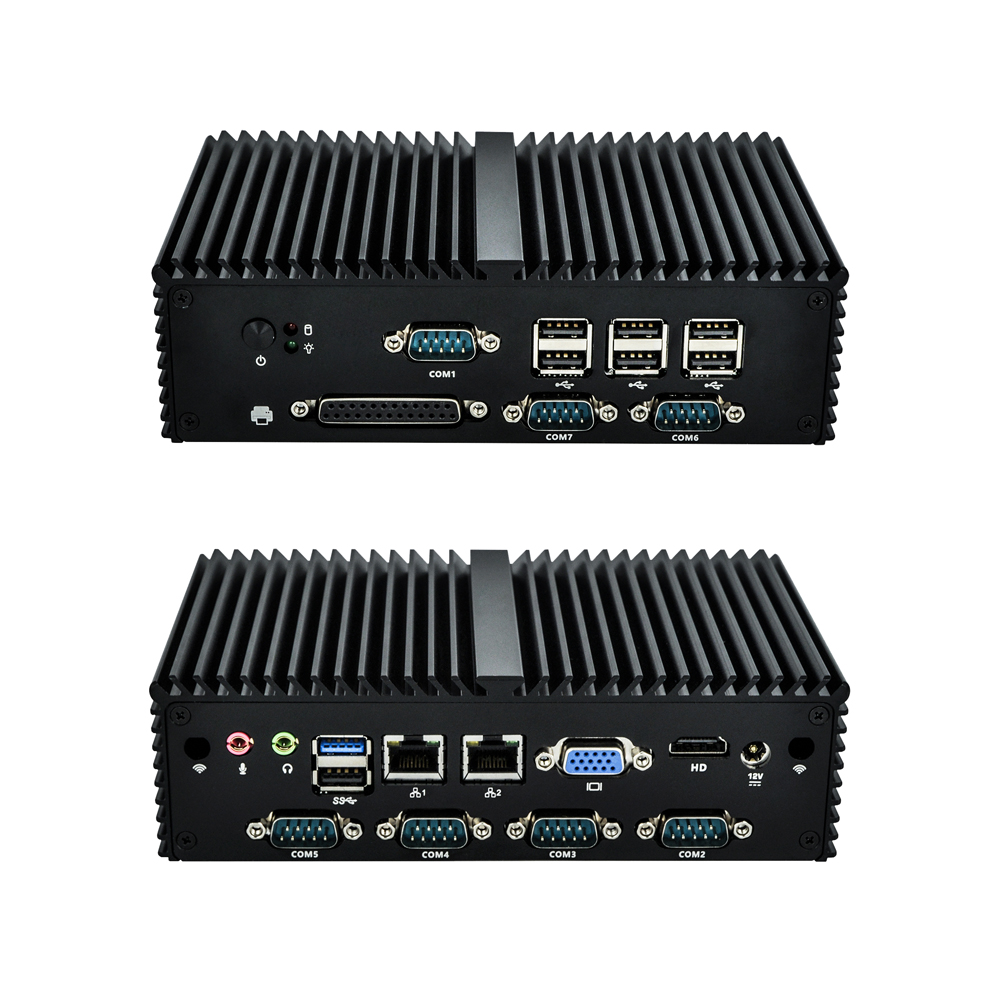

Q10100XL: Adds LPT port based on Q10100X
SPECIFICATION
| Processor System | |
| CPU | Intel Bay Trail Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Realtek Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |

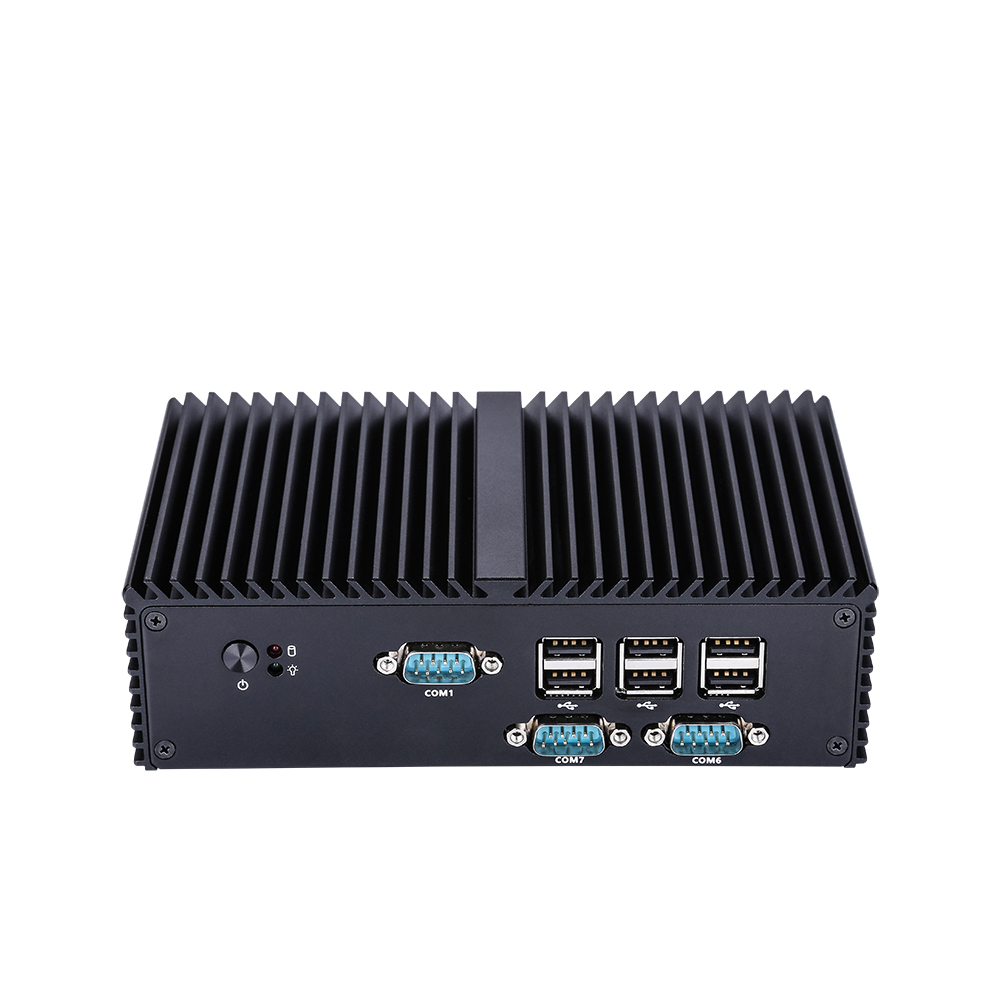

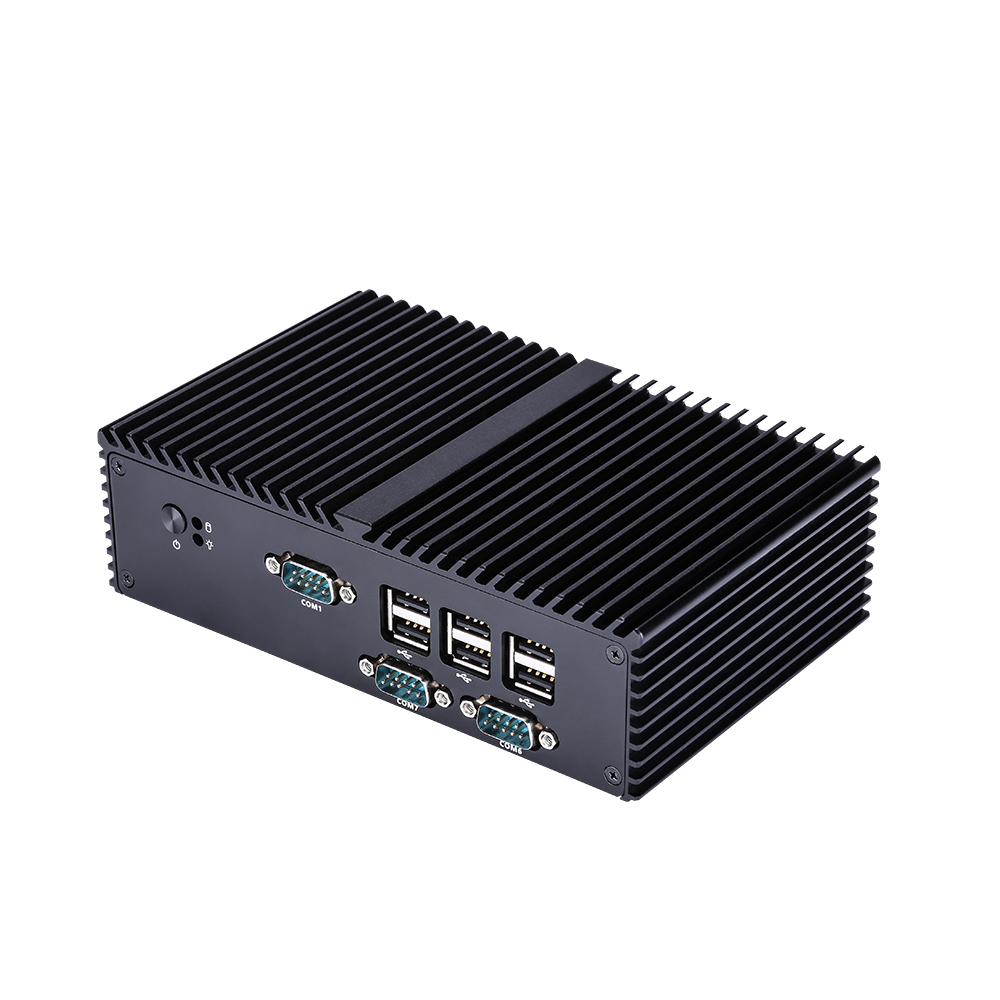

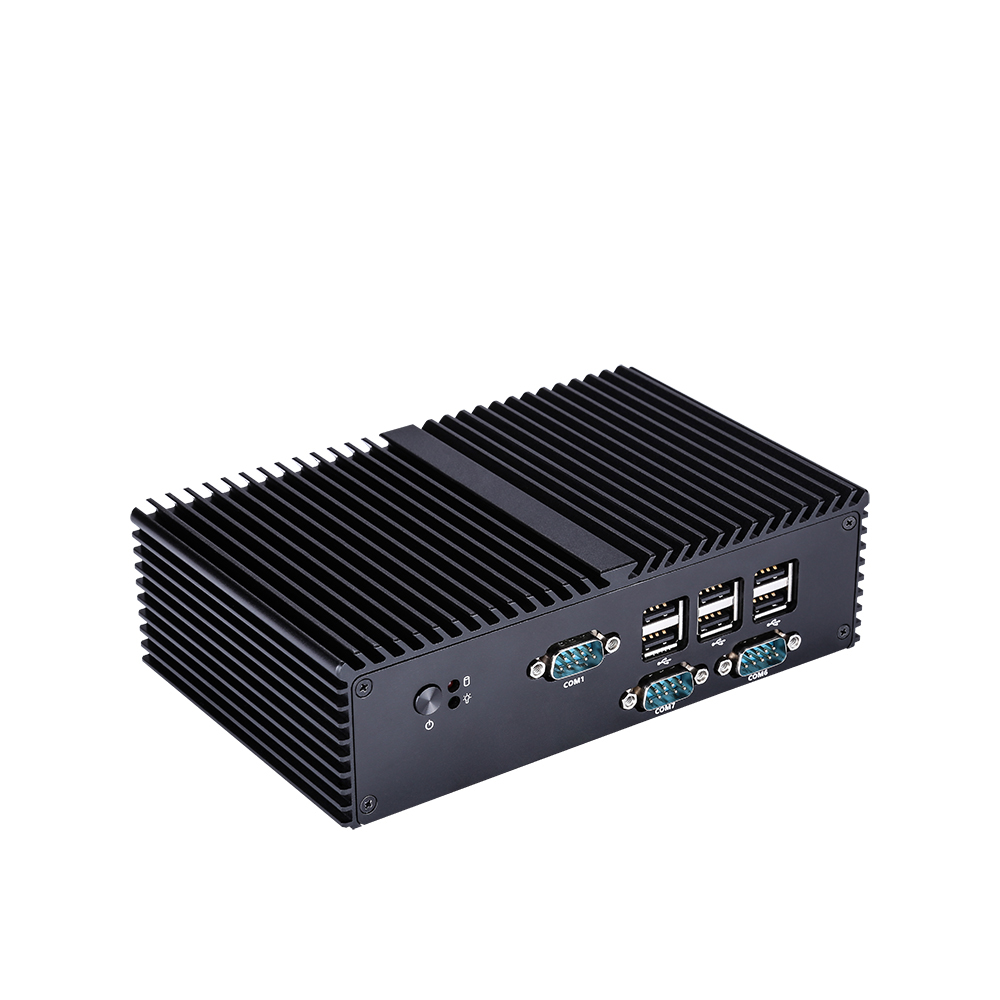

| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED |
| LED | 1 × HDD LED |
| Serial Port | 3 × RS-232 (COM1 Supports 5V/12V) |
| USB | 6 × USB 2.0 |

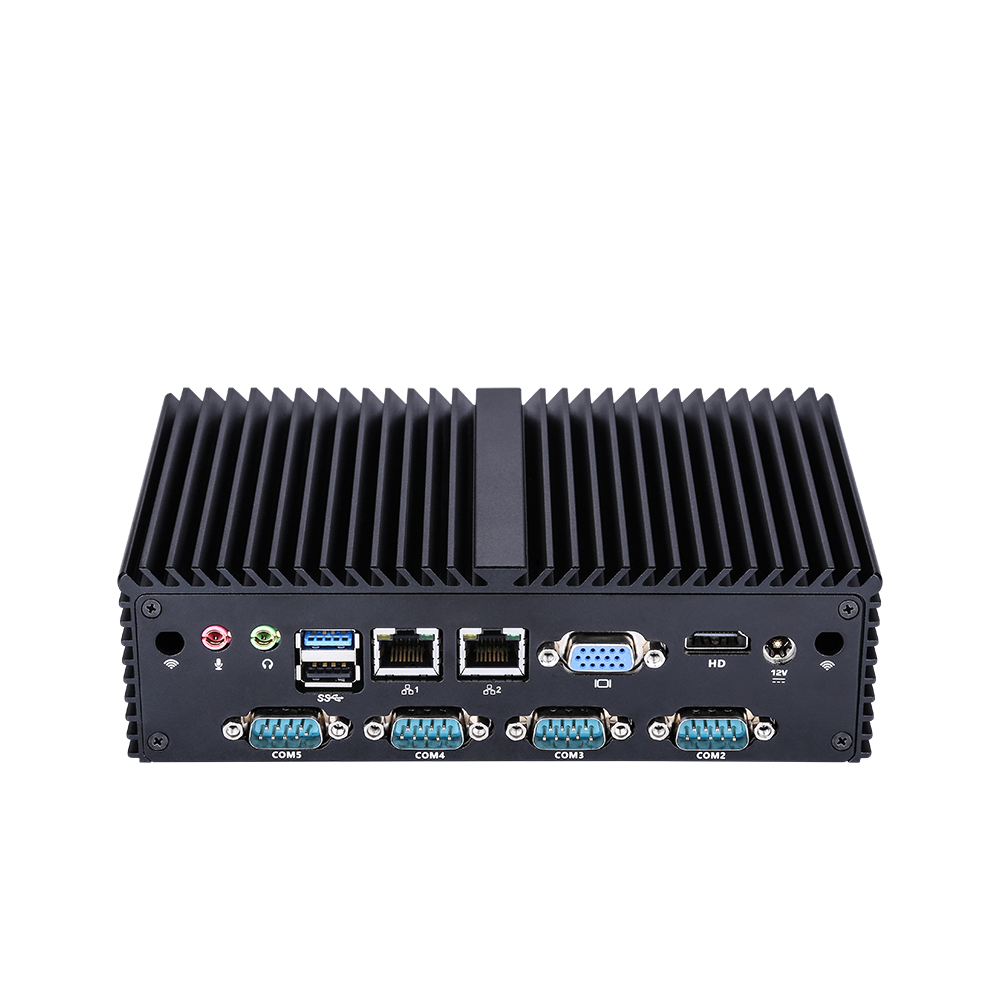

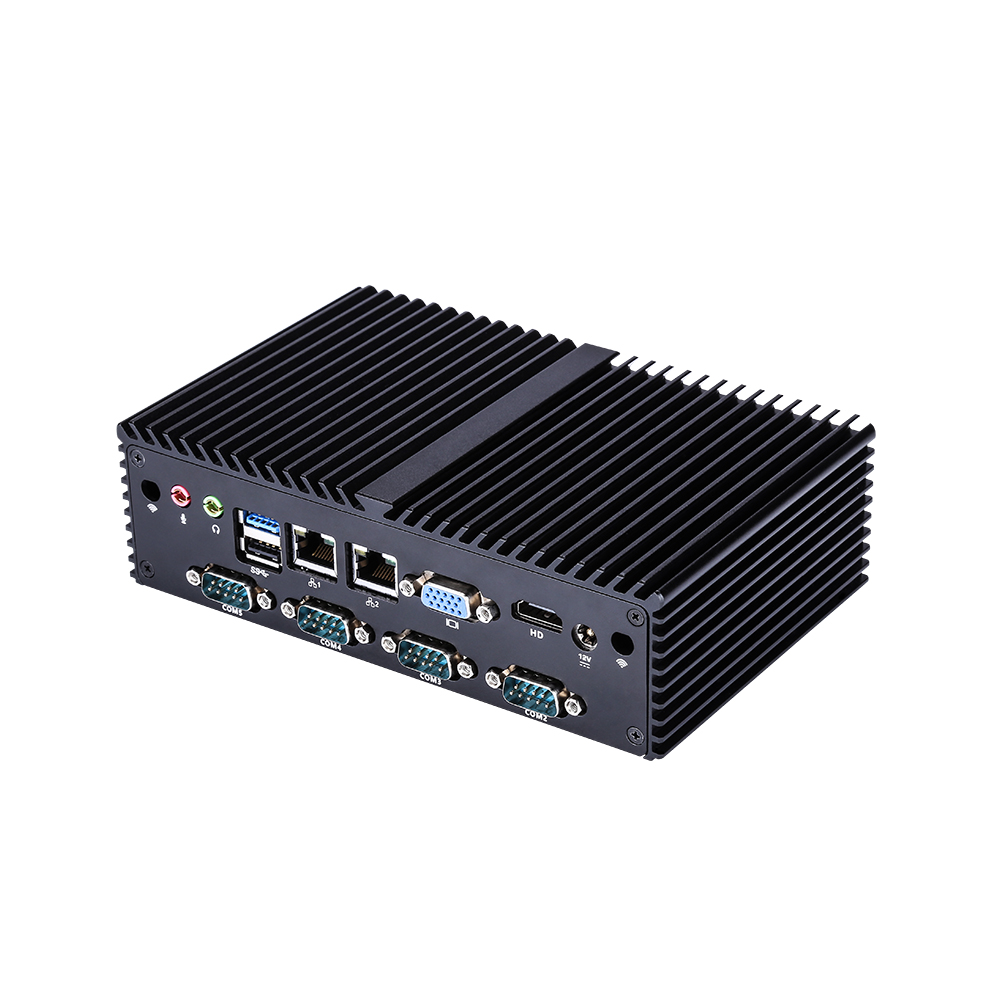

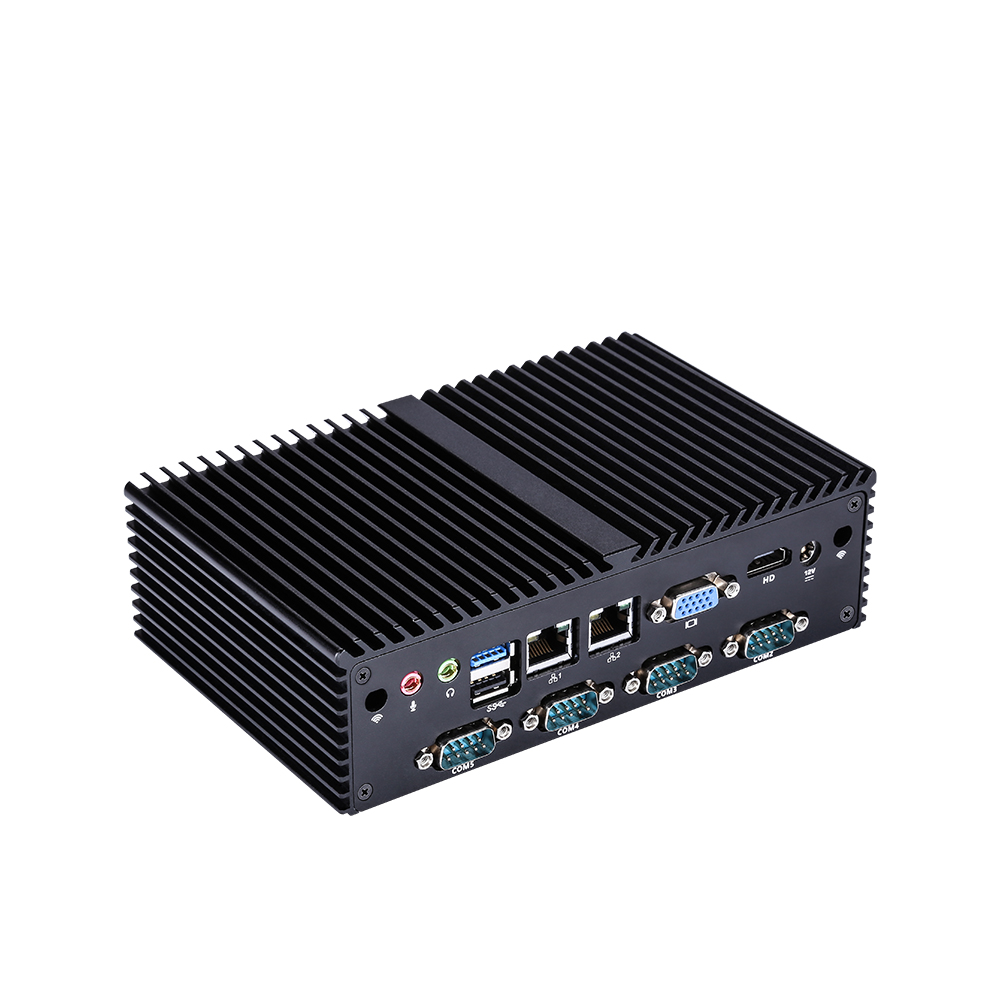

| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 1 × HDMI, 1 × VGA |
| LAN | 2 × Realtek Gigabit LAN |
| USB | 1 × USB 3.0, 1 × USB 2.0 |
| Audio | 1 × Mic-in, 1 × Line-out |
| Serial Port | 4 × RS-232 (COM2/COM3 Support 5V/12V) |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| Mini PCIe | 1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi |
| SIM Card Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| VGA | 0 |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| DC-in | No |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 178 × 111 × 52mm |
| Weight | 0.88kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | Windows 7, Windows 8, Windows 10, Linux |
PACKING
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
ItemQuantity
- 1Mini PC1
- 2Silicone Mat4
- 3VESA Bracket1
- 4Screws for VESA Bracket1
- 5Power Adapter1
- 6AC Power Cord1
- 7Screws for SATA SSD/HDD1
- 8SATA cable for SSD/HDD1Option
- 9Antennas2Option
ORDERING
Ordering and Specifications Information
Quick Order Model: Q190X-S04
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
Q180X (Q10111X) | S04 | Bay trail | Celeron | J1800 | 2 | 2 | 2.41Ghz | 2.58Ghz | 1M | Intel HD Graphics | 10W |
Q190X (Q10121X) | S04 | Bay trail | Celeron | J1900 | 4 | 4 | 2.00Ghz | 2.42Ghz | 2M | Intel HD Graphics | 10W |
Q192X Q10122X) | S04 | Bay trail | Celeron | N2920 | 4 | 4 | 1.86Ghz | 2.0Ghz | 2M | Intel HD Graphics | 7.5W |
Q193X (Q10123X) | S04 | Bay trail | Celeron | N2930 | 4 | 4 | 1.83Ghz | 2.16Ghz | 2M | Intel HD Graphics | 7.5W |
Q180XP (Q10111XP) | S04 | Bay trail | Celeron | J1800 | 2 | 2 | 2.41Ghz | 2.58Ghz | 1M | Intel HD Graphics | 10W |
Q190XP (Q10121XP) | S04 | Bay trail | Celeron | J1900 | 4 | 4 | 2.00Ghz | 2.42Ghz | 2M | Intel HD Graphics | 10W |
Q192XP (Q10122XP) | S04 | Bay trail | Celeron | N2920 | 4 | 4 | 1.86Ghz | 2.0Ghz | 2M | Intel HD Graphics | 7.5W |
Q193XP (Q10123XP) | S04 | Bay trail | Celeron | N2930 | 4 | 4 | 1.83Ghz | 2.16Ghz | 2M | Intel HD Graphics | 7.5W |
Q180XL (Q10111XL) | S04 | Bay trail | Celeron | J1800 | 2 | 2 | 2.41Ghz | 2.58Ghz | 1M | Intel HD Graphics | 10W |
Q190XL (Q10121XL) | S04 | Bay trail | Celeron | J1900 | 4 | 4 | 2.00Ghz | 2.42Ghz | 2M | Intel HD Graphics | 10W |
Q192XL (Q10122XL) | S04 | Bay trail | Celeron | N2920 | 4 | 4 | 1.86Ghz | 2.0Ghz | 2M | Intel HD Graphics | 7.5W |
Q193XL (Q10123XL) | S04 | Bay trail | Celeron | N2930 | 4 | 4 | 1.83Ghz | 2.16Ghz | 2M | Intel HD Graphics | 7.5W |
Q180X
(Q10111X)
S04
- Case
- S04
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- J1800
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 2.41Ghz
- Max Turbo Frequency
- 2.58Ghz
- Cache
- 1M
- Processor Graphics
- Intel HD Graphics
- TDP
- 10W
Q190X
(Q10121X)
S04
- Case
- S04
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- J1900
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 2.00Ghz
- Max Turbo Frequency
- 2.42Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 10W
Q192X
Q10122X)
S04
- Case
- S04
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- N2920
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 1.86Ghz
- Max Turbo Frequency
- 2.0Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 7.5W
Q193X
(Q10123X)
S04
- Case
- S04
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- N2930
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 1.83Ghz
- Max Turbo Frequency
- 2.16Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 7.5W
Q180XP
(Q10111XP)
S04
- Case
- S04
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- J1800
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 2.41Ghz
- Max Turbo Frequency
- 2.58Ghz
- Cache
- 1M
- Processor Graphics
- Intel HD Graphics
- TDP
- 10W
Q190XP
(Q10121XP)
S04
- Case
- S04
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- J1900
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 2.00Ghz
- Max Turbo Frequency
- 2.42Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 10W
Q192XP
(Q10122XP)
S04
- Case
- S04
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- N2920
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 1.86Ghz
- Max Turbo Frequency
- 2.0Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 7.5W
Q193XP
(Q10123XP)
S04
- Case
- S04
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- N2930
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 1.83Ghz
- Max Turbo Frequency
- 2.16Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 7.5W
Q180XL
(Q10111XL)
S04
- Case
- S04
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- J1800
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 2.41Ghz
- Max Turbo Frequency
- 2.58Ghz
- Cache
- 1M
- Processor Graphics
- Intel HD Graphics
- TDP
- 10W
Q190XL
(Q10121XL)
S04
- Case
- S04
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- J1900
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 2.00Ghz
- Max Turbo Frequency
- 2.42Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 10W
Q192XL
(Q10122XL)
S04
- Case
- S04
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- N2920
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 1.86Ghz
- Max Turbo Frequency
- 2.0Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 7.5W
Q193XL
(Q10123XL)
S04
- Case
- S04
- Code Name
- Bay trail
- Processor Type
- Celeron
- Processor Number
- N2930
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 1.83Ghz
- Max Turbo Frequency
- 2.16Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 7.5W
Custom Options
| Category | Description |
| GPIO | 1 |
| PS/2 | 2 |
| LPT | 1 |
| USB 2.0 | 1 |
