Mini PC Q10300SN S01 Series
Qotom Q10300D Series Mini PC: Intel Braswell CPU, multi-display (DP + 2x HDMI), RS-232, 4x USB 3.0, M.2/mSATA storage, and dual Gigabit LAN. Built for digital signage, industrial automation, and network appliances.
Tell us the configuration and quantity you need.
OVERVIEW
Main Features
Intel Braswell Processor

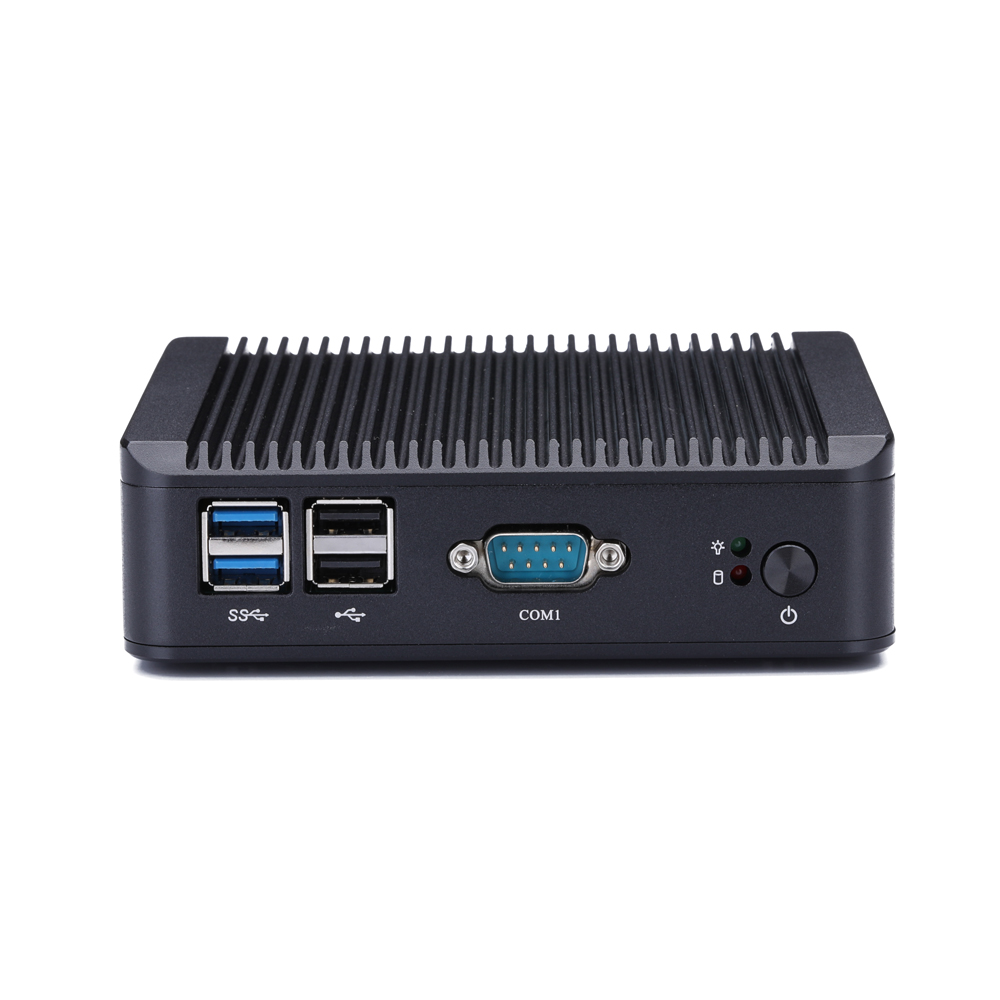

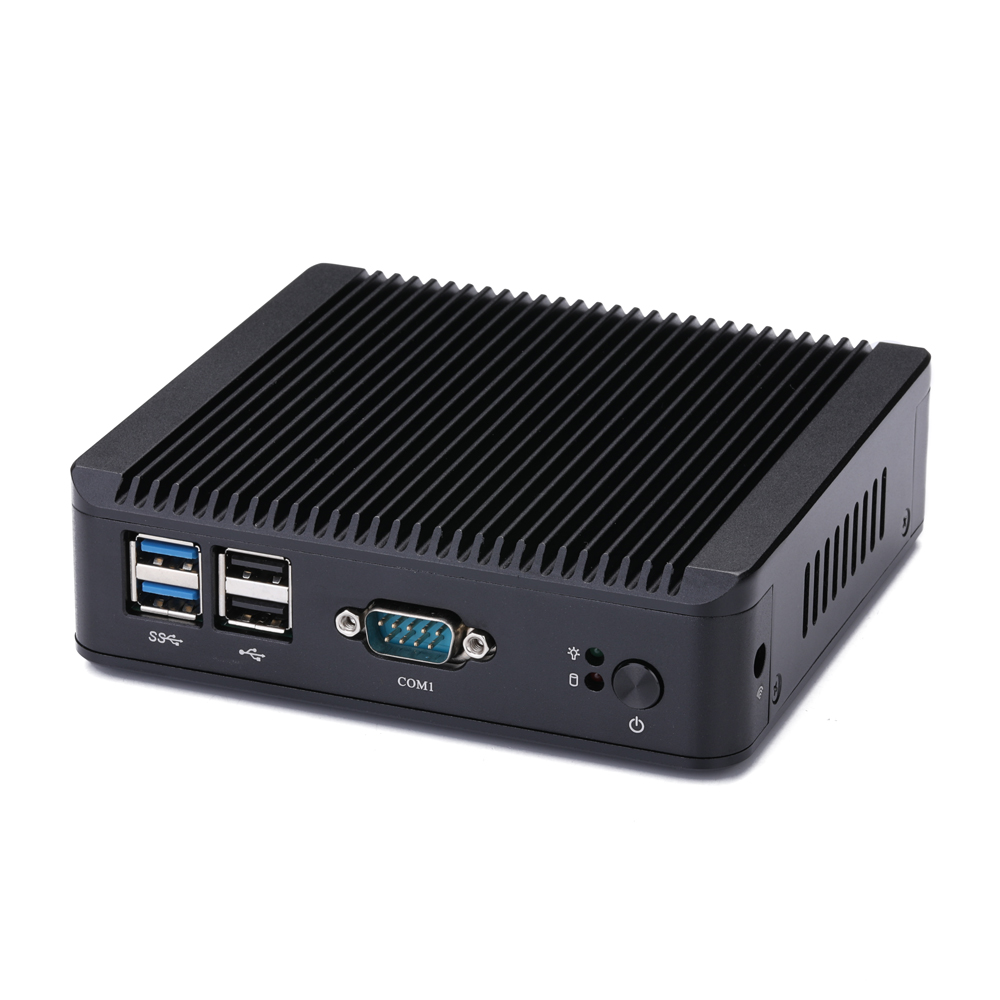

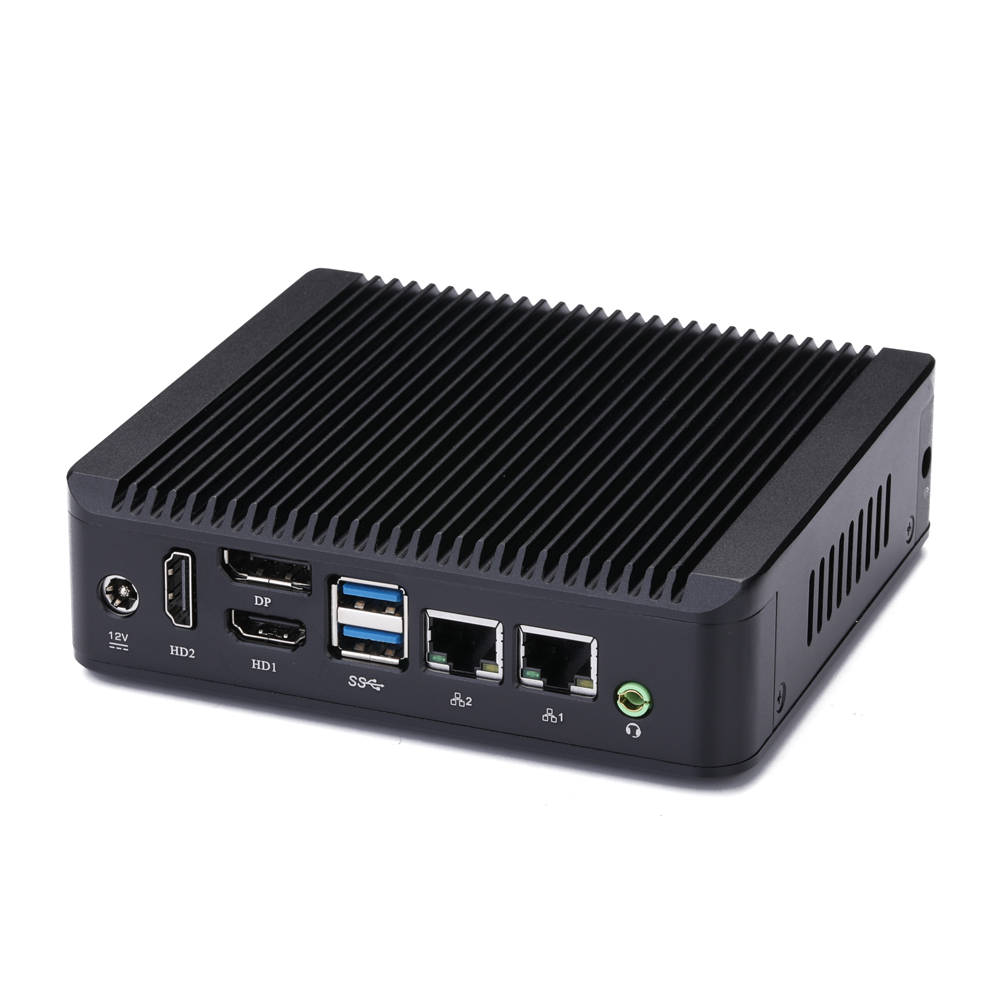

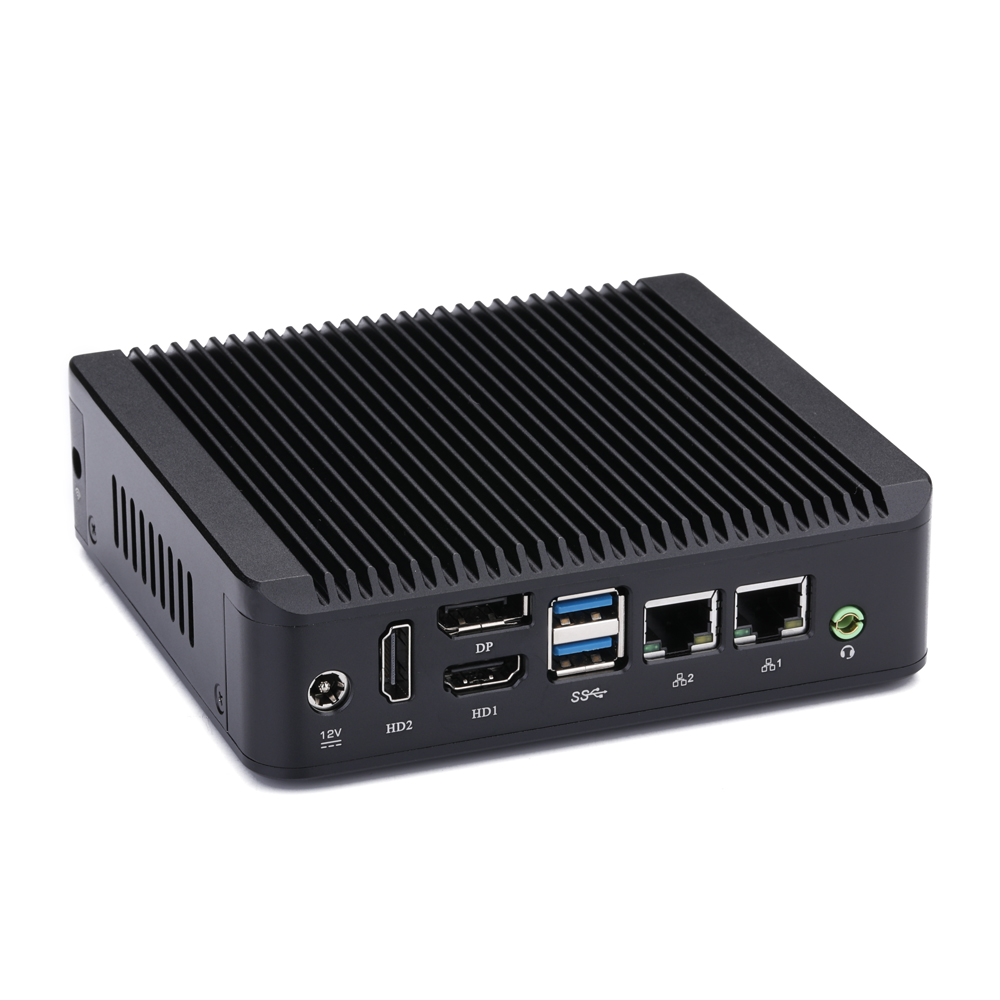

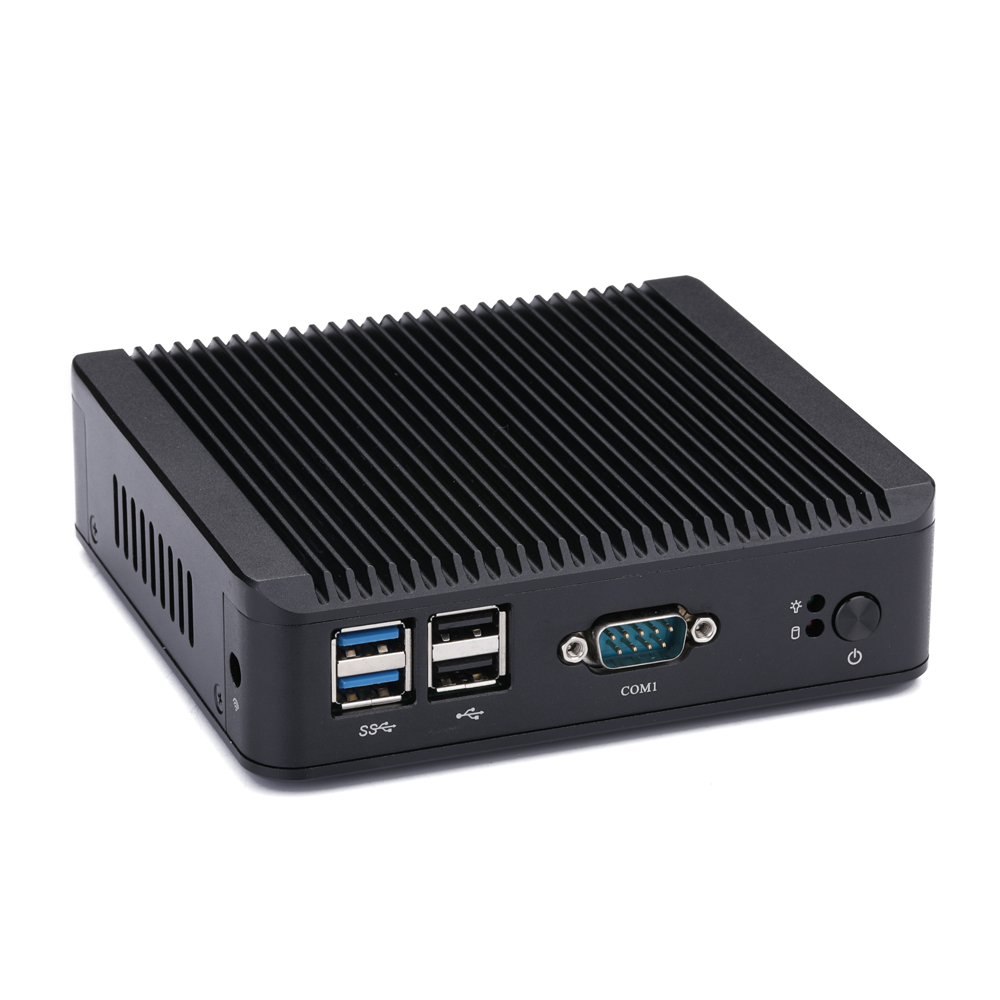

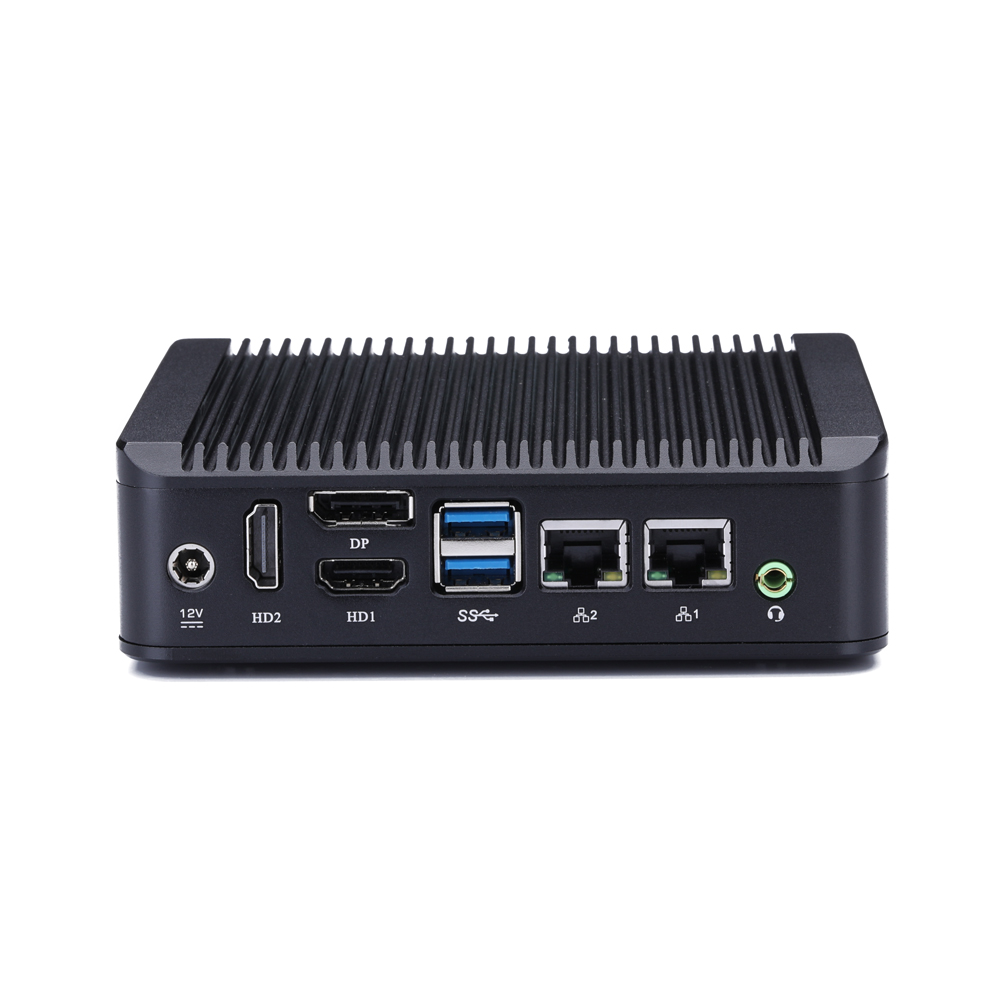

1 × Display Port, 2 × HDMI, 1 × RS-232
4 × USB 3.0, 2 × USB 2.0
1 × Mini PCIe, 1 × mSATA, 1 × M.2
2 × Realtek Gigabit LAN
SPECIFICATION
| Processor System | |
| CPU | Intel Braswell Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Realtek Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |
| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| Serial Port | 1 × RS-232 (COM1) |
| USB | 2 × USB 3.0, 2 × USB 2.0 |
| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 2 × HDMI |
| Video Output | 1 × Display Port |
| USB | 2 × USB 3.0 |
| LAN | 2 × Realtek Gigabit LAN |
| Audio | 1 (Mic-in, Line-out) |
| Serial Port | 0 |
| Storage | |
| Type | 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| Mini PCIe | 1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi |
| M.2 Slot | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| SIM Card Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 0 |
| DC-in | No |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 134 × 126 × 36mm |
| Weight | 0.77kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | Windows 7 x64, Windows 8, Windows 10, Linux |
PACKING
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
ItemQuantity
- 1Mini PC1
- 2Silicone Mat4
- 3VESA Bracket1
- 4Screws for VESA Bracket1
- 5Power Adapter1
- 6AC Power Cord1
- 7Screws for SATA SSD/HDD1
- 8SATA cable for SSD/HDD1Option
- 9Antennas2Option
ORDERING
Ordering and Specifications Information
Quick Order Model: Q177S-S01
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
Q161S (Q10311SN) | S01 | Braswell | Celeron | N3060 | 2 | 2 | 1.6Ghz | 2.48Ghz | 2M | Intel HD Graphics | 6W |
Q160S (Q10321SN) | S01 | Braswell | Celeron | N3160 | 4 | 4 | 1.6Ghz | 2.24Ghz | 2M | Intel HD Graphics | 6W |
Q177S (Q10331SN) | S01 | Braswell | Pentium | J3710 | 4 | 4 | 1.6Ghz | 2.64Ghz | 2M | Intel HD Graphics | 6.5W |
Q161S
(Q10311SN)
S01
- Case
- S01
- Code Name
- Braswell
- Processor Type
- Celeron
- Processor Number
- N3060
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 1.6Ghz
- Max Turbo Frequency
- 2.48Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 6W
Q160S
(Q10321SN)
S01
- Case
- S01
- Code Name
- Braswell
- Processor Type
- Celeron
- Processor Number
- N3160
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 1.6Ghz
- Max Turbo Frequency
- 2.24Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 6W
Q177S
(Q10331SN)
S01
- Case
- S01
- Code Name
- Braswell
- Processor Type
- Pentium
- Processor Number
- J3710
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 1.6Ghz
- Max Turbo Frequency
- 2.64Ghz
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 6.5W
Custom Options
| Category | Description |
| GPIO | 1 |
| Serial Port | 3 × RS-232 |
