Mini PC Q10300SV S08 Series
• Intel Braswell Processor
• 1 × VGA, 2 × HDMI, 1 × RS-232
• 4 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
• 1 × Mini PCIe, 1 × mSATA
• 2 × Realtek Gigabit LAN
Integrated low-power Celeron processor J13160, dual Gigabit network cards, dual HDMI+VGA triple displays, 1 serial port, 6 USB
| Description | |
| CPU | Intel Celeron SOC Processor, J3160 Quad core 2M Cache, 1.6 GHz Up to 2.24GHz, 6W |
| Memory | Single Channel DDR3L 1333/1600MHz SDRAM, Max Support to 8G |
| Chipset | By CPU |
| Display | Intel HD Graphics |
| 2 x HDMI, 1 x VGA | |
| Ethernet | 2 x Realtek 8111E Gigabit LAN |
| 1 x Mini PCIE, Half-length for WiFi Module, Full-length for 3G/4G Module | |
| Audio | Realtek ALC662 HD Audio |
| Storage | 1 x mSATA，1 x SATA 3.0 |
| USB | 4 x USB 3.0，2 x USB 2.0 |
| Serial | 1 x RS-232 |
| WatchDog | Yes |
| GPIO | Yes |
| RS-485 | 0 |
| Power On | Yes |

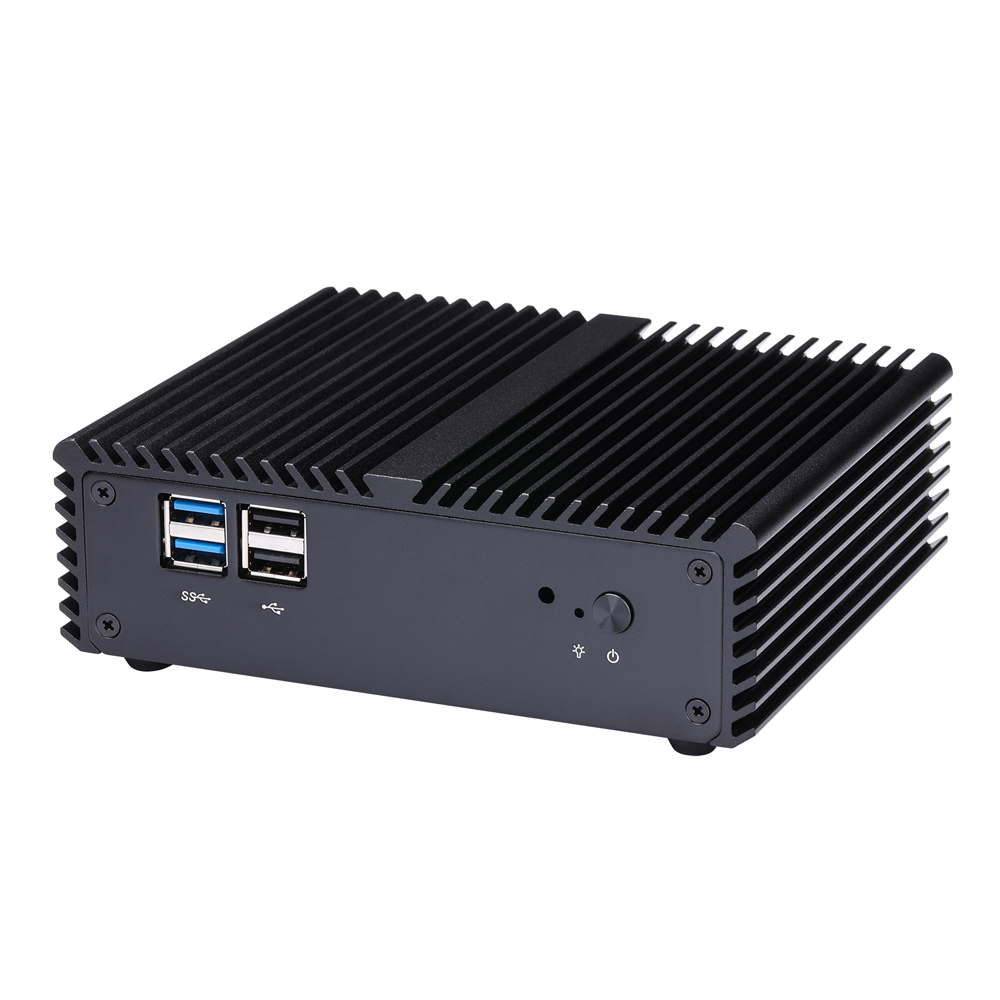

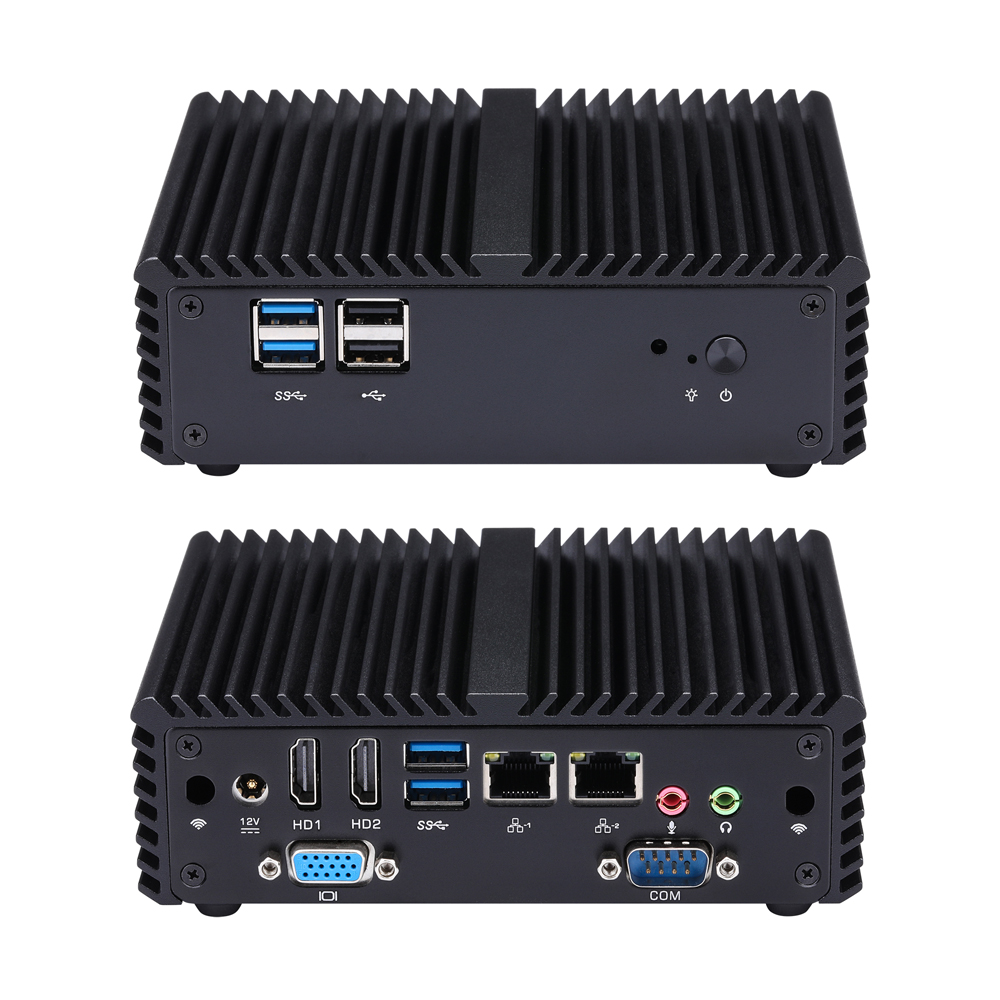

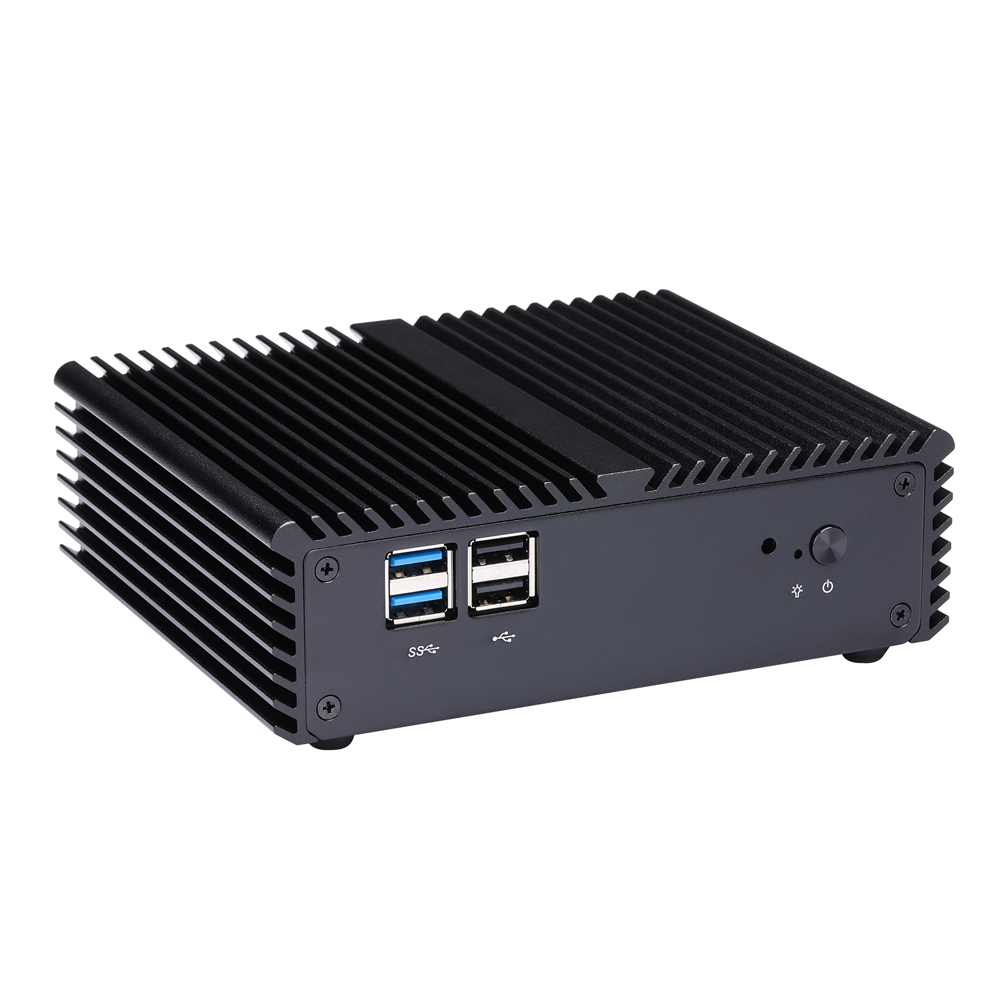

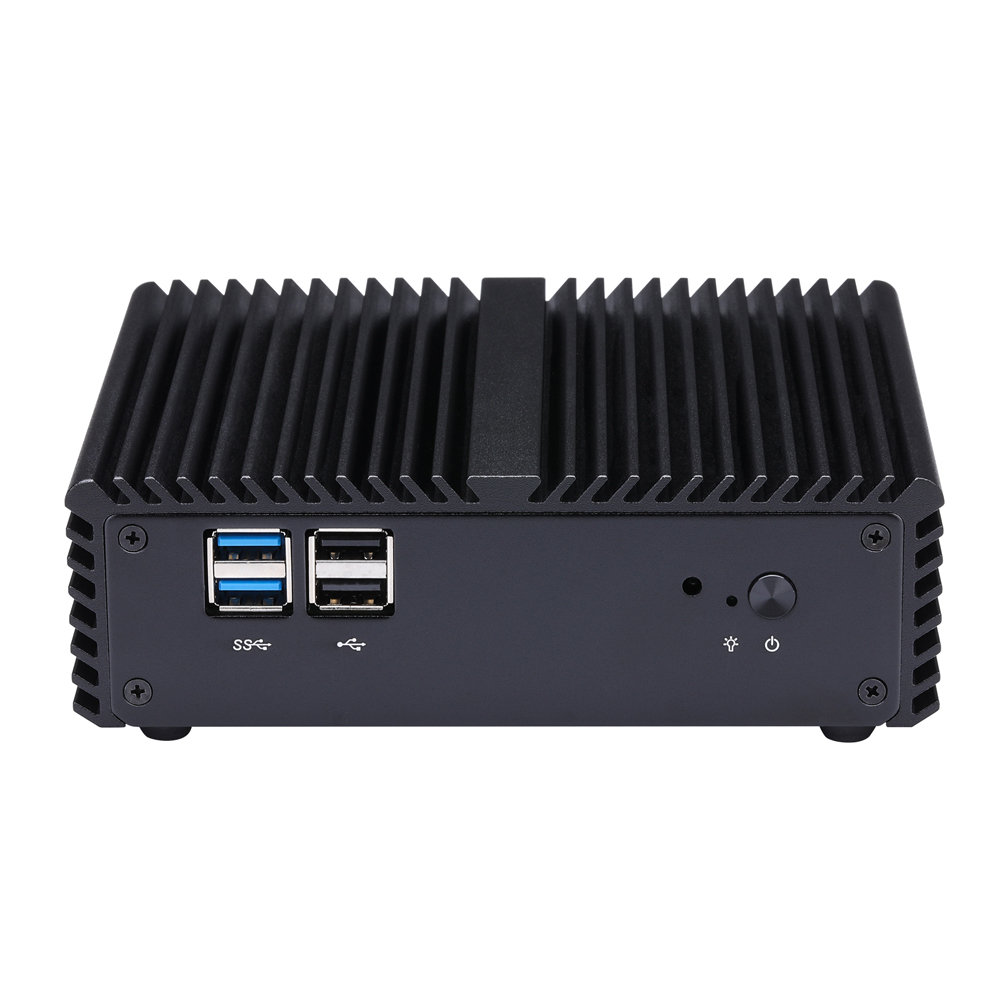

| Front I/O | |
| Power Button | 1 |
| LED | 1 x Power LED |
| USB | 2 x USB 3.0，2 x USB 2.0 |

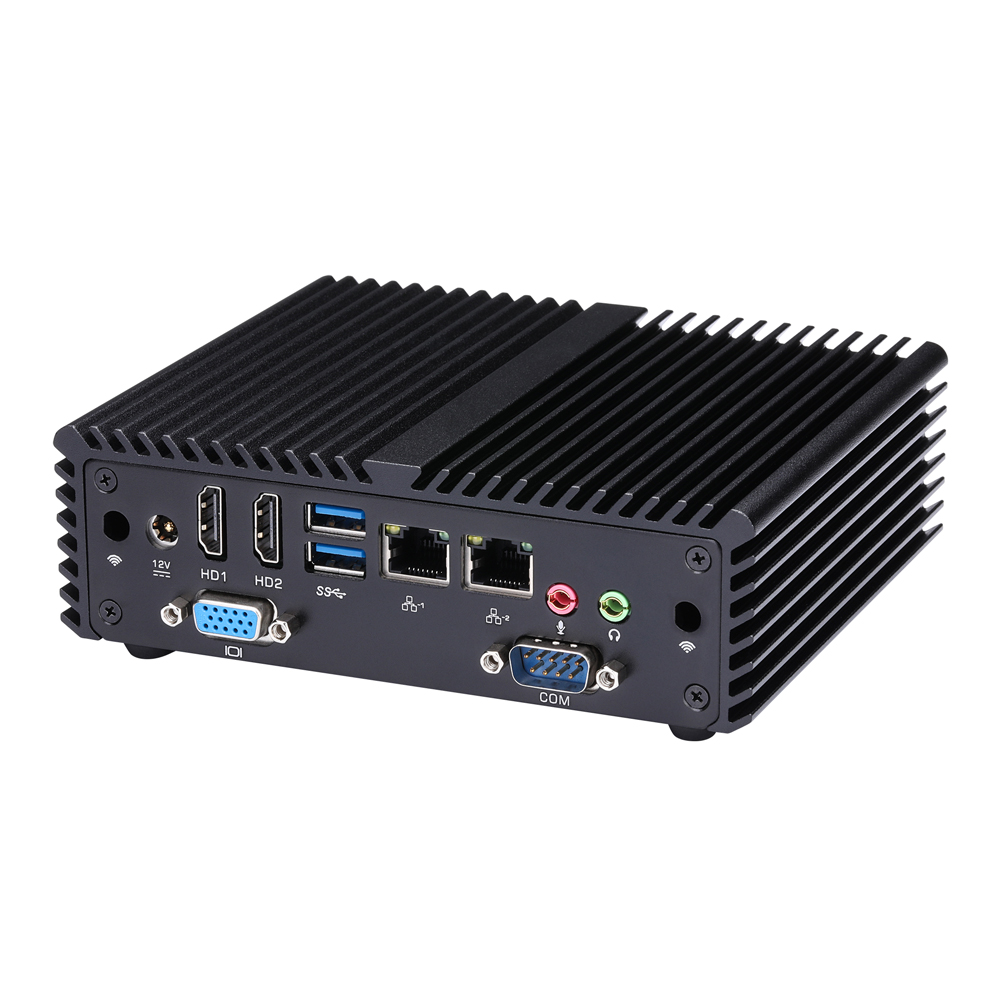

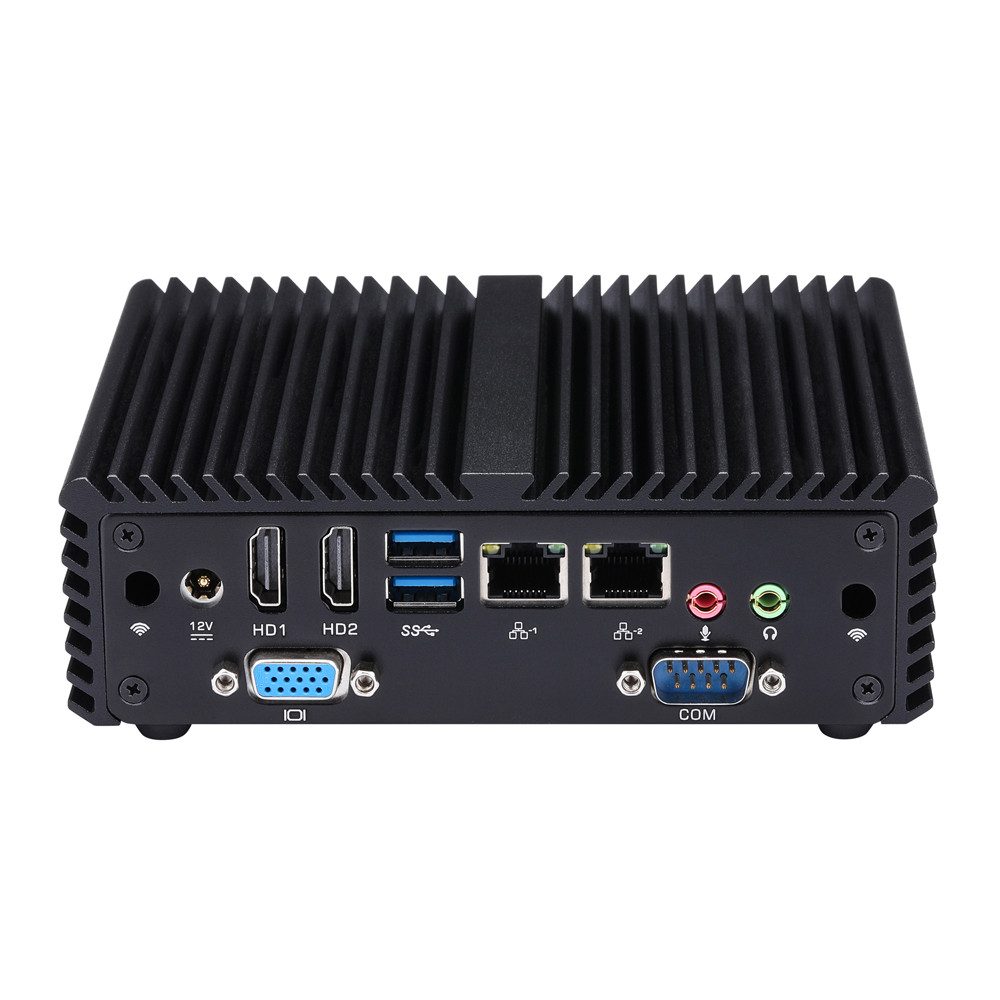

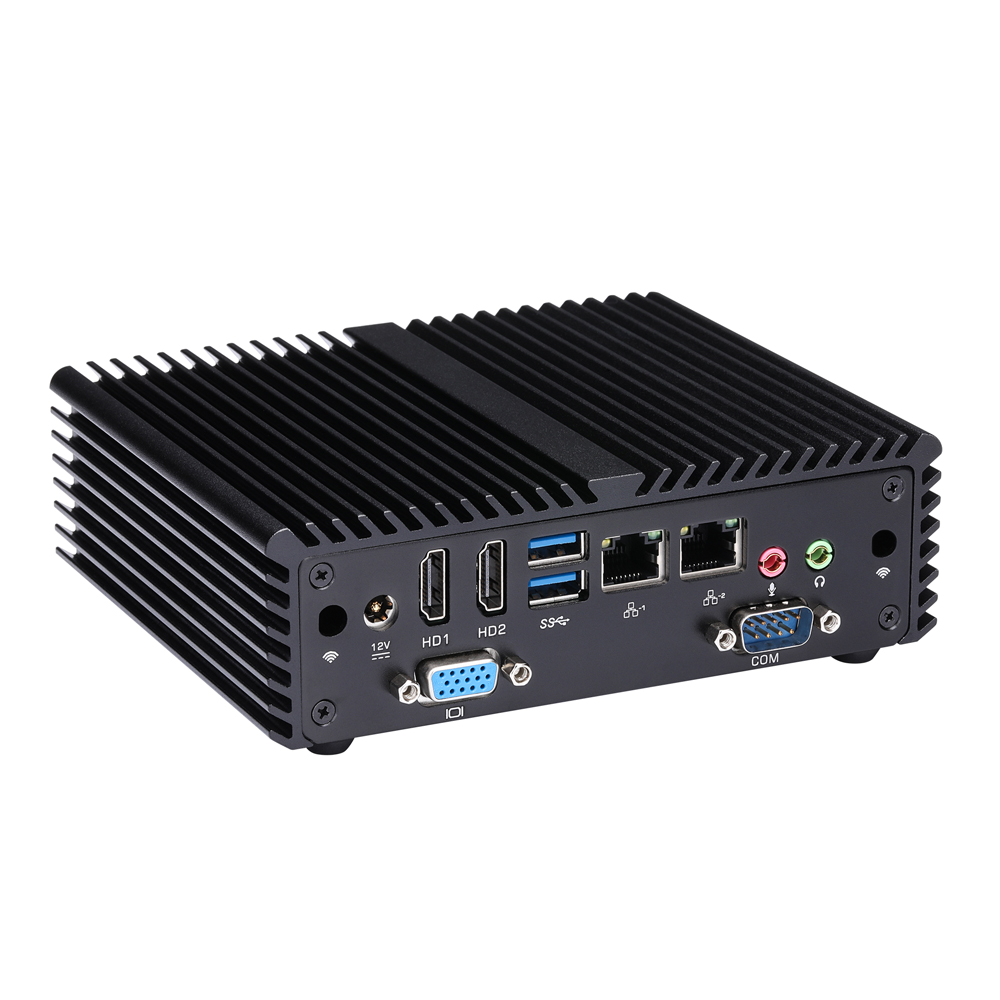

| Rear I/O | |
| DC-IN | 12V3A，5.5mm，2.5mm |
| Display | 2 x HDMI, 1 x VGA |
| Ethernet | 2 x Realtek 8111E Gigabit LAN |
| USB | 2 x USB 3.0 |
| Audio | 1 x Mic-in, 1 x Line-out |
| Serial | 1 x RS232 |
| Other | |
| Material | Aluminum |
| Dimension | 156 x 128 x 48mm |
| Weight | 0.95kg |
| Packaging Dimension | 260 x 220 x 75mm |
| Kensington Lock | N/A |
| Cooling Mode | Fanless, passtive cooling |
| Mounting | VESA Mounting Bracket |
| OS Support | |
| OS | Windows 7，Windows 8，Windows10，Linux |
| Environmental | |
| Operting Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Packlist | |
| PackList | 1 x MiniPc，1 x Power supply，1 x Power cable，1 x VESA |
Packing list:
1 x Mini PC Q150P
1 x Power supply (12V 3A adapter and plug)
1 x VESA bracket
1 x SATA power cable for 2.5" SATA SSD/ HDD
2 x Antennas (If you choose Wi-Fi)
Some screws for VESA and SATA
We have 2 kinds of packaging box, color box and neutral packaing. We use color box by default.
Quick order code：order code + Case，such as Q150P-S08
| Ordering Code | Case | Processor Type | Processor Number | #of Cores | #of Threads | Base Frequency | Max Frequency | Cache | Processor Graphics | SATA Support |
| Q106P | S08 | Celeron | J3060 | 2 | 2 | 1.60GHz | 2.48GHz | 2M | Intel HD Graphics | Yes |
| Q150P | S08 | Celeron | J3160 | 4 | 4 | 1.60GHz | 2.24GHz | 2M | Intel HD Graphics | Yes |
