Mini PC Q10800G5 S08 Series
With Intel Celeron J6412 Processor and 5x Intel I225-V/I226-V 2.5 Gigabit LAN, Qotom Mini PC Q10821G5 can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and so on. Small, quiet, compact and cheap, running 24/7, Qotom firewall appliance is a good solution for home, office, factory and so on.
- Total of Network Interfaces
- SFP(+)
- 10G RJ45
- 2.5G RJ45
- 1G RJ45
- Serial Ports
Tell us the configuration and quantity you need.
Overview
Main Features
Intel Elkhart Lake Processor
1 × HDMI, 1 × Display Port, 1 × VGA
1 × USB 3.0, 1 × USB 2.0
2 × M.2, 1 × mSATA, 1 × SATA 3.0
5 × Intel I225-V/I226-V 2.5 Gigabit LAN
Specifications
| Processor System | |
| CPU | Intel Elkhart Lake Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR4 SO-DIMM Socket (Up to 32G) |
| Chipset | By CPU |
| Graphics | By CPU |
| Audio | No |
| Watch Dog | Yes |

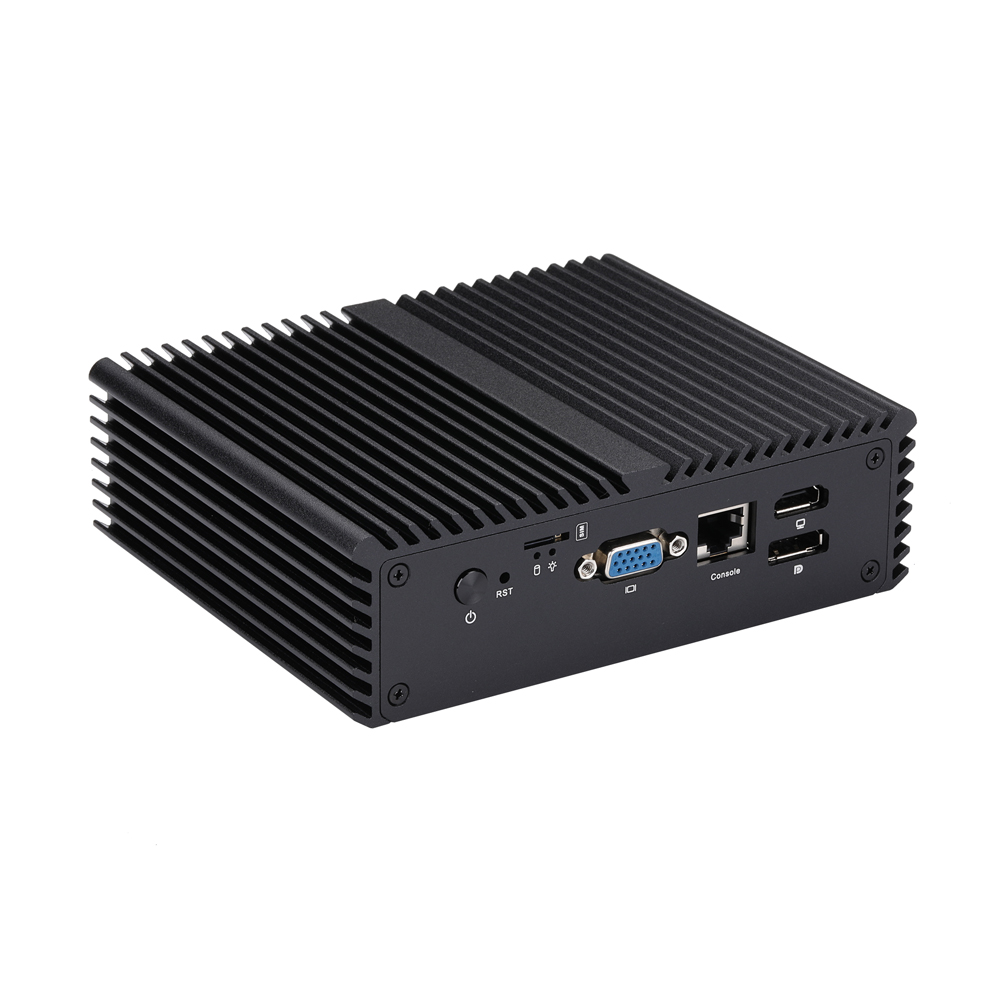

| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| Video Output | 1 × HDMI, 1 × Display Port, 1 × VGA |
| Serial Port | 1 × RS-232 Port (RJ-45) |
| SIM Card Slot | 1 |
| Rear I/O | |
| Power | 1 × DC Jack |
| LAN | 5 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| USB | 1 × USB 3.0, 1 × USB 2.0 |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD 1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1) |
| Expansion | |
| mSATA | 1 × mSATA for SSD |
| M.2 | 1 × M.2 for 4G/5G (B key, Type: 3042/3052) |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 2) Wi-Fi support via a Converter Card |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| SIM Card Slot | 0 |
| Clear CMOS | Yes, 1 × 3Pin, Pitch 2.54mm |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| Front Panel header | 1, 2 × 5Pin, Pitch 2.0mm |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 155 × 127 × 48mm |
| Weight | 0.87kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
In the box
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
ItemQuantity
- 1Mini PC1
- 2Silicone Mat4
- 3VESA Bracket1
- 4Screws for VESA Bracket1
- 5Power Adapter1
- 6AC Power Cord1
- 7Screws for SATA SSD/HDD1
- 8SATA cable for SSD/HDD1Option
- 9Antennas2Option
Models & options
Ordering and Specifications Information
Quick Order Model: Q10821G5-S08
| Ordering Code | Case | Code Name | Processor Type | Processor Number | Cores | Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
| Q10811G5 | S08 | Elkhart Lake | Celeron | N6210 | 2 | 2 | 1.20Ghz | 2.6Ghz | 1.5M | Intel UHD Graphics | 6.5W |
| Q10821G5 | S08 | Elkhart Lake | Celeron | J6412 | 4 | 4 | 2.00Ghz | 2.60Ghz | 1.5M | Intel UHD Graphics | 10W |
Q10811G5N6210
- Case
- S08
- Code Name
- Elkhart Lake
- Processor Type
- Celeron
- Cores
- 2
- Threads
- 2
- Base Frequency
- 1.20Ghz
- Max Turbo Frequency
- 2.6Ghz
- Cache
- 1.5M
- Processor Graphics
- Intel UHD Graphics
- TDP
- 6.5W
Q10821G5J6412
- Case
- S08
- Code Name
- Elkhart Lake
- Processor Type
- Celeron
- Cores
- 4
- Threads
- 4
- Base Frequency
- 2.00Ghz
- Max Turbo Frequency
- 2.60Ghz
- Cache
- 1.5M
- Processor Graphics
- Intel UHD Graphics
- TDP
- 10W
PC Case Options
| Category | SATA Support |
| S08 | Yes |
| 1U08 | Yes |
Custom Options
| Category | Description |
| USB 2.0 | 2 |
| USB 3.0 | 1 |
| GPIO | 1 |
| TPM 2.0 | 1（SLB9672） |
