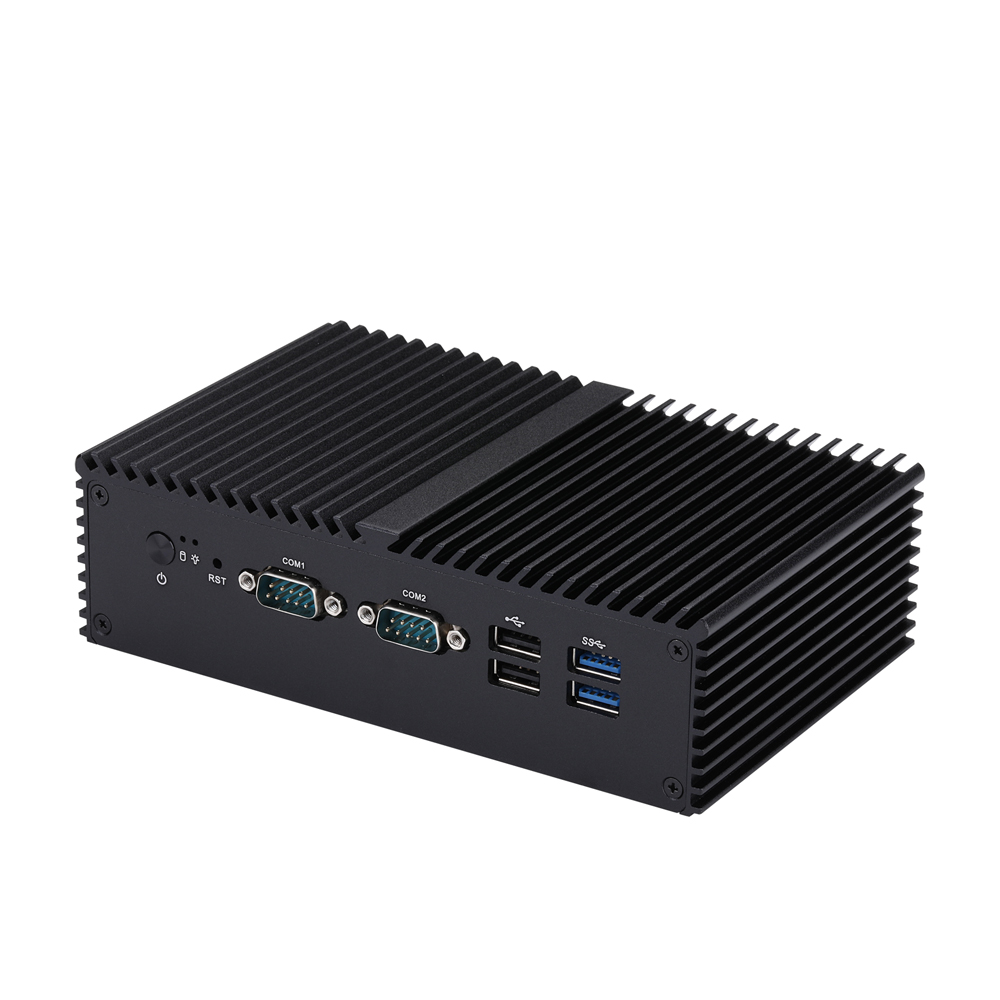

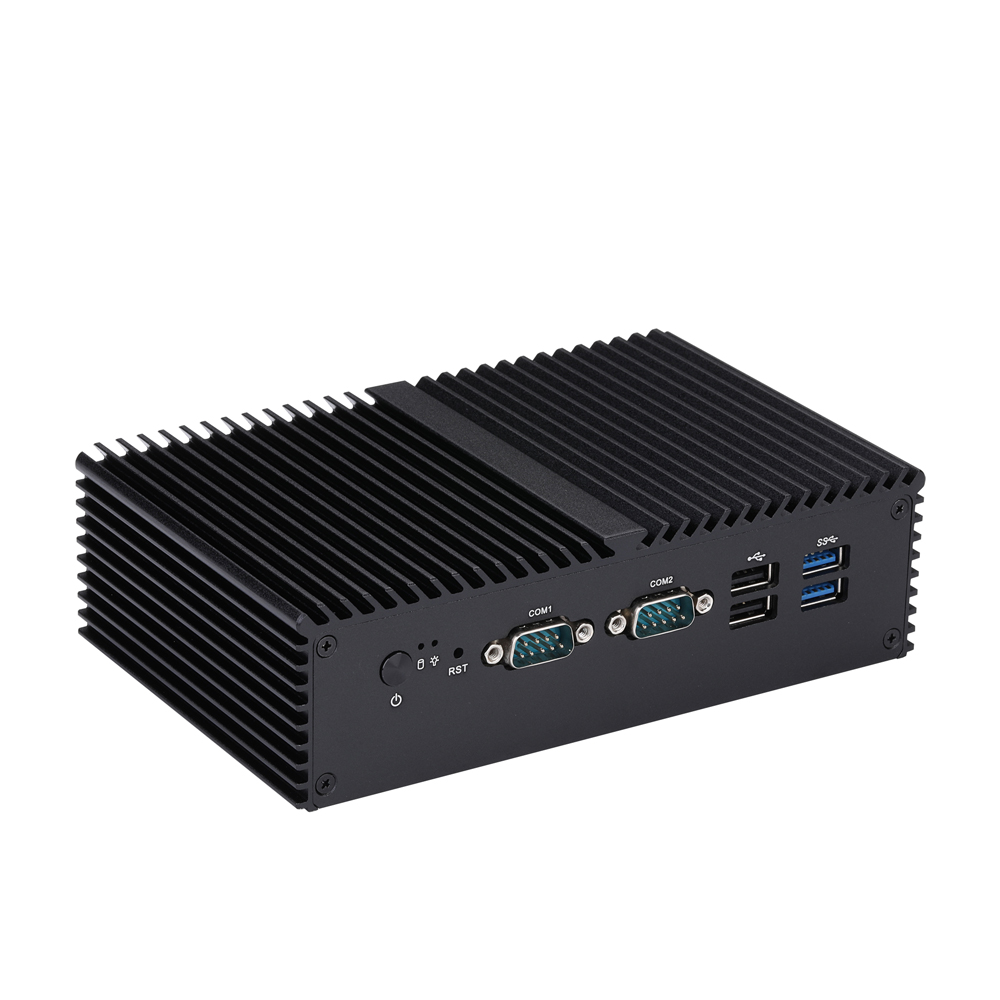

Mini PC Q10800X S04 Series
Q10800X Fanless industrial mini PC with 6× RS-232, HDMI, multiple USB ports, mSATA, SATA, dual M.2, and dual Realtek Gigabit LAN—ideal for automation and embedded control.
- NIC
- 2
- USB
- 2 × USB 3.0, 6 × USB 2.0
- RS-232
- 6
- RS-485
- COM1/2 can be set up as RS-485
- VGA
- Yes
- PS/2
- Yes
- GPIO
- Yes
Tell us the configuration and quantity you need.
OVERVIEW
Main Features
Intel Elkhart Lake Processor
1 × HDMI
2 × USB 3.0, 6 × USB 2.0, 6 × RS-232
2 × M.2, 1 × mSATA, 1 × SATA 3.0
2 × Realtek Gigabit LAN

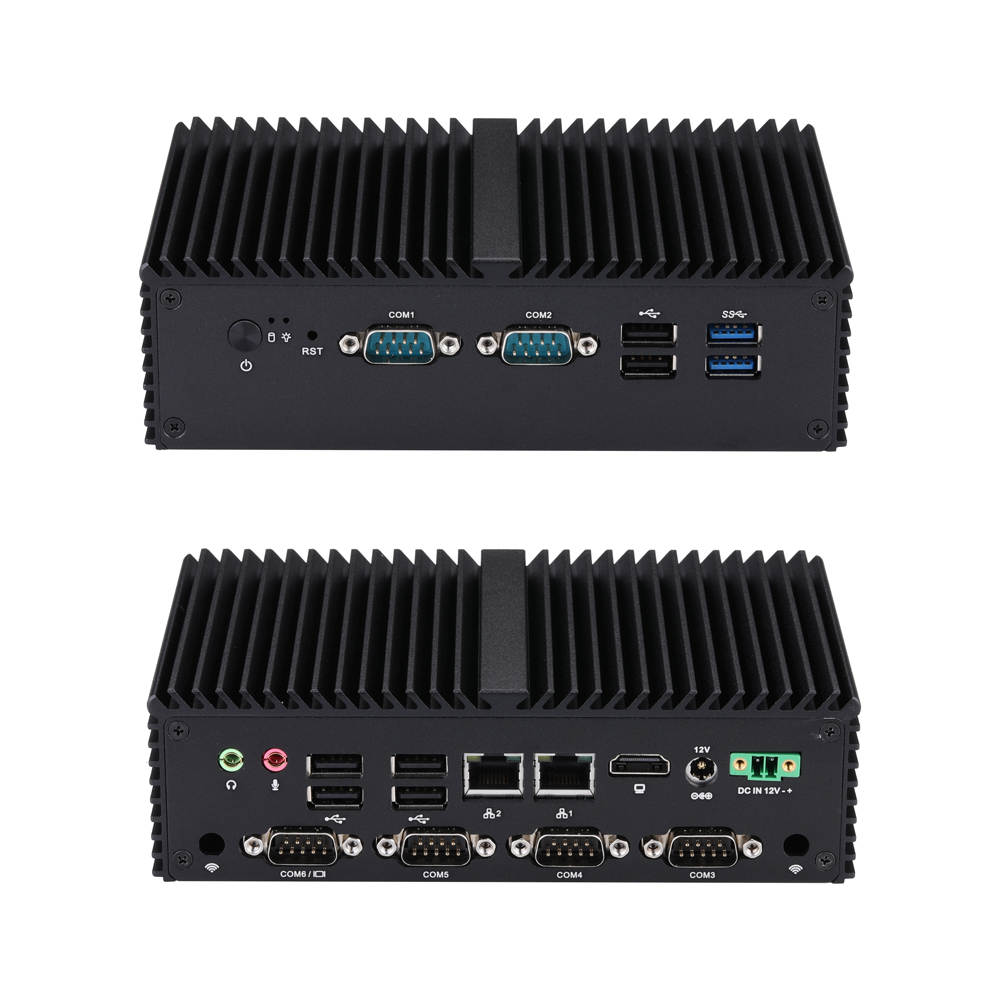

Q10800X Series Product Expansion and Product Image Differences
Q10800X:Based on the Q10800X as the standard model, all other extended chassis are built upon it.

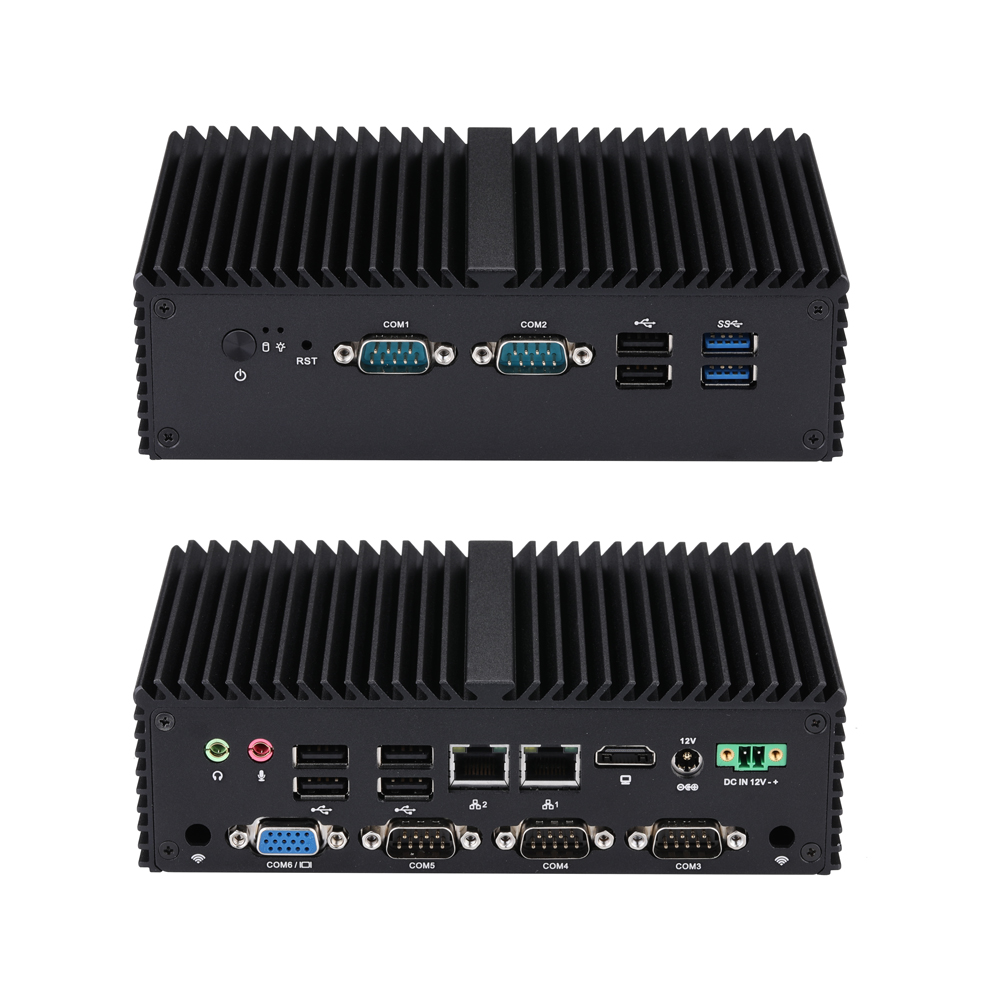

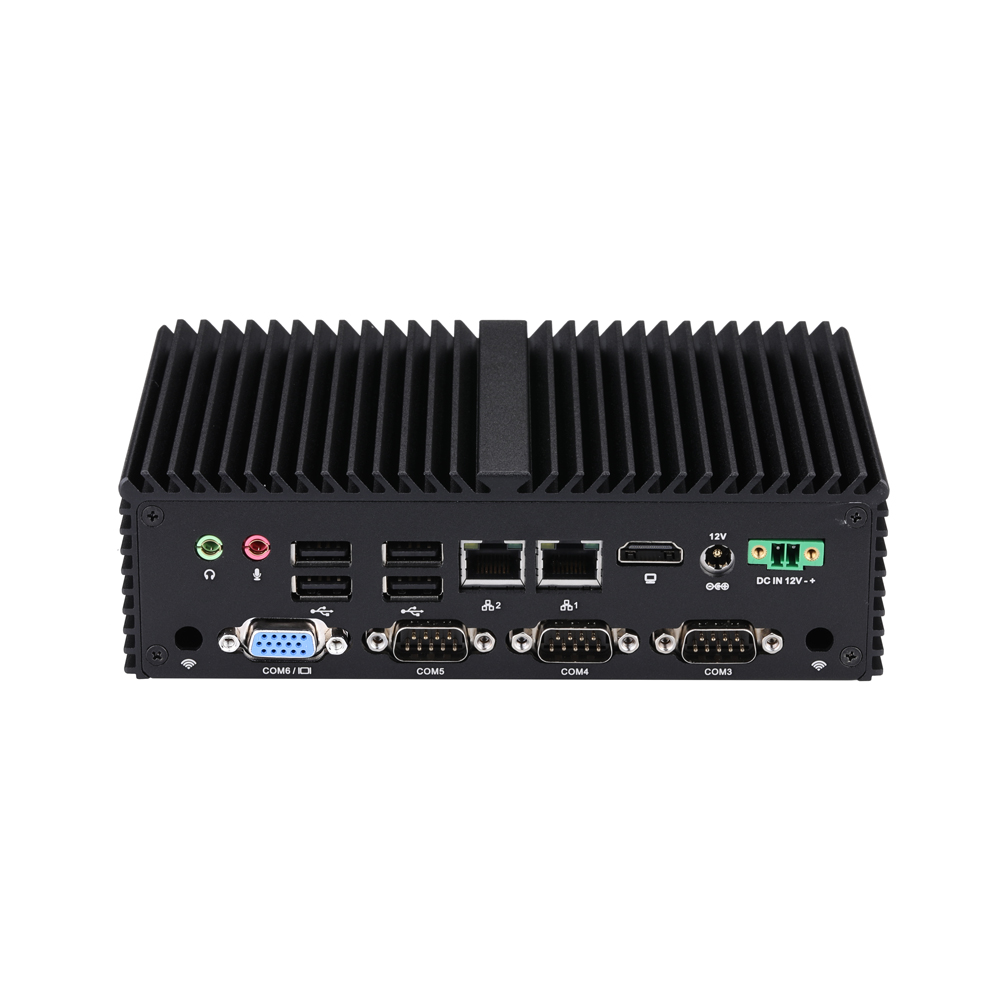

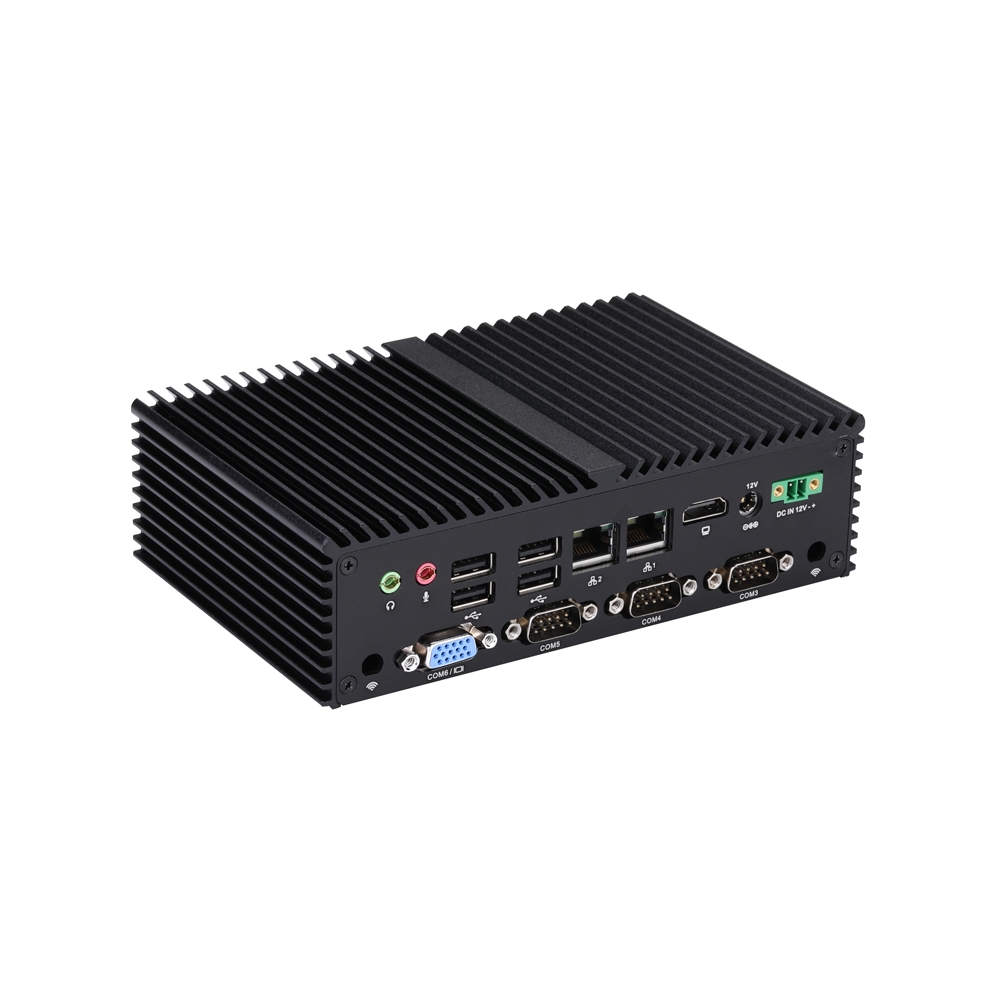

Q10800XV:The difference is that one of the six serial ports on the Q10800X is replaced with a VGA port.

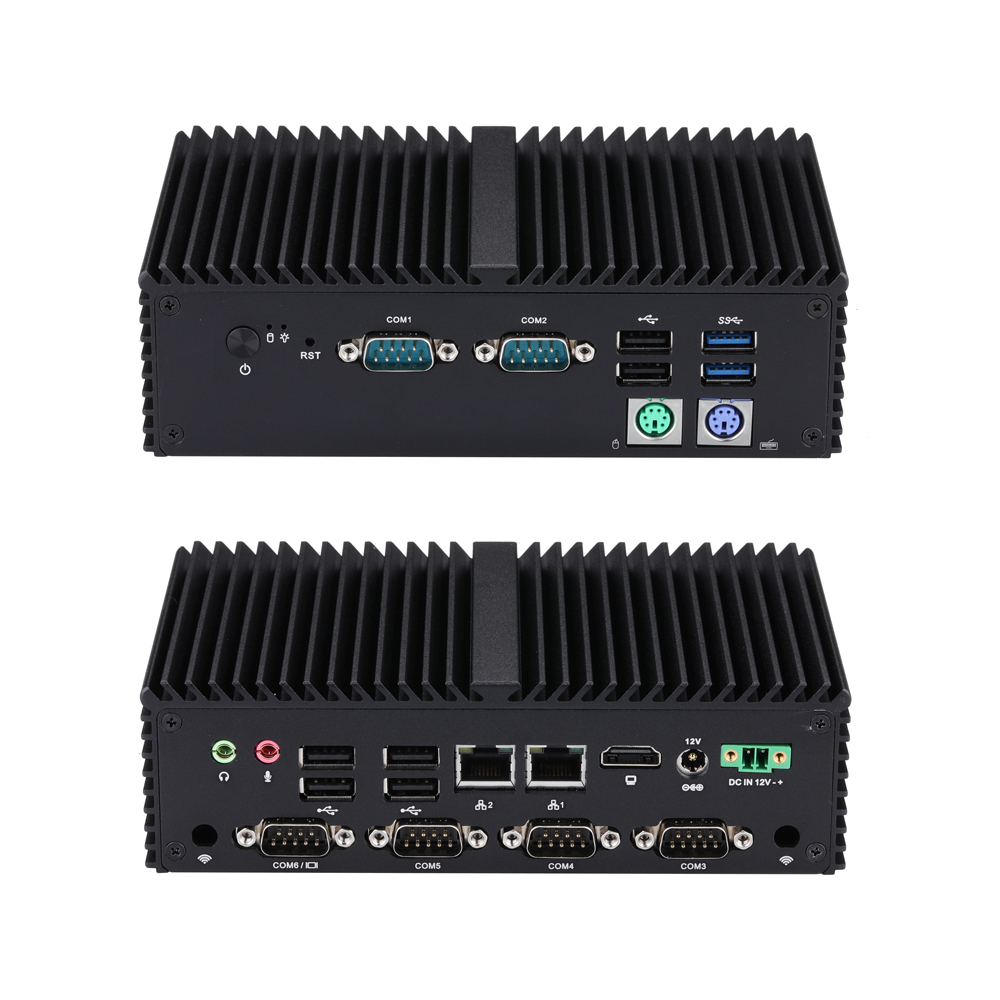

Q10800XP:The difference is that a PS/2 port is added to the Q10800X.

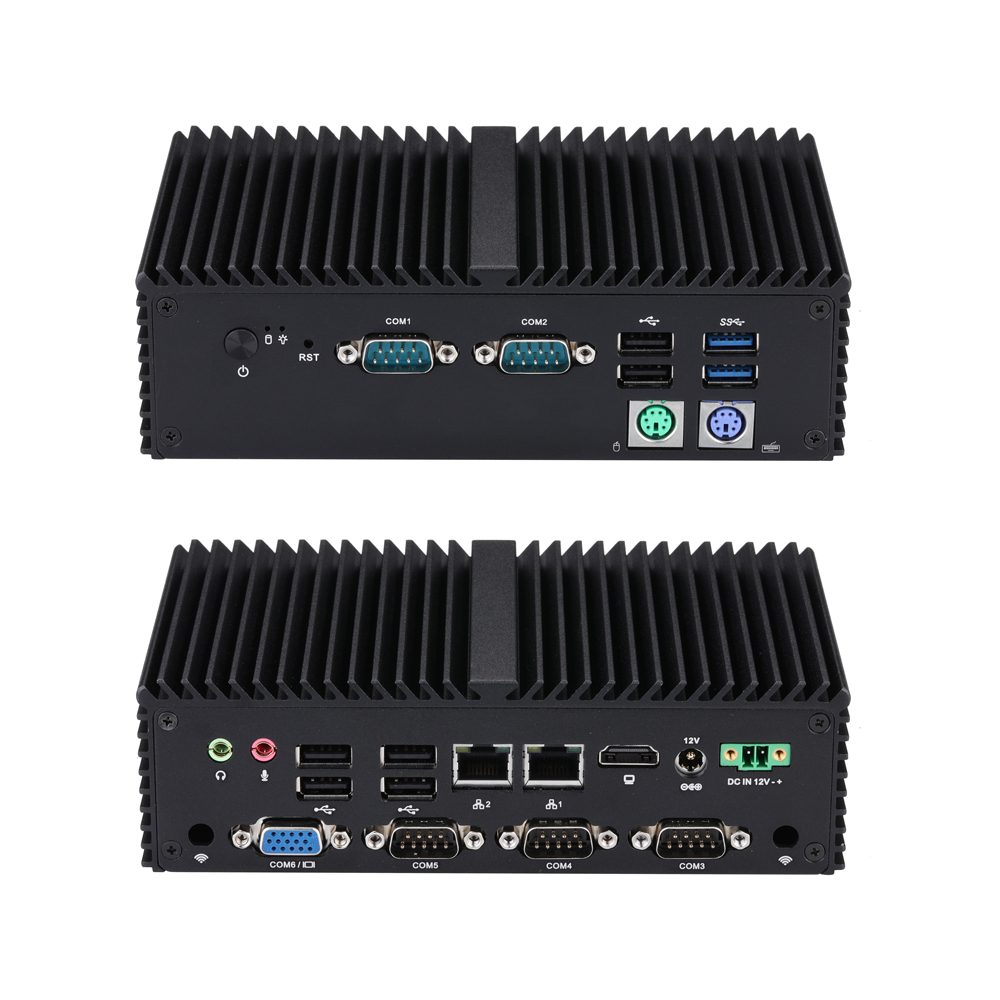

Q10800XPV:The difference is that one of the six serial ports is replaced with a VGA port, and a PS/2 port is added.

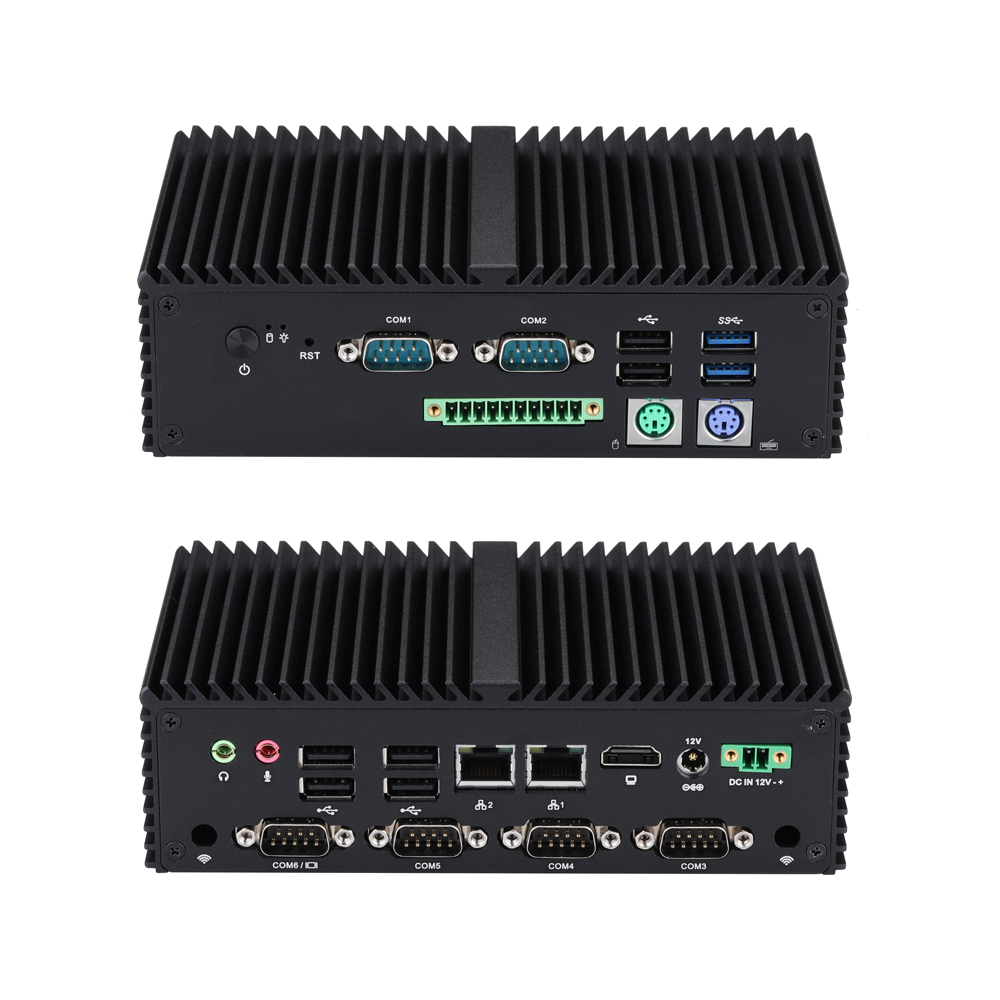

Q10800XPG:The difference is that a PS/2 port and GPIO (4 DIs / 4 DOs) are added to the Q10800X.

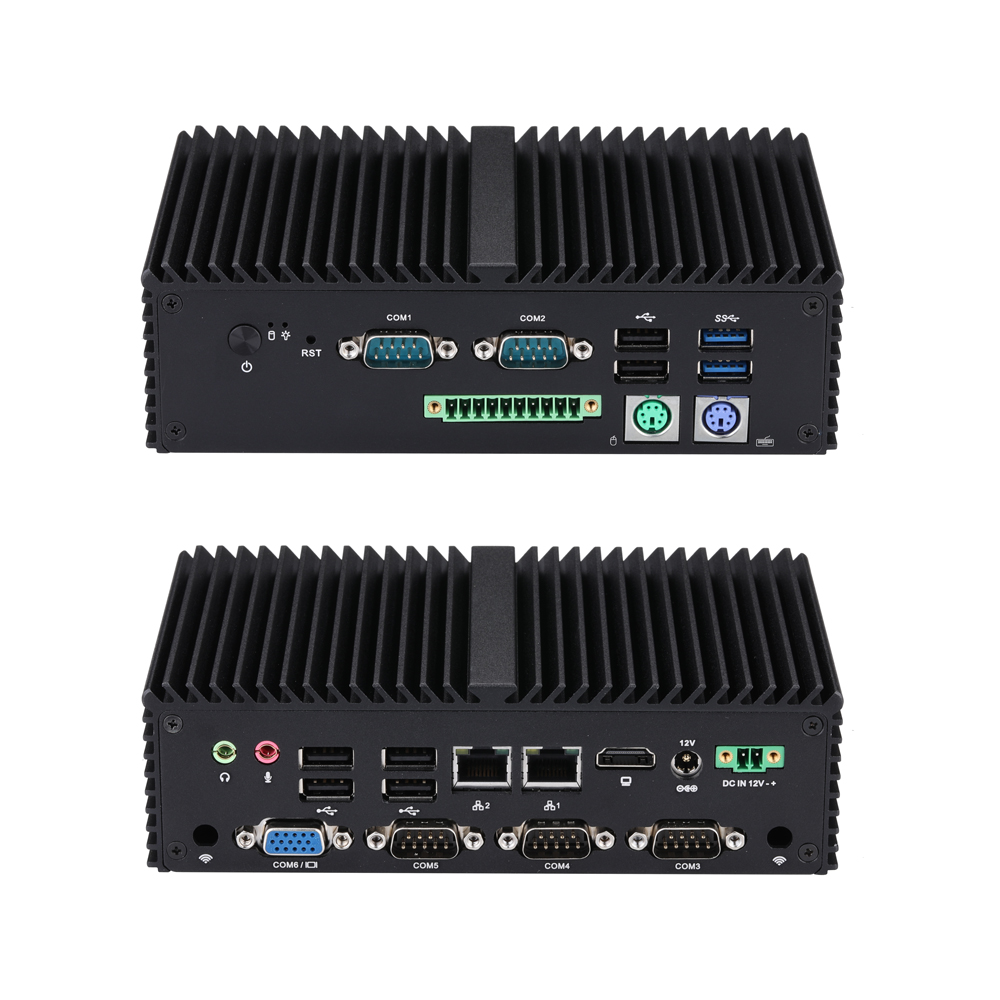

Q10800XPGV:The difference is that a PS/2 port and GPIO (4 DIs / 4 DOs) are added, and one of the six serial ports is replaced with a VGA port.
SPECIFICATION

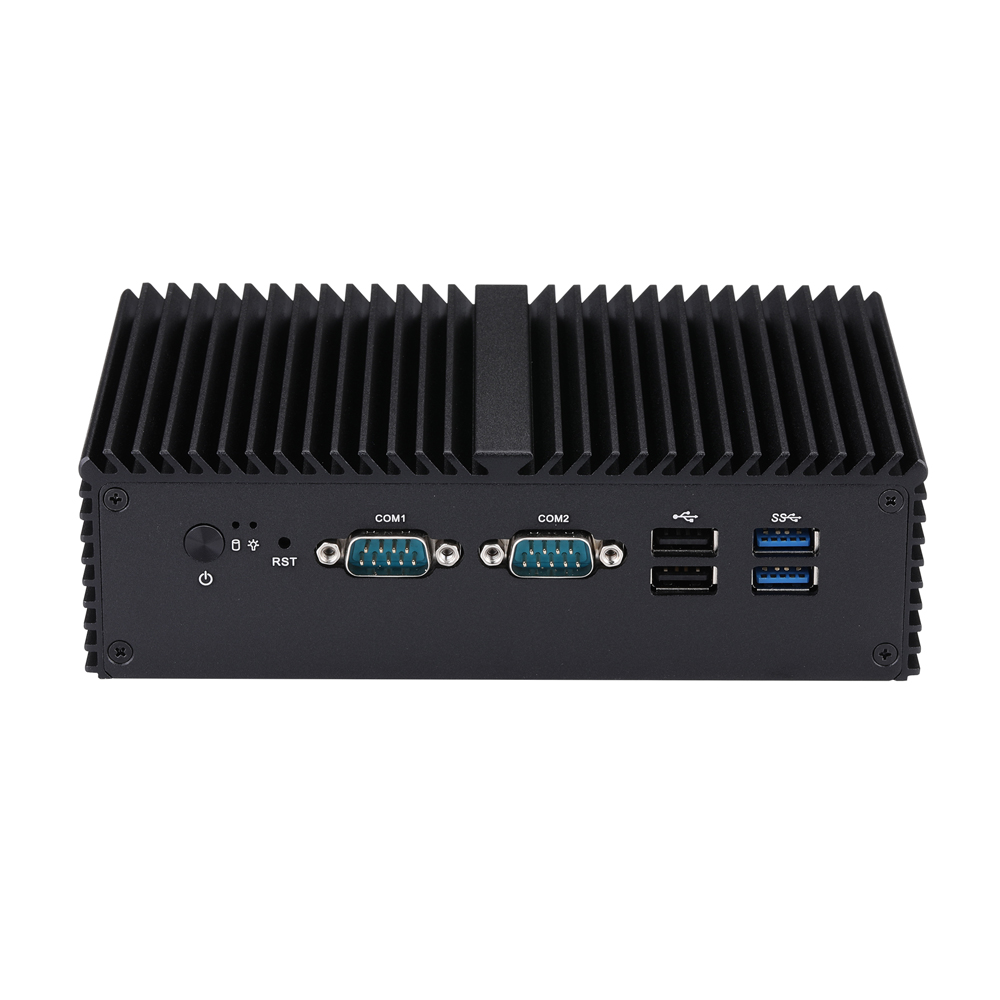

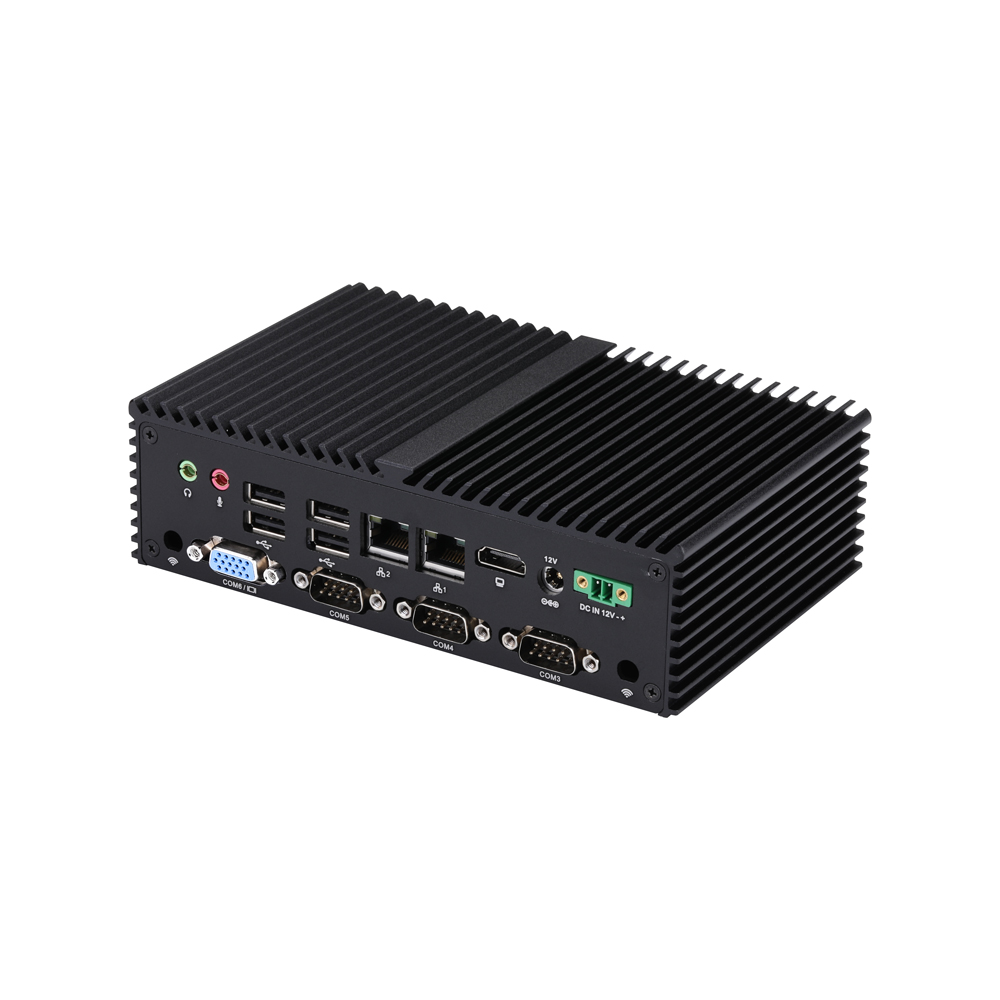

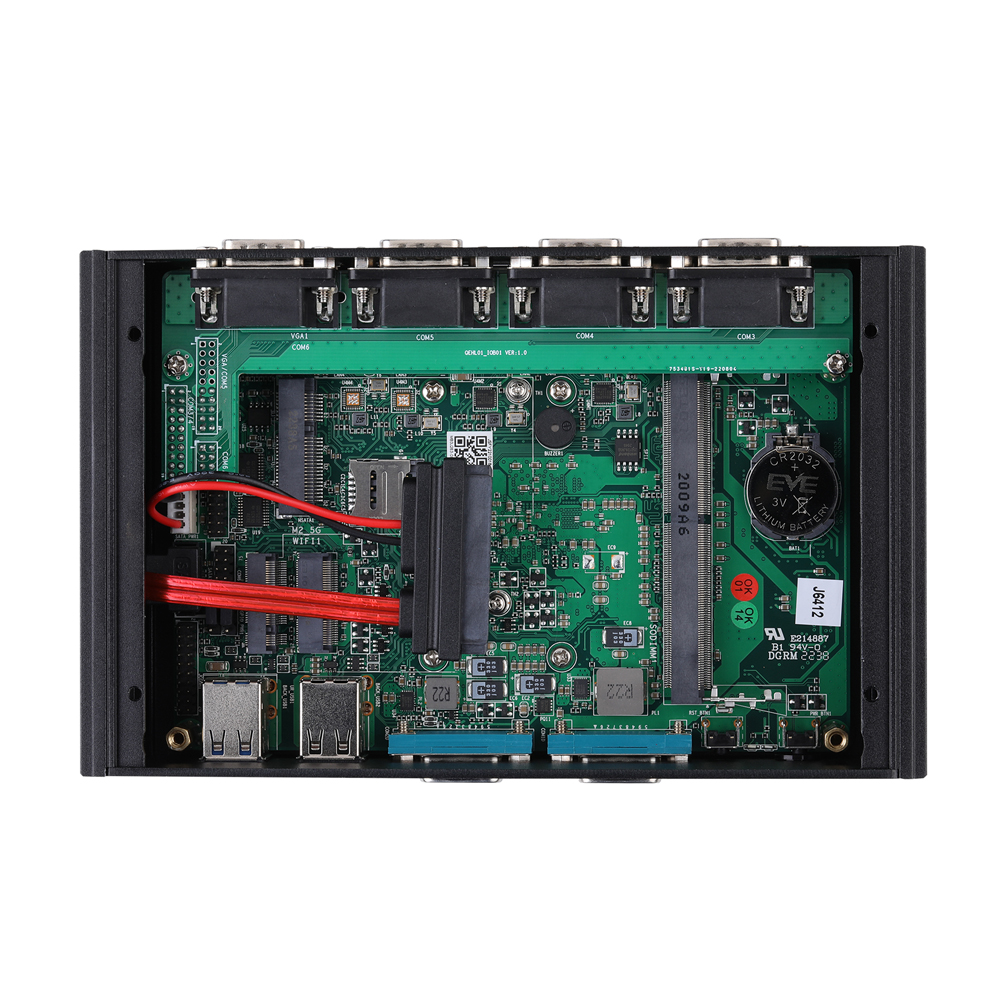

| Processor System | |
| CPU | Intel Elkhart Lake Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR4 SO-DIMM Socket (Up to 32G) |
| Chipset | By CPU |
| Graphics | By CPU |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |
| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| PS/2 | 0 |
| USB | 2 × USB 2.0, 2 × USB 3.0 |
| Serial Port | 2 × RS-232 (COM1/2 can be set up as RS-485) |
| Rear I/O | |
| Power | 1 × DC Jack |
| Phoenix | 1 × 2Pin |
| Display | 1 × HDMI |
| LAN | 2 × Realtek Gigabit LAN |
| USB | 4 × USB 2.0 |
| Serial Port | 4 × RS-232 |
| Audio | 1 × Mic-in, 1 × Line-out |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × Mini PCIe for mSATA SSD |
| Expansion | |
| mSATA | 1 × mSATA for SSD |
| M.2 | 1 × M.2 for 4G/5G (B key, Type: 3042/3052) 5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| VGA | 0 |
| Serial Port | 0 |
| SIM Card Slot | 1 |
| Clear CMOS Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| Front Panel Header | 1, 2 × 5Pin, Pitch 2.0mm |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 178 × 111 × 52mm |
| Weight | 0.83kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
PACKING
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
ORDERING
Ordering and Specifications Information
Quick Order Model: Q790X-S04
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
Q780X (Q10811X) | S04 | Elkhart Lake | Celeron | N6210 | 2 | 2 | 1.20Ghz | 2.6Ghz | 1.5M | Intel UHD Graphics | 6.5W |
Q790X (Q10821X) | S04 | Elkhart Lake | Celeron | J6412 | 4 | 4 | 2.00Ghz | 2.60Ghz | 1.5M | Intel UHD Graphics | 10W |
Q780XP (Q10811XP) | S04 | Elkhart Lake | Celeron | N6210 | 2 | 2 | 1.20Ghz | 2.6Ghz | 1.5M | Intel UHD Graphics | 6.5W |
Q790XP (Q10821XP) | S04 | Elkhart Lake | Celeron | J6412 | 4 | 4 | 2.00Ghz | 2.60Ghz | 1.5M | Intel UHD Graphics | 10W |
Q780XPG (Q10811XPG) | S04 | Elkhart Lake | Celeron | N6210 | 2 | 2 | 1.20Ghz | 2.6Ghz | 1.5M | Intel UHD Graphics | 6.5W |
Q790XPG (Q10821XPG) | S04 | Elkhart Lake | Celeron | J6412 | 4 | 4 | 2.00Ghz | 2.60Ghz | 1.5M | Intel UHD Graphics | 10W |
Functional Differences
| Category | VGA | RS-232 | PS/2 | GPIO |
| Q10800X | - | 6 | - | - |
| Q10800XV | 1 | 5 | - | - |
| Q10800XP | - | 6 | 2 | - |
| Q10800XPV | 1 | 5 | 2 | - |
| Q10800X00XPG | - | 6 | 6 | 1 |
| Q10800XPGV | 1 | 5 | 2 | 1 |
Custom Options
| Category | Description |
| VGA | 1 |
| GPIO | 1 |
| PS/2 | 2 |
| LPT | 1 |
| Serial Port | COM3-COM6 Support 5V/12V |
