Mini PC Q31200X S20 Series
Q31200X mini PC features 12th/13th Gen Intel Alder & Raptor Lake-P CPUs, triple display (DP + 2× HDMI + VGA), 6× RS-232, 3× M.2, and dual 2.5G LAN. Ideal for industrial control and multi-screen applications.
- NIC
- 2
- USB
- 3 × USB 3.0, 5 × USB 2.0
- RS-232
- 6 × RS-232
- RS-485
- 2 × RS-232 (COM1/2 can be set up RS-485)
- VGA
- Yes
- PS/2
- None
- GPIO
- Yes
Tell us the configuration and quantity you need.
OVERVIEW
Main Features
Intel 12th Alder Lake–P Processor
Intel 13th Raptor Lake–P Processor
1 × Display Port, 2 × HDMI, 1 × VGA
3 × USB 3.0, 5 × USB 2.0
3 × M.2, 1 × SATA 3.0
6 × RS-232
2 × Intel I225-V/I226-V 2.5 Gigabit LAN
SPECIFICATION
| Processor System | |
| CPU | Intel 12th Alder Lake–P Processor Intel 13th Raptor Lake–P Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR4 SO-DIMM Socket (Up to 32G, 3200MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |

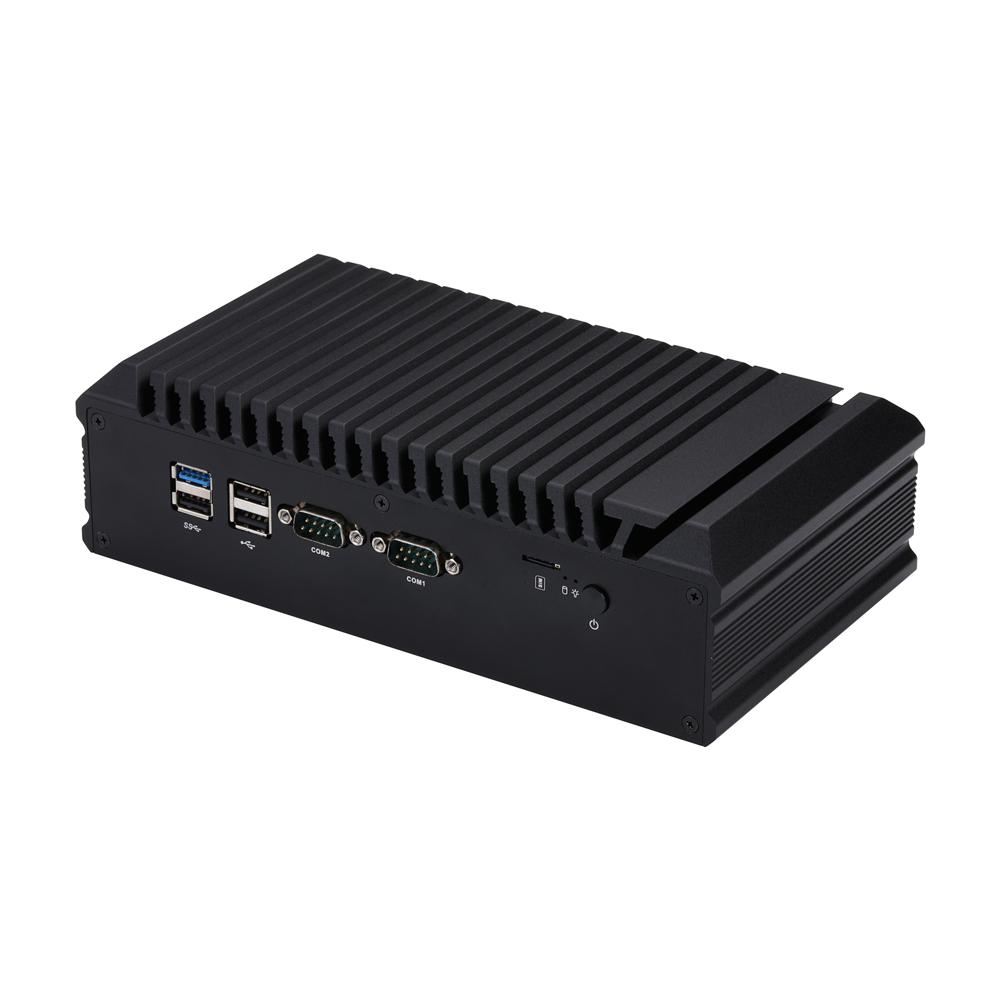

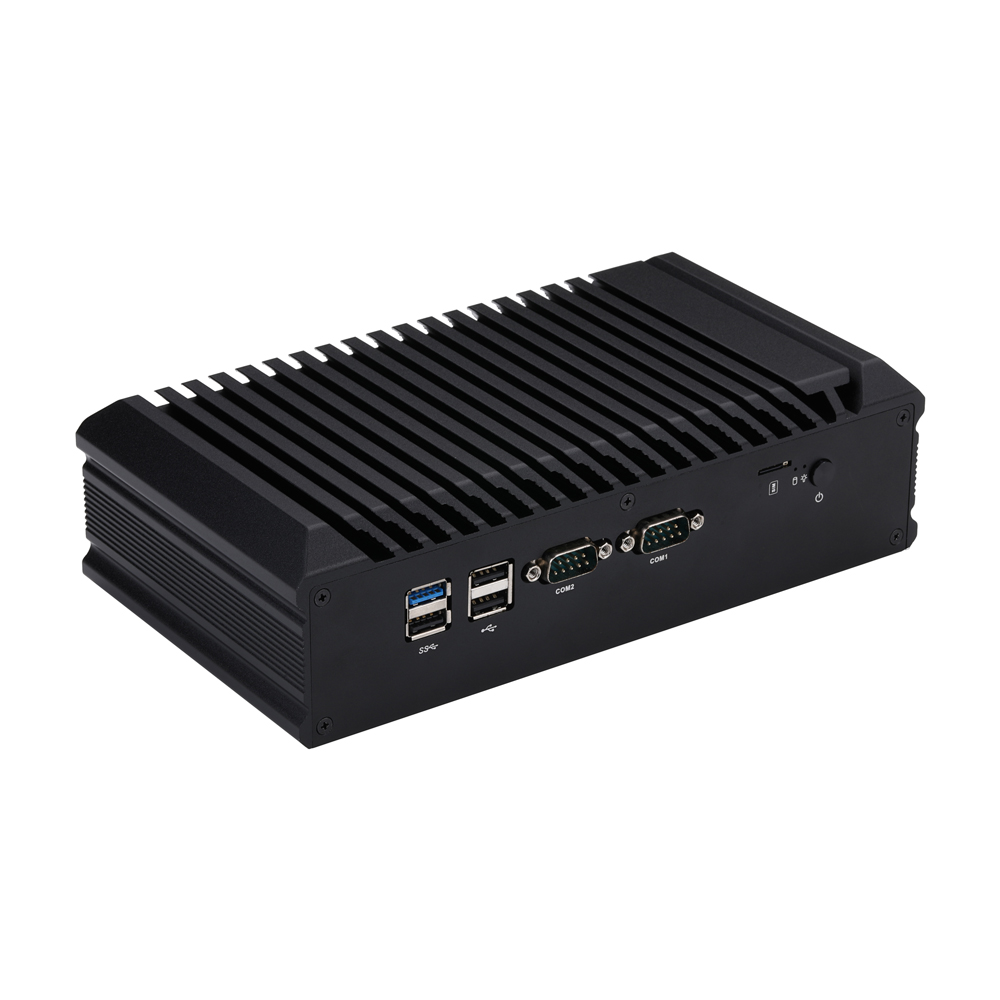

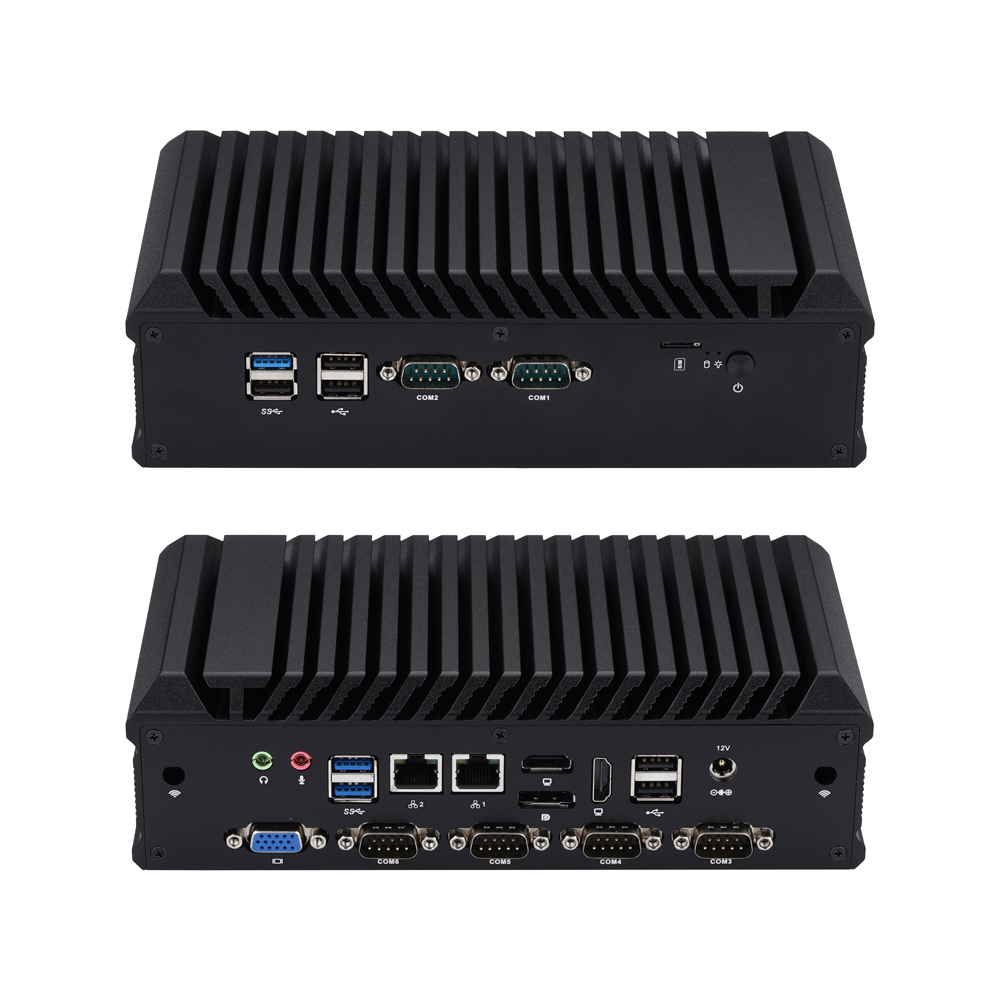

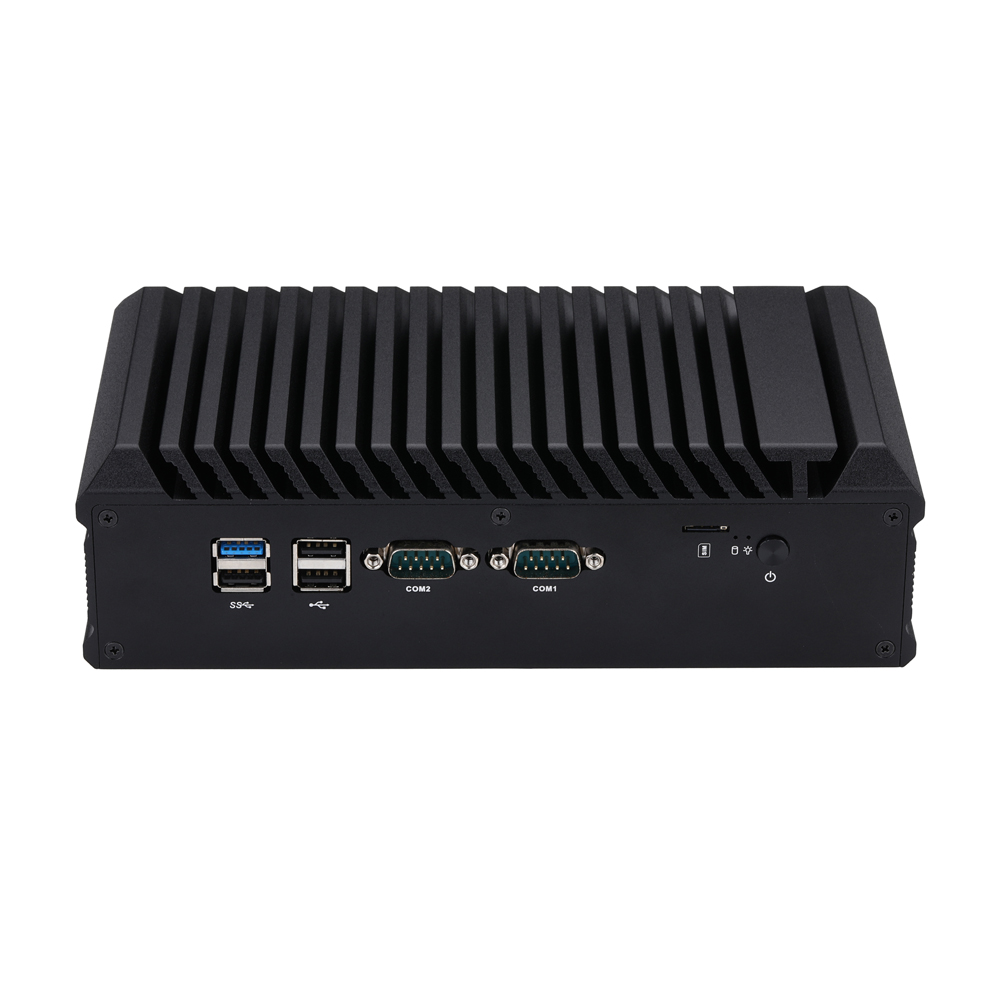

| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 1 × USB 3.0, 3 × USB 2.0 |
| Serial Port | 2 × RS-232 (COM1/2 Support 5V/12V) |
| SIM Card Slot | 1 |

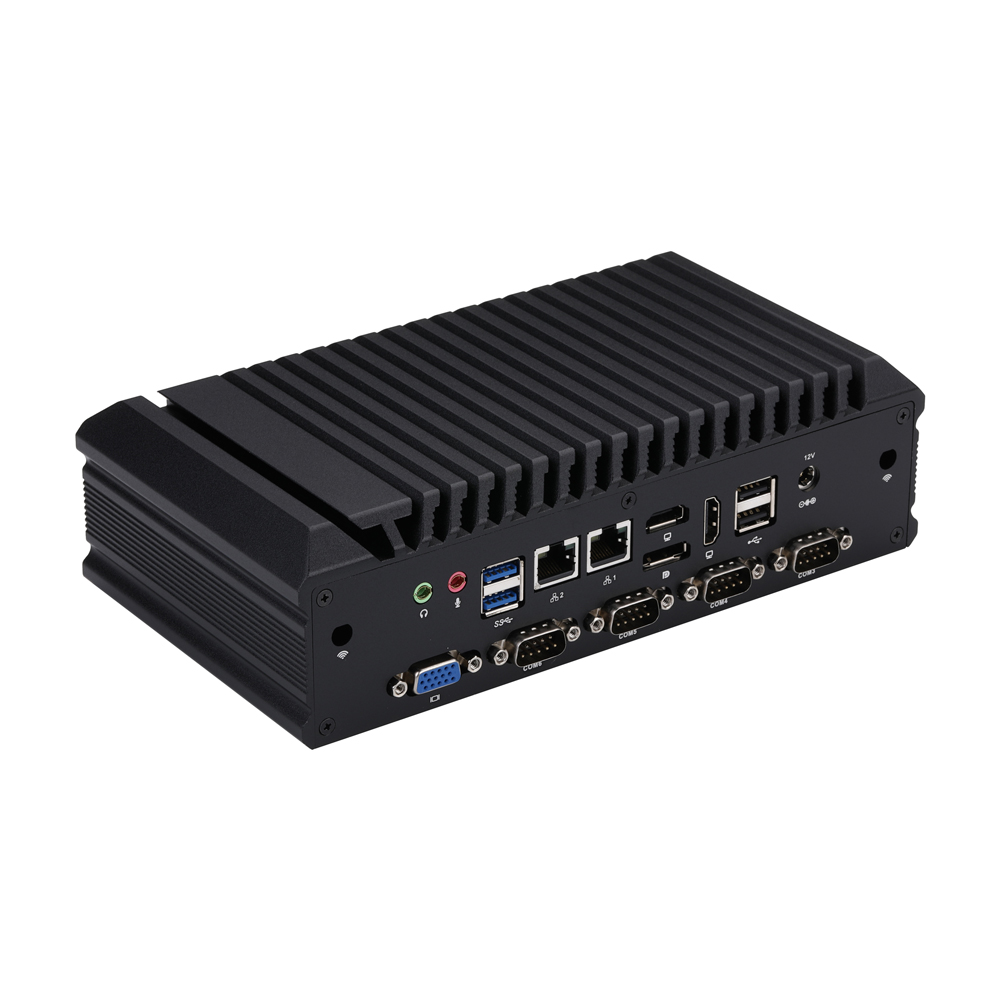

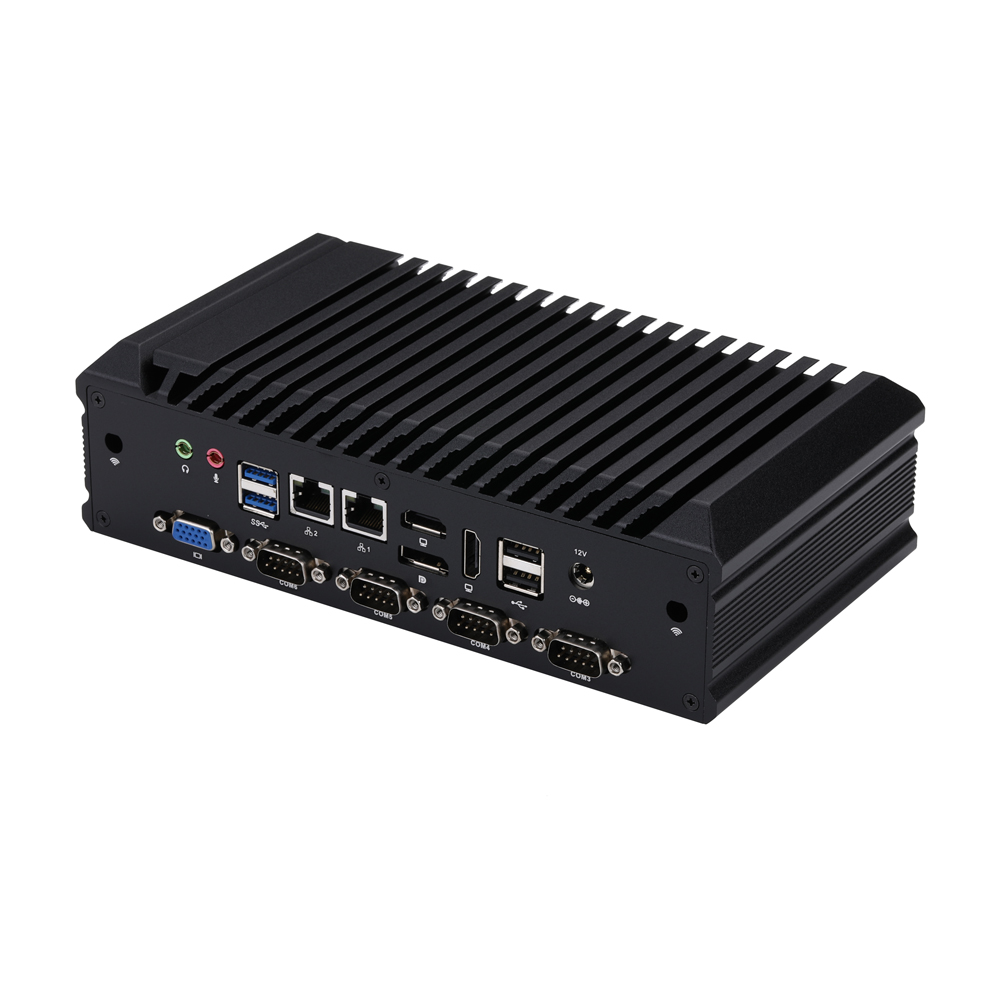

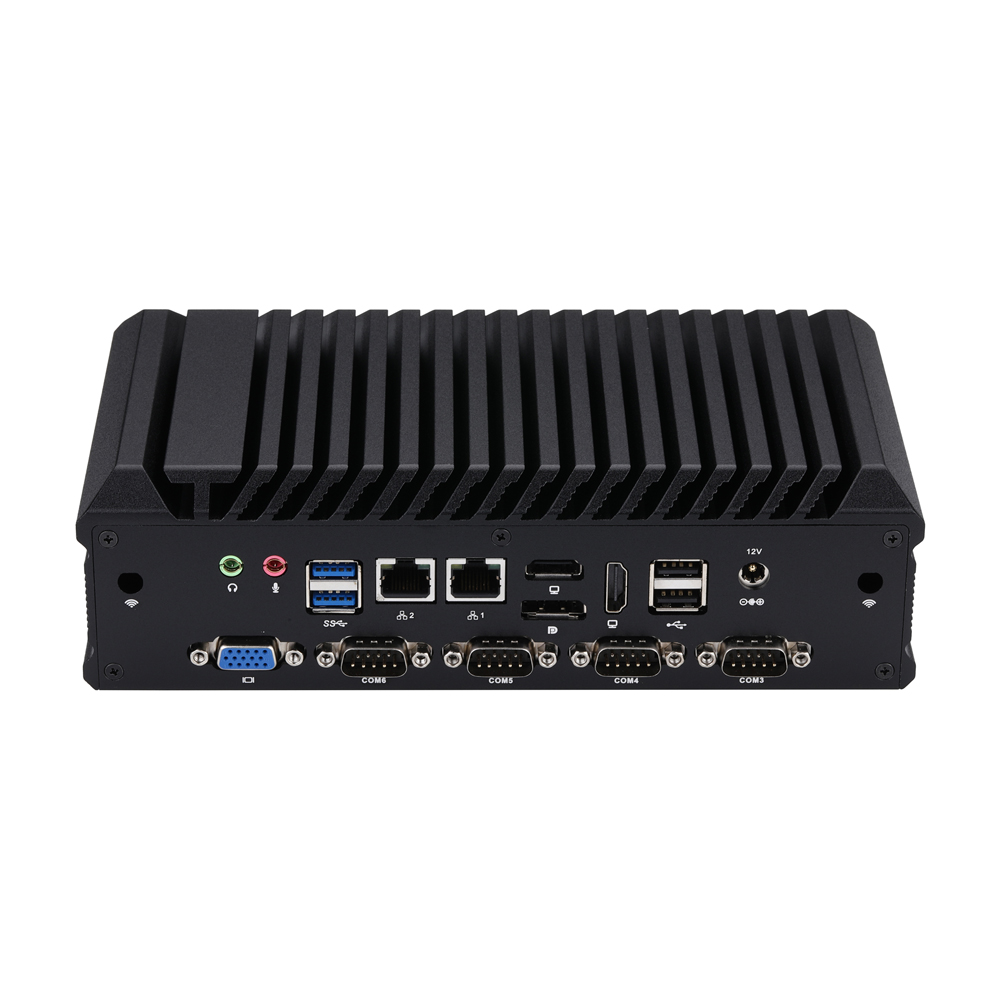

| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 1 × Display Port, 2 × HDMI, 1 × VGA |
| LAN | 2 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| USB | 2 × USB 3.0, 2 × USB 2.0 |
| Audio | 1 × Mic-in, 1 × Line-out |
| Serial Port | 4 × RS-232 |
| Storage | |
| Type | 1 × 2.5-inch HDD/SSD 1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4) |
| Expansion | |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280) 1 × M.2 for Wi-Fi (E key, Type: 2230) 1 × M.2 for 4G/5G (B key, Type: 3042/3052) |
| SIM Card Slot | 1 |
| AutoStart Jumper | 1, 1 × 3Pin, Pitch 2.54mm |
| CMOS Clear Jumper | 0 |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 2 × RS-232 (COM1/2 can be set up RS-485) |
| DC-in | 0 |
| Power Requirement | |
| Power Adapter | 19V4.74A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 221 × 121 × 62mm |
| Weight | 1.46kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 285 × 260 × 93mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design, Fan-assisted Cooling |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
PACKING
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
ItemQuantity
- 1Mini PC1
- 2Silicone Mat4
- 3VESA Bracket1
- 4Screws for VESA Bracket1
- 5Power Adapter1
- 6AC Power Cord1
- 7Screws for SATA SSD/HDD1
- 8SATA cable for SSD/HDD1Option
- 9Antennas2Option
ORDERING
Ordering and Specifications Information
Quick Order Model: Q31231X-S10
| Ordering Code | Q31211X | Q31221X | Q31231X | Q31251X | Q31271X |
| Case | S10 | S10 | S10 | S10 | S10 |
| Code Name | Alder Lake U | Alder Lake U | Alder Lake U | Alder Lake U | Alder Lake U |
| Processor Type | Celeron | Pentium | Core i3 | Core i5 | Core i7 |
| Processor Number | 7305 | 8505 | 1215U | 1235U | 1255U |
| Total Cores | 5 | 5 | 6 | 10 | 10 |
| # of Performance-cores | 1 | 1 | 2 | 2 | 2 |
| # of Efficient-cores | 4 | 4 | 4 | 8 | 8 |
| # of Threads | 5 | 6 | 8 | 12 | 12 |
| Max Turbo Frequency | - | 4.40 GHz | 4.40 GHz | 4.40 GHz | 4.70 GHz |
| Performance-core Base Frequency | 1.10 GHz | 1.20 GHz | 1.20 GHz | 1.30 GHz | 1.70 GHz |
| Performance-core Max TurboFrequency | - | 4.40 GHz | 4.40 GHz | 4.40 GHz | 4.70 GHz |
| Efficient-core Base Frequency | 0.9 GHz | 0.9 GHz | 0.9 GHz | 0.9 GHz | 1.20 GHz |
| Efficient-core Max Turbo Frequency | - | 3.30 GHz | 3.30 GHz | 3.30 GHz | 3.50 GHz |
| Cache | 8M | 8M | 10M | 12M | 12M |
| Processor Graphics | Intel UHD Graphics | Intel UHD Graphics | Intel UHD Graphics | Intel Iris Xe Graphics eligible | Intel Iris Xe Graphics eligible |
| TDP | 15-55W | 15-55W | 15-55W | 15-55W | 15-55W |
| Ordering Code | Q41231X | Q41251X | Q41271X | - | - |
| Case | S10 | S10 | S10 | - | - |
| Code Name | Alder Lake P | Alder Lake P | Alder Lake P | - | - |
| Processor Type | Core i3 | Core i5 | Core i7 | - | - |
| Processor Number | 1220P | 1240P | 1260P | - | - |
| Total Cores | 10 | 12 | 12 | - | - |
| # of Performance-cores | 2 | 4 | 4 | - | - |
| # of Efficient-cores | 8 | 8 | 8 | - | - |
| # of Threads | 12 | 16 | 16 | - | - |
| Max Turbo Frequency | 4.40 GHz | 4.40 GHz | 4.70 GHz | - | - |
| Performance-core Base Frequency | 1.50 GHz | 1.70 GHz | 2.10 GHz | - | - |
| Performance-core Max Turbo Frequency | 4.40 GHz | 4.40 GHz | 4.70 GHz | - | - |
| Efficient-core Base Frequency | 1.10 GHz | 1.20 GHz | 1.50 GHz | - | - |
| Efficient-core Max Turbo Frequency | 3.30 GHz | 3.30 GHz | 3.40 GHz | - | - |
| Cache | 12M | 12M | 18M | - | - |
| Processor Graphics | Intel UHD Graphics | Intel Iris Xe Graphics eligible | Intel Iris Xe Graphics eligible | - | - |
| TDP | 28-64W | 28-64W | 28-64W | - | - |
CaseS10
- Q31211X
- S10
- Q31221X
- S10
- Q31231X
- S10
- Q31251X
- S10
- Q31271X
- S10
Code NameAlder Lake U
- Q31211X
- Alder Lake U
- Q31221X
- Alder Lake U
- Q31231X
- Alder Lake U
- Q31251X
- Alder Lake U
- Q31271X
- Alder Lake U
Processor TypeCeleron
- Q31211X
- Celeron
- Q31221X
- Pentium
- Q31231X
- Core i3
- Q31251X
- Core i5
- Q31271X
- Core i7
Processor Number7305
- Q31211X
- 7305
- Q31221X
- 8505
- Q31231X
- 1215U
- Q31251X
- 1235U
- Q31271X
- 1255U
Total Cores5
- Q31211X
- 5
- Q31221X
- 5
- Q31231X
- 6
- Q31251X
- 10
- Q31271X
- 10
# of Performance-cores1
- Q31211X
- 1
- Q31221X
- 1
- Q31231X
- 2
- Q31251X
- 2
- Q31271X
- 2
# of Efficient-cores4
- Q31211X
- 4
- Q31221X
- 4
- Q31231X
- 4
- Q31251X
- 8
- Q31271X
- 8
# of Threads5
- Q31211X
- 5
- Q31221X
- 6
- Q31231X
- 8
- Q31251X
- 12
- Q31271X
- 12
Max Turbo Frequency-
- Q31211X
- -
- Q31221X
- 4.40 GHz
- Q31231X
- 4.40 GHz
- Q31251X
- 4.40 GHz
- Q31271X
- 4.70 GHz
Performance-core Base Frequency1.10 GHz
- Q31211X
- 1.10 GHz
- Q31221X
- 1.20 GHz
- Q31231X
- 1.20 GHz
- Q31251X
- 1.30 GHz
- Q31271X
- 1.70 GHz
Performance-core Max TurboFrequency-
- Q31211X
- -
- Q31221X
- 4.40 GHz
- Q31231X
- 4.40 GHz
- Q31251X
- 4.40 GHz
- Q31271X
- 4.70 GHz
Efficient-core Base Frequency0.9 GHz
- Q31211X
- 0.9 GHz
- Q31221X
- 0.9 GHz
- Q31231X
- 0.9 GHz
- Q31251X
- 0.9 GHz
- Q31271X
- 1.20 GHz
Efficient-core Max Turbo Frequency-
- Q31211X
- -
- Q31221X
- 3.30 GHz
- Q31231X
- 3.30 GHz
- Q31251X
- 3.30 GHz
- Q31271X
- 3.50 GHz
Cache8M
- Q31211X
- 8M
- Q31221X
- 8M
- Q31231X
- 10M
- Q31251X
- 12M
- Q31271X
- 12M
Processor GraphicsIntel UHD Graphics
- Q31211X
- Intel UHD Graphics
- Q31221X
- Intel UHD Graphics
- Q31231X
- Intel UHD Graphics
- Q31251X
- Intel Iris Xe Graphics eligible
- Q31271X
- Intel Iris Xe Graphics eligible
TDP15-55W
- Q31211X
- 15-55W
- Q31221X
- 15-55W
- Q31231X
- 15-55W
- Q31251X
- 15-55W
- Q31271X
- 15-55W
Ordering CodeQ41231X
- Q31211X
- Q41231X
- Q31221X
- Q41251X
- Q31231X
- Q41271X
- Q31251X
- -
- Q31271X
- -
CaseS10
- Q31211X
- S10
- Q31221X
- S10
- Q31231X
- S10
- Q31251X
- -
- Q31271X
- -
Code NameAlder Lake P
- Q31211X
- Alder Lake P
- Q31221X
- Alder Lake P
- Q31231X
- Alder Lake P
- Q31251X
- -
- Q31271X
- -
Processor TypeCore i3
- Q31211X
- Core i3
- Q31221X
- Core i5
- Q31231X
- Core i7
- Q31251X
- -
- Q31271X
- -
Processor Number1220P
- Q31211X
- 1220P
- Q31221X
- 1240P
- Q31231X
- 1260P
- Q31251X
- -
- Q31271X
- -
Total Cores10
- Q31211X
- 10
- Q31221X
- 12
- Q31231X
- 12
- Q31251X
- -
- Q31271X
- -
# of Performance-cores2
- Q31211X
- 2
- Q31221X
- 4
- Q31231X
- 4
- Q31251X
- -
- Q31271X
- -
# of Efficient-cores8
- Q31211X
- 8
- Q31221X
- 8
- Q31231X
- 8
- Q31251X
- -
- Q31271X
- -
# of Threads12
- Q31211X
- 12
- Q31221X
- 16
- Q31231X
- 16
- Q31251X
- -
- Q31271X
- -
Max Turbo Frequency4.40 GHz
- Q31211X
- 4.40 GHz
- Q31221X
- 4.40 GHz
- Q31231X
- 4.70 GHz
- Q31251X
- -
- Q31271X
- -
Performance-core Base Frequency1.50 GHz
- Q31211X
- 1.50 GHz
- Q31221X
- 1.70 GHz
- Q31231X
- 2.10 GHz
- Q31251X
- -
- Q31271X
- -
Performance-core Max Turbo Frequency4.40 GHz
- Q31211X
- 4.40 GHz
- Q31221X
- 4.40 GHz
- Q31231X
- 4.70 GHz
- Q31251X
- -
- Q31271X
- -
Efficient-core Base Frequency1.10 GHz
- Q31211X
- 1.10 GHz
- Q31221X
- 1.20 GHz
- Q31231X
- 1.50 GHz
- Q31251X
- -
- Q31271X
- -
Efficient-core Max Turbo Frequency3.30 GHz
- Q31211X
- 3.30 GHz
- Q31221X
- 3.30 GHz
- Q31231X
- 3.40 GHz
- Q31251X
- -
- Q31271X
- -
Cache12M
- Q31211X
- 12M
- Q31221X
- 12M
- Q31231X
- 18M
- Q31251X
- -
- Q31271X
- -
Processor GraphicsIntel UHD Graphics
- Q31211X
- Intel UHD Graphics
- Q31221X
- Intel Iris Xe Graphics eligible
- Q31231X
- Intel Iris Xe Graphics eligible
- Q31251X
- -
- Q31271X
- -
TDP28-64W
- Q31211X
- 28-64W
- Q31221X
- 28-64W
- Q31231X
- 28-64W
- Q31251X
- -
- Q31271X
- -
| Ordering Code | Q51251X | Q51271X | Q51291X |
| Case | S10 | S10 | S10 |
| Code Name | Alder Lake H | Alder Lake H | Alder Lake H |
| Processor Type | Core i5 | Core i7 | Core i9 |
| Processor Number | 12450H | 12650H | 12900H |
| Total Cores | 8 | 10 | 14 |
| # of Performance-cores | 4 | 6 | 6 |
| # of Efficient-cores | 4 | 4 | 8 |
| # of Threads | 12 | 16 | 20 |
| Max Turbo Frequency | 4.40 GHz | 4.70 GHz | 5.00 GHz |
| Performance-core Base Frequency | 2.00 GHz | 2.30 GHz | 2.50 GHz |
| Performance-core Max Turbo Frequency | 4.40 GHz | 4.70 GHz | 5.00 GHz |
| Efficient-core Base Frequency | 1.50 GHz | 1.70 GHz | 1.80 GHz |
| Efficient-core Max TurboFrequency | 3.30 GHz | 3.50 GHz | 3.80 GHz |
| Cache | 12M | 24M | 24M |
| Processor Graphics | Intel UHD Graphics | Intel Iris Xe Graphics eligible | Intel Iris Xe Graphics eligible |
| TDP | 45-95W | 45-115W | 45-115W |
CaseS10
- Q51251X
- S10
- Q51271X
- S10
- Q51291X
- S10
Code NameAlder Lake H
- Q51251X
- Alder Lake H
- Q51271X
- Alder Lake H
- Q51291X
- Alder Lake H
Processor TypeCore i5
- Q51251X
- Core i5
- Q51271X
- Core i7
- Q51291X
- Core i9
Processor Number12450H
- Q51251X
- 12450H
- Q51271X
- 12650H
- Q51291X
- 12900H
Total Cores8
- Q51251X
- 8
- Q51271X
- 10
- Q51291X
- 14
# of Performance-cores4
- Q51251X
- 4
- Q51271X
- 6
- Q51291X
- 6
# of Efficient-cores4
- Q51251X
- 4
- Q51271X
- 4
- Q51291X
- 8
# of Threads12
- Q51251X
- 12
- Q51271X
- 16
- Q51291X
- 20
Max Turbo Frequency4.40 GHz
- Q51251X
- 4.40 GHz
- Q51271X
- 4.70 GHz
- Q51291X
- 5.00 GHz
Performance-core Base Frequency2.00 GHz
- Q51251X
- 2.00 GHz
- Q51271X
- 2.30 GHz
- Q51291X
- 2.50 GHz
Performance-core Max Turbo Frequency4.40 GHz
- Q51251X
- 4.40 GHz
- Q51271X
- 4.70 GHz
- Q51291X
- 5.00 GHz
Efficient-core Base Frequency1.50 GHz
- Q51251X
- 1.50 GHz
- Q51271X
- 1.70 GHz
- Q51291X
- 1.80 GHz
Efficient-core Max TurboFrequency3.30 GHz
- Q51251X
- 3.30 GHz
- Q51271X
- 3.50 GHz
- Q51291X
- 3.80 GHz
Cache12M
- Q51251X
- 12M
- Q51271X
- 24M
- Q51291X
- 24M
Processor GraphicsIntel UHD Graphics
- Q51251X
- Intel UHD Graphics
- Q51271X
- Intel Iris Xe Graphics eligible
- Q51291X
- Intel Iris Xe Graphics eligible
TDP45-95W
- Q51251X
- 45-95W
- Q51271X
- 45-115W
- Q51291X
- 45-115W
PC Case Options
| Category | SATA Support |
| S10 | Yes |
| S20 | Yes |
Custom Options
| Category | Description |
| GPIO | 1 |
| RS-485 | 2 |
| PS2 | 2 |
| TPM 2.0 | 1 (Z32H330TC) |
