Mini PC Q30600P S02 Series

Q30600P Fanless mini PC with Skylake/Kabylake CPU options, dual HDMI, 4 serial ports, M.2 expansion, and dual Gigabit LAN—ideal for industrial control and digital signage.

NIC: 2
USB: 4 × USB 3.0, 2 × USB 2.0
RS-232: 4
RS-485: None
VGA: None
PS/2: None
GPIO: Yes

Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

OVERVIEW

Main Features

Intel 6th Skylake-U Processor
Intel 7th Kabylake-U Processor
2 × HDMI, 4 × RS-232
4 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
2 × M.2 Slot
2 × Realtek Gigabit LAN

SPECIFICATION

Processor System
CPU	Intel 6thSkylake-U Processor Intel 7thKabylake-U Processor
CPU TDP	By CPU
Memory	1 × DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz)
Chipset	By CPU
Graphics	By CPU
LAN Chipset	2 × Realtek Gigabit LAN
Audio	Realtek HD Audio
Watch Dog	Yes

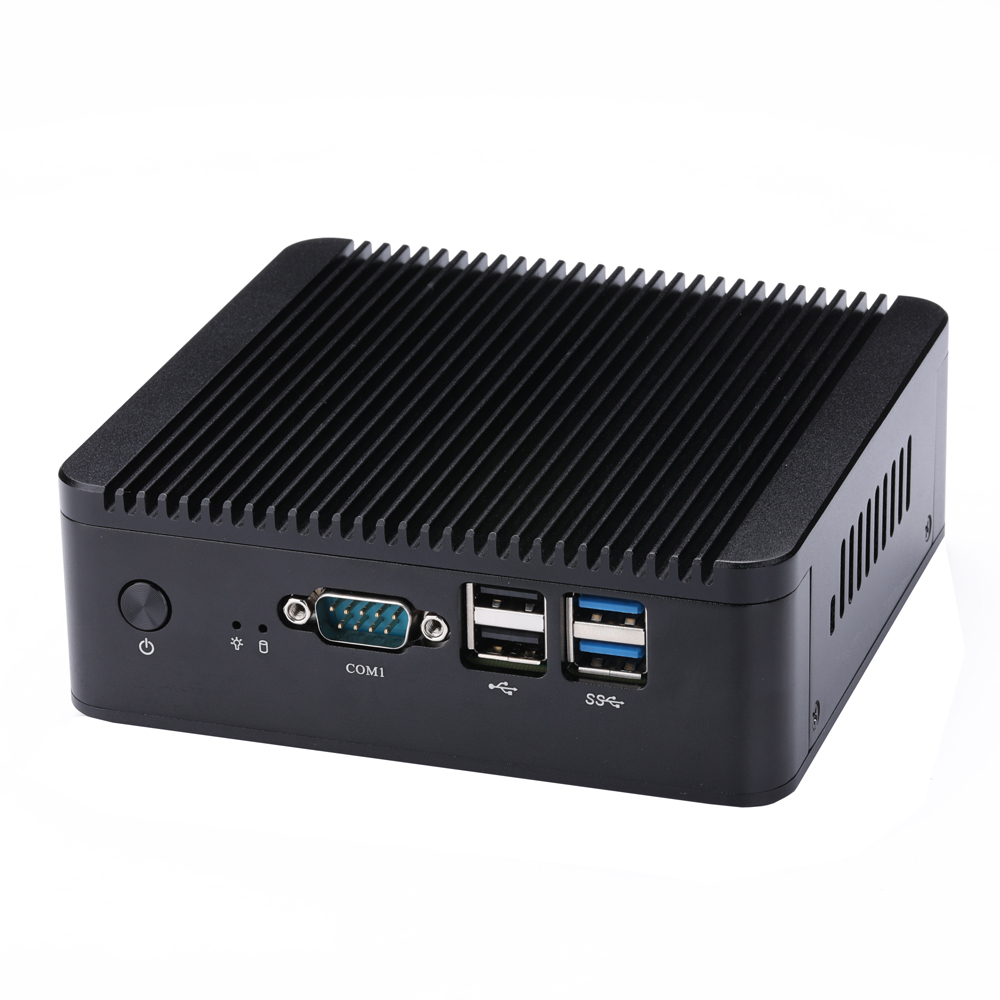

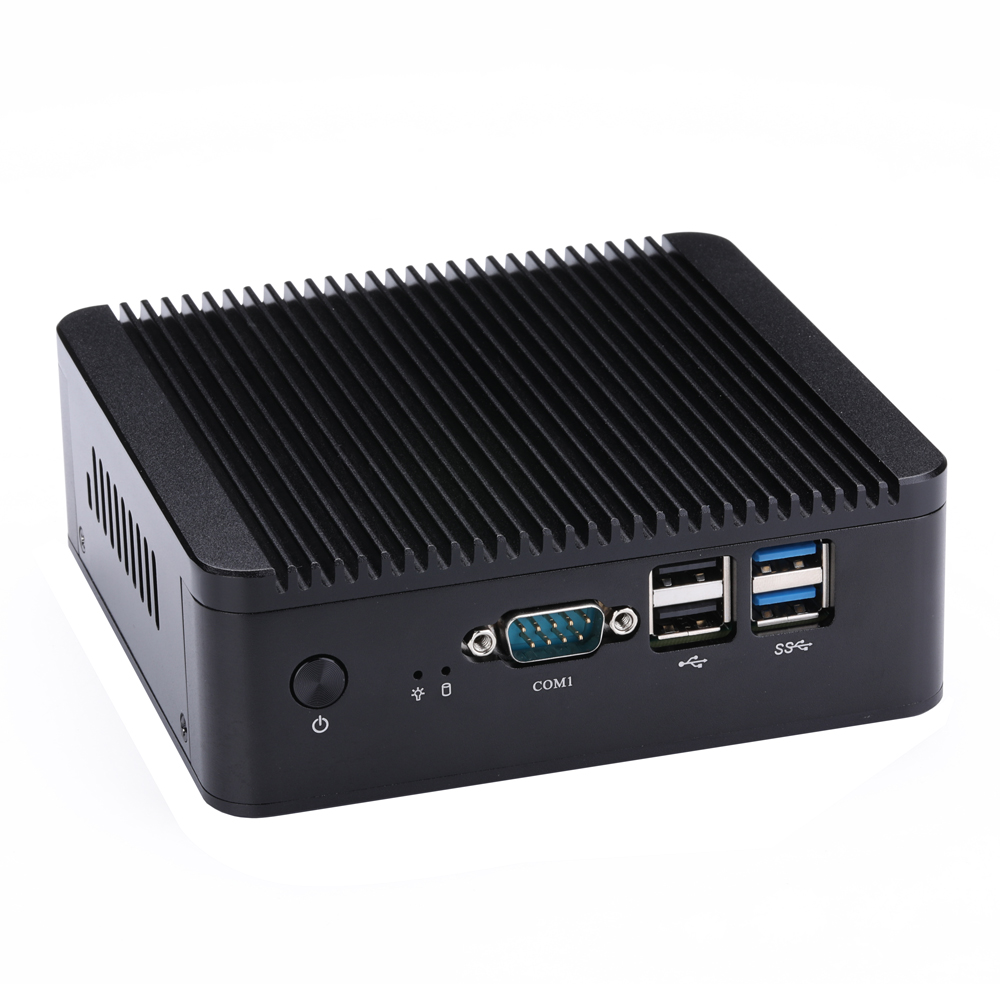

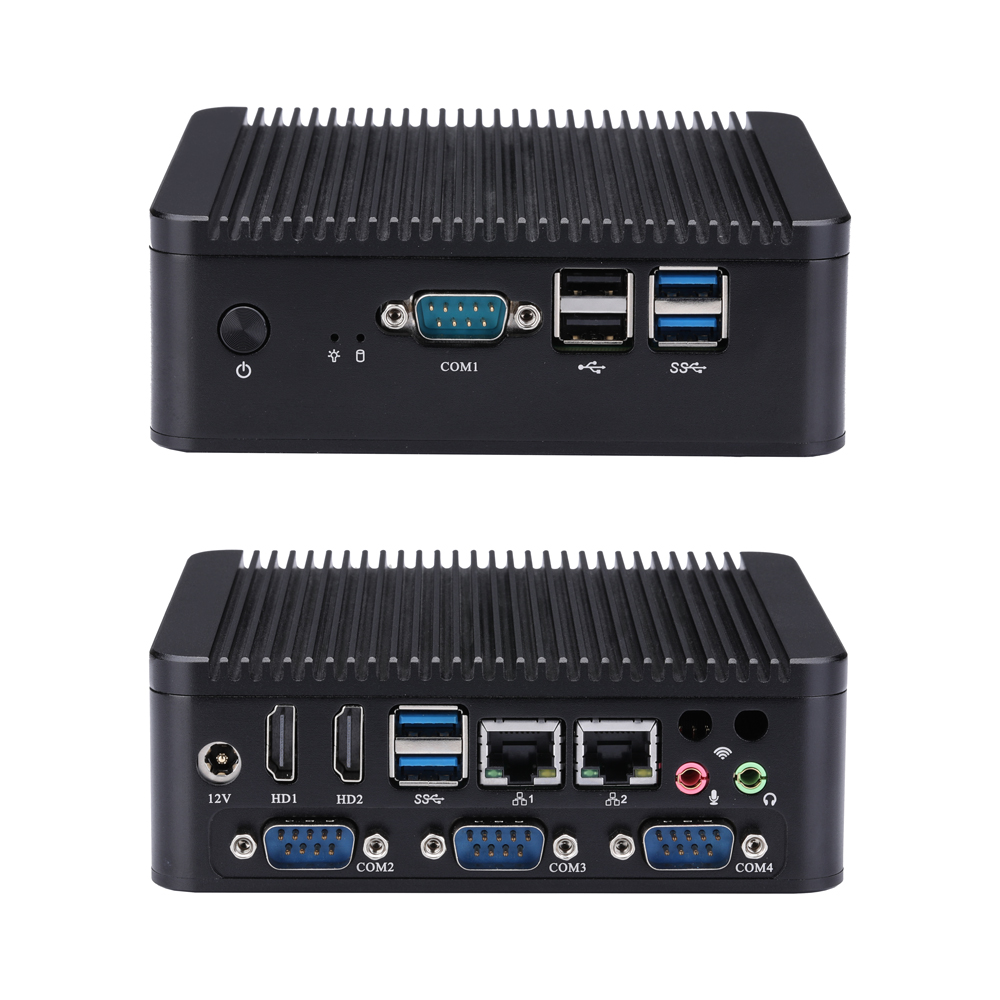

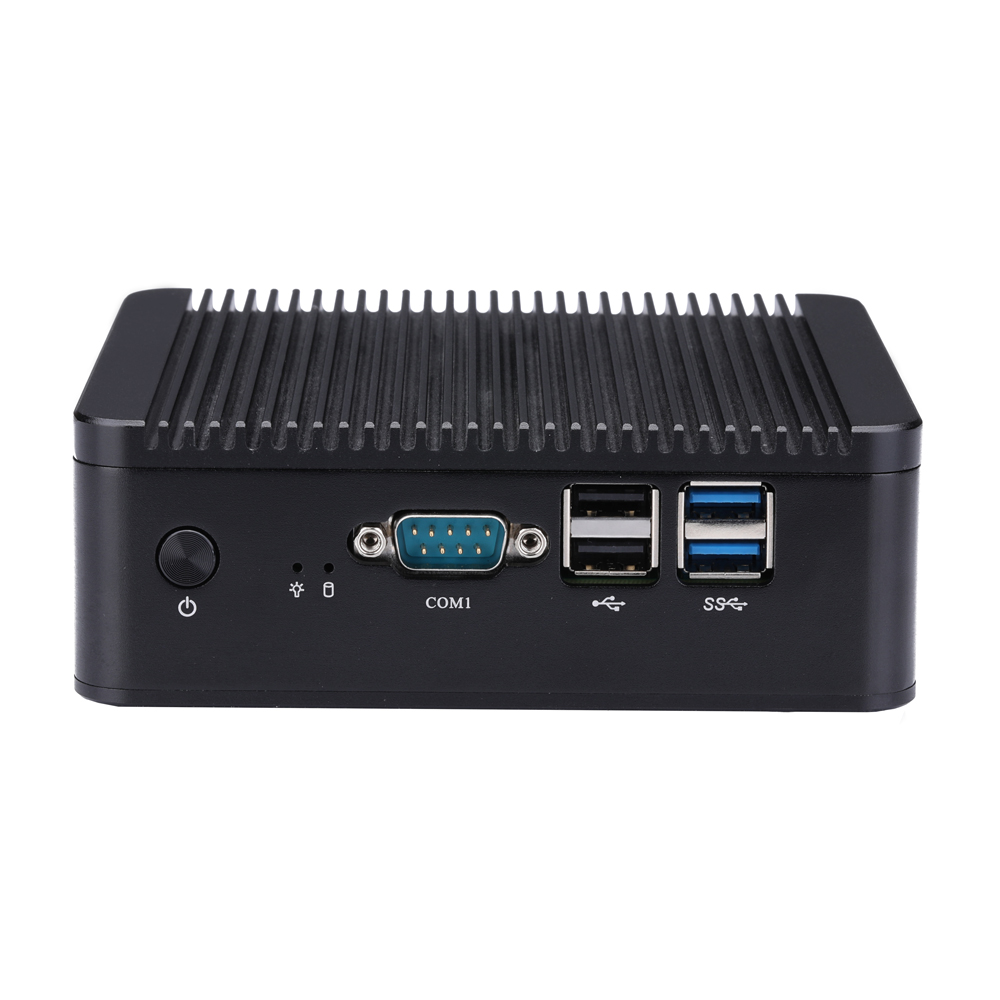

Front I/O
Power Button	1
LED	1 × Power LED, 1 × HDD LED
Serial Port	1 × RS-232 (COM1)
USB	2 × USB 3.0, 2 × USB 2.0
Audio	0

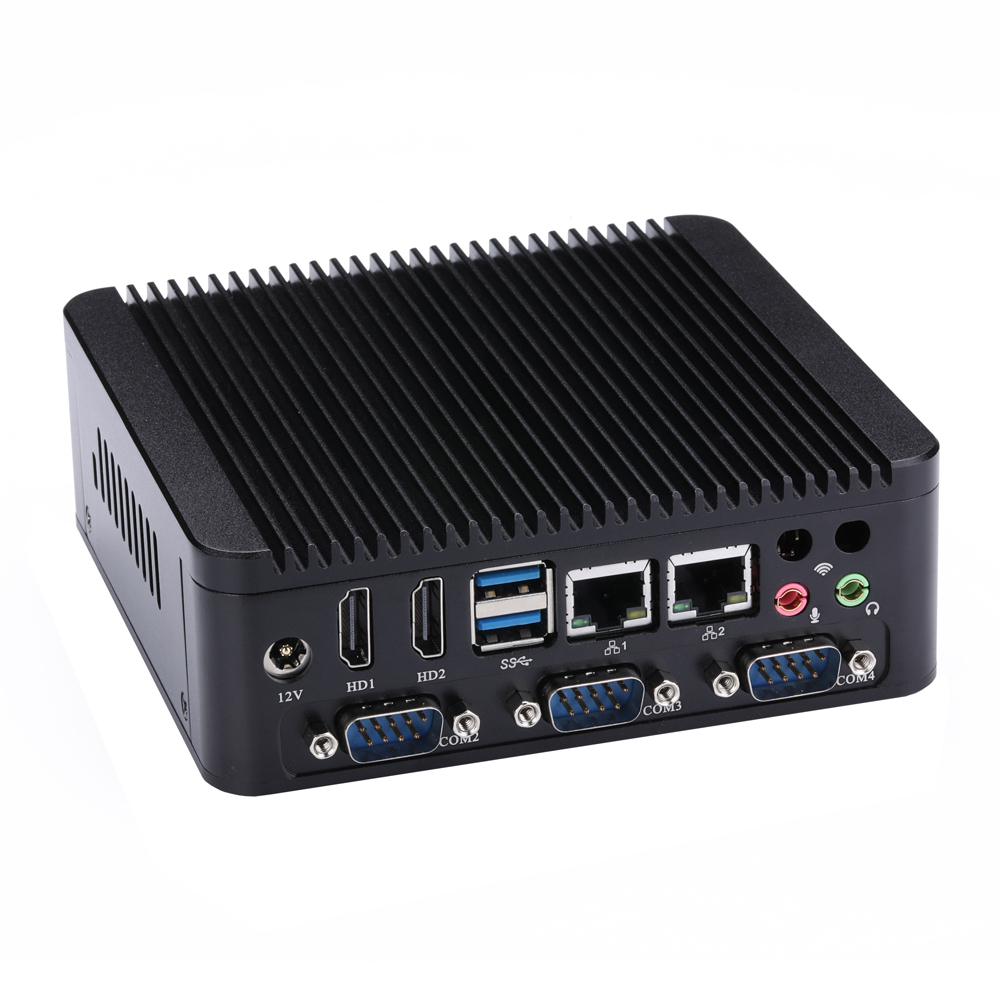

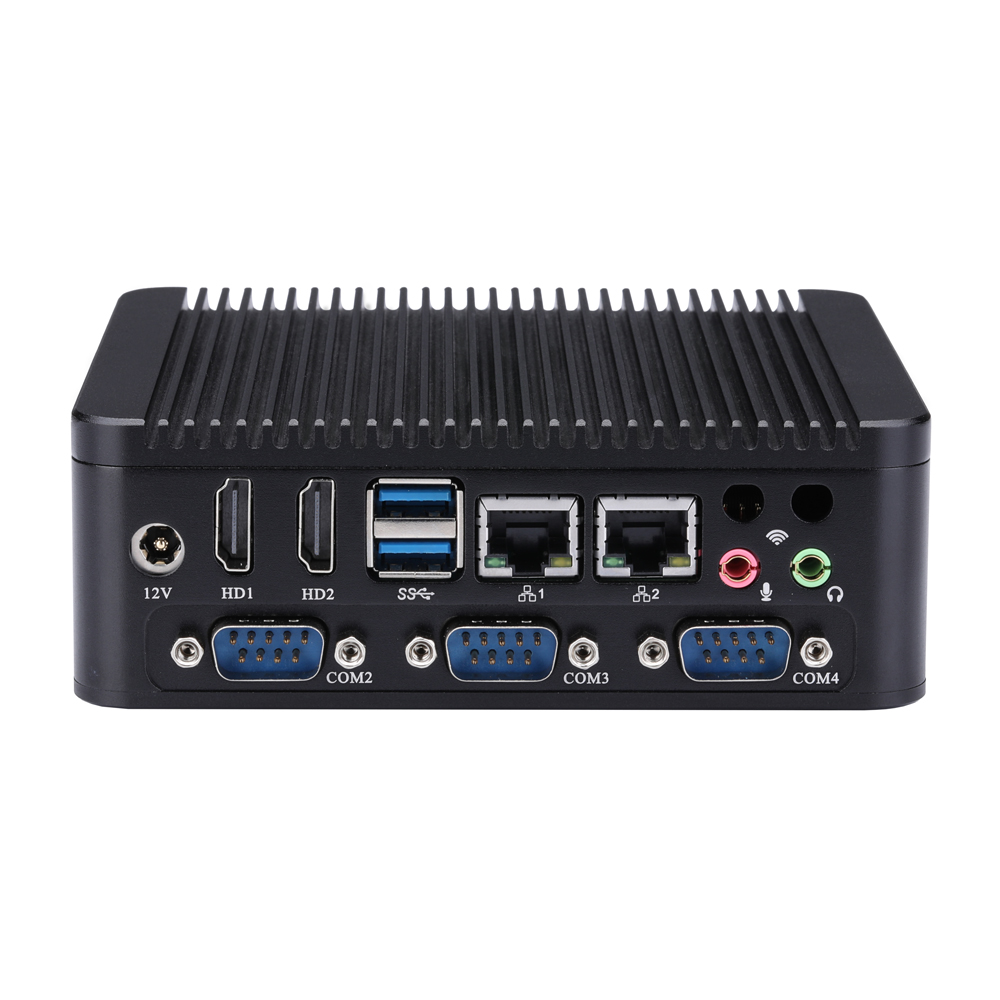

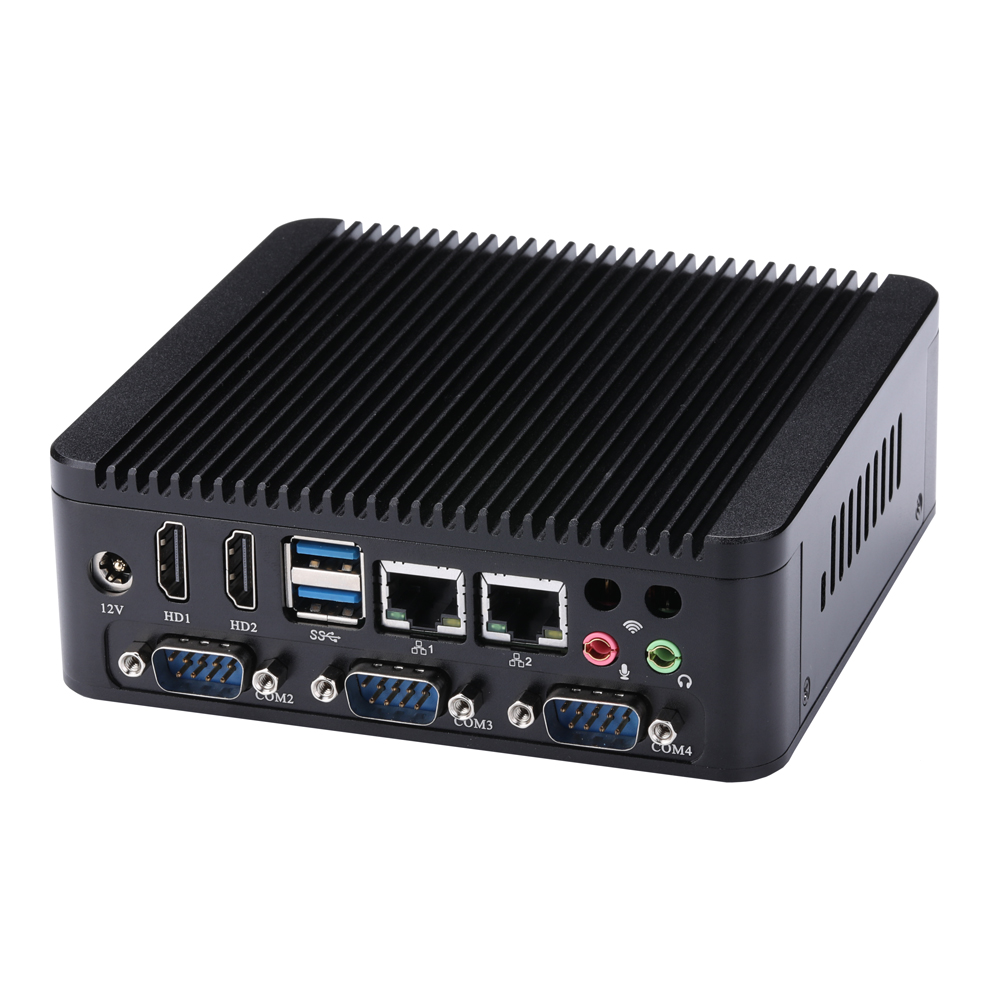

Rear I/O
Power	1 × DC Jack
Video Output	2 × HDMI
LAN	2 × Realtek Gigabit LAN
USB	2 × USB 3.0
Audio	1 × Mic-in, 1 × Line-out
Serial Port	3 × RS-232 (COM2, COM3, COM4)
Storage
Type	1 × 2.5-inch HDD/SSD 1 × M.2 Slot for SSD (M key, Type: 2280)

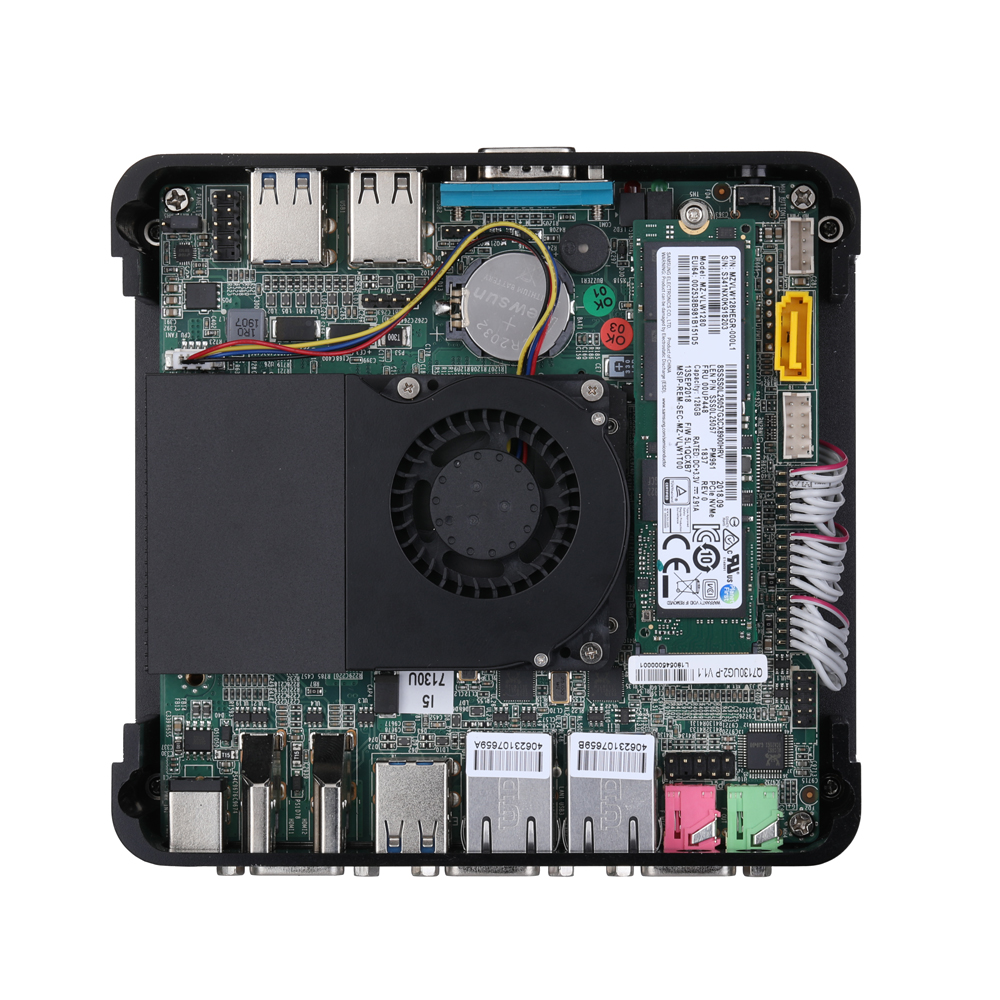

Expansion
M.2	1 × M.2 for SSD (M key, Type: 2280)
M.2	1 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot	0
AutoStart Jumper	Yes, 1 × 3Pin, Pitch 2.54mm
CMOS Clear Jumper	Yes, 1 × 3Pin, Pitch 2.0mm
VGA	0
GPIO	1, 2 × 5Pin, Pitch 2.0mm
RS-485	0
Power Requirement
Power Adapter	12V4A
DC Jack	5.5mm, 2.5mm
Environmental
Operating Temp	0°C~50°C
Non-Operating Temp	-20°C~80°C
Humidity	10%~90%
Mechanical
Material	Aluminium Alloy
Dimension	134 × 127 × 46mm
Weight	0.72kg
Mounting	VESA Mounting Bracket
Packaging Dimension	261 × 218 × 75mm
Kensington Lock	Support
Cooling Mode	With Fan
OS Support
OS	Windows 10, Linux Windows 7 (Only for 6th Gen Skylake)

PACKING

Packing List

NO.	Category	Quantity	Remark
1	Mini PC	1
2	Silicone Mat	4
3	VESA Bracket	1
4	Screws for VESA Bracket	1
5	Power Adapter	1
6	AC Power Cord	1
7	Screws for SATA SSD/HDD	1
8	SATA cable for SSD/HDD	1	Option
9	Antennas	2	Option

ItemQuantity

1
Mini PC
1
2
Silicone Mat
4
3
VESA Bracket
1
4
Screws for VESA Bracket
1
5
Power Adapter
1
6
AC Power Cord
1
7
Screws for SATA SSD/HDD
1
8
SATA cable for SSD/HDD
Option
1
9
Antennas
Option
2

mini pc

ORDERING

Ordering and Specifications Information

Quick Order Model: Q535P-S02

Ordering Code	Case	Code Name	Processor Type	Processor Number	# of Cores	# of Threads	Base Frequency	Max Turbo Frequency	Cache	Processor Graphics	TDP
Q510P (Q30611P)	S02	Skylake	Celeron	3855U	2	2	1.6GHz	/	2M	Intel HD 510	15W
Q520P (Q30612P)	S02	Skylake	Celeron	3955U	2	2	2.0GHz	/	2M	Intel HD 510	15W
Q530P (Q30631P)	S02	Skylake	Core i3	6100U	2	4	2.3GHz	/	3M	Intel HD 520	15W
Q550P (Q30651P)	S02	Skylake	Core i5	6200U	2	4	2.3GHz	2.8GHz	3M	Intel HD 520	15W
Q570P (Q30671P)	S02	Skylake	Core i7	6500U	2	4	2.5GHz	3.1GHz	4M	Intel HD 520	15W
Q515P (Q30711P)	S02	Kaby Lake	Celeron	3865U	2	2	1.8GHz	/	2M	Intel HD 610	15W
Q525P (Q30712P)	S02	Kaby Lake	Celeron	3965U	2	2	2.2GHz	/	2M	Intel HD 610	15W
Q535P (Q30731P)	S02	Kaby Lake	Core i3	7100U	2	4	2.4GHz	/	3M	Intel HD 620	15W
Q555P (Q30751P)	S02	Kaby Lake	Core i5	7200U	2	4	2.5GHz	3.1GHz	3M	Intel HD 620	15W
Q575P (Q30771P)	S02	Kaby Lake	Core i7	7500U	2	4	2.7GHz	3.5GHz	4M	Intel HD 620	15W

Q510P
(Q30611P)
S02

Case: S02
Code Name: Skylake
Processor Type: Celeron
Processor Number: 3855U
# of Cores: 2
# of Threads: 2
Base Frequency: 1.6GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel HD 510
TDP: 15W

Q520P
(Q30612P)
S02

Case: S02
Code Name: Skylake
Processor Type: Celeron
Processor Number: 3955U
# of Cores: 2
# of Threads: 2
Base Frequency: 2.0GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel HD 510
TDP: 15W

Q530P
(Q30631P)
S02

Case: S02
Code Name: Skylake
Processor Type: Core i3
Processor Number: 6100U
# of Cores: 2
# of Threads: 4
Base Frequency: 2.3GHz
Max Turbo Frequency: /
Cache: 3M
Processor Graphics: Intel HD 520
TDP: 15W

Q550P
(Q30651P)
S02

Case: S02
Code Name: Skylake
Processor Type: Core i5
Processor Number: 6200U
# of Cores: 2
# of Threads: 4
Base Frequency: 2.3GHz
Max Turbo Frequency: 2.8GHz
Cache: 3M
Processor Graphics: Intel HD 520
TDP: 15W

Q570P
(Q30671P)
S02

Case: S02
Code Name: Skylake
Processor Type: Core i7
Processor Number: 6500U
# of Cores: 2
# of Threads: 4
Base Frequency: 2.5GHz
Max Turbo Frequency: 3.1GHz
Cache: 4M
Processor Graphics: Intel HD 520
TDP: 15W

Q515P
(Q30711P)
S02

Case: S02
Code Name: Kaby Lake
Processor Type: Celeron
Processor Number: 3865U
# of Cores: 2
# of Threads: 2
Base Frequency: 1.8GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel HD 610
TDP: 15W

Q525P
(Q30712P)
S02

Case: S02
Code Name: Kaby Lake
Processor Type: Celeron
Processor Number: 3965U
# of Cores: 2
# of Threads: 2
Base Frequency: 2.2GHz
Max Turbo Frequency: /
Cache: 2M
Processor Graphics: Intel HD 610
TDP: 15W

Q535P
(Q30731P)
S02

Case: S02
Code Name: Kaby Lake
Processor Type: Core i3
Processor Number: 7100U
# of Cores: 2
# of Threads: 4
Base Frequency: 2.4GHz
Max Turbo Frequency: /
Cache: 3M
Processor Graphics: Intel HD 620
TDP: 15W

Q555P
(Q30751P)
S02

Case: S02
Code Name: Kaby Lake
Processor Type: Core i5
Processor Number: 7200U
# of Cores: 2
# of Threads: 4
Base Frequency: 2.5GHz
Max Turbo Frequency: 3.1GHz
Cache: 3M
Processor Graphics: Intel HD 620
TDP: 15W

Q575P
(Q30771P)
S02

Case: S02
Code Name: Kaby Lake
Processor Type: Core i7
Processor Number: 7500U
# of Cores: 2
# of Threads: 4
Base Frequency: 2.7GHz
Max Turbo Frequency: 3.5GHz
Cache: 4M
Processor Graphics: Intel HD 620
TDP: 15W

Custom Options

Category	Description
USB 2.0	3
GPIO	1
VGA	1
TPM 2.0	1
