Mini PC Q10100SN S04 Series
Q10100SN Compact fanless mini PC with Intel Bay Trail CPU, VGA, HDMI, RS-232, dual LAN, USB 3.0/2.0, SATA, Mini PCIe, and mSATA—designed for stable industrial and commercial applications.
Main Features
Intel Bay Trail Processor
1 × VGA, 1 × HDMI, 1 × RS-232
1 × USB 3.0, 7 × USB 2.0
1 × Mini PCIe, 1 × mSATA, 1 × SATA 3.0
2 × Realtek Gigabit LAN
| Processor System | |
| CPU | Intel Bay Trail Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Realtek Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |

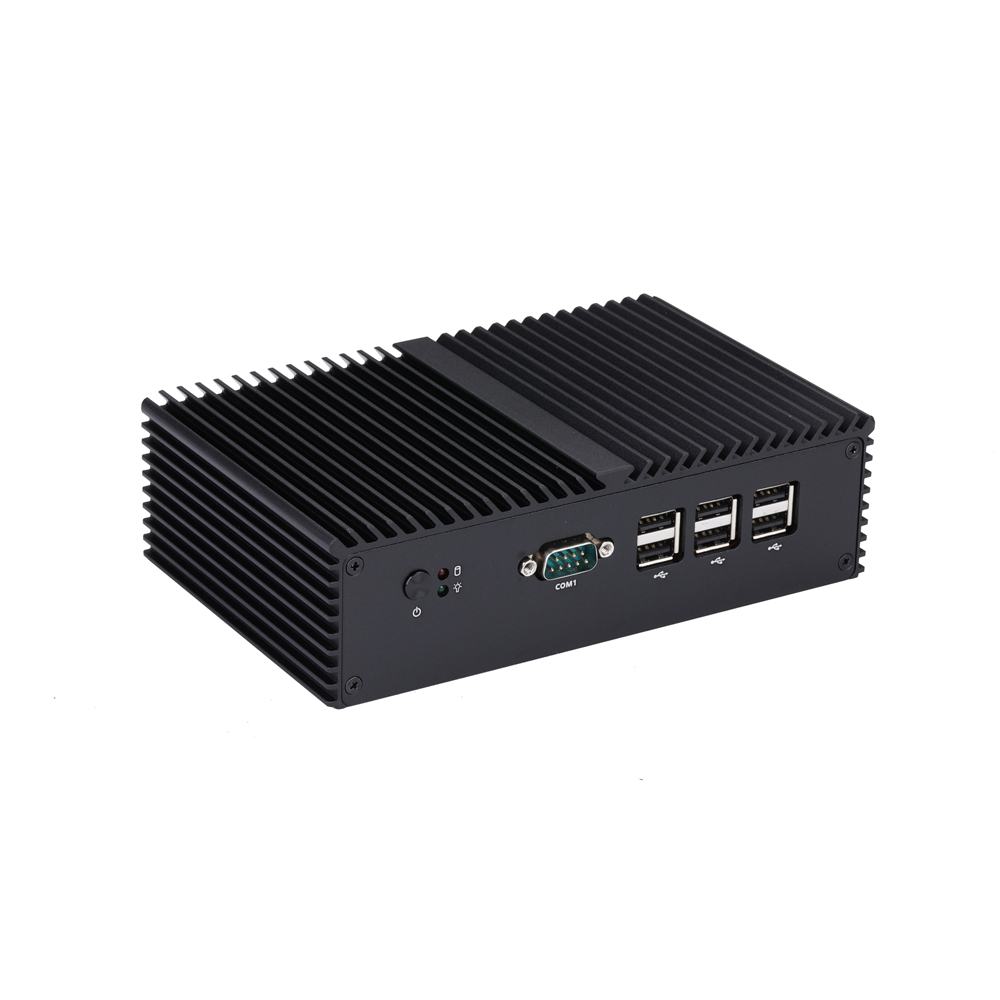

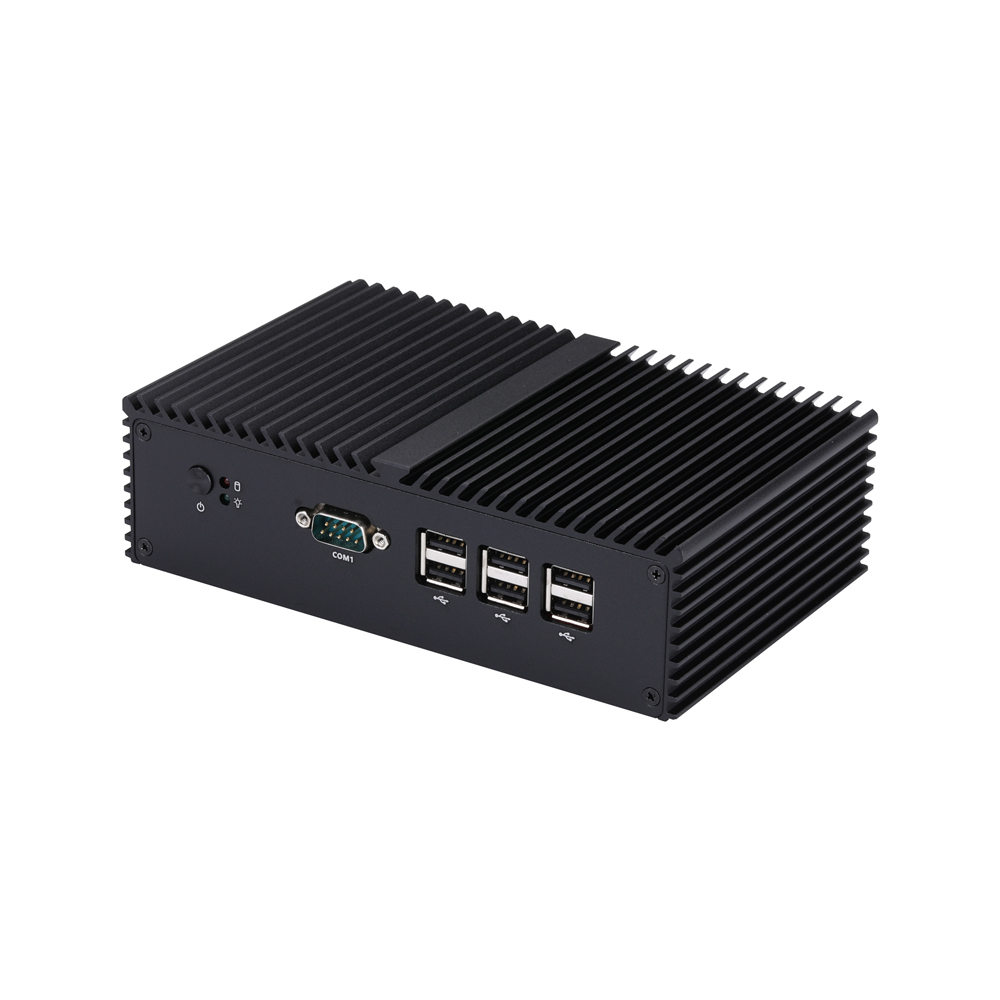

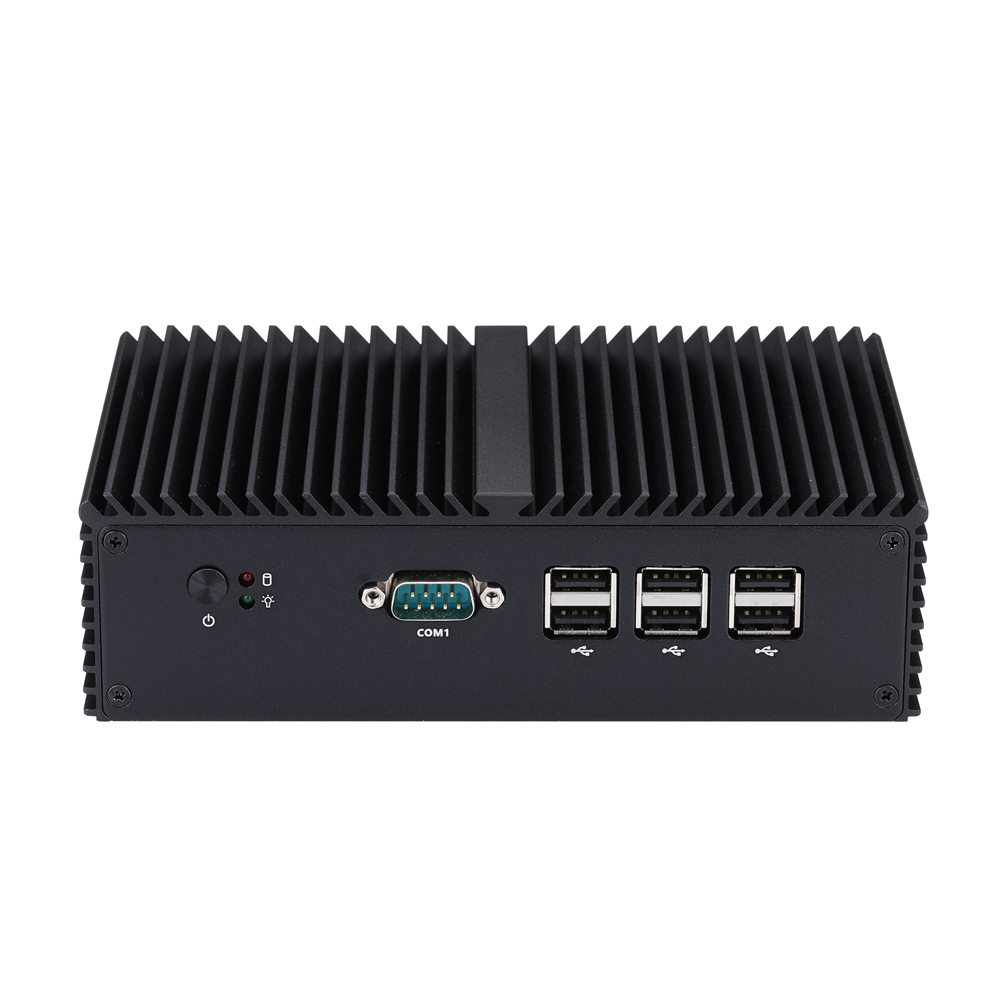

| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED |
| LED | 1 × HDD LED |
| Serial Port | 1 × RS-232 (Supports 5V/12V) |
| USB | 6 × USB 2.0 |

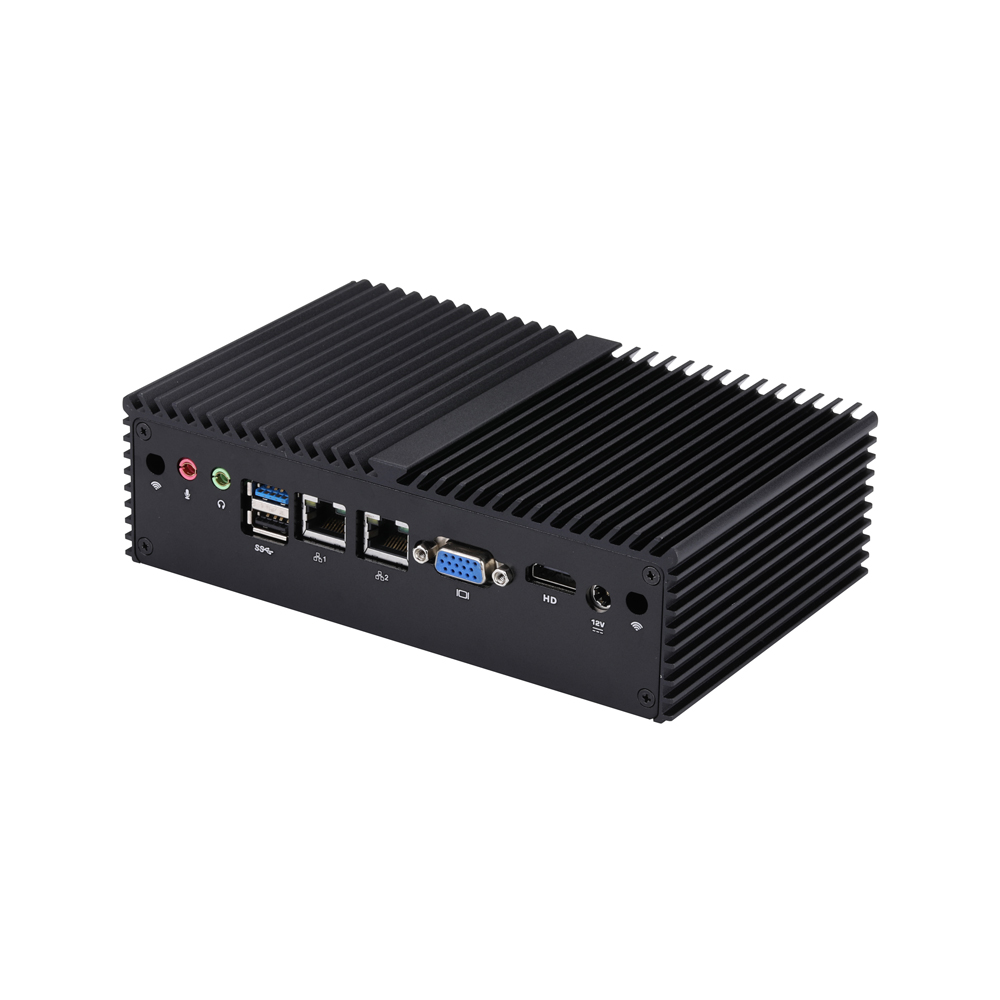

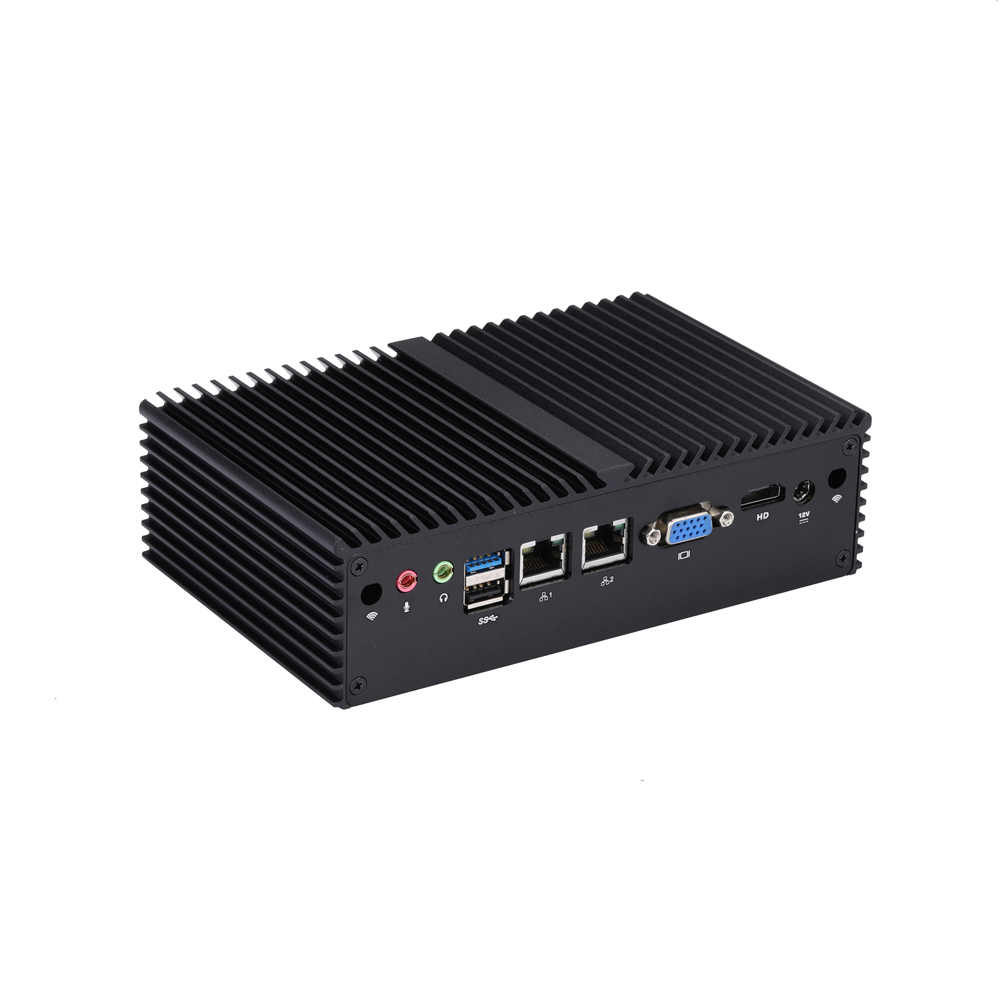

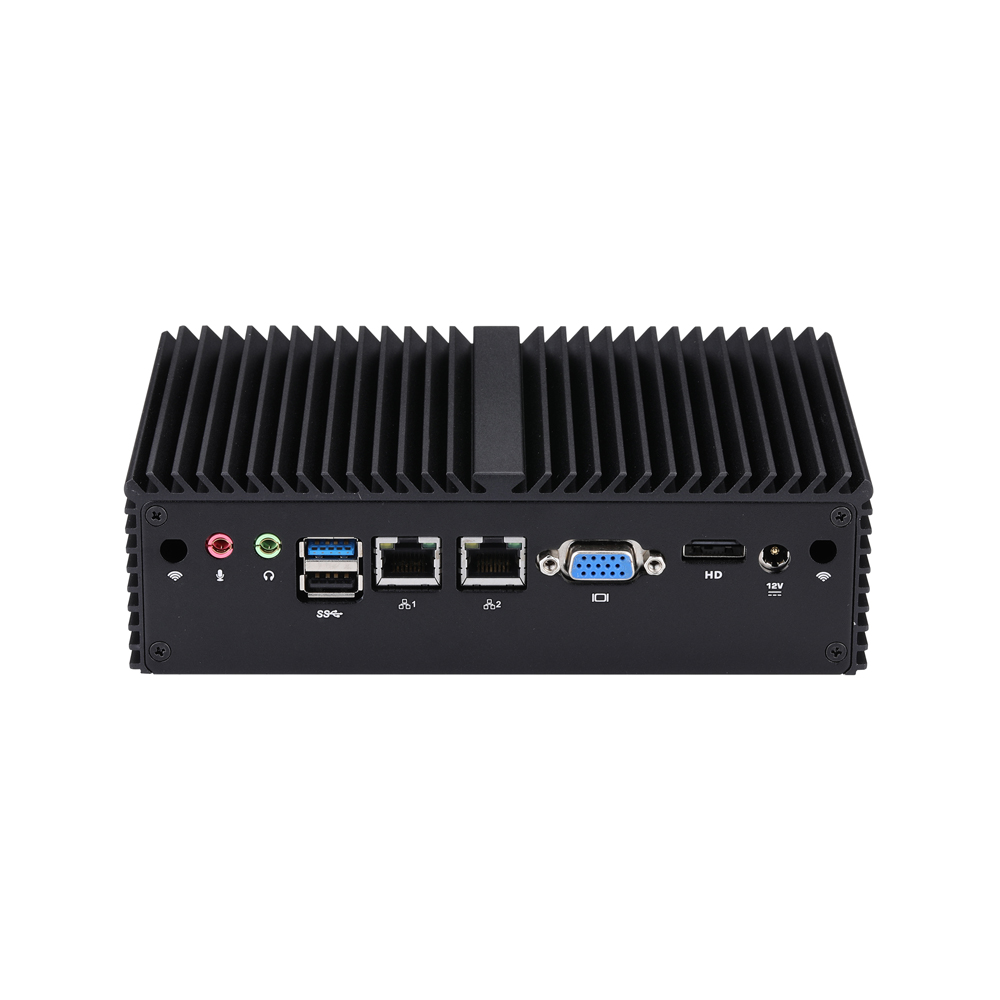

| Rear I/O | |
| Power | 1 × DC Jack |
| Video Output | 1 × HDMI, 1 × VGA |
| LAN | 2 × Realtek Gigabit LAN |
| USB | 1 × USB 3.0, 1 × USB 2.0 |
| Audio | 1 × Mic-in, 1 × Line-out |
| Serial Port | 0 |

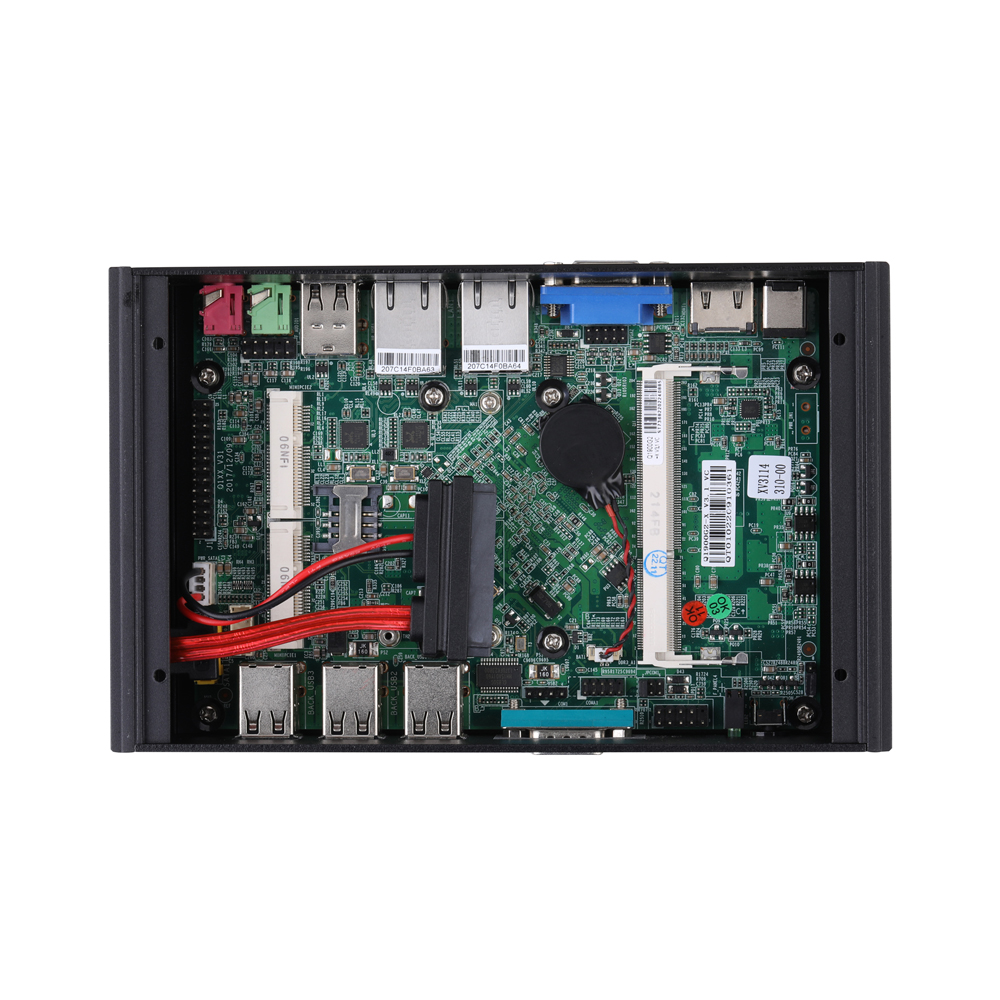

| Storage | |
| Type | 1 × Mini PCIe for mSATA SSD 1 × 2.5-inch HDD/SSD |
| Expansion | |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| Mini PCIe | 1 × Mini PCIe Full-length for 4G, Half-length for Wi-Fi |
| SIM Card Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| VGA | 0 |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | 0 |
| DC-in | No |
| Power Requirement | |
| Power Adapter | 12V3A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 178 × 111 × 52mm |
| Weight | 0.77kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 261 × 218 × 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | Windows 7, Windows 8, Windows 10, Linux |
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Mini PC | 1 | |
| 2 | Silicone Mat | 4 | |
| 3 | VESA Bracket | 1 | |
| 4 | Screws for VESA Bracket | 1 | |
| 5 | Power Adapter | 1 | |
| 6 | AC Power Cord | 1 | |
| 7 | Screws for SATA SSD/HDD | 1 | |
| 8 | SATA cable for SSD/HDD | 1 | Option |
| 9 | Antennas | 2 | Option |
Ordering and Specifications Information
Quick Order Model: Q190SE-S04
| Ordering Code | Case | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
Q180SE (Q10111SN) | S04 | Bay trail | Celeron | J1800 | 2 | 2 | 2.41Ghz | 2.58Ghz | 1M | Intel HD Graphics | 10W |
Q190SE (Q10121SN) | S04 | Bay trail | Celeron | J1900 | 4 | 4 | 2.00Ghz | 2.42Ghz | 2M | Intel HD Graphics | 10W |
Q192SE (Q10122SN) | S04 | Bay trail | Celeron | N2920 | 4 | 4 | 1.86Ghz | 2.0Ghz | 2M | Intel HD Graphics | 7.5W |
Q193SE (Q10123SN) | S04 | Bay trail | Celeron | N2930 | 4 | 4 | 1.83Ghz | 2.16Ghz | 2M | Intel HD Graphics | 7.5W |
PC Case Options
| Category | SATA Support |
| S04 | Yes |
| S06 | - |
Custom Options
| Category | Description |
| GPIO | 1 |
| PS/2 | 2 |
| LPT | 1 |
| USB 2.0 | 1 |
| Serial Port | 6 × RS-232 |
