Motherboard MB2J400-0700 Series

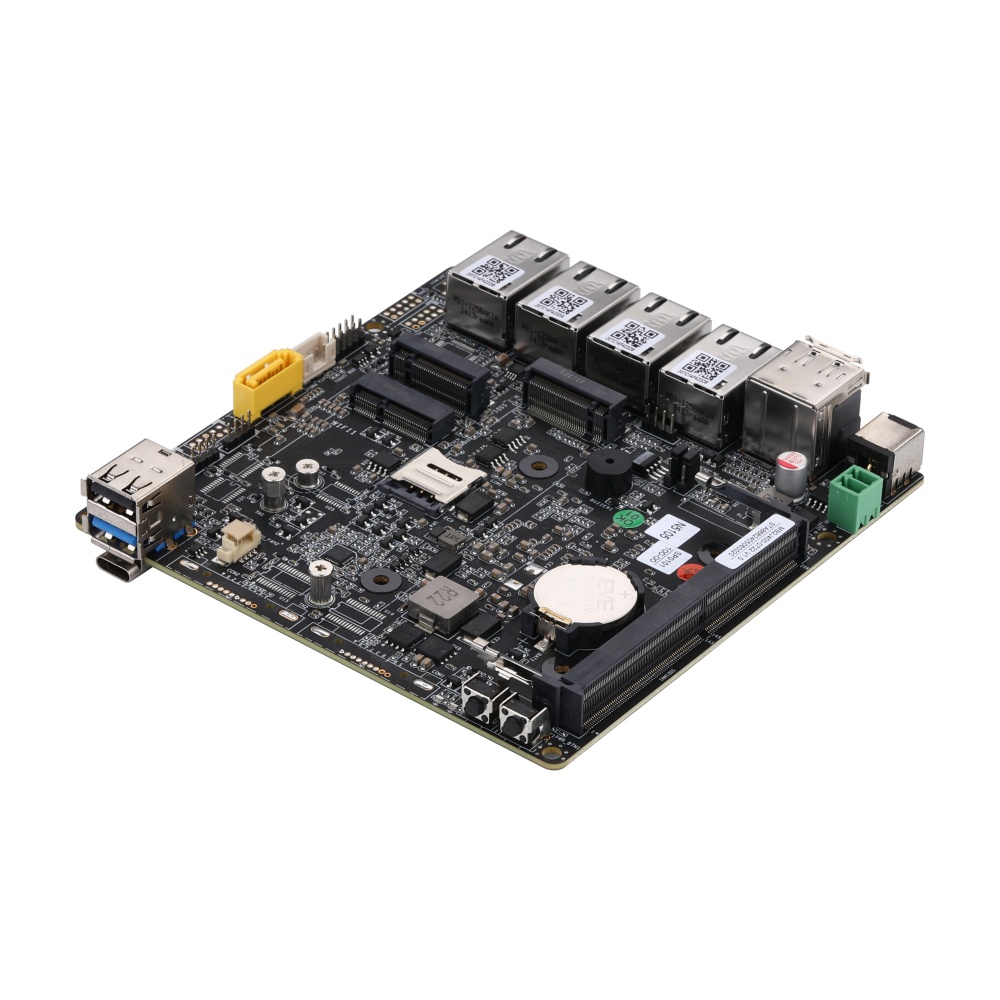

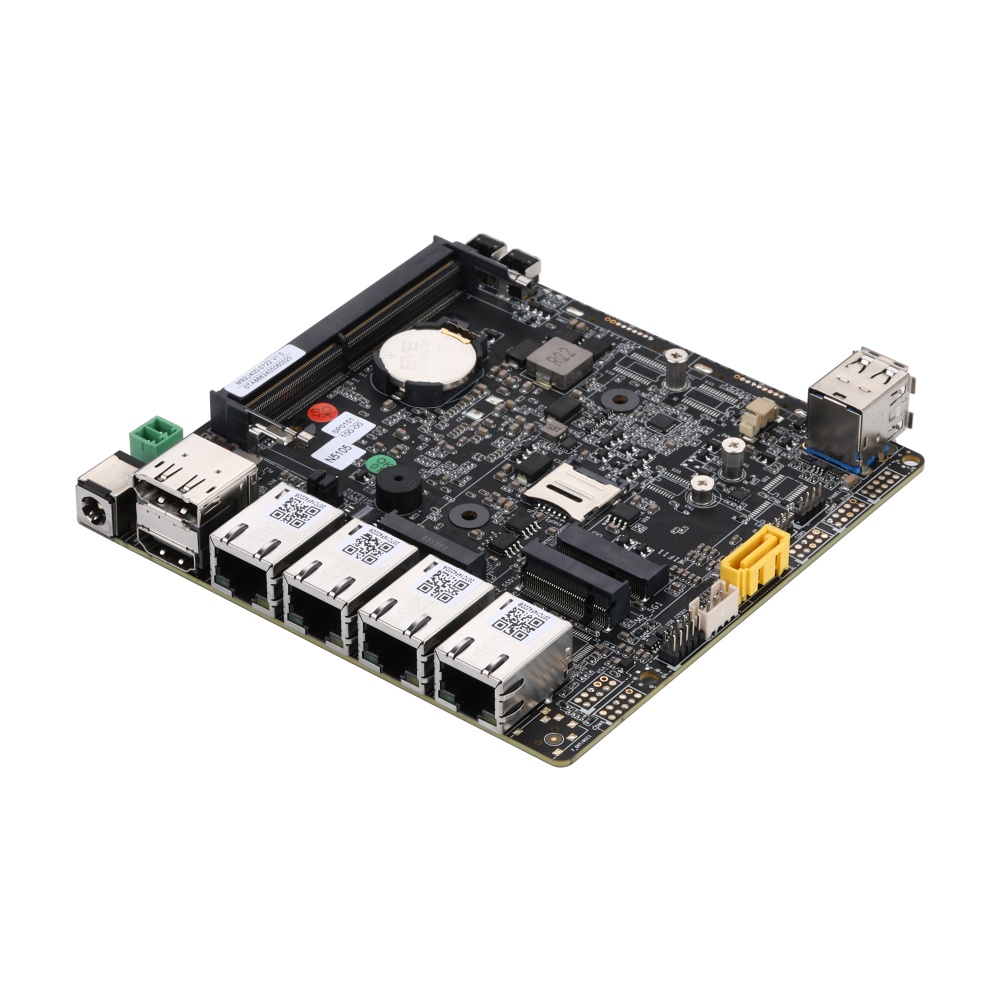

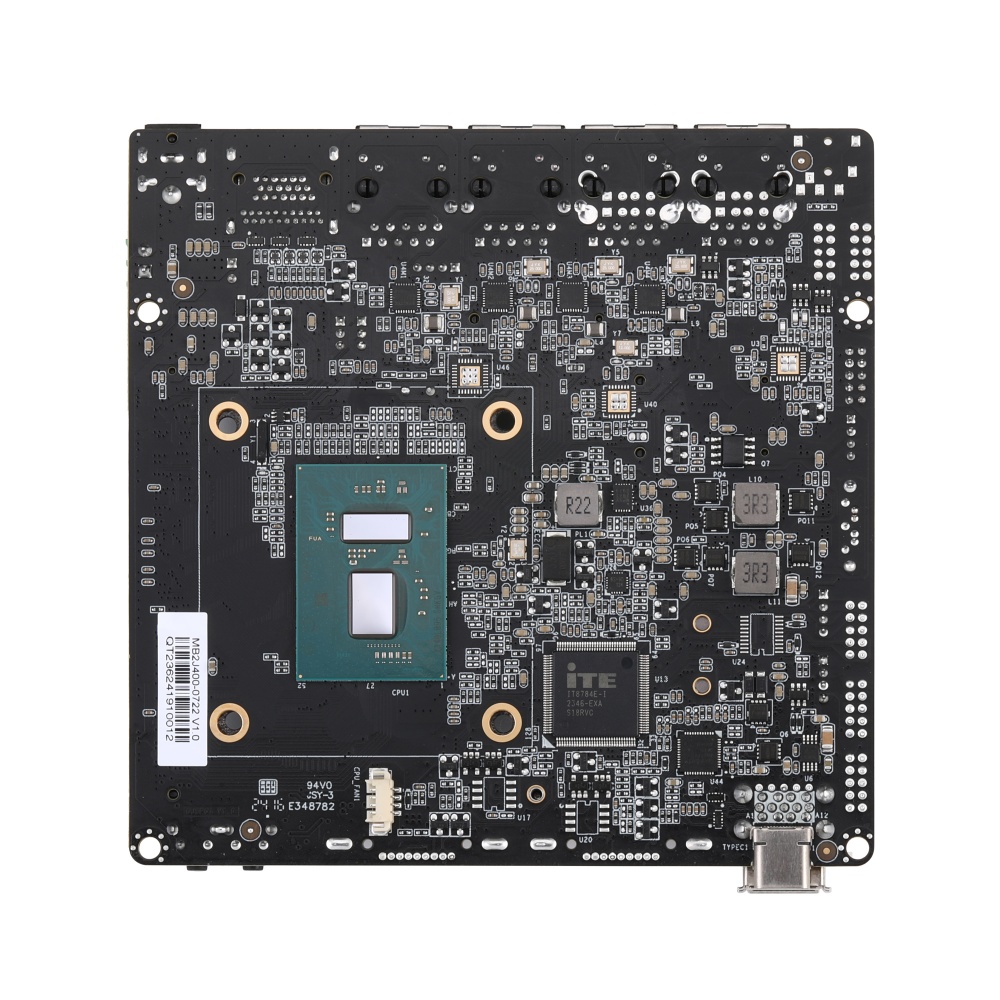

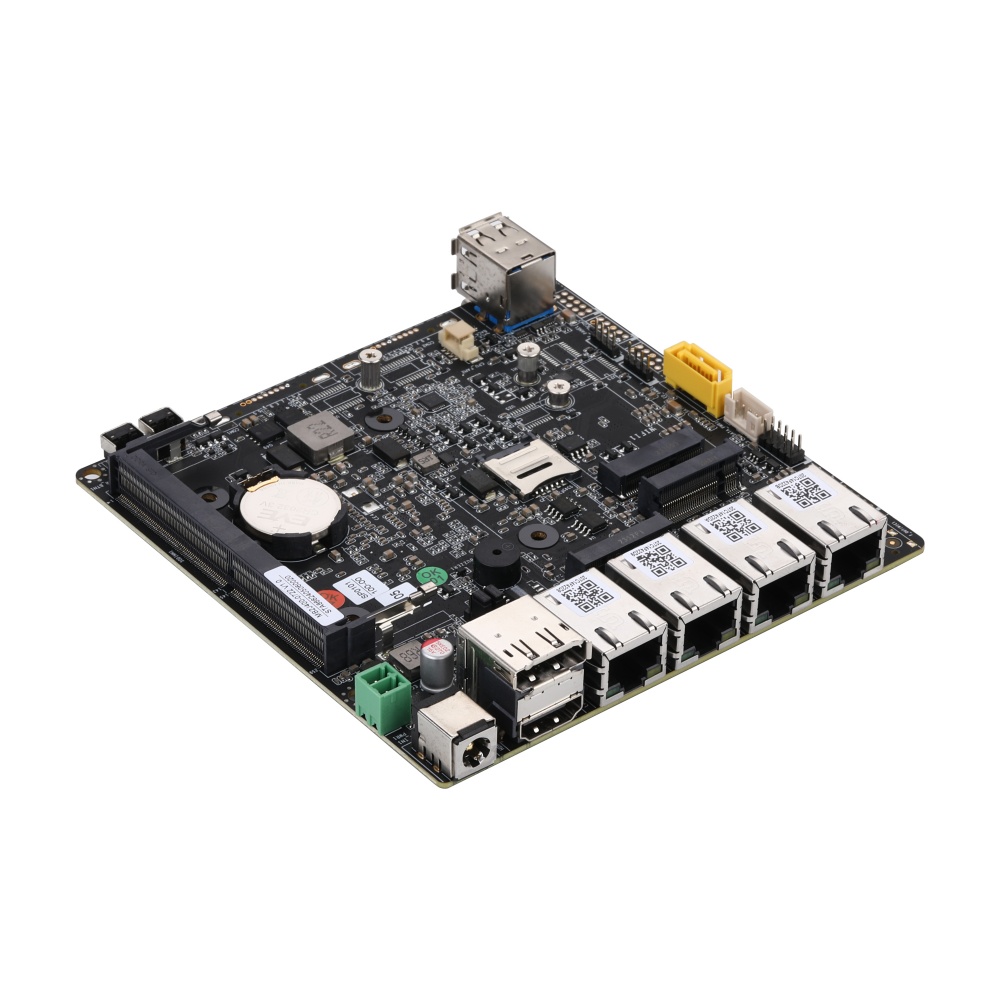

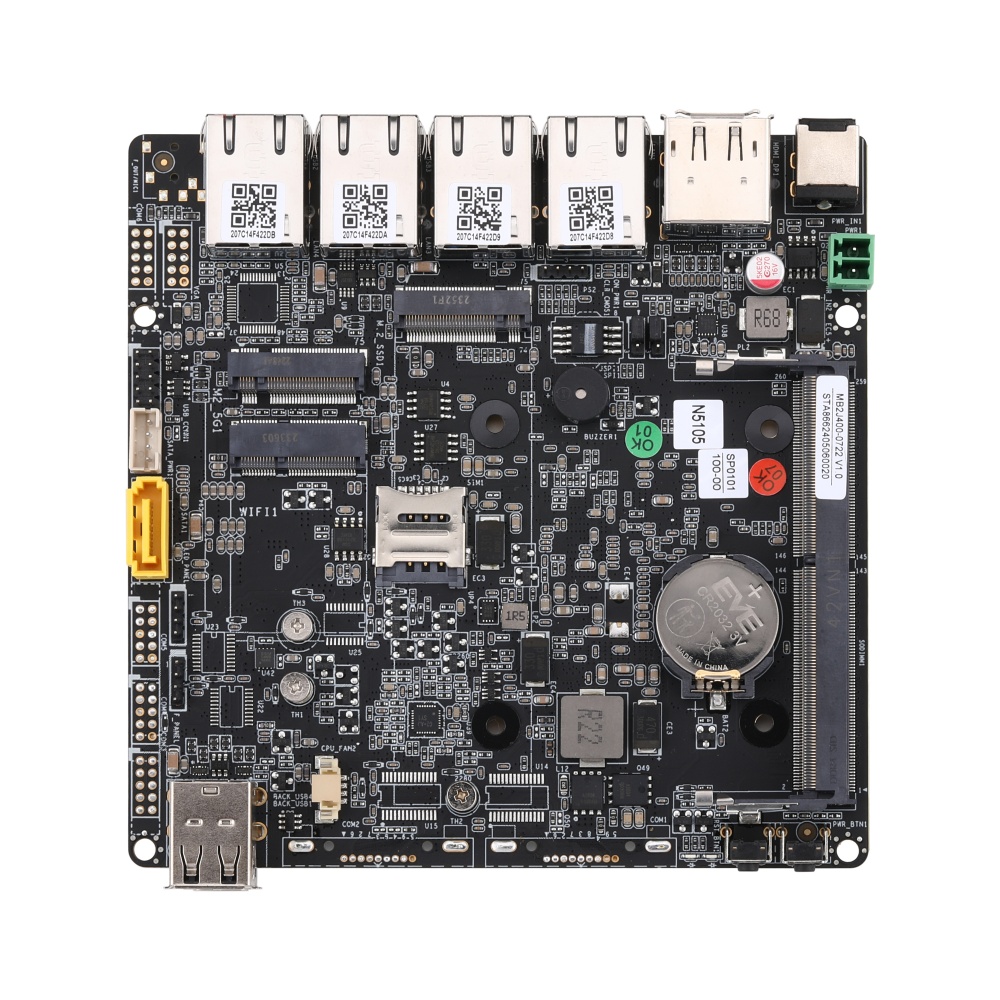

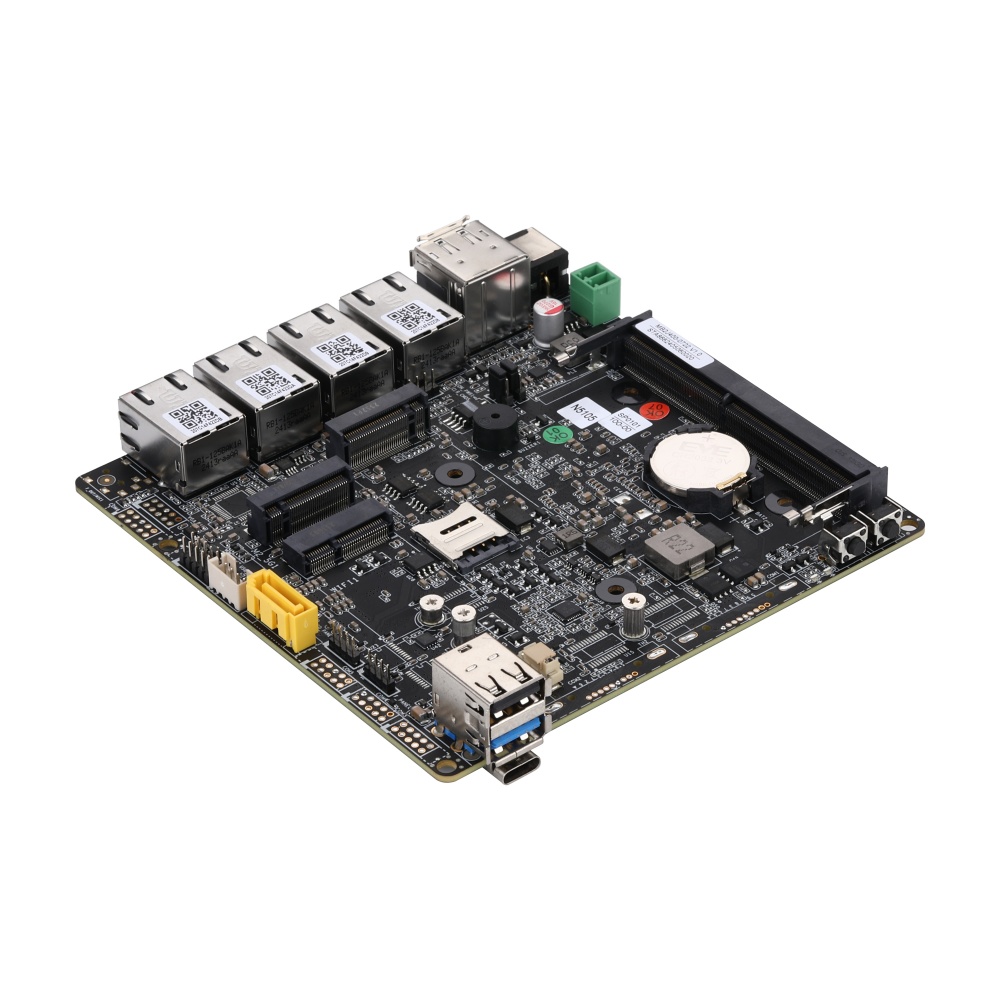

Qotom MB2J400-0700 mini motherboard with Intel N5105 Jasper Lake CPU, triple display, 4×LAN ports, rich I/O, and fanless design, ideal for firewall, router, or industrial control systems.
- Total of Network Interfaces
- 4
- SFP(+)
- 0
- 10G RJ45
- 0
- 2.5G RJ45
- 0
- 1G RJ45
- 4
- Serial Ports
- 0
Tell us the configuration and quantity you need.
Detailed Information
Main Features
Intel Jasper Lake Processor
1 × HDMI, 1 × Display Port, 1 × VGA (Header)
1 × USB 3.0, 5 × USB 2.0, 1 × Type C
3 × M.2, 1 × SATA 3.0
4 × Realtek Gigabit LAN
Specification
| Processor System | |
| Dimension | 120 × 120mm |
| CPU | Intel Jasper Lake Processor |
| Core Number | By CPU |
| Speed | By CPU |
| L2 Cache | By CPU |
| Chipset | By CPU |
| BIOS | UEFI |
| Expansion Slot | |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1) |
| M.2 | 1 × M.2 for 4G/5G (B key, Type: 3042/3052) |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| Memory | |
| Technology | DDR4 2666MHz SDRAM |
| Max. | 32GB |
| Socket | 1 × SO-DIMM |
| Graphics | |
| Controller | By CPU |
| VRAM | Shared Memory |
| Display port | 1 × Display Port |
| HDMI | 1 (Support HDMI 1.4a) |
| Multi Display | Yes |
| Ethernet | |
| Interface | 100/1000Mbps |
| Controller | 4 × Realtek Gigabit LAN |
| Connector | 4 × RJ-45 |
| Audio | |
| Controller | No |
| SATA | |
| Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
| Accessories | |
| Accessories | Cable for HDD |
| Real I/O | |
| DC-IN | 1 |
| Display | 1 × HDMI, 1 × Display Port |
| Ethernet | 4 |
| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| USB | 1 × USB 3.0, 1 × USB 2.0 |
| Type C | 1, USB 3.0 and Display Port |
| Internal Connector | |
| PS/2 | 2, 1 × 4Pin, Pitch 2.0mm |
| SATA | 1, SATA 3.0 (6.0Gb/S) |
| SATA PWR Connector | 1, 1 × 4Pin, Pitch PH2.0mm |
| SIM Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| Clear CMOS Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| USB 2.0 | 2, 2 × 5Pin, Pitch 2.0mm |
| Front Panel Header | 2, 1 × 4Pin, Pitch 2.0mm |
| Power Header | 1, Phoenix 1 × 2Pin, Pitch 3.5mm (Option) |
| CPU FAN Connector | 1, 1 × 4Pin, Pitch PH 1.25mm |
| SYS FAN Connector | 1, 1 × 4Pin, Pitch PH 1.25mm |
| Watchdog Timer | |
| Output | From Super I/O to Drag RESETCON# |
| Interval | 256 Segments,0,1,2,3,,,255 sec/min |
| Power Requirement | |
| Input PWR | 12V DC in, 5.5mm/2.5mm |
| Environment | |
| Operating Temperature | 0-50 ℃ |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
Packing
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Motherboard | 1 | |
| 2 | HDD cable | 1 | |
| 3 | Radiator | 1 | Option |
| 4 | Fan | 1 | Option |
| 5 | Serial cable | Several | Depending on the model |
Ordering and spec information
Ordering and Specifications Information
Quick Order Model: MB2J400-0722
| Ordering Code | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
| MB2J400-0711 | Jasper Lake | Celeron | N4500 | 2 | 2 | 1.1GHz | 2.8GHz | 4M | Intel UHD Graphics | 6W |
| MB2J400-0712 | Jasper Lake | Celeron | N4505 | 2 | 2 | 2.0GHz | 2.9GHz | 4M | Intel UHD Graphics | 10W |
| MB2J400-0721 | Jasper Lake | Celeron | N5100 | 4 | 4 | 1.1GHz | 2.8GHz | 4M | Intel UHD Graphics | 6W |
| MB2J400-0722 | Jasper Lake | Celeron | N5105 | 4 | 4 | 2.0GHz | 2.9GHz | 4M | Intel UHD Graphics | 10W |
| MB2J400-0723 | Jasper Lake | Celeron | N5095 | 4 | 4 | 2.0GHz | 2.9GHz | 4M | Intel UHD Graphics | 15W |
| MB2J400-0731 | Jasper Lake | Pentium | N6000 | 4 | 4 | 1.1GHz | 3.0GHz | 4M | Intel UHD Graphics | 6W |
| MB2J400-0732 | Jasper Lake | Pentium | N6005 | 4 | 4 | 2.0GHz | 3.3GHz | 4M | Intel UHD Graphics | 10W |
