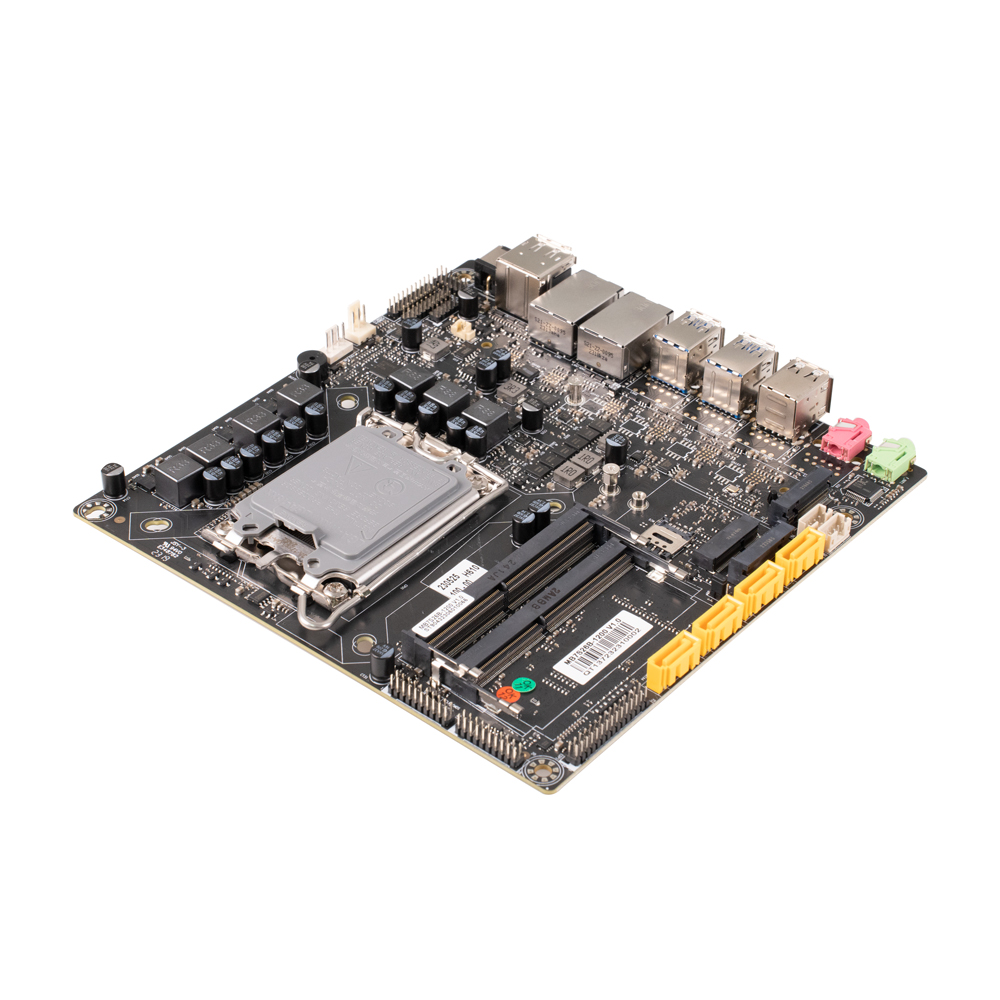

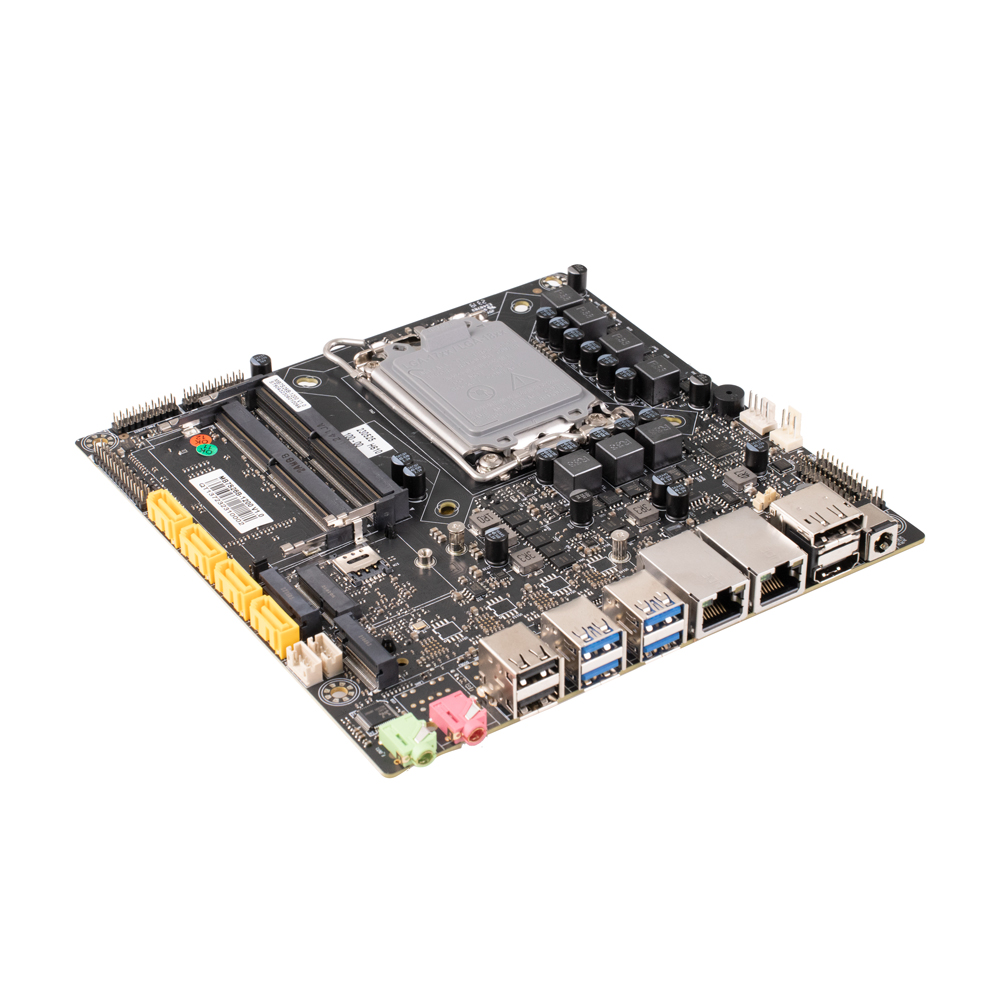

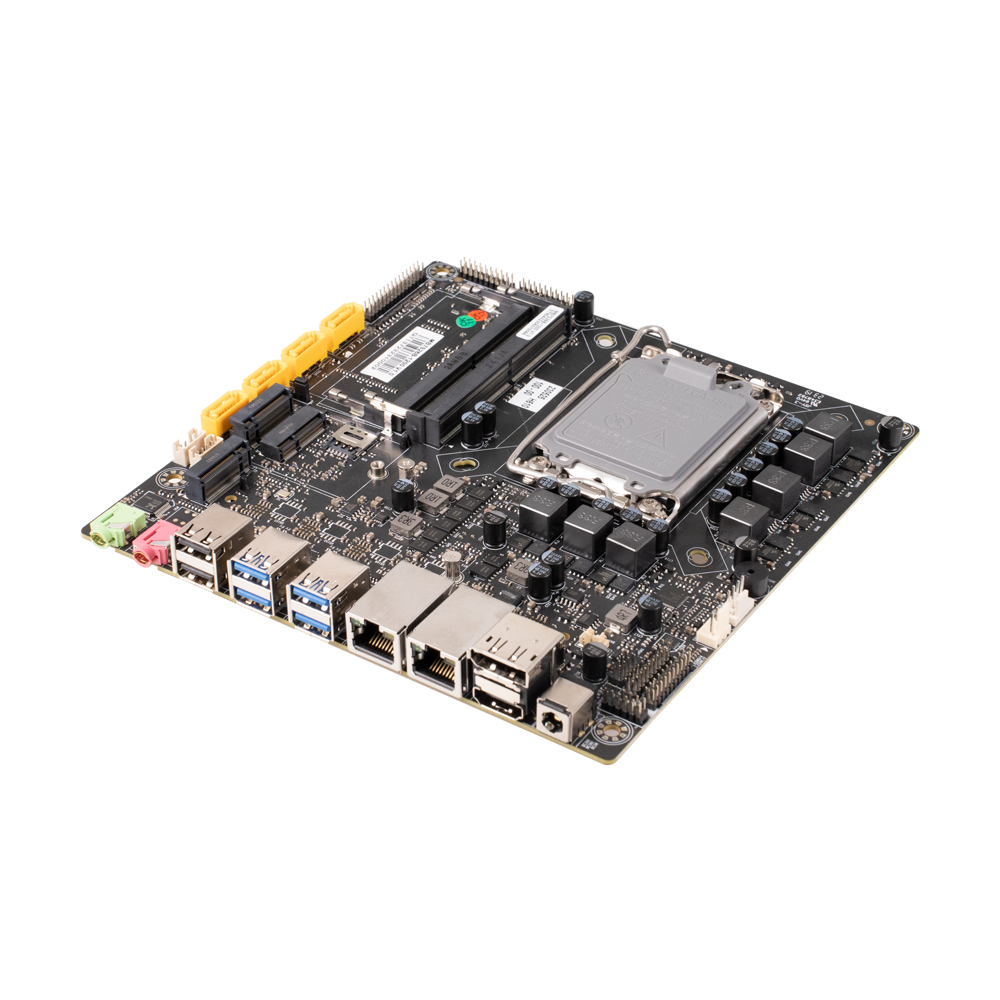

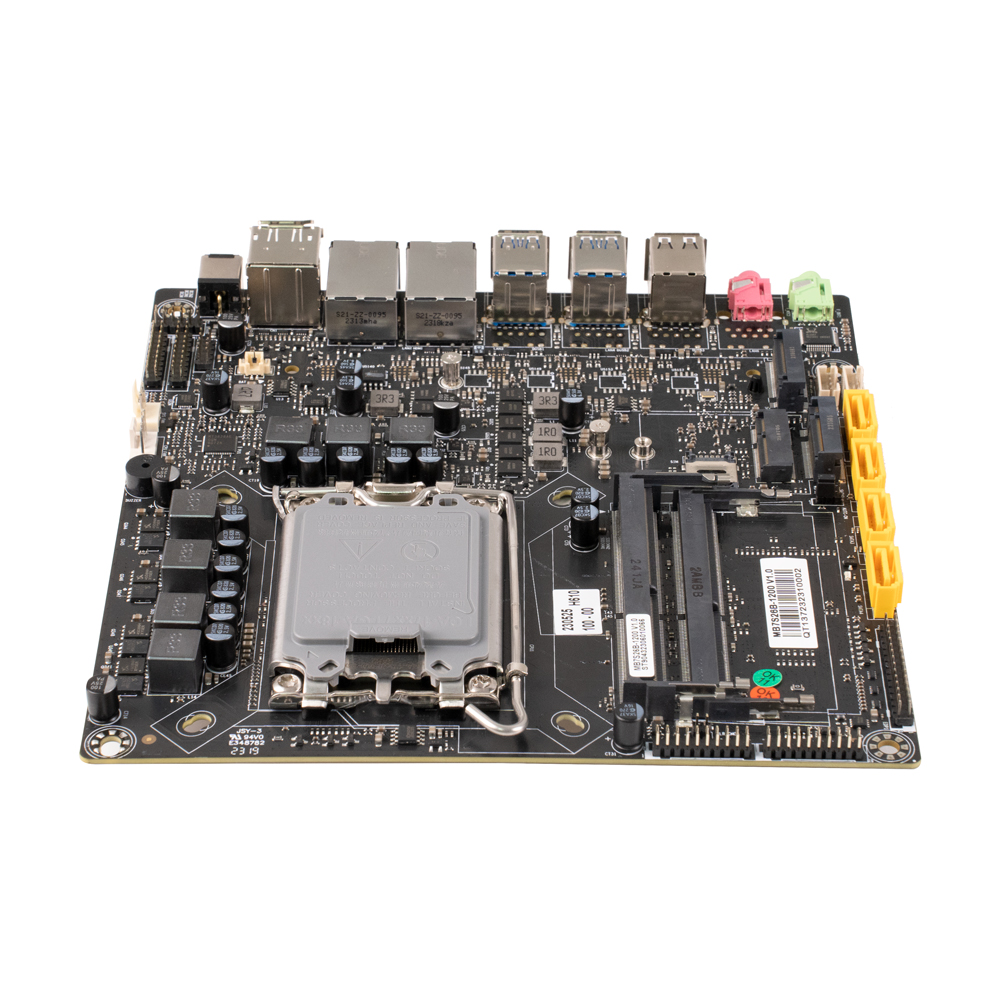

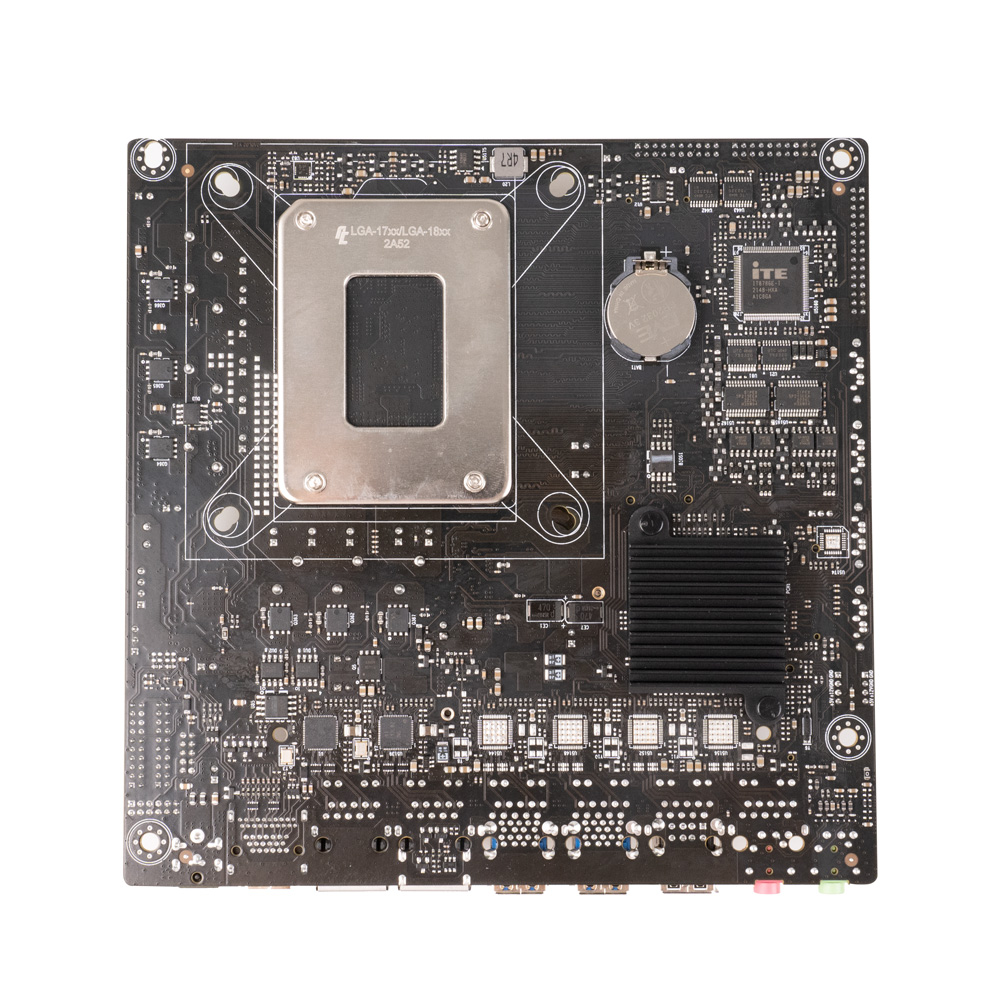

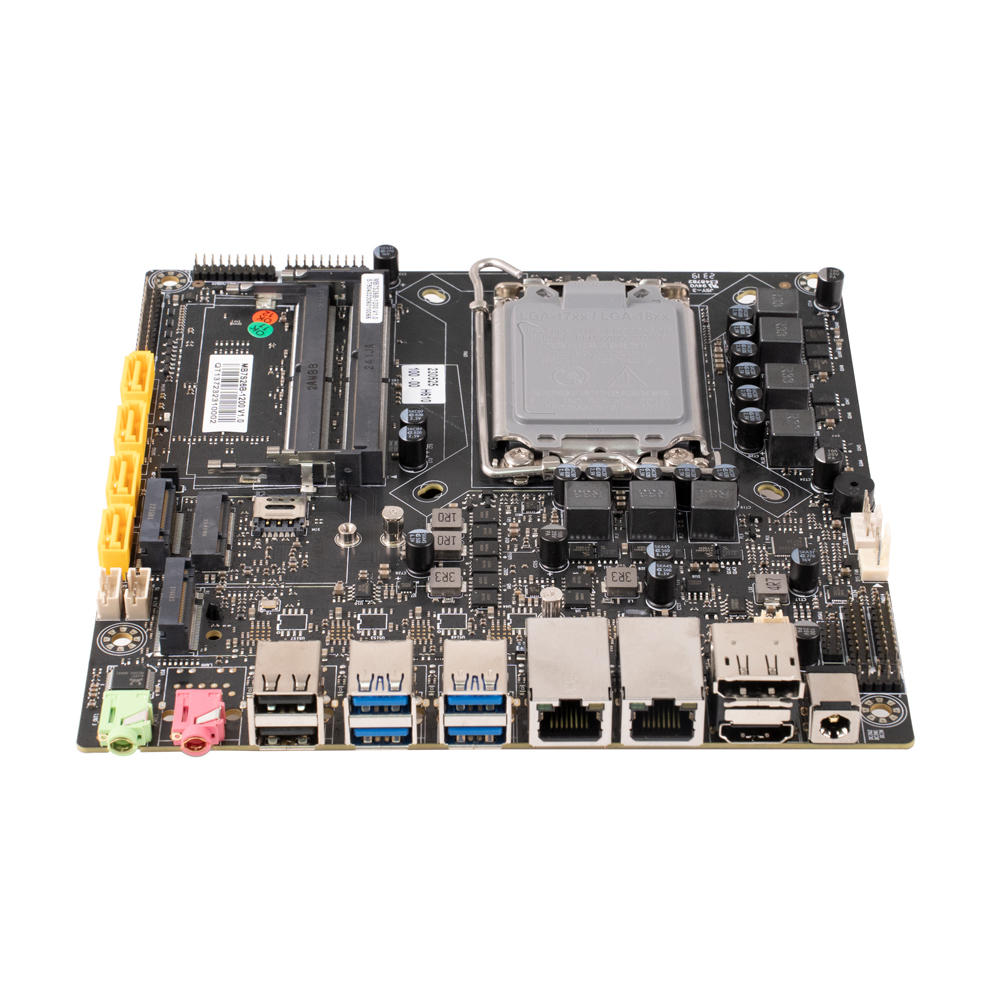

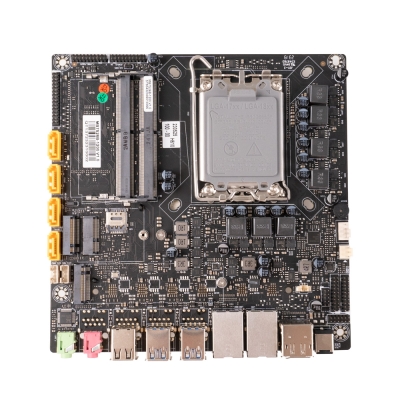

Motherboard MB7S26B-1200 Series
Qotom MB7S26B-1200 desktop mini motherboard with 12th/13th Gen CPUs, triple display, rich COM ports, and dual 2.5G LAN, ideal for office, education, and light industrial use.
Main Features
Intel 12th Alder lake -S Processor
Intel 13th Raptor Lake-S Processor
1 × HDMI, 1 × Display Port, 1 × VGA (Header)
6 × RS-232, 2 × RS-485
4 × USB 3.0, 2 × USB 2.0
3 × M.2, 4 × SATA 3.0
2 × Intel I225-V/I226-V 2.5 Gigabit LAN
| Processor System | |
| Dimension | 170 × 170mm |
| CPU | Intel 12th Alder lake -S Processor Intel 13th Raptor Lake-S Processor |
| Core Number | By CPU |
| Max. Speed | By CPU |
| L2 Cache | By CPU |
| Chipset | Intel H610 |
| BIOS | UEFI |
| Expansion Slot | |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280, PCIe 4.0 × 4) |
| M.2 | 1 × M.2 for 4G/5G (B key, Type: 3042/3052), 5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization |
| M.2 | 1 × M.2 for Wi-Fi (E key, Type: 2230) |
| Memory | |
| Technology | DDR4 2400Mhz SDRAM |
| Max. | 64GB |
| Socket | 2 × SO-DIMMs |
| Graphics | |
| Controller | By CPU |
| VRAM | Shared Memory |
| VGA | 1 (Header) |
| Display Port | 1 |
| HDMI | 1 (Support HDMI 1.4a) |
| EDP | 1 |
| Multi Display | Yes |
| Ethernet | |
| Interface | 100/1000/2500Mbps |
| Controller | 2 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| Connector | 2 × RJ-45 |
| Audio | |
| Controller | Realtek HD Audio |
| SATA | |
| Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
| Real I/O | |
| DC-IN | 1 |
| HDMI | 1 |
| Display Port | 1 |
| Ethernet | 2 |
| USB | 4 × USB 3.0, 2 × USB 2.0 |
| Audio | 2 (Mic-in, Line-out) |
| Internal Connector | |
| TPM | 1 (Option) |
| EDP | 1, 2 × 15Pin, Pitch 1.0mm |
| VGA Header | 1, 2 × 5Pin, Pitch 2.0mm |
| Serial Port | 6, 2 × 5Pin, Pitch 2.0mm |
| RS-485 | COM3/4 can be set up as RS-422/RS-485 |
| PS/2 | 0 |
| SATA | 4, SATA 3.0 (6.0Gb/S) |
| SATA PWR Connector | 2, 1 × 4Pin, Pitch PH2.0mm |
| SIM Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| Clear CMOS Jumper | Yes, 1 × 2Pin, Pitch 2.0mm |
| USB Header | 1, 2 × 5Pin, Pitch 2.0mm |
| Front Panel Header | 1, 2 × 5Pin, Pitch 2.0mm |
| Power Header | 1, 1 × 2Pin, Pitch 5.0mm (Option) |
| Watchdog Timer | |
| Output | From Super I/O to Drag RESETCON# |
| Interval | 256 Segments,0,1,2,3,,,255 sec/min |
| Power Requirement | |
| Input PWR | 12V/19V DC in, 5.5mm/2.5mm |
| Environment | |
| Operating Temperature | 0-50 ℃ |
| Accessories | |
| Accessories | Cable for HDD, Cable for Serial Port |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Motherboard | 1 | |
| 2 | HDD cable | 1 | |
| 3 | Radiator | 1 | Option |
| 4 | Fan | 1 | Option |
| 5 | Serial cable | Several | Depending on the model |
Ordering and Specifications Information
Quick Order Model: MB7S26B-1200
| Ordering Code | - | - | - | - | - |
| Code Name | Alder Lake S | Alder Lake S | Alder Lake S | Alder Lake S | Alder Lake S |
| Processor Type | Celeron | Pentium | Core i3 | Core i5 | Core i7 |
| Processor Number | G6900 | G7400 | 12100 | 12400 | 12700 |
| Total Cores | 2 | 2 | 4 | 6 | 12 |
| # of Performance-cores | 2 | 2 | 4 | 6 | 8 |
| # of Efficient-cores | 4 | ||||
| # of Threads | 2 | 4 | 8 | 12 | 20 |
| Max Turbo Frequency | 4.30 GHz | 4.40 GHz | 4.80 GHz | ||
| Performance-core Base Frequency | 3.40 GHz | 3.70 GHz | 3.30 GHz | 2.50 GHz | 2.10 GHz |
| Performance-core Max Turbo Frequency | - | - | 4.30 GHz | 4.40 GHz | 4.80 GHz |
| Efficient-core Base Frequency | 1.60 GHz | ||||
| Efficient-core Max Turbo Frequency | 3.60 GHz | ||||
| Cache | 4M | 6M | 12M | 18M | 25M |
| Processor Graphics | Intel UHD Graphics 710 | Intel UHD Graphics 710 | Intel UHD Graphics 730 | Intel UHD Graphics 730 | Intel UHD Graphics 770 |
| TDP | 46W | 46W | 60W-89W | 65W-117W | 65W-180W |
