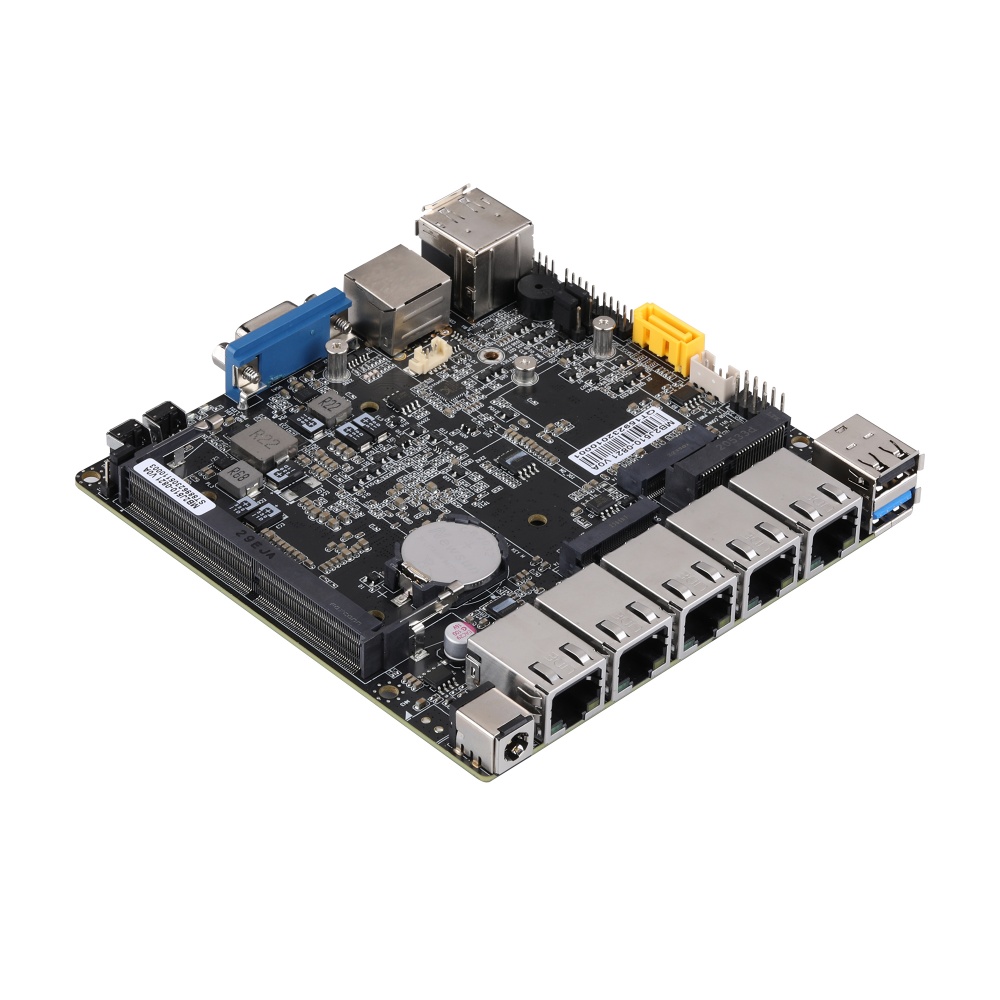

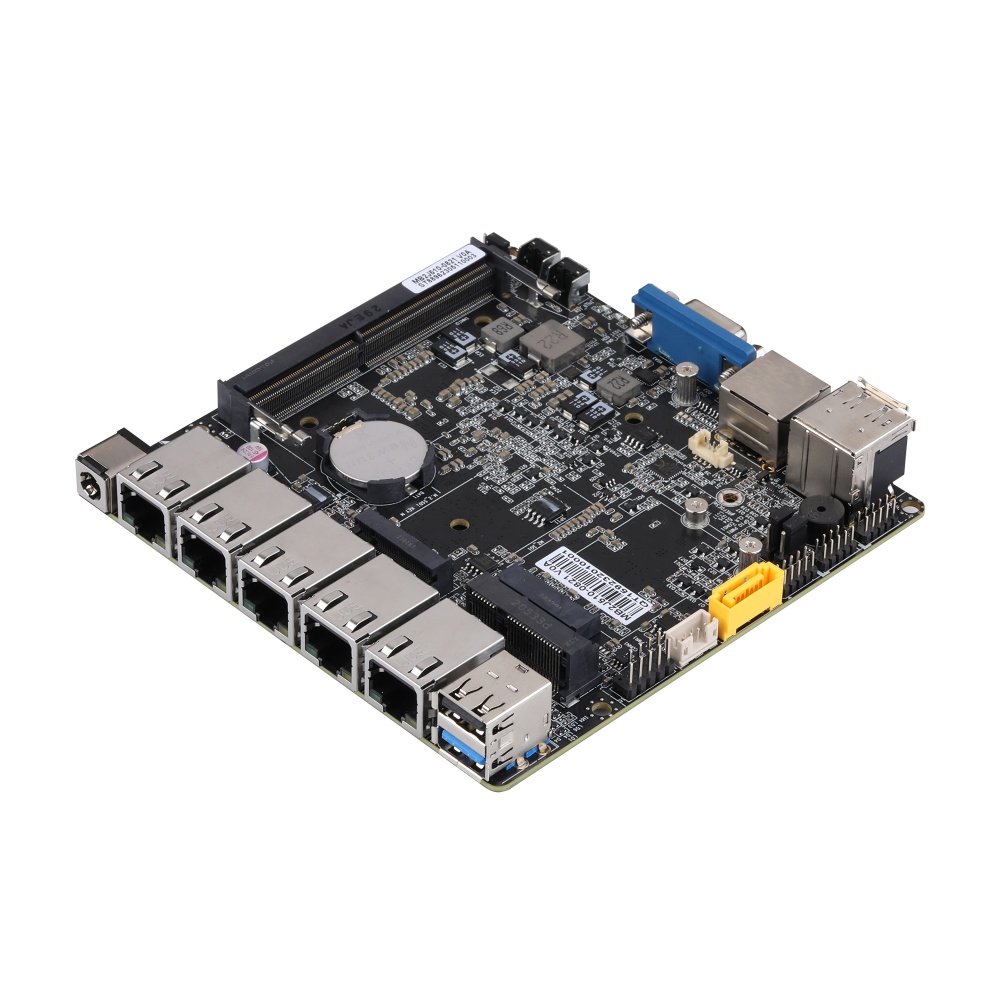

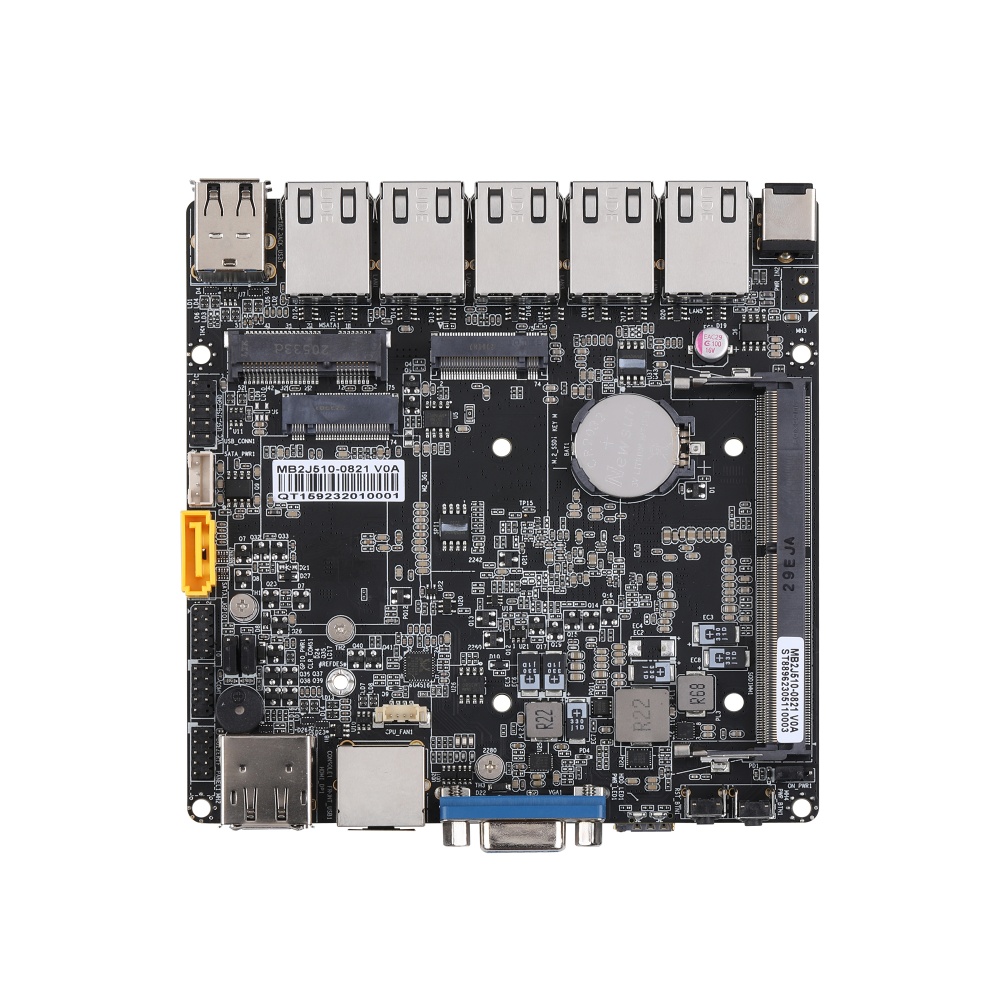

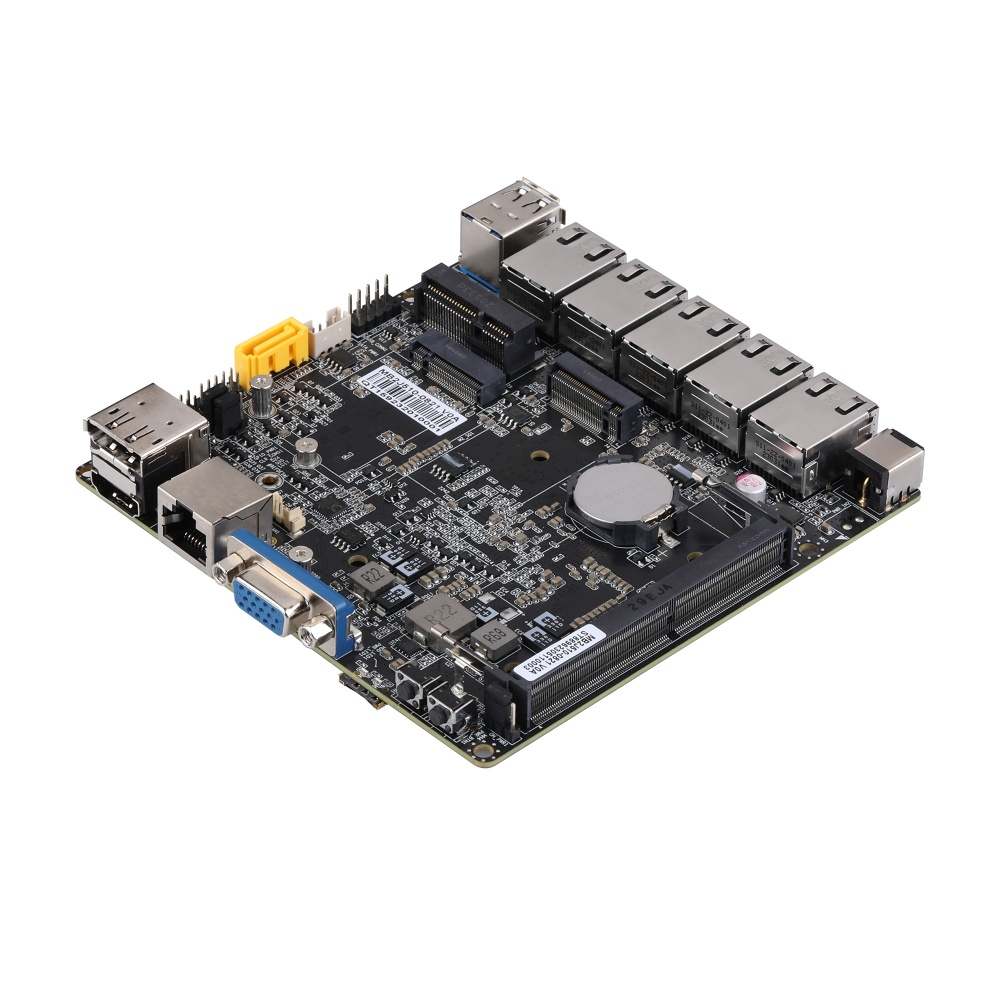

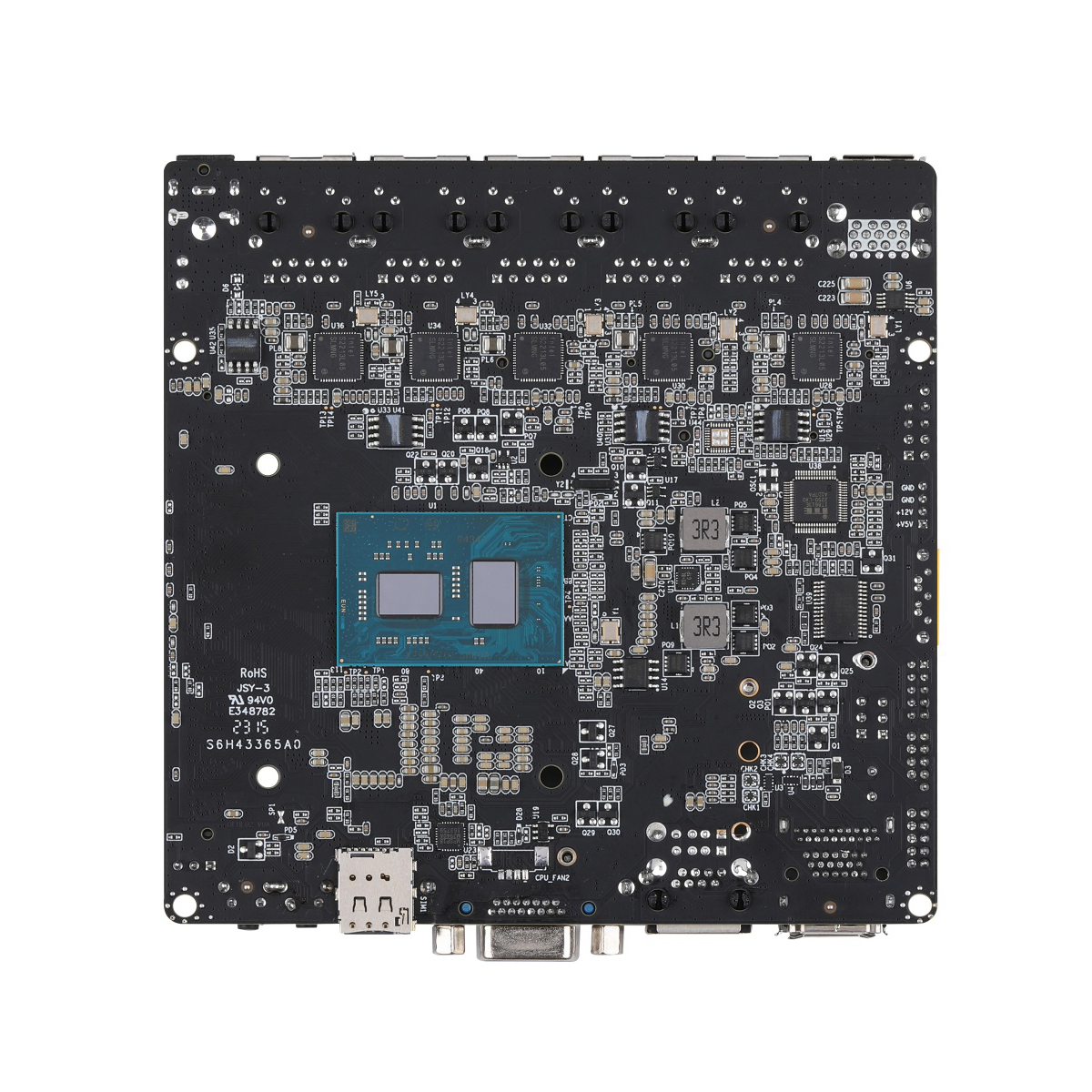

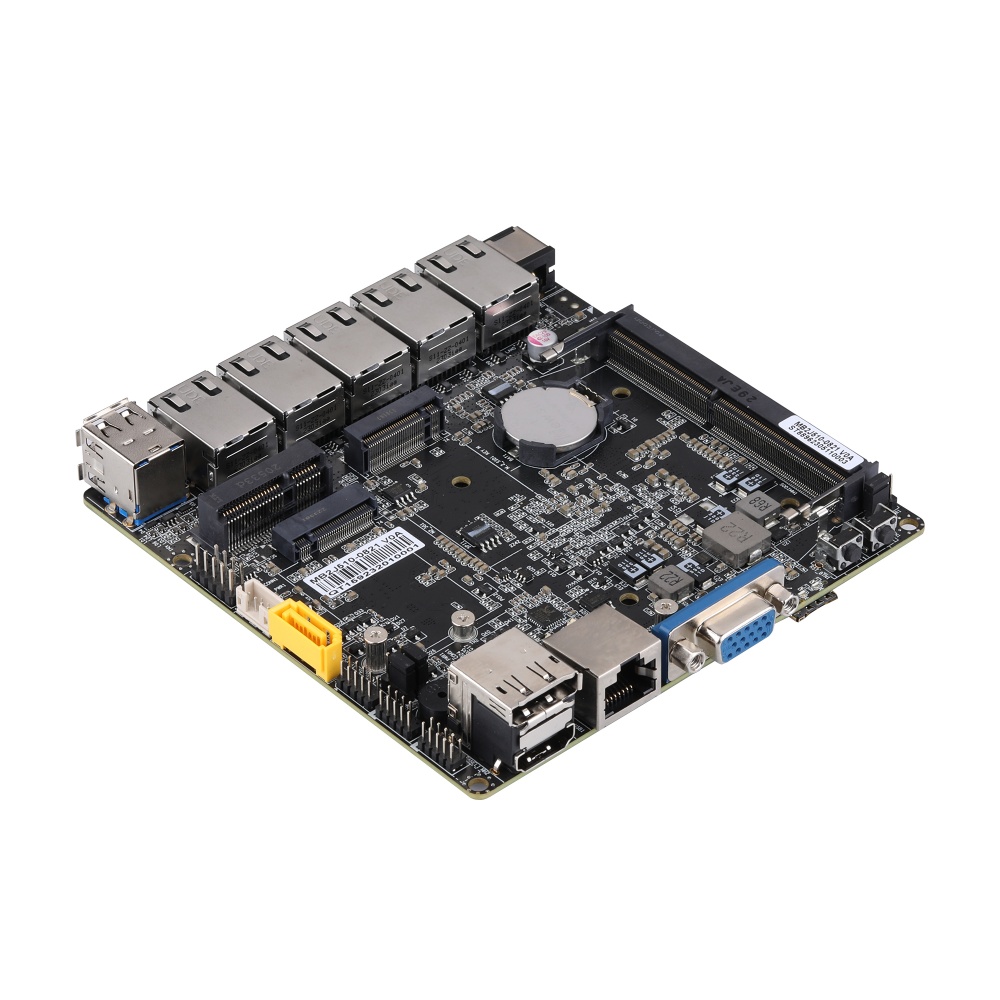

Motherboard MB2J510-0800 Series
Qotom MB2J510-0800 mini motherboard with Intel Elkhart Lake CPU, 5×2.5G LAN, triple display output, rich expansion interfaces, ideal for router, firewall, and switch applications.
- Total of Network Interfaces
- 5
- SFP(+)
- 0
- 10G RJ45
- 0
- 2.5G RJ45
- 5
- 1G RJ45
- 0
- Serial Ports
- 1
Tell us the configuration and quantity you need.
Overview
Main Features
Intel Elkhart Lake Processor
1 × HDMI, 1 × Display Port, 1 × VGA
1 × USB 3.0, 1x USB 2.0
2 × M.2, 1 × mSATA, 1 × SATA3.0
1 × RS-232 (RJ-45)
5 × Intel I225-V/I226-V 2.5 Gigabit LAN
Specifications
| Processor System | |
| Dimension | 120 × 120mm |
| CPU | Intel Elkhart Lake Processor |
| Core Number | By CPU |
| Speed | By CPU |
| L2 Cache | By CPU |
| Chipset | By CPU |
| BIOS | UEFI |
| Expansion Slot | |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| M.2 | 1 × M.2 for 4G/5G (B key, Type: 3042/3052) |
| M.2 | 1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 2) Wi-Fi support via a Converter Card |
| Memory | |
| Technology | DDR4 2133/2400MHz SDRAM |
| Max. | 32GB |
| Socket | 1 × SO-DIMM |
| Graphics | |
| Controller | By CPU |
| VRAM | Shared Memory |
| VGA | 1 |
| HDMI | 1 (Support HDMI 1.4a) |
| Display Port | 1 |
| Multi Display | Yes |
| Ethernet | |
| Interface | 100/1000/2500Mbps |
| Controller | 5 × Intel I225-V/I226-V 2.5 Gigabit LAN |
| Connector | 5 × RJ-45 |
| Audio | |
| Controller | Realtek HD Audio |
| SATA | |
| Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
| Real I/O | |
| DC-IN | 1 |
| Ethernet | 5 |
| USB | 1 × USB 3.0, 1x USB 2.0 |
| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| Display | 1 × VGA, 1 × HDMI, 1 × Display Port |
| Serial Port/USB | 1 × Connector, RS-232 (RJ-45) by Default, 2 × USB 2.0 (Option) |
| SIM Slot | 1 |
| Internal Connector | |
| Serial Port | 1, 2 × 5Pin, Pitch 2.0mm |
| SATA | 1, SATA 3.0 (6.0Gb/S) |
| SATA PWR Connector | 1, 1 × 4Pin, Pitch PH2.0mm |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| Clear CMOS Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| GPIO Header | 1, 2 × 5Pin, Pitch 2.0mm |
| GPIO Power Select | Yes, 1 × 3Pin, Pitch 2.54mm |
| USB Header | 1, 2 × 5Pin, Pitch 2.54mm |
| Front Panel Header | 1, 2 × 5Pin, Pitch 2.0mm |
| Power Header | 1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin (Option) |
| Watchdog Timer | |
| Output | From Super I/O to Drag RESETCON# |
| Interval | 256 Segments,0,1,2,3,,,255 sec/min |
| Power Requirement | |
| Input PWR | 12V DC in, 5.5mm/2.5mm |
| Environment | |
| Operating Temperature | 0-50 ℃ |
| Accessories | |
| Accessories | Cable for HDD |
| OS Support | |
| OS | UEFI Windows 10, UEFI Linux |
In the box
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Motherboard | 1 | |
| 2 | HDD cable | 1 | |
| 3 | Radiator | 1 | Option |
| 4 | Fan | 1 | Option |
| 5 | Serial cable | Several | Depending on the model |
ItemQuantity
- 1Motherboard1
- 2HDD cable1
- 3Radiator1Option
- 4Fan1Option
- 5Serial cableSeveralDepending on the model
Models & options
Ordering and Specifications Information
Quick Order Model: MB2J510-0821
| Ordering Code | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
| MB2J510-0811 | Elkhart Lake | Celeron | N6210 | 2 | 2 | 1.20Ghz | 2.6Ghz | 1.5M | Intel UHD Graphics | 6.5W |
| MB2J510-0821 | Elkhart Lake | Celeron | J6412 | 4 | 4 | 2.00Ghz | 2.60Ghz | 1.5M | Intel UHD Graphics | 10W |
MB2J510-0811Elkhart Lake
- Code Name
- Elkhart Lake
- Processor Type
- Celeron
- Processor Number
- N6210
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 1.20Ghz
- Max Turbo Frequency
- 2.6Ghz
- Cache
- 1.5M
- Processor Graphics
- Intel UHD Graphics
- TDP
- 6.5W
MB2J510-0821Elkhart Lake
- Code Name
- Elkhart Lake
- Processor Type
- Celeron
- Processor Number
- J6412
- # of Cores
- 4
- # of Threads
- 4
- Base Frequency
- 2.00Ghz
- Max Turbo Frequency
- 2.60Ghz
- Cache
- 1.5M
- Processor Graphics
- Intel UHD Graphics
- TDP
- 10W
