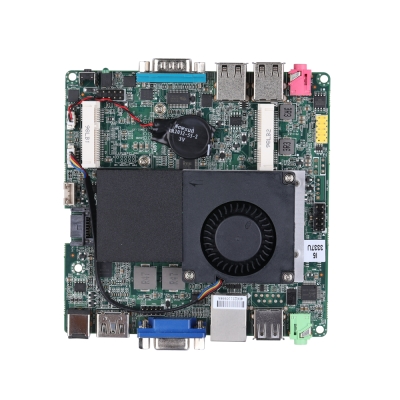

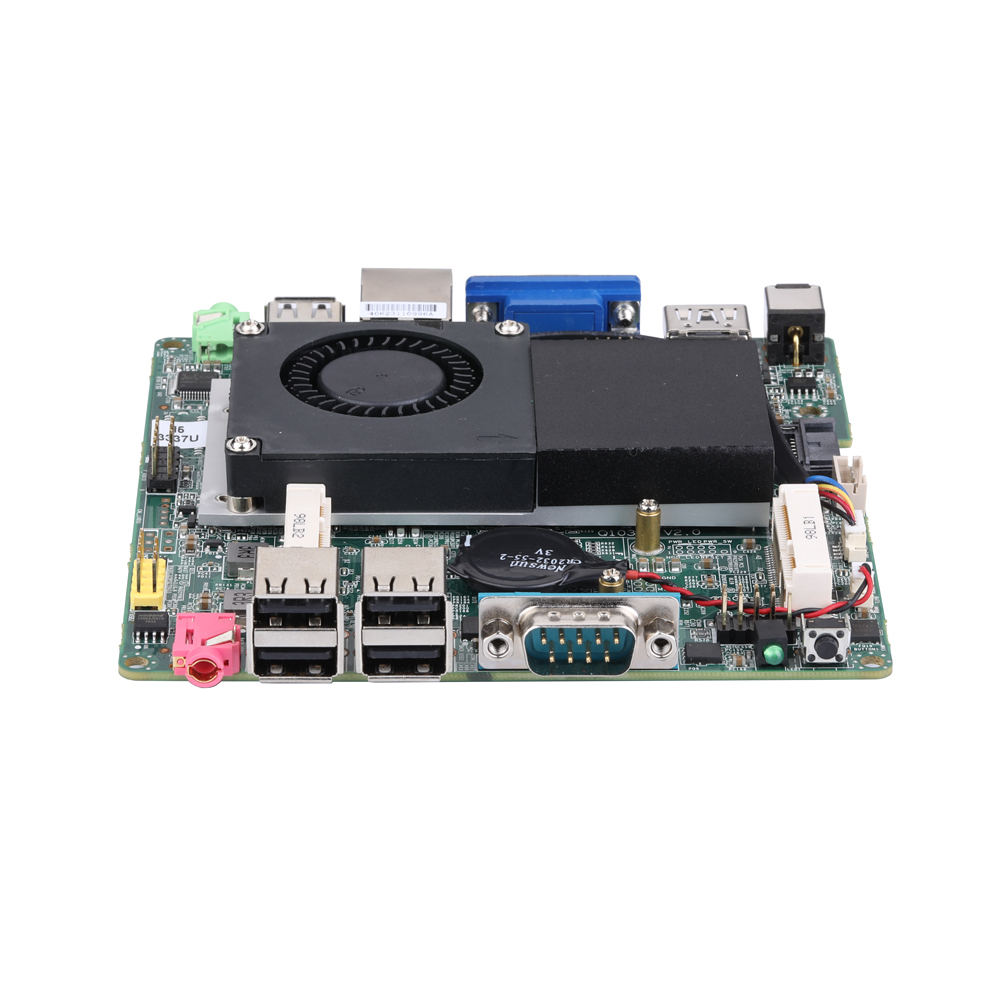

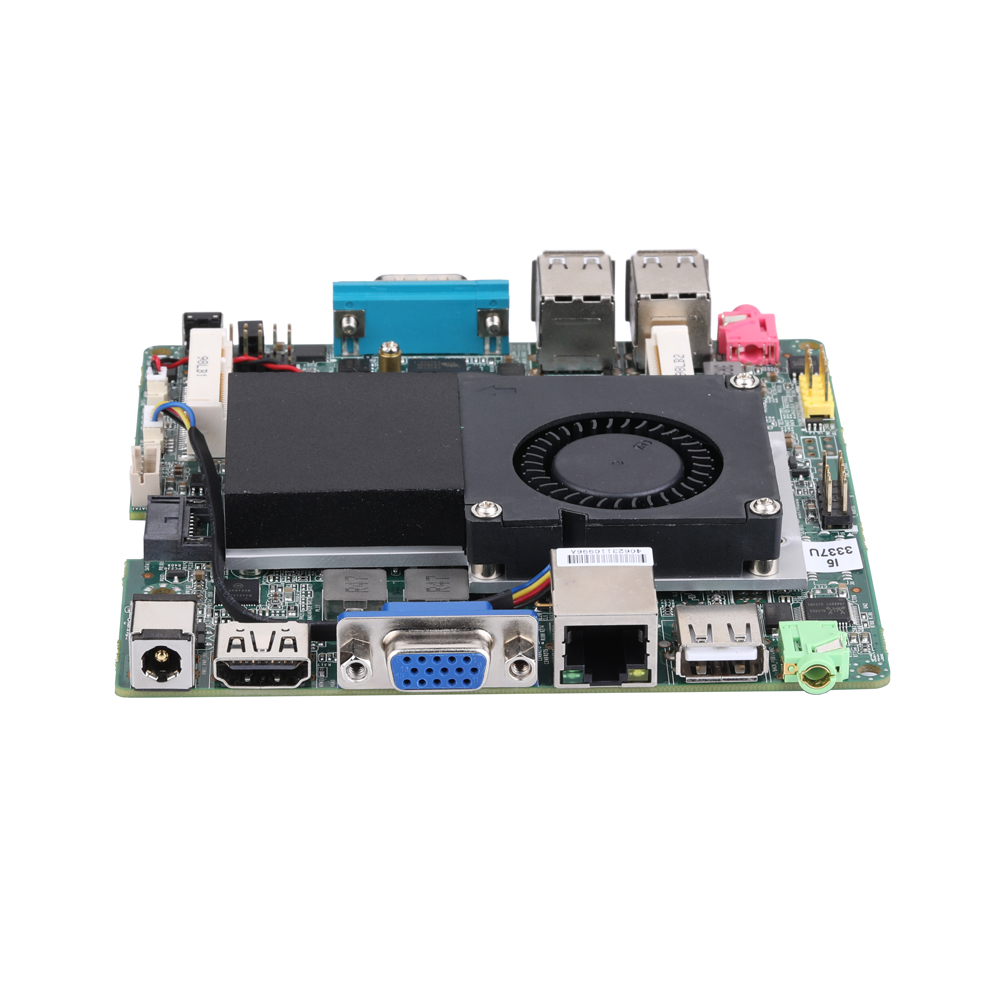

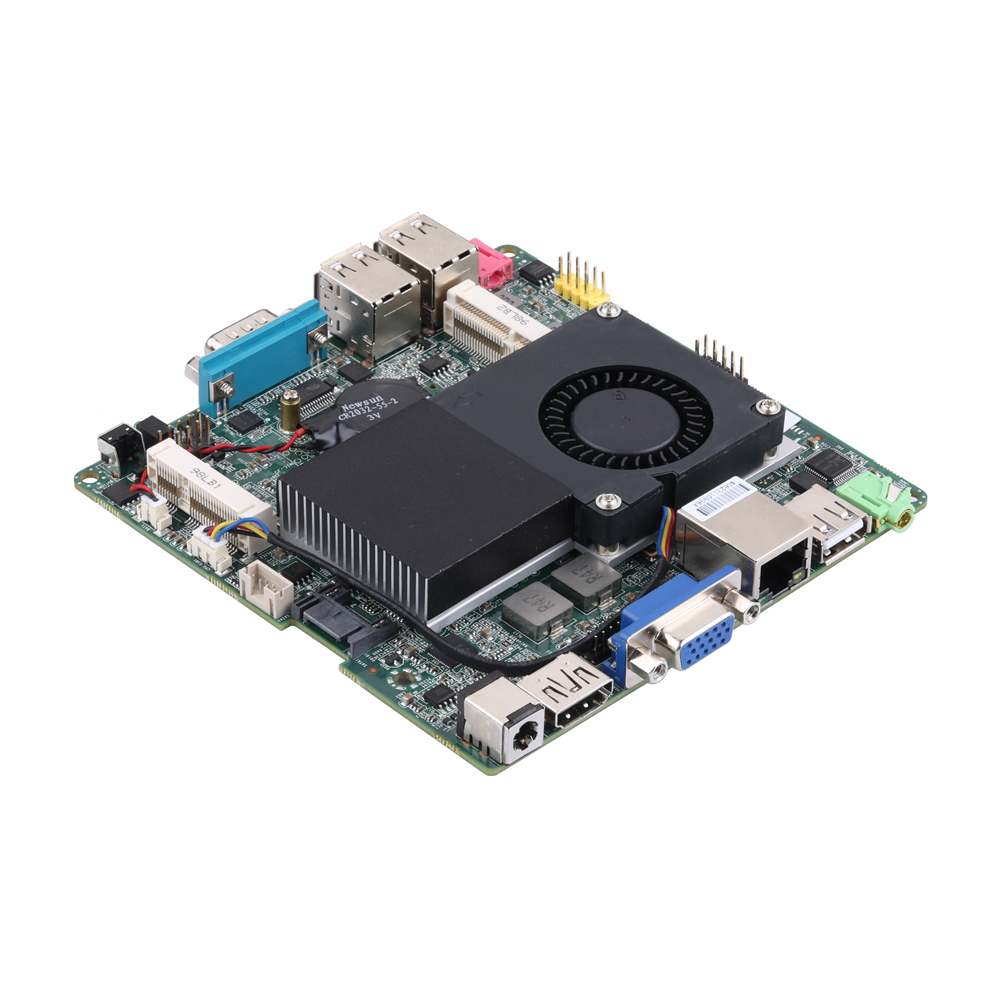

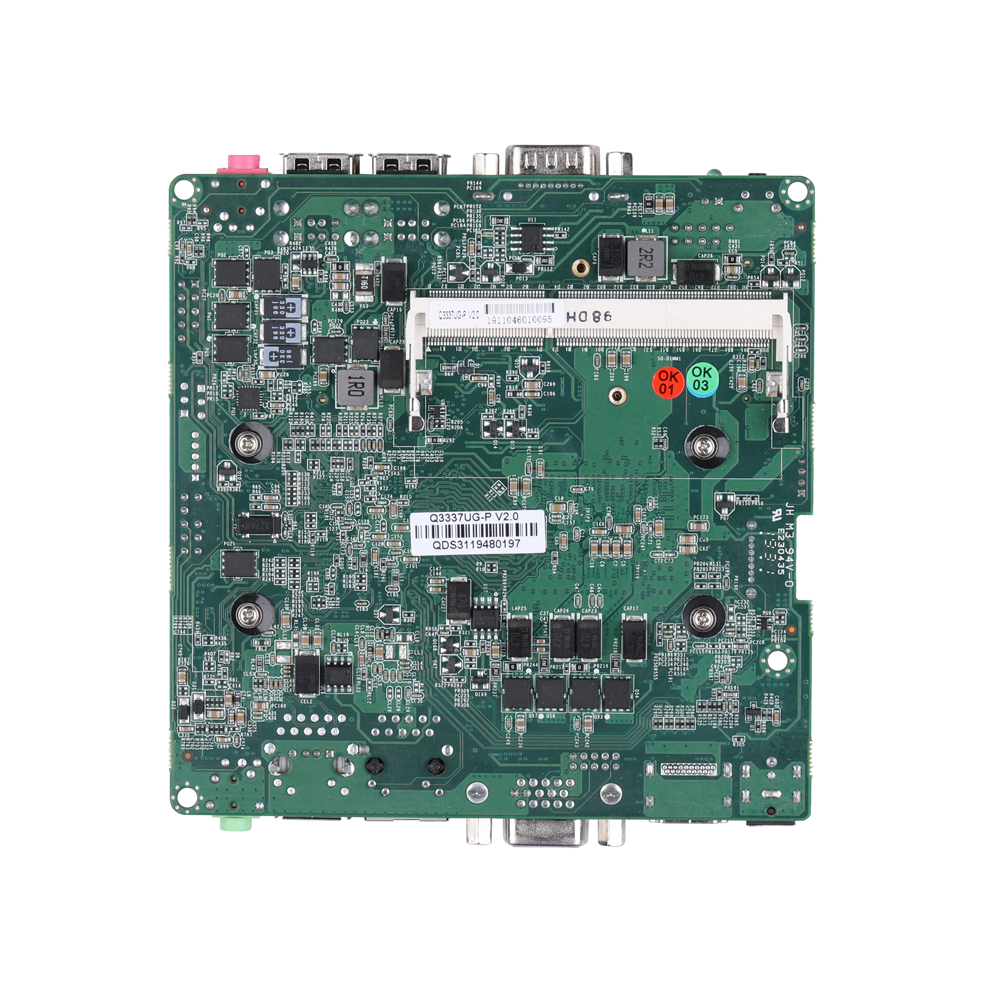

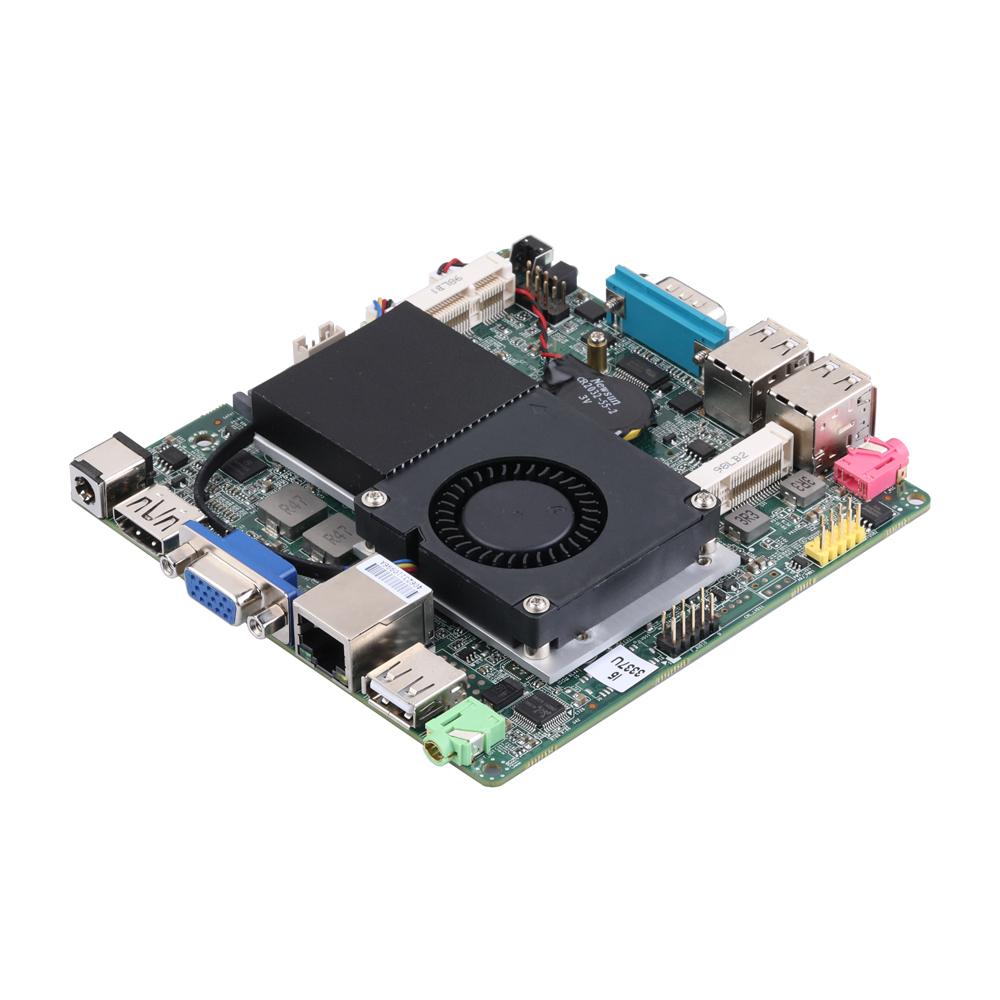

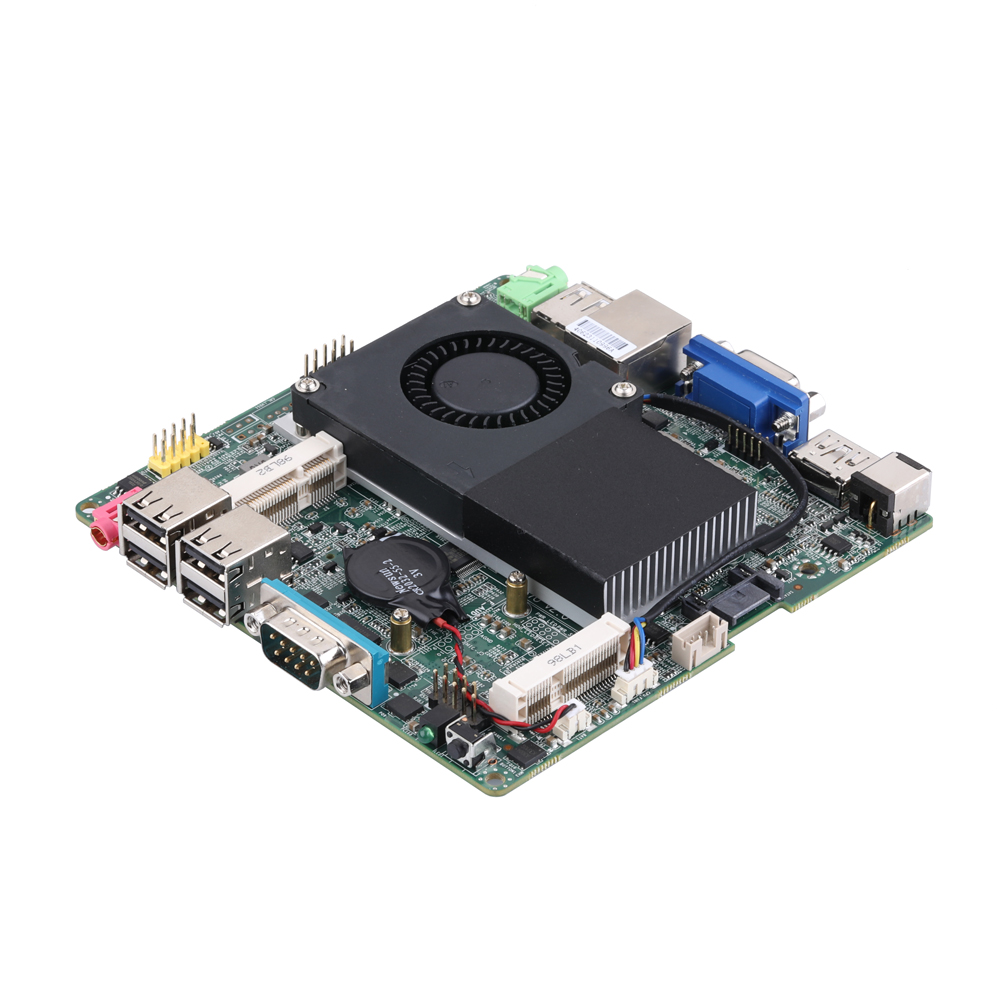

Motherboard MB2U113-0300 Series
Qotom mini motherboard with Intel Ivy Bridge CPU, HDMI, VGA, RS-232, mSATA, Mini-PCIe, and Realtek Gigabit LAN, ideal for compact industrial and desktop systems.
Tell us the configuration and quantity you need.
Overview
Main Features
Intel 3rd Ivy Bridge Processor
1 × VGA, 1 × HDMI, 1 × RS-232
5 × USB 2.0, 1 × SATA 3.0
1 × Mini-PCIe, 1 × mSATA
1 × Realtek Gigabit LAN
Specifications
| Processor System | |
| Dimension | 120 × 120mm |
| CPU | Intel 3rd Ivy Bridge Processor |
| Core Number | By CPU |
| Max. Speed | By CPU |
| L2 Cache | By CPU |
| Chipset | By CPU |
| BIOS | Legacy |
| Expansion Slot | |
| Mini-PCIe | 1 × Half-length Mini PCIe for Wi-Fi |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| Memory | |
| Technology | DDR3 1333/1600MHz SDRAM |
| Max. | 8GB |
| Socket | 1 × SO-DIMM |
| Graphics | |
| Controller | By CPU |
| VRAM | Shared Memory |
| VGA | 1 |
| LVDS | 1 (Option) |
| HDMI | 1 |
| Multi Display | Yes |
| Ethernet | |
| Interface | 10/100/1000Mbps |
| Controller | 1 × Realtek Gigabit LAN |
| Connector | 1 × RJ-45 |
| Audio | |
| Controller | Realtek HD Audio |
| SATA | |
| Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
| Accessories | |
| Accessories | Cable for HDD |
| Real I/O | |
| DC-IN | 1 |
| VGA | 1 |
| HDMI | 1 |
| Ethernet | 1 |
| USB | 1 × USB 2.0 |
| Audio | 1 (Line-out) |
| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED |
| Serial Port | 1 × RS-232 |
| USB | 4 × USB 2.0 |
| Audio | 1 (Mic-in) |
| Internal Connector | |
| LVDS | 1, 2 × 15Pin, Pitch 1.0mm (Option) |
| VGA Header | 1, 2 × 5Pin, Pitch 2.0mm |
| SATA | 1, SATA 3.0 (6.0Gb/S) |
| SATA PWR Connector | 1, 1 × 4Pin, Pitch PH2.0mm |
| USB Header | 1, 2 × 5Pin, Pitch 2.54mm |
| Front Panel Header | 1, 2 × 5Pin, Pitch 2.54mm |
| Speakers Header | 1, 2 × 5Pin, Pitch 2.54mm |
| Power Header | 1, 1 × 2Pin, Pitch 2.5mm (Option) |
| Power Requirement | |
| Input PWR | 12V DC in, 5.5mm/2.5mm |
| Environment | |
| Operating Temperature | 0-50 ℃ |
| OS Support | |
| OS | Windows XP, Windows 7, Windows 10, Linux |
In the box
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Motherboard | 1 | |
| 2 | HDD cable | 1 | |
| 3 | Radiator | 1 | Option |
| 4 | Fan | 1 | Option |
| 5 | Serial cable | Several | Depending on the model |
ItemQuantity
- 1Motherboard1
- 2HDD cable1
- 3Radiator1Option
- 4Fan1Option
- 5Serial cableSeveralDepending on the model
Models & options
Ordering and Specifications Information
Quick Order Model: Q1007UG-P
| Ordering Code | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
Q1007UG-P (MB2U113-0311) | Ivy Bridge | Celeron | 1007U | 2 | 2 | 1.5GHz | / | 2M | Intel HD Graphics | 17W |
Q1037UG-P (MB2U113-0312) | Ivy Bridge | Celeron | 1037U | 2 | 2 | 1.8GHz | / | 2M | Intel HD Graphics | 17W |
Q3217UG-P (MB2U113-0331) | Ivy Bridge | Core i3 | 3217U | 2 | 4 | 1.8GHz | / | 3M | Intel HD Graphics 4000 | 17W |
Q3317UG-P (MB2U113-0351) | Ivy Bridge | Core i5 | 3317U | 2 | 4 | 1.7GHz | 2.6GHz | 3M | Intel HD Graphics 4000 | 17W |
Q1007UG-P
(MB2U113-0311)
Ivy Bridge
- Code Name
- Ivy Bridge
- Processor Type
- Celeron
- Processor Number
- 1007U
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 1.5GHz
- Max Turbo Frequency
- /
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 17W
Q1037UG-P
(MB2U113-0312)
Ivy Bridge
- Code Name
- Ivy Bridge
- Processor Type
- Celeron
- Processor Number
- 1037U
- # of Cores
- 2
- # of Threads
- 2
- Base Frequency
- 1.8GHz
- Max Turbo Frequency
- /
- Cache
- 2M
- Processor Graphics
- Intel HD Graphics
- TDP
- 17W
Q3217UG-P
(MB2U113-0331)
Ivy Bridge
- Code Name
- Ivy Bridge
- Processor Type
- Core i3
- Processor Number
- 3217U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 1.8GHz
- Max Turbo Frequency
- /
- Cache
- 3M
- Processor Graphics
- Intel HD Graphics 4000
- TDP
- 17W
Q3317UG-P
(MB2U113-0351)
Ivy Bridge
- Code Name
- Ivy Bridge
- Processor Type
- Core i5
- Processor Number
- 3317U
- # of Cores
- 2
- # of Threads
- 4
- Base Frequency
- 1.7GHz
- Max Turbo Frequency
- 2.6GHz
- Cache
- 3M
- Processor Graphics
- Intel HD Graphics 4000
- TDP
- 17W
Custom Options
| Category | Description |
| RJ-45 | 1 |
