Motherboard MB2U213-0300 Series

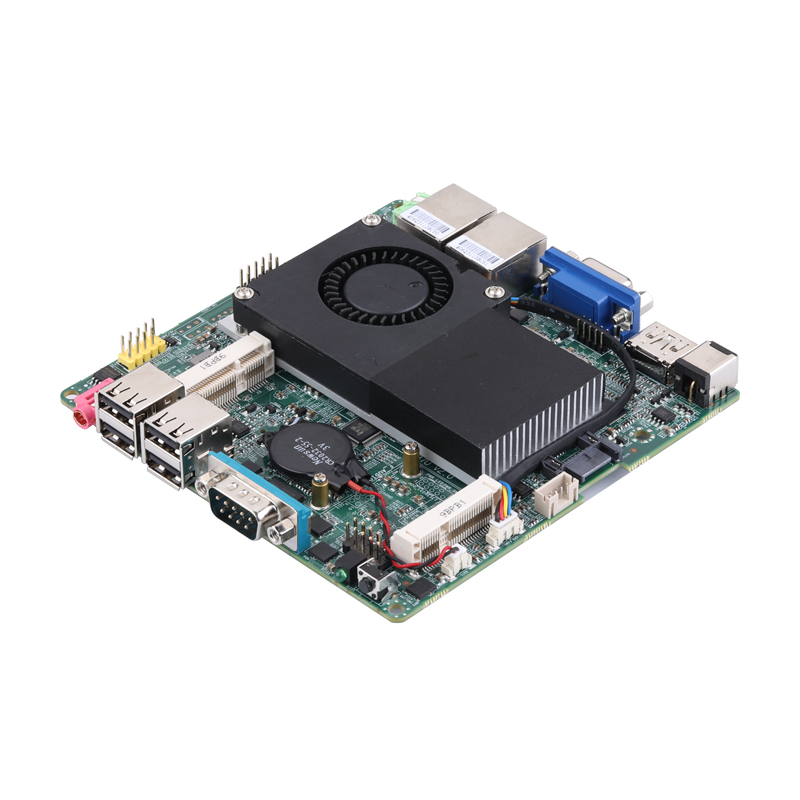

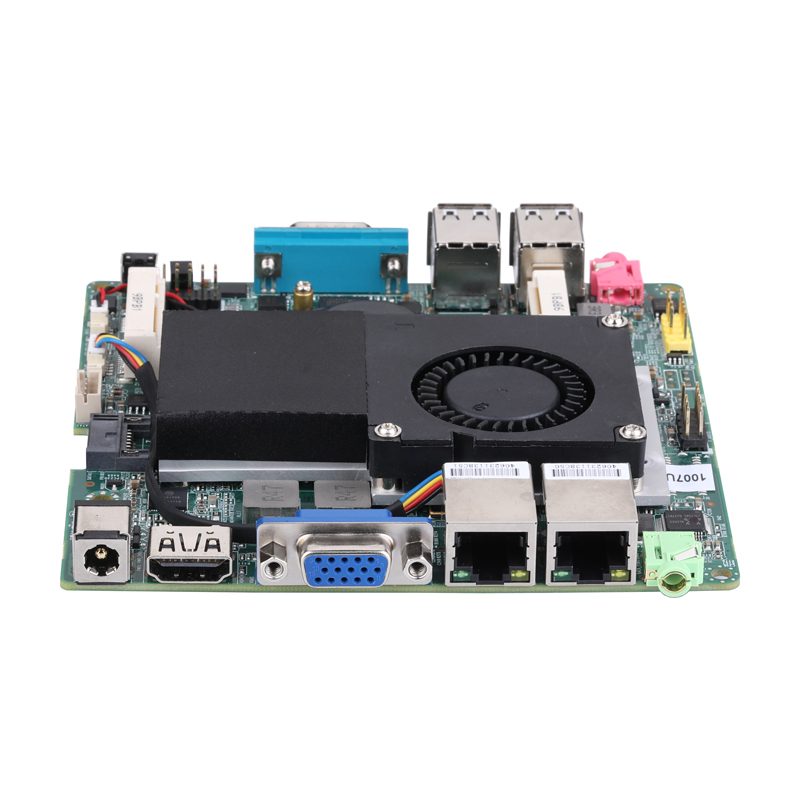

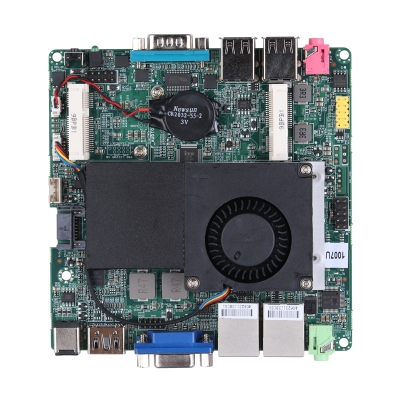

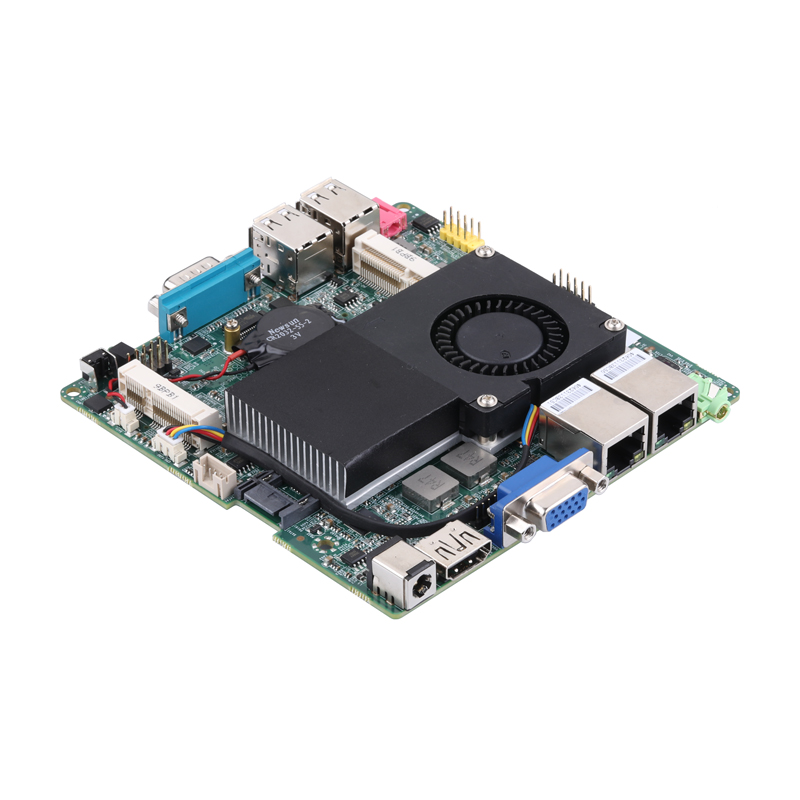

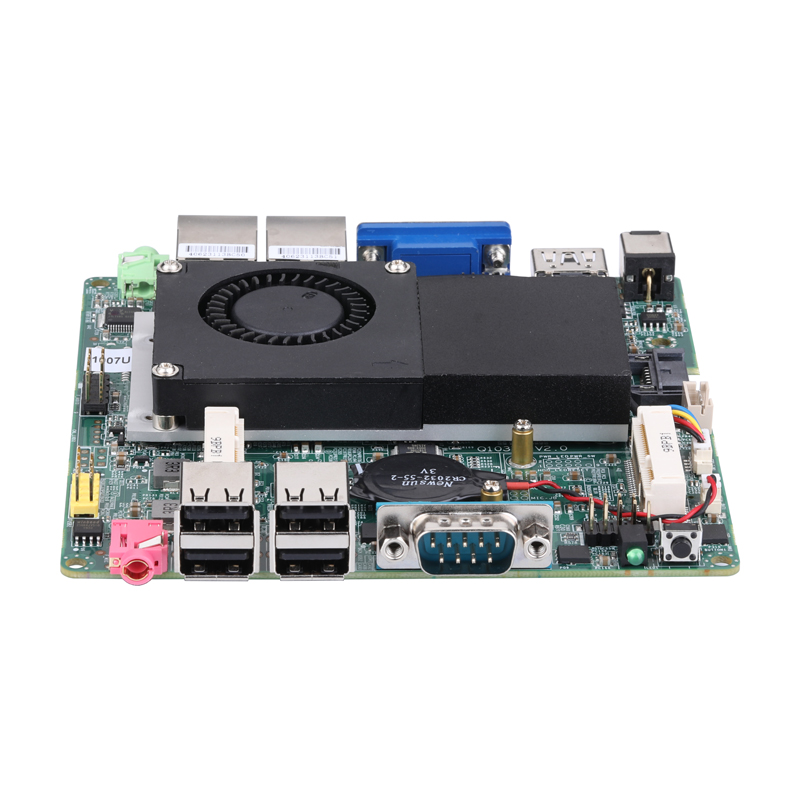

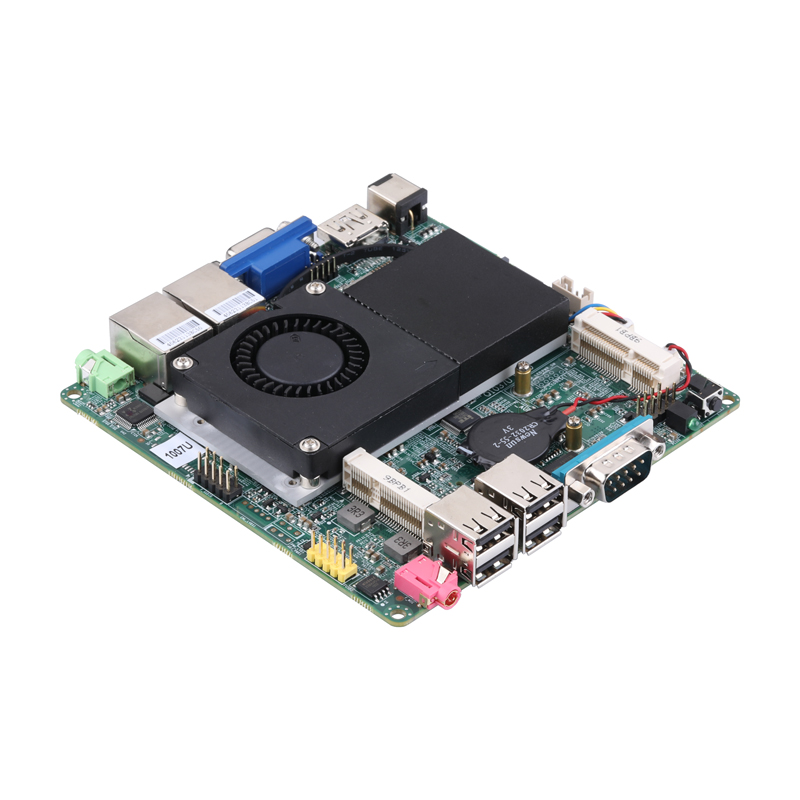

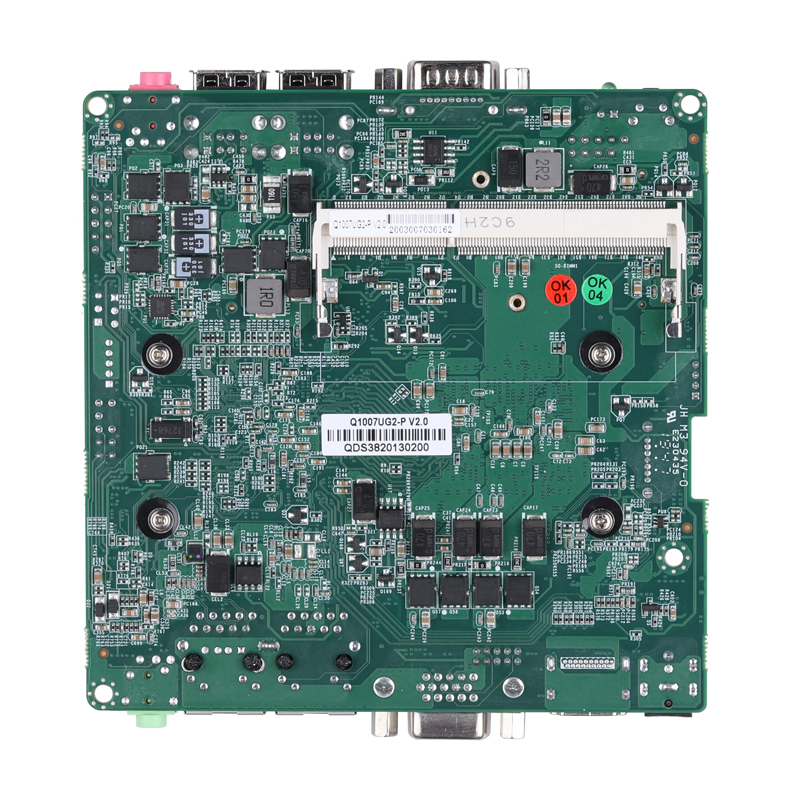

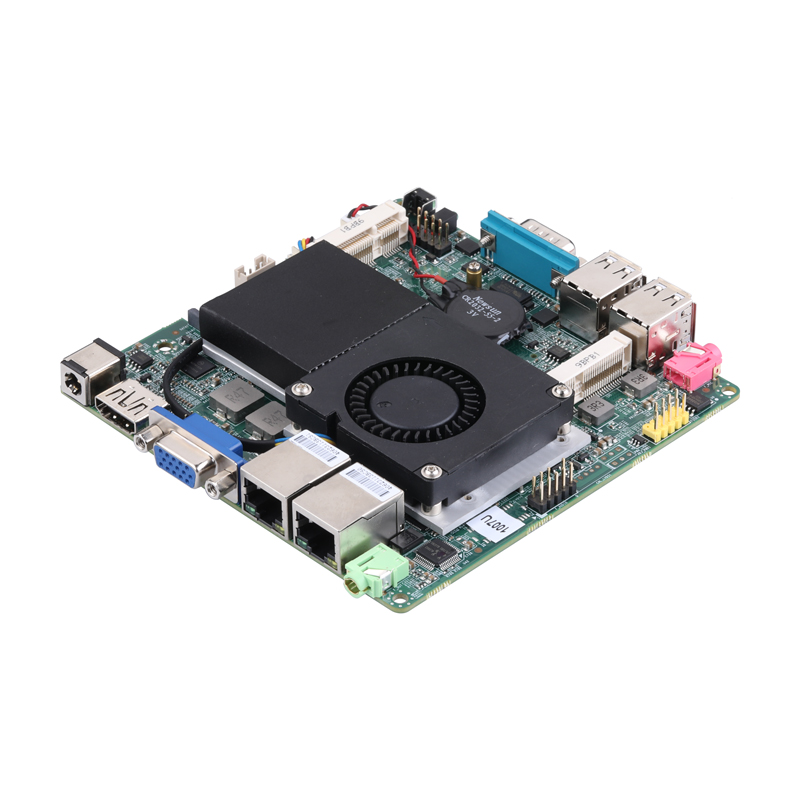

Qotom MB2U213-0300 is a compact motherboard powered by Intel 3rd Gen Ivy Bridge processors, featuring dual Gigabit LAN, VGA/HDMI display, and flexible expansion via Mini-PCIe and mSATA.
Tell us the configuration and quantity you need.
Detailed Information
Main Features
Intel 3rd Ivy Bridge Processor
1 × VGA, 1 × HDMI, 1 × RS-232
4 × USB 2.0, 1 × SATA 3.0
1 × Mini-PCIe, 1 × mSATA
2 × Realtek Gigabit LAN
Specification
| Processor System | |
| Dimension | 120 × 120mm |
| CPU | Intel 3rd Ivy Bridge Processor |
| Core Number | By CPU |
| Max. Speed | By CPU |
| L2 Cache | By CPU |
| Chipset | By CPU |
| BIOS | Legacy |
| Expansion Slot | |
| Mini-PCIe | 1 × Half-length Mini PCIe for Wi-Fi |
| mSATA | 1 × Full-length Mini PCIe for SSD |
| Memory | |
| Technology | DDR3 1333/1600MHz SDRAM |
| Max. | 8GB |
| Socket | 1 × SO-DIMM |
| Graphics | |
| Controller | By CPU |
| VRAM | Shared Memory |
| VGA | 1 |
| LVDS | 1 (Option) |
| HDMI | 1 |
| Multi Display | Yes |
| Ethernet | |
| Interface | 10/100/1000Mbps |
| Controller | 2 × Realtek Gigabit LAN |
| Connector | 2 × RJ-45 |
| Audio | |
| Controller | Realtek HD Audio |
| SATA | |
| Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
| Accessories | |
| Accessories | Cable for HDD |
| Real I/O | |
| DC-IN | 1 |
| VGA | 1 |
| HDMI | 1 |
| Ethernet | 2 |
| Audio | 1 (Line-out) |
| Front I/O | |
| Power Button | 1 |
| LED | 1 × Power LED |
| Serial Port | 1 × RS-232 |
| USB | 4 × USB 2.0 |
| Audio | 1 (Mic-in) |
| Internal Connector | |
| LVDS | 1, 2 × 15Pin, Pitch 1.0mm (Option) |
| VGA Header | 1, 2 × 5Pin, Pitch 2.0mm |
| SATA | 1, SATA 3.0 (6.0Gb/S) |
| SATA PWR Connector | 1, 1 × 4Pin, Pitch PH2.0mm |
| USB Header | 1, 2 × 5Pin, Pitch 2.54mm |
| Front Panel Header | 1, 2 × 5Pin, Pitch 2.54mm |
| Speakers Header | 1, 2 × 5Pin, Pitch 2.54mm |
| Power Header | 1, 1 × 2Pin, Pitch 2.5mm (Option) |
| Power Requirement | |
| Input PWR | 12V DC in, 5.5mm/2.5mm |
| Environment | |
| Operating Temperature | 0-50 ℃ |
| OS Support | |
| OS | Windows XP, Windows 7, Windows 10, Linux |
Packing
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Motherboard | 1 | |
| 2 | HDD cable | 1 | |
| 3 | Radiator | 1 | Option |
| 4 | Fan | 1 | Option |
| 5 | Serial cable | Several | Depending on the model |
Ordering and spec information
Ordering and Specifications Information
Quick Order Model: Q1007UG2-P
| Ordering Code | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
Q1007UG2-P (MB2U213-0311) | Ivy Bridge | Celeron | 1007U | 2 | 2 | 1.5GHz | / | 2M | Intel HD Graphics | 17W |
Q1037UG2-P (MB2U213-0312) | Ivy Bridge | Celeron | 1037U | 2 | 2 | 1.8GHz | / | 2M | Intel HD Graphics | 17W |
Q3217UG2-P (MB2U213-0331) | Ivy Bridge | Core i3 | 3217U | 2 | 4 | 1.8GHz | / | 3M | Intel HD Graphics 4000 | 17W |
Q3317UG2-P (MB2U213-0351) | Ivy Bridge | Core i5 | 3317U | 2 | 4 | 1.7GHz | 2.6GHz | 3M | Intel HD Graphics 4000 | 17W |
Custom Options
| Category | Description |
| USB 2.0 | 1 |
