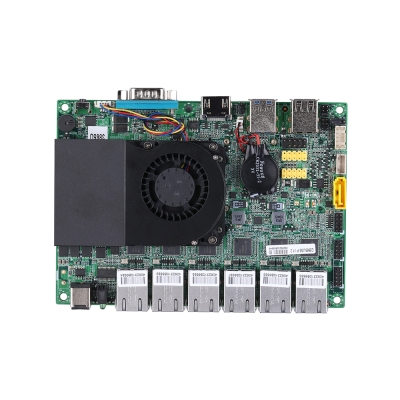

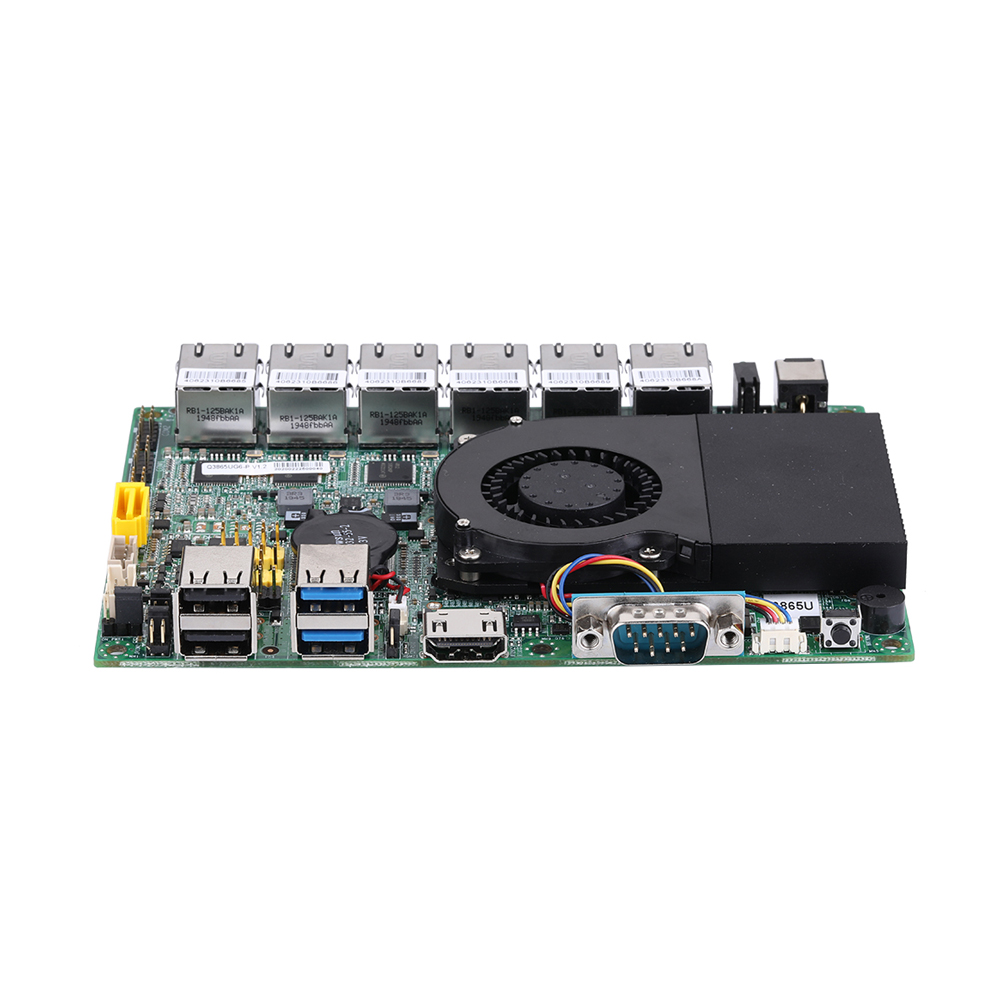

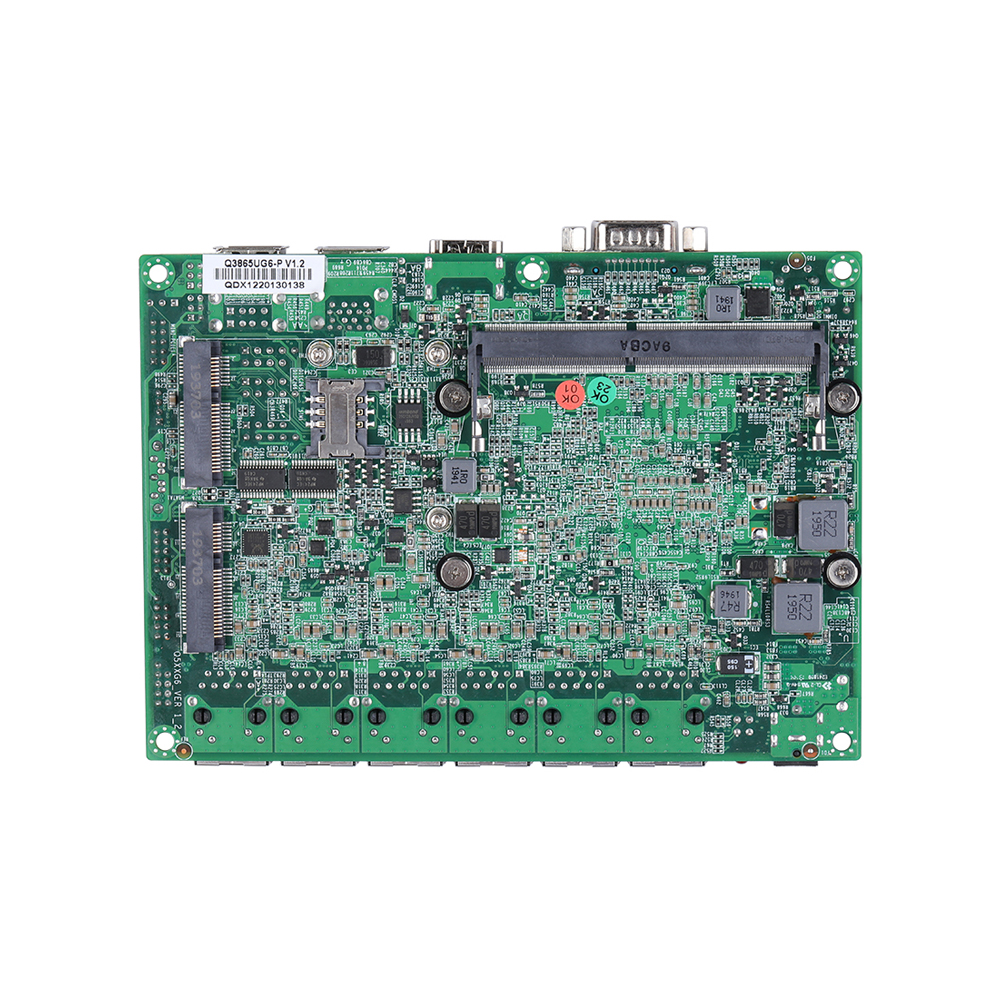

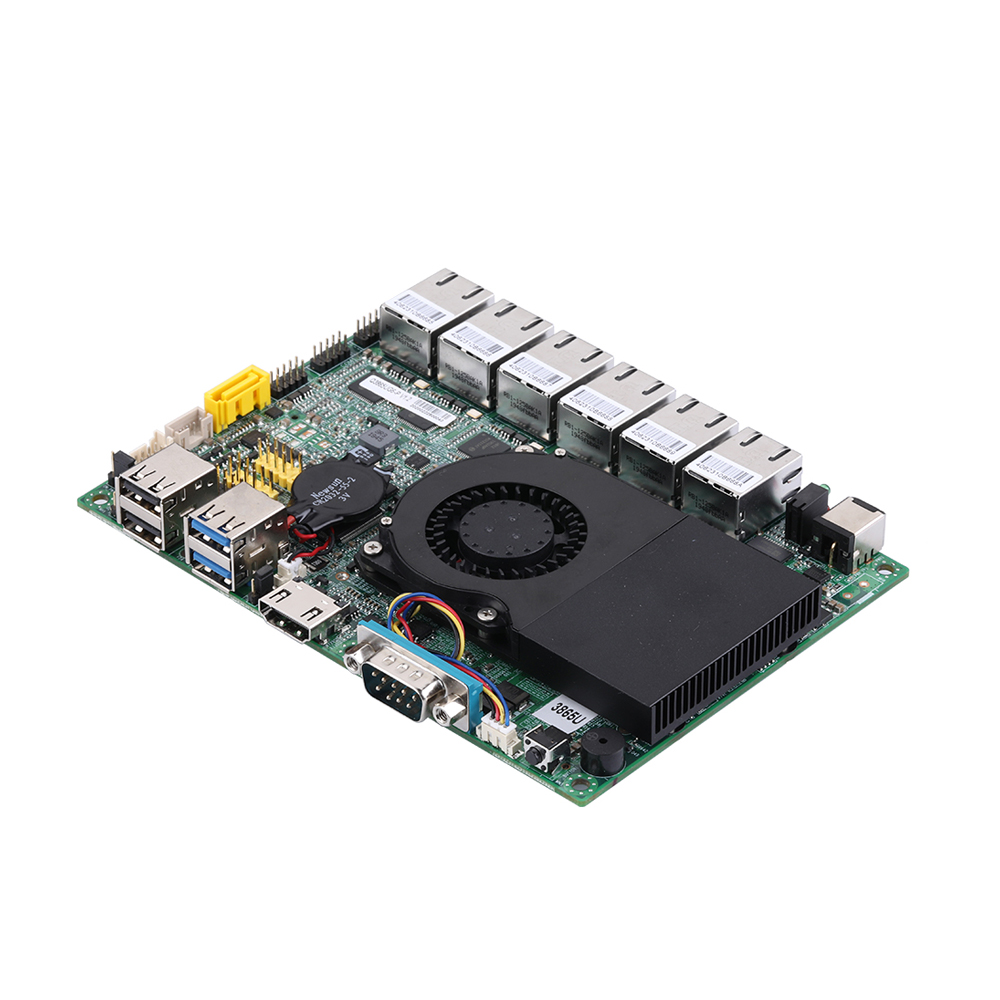

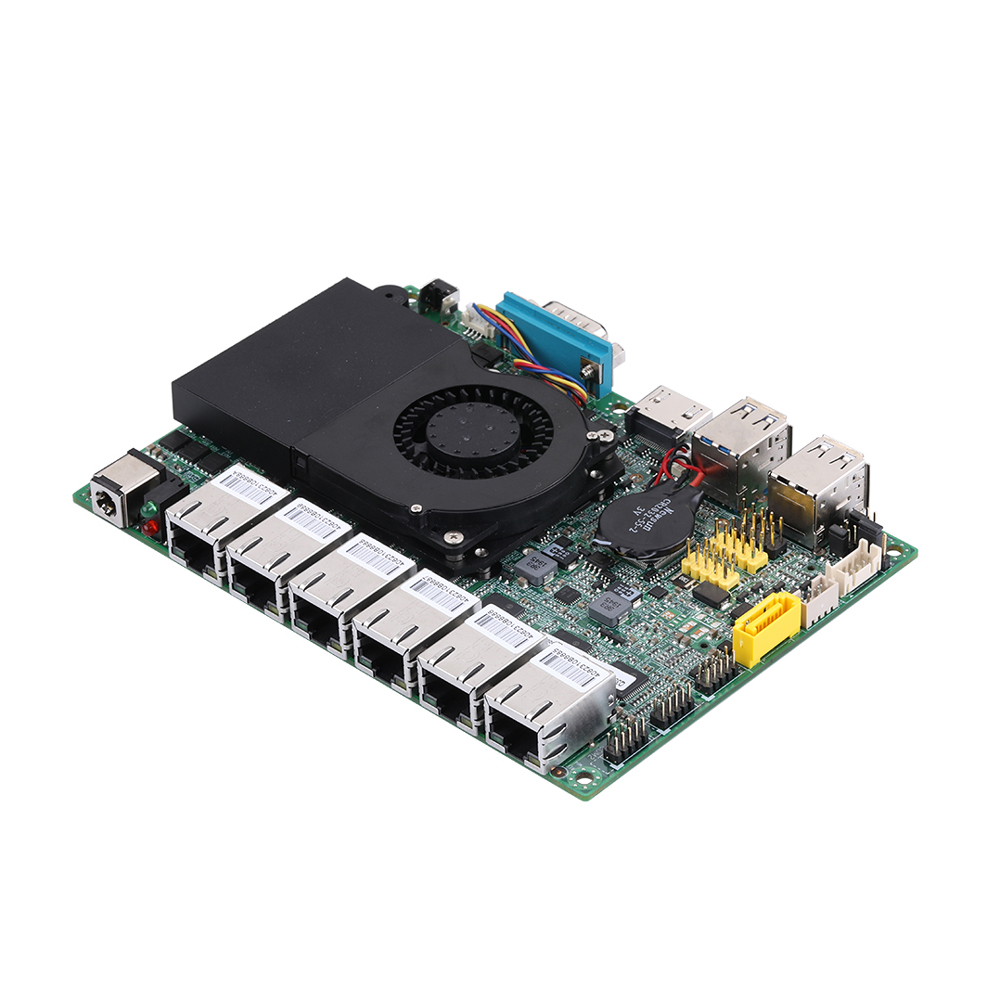

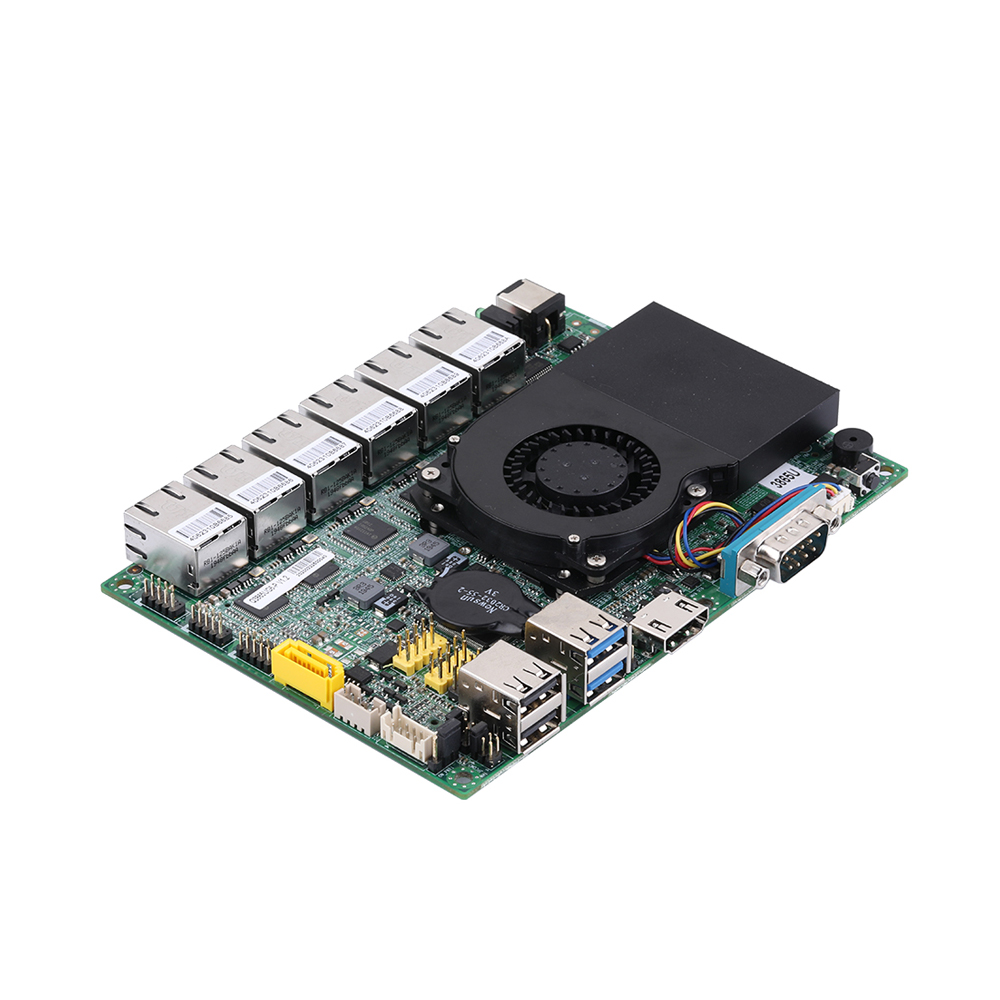

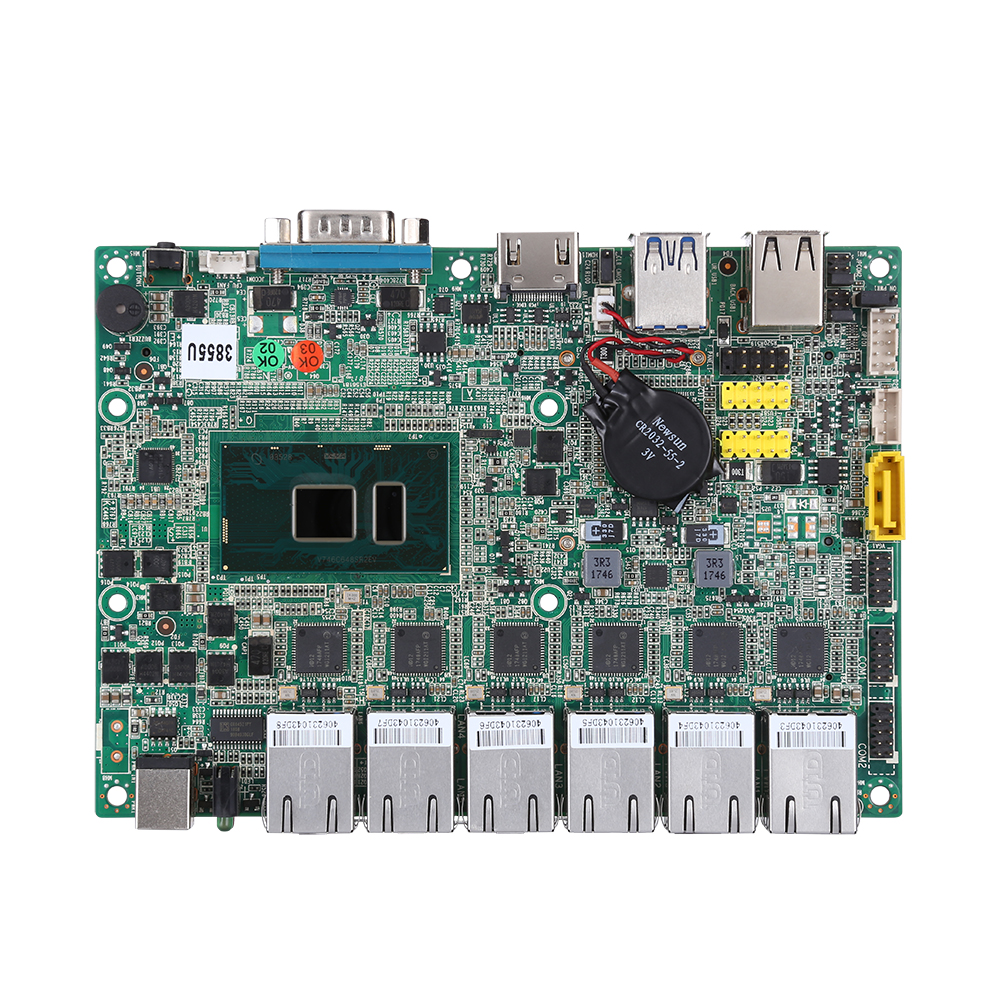

Motherboard MB3U623-0600 Series
Qotom MB3U623-0600 mini server board features Intel 6th/7th Gen processors, 6 × Intel Gigabit LAN, and multiple I/O ports, ideal for network security, firewall, and multi-LAN industrial applications.
Main Features
Intel 6th Skylake-U Processor
Intel 7th Kabylake-U Processor
1 × HDMI, 1 × RS-232
2 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0
1 × Mini-PCIe, 1 × mSATA
6 × Intel I211-AT/I210-AT Gigabit LAN
| Description | |
| Standard | Industrial motherboard |
| 148 x 104mm | |
| CPU | Intel Celeron Skylake SOC Processor, Default 3855U Dual core 2M Cache, 1.7 GHz, 15W |
| Chipset | By CPU |
| Display | Intel HD 510 |
| 1 x HDMI | |
| Ethernet | 6 x Intel I211AT Gigabit LAN |
| 1 x Mini PCIE, Half-length for Wi-Fi Module，Full-length for 3G/4G Module | |
| Audio | Realtek ALC662 HD Audio |
| 1 x Mic-in，1 x Line-out | |
| Storage | 1 x mSATA |
| 1 x SATA 3.0(6Gb/s) | |
| Power On | Yes |
| WatchDog | Yes |
| Cooling mode | Fanless, passtive cooling |
| Front I/O | |
| DC-IN | Outer diameter 5.5mm, inner diameter 2.5mm, 12V3A |
| LED | 1 x Power LED, 1 x HDD LED |
| Ethernet | 6 x Intel I211AT |
| Rear I/O | |
| Power Button | 1 x Power Button |
| Display | 1 x HDMI |
| USB | 2 x USB 3.0，2 x USB 2.0 |
| Serial | 1 x RS-232 |
| Internal Connector | |
| Memory Slot | Single Channel DDR4 2133 SDRAM, Max Support to 32G |
| m-SATA | Full size |
| SATA | SATA 3.0 (6.0Gb/s) |
| SATA PWR | 2.0mm Pitch Header |
| Mini-PCIe | 1， Half-length for Wi-Fi Module，Full-length for 3G/4G Module |
| SIM Solt | Standard SIM |
| Automatically Boot Jumper | 2.54mm Pitch Header |
| LVDS | 0 |
| eDP | 0 |
| GPIO Header | 1 x 2.0mm(Option) |
| Serial Header | 2 x 2.0mm RS232/RS485 Support 5V/12V Option |
| VGA Header | 1 x 2.0mm |
| Internal Power Header | 1 x 5.5mm |
| Internal USB Header | 2 x 2.54mm |
| Internal Speakers Header | 0 |
| Internal Front Panel Header | 1 x 2.54mm |
| Environment | |
| Working Temperature | -10°C~50°C |
| Working Humidity | 5°C~65°C (Non-gel) |
Packing List
| NO. | Category | Quantity | Remark |
| 1 | Motherboard | 1 | |
| 2 | HDD cable | 1 | |
| 3 | Radiator | 1 | Option |
| 4 | Fan | 1 | Option |
| 5 | Serial cable | Several | Depending on the model |
Ordering and Specifications Information
Quick Order Model: Q7100UG6-P
| Ordering Code | Code Name | Processor Type | Processor Number | # of Cores | # of Threads | Base Frequency | Max Turbo Frequency | Cache | Processor Graphics | TDP |
Q3855UG6-P (MB3U623-0611) | Skylake | Celeron | 3855U | 2 | 2 | 1.6GHz | / | 2M | Intel HD 510 | 15W |
Q3955UG6-P (MB3U623-0612) | Skylake | Celeron | 3955U | 2 | 2 | 2.0GHz | / | 2M | Intel HD 510 | 15W |
Q6100UG6-P (MB3U623-0631 | Skylake | Core i3 | 6100U | 2 | 4 | 2.3GHz | / | 3M | Intel HD 520 | 15W |
Q6200UG6-P (MB3U623-0651) | Skylake | Core i5 | 6200U | 2 | 4 | 2.3GHz | 2.8GHz | 3M | Intel HD 520 | 15W |
Q6500UG6-P (MB3U623-0671) | Skylake | Core i7 | 6500U | 2 | 4 | 2.5GHz | 3.1GHz | 4M | Intel HD 520 | 15W |
Q3865UG6-P (MB3U623-0711) | Kaby Lake | Celeron | 3865U | 2 | 2 | 1.8GHz | / | 2M | Intel HD 610 | 15W |
Q3965UG6-P (MB3U623-0712) | Kaby Lake | Celeron | 3965U | 2 | 2 | 2.2GHz | / | 2M | Intel HD 610 | 15W |
Q7100UG6-P (MB3U623-0731) | Kaby Lake | Core i3 | 7100U | 2 | 4 | 2.4GHz | / | 3M | Intel HD 620 | 15W |
Q7200UG6-P (MB3U623-0751) | Kaby Lake | Core i5 | 7200U | 2 | 4 | 2.5GHz | 3.1GHz | 3M | Intel HD 620 | 15W |
Q7500UG6-P (MB3U623-0771) | Kaby Lake | Core i7 | 7500U | 2 | 4 | 2.7GHz | 3.5GHz | 4M | Intel HD 620 | 15W |
