Mini PC Q30900GER S13 Series

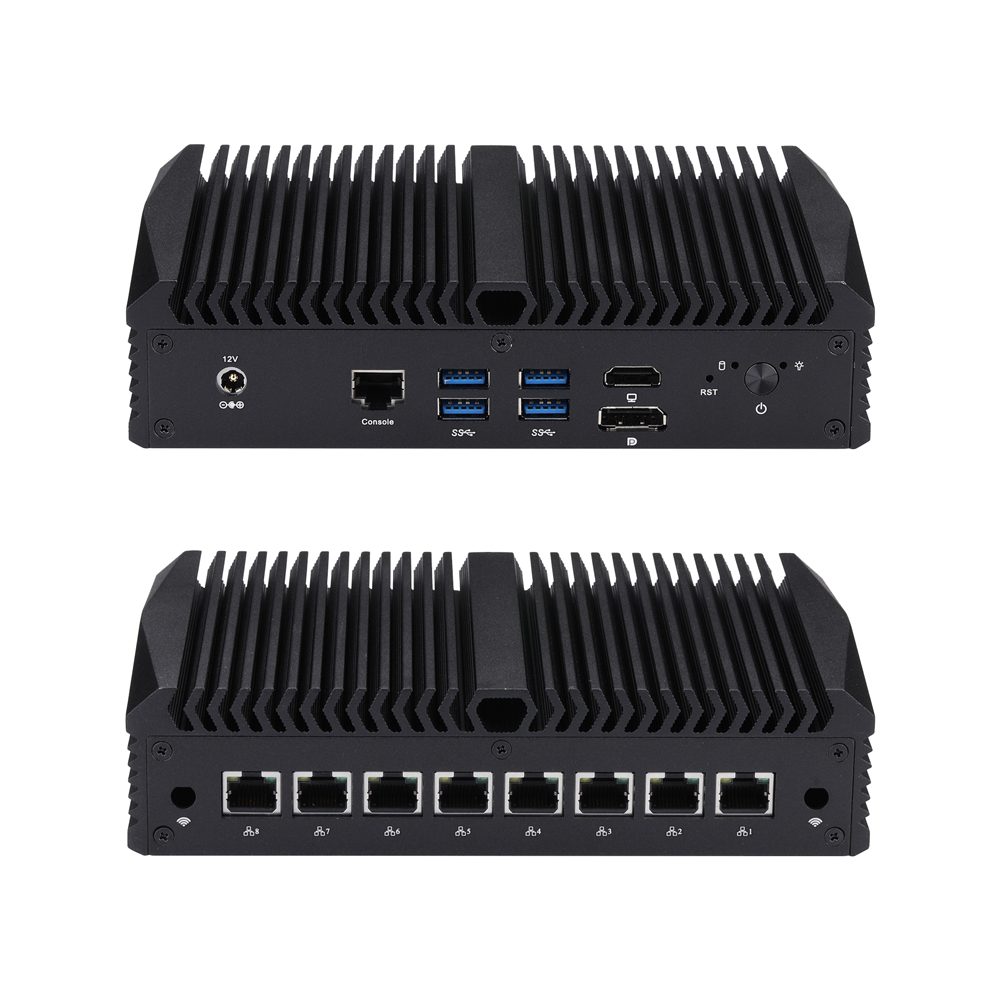

Q30900GER is a fanless industrial mini PC with 8 Gigabit LAN ports, supporting Intel® Whiskey Lake-U, Coffee Lake-U, and Comet Lake-U processors. Designed for network appliances, industrial automation, edge computing, IoT gateways, and embedded communication systems. Reliable performance for 24/7 operation.

Total of Network Interfaces
8
SFP(+)
0
10G RJ45
0
2.5G RJ45
0
1G RJ45
8
Serial Ports
0
Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

Main Features

  • Intel 8th Whiskey Lake-U Processor

  • Intel 8th Coffee Lake-U Processor

  • Intel 10th Comet lake-U Processor

  • 1 × Display Port, 1 × HDMI

  • 4 × USB 3.0

  • 1 × M.2, 2 × Mini PCIe, 1 × SATA 3.0

  • 1 × RS-232 (RJ-45)

  • 8 × Realtek Gigabit LAN

Specifications


Processor System
CPUIntel 8thWhiskey Lake-U Processor
Intel 8th Coffee Lake-U Processor
Intel 10th Comet lake-U Processor
CPU TDPBy CPU
Memory1 × DDR4 SO-DIMM Socket
(Up to 32G, 2133/2400MHz)
ChipsetBy CPU
GraphicsBy CPU
LAN Chipset8 × Realtek Gigabit LAN
Watch DogYes

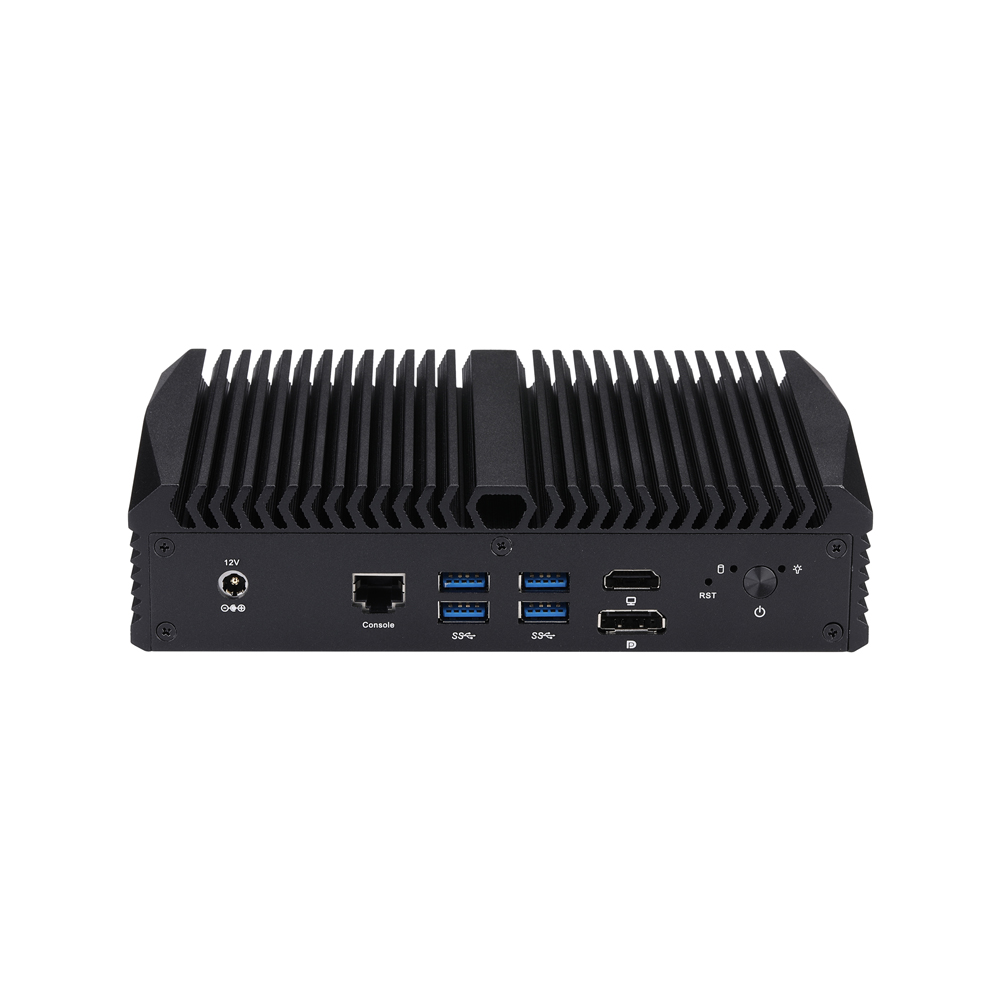

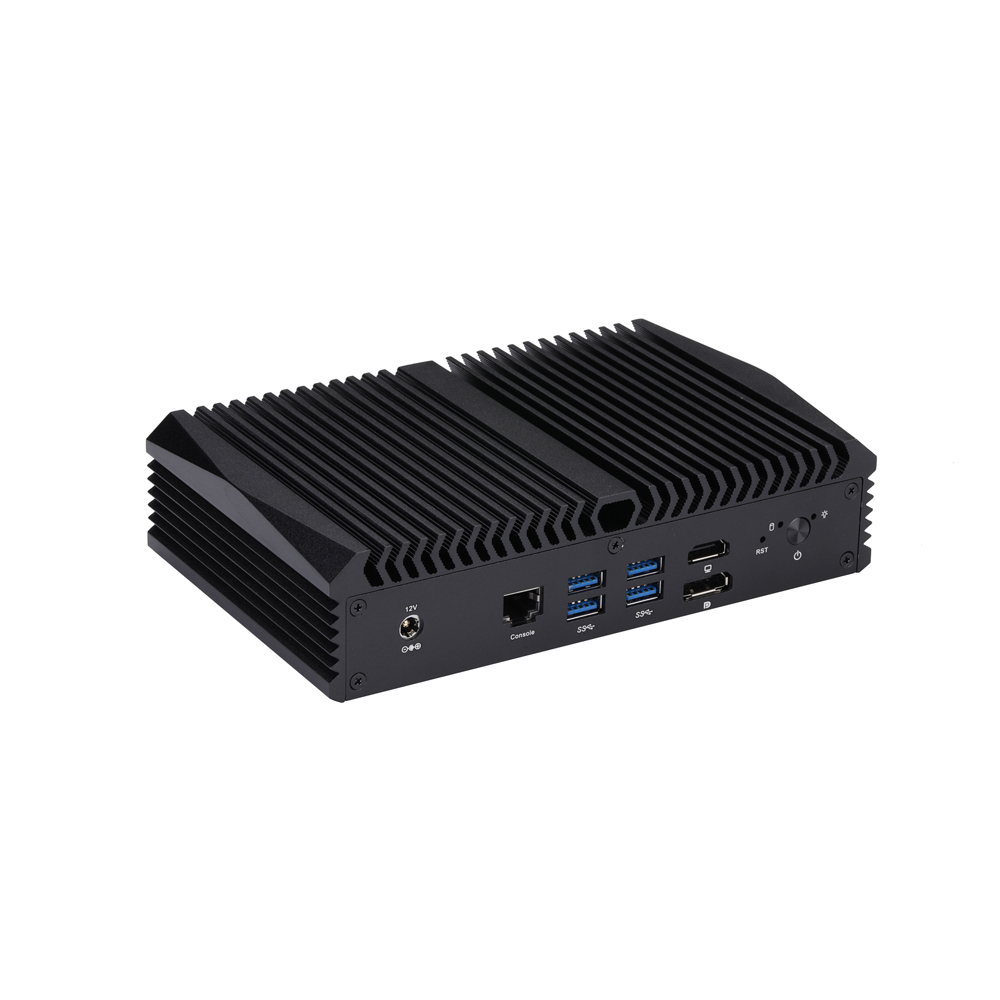

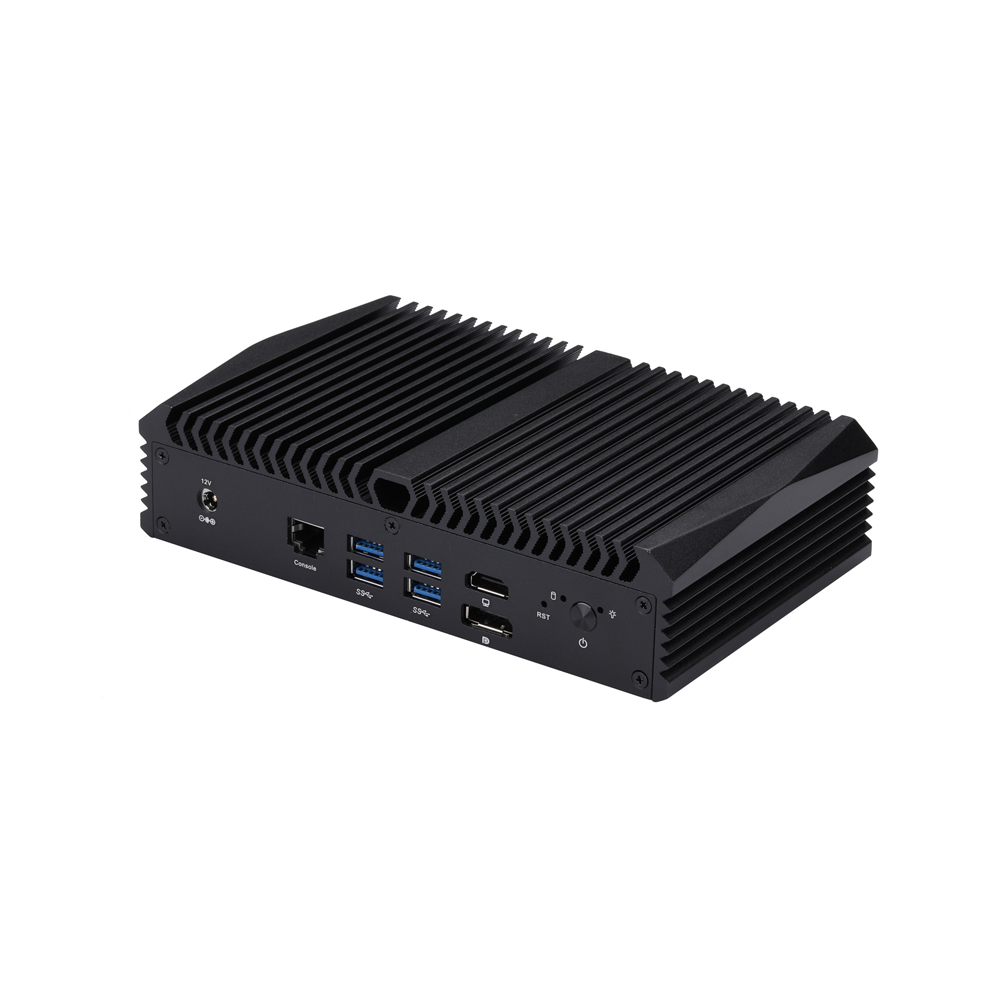

Front I/O
Power Button1
CMOS Clear Button1 × CMOS Clear Button
LED1 × Power LED, 1 × HDD LED
USB4 × USB 3.0
Power1 × DC Jack
Video Output1 × HDMI, 1 × Display Port
Serial Port1 × RS-232 Port (RJ-45)

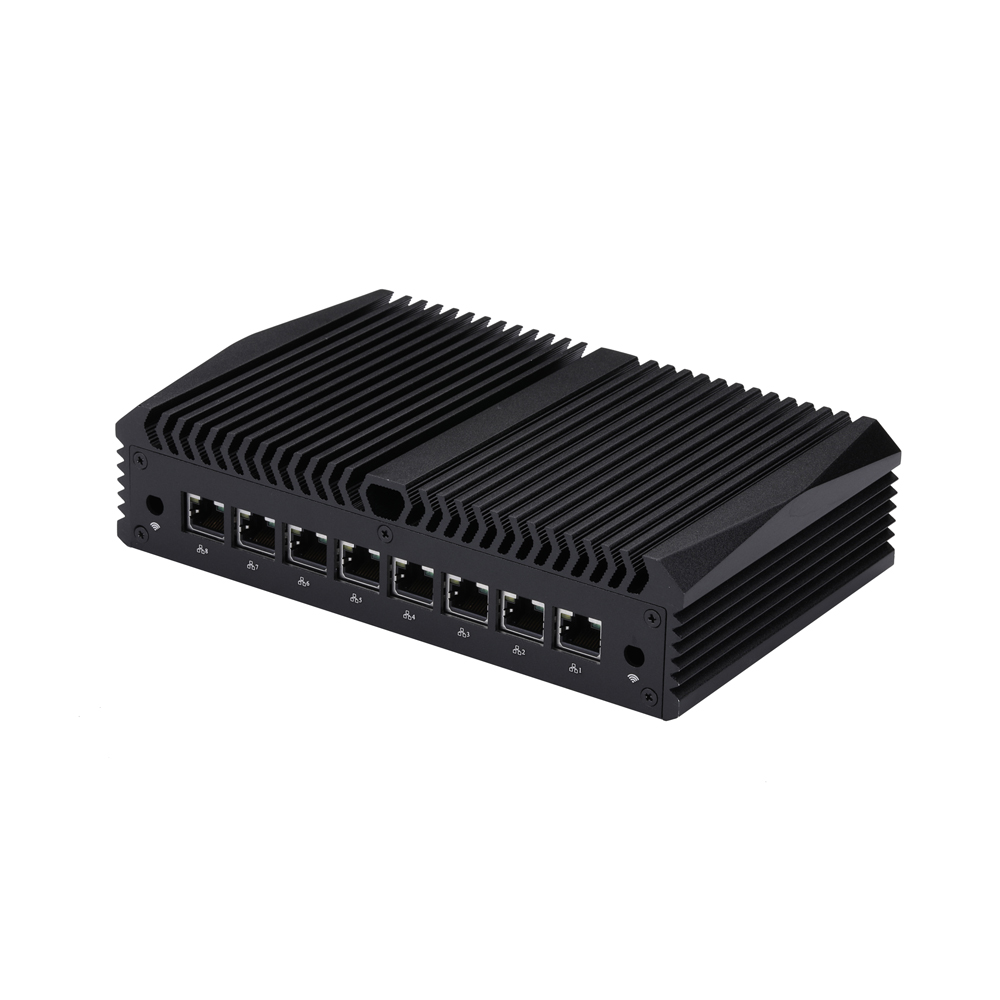

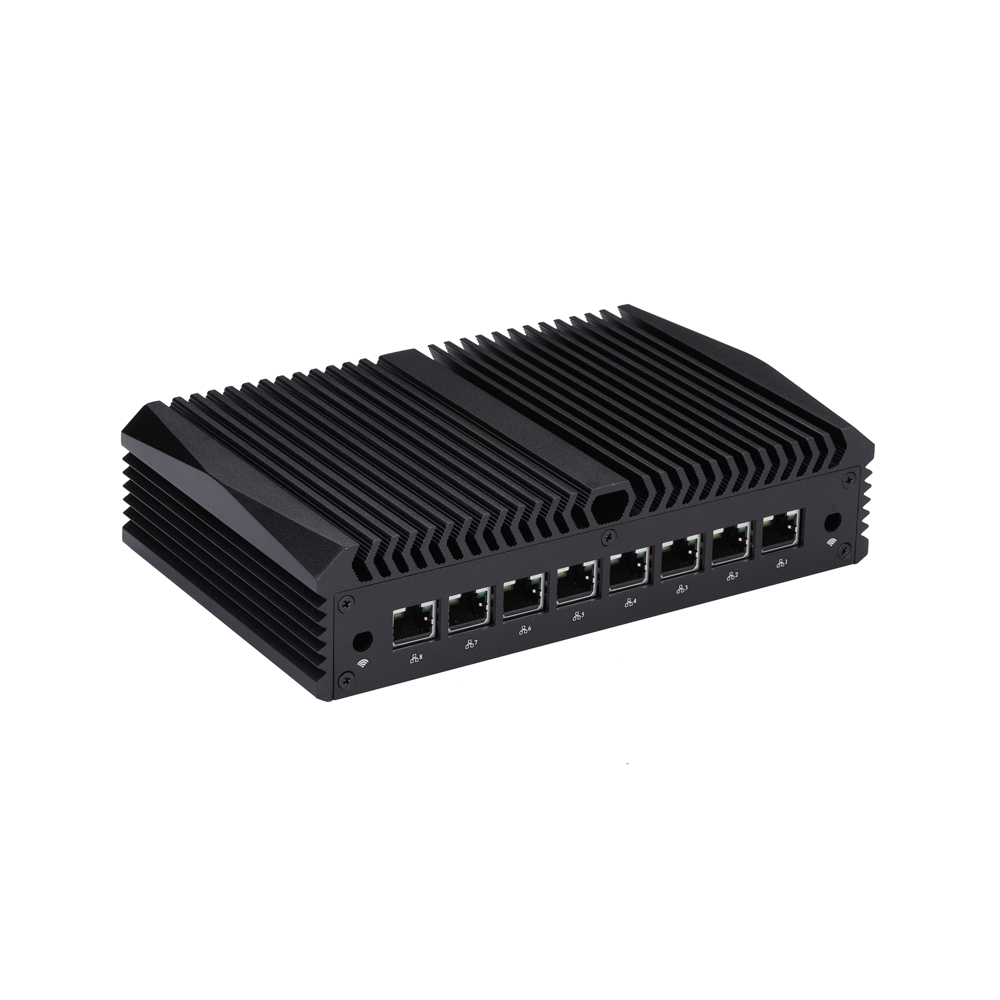

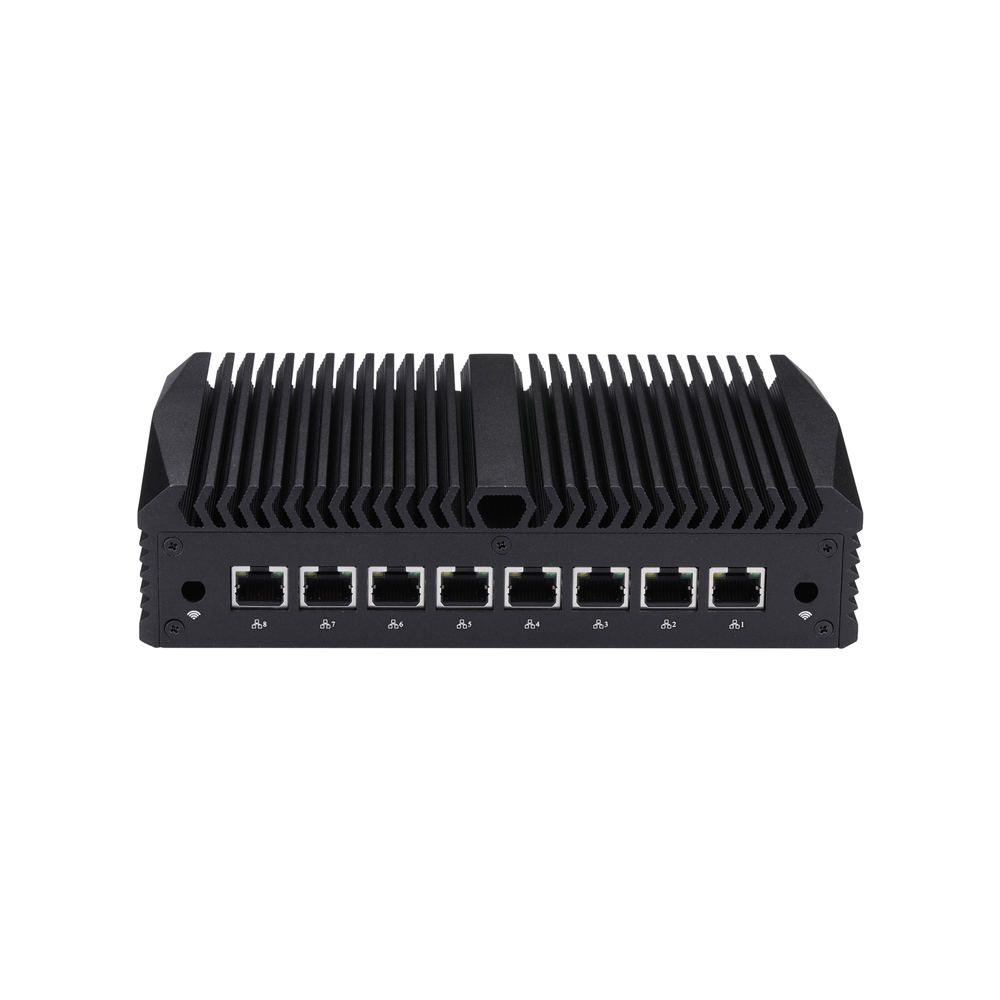

Rear I/O
LAN8 × Realtek Gigabit LAN
Serial PortNo
Storage
Type1 × 2.5-inch HDD/SSD
1 × Mini PCIe for mSATA SSD
Expansion
Mini PCIe1 × Mini PCIe
Full-length for 4G
Half-length for Wi-Fi (Default Only Support
USB Device)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
SIM Card Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.0mm
CMOS Clear JumperYes, 1 × 3Pin, Pitch 2.0mm
GPIO1, 2 × 5Pin, Pitch 2.0mm
Power Requirement
Power Adapter12V3A
DC Jack5.5mm, 2.5mm
Environmental
Operating Temp0°C~50°C
Non-Operating Temp-20°C~80°C
Humidity10%~90%
Mechanical
MaterialAluminium Alloy
Dimension196 × 122 × 47mm
Weight1.27kg
MountingVESA Mounting Bracket
Packaging Dimension285 × 260 × 93mm
Kensington LockNo
Cooling ModeFanless Design
OS Support
OSWindows 10, Linux

In the box

Packing List

NO.CategoryQuantityRemark
1Mini PC1
2Silicone Mat4
3VESA Bracket1
4Screws for VESA Bracket1
5Power Adapter1
6AC Power Cord1
7Screws for SATA SSD/HDD1
8SATA cable for SSD/HDD1Option
9Antennas2Option
ItemQuantity
  • 1
    Mini PC
    1
  • 2
    Silicone Mat
    4
  • 3
    VESA Bracket
    1
  • 4
    Screws for VESA Bracket
    1
  • 5
    Power Adapter
    1
  • 6
    AC Power Cord
    1
  • 7
    Screws for SATA SSD/HDD
    1
  • 8
    SATA cable for SSD/HDD
    Option
    1
  • 9
    Antennas
    Option
    2

Models & options

Ordering and Specifications Information

Quick Order Model: Q1012GE-S13

Ordering CodeCaseCode Name Processor TypeProcessor Number# of Cores# of ThreadsBase FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP

Q1012GE

(Q30912GER)

S13Whiskey LakeCeleron4305U222.2GHz/2MIntel UHD Graphics15W

Q1020GE

(Q30921GER)

S13Whiskey LakePentium5405U242.3GHz/2MIntel UHD Graphics15W

Q1030GE

(Q30931GER)

S13Whiskey LakeCore i38145U242.1GHz3.9GHz4MIntel UHD Graphics15W

Q1051GE

(Q30951GER)

S13Whiskey LakeCore i58265U481.6GHz3.9GHz6MIntel UHD Graphics15W

Q1070GE

(Q30971GER)

S13Whiskey LakeCore i78565U481.8GHz4.6GHz8MIntel UHD Graphics15W

Q1052GE

(Q30952GER)

S13Coffee LakeCore i58260U481.6GHz3.9GHz6MIntel UHD Graphics 62015W

Q1015GE

(Q31011GER)

S13Comet LakeCeleron5205U221.9GHz/2MIntel UHD Graphics15W

Q1016GE

(Q31012GER)

S13Comet LakeCeleron5305U222.3GHz/2MIntel UHD Graphics15W

Q1025GE

(Q31021GER)

S13Comet LakePentium6405U242.4GHz/2MIntel UHD Graphics15W

Q1035GE

(Q31031GER)

S13Comet LakeCore i310110U242.1GHz4.1GHz4MIntel UHD Graphics15W

Q1055GE

(Q31051GER)

S13Comet LakeCore i510210U481.6GHz4.2GHz6MIntel UHD Graphics15W

Q1075GE

(Q31071GER)

S13Comet LakeCore i710610U481.8GHz4.9GHz8MIntel UHD Graphics15W

Q1076GE

(Q31072GER)

S13Comet LakeCore i710810U6121.1GHz4.9GHz12MIntel UHD Graphics15W

Q1077GE

(Q31073GER)

S13Comet LakeCore i710710U6121.1GHz4.7GHz12MIntel UHD Graphics15W

Q1012GE

(Q30912GER)

S13
Case
S13
Code Name
Whiskey Lake
Processor Type
Celeron
Processor Number
4305U
# of Cores
2
# of Threads
2
Base Frequency
2.2GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1020GE

(Q30921GER)

S13
Case
S13
Code Name
Whiskey Lake
Processor Type
Pentium
Processor Number
5405U
# of Cores
2
# of Threads
4
Base Frequency
2.3GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1030GE

(Q30931GER)

S13
Case
S13
Code Name
Whiskey Lake
Processor Type
Core i3
Processor Number
8145U
# of Cores
2
# of Threads
4
Base Frequency
2.1GHz
Max Turbo Frequency
3.9GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1051GE

(Q30951GER)

S13
Case
S13
Code Name
Whiskey Lake
Processor Type
Core i5
Processor Number
8265U
# of Cores
4
# of Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
3.9GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1070GE

(Q30971GER)

S13
Case
S13
Code Name
Whiskey Lake
Processor Type
Core i7
Processor Number
8565U
# of Cores
4
# of Threads
8
Base Frequency
1.8GHz
Max Turbo Frequency
4.6GHz
Cache
8M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1052GE

(Q30952GER)

S13
Case
S13
Code Name
Coffee Lake
Processor Type
Core i5
Processor Number
8260U
# of Cores
4
# of Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
3.9GHz
Cache
6M
Processor Graphics
Intel UHD Graphics 620
TDP
15W

Q1015GE

(Q31011GER)

S13
Case
S13
Code Name
Comet Lake
Processor Type
Celeron
Processor Number
5205U
# of Cores
2
# of Threads
2
Base Frequency
1.9GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1016GE

(Q31012GER)

S13
Case
S13
Code Name
Comet Lake
Processor Type
Celeron
Processor Number
5305U
# of Cores
2
# of Threads
2
Base Frequency
2.3GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1025GE

(Q31021GER)

S13
Case
S13
Code Name
Comet Lake
Processor Type
Pentium
Processor Number
6405U
# of Cores
2
# of Threads
4
Base Frequency
2.4GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1035GE

(Q31031GER)

S13
Case
S13
Code Name
Comet Lake
Processor Type
Core i3
Processor Number
10110U
# of Cores
2
# of Threads
4
Base Frequency
2.1GHz
Max Turbo Frequency
4.1GHz
Cache
4M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1055GE

(Q31051GER)

S13
Case
S13
Code Name
Comet Lake
Processor Type
Core i5
Processor Number
10210U
# of Cores
4
# of Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
4.2GHz
Cache
6M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1075GE

(Q31071GER)

S13
Case
S13
Code Name
Comet Lake
Processor Type
Core i7
Processor Number
10610U
# of Cores
4
# of Threads
8
Base Frequency
1.8GHz
Max Turbo Frequency
4.9GHz
Cache
8M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1076GE

(Q31072GER)

S13
Case
S13
Code Name
Comet Lake
Processor Type
Core i7
Processor Number
10810U
# of Cores
6
# of Threads
12
Base Frequency
1.1GHz
Max Turbo Frequency
4.9GHz
Cache
12M
Processor Graphics
Intel UHD Graphics
TDP
15W

Q1077GE

(Q31073GER)

S13
Case
S13
Code Name
Comet Lake
Processor Type
Core i7
Processor Number
10710U
# of Cores
6
# of Threads
12
Base Frequency
1.1GHz
Max Turbo Frequency
4.7GHz
Cache
12M
Processor Graphics
Intel UHD Graphics
TDP
15W

PC Case Options

CategorySATA Support
S13Yes
S13Yes
S20Yes
1U07Yes

Custom Options

CategoryDescription
Serial Port5 × RS-232
VGA1
USB 2.06
GPIO1
RS-4852
TPM 2.01 (SLB9665)
