Motherboard MB4U267-0600 Series Motherboard MB4U267-0600 Series Motherboard MB4U267-0600 Series Motherboard MB4U267-0600 Series Motherboard MB4U267-0600 Series Motherboard MB4U267-0600 Series

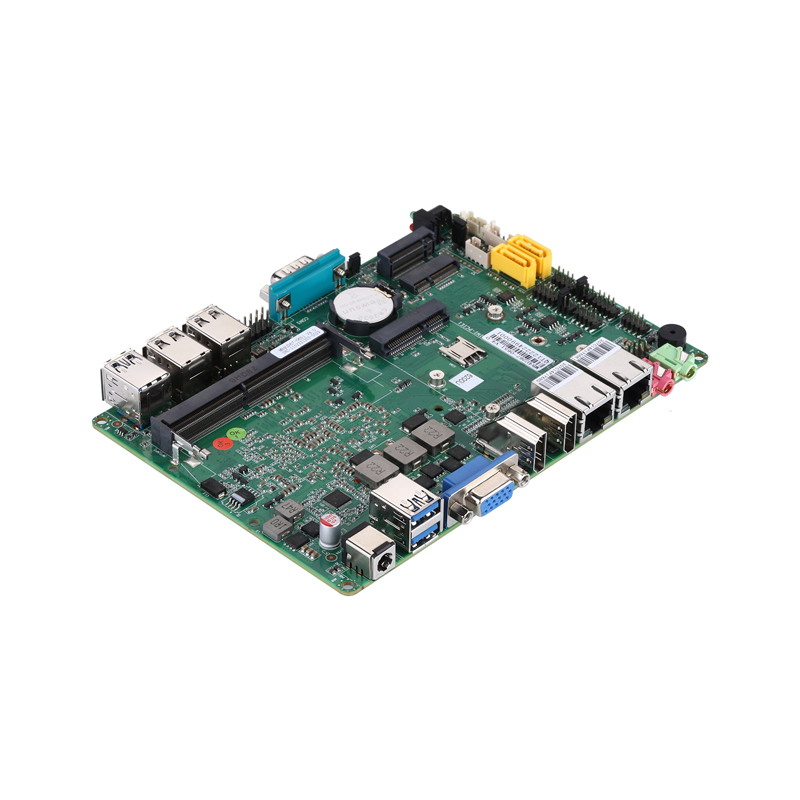

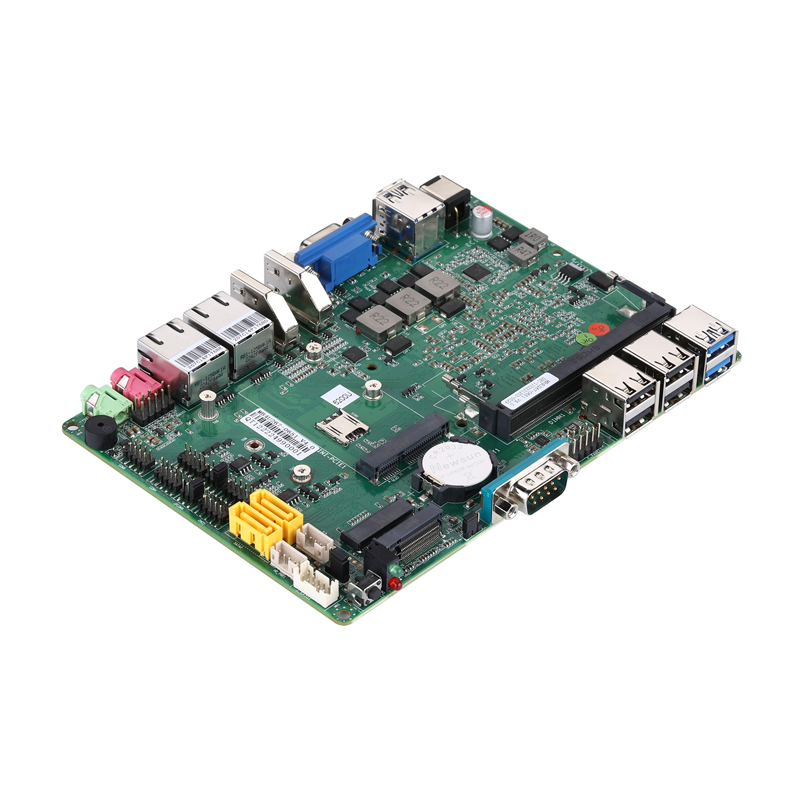

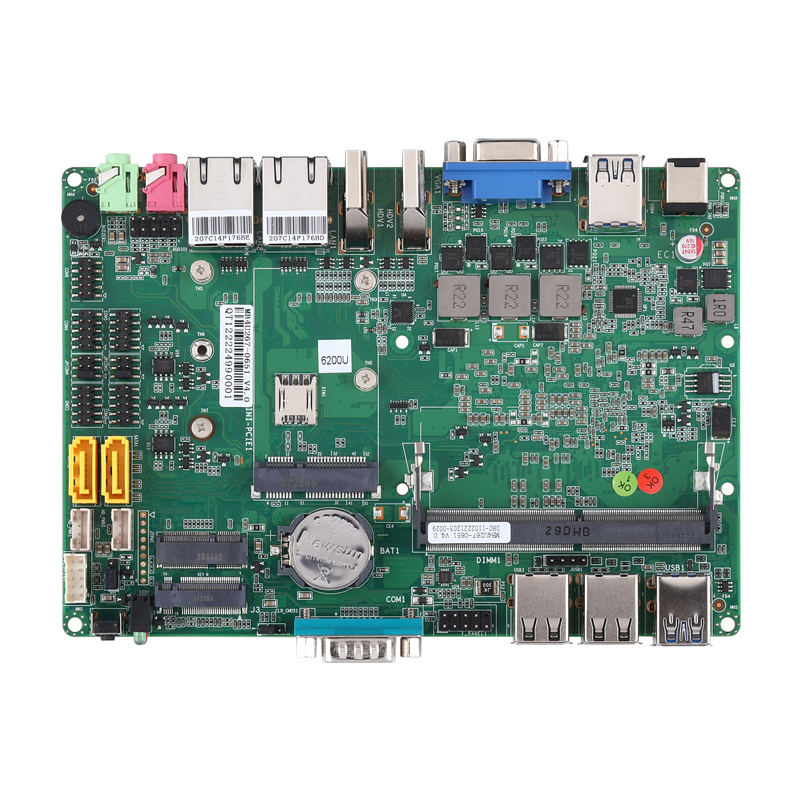

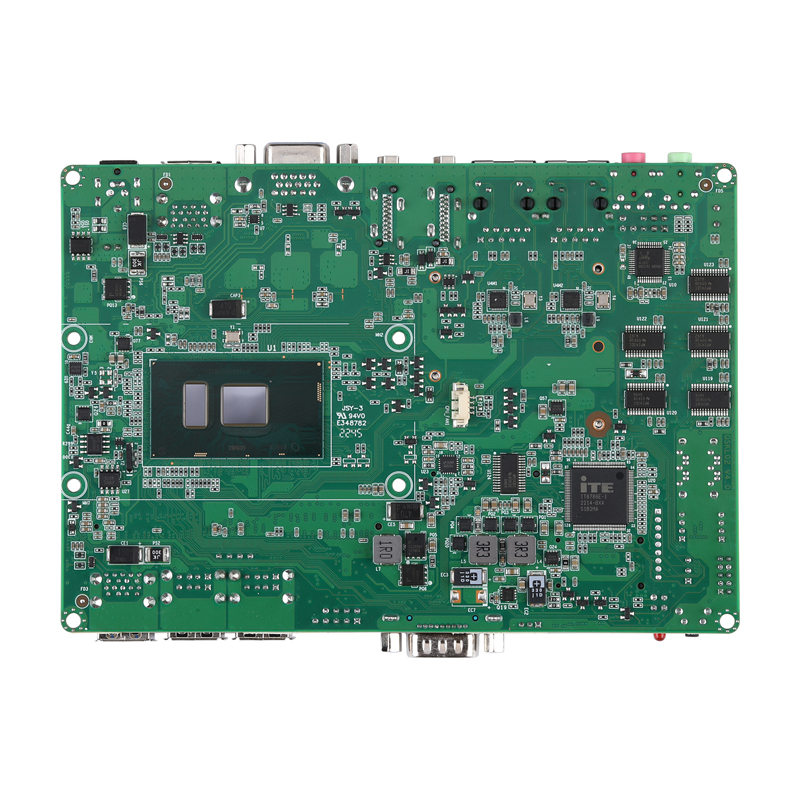

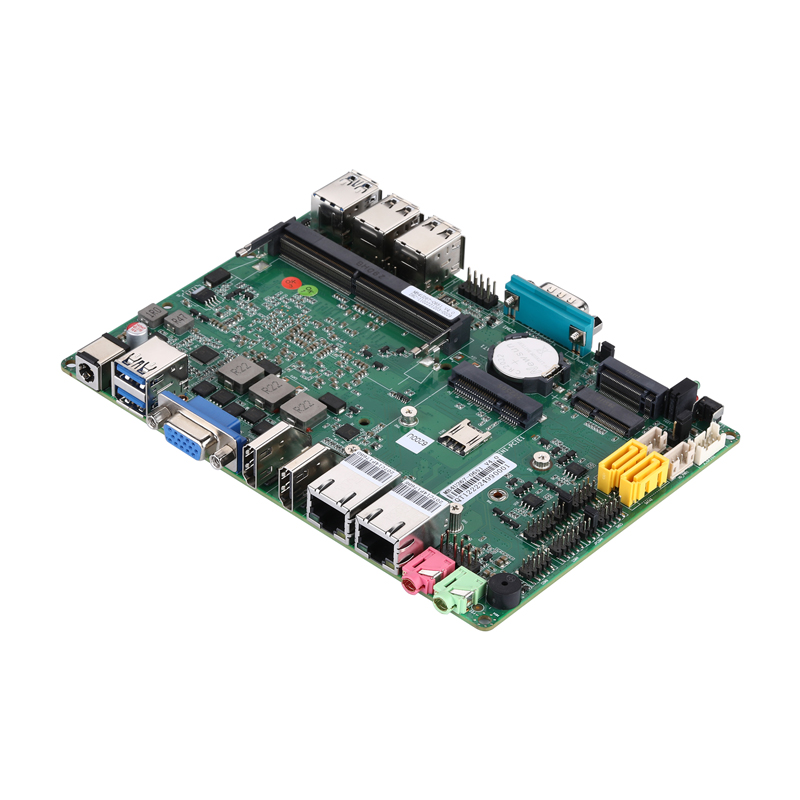

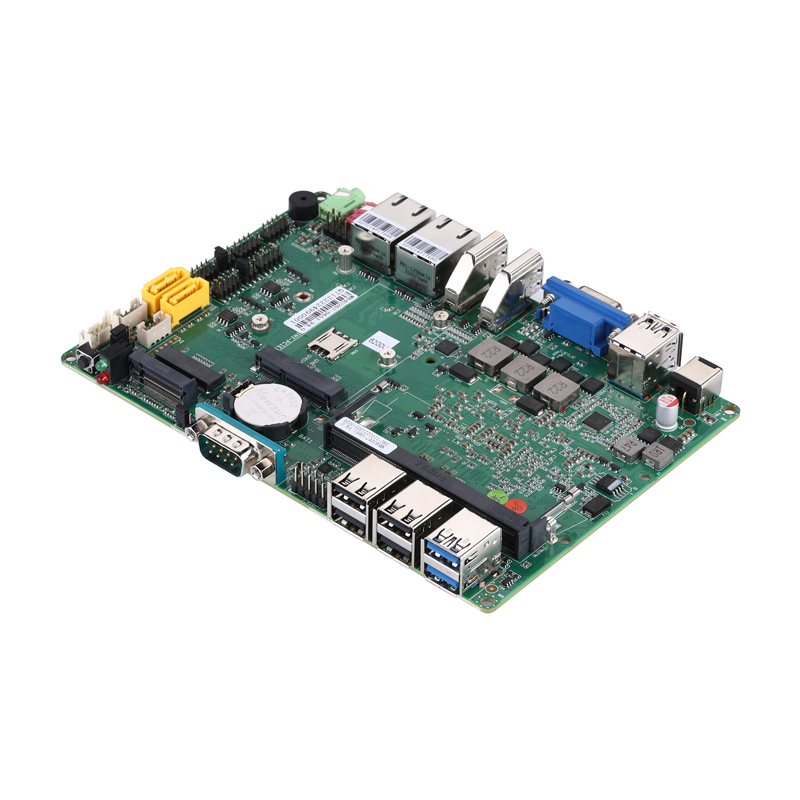

Motherboard MB4U267-0600 Series

Qotom motherboard supports 6th–8th Gen Intel CPUs, dual HDMI, VGA, rich I/O with 6 × RS-232 (2 configurable as RS-485), dual LAN, and M.2/PCIe expansion for embedded systems.

NIC
2
USB
4 × USB 3.0, 4 × USB 2.0
RS-232
6
RS-485
COM3/4 Can Be Set Up As RS RS-485
VGA
1
PS/2
0
GPIO
0
Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

Main Features

  • Intel 6th Skylake-U Processor

  • Intel 7th Kabylake-U Processor

  • Intel 8th Kabylake-R-U Processor

  • 1 × VGA, 2 × HDMI, 6 × RS-232, 2 × RS-485

  • 4 × USB 3.0, 4 × USB 2.0, 1 × SATA 3.0

  • 1 × Mini-PCIe, 2 × M.2

  • 2 × Realtek Gigabit LAN

Specifications

Processor System
Dimension165 × 115mm
CPUIntel 6th Skylake-U Processor
Intel 7th Kabylake-U Processor
Intel 8th Kabylake-R-U Processor
Core NumberBy CPU
Max. SpeedBy CPU
L2 CacheBy CPU
ChipsetBy CPU
BIOSUEFI
Expansion Slot
Mini-PCIe1 × Mini PCIe, Half-length Mini PCIe for Wi-Fi, Full-
length Mini PCIe for 4G by Default
M.21 × M.2 for SSD (M key, Type: 2280)
M.21 × M.2 for Wi-Fi (E key, Type: 2230)
Memory
TechnologyDDR4 2133MHz SDRAM
Max.16GB
Socket1 × SO-DIMM
Graphics
ControllerBy CPU
VRAMShared Memory
VGA1
LVDSNo
HDMI2 (Support HDMI 1.4a)
Multi DisplayYes
Ethernet
Interface10/100/1000Mbps
Controller2 × Realtek Gigabit LAN
Connector2 × RJ-45
Audio
ControllerRealtek HD Audio
SATA
Max. Data Transfer RateSATA 3.0 (6.0Gb/S)
Accessories
AccessoriesCable for HDD, Cable for Serial Port
Real I/O
DC-IN1
HDMI2
VGA1
Ethernet2
USB2 × USB 3.0
Audio2 (Mic-in, Line-out)
Front I/O
Power Button1
LED1 × Power LED, 1 × HDD LED
USB2 × USB 3.0, 4 × USB 2.0
Serial Port1 × RS-232
Internal Connector
TPM1 (Option)
VGA Header1, 2 × 5Pin, Pitch 2.0mm
Serial Port5, 2 × 5Pin, Pitch 2.0mm

COM3/COM4 support 5V/12V
RS-485COM3/4 can be set up as RS-485
SATA1 × SATA 3.0 (6.0Gb/S),

1, Only for Corei5/i7(Option)
SATA PWR Connector1, 1 × 4Pin, Pitch PH2.0mm
SIM Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
Clear CMOS JumperYes, 1 × 3Pin, Pitch 2.0mm
GPIO Header1, 2 × 5Pin, Pitch 2.0mm
USB Header1, 1 × 4Pin, Pitch 2.54mm
Front Panel Header1, 2 × 5Pin, Pitch 2.54mm
Speakers Header1, 2 × 5Pin, Pitch 2.54mm
Power Header1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin
(Option)
Watchdog Timer
OutputFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min
Power Requirement
Input PWR12V DC in, 5.5mm/2.5mm
Environment
Operating Temperature0-50 ℃
OS Support
OSWindows 10, Linux
Windows 7 (Only for 6th Gen Skylake)

In the box

Packing List

NO.CategoryQuantityRemark
1Motherboard1
2HDD cable1
3Radiator1Option
4Fan1Option
5Serial cableSeveral Depending on the model
ItemQuantity
  • 1
    Motherboard
    1
  • 2
    HDD cable
    1
  • 3
    Radiator
    Option
    1
  • 4
    Fan
    Option
    1
  • 5
    Serial cable
    Depending on the model
    Several

Models & options

Ordering and Specifications Information

Quick Order Model: MB4U267-0651

Ordering CodeCode NameProcessor TypeProcessor Number# of Cores# of Threads Base FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP
MB4U267-0611SkylakeCeleron3855U221.6GHz/2MIntel HD 51015W
MB4U267-0612SkylakeCeleron3955U222.0GHz/2MIntel HD 51015W
MB4U267-0631SkylakeCore i36100U242.3GHz/3MIntel HD 52015W
MB4U267-0651SkylakeCore i56200U242.3GHz2.8GHz3MIntel HD 52015W
MB4U267-0671SkylakeCore i76500U242.5GHz3.1GHz4MIntel HD 52015W
MB4U267-0711Kaby LakeCeleron3865U221.8GHz/2MIntel HD 61015W
MB4U267-0712Kaby LakeCeleron3965U222.2GHz/2MIntel HD 61015W
MB4U267-0731Kaby LakeCore i37100U242.4GHz/3MIntel HD 62015W
MB4U267-0751Kaby LakeCore i57200U242.5GHz3.1GHz3MIntel HD 62015W
MB4U267-0771Kaby LakeCore i77500U242.7GHz3.5GHz4MIntel HD 62015W
MB4U267-0811Kaby Lake RCeleron3867U221.8GHz/2MIntel HD 61015W
MB4U267-0821Kaby Lake RPentium4417U222.3GHz/2MIntel HD 61015W
MB4U267-0831Kaby Lake RCore i38130U242.0GHz3.40GHz4MIntel UHD 62015W
MB4U267-0851Kaby Lake RCore i58250U481.6GHz3.4GHz6MIntel UHD 62015W
MB4U267-0871Kaby Lake RCore i78550U481.8GHz4.0GHz8MIntel UHD 62015W
MB4U267-0611Skylake
Code Name
Skylake
Processor Type
Celeron
Processor Number
3855U
# of Cores
2
# of Threads
2
Base Frequency
1.6GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 510
TDP
15W
MB4U267-0612Skylake
Code Name
Skylake
Processor Type
Celeron
Processor Number
3955U
# of Cores
2
# of Threads
2
Base Frequency
2.0GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 510
TDP
15W
MB4U267-0631Skylake
Code Name
Skylake
Processor Type
Core i3
Processor Number
6100U
# of Cores
2
# of Threads
4
Base Frequency
2.3GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 520
TDP
15W
MB4U267-0651Skylake
Code Name
Skylake
Processor Type
Core i5
Processor Number
6200U
# of Cores
2
# of Threads
4
Base Frequency
2.3GHz
Max Turbo Frequency
2.8GHz
Cache
3M
Processor Graphics
Intel HD 520
TDP
15W
MB4U267-0671Skylake
Code Name
Skylake
Processor Type
Core i7
Processor Number
6500U
# of Cores
2
# of Threads
4
Base Frequency
2.5GHz
Max Turbo Frequency
3.1GHz
Cache
4M
Processor Graphics
Intel HD 520
TDP
15W
MB4U267-0711Kaby Lake
Code Name
Kaby Lake
Processor Type
Celeron
Processor Number
3865U
# of Cores
2
# of Threads
2
Base Frequency
1.8GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 610
TDP
15W
MB4U267-0712Kaby Lake
Code Name
Kaby Lake
Processor Type
Celeron
Processor Number
3965U
# of Cores
2
# of Threads
2
Base Frequency
2.2GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 610
TDP
15W
MB4U267-0731Kaby Lake
Code Name
Kaby Lake
Processor Type
Core i3
Processor Number
7100U
# of Cores
2
# of Threads
4
Base Frequency
2.4GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 620
TDP
15W
MB4U267-0751Kaby Lake
Code Name
Kaby Lake
Processor Type
Core i5
Processor Number
7200U
# of Cores
2
# of Threads
4
Base Frequency
2.5GHz
Max Turbo Frequency
3.1GHz
Cache
3M
Processor Graphics
Intel HD 620
TDP
15W
MB4U267-0771Kaby Lake
Code Name
Kaby Lake
Processor Type
Core i7
Processor Number
7500U
# of Cores
2
# of Threads
4
Base Frequency
2.7GHz
Max Turbo Frequency
3.5GHz
Cache
4M
Processor Graphics
Intel HD 620
TDP
15W
MB4U267-0811Kaby Lake R
Code Name
Kaby Lake R
Processor Type
Celeron
Processor Number
3867U
# of Cores
2
# of Threads
2
Base Frequency
1.8GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 610
TDP
15W
MB4U267-0821Kaby Lake R
Code Name
Kaby Lake R
Processor Type
Pentium
Processor Number
4417U
# of Cores
2
# of Threads
2
Base Frequency
2.3GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD 610
TDP
15W
MB4U267-0831Kaby Lake R
Code Name
Kaby Lake R
Processor Type
Core i3
Processor Number
8130U
# of Cores
2
# of Threads
4
Base Frequency
2.0GHz
Max Turbo Frequency
3.40GHz
Cache
4M
Processor Graphics
Intel UHD 620
TDP
15W
MB4U267-0851Kaby Lake R
Code Name
Kaby Lake R
Processor Type
Core i5
Processor Number
8250U
# of Cores
4
# of Threads
8
Base Frequency
1.6GHz
Max Turbo Frequency
3.4GHz
Cache
6M
Processor Graphics
Intel UHD 620
TDP
15W
MB4U267-0871Kaby Lake R
Code Name
Kaby Lake R
Processor Type
Core i7
Processor Number
8550U
# of Cores
4
# of Threads
8
Base Frequency
1.8GHz
Max Turbo Frequency
4.0GHz
Cache
8M
Processor Graphics
Intel UHD 620
TDP
15W
