Motherboard MB3U422-0500 Series

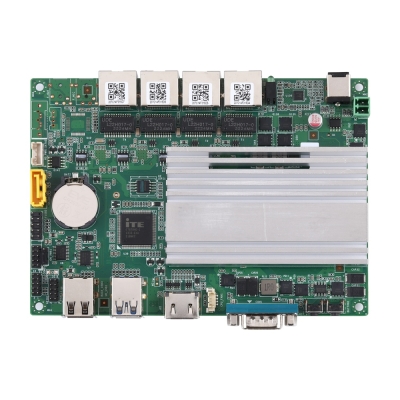

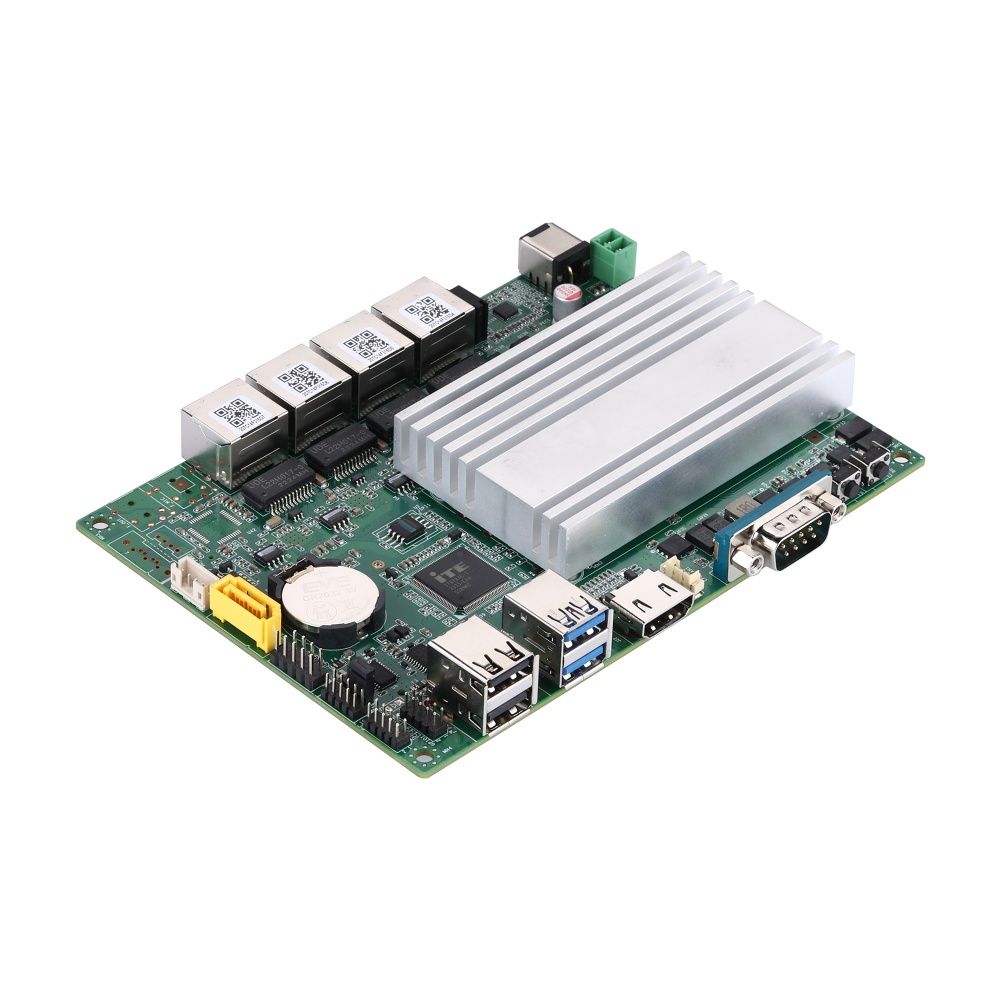

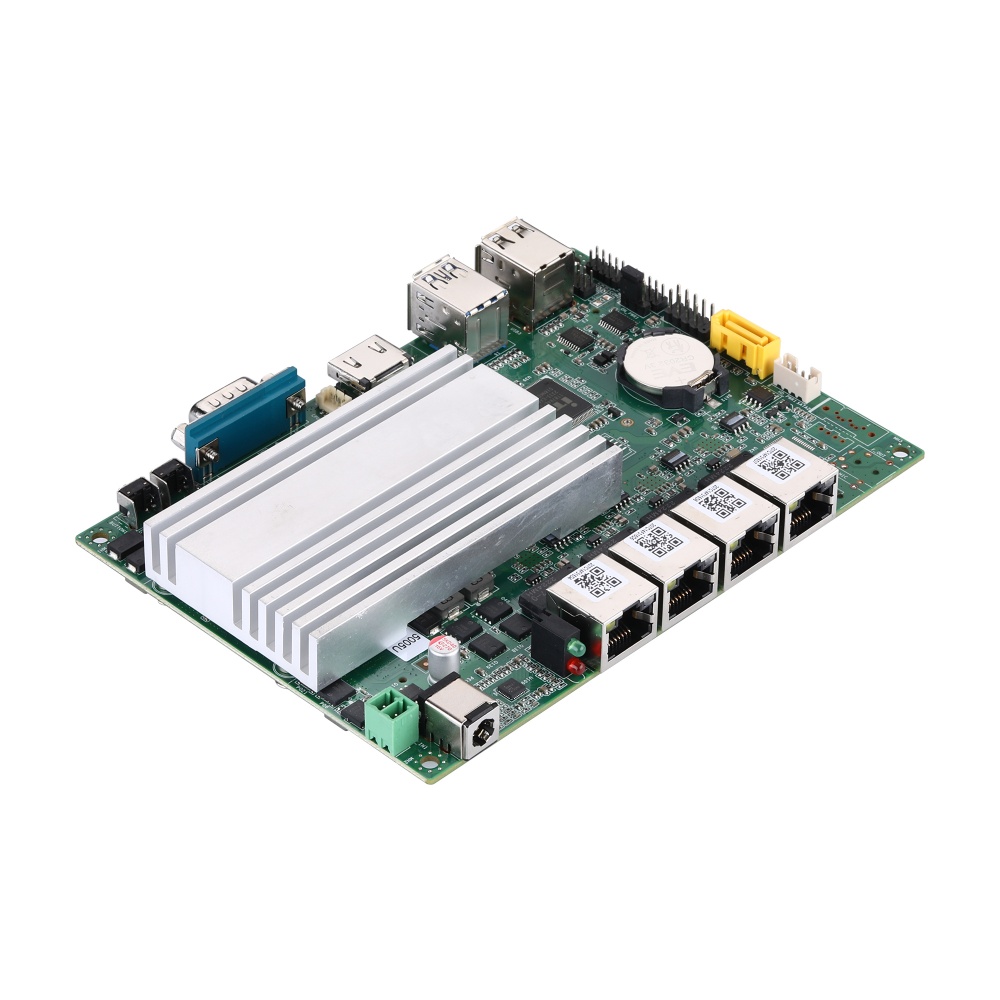

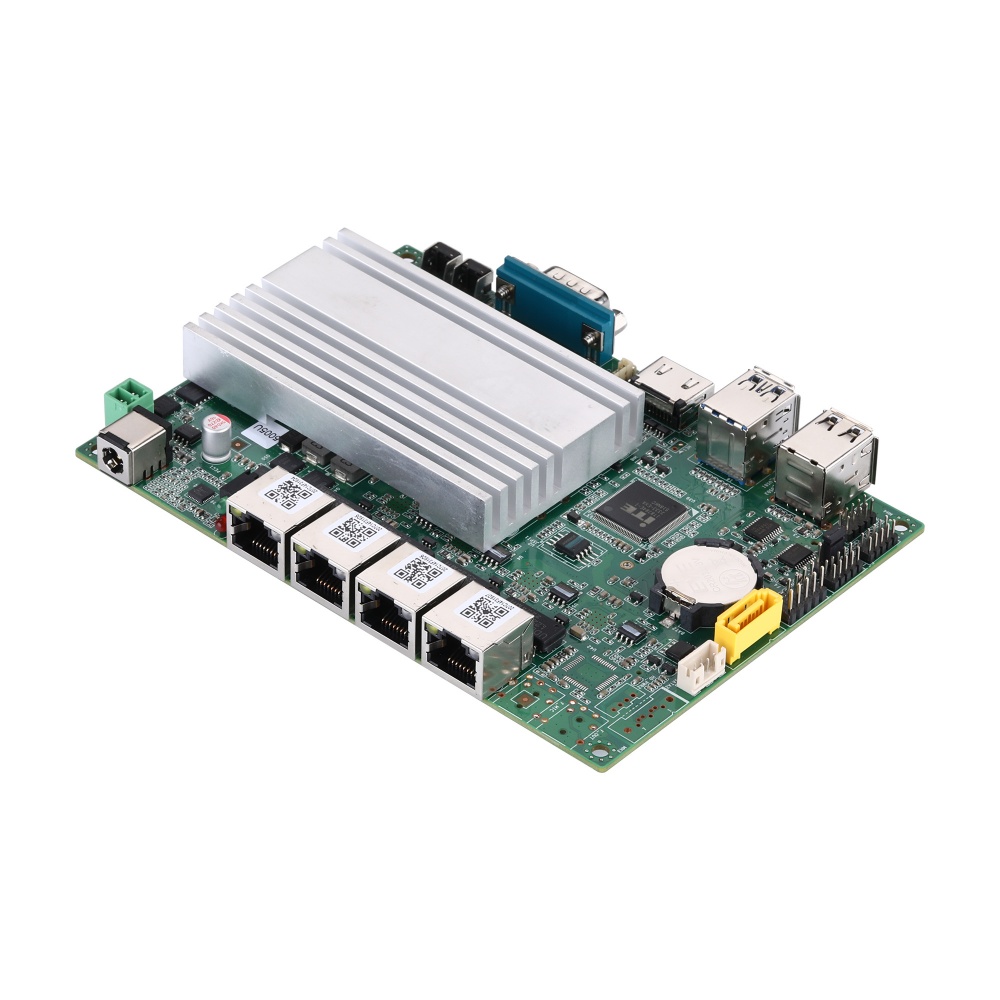

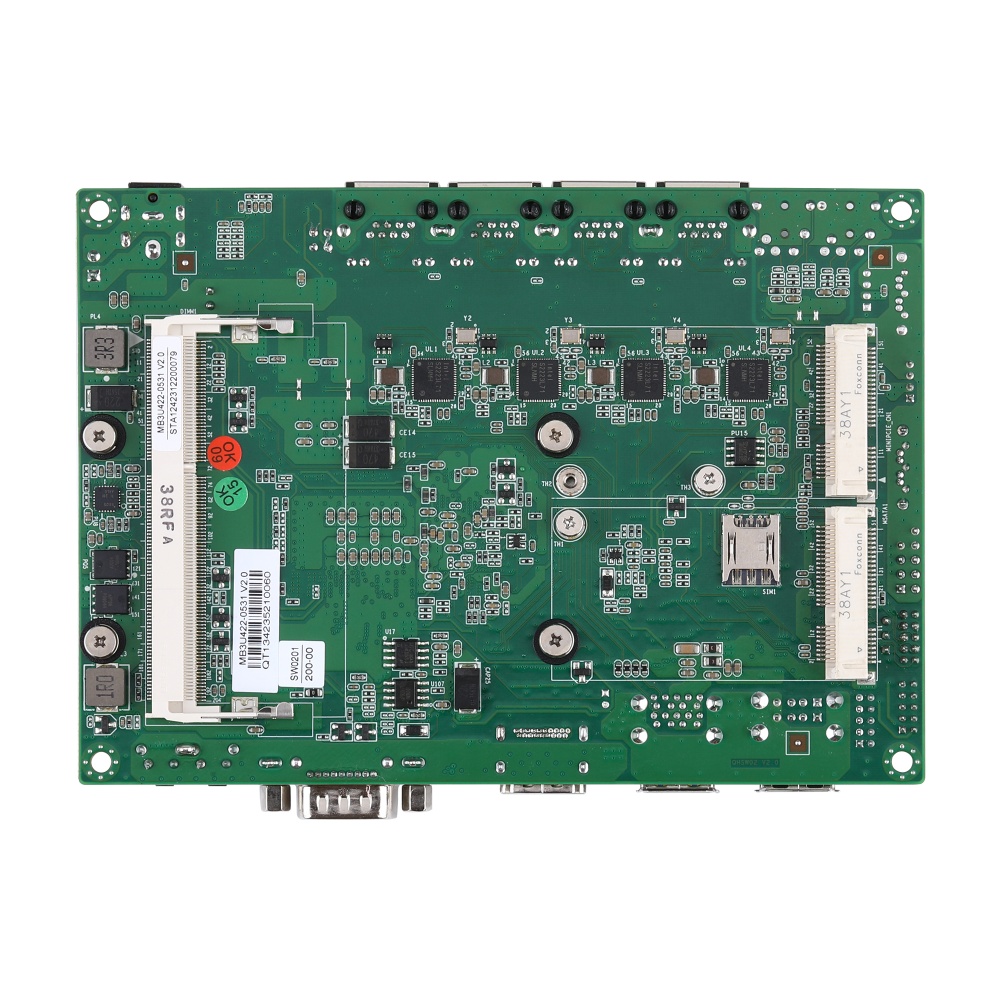

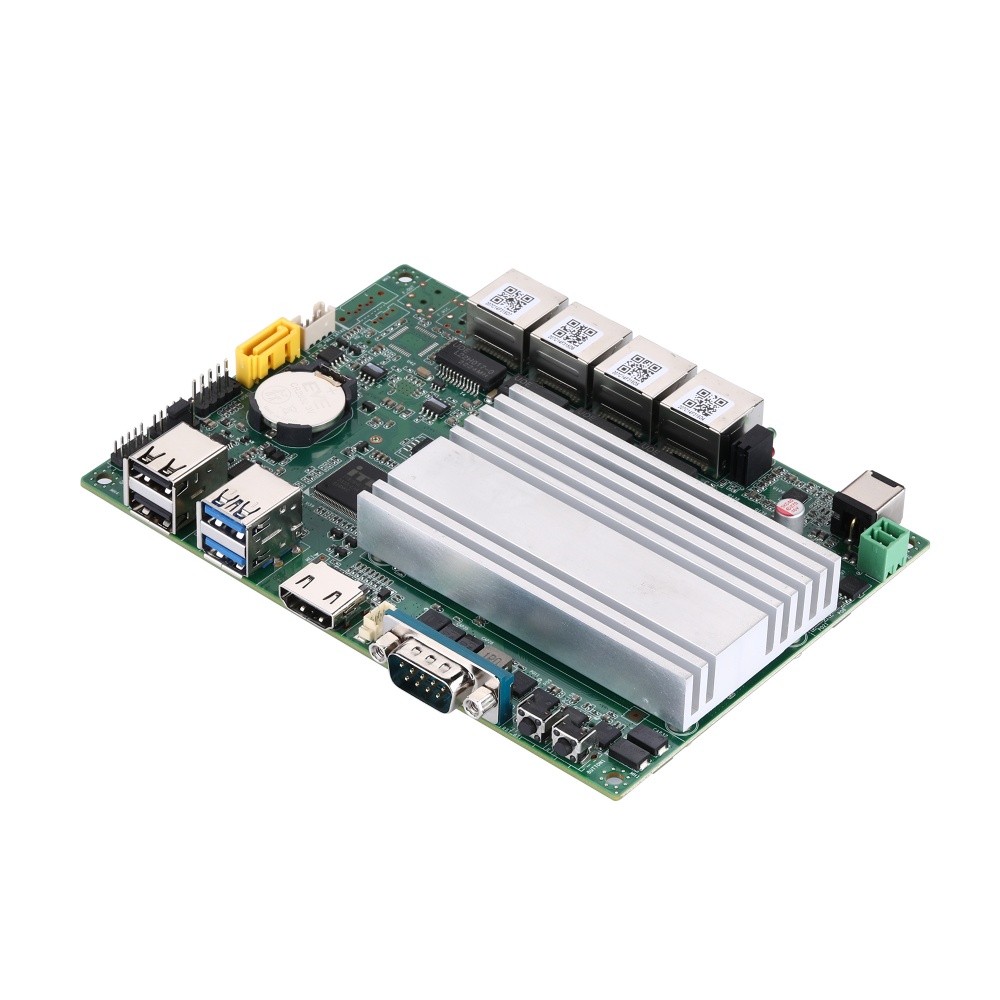

Qotom compact mini motherboard powered by Intel 4th Gen Haswell-U/Y and 5th Gen Broadwell-U processors. Features 1 x HDMI, RS-232, USB 3.0/2.0, Mini-PCIe, mSATA, and 4 x Intel 2.5G LAN ports (I225-V/I226-V), ideal for soft routers, firewalls, and network appliances.

Total of Network Interfaces
4
SFP(+)
0
10G RJ45
0
2.5G RJ45
4
1G RJ45
0
Serial Ports
1
Send Inquiry Explore specifications

Tell us the configuration and quantity you need.

Overview

Main Features

  • Intel 4th Haswell –U/Y Processor

  • Intel 5th Broadwell-U Processor

  • 1 × HDMI, 1 × RS-232

  • 2 × USB 3.0, 2 × USB 2.0, 1 × SATA 3.0

  • 1 × Mini-PCIe, 1 × mSATA

  • 4 × Intel I225-V/I226-V 2.5 Gigabit LAN

Specifications

Processor System
Dimension148 × 104mm
CPUIntel 4thHaswell –U/Y Processor
Intel 5thBroadwell-U Processor
Core NumberBy CPU
Max. SpeedBy CPU
L2 CacheBy CPU
ChipsetBy CPU
BIOSUEFI
Expansion Slot
Mini-PCIe1 × Mini PCIe
Full-length Mini PCIe for 4G
Half-length Mini PCIe for Wi-Fi by Default
mSATA1 × Full-length Mini PCIe for SSD
Memory
TechnologyDDR3L 1333/1600MHz SDRAM
Max.8GB
Socket1 × SO-DIMM
Graphics
ControllerBy CPU
VRAMShared Memory
HDMI1 (Support HDMI 1.4a)
Multi DisplayNo
Ethernet
Interface100/1000/2500Mbps
Controller4 × Intel I225-V/I226-V 2.5 Gigabit LAN
Connector4 × RJ-45
Audio
ControllerRealtek HD Audio (Option)
SATA
Max. Data Transfer RateSATA 3.0 (6.0Gb/S)
Accessories
AccessoriesCable for HDD
Real I/O
DC-IN1
LED1 × Power LED, 1 × HDD LED
Ethernet4
Audio2 (Mic-in, Line-out) (Option)
Front I/O
Power Button1 × Power Button, 1 × Reset Button
Serial Port1 × RS-232
HDMI1
USB2 × USB 3.0, 2 × USB 2.0
Internal Connector
Serial Port1, 2 × 5Pin, Pitch 2.0mm (Option)
SATA1 × SATA 3.0 (6.0Gb/S)
1, Only for Core i5/i7 (Option)
SATA PWR Connector1, 1 × 4Pin, Pitch PH2.0mm,
1, Only for Core i5/i7 (Option)
SIM Slot1
AutoStart JumperYes, 1 × 3Pin, Pitch 2.54mm
GPIO Header1, 2 × 5Pin, Pitch 2.0mm
USB Header1, 2 × 5Pin, Pitch 2.54mm
Front Panel Header1, 2 × 5Pin, Pitch 2.0mm
Power Header1, 1 × 2Pin, Pitch 3.5mm (Option)
Watchdog Timer
OutputFrom Super I/O to Drag RESETCON#
Interval256 Segments,0,1,2,3,,,255 sec/min
Power Requirement
Input PWR12V DC in, 5.5mm/2.5mm
Environment
Operating Temperature0-50 ℃
OS Support
OSWindows 7, Windows 10, Linux

In the box

Packing List

NO.CategoryQuantityRemark
1Motherboard1
2HDD cable1
3Radiator1Option
4Fan1Option
5Serial cableSeveral Depending on the model
ItemQuantity
  • 1
    Motherboard
    1
  • 2
    HDD cable
    1
  • 3
    Radiator
    Option
    1
  • 4
    Fan
    Option
    1
  • 5
    Serial cable
    Depending on the model
    Several

Models & options

Ordering and Specifications Information

Quick Order Model: MB3U422-0531

Ordering CodeCode NameProcessor TypeProcessor Number# of Cores# of Threads Base FrequencyMax Turbo Frequency CacheProcessor GraphicsTDP
MB3U422-0411HaswellCeleron2955U221.4GHz/2MIntel HD Graphics15W
MB3U422-0431HaswellCore i34005U241.7GHz/3MIntel HD 440015W
MB3U422-0451HaswellCore i54200U241.6GHz2.6GHz3MIntel HD 440015W
MB3U422-0471HaswellCore i74500U241.8GHz3.0GHz4MIntel HD 440015W
MB3U422-0432HaswellCore i34010Y241.3GHz/3MIntel HD 420011.5W
MB3U422-0452HaswellCore i54200Y241.4GHz1.9GHz3MIntel HD 420011.5W
MB3U422-0511BroadwellCeleron3205U221.5GHz/2MIntel HD Graphics15W
MB3U422-0512BroadwellCeleron3215U221.7GHz/2MIntel HD Graphics15W
MB3U422-0521BroadwellPentium3805U221.9GHz/2MIntel HD Graphics15W
MB3U422-0531BroadwellCore i35005U242.0GHz/3MIntel HD 550015W
MB3U422-0551BroadwellCore i55200U242.2GHz2.7GHz3MIntel HD 550015W
MB3U422-0571BroadwellCore i75500U242.4GHz3.0GHz4MIntel HD 550015W
MB3U422-0411Haswell
Code Name
Haswell
Processor Type
Celeron
Processor Number
2955U
# of Cores
2
# of Threads
2
Base Frequency
1.4GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD Graphics
TDP
15W
MB3U422-0431Haswell
Code Name
Haswell
Processor Type
Core i3
Processor Number
4005U
# of Cores
2
# of Threads
4
Base Frequency
1.7GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 4400
TDP
15W
MB3U422-0451Haswell
Code Name
Haswell
Processor Type
Core i5
Processor Number
4200U
# of Cores
2
# of Threads
4
Base Frequency
1.6GHz
Max Turbo Frequency
2.6GHz
Cache
3M
Processor Graphics
Intel HD 4400
TDP
15W
MB3U422-0471Haswell
Code Name
Haswell
Processor Type
Core i7
Processor Number
4500U
# of Cores
2
# of Threads
4
Base Frequency
1.8GHz
Max Turbo Frequency
3.0GHz
Cache
4M
Processor Graphics
Intel HD 4400
TDP
15W
MB3U422-0432Haswell
Code Name
Haswell
Processor Type
Core i3
Processor Number
4010Y
# of Cores
2
# of Threads
4
Base Frequency
1.3GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 4200
TDP
11.5W
MB3U422-0452Haswell
Code Name
Haswell
Processor Type
Core i5
Processor Number
4200Y
# of Cores
2
# of Threads
4
Base Frequency
1.4GHz
Max Turbo Frequency
1.9GHz
Cache
3M
Processor Graphics
Intel HD 4200
TDP
11.5W
MB3U422-0511Broadwell
Code Name
Broadwell
Processor Type
Celeron
Processor Number
3205U
# of Cores
2
# of Threads
2
Base Frequency
1.5GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD Graphics
TDP
15W
MB3U422-0512Broadwell
Code Name
Broadwell
Processor Type
Celeron
Processor Number
3215U
# of Cores
2
# of Threads
2
Base Frequency
1.7GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD Graphics
TDP
15W
MB3U422-0521Broadwell
Code Name
Broadwell
Processor Type
Pentium
Processor Number
3805U
# of Cores
2
# of Threads
2
Base Frequency
1.9GHz
Max Turbo Frequency
/
Cache
2M
Processor Graphics
Intel HD Graphics
TDP
15W
MB3U422-0531Broadwell
Code Name
Broadwell
Processor Type
Core i3
Processor Number
5005U
# of Cores
2
# of Threads
4
Base Frequency
2.0GHz
Max Turbo Frequency
/
Cache
3M
Processor Graphics
Intel HD 5500
TDP
15W
MB3U422-0551Broadwell
Code Name
Broadwell
Processor Type
Core i5
Processor Number
5200U
# of Cores
2
# of Threads
4
Base Frequency
2.2GHz
Max Turbo Frequency
2.7GHz
Cache
3M
Processor Graphics
Intel HD 5500
TDP
15W
MB3U422-0571Broadwell
Code Name
Broadwell
Processor Type
Core i7
Processor Number
5500U
# of Cores
2
# of Threads
4
Base Frequency
2.4GHz
Max Turbo Frequency
3.0GHz
Cache
4M
Processor Graphics
Intel HD 5500
TDP
15W
